Bambu Lab X2D TPU Dual Spool Top Mount Filament Feeder completely solves flexible filament printing pain points with fully stable dual-path feeding

Bambu Lab X2D Exclusive Dual-Spool TPU Top-Mounted Filament Holder Eliminates Flexible Filament Printing Pain Points with Ultimate Dual-Path Feeding Stability

The Bambu Lab X2D dual-nozzle architecture offers an efficient multi-material printing experience, but the original long-path and bent PTFE cable design has consistently been a printing bottleneck for flexible filaments like TPU 85A/90A. This results in extruder gear slipping, insufficient layer adhesion, filament breakage mid-print, and models that are loose and brittle. Furthermore, feeding delays and surface quality fluctuations are common during high-speed printing

This dual-spool top-mounted TPU support, custom-designed for the X2D, optimizes the feeding path at its source, perfectly matching the dual-extruder feeding requirements, and enabling flexible filaments to achieve the stable printing success rates typically seen with rigid filaments

I. Core Optimizations: Two-Dimensional Solution to Feeding Resistance Problems

1. Top-mounted short and straight path, reducing resistance from the source: By adopting a top-mounted filament spool solution, the filament's delivery path from the spool to the extruder is significantly shortened and straightened throughout. This completely eliminates feeding resistance caused by multiple bends and wall friction in the PTFE cable, fundamentally solving extruder gear slipping and feeding lag issues, and significantly improving feeding accuracy

2. Low-friction guiding structure, zero filament deformation: Equipped with adaptive low-friction guide holes (upgradable with PTFE liners), it provides smooth guidance for flexible filaments in non-extrusion sections, preventing TPU from being compressed flat or stretched during delivery. This ensures precise and controllable feeding volume for every segment, consistent layer thickness, and results in models that are no longer loose, with stronger layer adhesion

3. Dual-spool design, adapted for X2D dual-extruder architecture: The dual filament spool positions correspond one-to-one with dual-nozzle feeding, supporting printing with dual-color TPU and flexible filaments of different hardnesses. Alternatively, two spools can be placed (one in use, one as backup), eliminating the need to change filament mid-print for large models printing for extended periods, providing more peace of mind for continuous printing

II. Structural Highlights: Quick to Install, Economical to Use

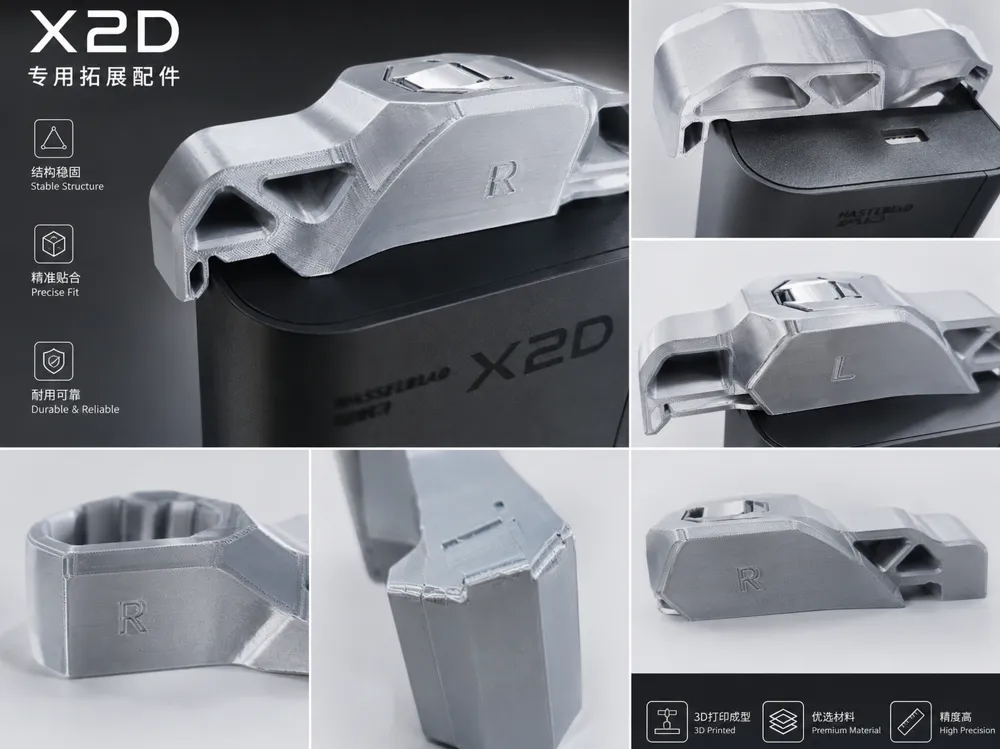

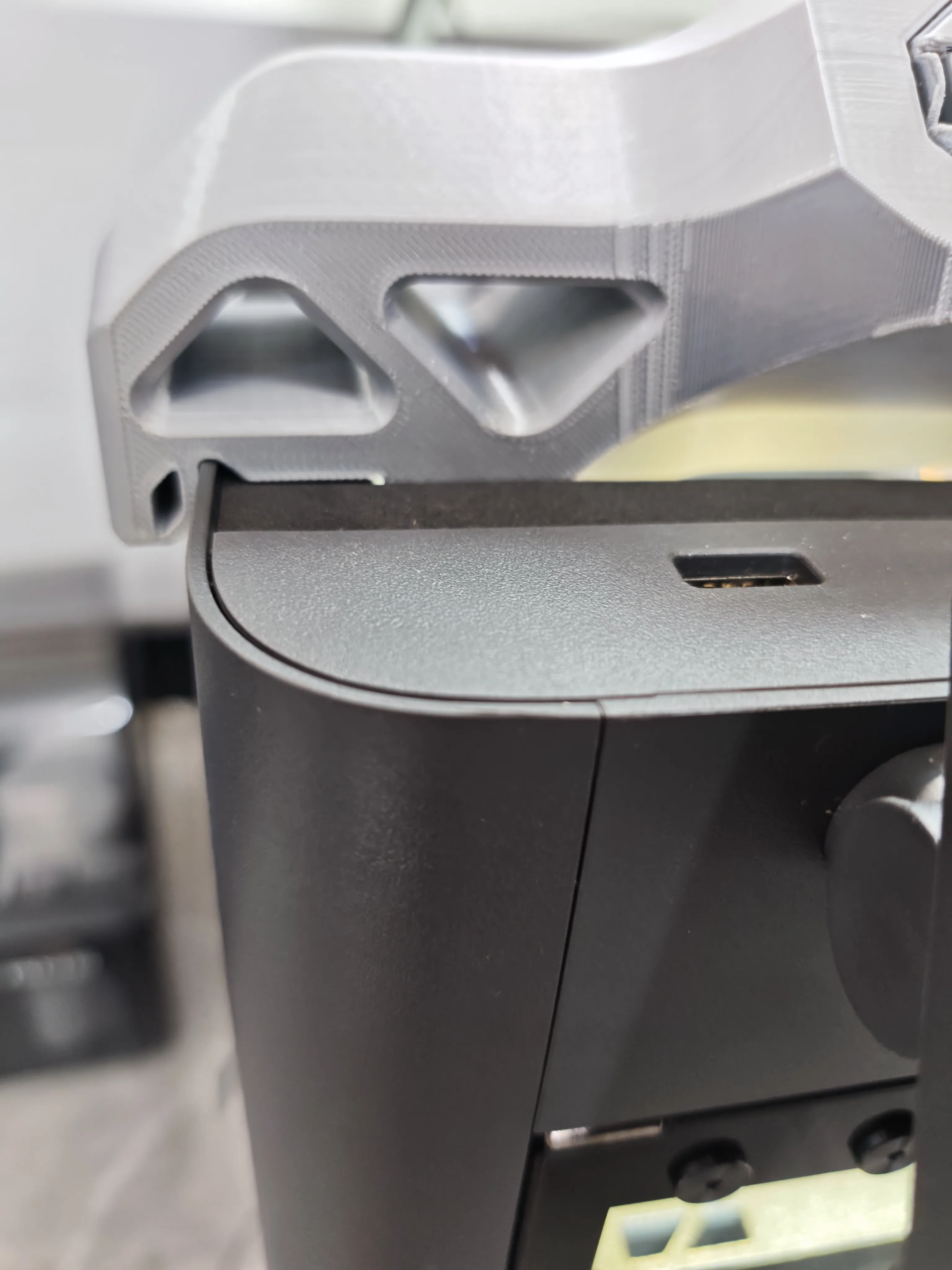

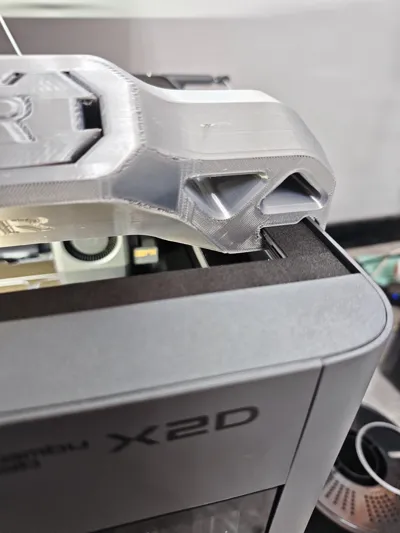

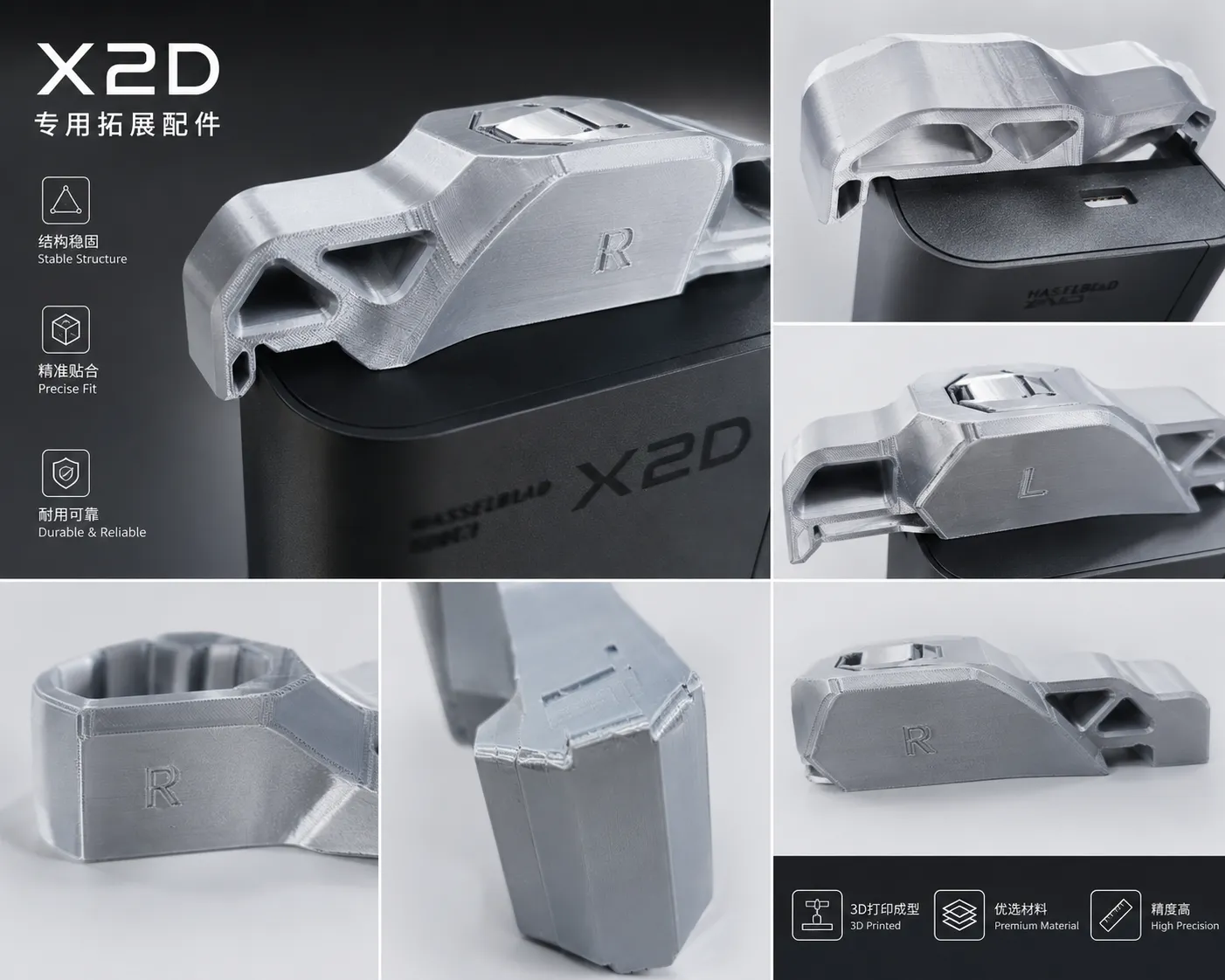

• Screw-less quick installation, snap-and-use: Utilizes a "thrust arch" mechanical structure combined with an elastic buckle design, allowing it to be fixed by simply snapping it into the printer frame. No screws are needed, no disassembly of the original machine, and no damage to the body structure, meaning even beginners can install it correctly in one second. The accompanying foolproof buckle design ensures a unique installation direction, completely preventing incorrect installation

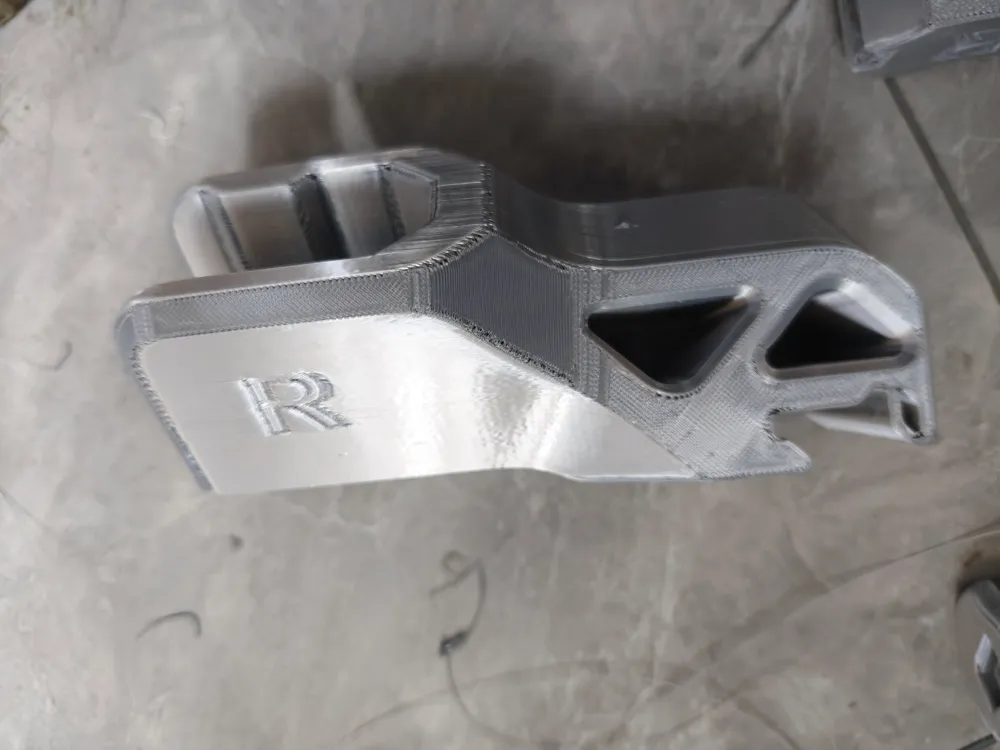

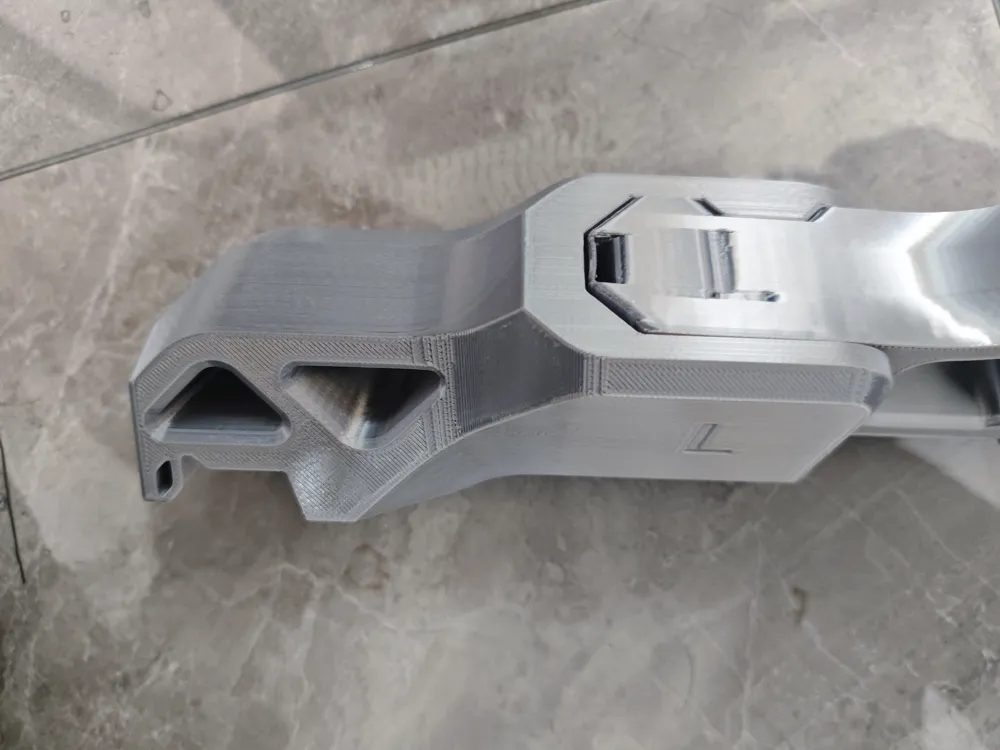

• Integrated molding, self-printing with zero supports: The model features an overall integrated design, requiring no added supports for self-printing. Assemble directly after printing, saving both effort and material

• Modular maintenance, lower long-term cost: High-wear parts (such as 3D printed torsion springs) feature a separate, independent design, allowing them to be replaced individually after wear. This eliminates the need to scrap the entire frame, offering better cost-effectiveness for long-term use



III. Enhanced All-Scenario Printing Experience

• TPU flexible filament printing: Improves issues with excessively deep gear marks and uneven extrusion, resulting in stronger layer adhesion, higher model strength, and eliminating brittle, easily broken parts

• High-speed printing optimization: Eliminates speed fluctuations caused by feeding delays, resulting in finer surface quality during high-speed printing, with no fuzzy edges or smeared layers

• Multi-material / dual-color printing: Dual-spool positions support switching between flexible filaments of different hardnesses and colors, maximizing creative freedom

• Non-destructive modification and adaptation: Perfectly adapted for the Bambu Lab X2D body frame, leaving no residue upon installation or removal, and can be restored to its original factory state at any time

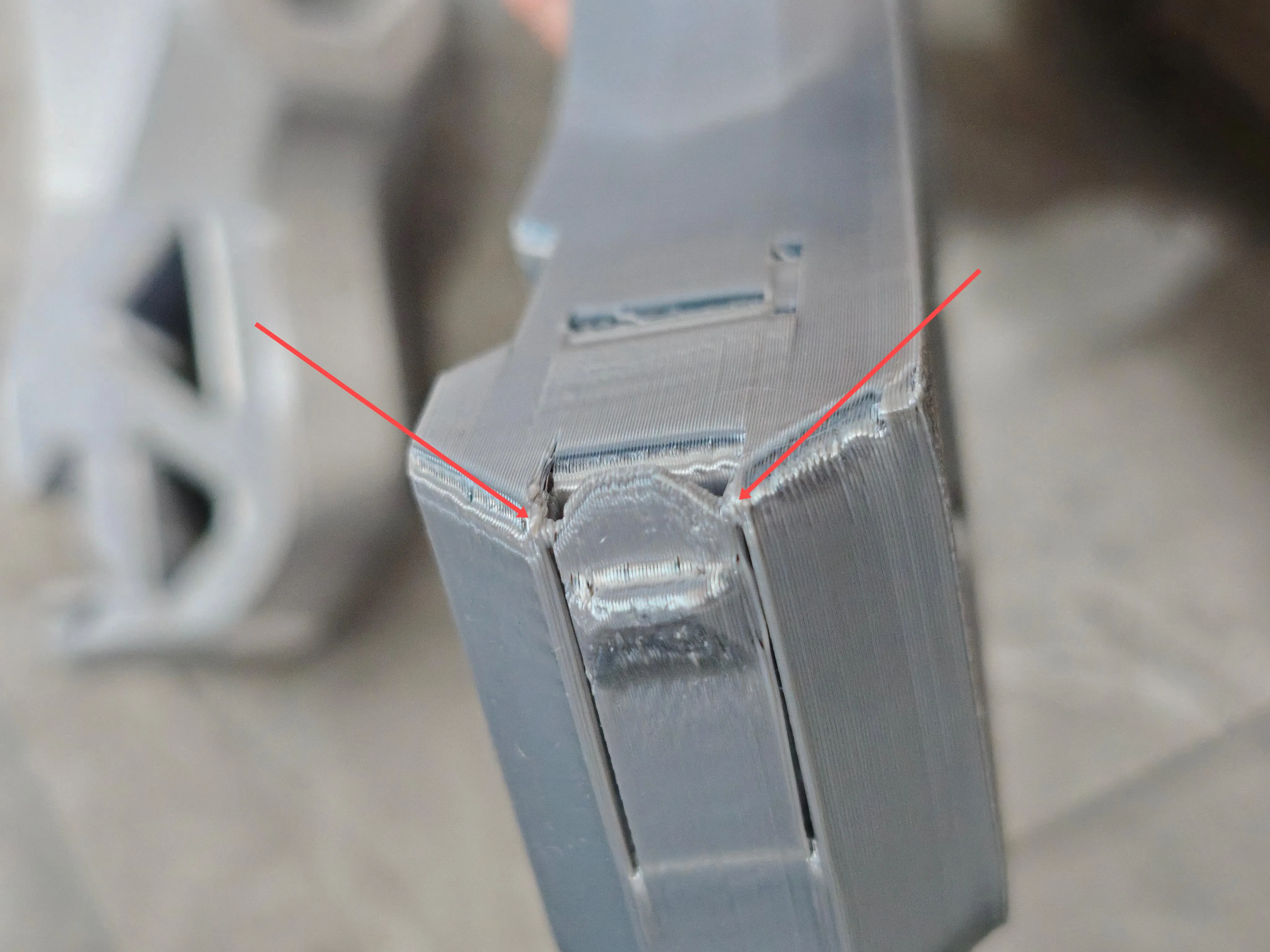

Printing Tip: When printing this bracket using highly adhesive filaments like PETG, please pay attention to the first layer adhesion, promptly check for any sticking, and ensure the assembly precision of the finished product

Finally, make sure to read to the end. When printing with PETG, pay attention and check if there is any sticking
