🎧 Custom Tweeter Pods for GLADEN ZETA ZM70

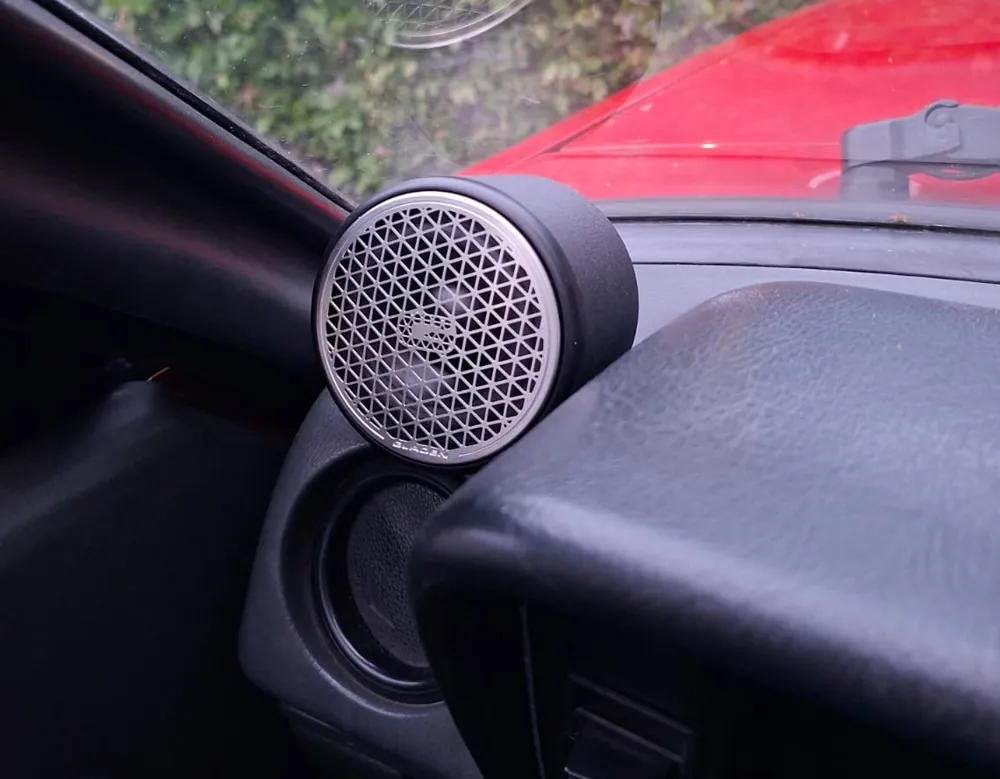

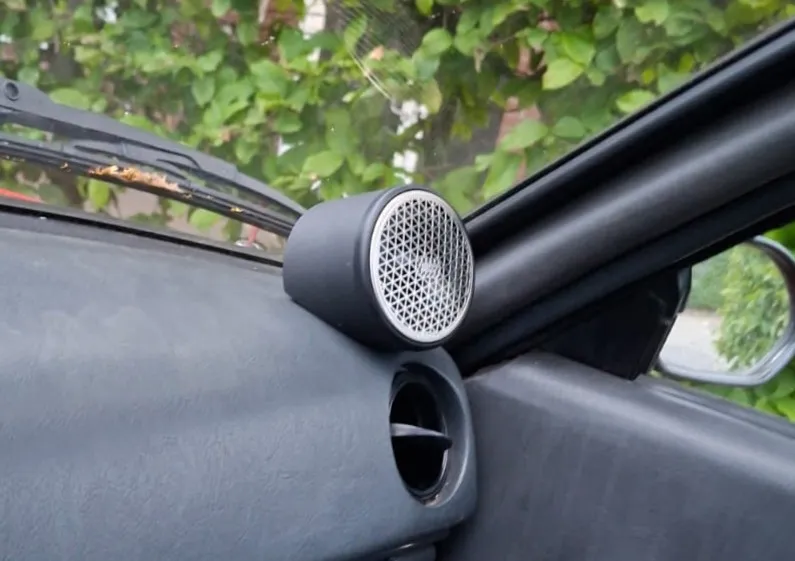

This project offers custom surface-mounted pods (Tweeter Pods) for the Gladen ZETA ZM70 full-range/midrange speakers. Perfectly suited for clean installation in the car (e.g. on the dashboard or A-pillar) to optimally align the speakers with the driver's position

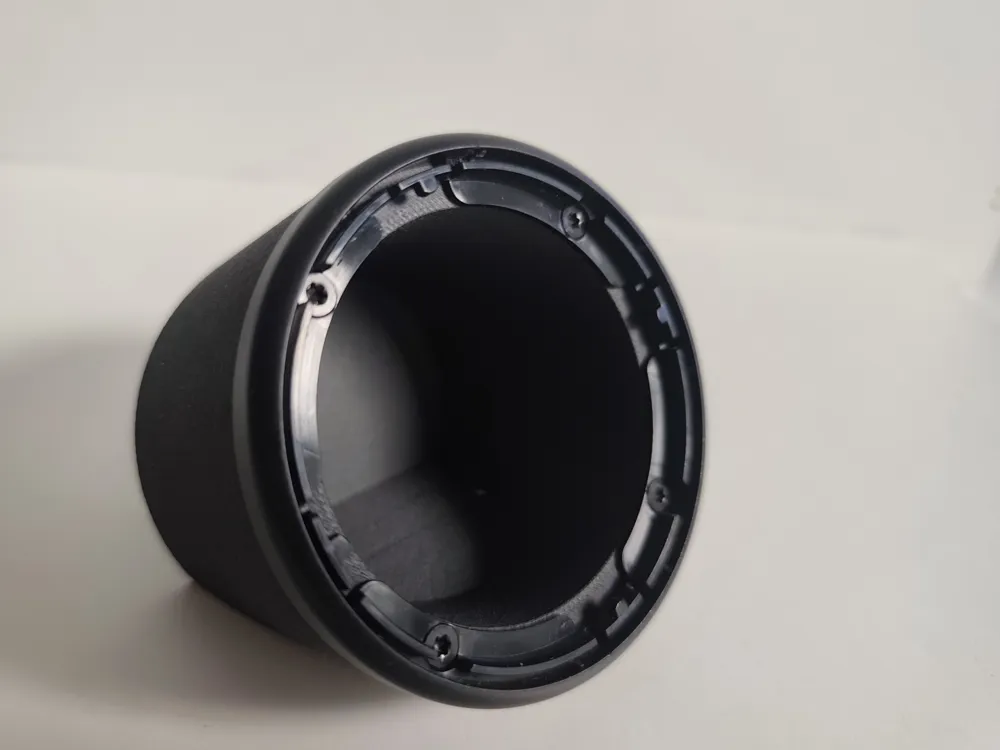

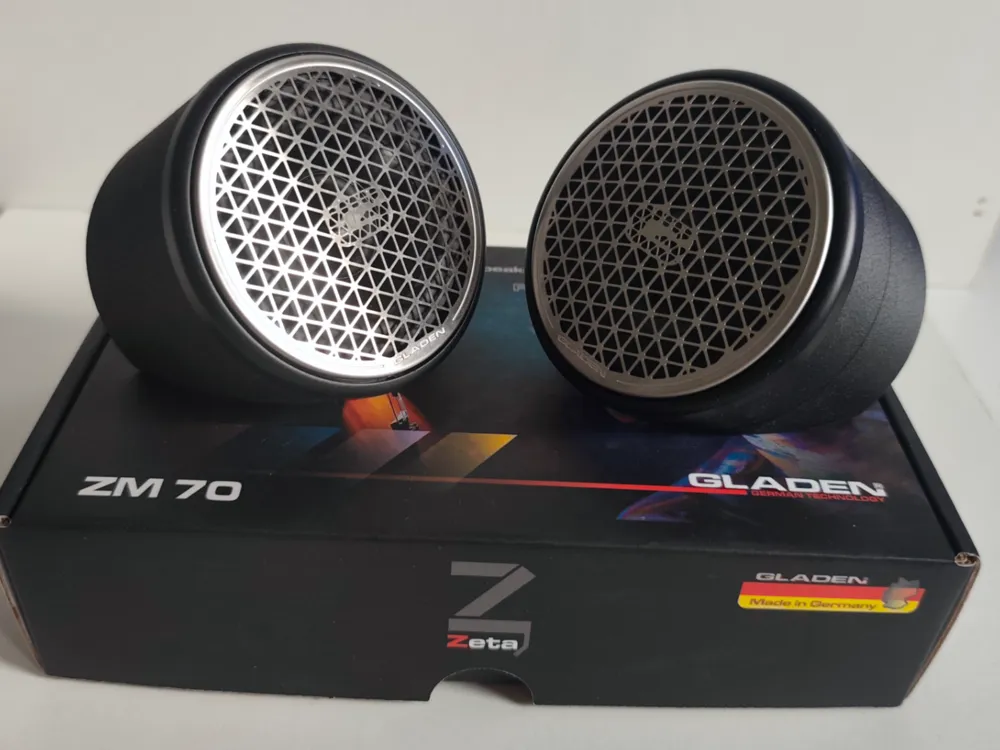

In the photos, you can see the bare enclosure with precise cutouts for mounting, while the title image shows the impressive end result with fully assembled speakers on the original packaging
🛠️ Features & Design Details

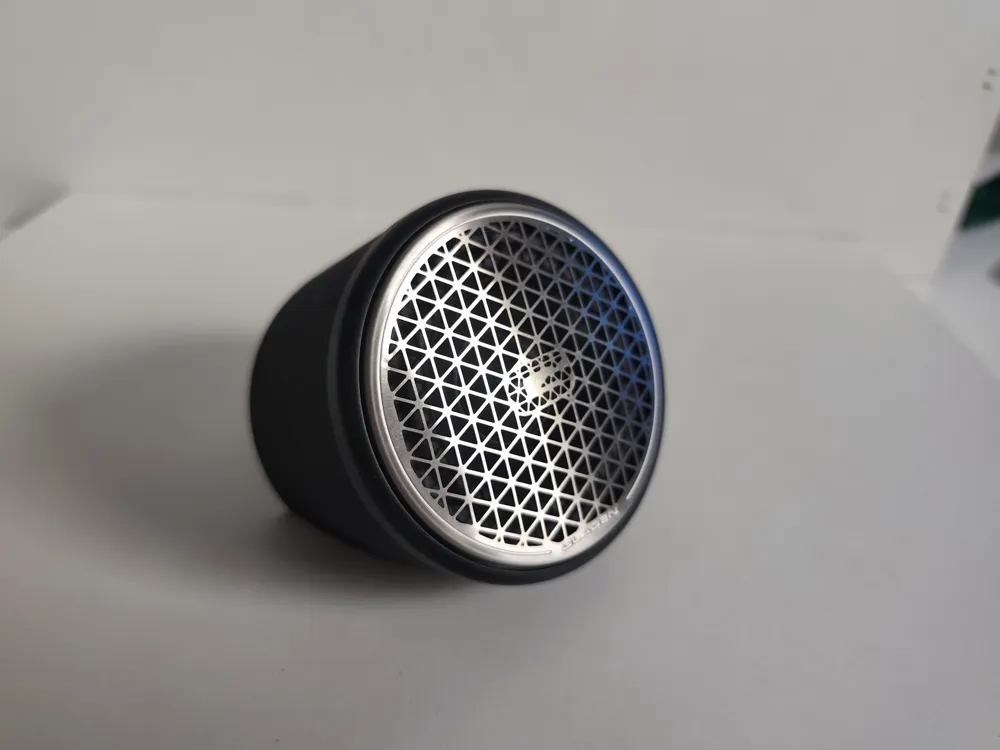

- Perfect Fit: Precisely matched to the diameter and depth of the ZM70 chassis

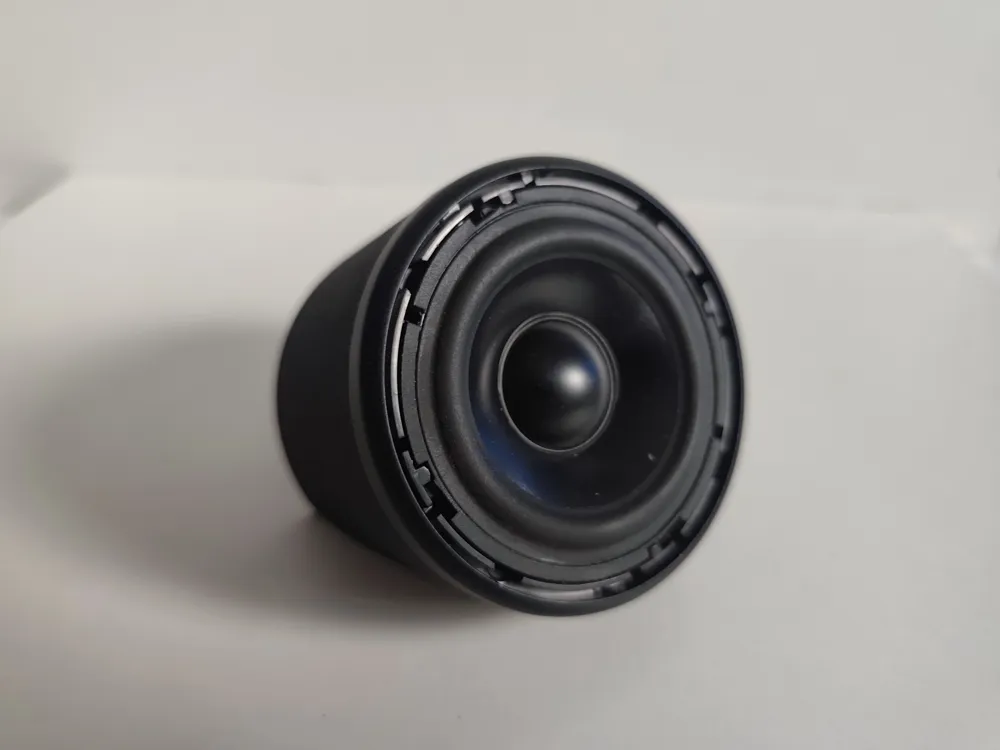

- Stable Mounting: Integrated screw points on the underside for secure speaker fixation
- Optimized Acoustics: Closed enclosure volume, specifically designed for clean reproduction in the high and mid-range
- Clean Look: Elegant, slightly angled shape for a visually appealing integration into the vehicle interior
- Symmetrical Dual Design (Left & Right): The set consists of two mirror-image enclosures – optimized for the driver and passenger sides
- Integrated Cable Management: Each pod has a subtle cable opening on the back for clean and invisible cable routing
🖨️ Print Recommendations (Print Settings)
Since the enclosures in the car are often exposed to direct sunlight and high temperatures, it is highly recommended to use durable material
- Material: ASA or PETG (Do not use standard PLA, as it can deform in the car during summer!)
- Infill: At least 20% – 30% (Gyroid for maximum stability and vibration damping)
- Walls (Wall Loops): 3 – 4 for a robust outer shell and solid threads
- Support: Depending on print orientation, minimal supports on the underside or in the inner ring are advisable
