0.2mm nozzle, 0.12mm layer, 4 walls, 15% infill

Designer

14 h

3 plates

Open in Bambu Studio

Boost

Released

Bill of Materials

Bambu Filaments

Select all

White(30106) / Filament with spool / 1kg

PETG Basic

Black(30105) / Filament with spool / 1kg

PETG Basic

List other parts

Phillips Flat Head Screws for Woodx1/2" x 3: 90294A148

Description

Content has been automatically translated.

Show original

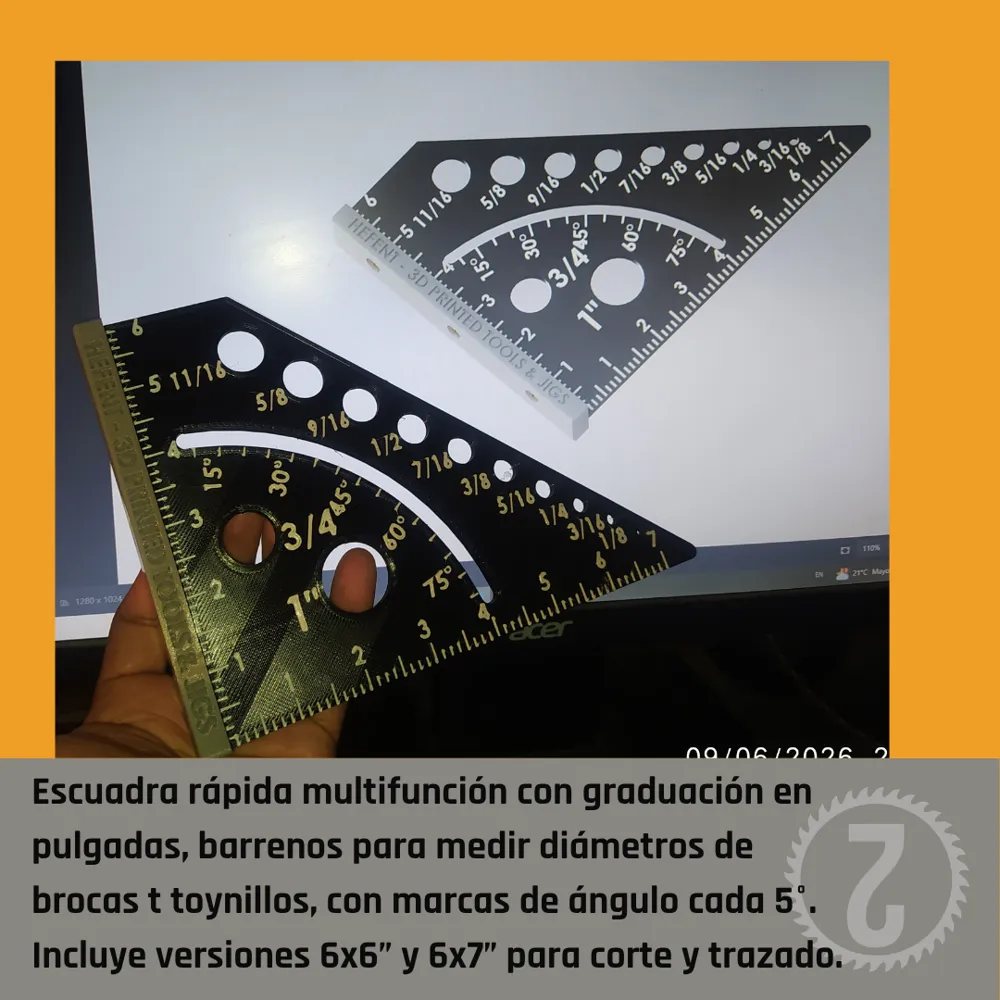

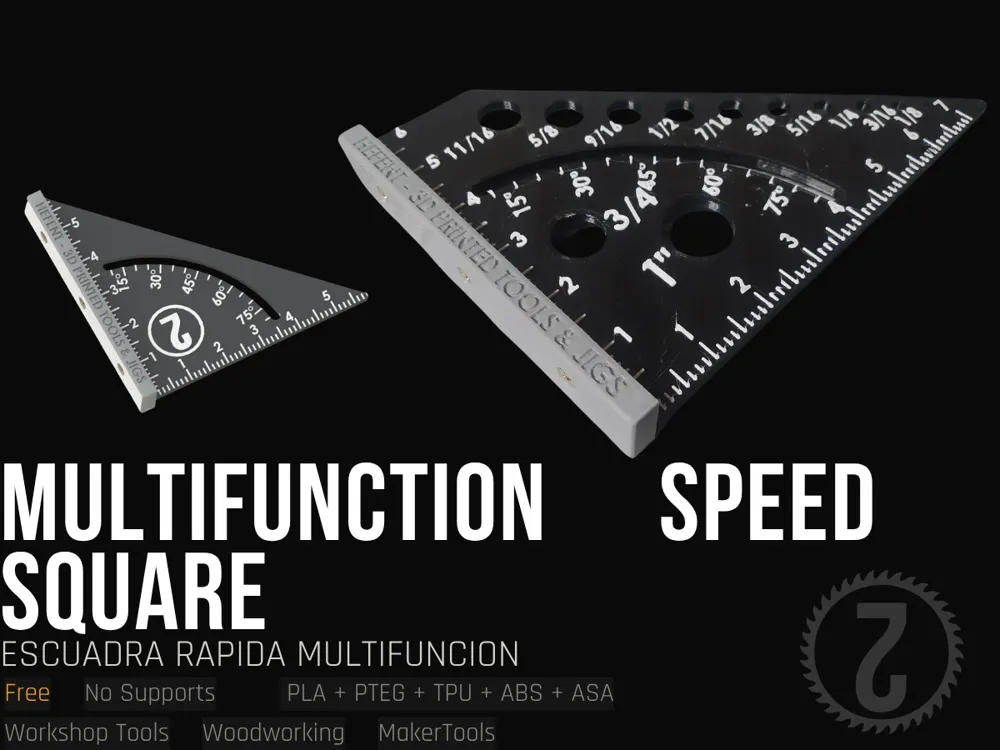

This multifunction speed square is designed for precision layout, measurement, and cutting tasks in woodworking and DIY projects.

In addition to inch graduations on both sides, it features built-in holes for quickly checking drill bit, screw, or rod diameters—making it a versatile tool for any workshop.

The square also includes angle markings in 5° increments for fast and accurate angle reference.

This multifunction square is designed for highly precise layout, measurement, and cutting tasks in woodworking and DIY projects.
In addition to having inch graduations on both sides, it includes holes for quickly checking the diameter of drill bits, screws, or rods, making it a very versatile tool for the workshop.
It also features angle graduations in 5° increments for quick and accurate reference.

✅ Dual measurement scale in inches (both sides) | Inch graduations on both sides

✅ Integrated drill/diameter gauge holes | Holes for measuring drill bit and screw diameters

✅ Angle markings every 5 degrees | Angle markings every 5 degrees

✅ Includes two versions: 6x6” and 6x7” | Includes two versions: 6x6” and 6x7”

✅ 6x7” version ideal as a circular saw guide for 90° cuts | The 6x7” version is ideal as a guide for 90° cuts with a circular saw

✅ Printed in two parts / Easy assembly | Printed in two parts / Easy assembly
