Mecha Dinosaur Series Four — 04 Mecha T-Rex Remastered

Produced by Gongyu Mecha

Mecha Dinosaur Series Four — 04 Mecha T-Rex Remastered

Gongyu Mecha Works:

Bagua Mecha (modeled after famous mountains and rivers in various provinces, such as Chaohu Lake, Mount Li, Badaling, Namtso Lake, etc.);

Mythical Mecha (modeled after mythical figures, such as Sun Wukong, Yang Jian, Bull Demon King, etc.);

Classic of Mountains and Seas Series (biological form series, mechanical form series, fighter series, aircraft series, warship series, chariot series, main battle tank series, multi-functional engineering armored vehicle series, rotary engineering armored vehicle series, engineering armored truck series, military armored train series, etc.);

Chinese Weaponry Series (siege weapons, defensive weapons, field weapons);

Mechanical Insect Armor Series (forked rhinoceros beetle (unicorn beetle) mechanical form and insect armor form, Hercules beetle mechanical form and insect armor form...);

Mecha Classic of Mountains and Seas Series (Xuan Gui mecha...)

Mecha Dinosaur Series (Mecha Stegosaurus, Mecha Triceratops, Mecha Spinosaurus, Mecha T-Rex, Mecha Titanosaurus, Mecha Mosasaurus...);

Telescopic Sword Series (Taotie Han Sword, Taotie Dagger, Huiwen Telescopic Mace, Bagua Telescopic Mace...);

Festival Transformer Robots (“Zongzi” type disguised surveillance transformer robot, “Mooncake” type fire support transformer robot, “Pumpkin” type – heavy armored guardian transformer robot...)

Chubby Weapon Series (Eight-sided Han Sword, Four-edged Concave Mace, Sword of Goujian, Thor's Hammer, Tang Hengdao...);

Motorcycle Series (Off-road motorcycles, Harley motorcycles...);

The remastered version features redesigned joint structures for stronger connections and easier assembly (no more hand strain, haha)

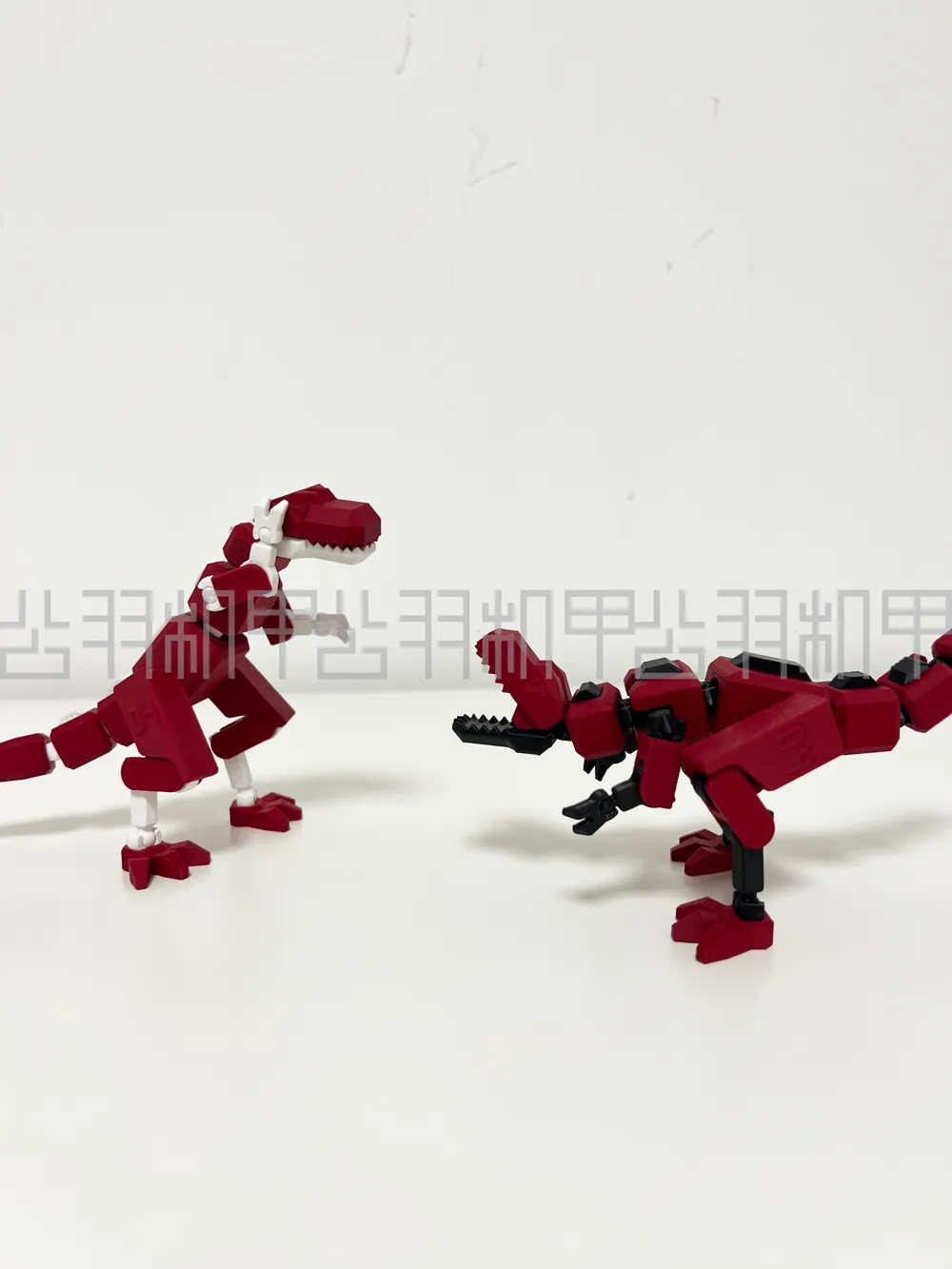

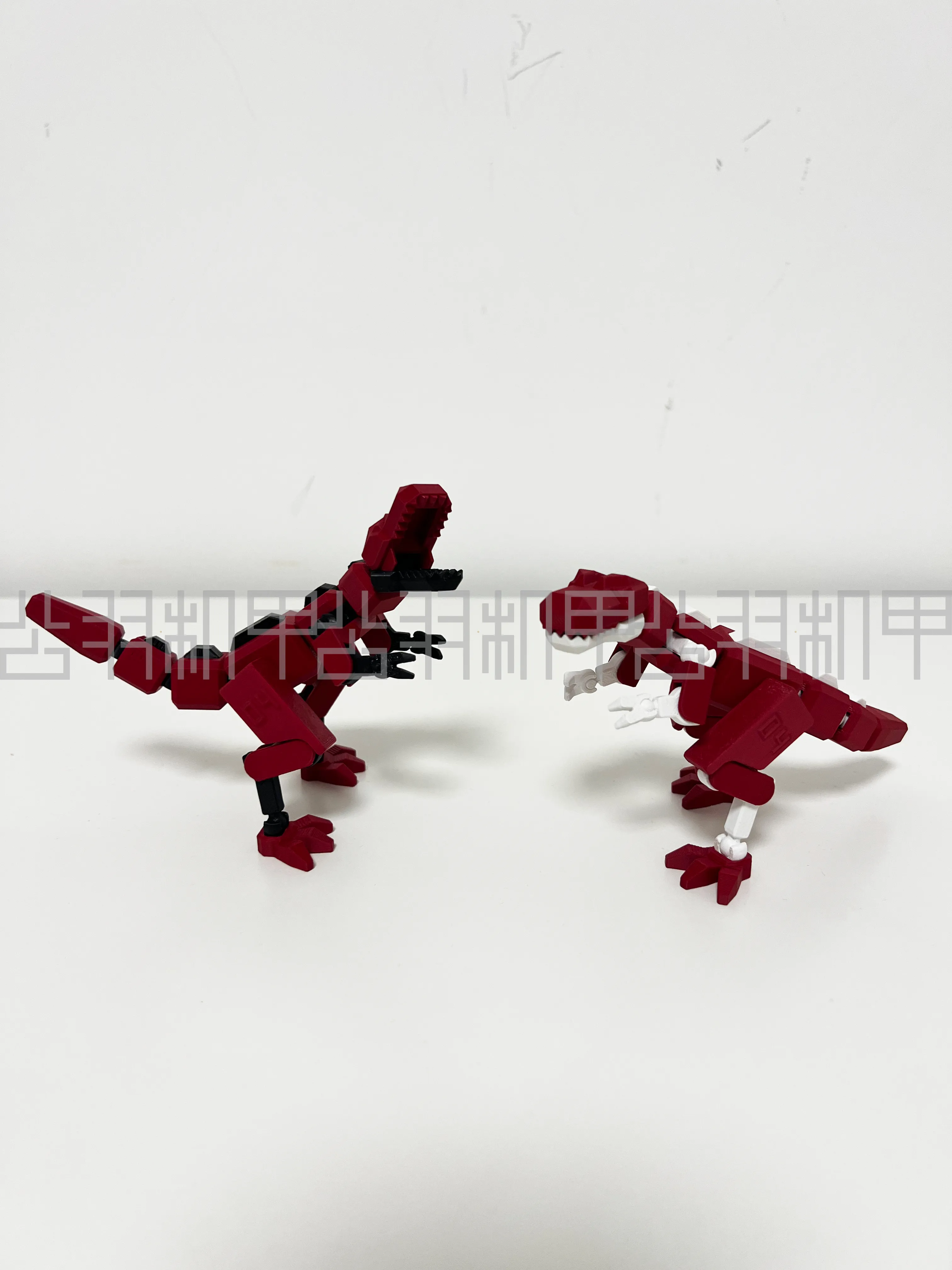

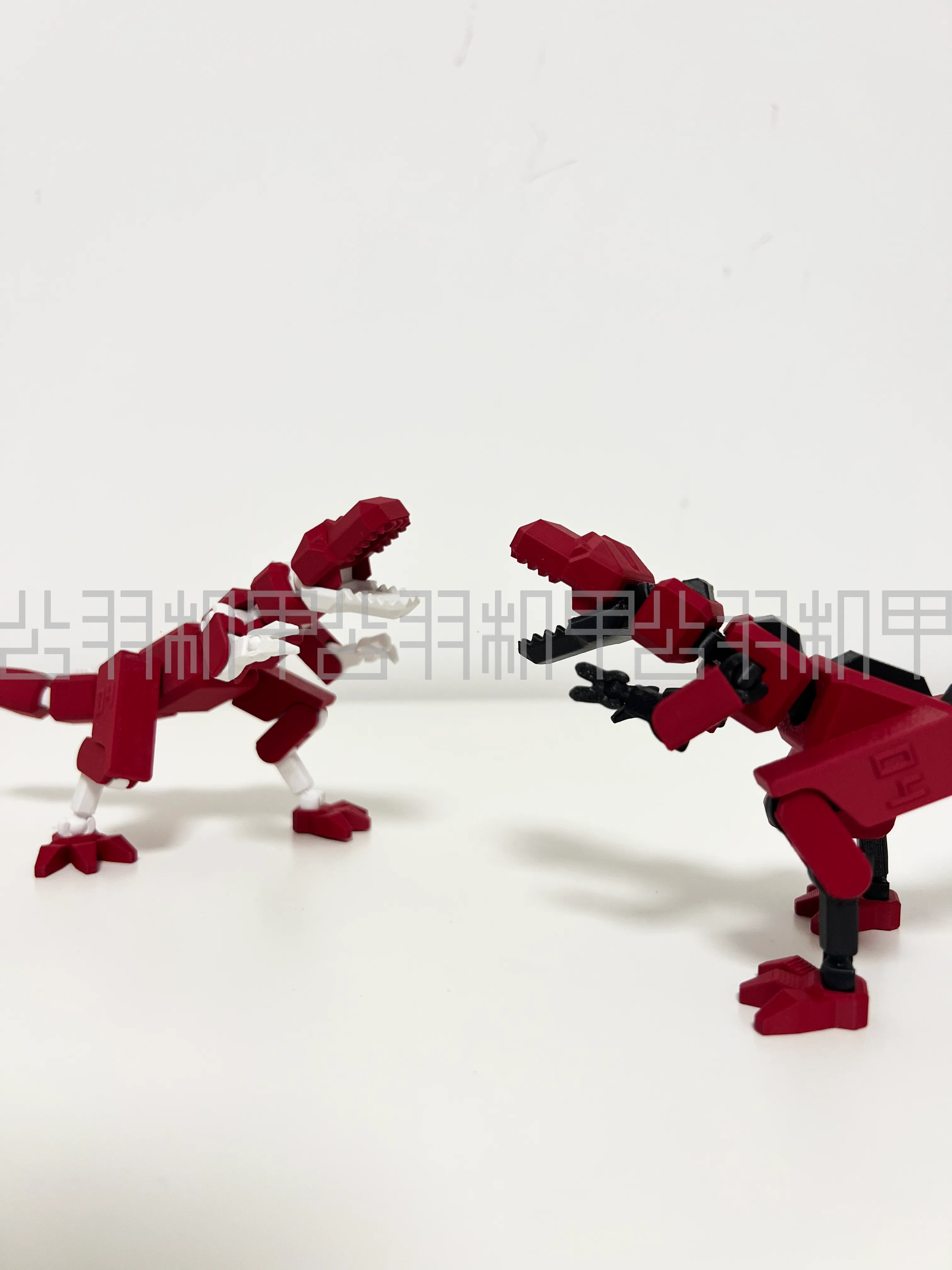

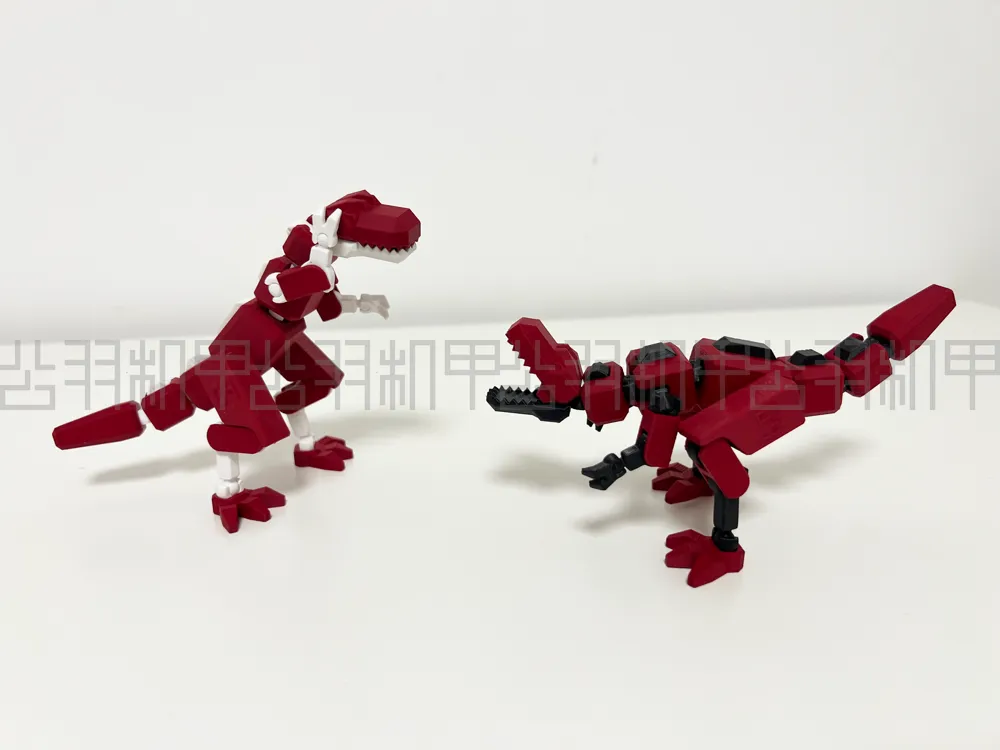

The proportions have been re-adjusted, and the appearance has also changed

Frame recommendation: ASA>ABS>PLA=PETG;

Outer armor: Any will do.

Warning: The main reason for spaghetti is that the printing plate is too smooth! It is best to apply glue or spray on the printing plate to prevent printing failures

Simple, easy to print, material-saving, exquisite, easy to assemble, hard to fail, hard to break, no supports needed for printing, no glue needed for assembly!

No supports needed for printing (if the base plate is not sticky, you can add a brim), no glue or hardware needed for assembly (if it's too tight, press firmly or tap gently with a small hammer), a very convenient Chinese-style assembly model!

Assembly instructions:

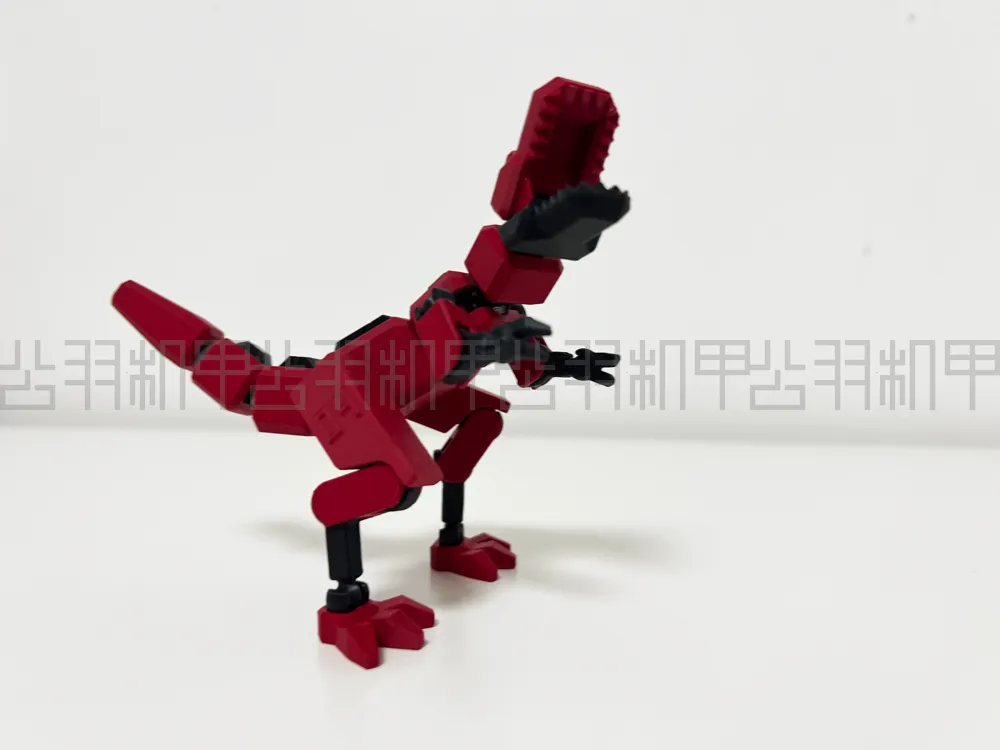

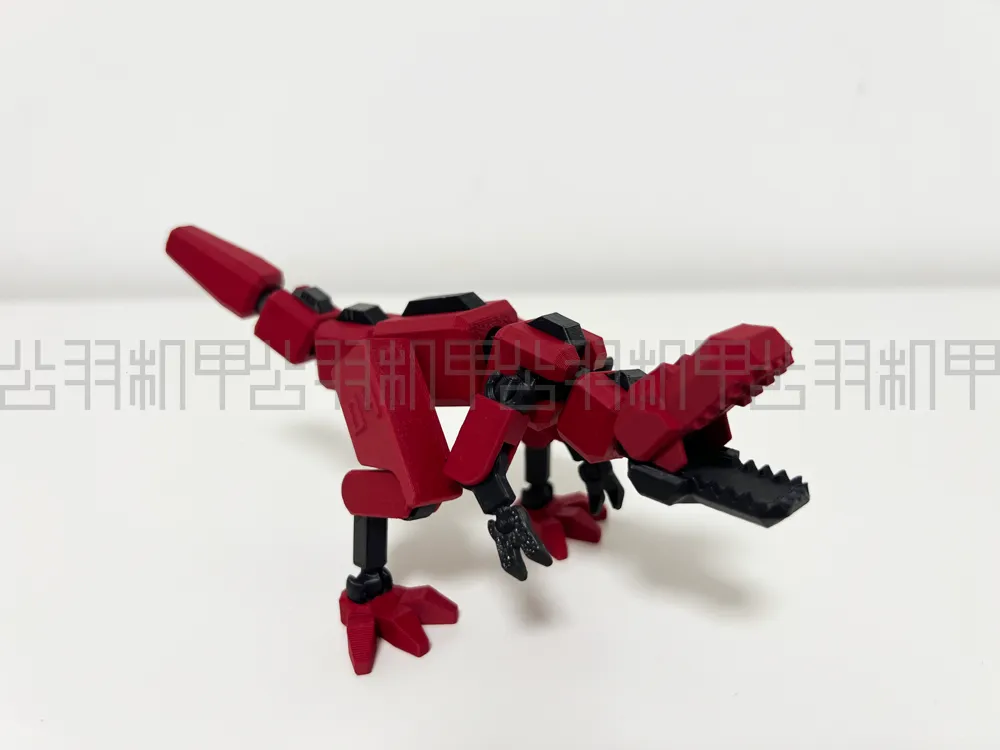

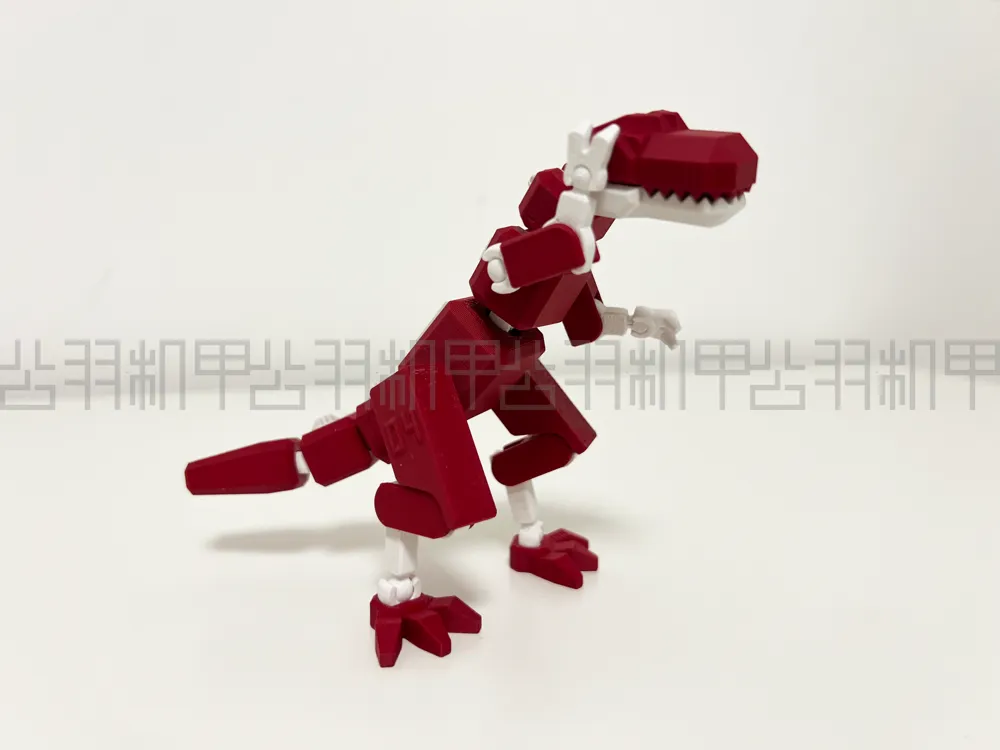

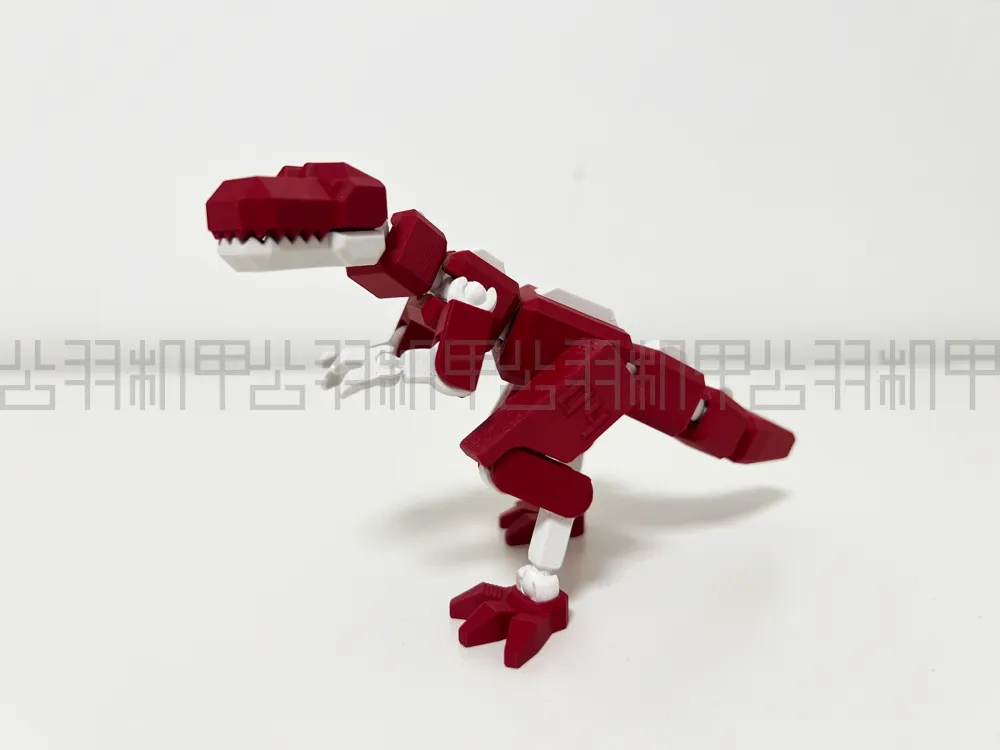

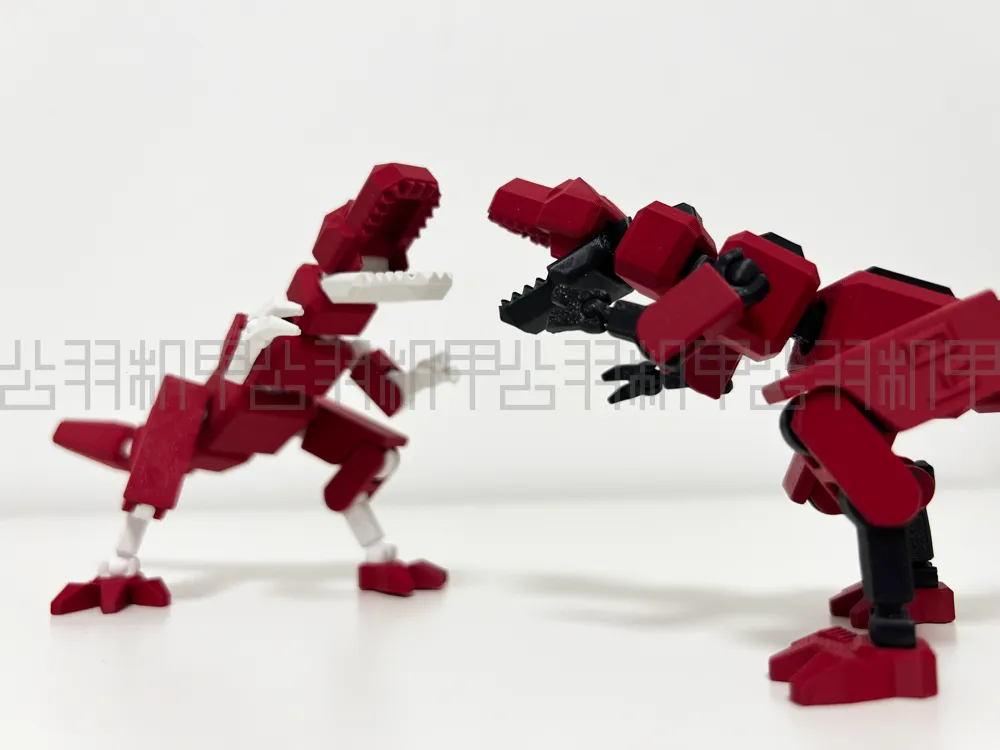

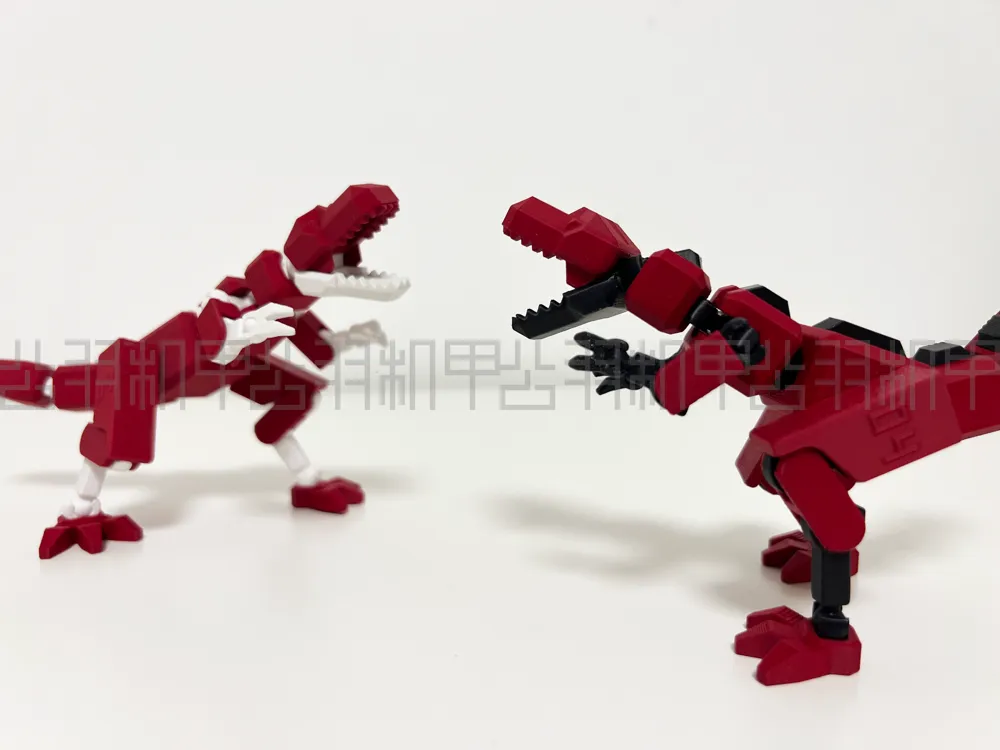

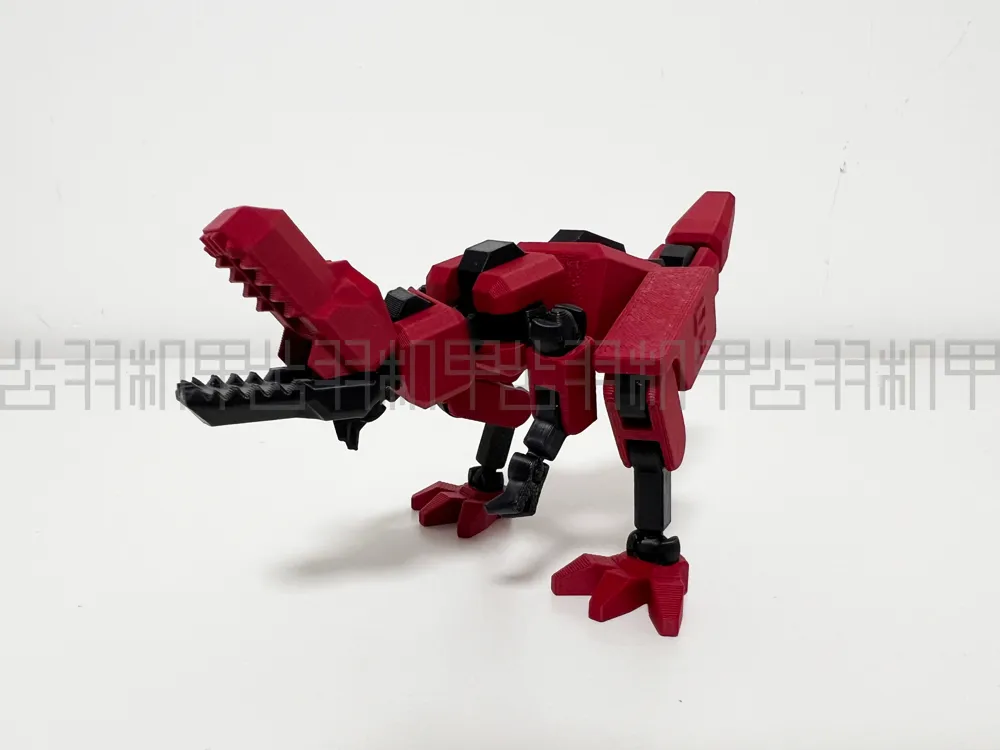

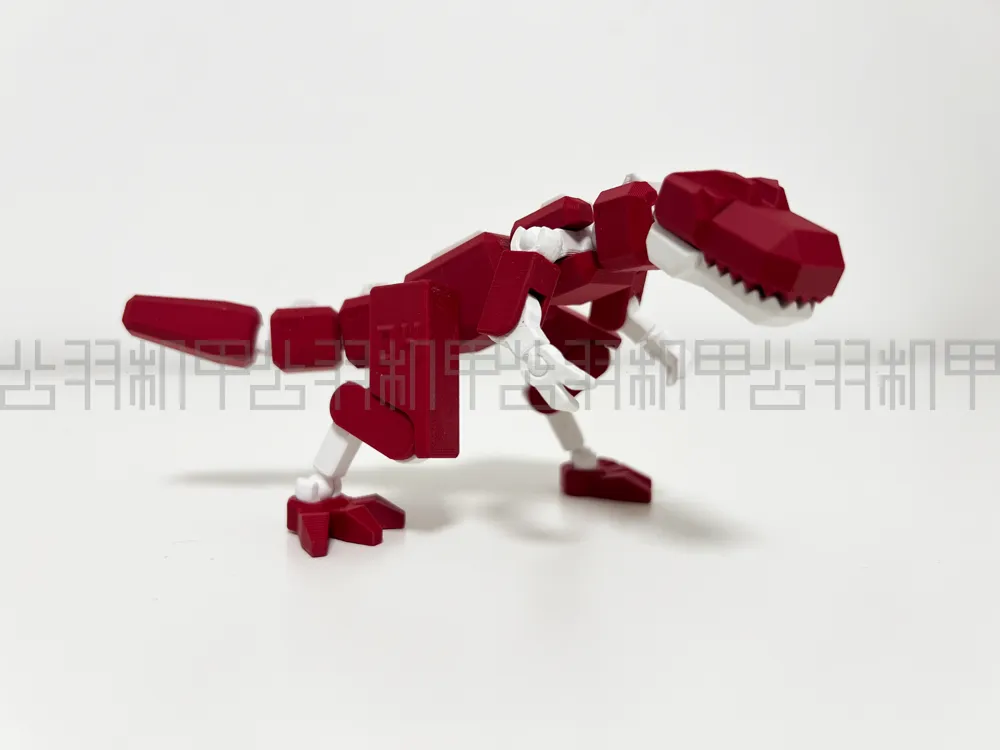

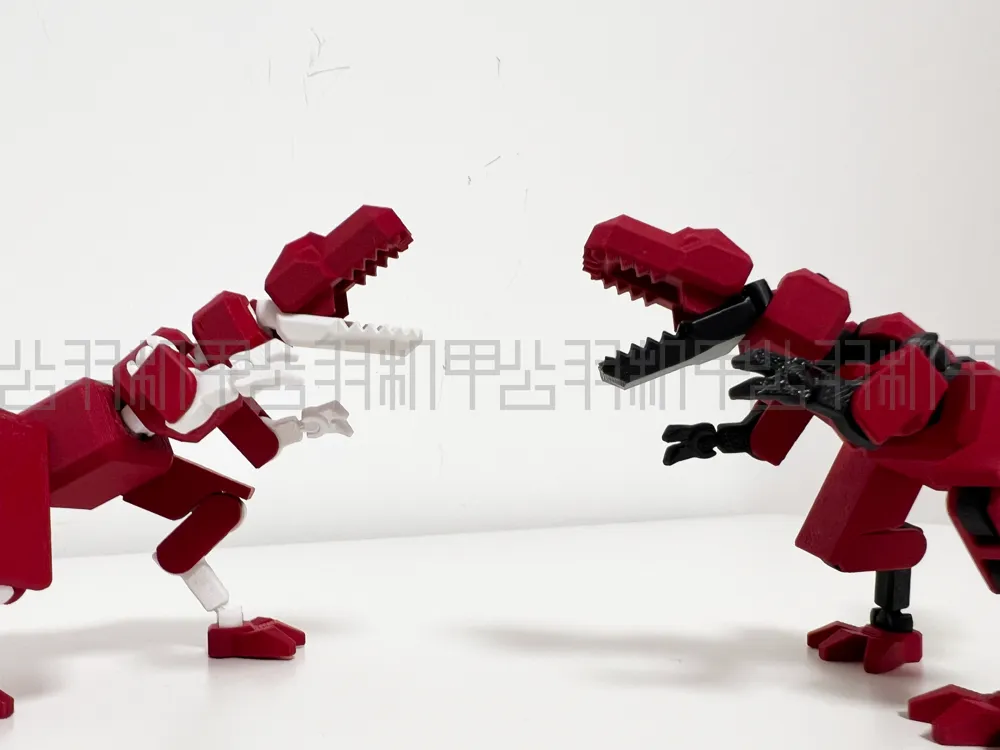

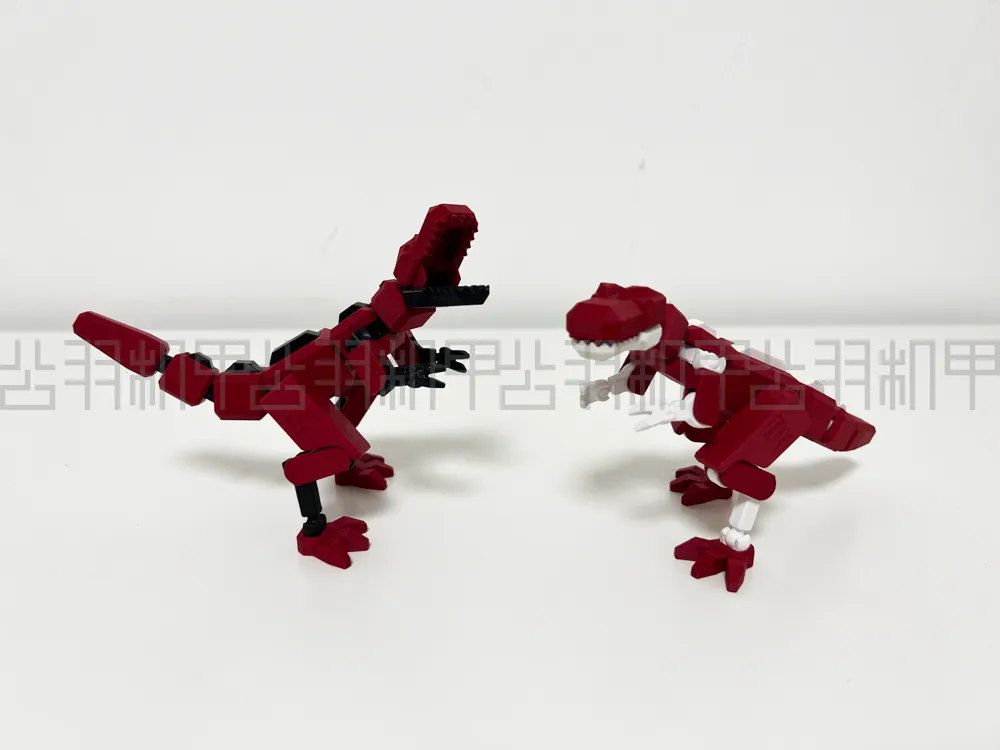

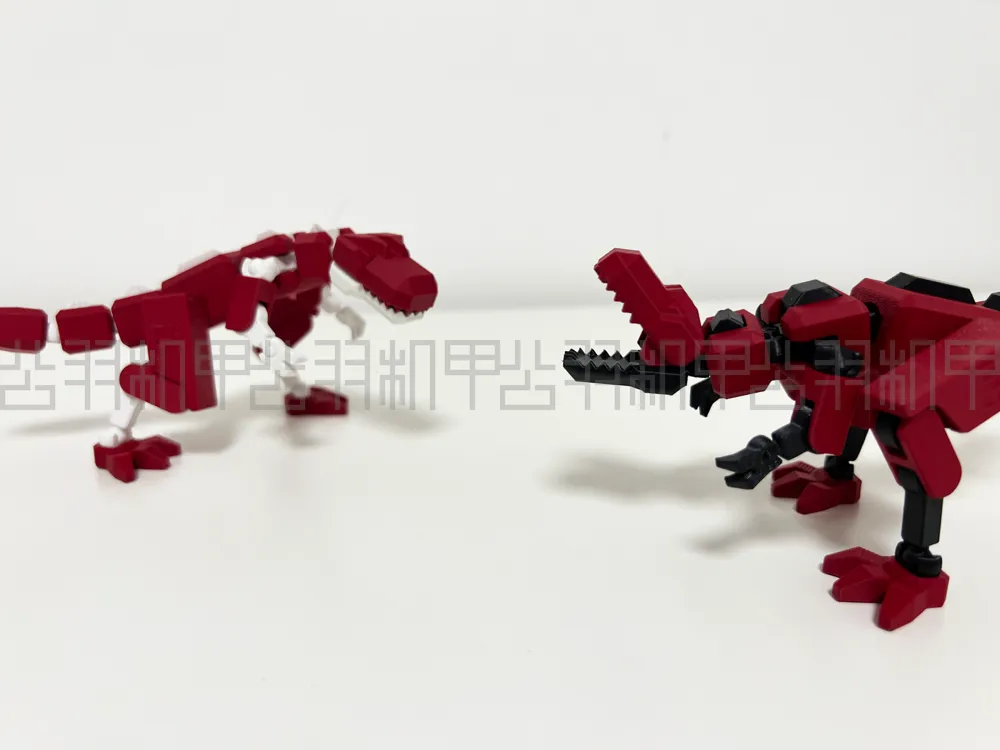

The model is super articulated, capable of striking any pose you can imagine

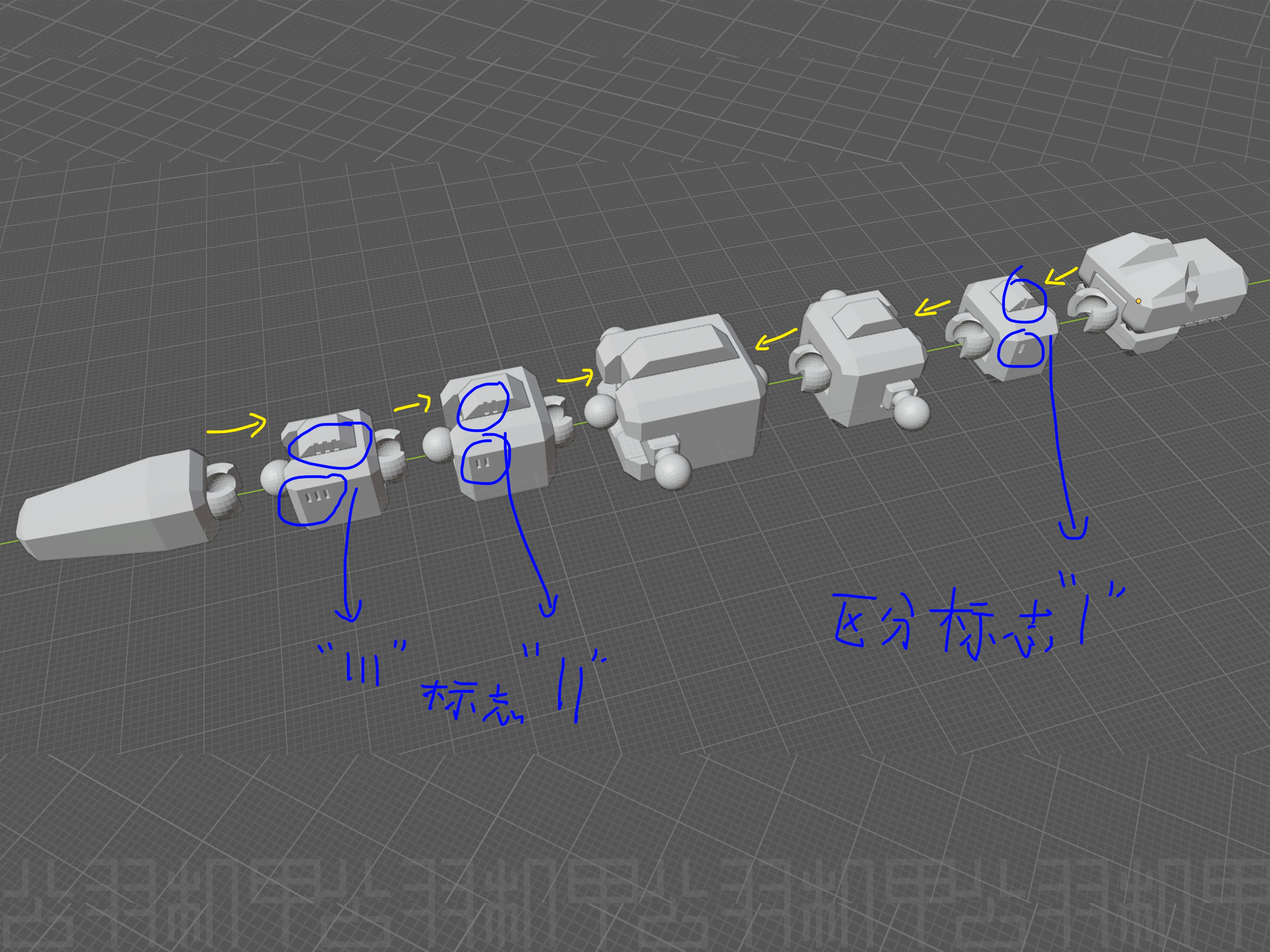

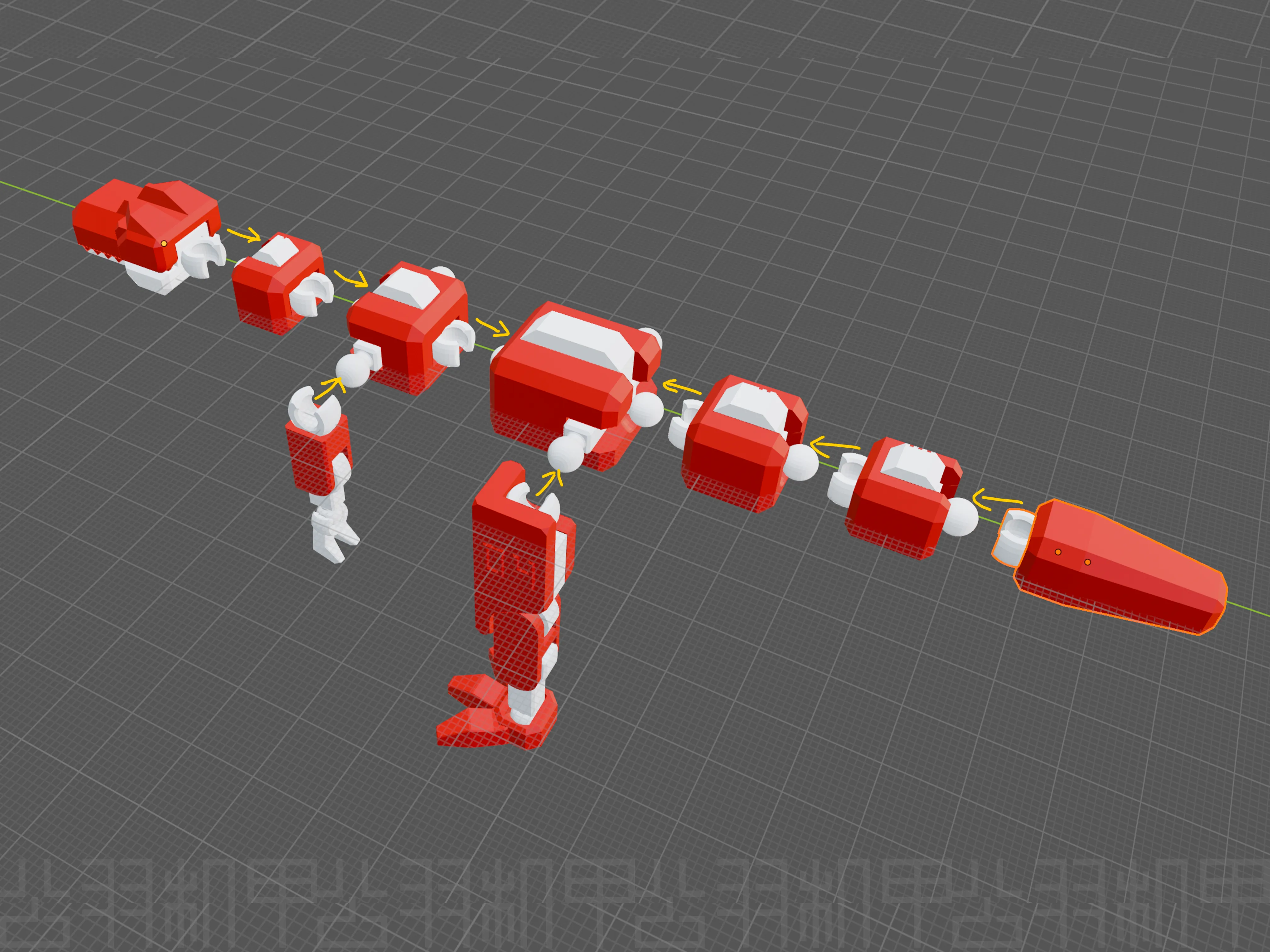

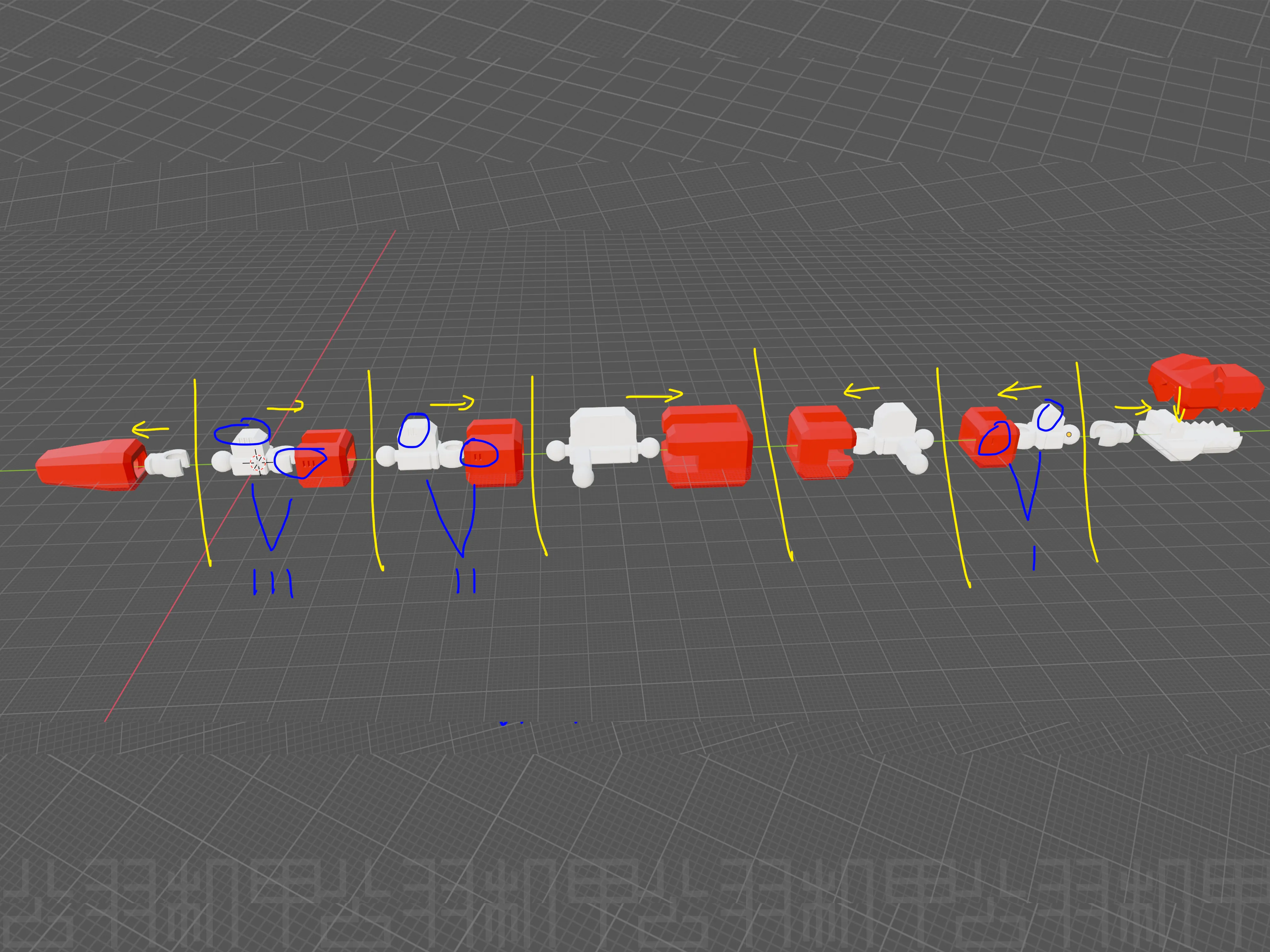

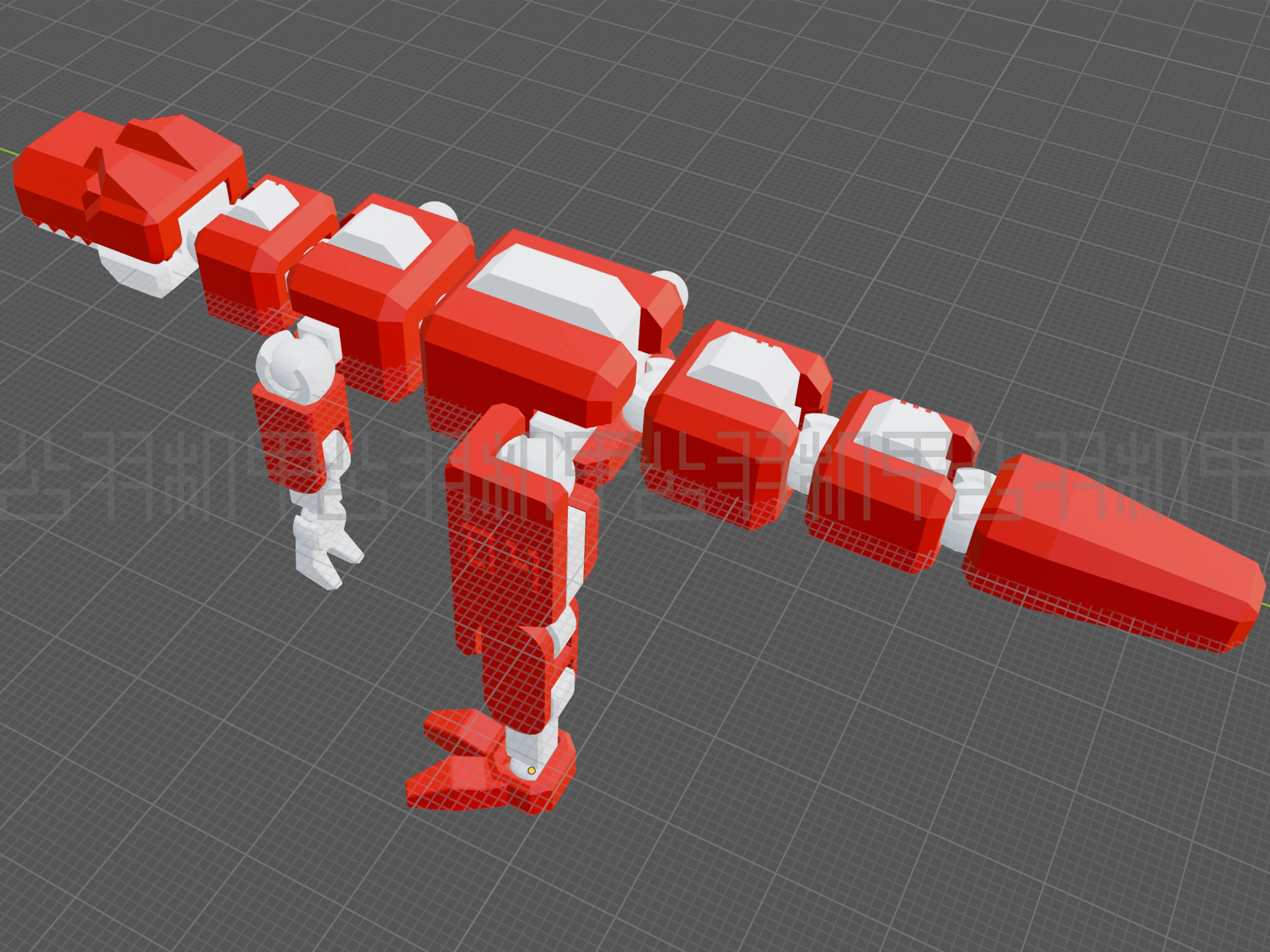

Note, each segment of the T-Rex's torso should be installed according to the direction of the yellow arrows in the image above. 丨, 丨丨, and 丨丨丨 are corresponding distinguishing marks. 丨 is the neck, 丨丨 and 丨丨丨 are the tail, the two middle body segments have no marks, just look at their size.

When the torso is installed correctly, there will be a "click" sound.

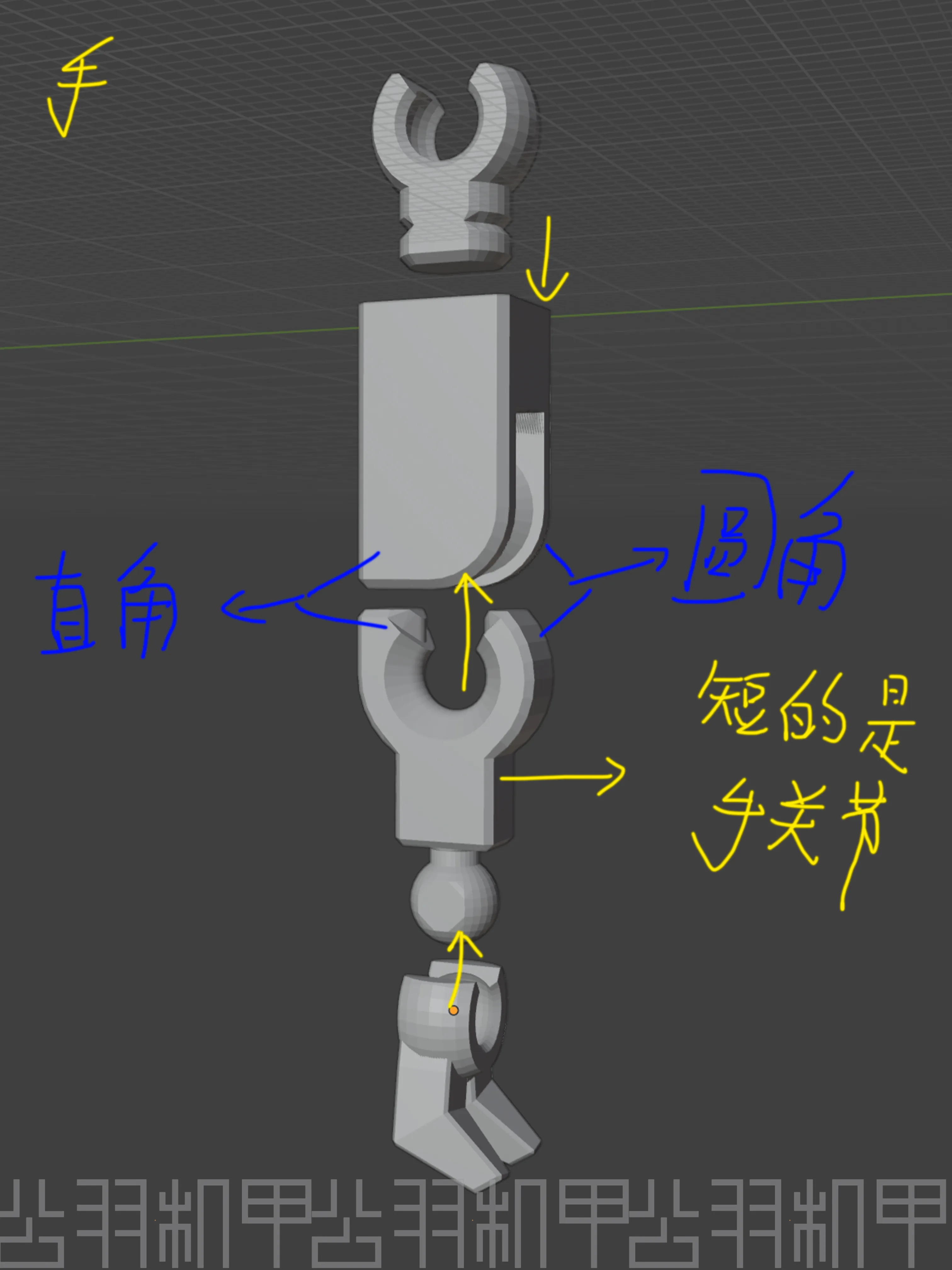

Arms

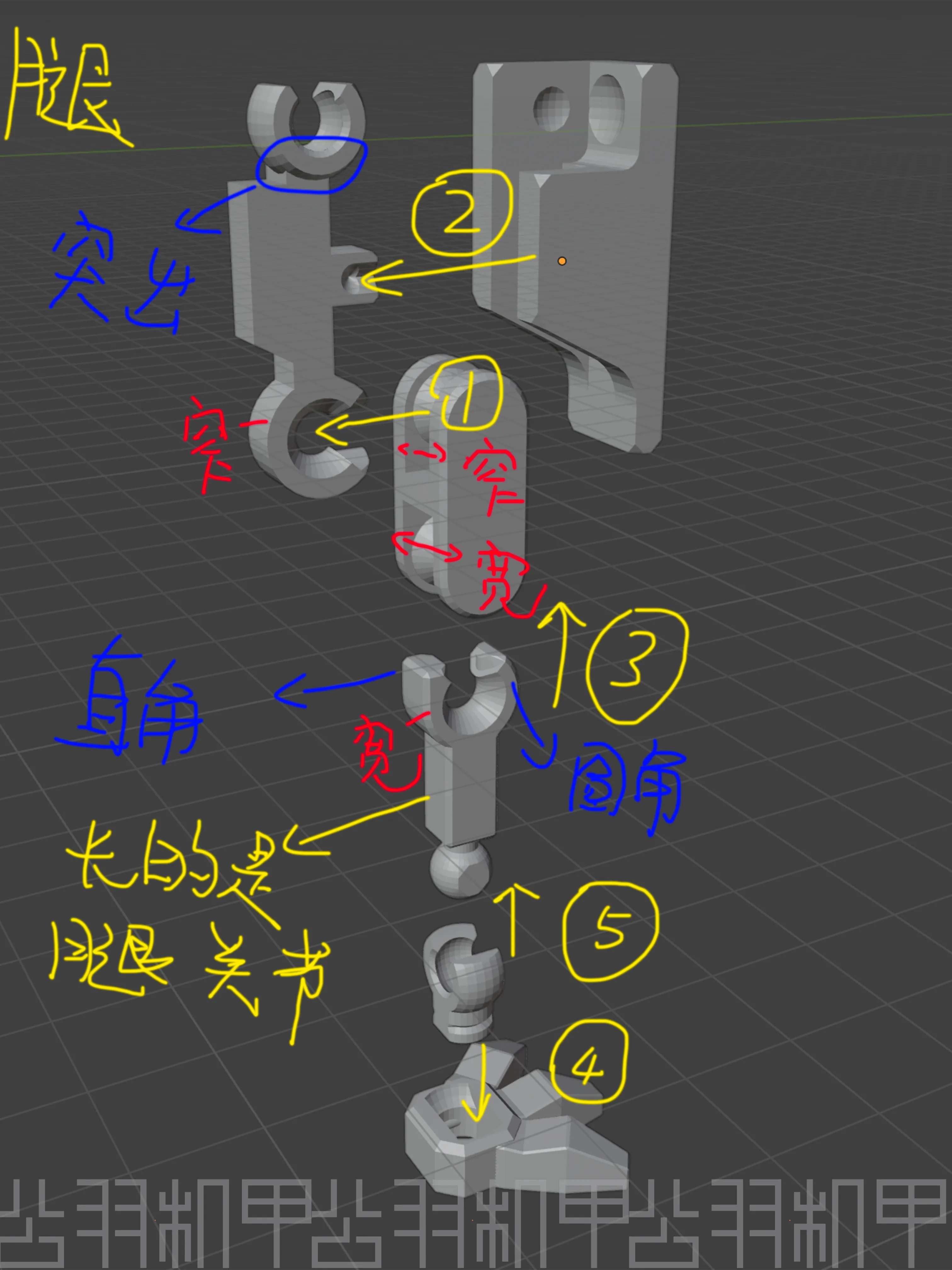

Legs: Special attention, install step ① first, then step ②. Note that the width of both ends of the red part is not the same.

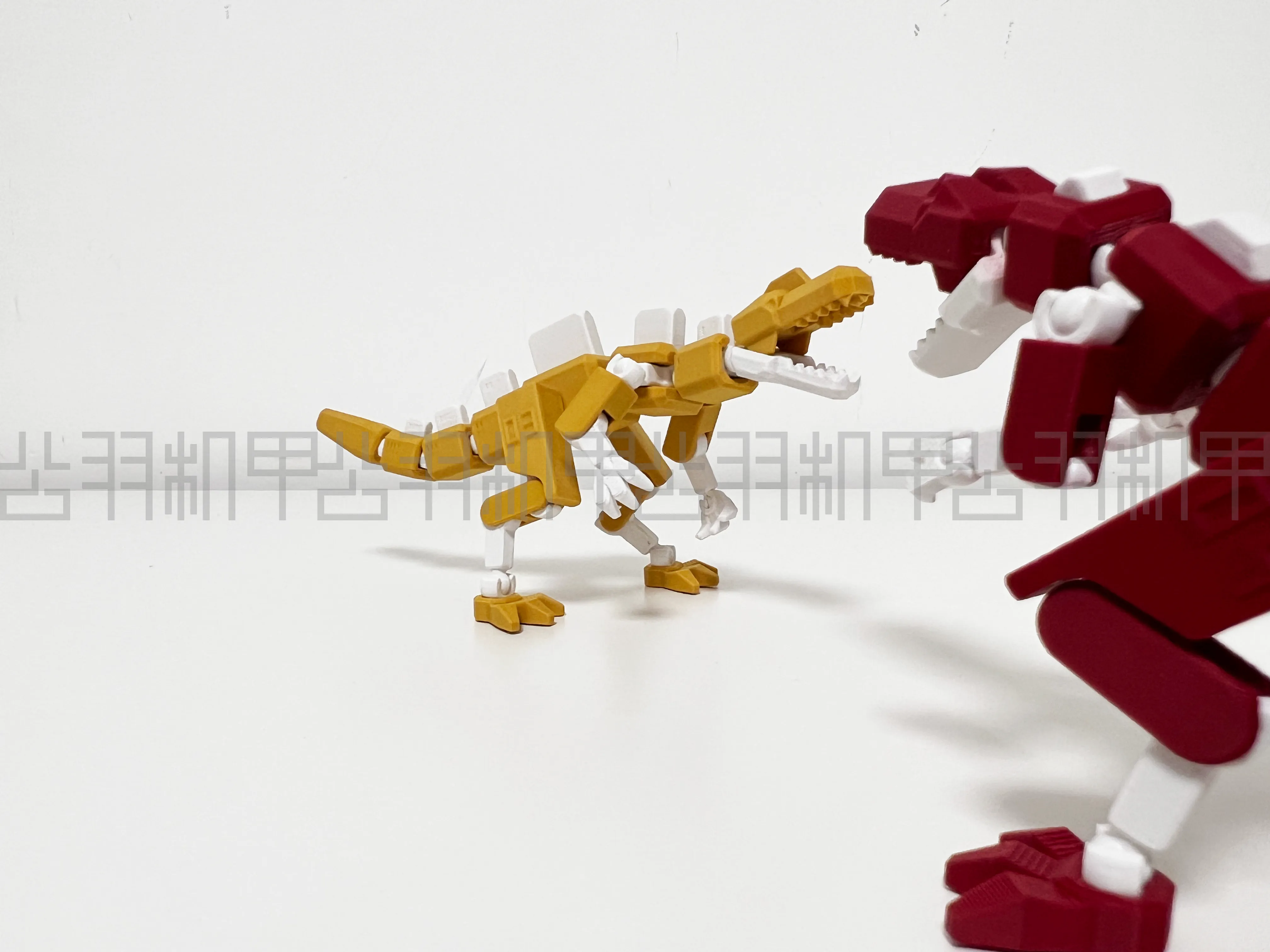

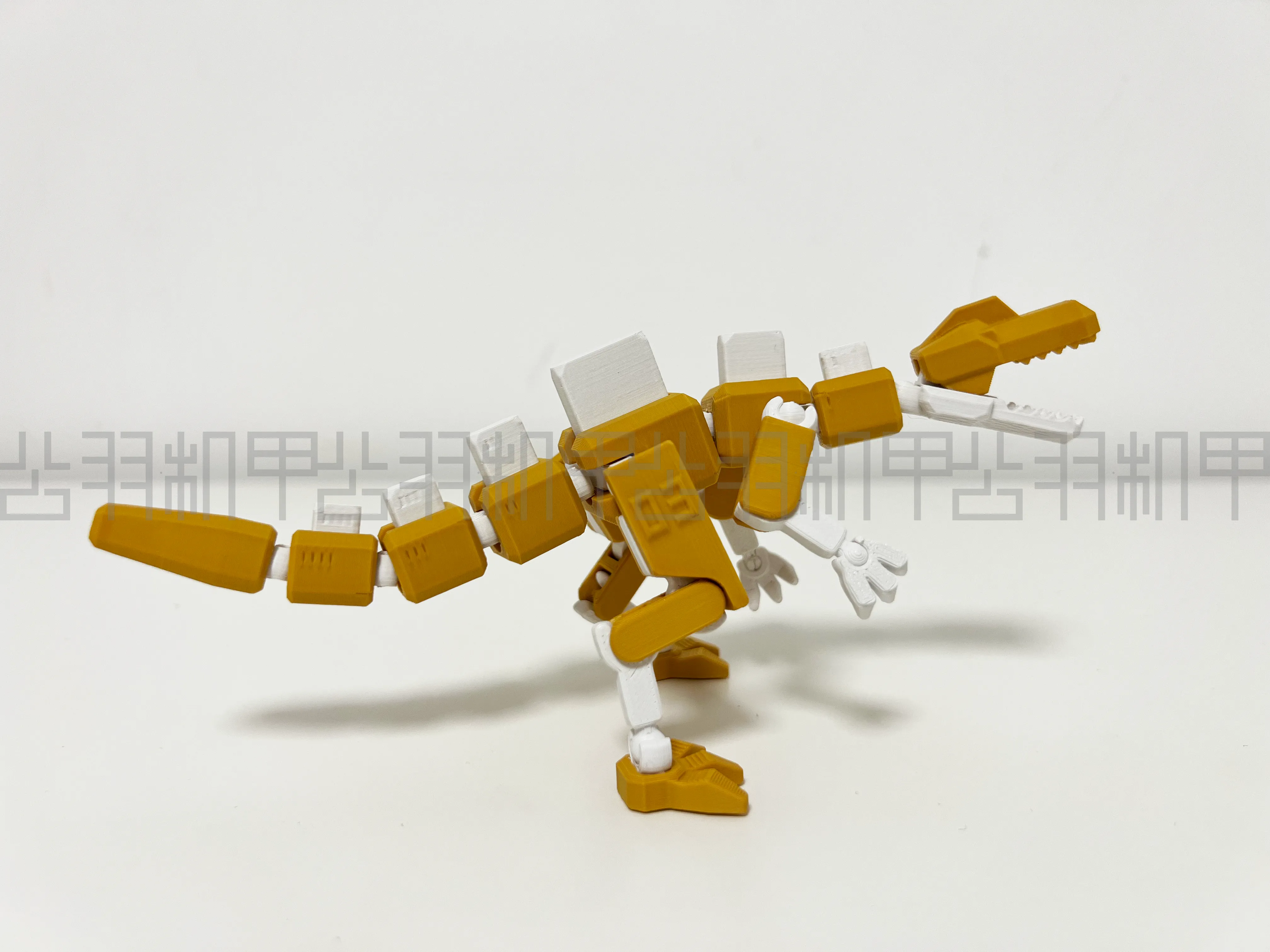

Next preview: 03 Mecha Spinosaurus Remastered
