Xikii FF10 10GbE M.2 adapter mount plate

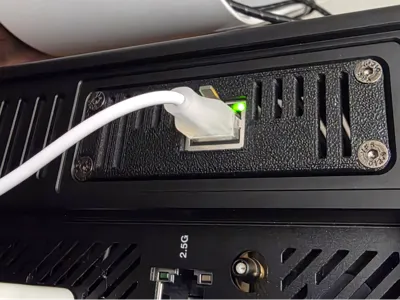

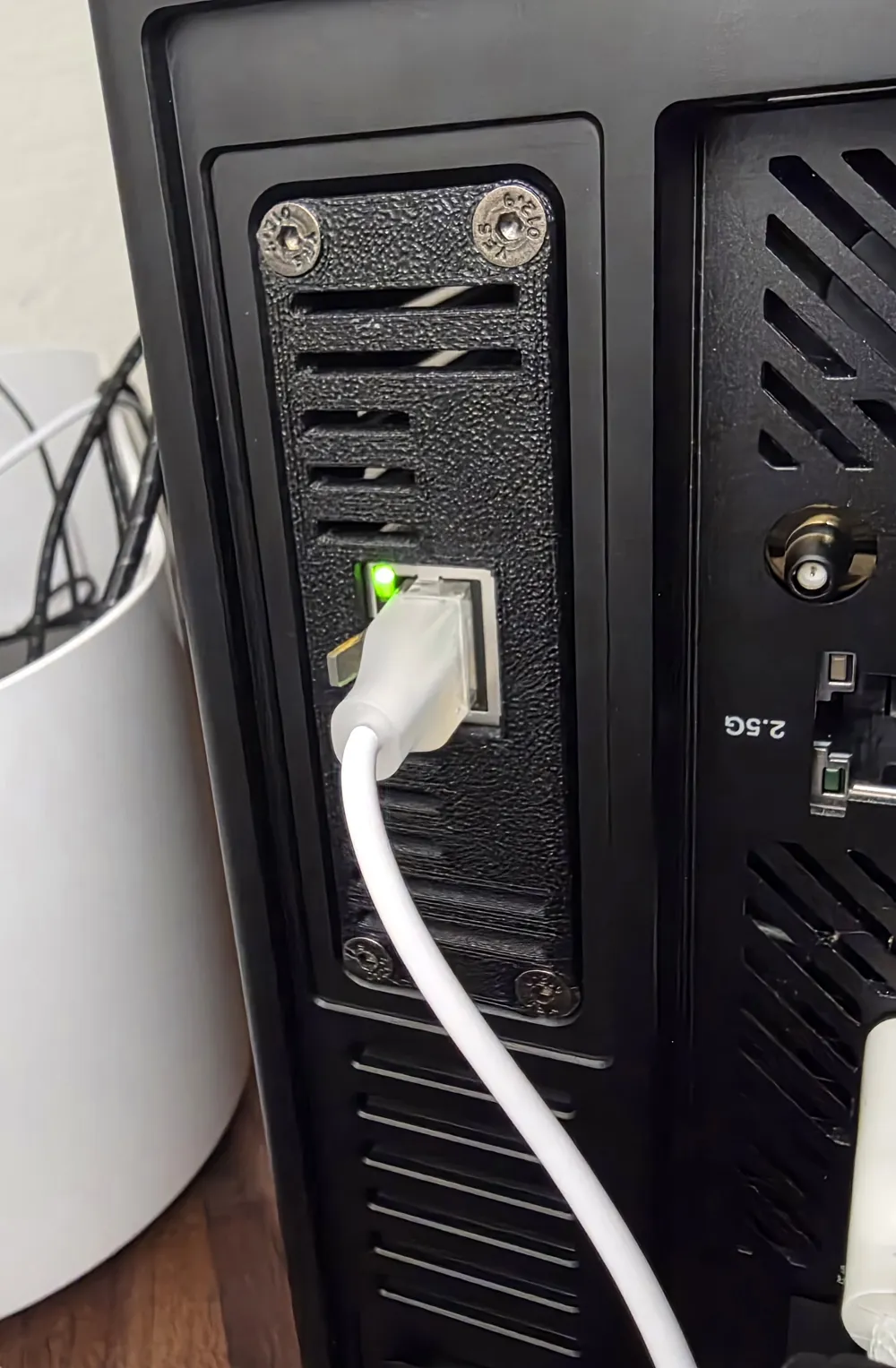

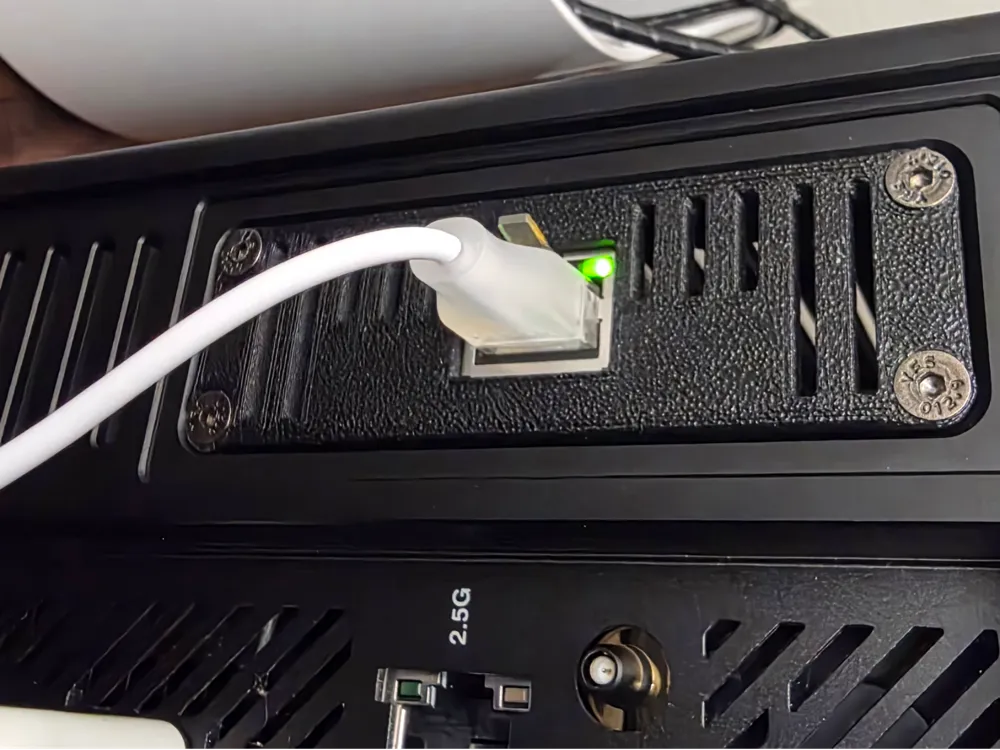

This adapter allows you to install a M.2 to 10 gigabit ethernet card in the Xikii FF10 SFF ITX case and mount the RJ45 port PCB properly.

It reuses the 4 screws from the stock blank plate to install to the case. The 2 screws that hold the PCB are the same screws that hold the PCIE bracket on and should be included in the package.

You should probably print this in something that can take heat well, I used CF-PETG. No supports are needed, print with the outer face down.

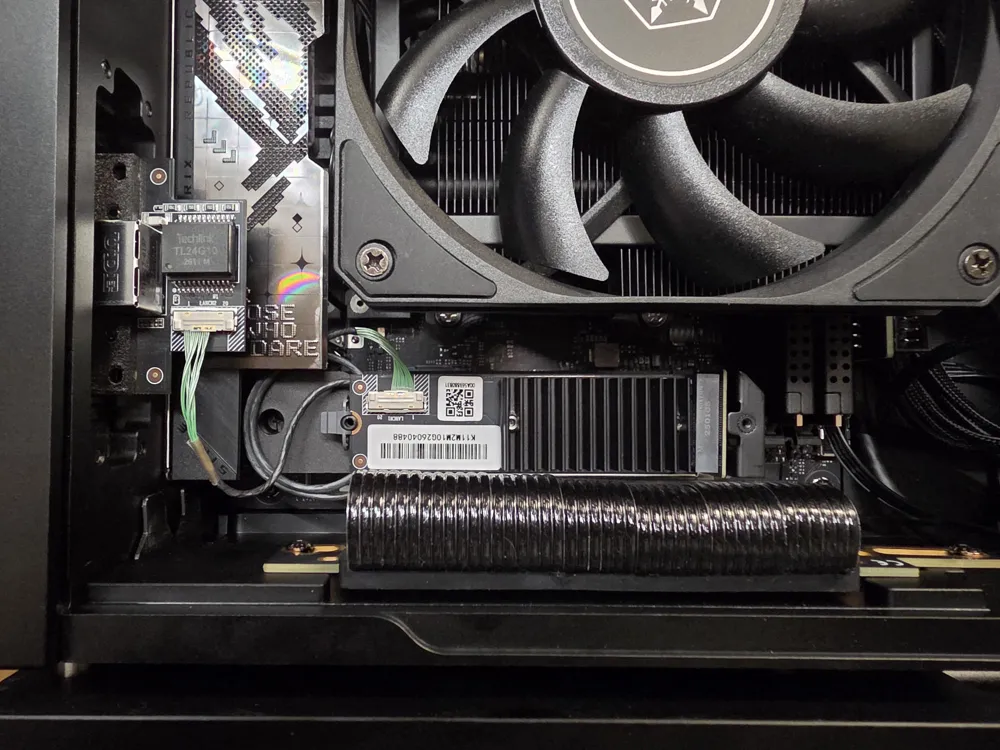

It is intended to be used with the ROG Strix X870i motherboard since it has two M.2 slots, one mounted on top of the other. The system SSD can be installed on the bottom slot and the M.2 ethernet adapter goes on top, as shown in the 2nd photo. I don't know if any other motherboards can accomodate this setup.

I think Xikii also uses this same adapter design on the FF04 and FF07, but I don't have either of those so I cannot be 100% sure.

The M.2 10GbE adapter I used can be found here: https://www.amazon.com/dp/B0FSKQ44VQ

This same adapter can also be found on aliexpress for a lower price - search M.2 10GbE and look for one that matches.
