Custom Multipick Training Cylinder Holder TCSS6
Print Profile(1)
Description
Custom Multipick Training Cylinder Holder (TCSS6-Set)
Enhance your lockpicking training sessions with this ergonomic, print-tested handheld holder specifically designed for the Multipick TCSS6-Set training cylinder.
The stock brass cylinder can be heavy and uncomfortable to hold for extended periods. This holder transforms your practice experience by turning it into a stable, comfortable, and highly functional tool.
key Features
Perfect Slide-in Fit: Modeled to ensure the perfect tolerances. The cylinder slides in smoothly without friction, yet remains perfectly aligned.

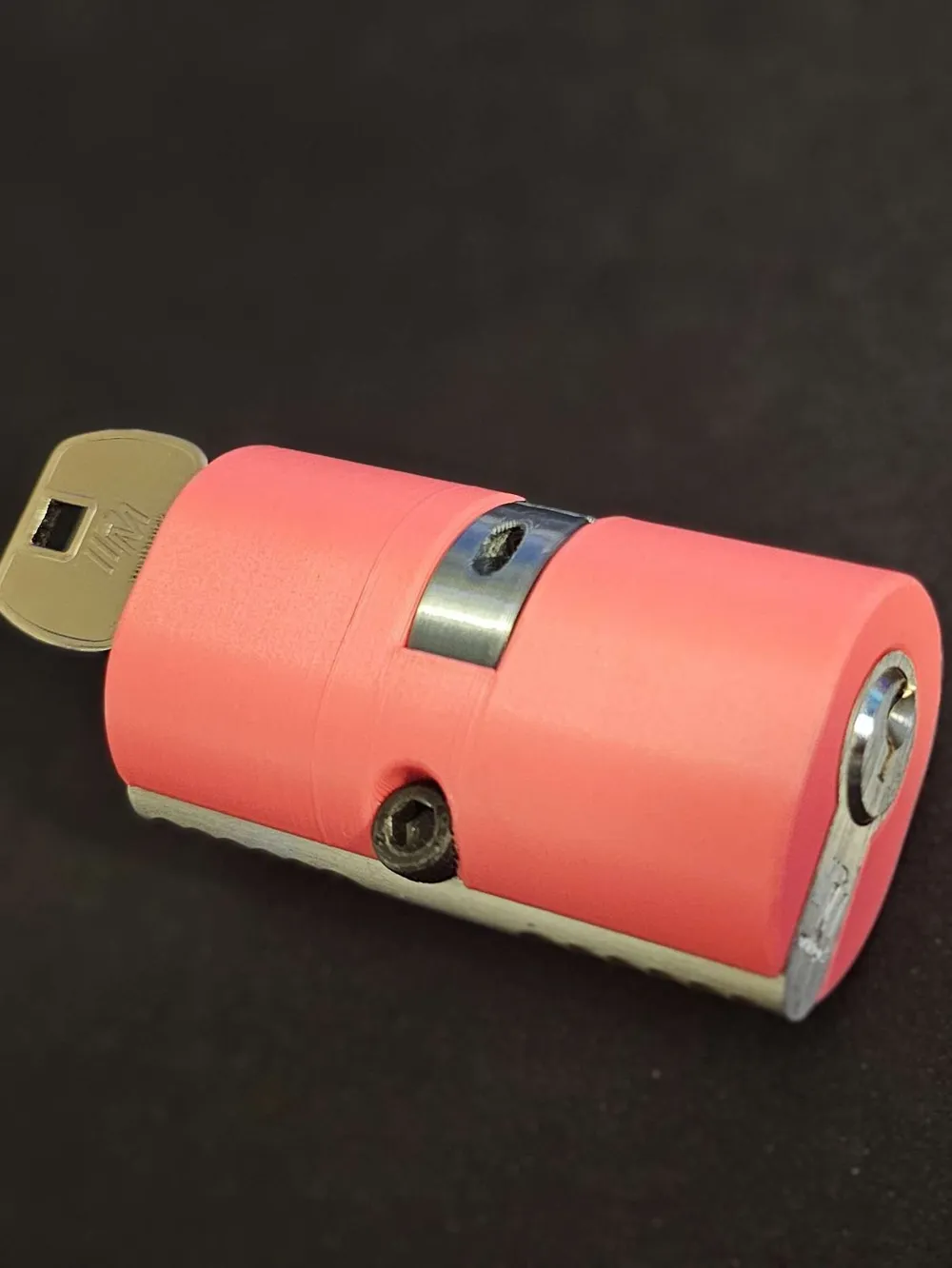

Rock-Solid Lockdown: Features a dedicated slot for an 8mm M5 screw to lock the cylinder firmly in place. Once tightened, the cylinder will not budge a single millimeter.

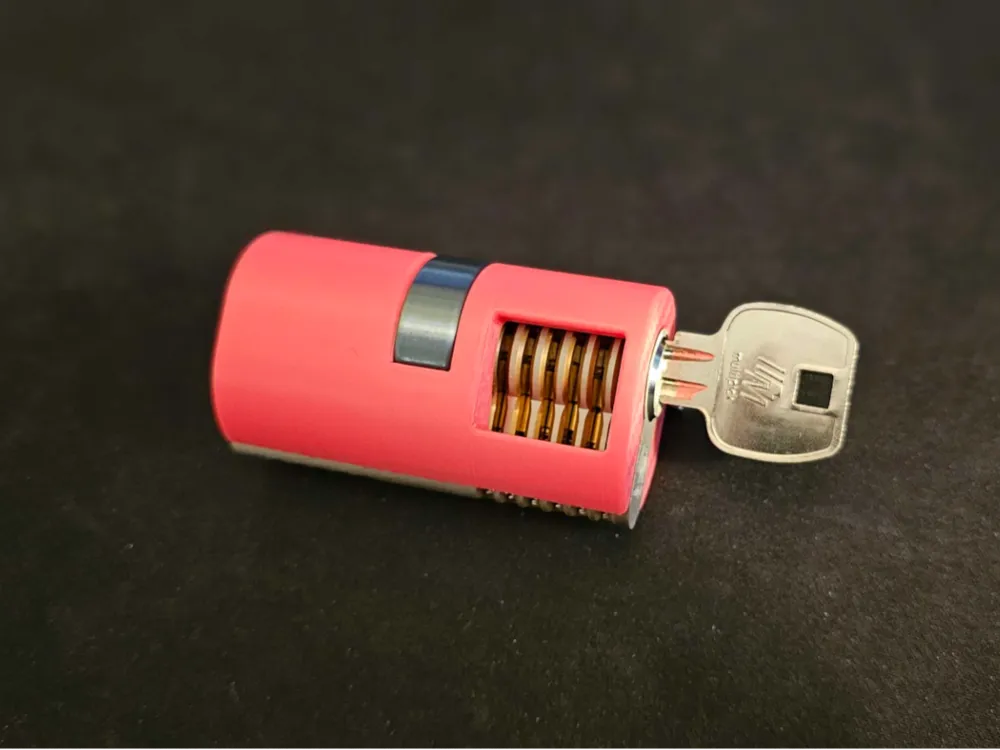

Cutaway Visibility Window: The side of the holder features a perfectly aligned cutout that leaves the cylinder's cutaway windows completely exposed. You can clearly see the key pins, driver pins, and springs moving in real-time as you pick.
Core Rotation Ring (Visual Feedback): Includes a custom central ring designed to cover the gap of the rotating core. It protects the mechanism from dust and your fingers, while still allowing you to clearly see the rotation when you successfully pick the lock.
Full Access for Repinning: The bottom side of the cylinder remain fully exposed, allowing you to easily change pins and grub screws without needing to remove the cylinder from the holder.
Hardware1* M5 Screw 8mm
1* M2 Screw 8mm
1* M2 nut
Assembly
Insert the cylinder into the holder, aligning the two cutaway visibility windows on the holder and the cylinder.
Secure the cylinder with the M5x8mm screw.
Insert the nut into the hole provided on the half core rotation ring and place it in the center of the holder.
Place the other half core rotation ring and use the M2x8mm screw to secure everything in place.
