Fortnite Twin Mag SMG Water Gun Electric Kit

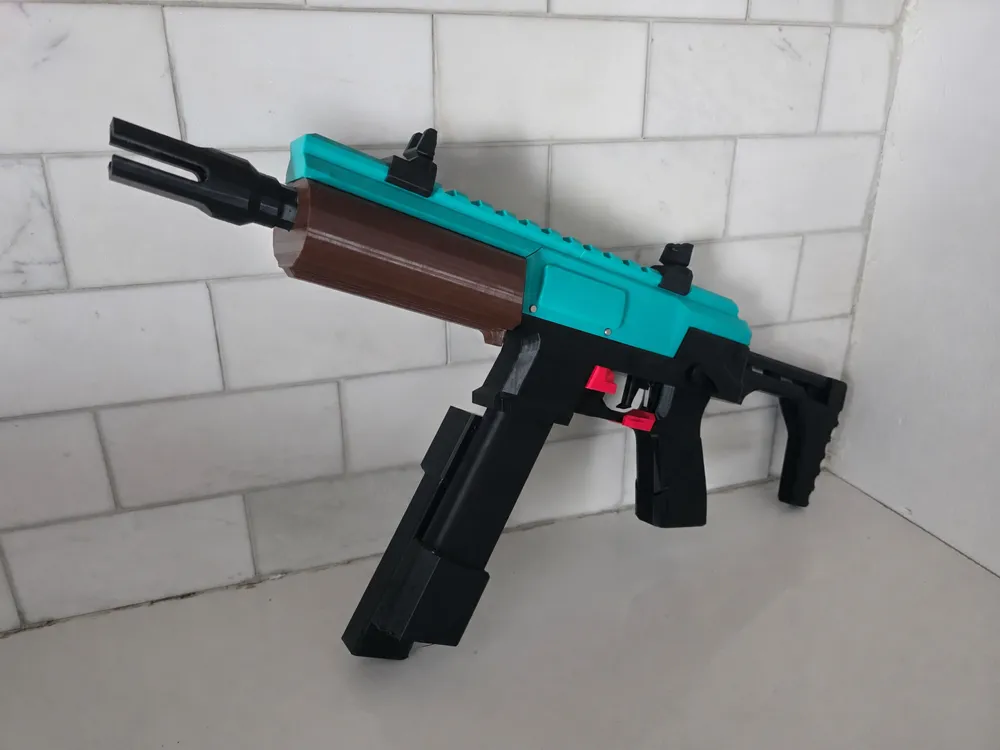

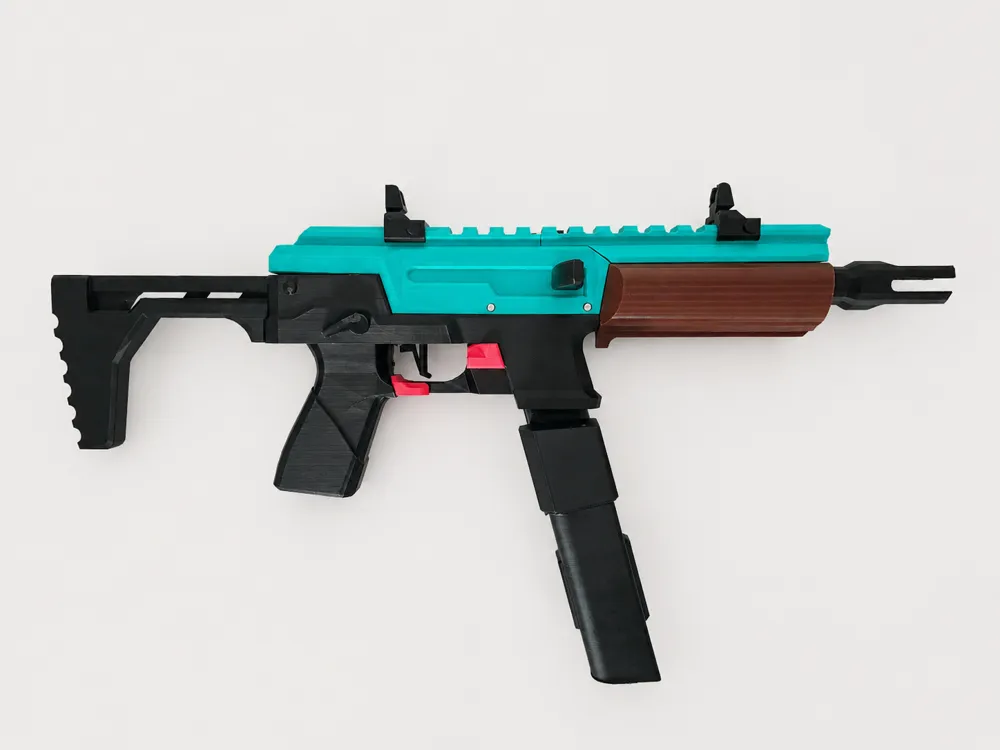

Introducing my latest gun and by far my largest time-investment in a model - the FN Twin Mag Electric Water Gun!

Check out all of my Fortnite Guns!

• 2026: Fortnite Twin Mag SMG Electric Water Gun
• 2026: Fortnite Wrecker Revolver
• 2025: Fortnite P90 Compact SMG
• 2025: Fortnite Mammoth Pistol
• 2025: Fortnite Holo Twister Rifle
• 2025: Fortnite Scoped Burst SMG
• 2025: Fortnite Havoc Shotgun
• 2024: Fortnite Gatekeeper Shotgun
• 2024: Fortnite Scar

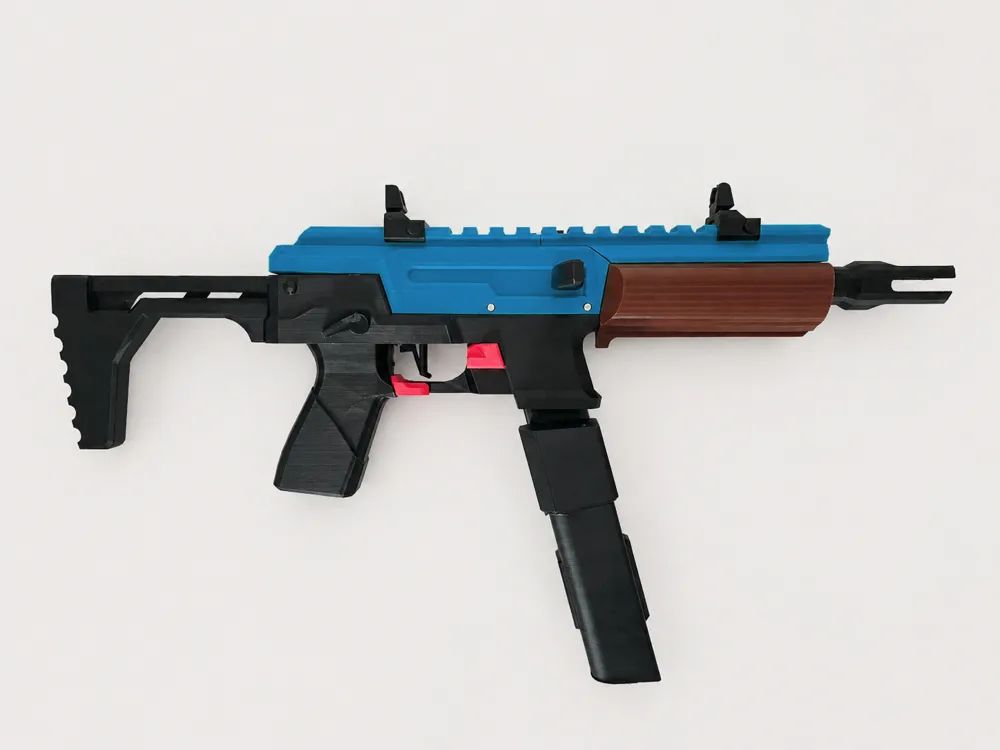

After many many hours spent modeling, testing, printing, remodeling, and retesting, I am proud to release the Twin Mag SMG Water Gun. This model uses two items from the Bambu Store - their Electric Spray Kit #02 and steel 5x35mm pins.

100% PETG Highly Recommended for this model!

You can print stress free using my custom profiles organized by color. Every piece has been carefully individually sliced:

Blue Parts: Top Rail

Black Parts #1: Small Black Pieces

Black Parts #2: Large Black Pieces

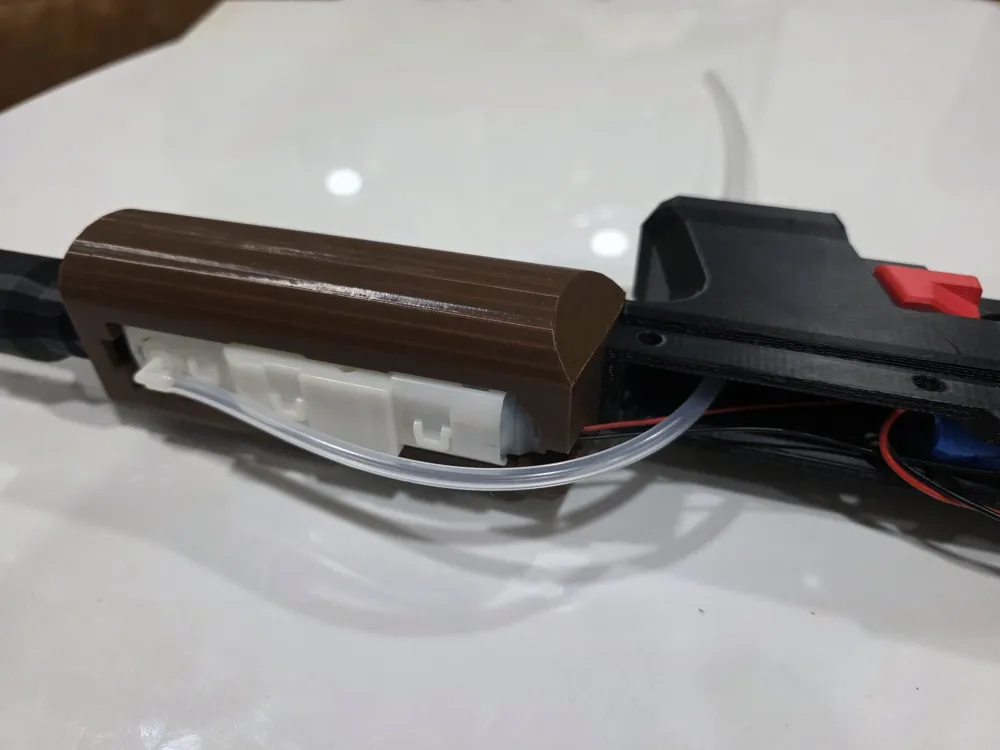

Brown Parts: Handguard and Bracket

Red Parts: Accent Pieces

Blue Parts No Watergun/No Holes: This is the top rail without dowel holes if you want to glue things shut without the water gun kit.

You could probably combine the two black plates if you try, but I wanted to split up the main long print and a bunch of small pieces just in case. This model will push the limits of what your 3D Printer can create. By the end, you will have a product that make you forget it started as a roll of filament. Every millimeter of this model has been considered and designed for 3D printing.

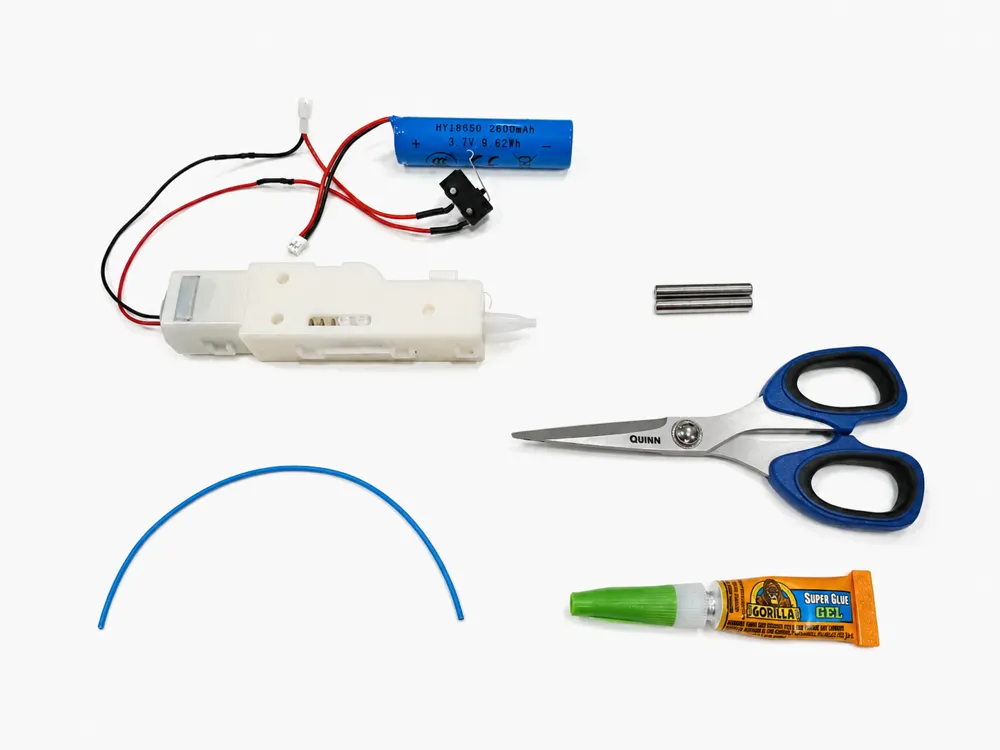

You will need several items that are not 3D printable:

• Electric Water Spray Kit #02 (~$11 per kit from Bambu)

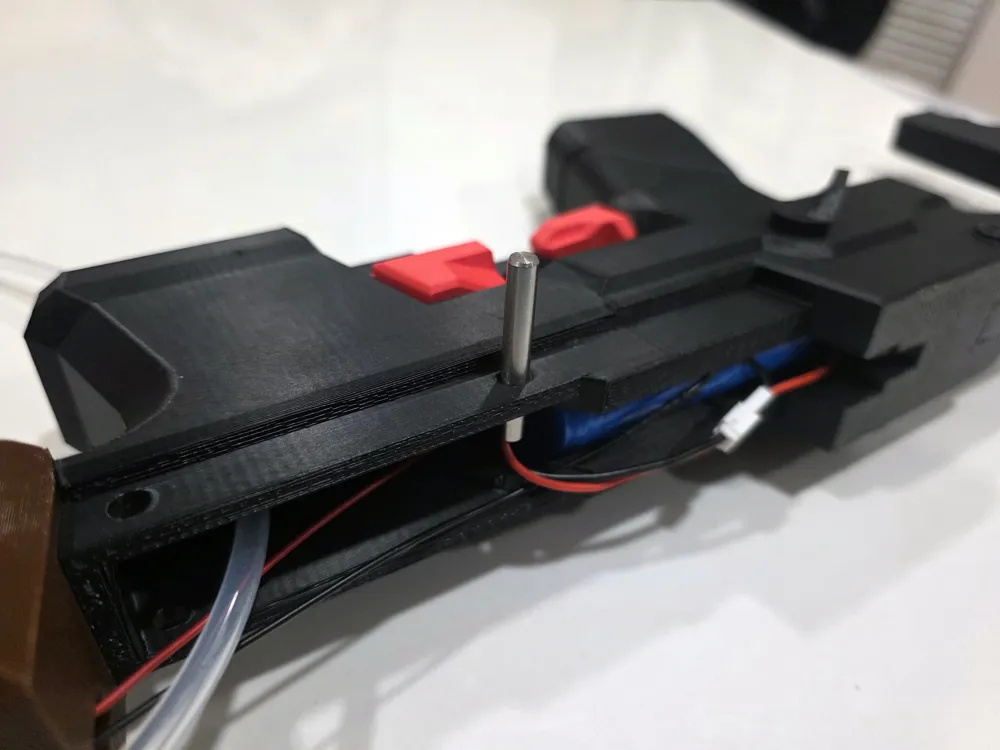

• (2) 5mm x 35mm Pins (~$1 for 5-pack from Bambu)
• Gel Super Glue
• Short Piece of Filament
• Scissors or Flush Wire Cutters

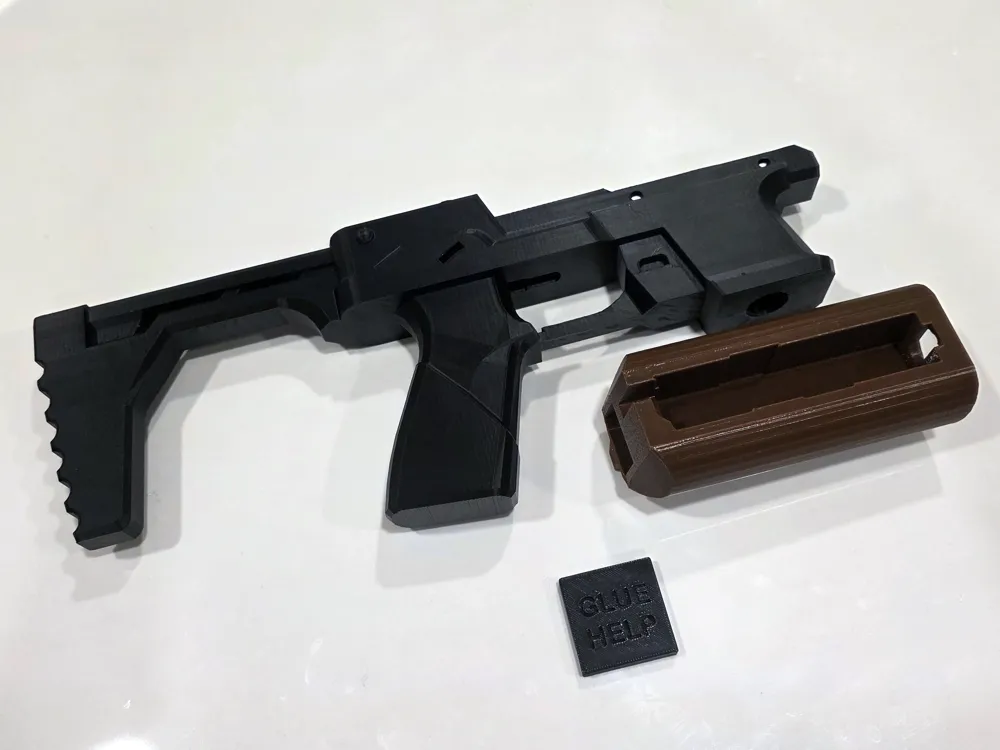

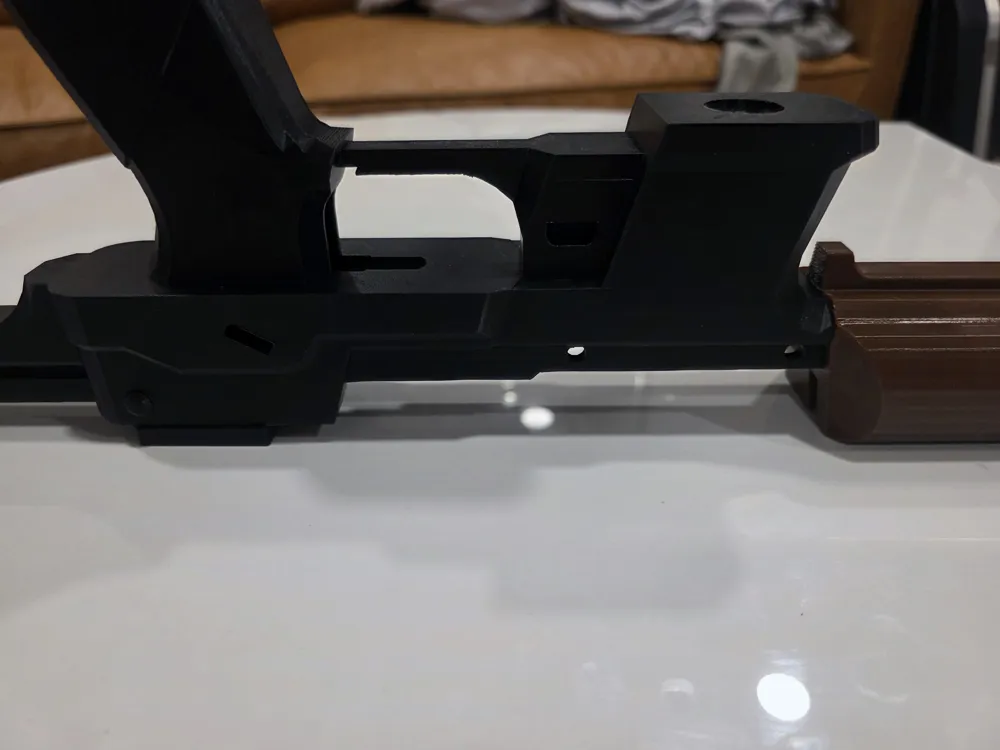

Refer to the assembly PDF for easy instructions! The Glue Help piece is not part of the final product, it is to help align the brown handguard horizontally when upside-down on a table during assembly only. No glue ever touches the Glue Help piece.

This model can also be assembled without the electric spray kit or dowels; you just need to use glue to connect the top rail to the body and print the blue rails with no holes. You can also print the normal blue rails, there will just be visible holes for the dowels.

Please keep in mind you are not printing one model - you are printing 20 models and a couple may require a skip/reprint/re-do. Hopefully not though! I know there will be plenty of people that will click print on each plate and have zero problems with their perfectly dialed in printer and filament just like my other models!
