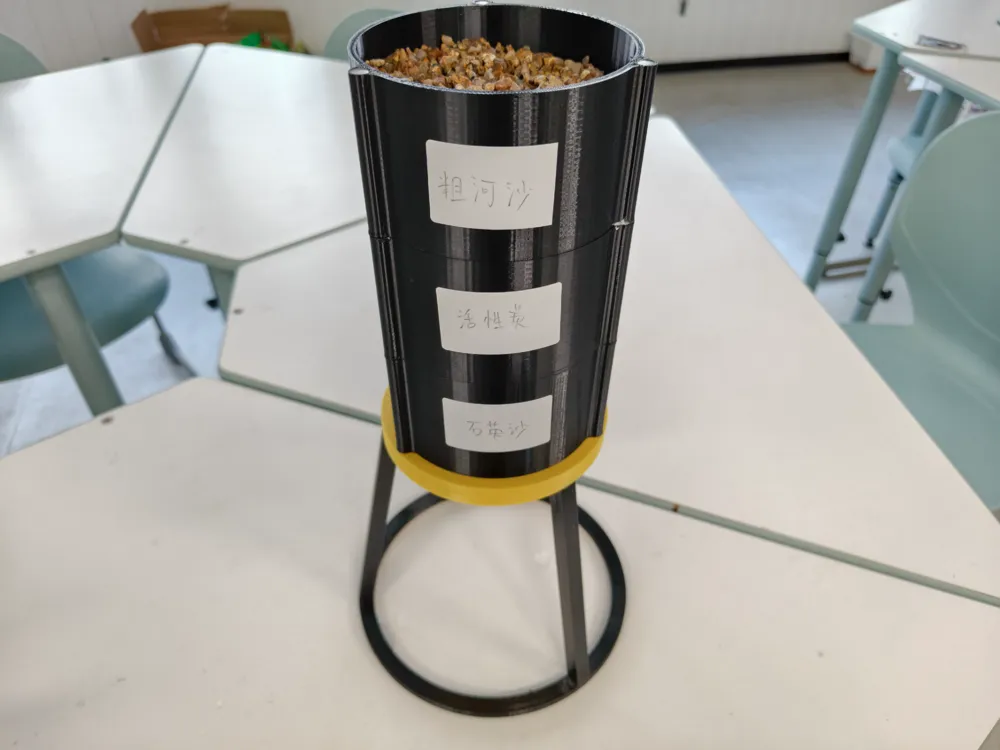

Scientific Experiment Sewage Filtration Device, Environmental Science, Magnetically Stackable Multi-layer

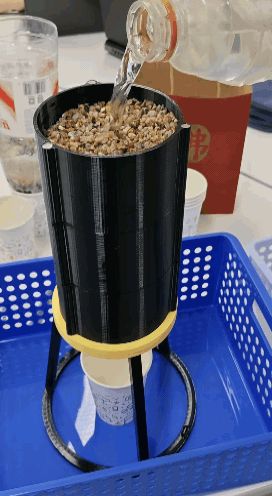

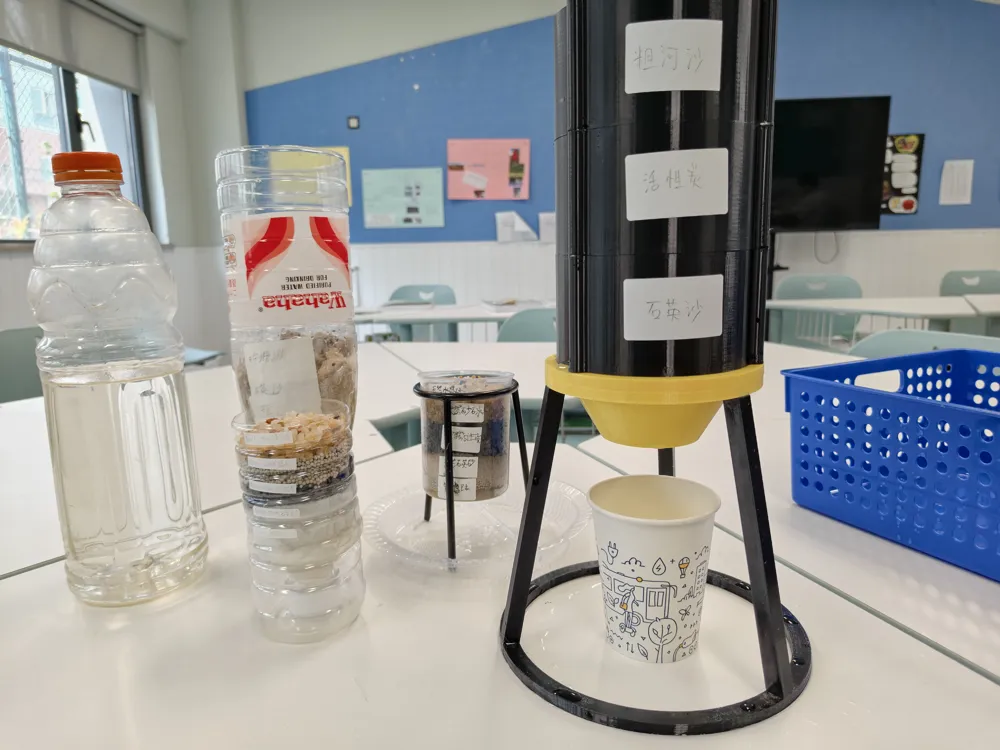

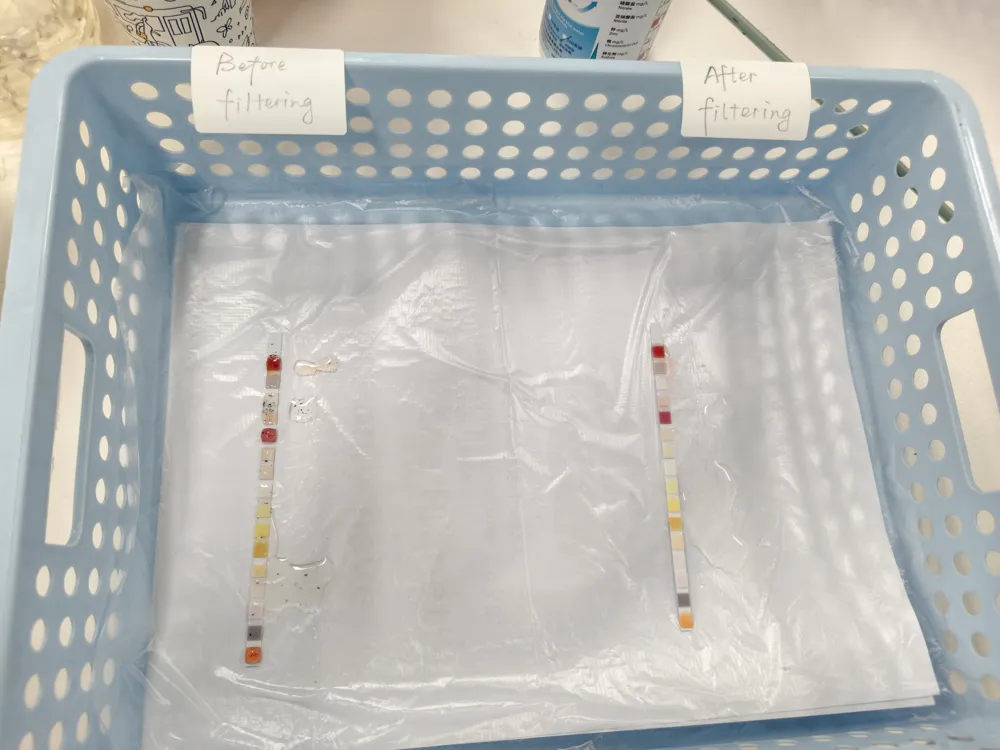

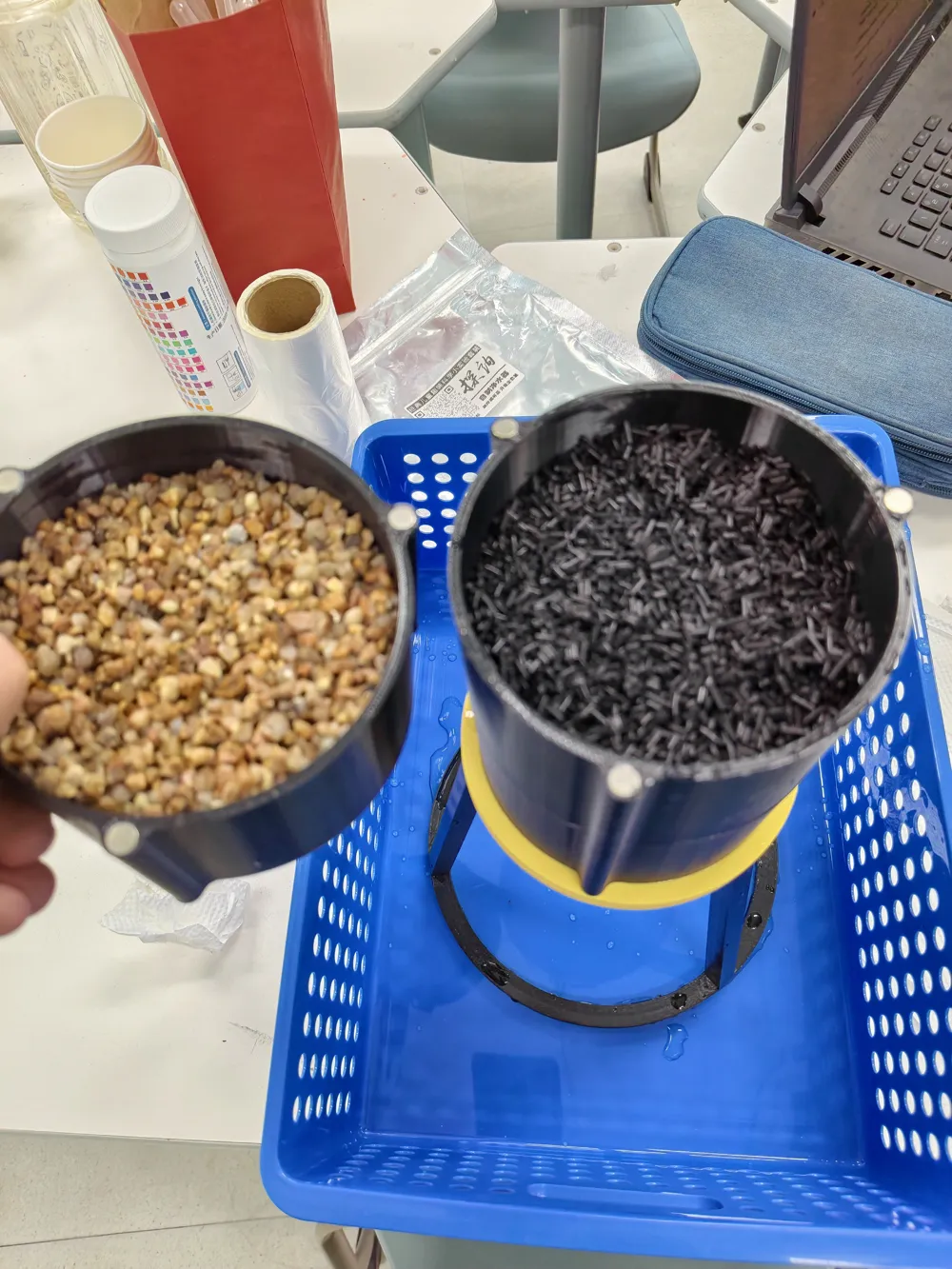

Wastewater filtration device for scientific experiments, to test the filtration effect of different materials on wastewater using test strips, stackable in multiple layers. Magnetic positioning requires 6mm diameter, 1mm height circular magnets

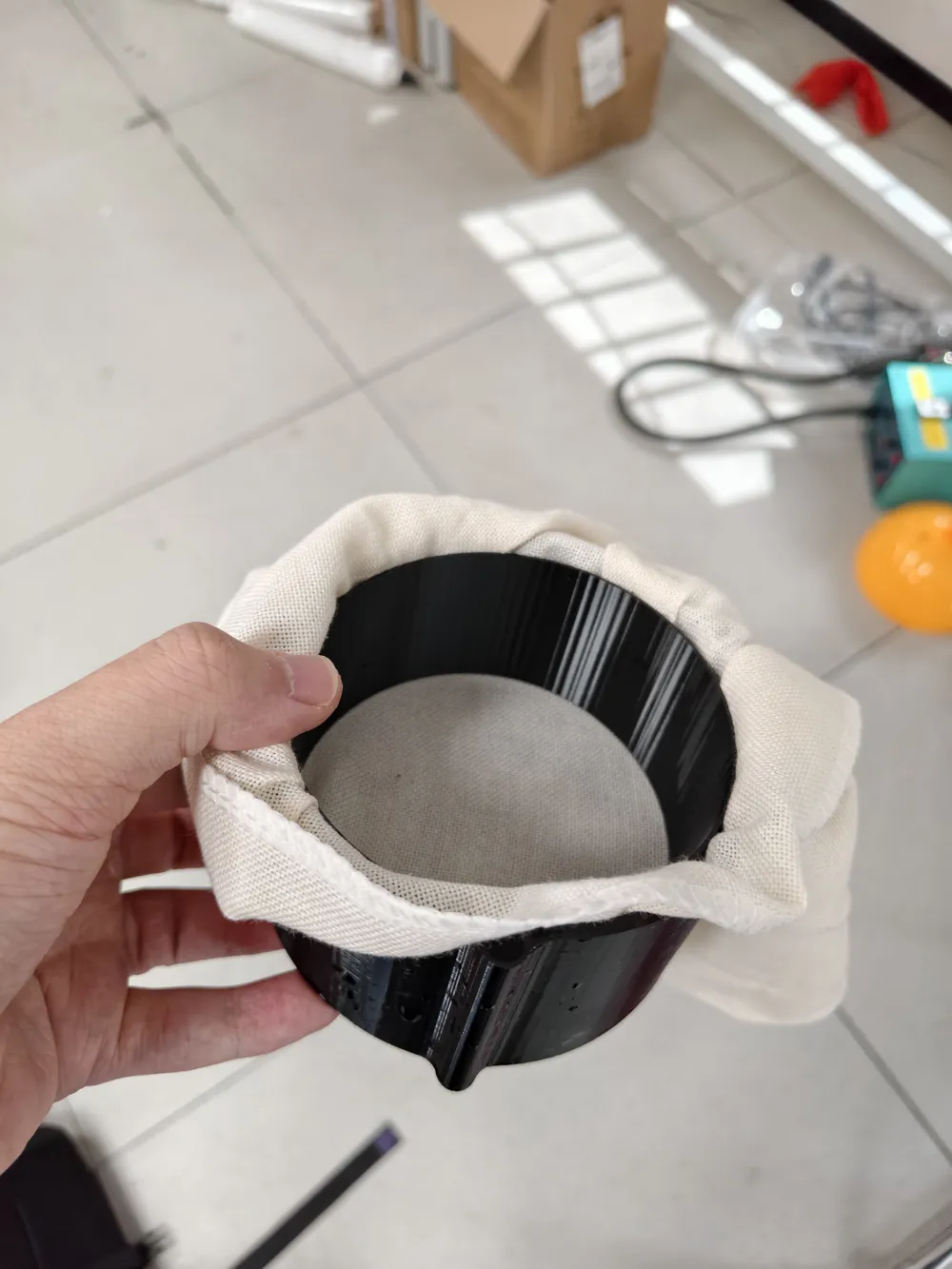

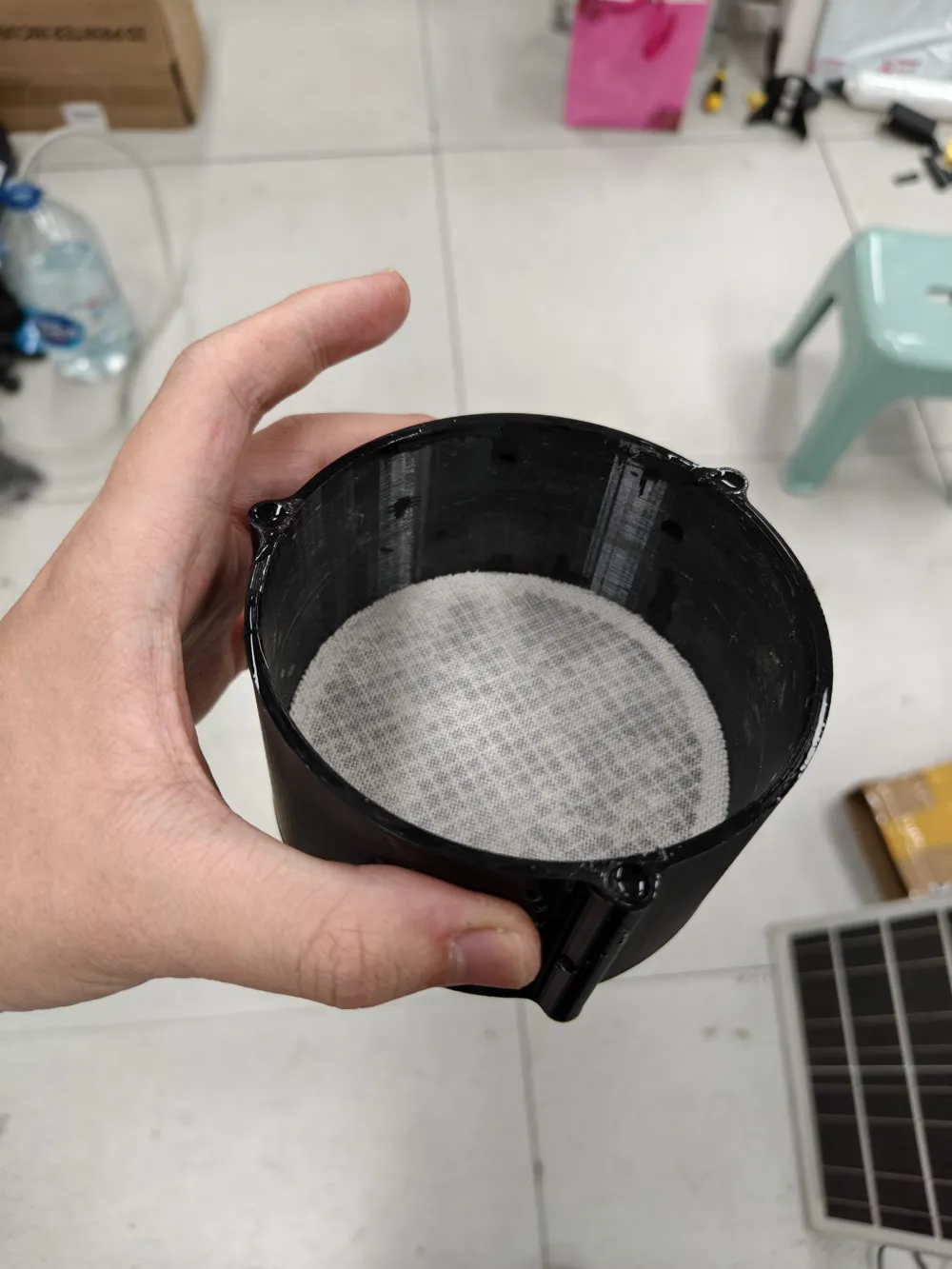

You need to prepare your own filter cloth to prevent experimental materials from leaking through (I used pure cotton gauze). It is recommended to print the filter screen from plate three directly onto the filter cloth. If you cannot print directly onto the fabric, you will need to print an additional retaining ring to secure the filter cloth (as shown in the last picture)

Regarding how to print on fabric

You must use bed adhesive + clear water, wet the entire cloth thoroughly, and lay it flat on the build plate. Then, heat to 70 degrees Celsius to dry it, only then can you start the calibration and printing process. Before printing, perform automatic build plate leveling, otherwise, it will hit the print head
