Modular CyberBrick BotLeague is a compact 3D-printable RC robot and playground system built around CyberBrick electronics and Maker’s Supply parts.

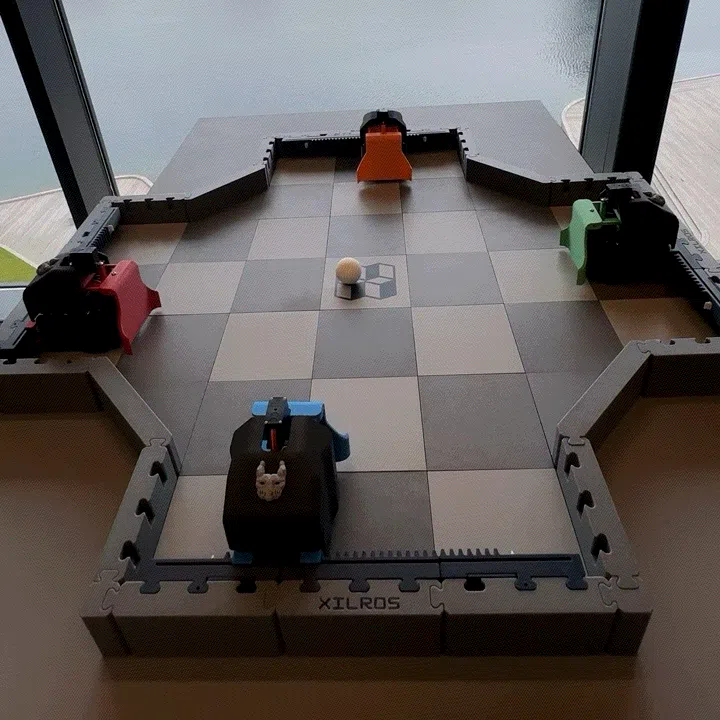

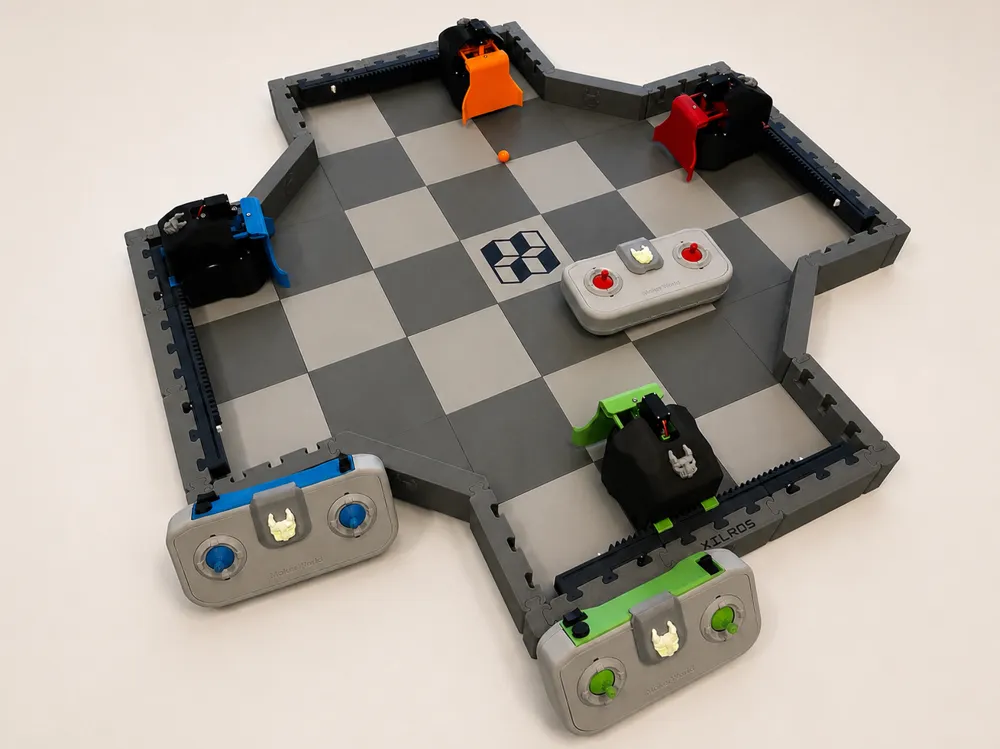

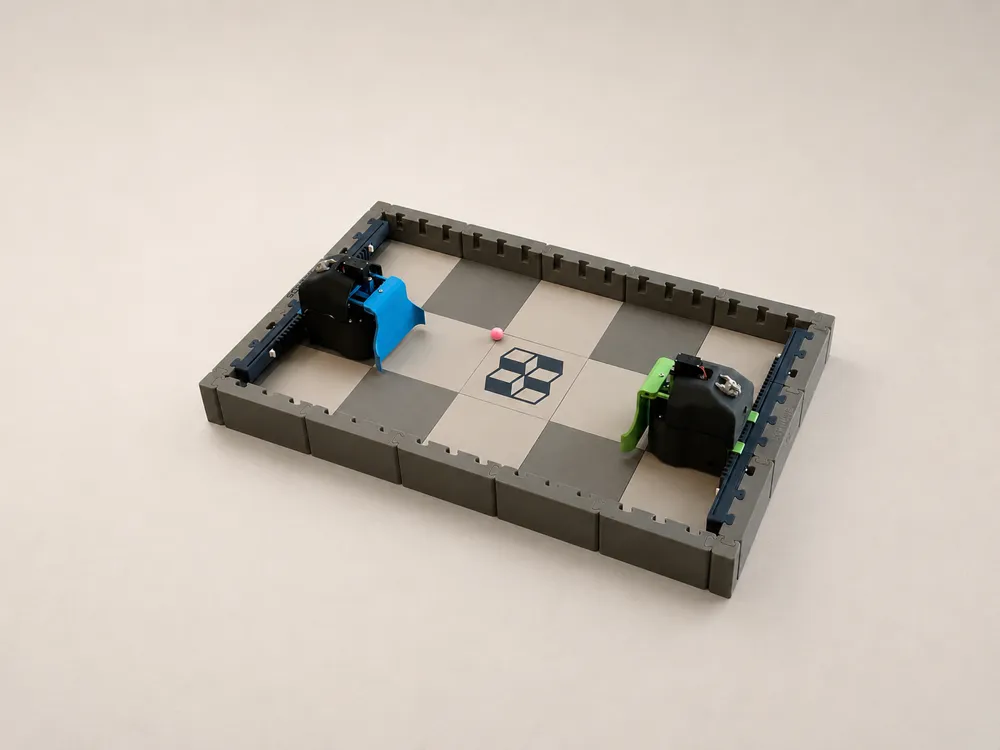

It includes a modular robot body, front guard and strike mechanism, gearbox options, a configurable border/rack playground, optional interlocking floor tiles, and a game ball.
The robot can be built in two main driving modes:

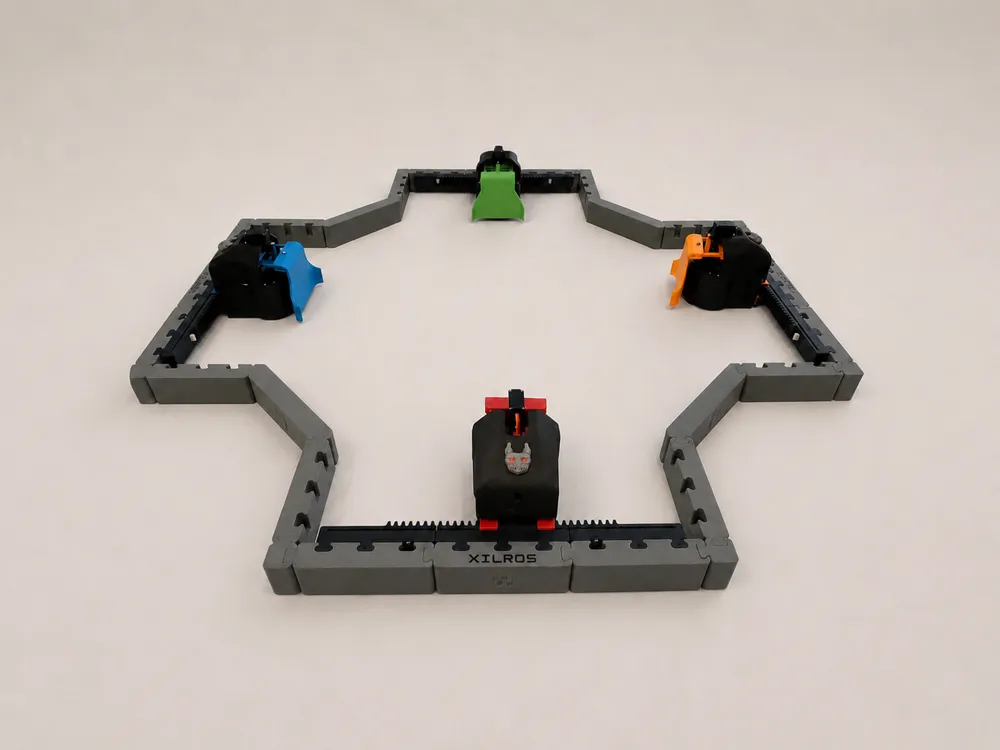

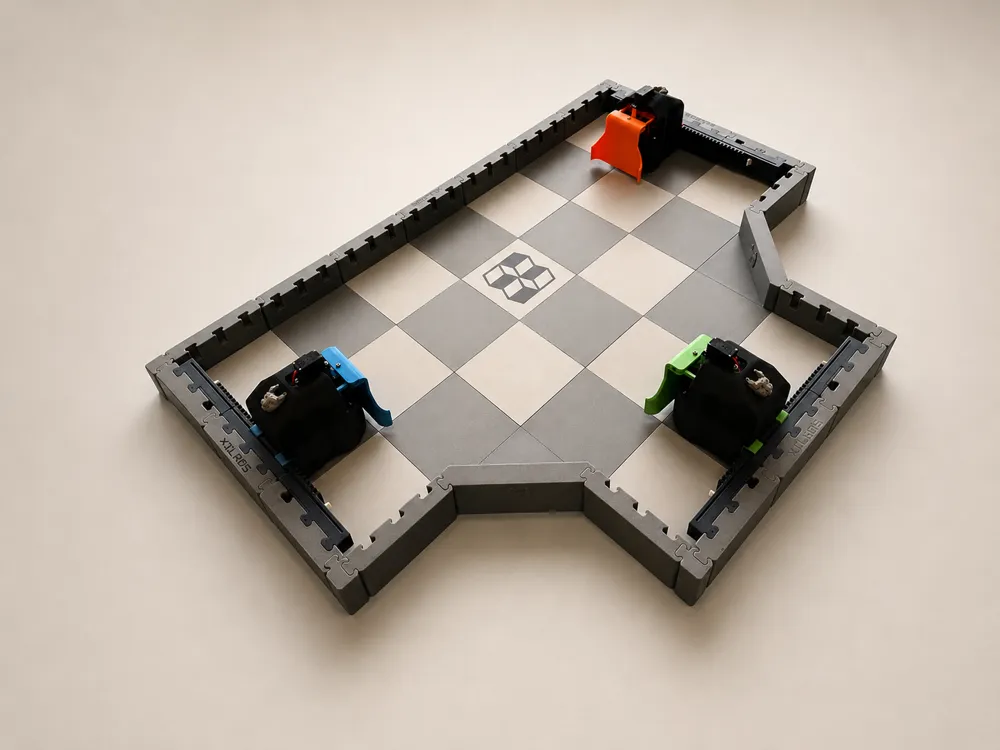

Slide Mode

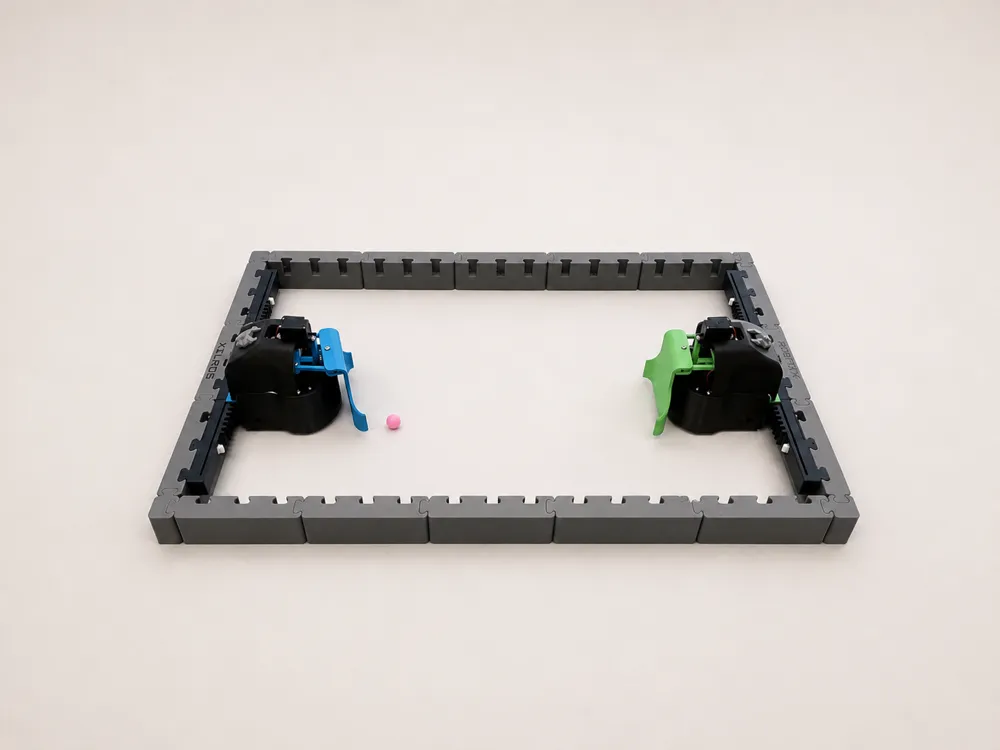

One gearbox drives a pinion along the rack section of the playground. Side skids guide the robot through the track.

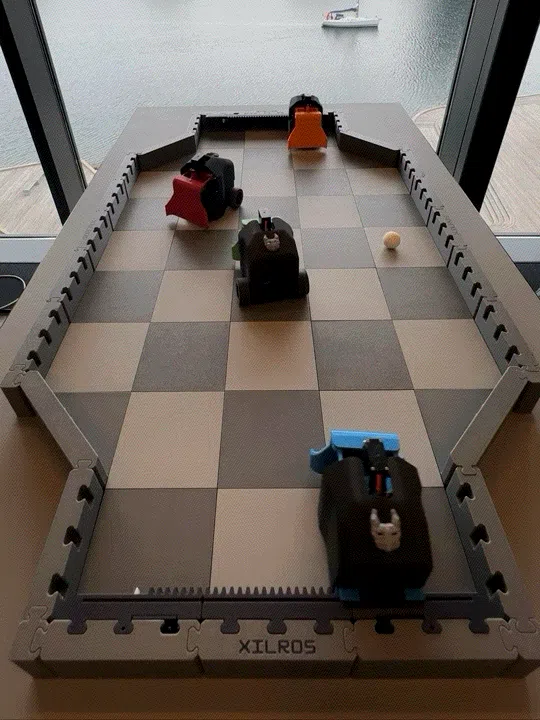

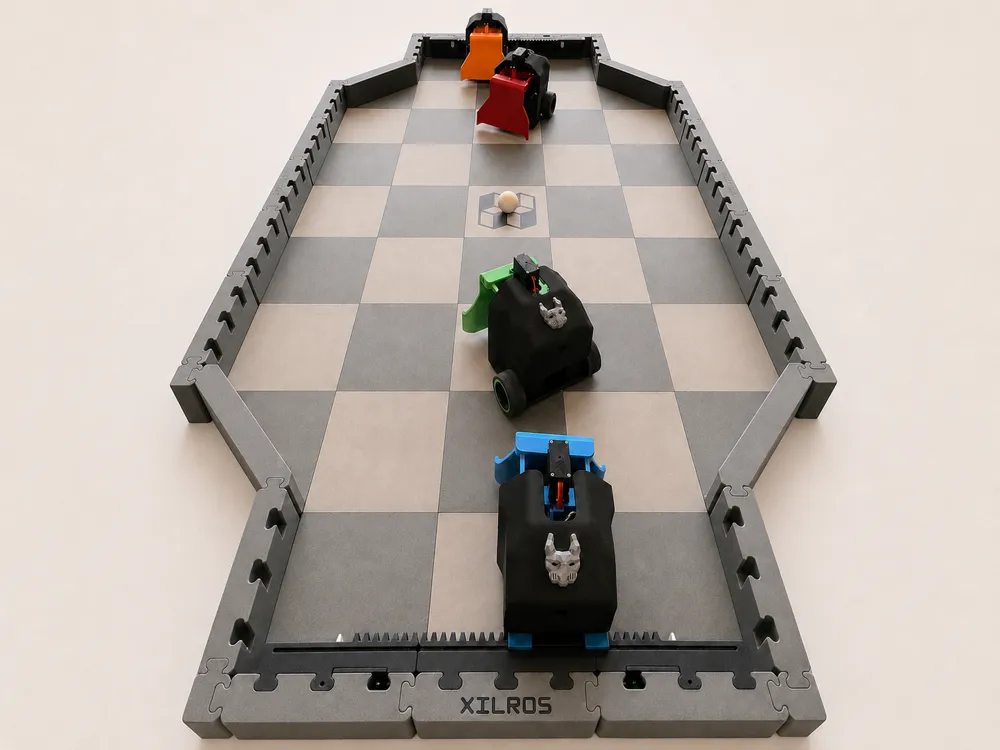

Rover Mode

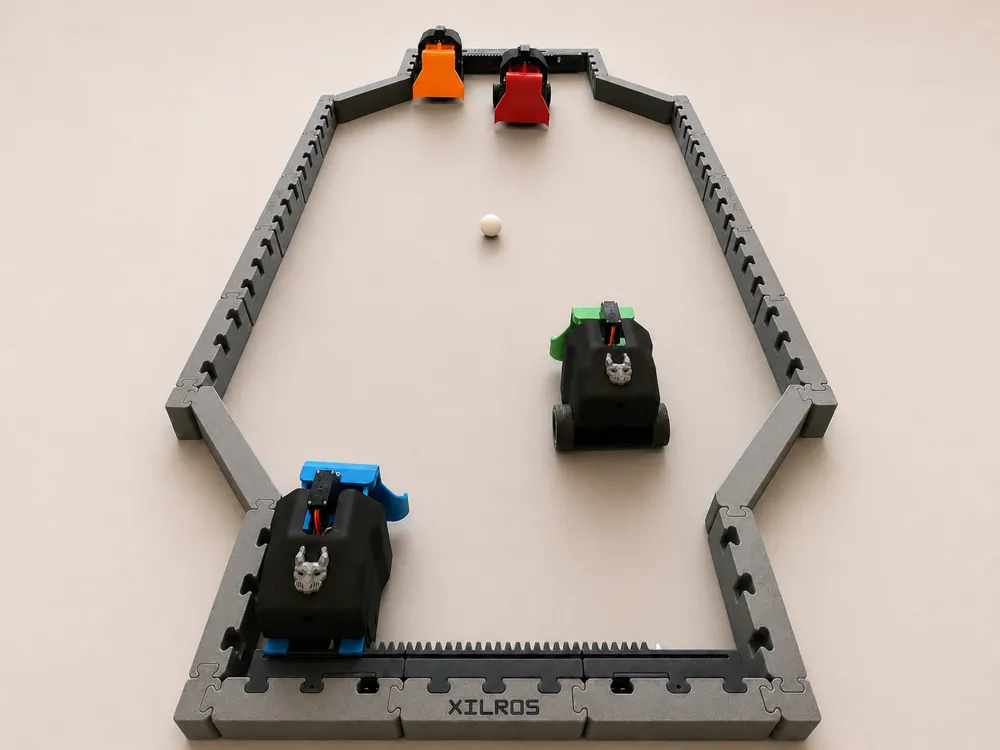

Two gearboxes drive independent wheels for free movement across the arena.
The front mechanism uses a servo controlled guard and a strike action, so the robot can be used for simple game based driving, pushing, blocking, and ball interaction.
Control Configurations

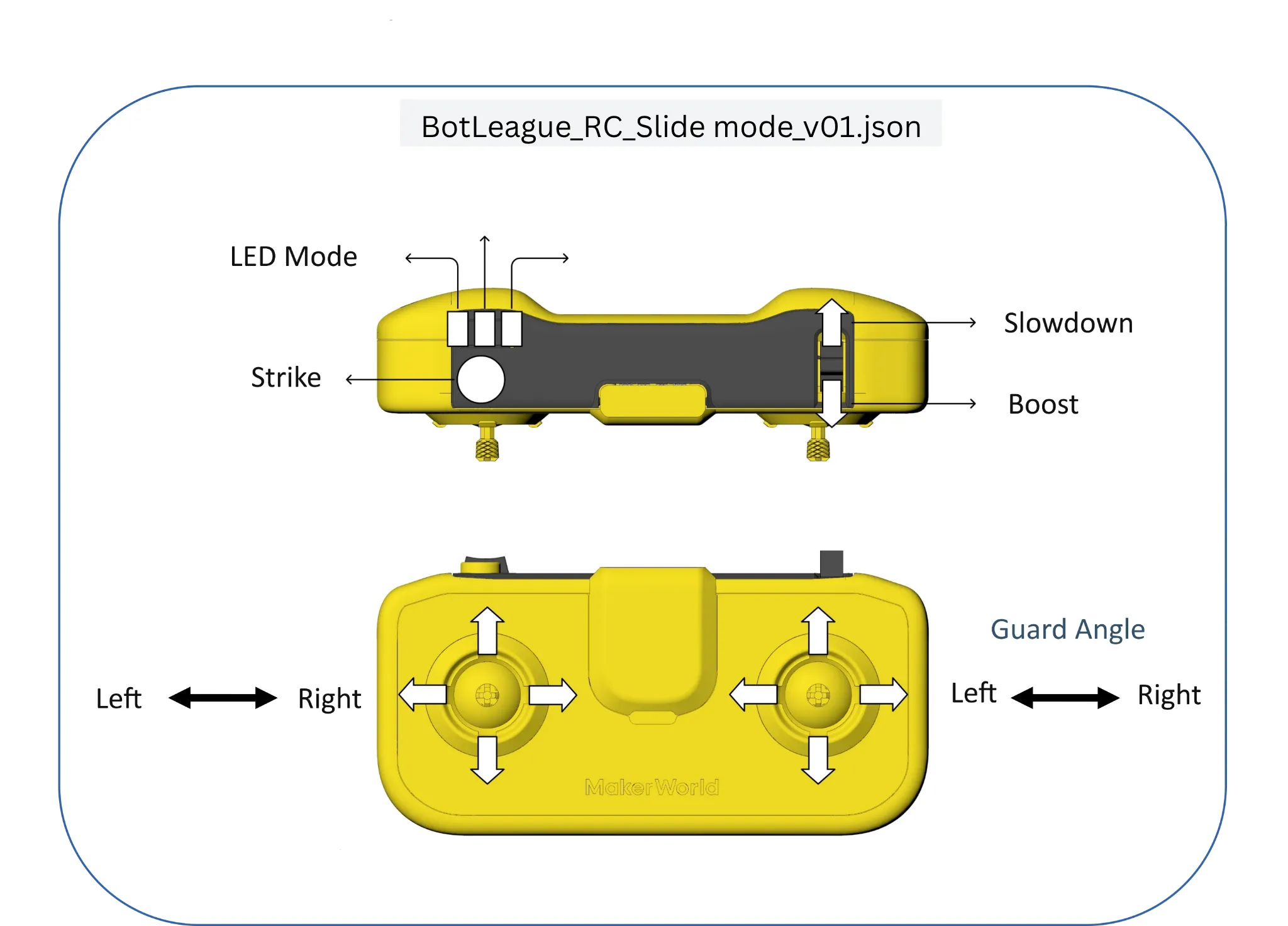

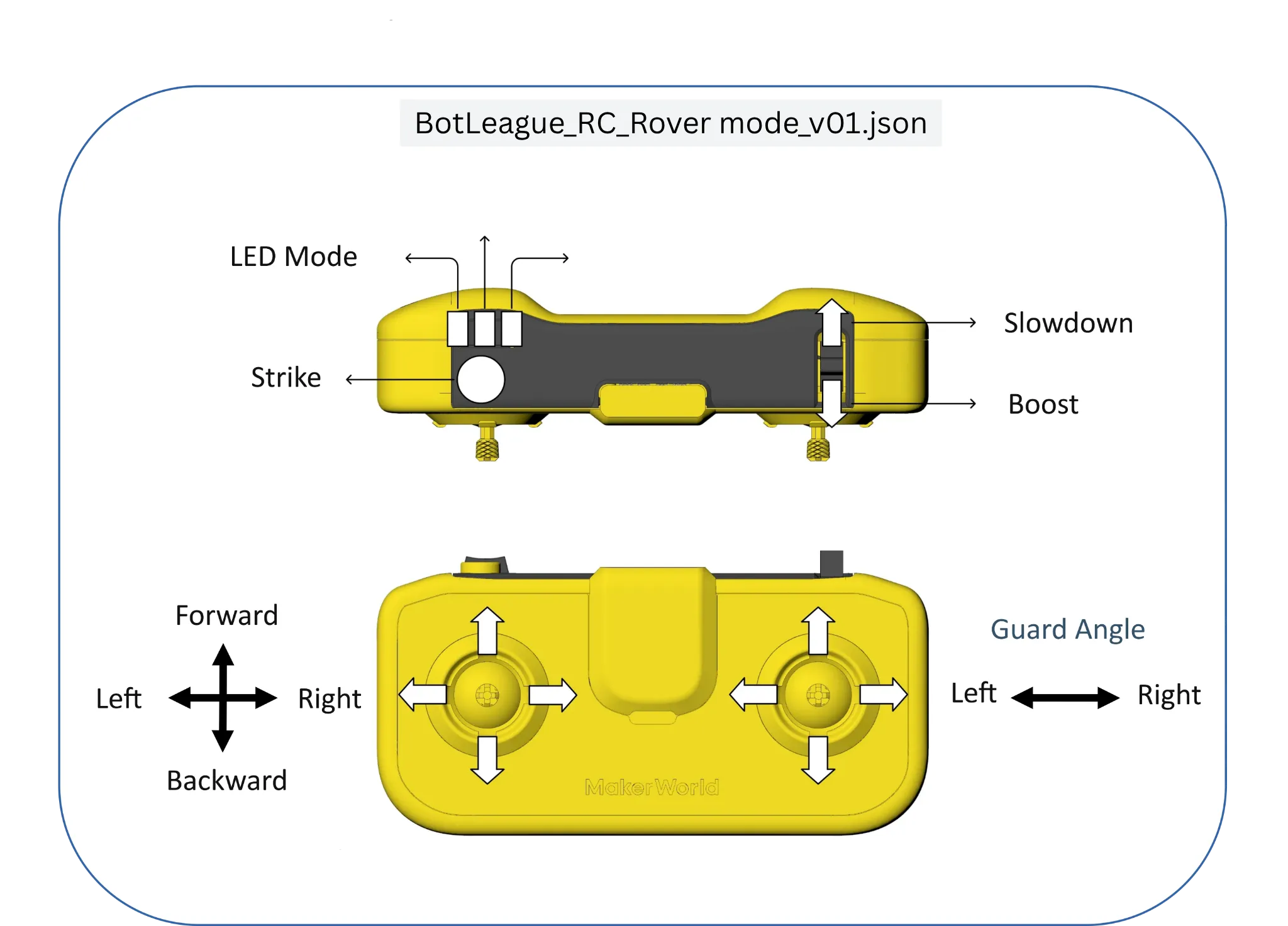

There are two control configurations provided as JSON files. The key bindings are shown below:
