SCX30 Cheater Rig

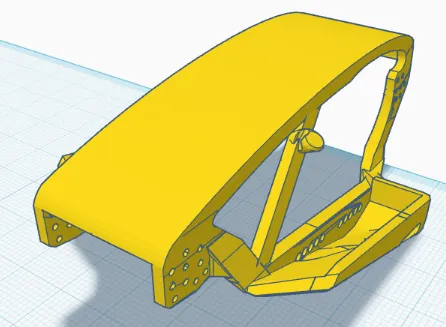

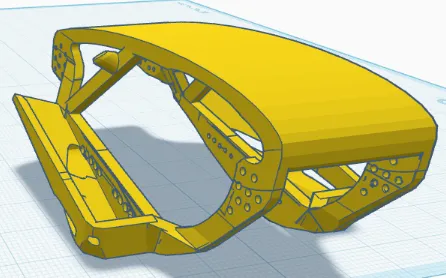

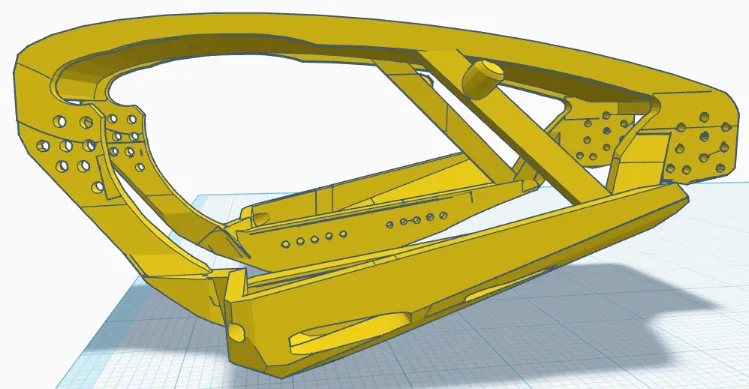

This is one of is not the lightest complete chassis out there! This is one single print that includes the frame rails, sliders, and cab all in one. Less material, less hardware, less weight. This one is a game changer for sure!

Fully tucked skid

Increased skid angle

Multiple skid locations

Here are some SCX30 +5mm Rear Lower Links - Free 3D Print Model - MakerWorld that compliment this chassis nicely, and that I highly recommend!

Fits stock, Injora, and Furitek Unity motors. Factory RX/esc will NOT bolt in, although it will fit on a slider. I would recommend decasing and then mounting.

This one is SMALL, TIGHT, and can be frustrating while building, but i assure you, once complete, it performs amazingly!

I recommend printing standing straight up on its REAR bumper

I also recommend PETG for the slight added strength, but more so the slight bit of flexibility.

• While installing motor/trans/skid, slide the motor end in first, and carefully spread the rails and slip the skid up and in. I have done it now while testing and 15 different reprints, i have only broken it ONCE while installing.

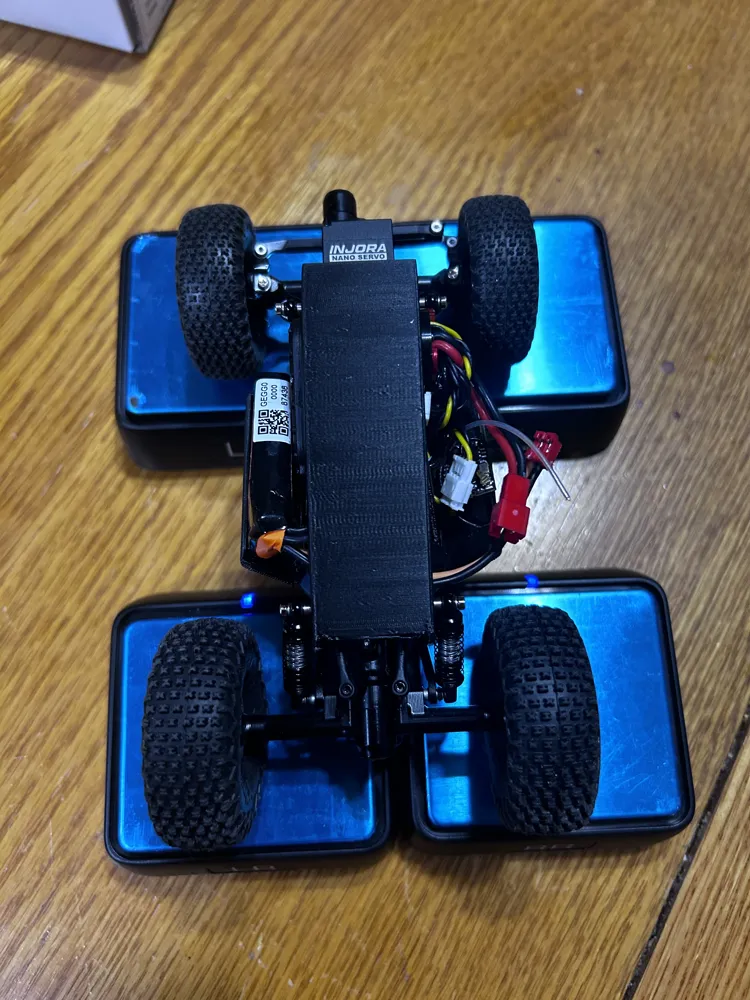

  You can use two small rubber bands to help hold electronics and the battery…shown below in the video.

  (Loop through the front slider hole, and the. attach to the small nipple.)
