Hello dearest hobby shooters.
I purchased a Cyma AK for CQB and wanted to screw on my tracer, only to find that the inner barrel protrudes quite a bit.
Accordingly, I printed this mock suppressor to be able to use my Xcortech XT301 MK2.

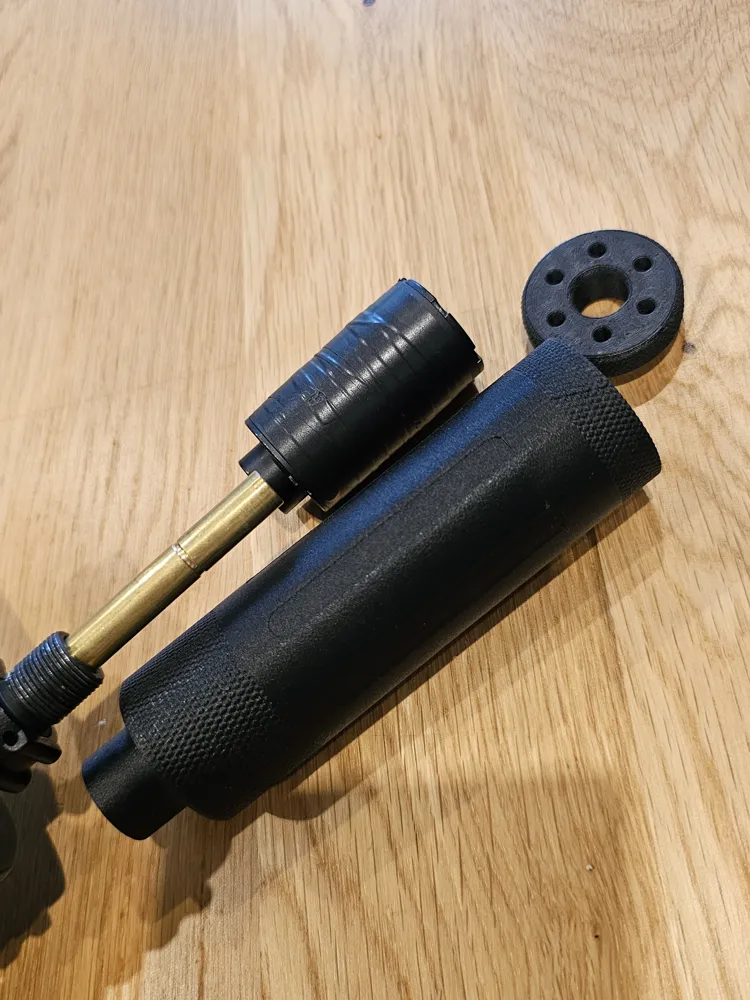

This dummy has a solid buffer zone to conceal an inner barrel of up to 50mm from the end of the thread. Following this is the compartment for the tracer; my Xcortech is 48mm long and 27mm in diameter. Of course, any other suitable tracers can also be used, but I would advise against using a narrower one, as movement can cause the BBs to hit the tracer and cause damage.

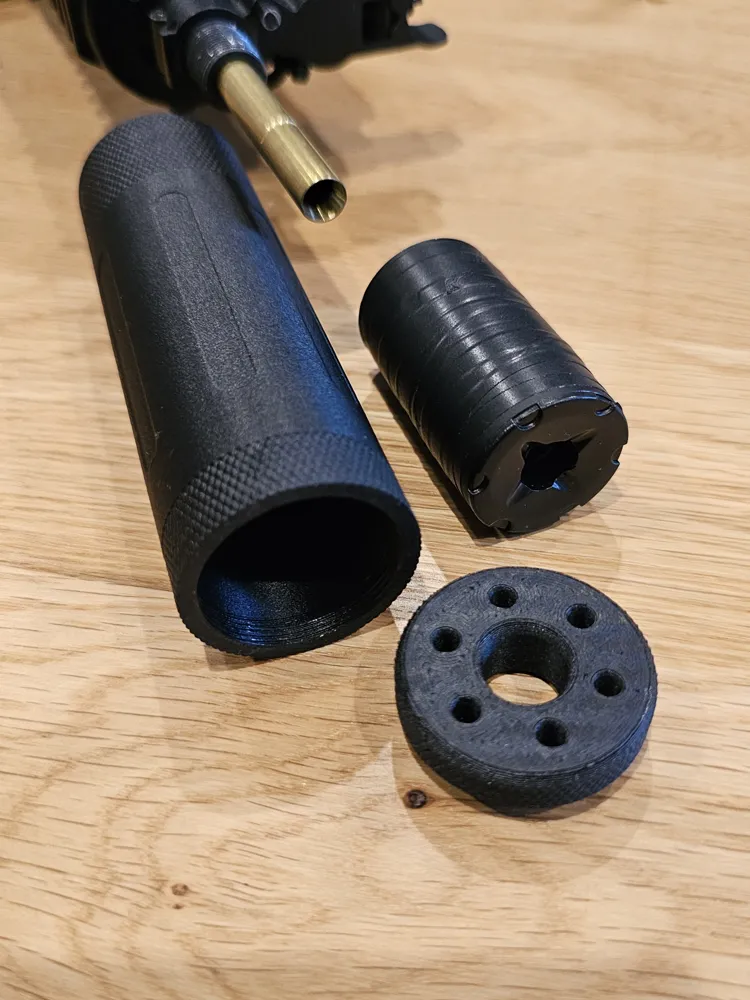

At the end, there is a screw-on cap with a few extra openings to potentially make good use of a Spitfire function.

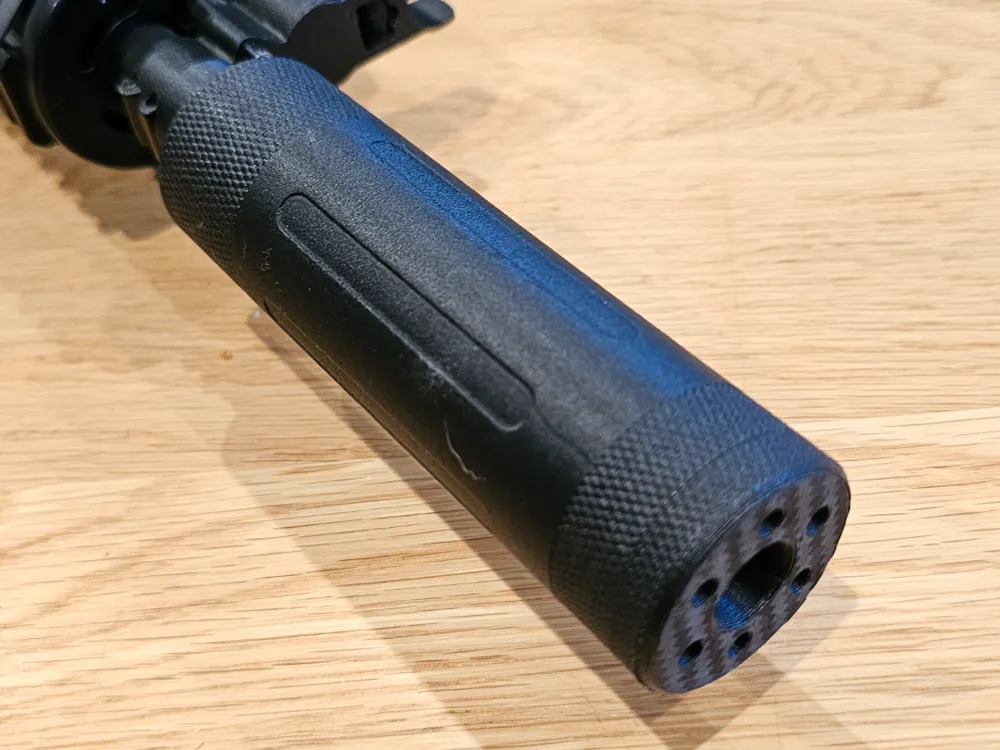

Naturally, the model can also simply be used as a tracer housing with a suppressor look; the BBs pass through the recess for the barrel and tracer completely without issues.
I have printed with both PLA Tough+ and PETG-CF. I will probably also start trials with ASA or ABS, but after a good handful of game days, the two I have so far are holding up great. Only one cap had to be replaced because it took some hits (but remained intact except for a couple of 6mm dents 😁).
I would appreciate a boost and a rating.
Suggestions for improvement and customizations are also welcome.
