Apple Watch Ultra Bike Mount (Garmin Ecosystem Adapter)

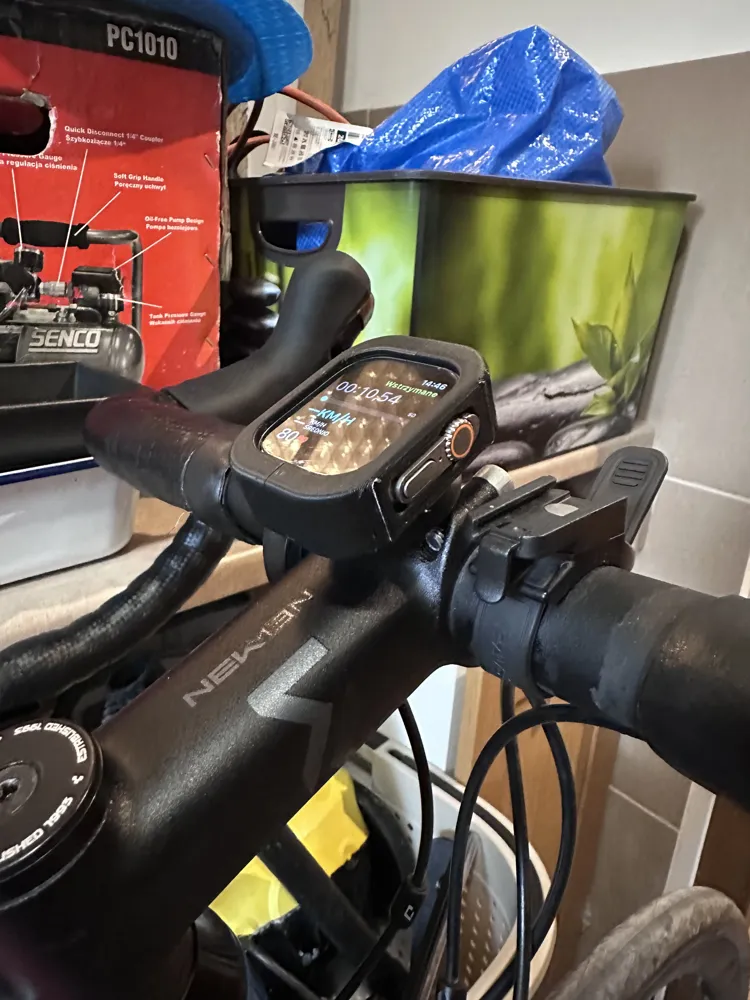

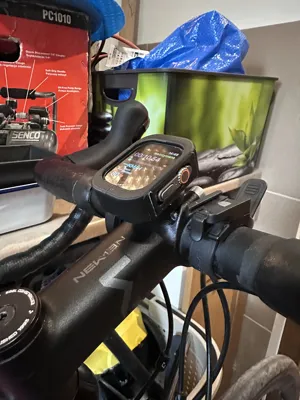

A precision-engineered, two-piece adapter designed to mount an Apple Watch Ultra onto any standard Garmin-compatible bike mount. This project allows cyclists to leverage the advanced capabilities of the Apple Watch Ultra—such as its high-accuracy GPS, fitness applications, and ultra-bright display—as a dedicated, handlebar-mounted cycling computer.

Technical Design and Locking Mechanism

The architecture of this mount completely eliminates the need for screws, adhesives, or mechanical fasteners. Instead, it relies on an interlocking two-piece geometry and the structural physics of the Garmin mount interface:

1. Preparation: Remove the watch straps from the Apple Watch Ultra housing.
2. Alignment: Enclose the watch chassis within the upper and lower halves of the adapter.

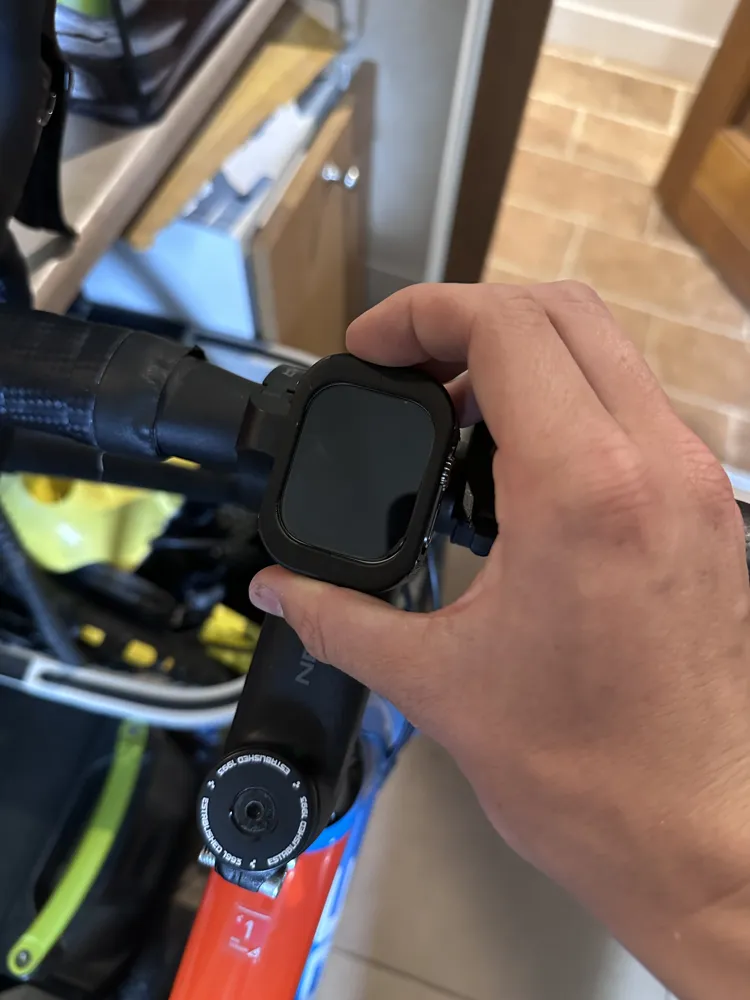

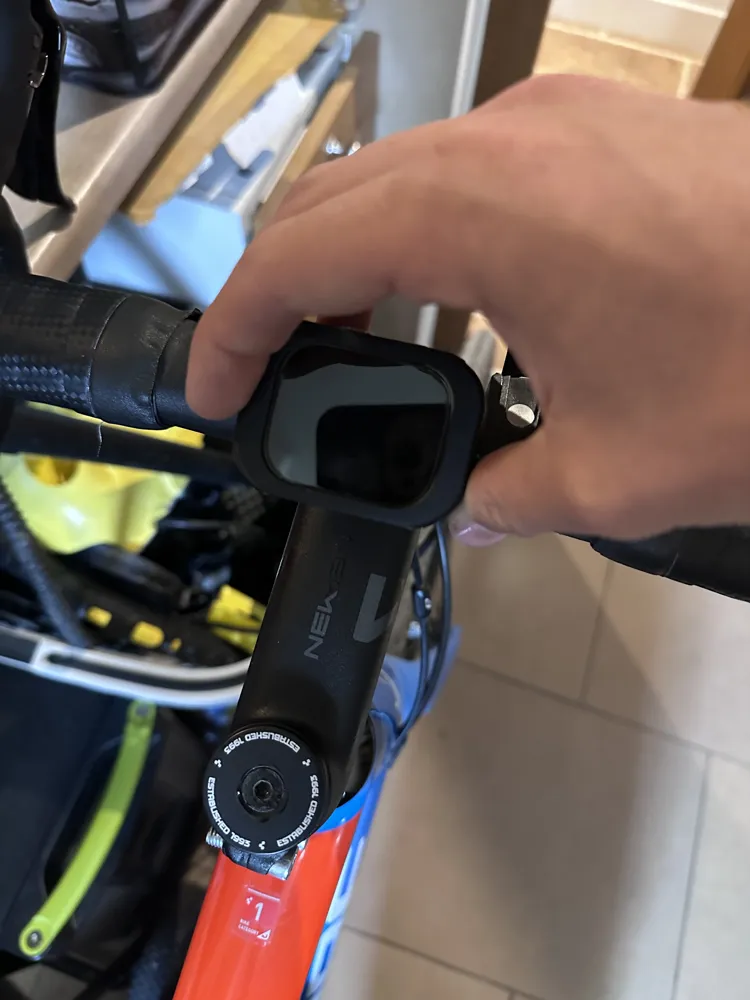

3. Engagement: Insert and rotate the assembled unit into the standard Garmin handlebar mount.

Structural Clamp Principle: As the adapter is rotated into the Garmin mount, the mounting tabs are compressed uniformly by the receiver's internal ramp geometry. This mechanical pressure forces the two halves of the adapter to lock securely around the watch chassis. The assembly remains entirely rigid, eliminating play and securing the device against high-vibration environments, including gravel and mountain biking.

Key Features

• Cost-Effective Integration: Utilizes existing hardware to replace expensive, dedicated cycling computers.
• Chassis Protection: The adapter shell conforms tightly to the titanium bezel of the Apple Watch Ultra, shielding it from impacts and road debris.

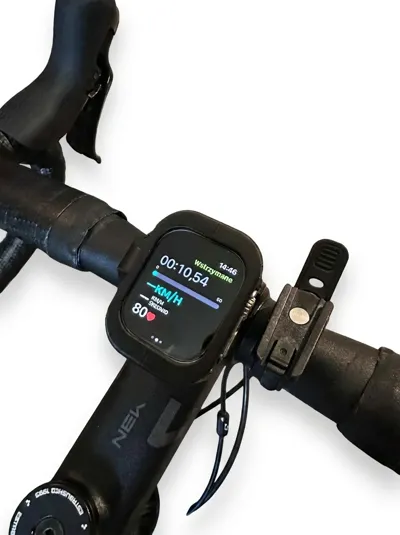

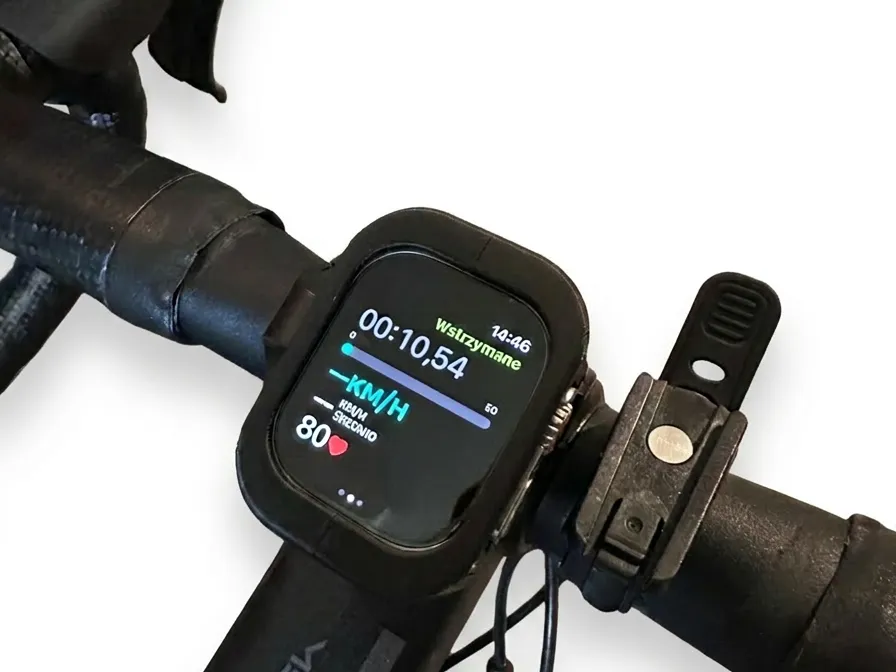

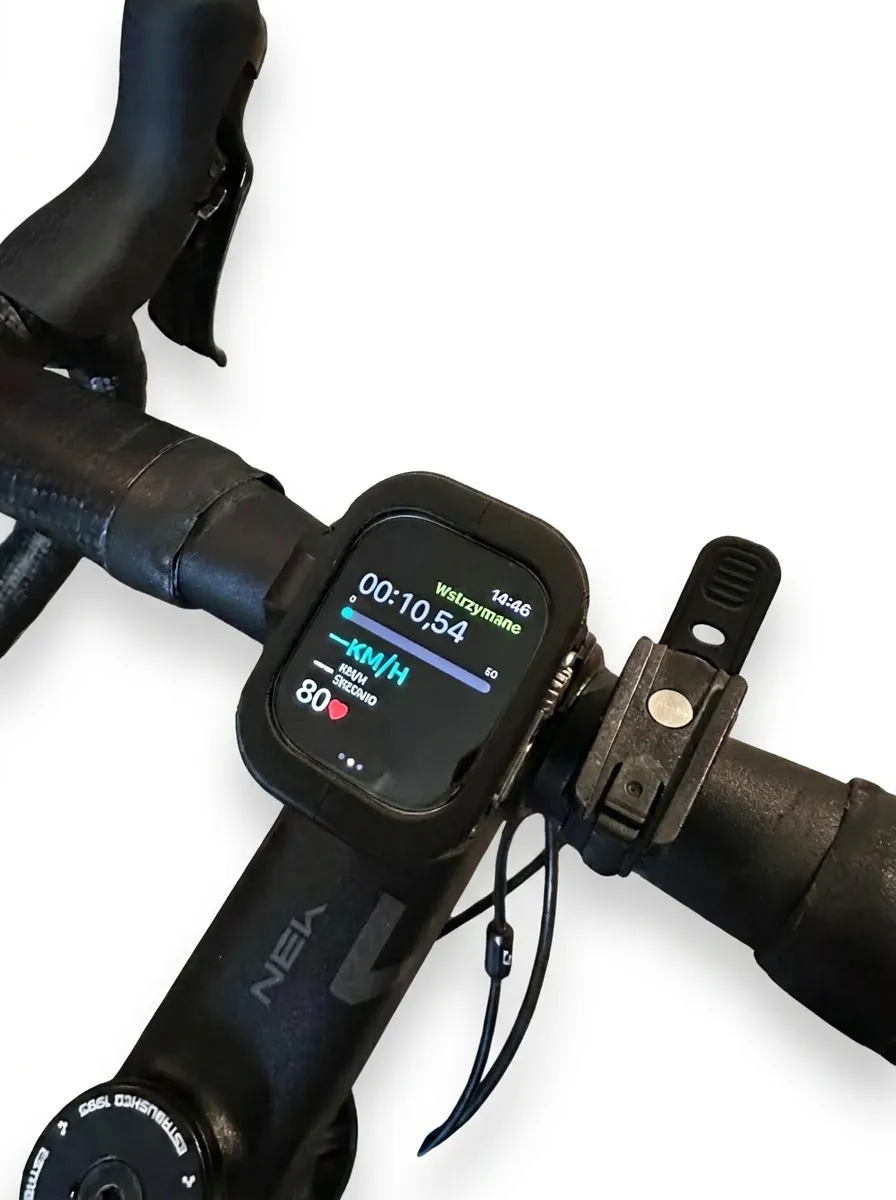

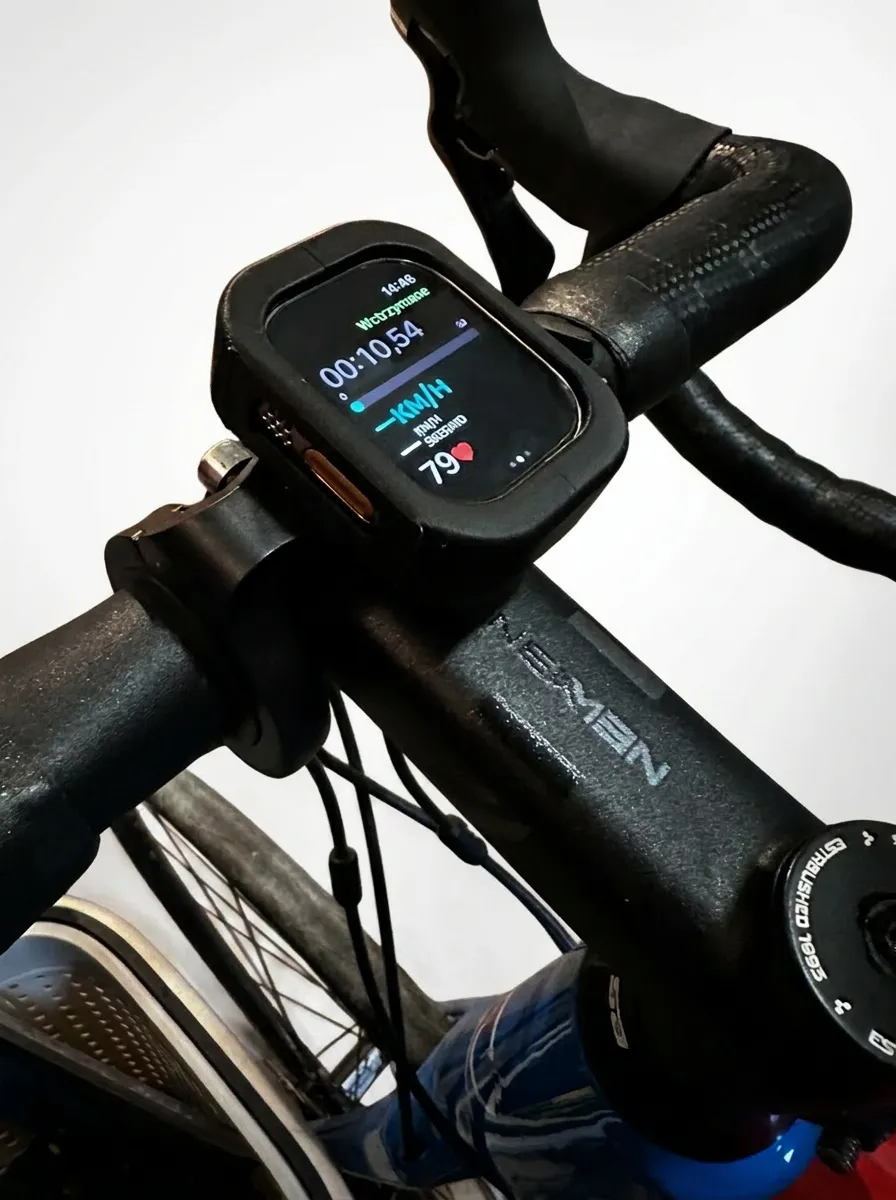

• Unobstructed Display: The low-profile bezel design ensures full visibility of the screen and maintains touchscreen accessibility for real-time telemetry and navigation.
• Zero-Hardware Assembly: A 100% 3D-printed solution requiring no additional components or post-processing hardware.

Recommended Print Settings

To withstand outdoor exposure and mechanical stress during operation, engineering-grade filaments are highly recommended:

• Material: PETG, ASA, or ABS (for UV resistance and thermal stability under direct sunlight). PLA is not recommended due to its low heat deflection temperature.
• Layer Height: 0.16 mm to 0.20 mm (critical for the dimensional accuracy of the Garmin mounting tabs).
• Wall Loops: Minimum of 4 (essential for the structural integrity of the interlocking tabs).
• Infill: 30% to 40% (Gyroid pattern recommended for multi-directional strength).
• Supports: Depending on print orientation, Tree Supports are recommended to ensure clean internal mating surfaces.
