Fish Style Tuna Can Dispenser (65mm)

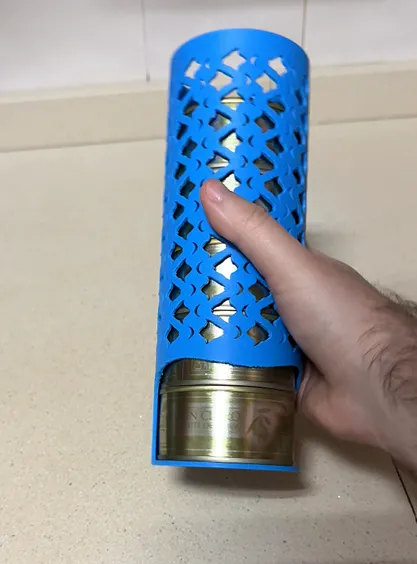

Vertical Can Dispenser (Tuna Theme🐟) - FIFO System (stackable)

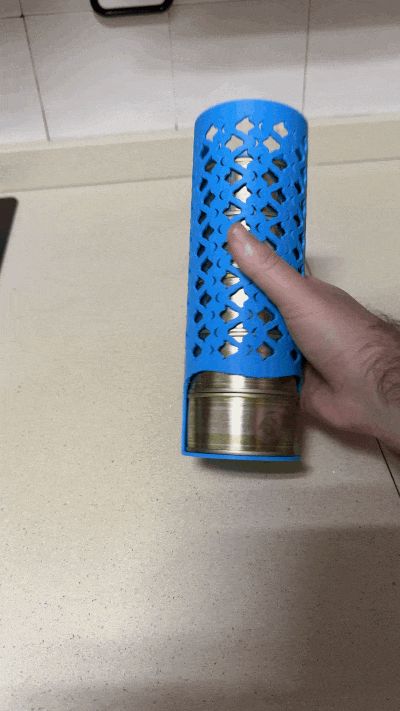

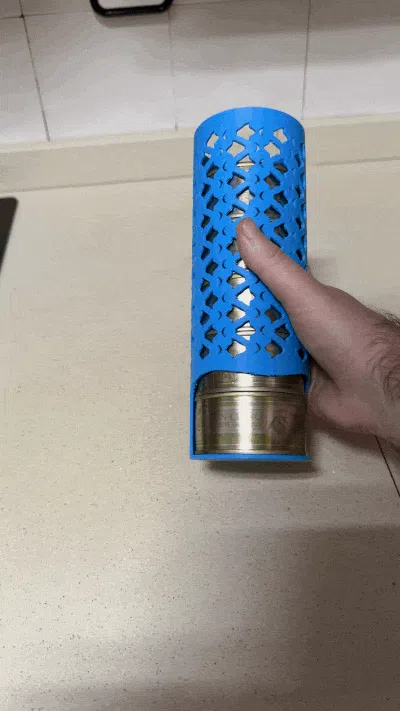

Optimize your pantry space with this automatic vertical dispenser! Cans are loaded from the top and removed from the bottom, ensuring a true FIFO (first-in, first-out) system

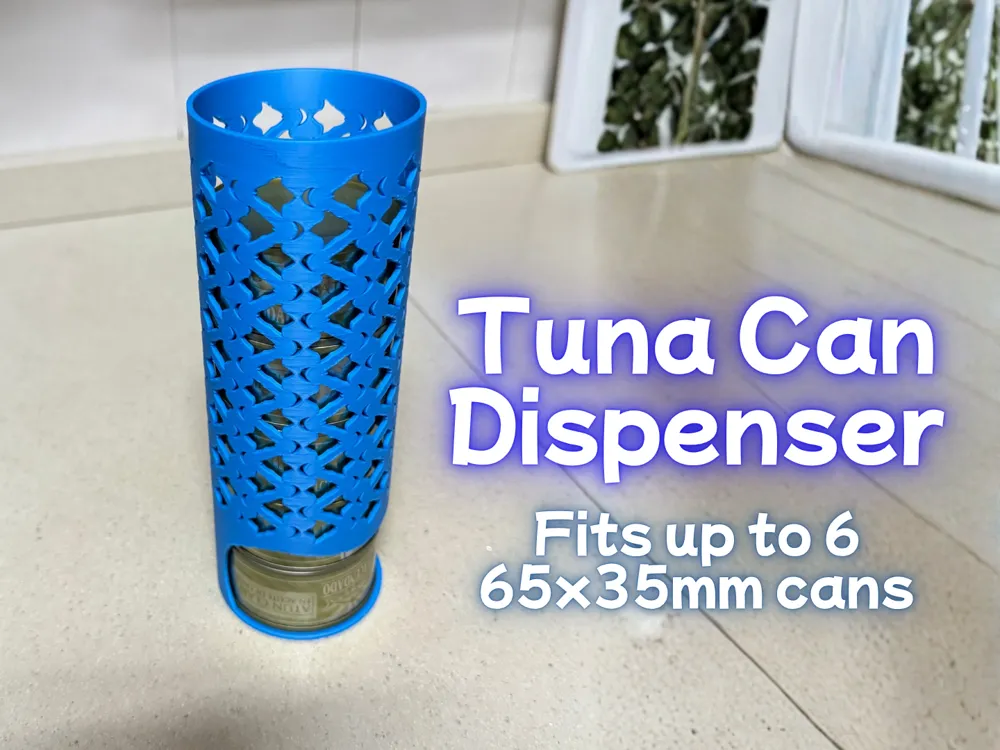

• Capacity: Holds up to 6 cans
• Compatibility: Designed for cans up to 65 mm in diameter and 35 mm in height (perfect size for Mercadona's tuna can packs, peppers, peas, etc)

• Recommended material: PLA (robust and easy to print), though you can use any material of your preference



💡 IMPORTANT PRINTING NOTE (Supports):

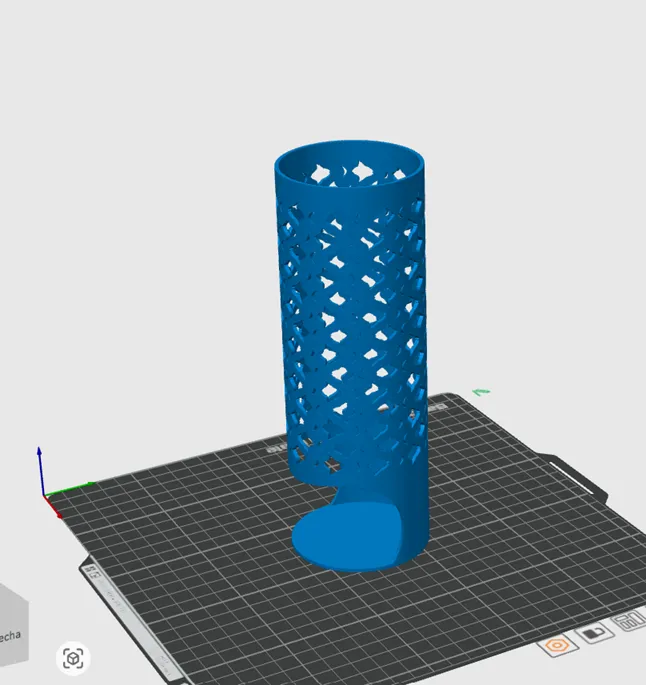

• Use my print profile: It already includes the necessary custom supports only on the base (the output opening)

• ⚠️ DO NOT use automatic supports: If enabled, the slicer will try to place supports in each of the fish holes, ruining the aesthetics and unnecessarily increasing print time. The fish pattern is designed to be printed without supports

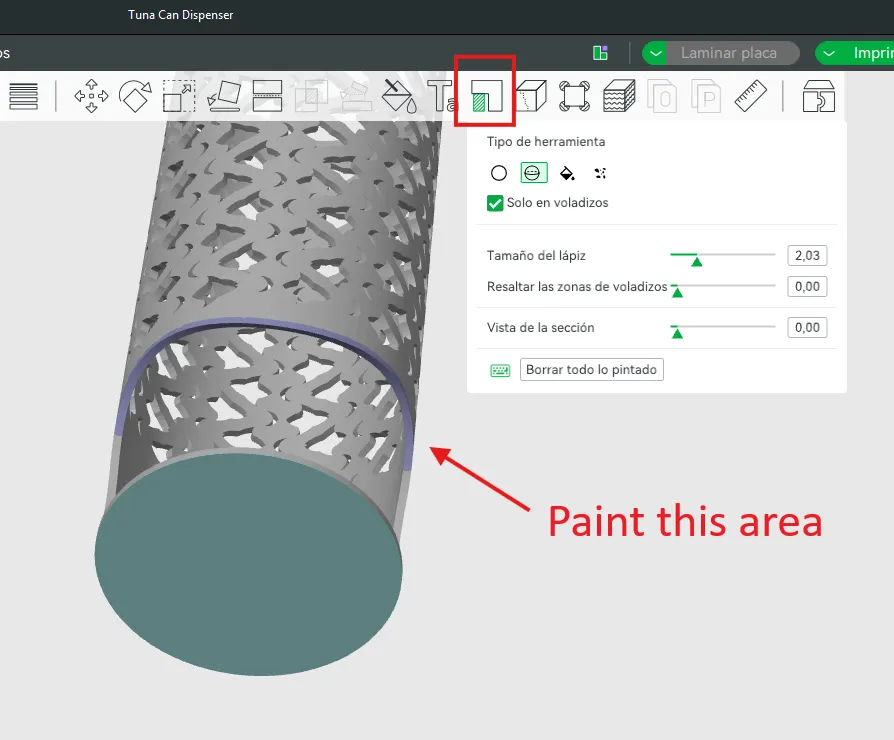

ATTENTION: If you don't see the supports on the base when opening the .3MF or STL, you just need to activate Normal (manual) type supports and paint them like this:

Additionally, to better remove supports, I recommend these options:

• Support critical regions only
• Top Z distance: 0,28mm
• Bottom Z distance: 0,25mm
• Top interface layers: 3

 The outer mesh has been designed with a fish theme, ideal for tuna. If I see that the model receives support and you like it, I will upload new versions with other themes for the rest of the pantry! 😉

🎬 Want to see how I designed it and why I made this change? 🔎 Check out the full process here
