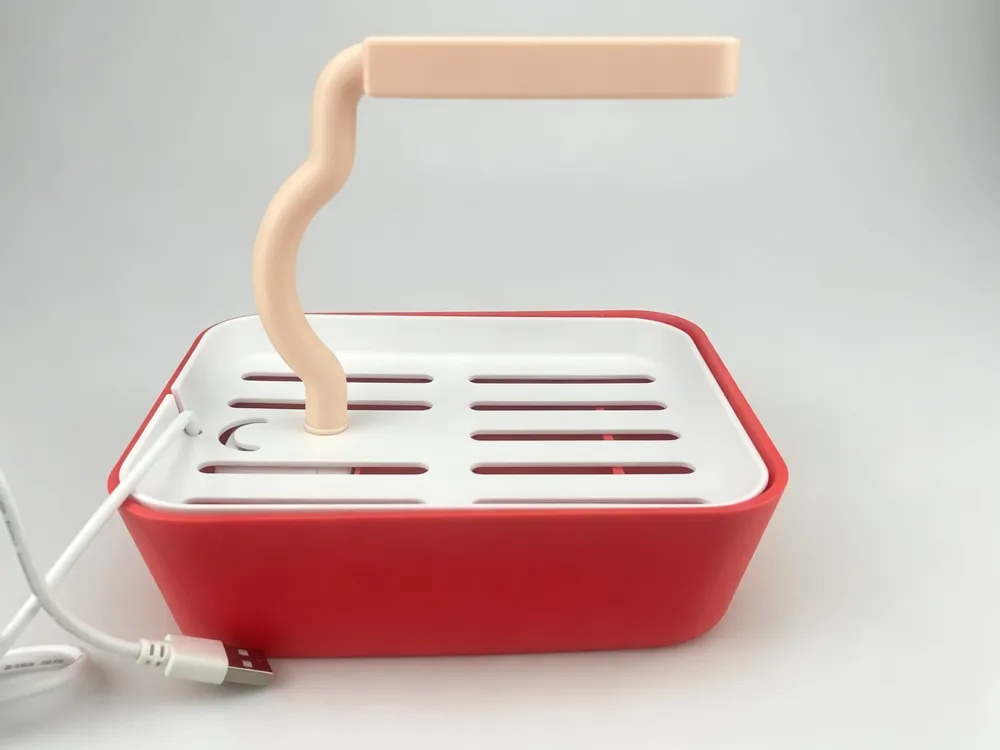

This bird bath measures 180x150mm with a rounded square design, providing more activity space for birds

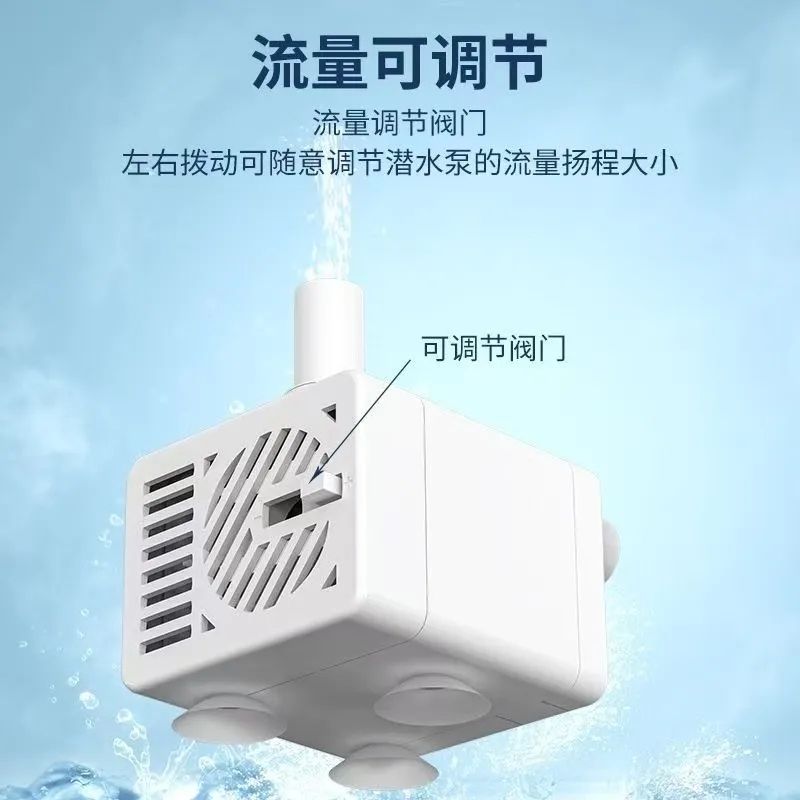

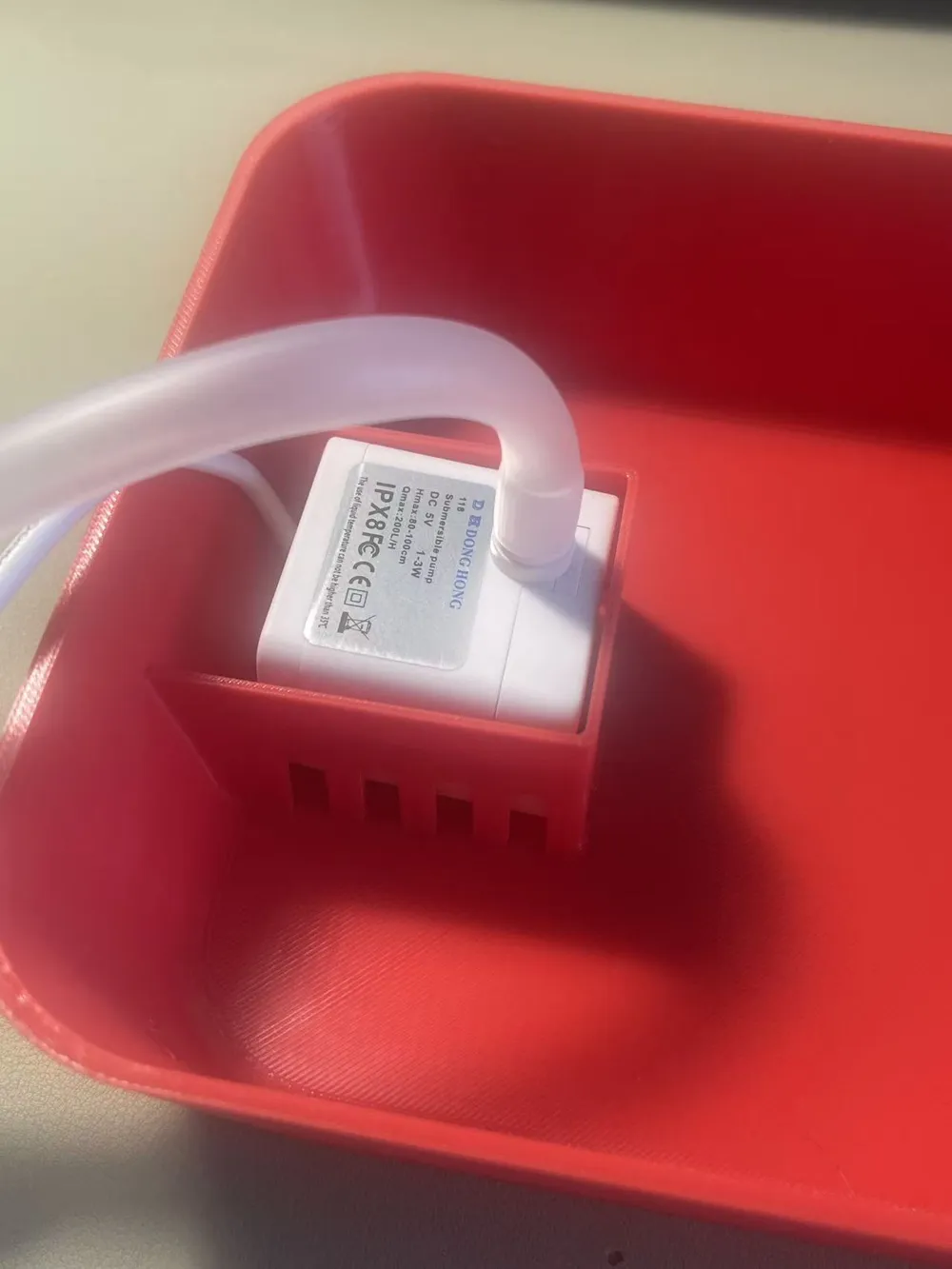

It features a two-tier design, using the water pump shown in the figure below (which is silent and has adjustable flow) to create a circulating water system

A silicone hose with an outer diameter of approximately 9mm will be included when you purchase the water pump. To ensure smooth water flow and prevent leaks, we use this silicone hose; the 3D printed tube is only used as a tube sleeve

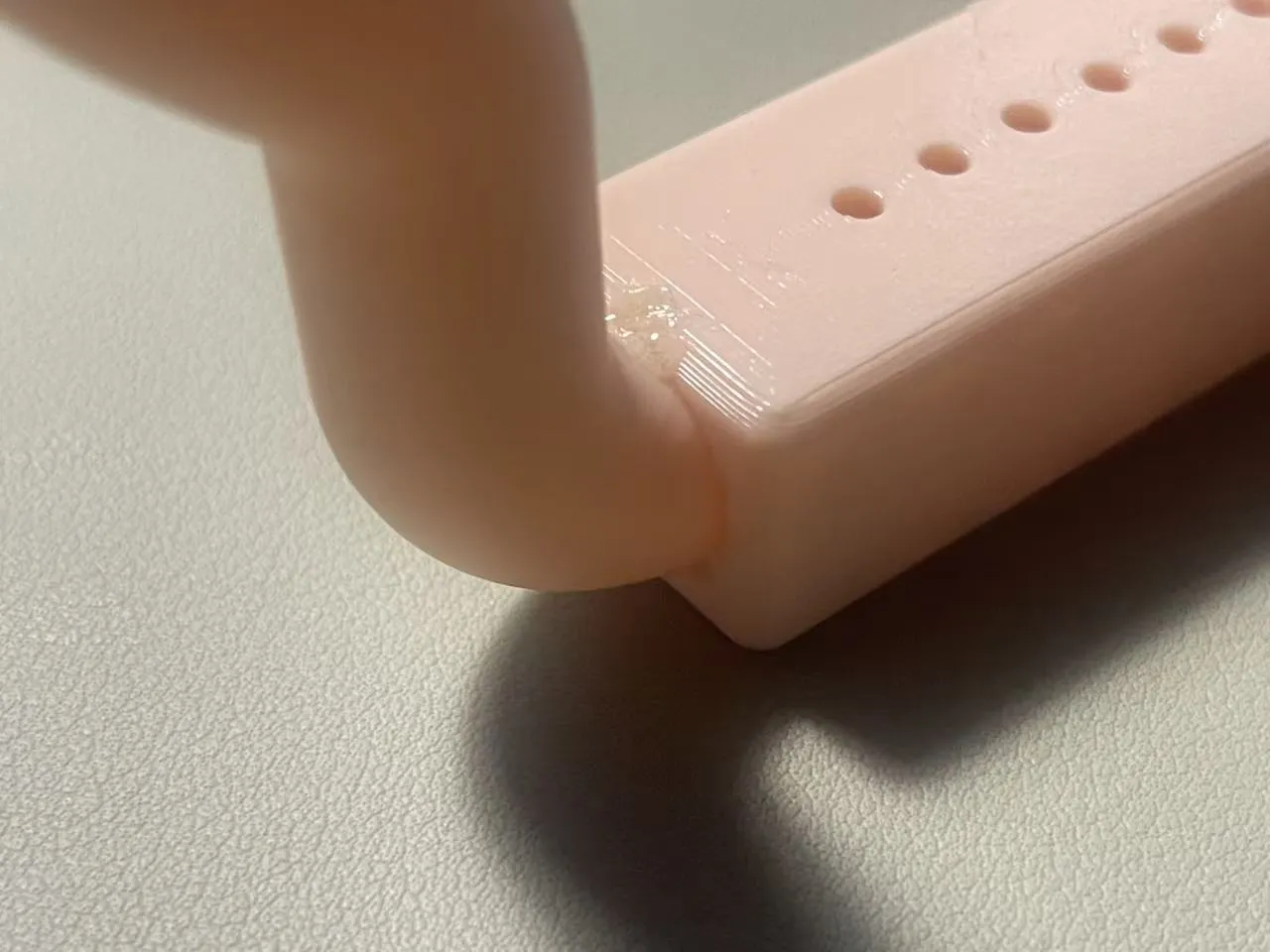

For the showerhead connection, we recommend using adhesive to achieve better strength and prevent leaks

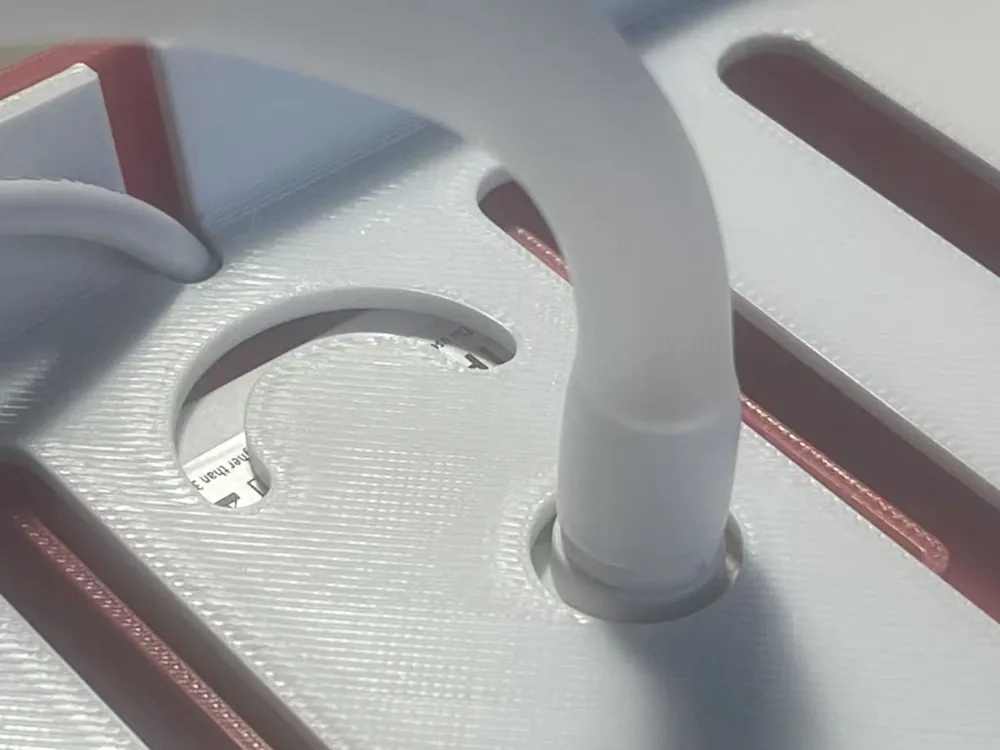

The base part does not require adhesive, as it connects directly to the water pump, eliminating any risk of leaks. Without adhesive, you can also adjust the angle of the shower spout back and forth



When inserting the tube, it is recommended to apply some soapy water or hand sanitizer to the outside of the silicone tube to aid lubrication, then trim off any excess (refer to the showerhead opening position)

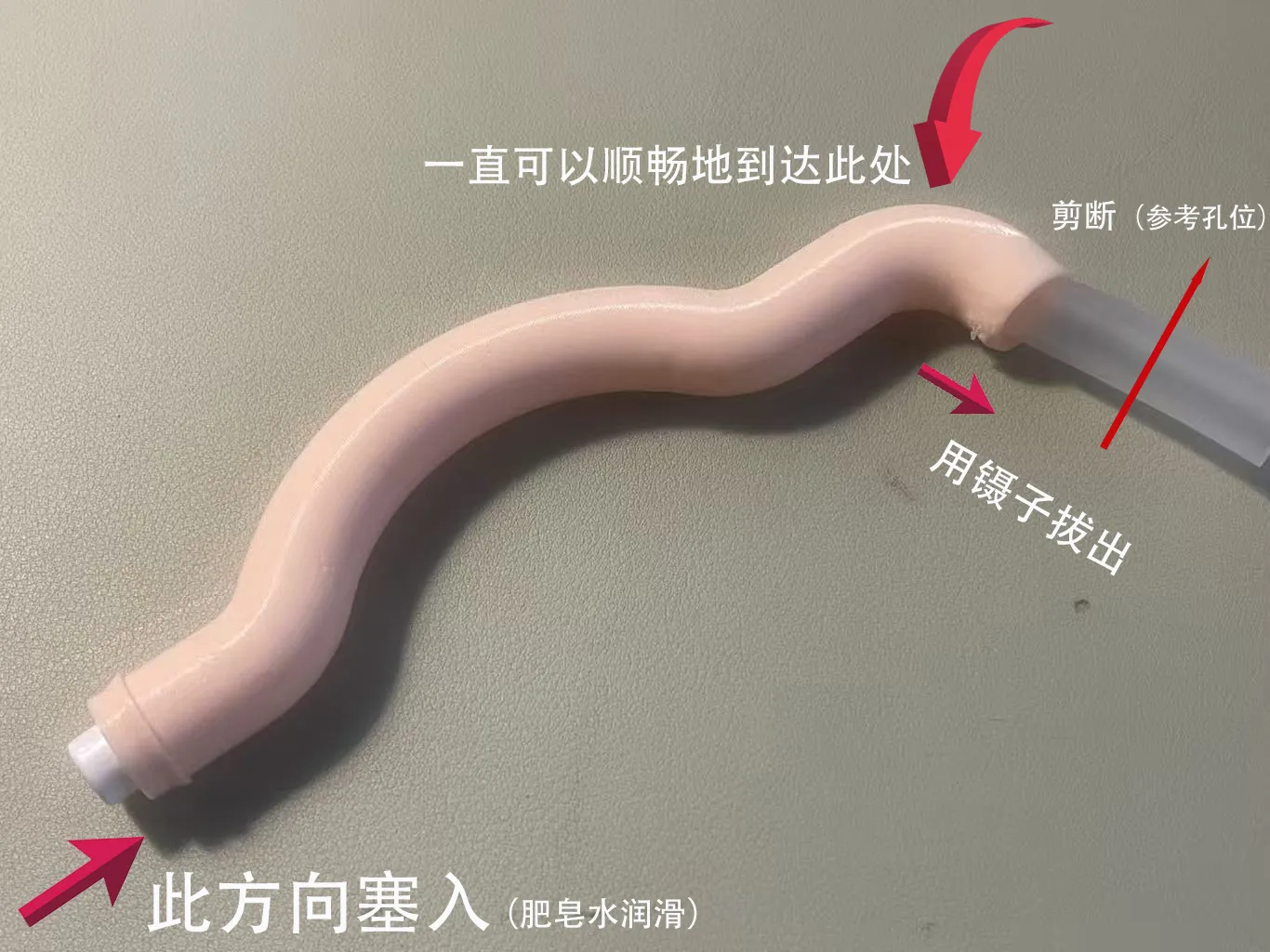

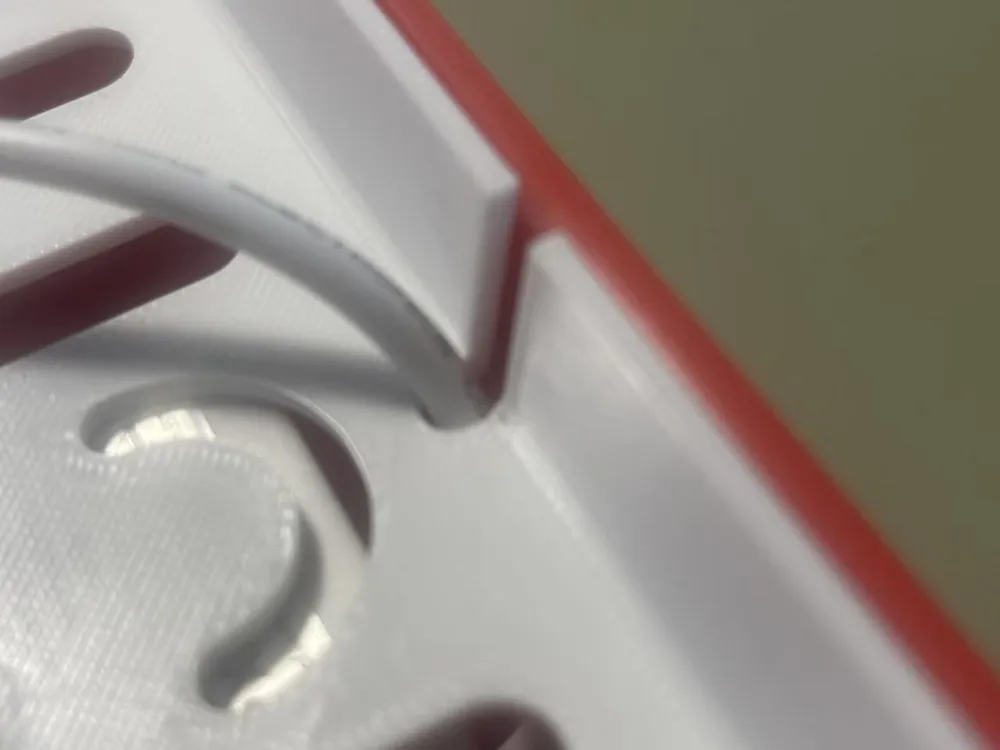

It is recommended to insert it following the arrow direction shown in the diagram, as it can directly reach the marked position at the top. The last bend (vertical direction) may require assistance with tweezers or similar tools

Using the silicone tube for drainage ensures 100% no leakage



The purchase link for this water pump is: https://mobile.yangkeduo.com/goods2.html?ps=uSEgvcEbpV. This is not one of those inexpensive pumps; it's slightly more expensive. You can choose the cheapest configuration, as the adjustable flow function is the same across all options

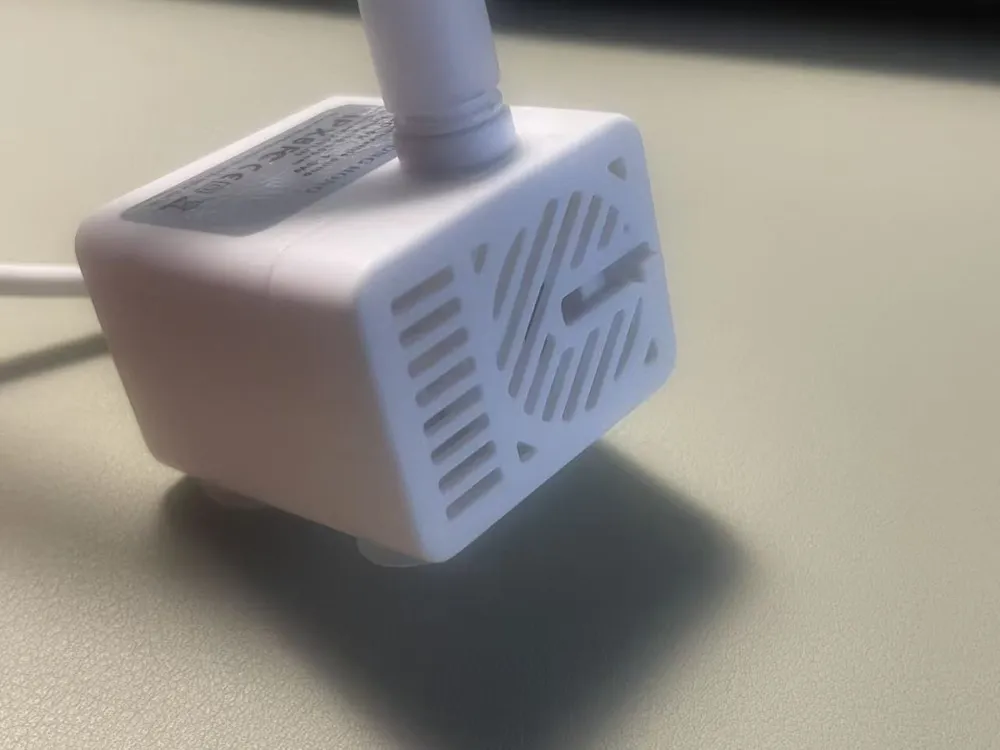

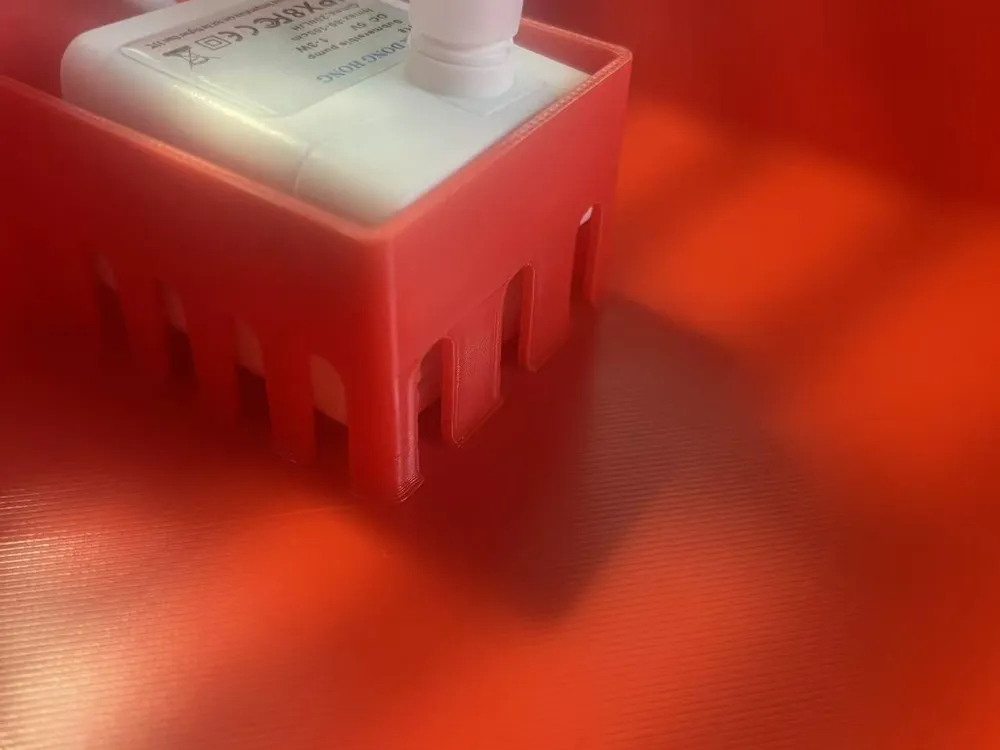

This water pump can be used for fish tanks or pet water dispensers; it is silent and has silicone suction cups for shock absorption. During operation, you will only hear the sound of water. Additionally, with the detailed model design, it ensures the water pump does not move erratically during operation, and there will be no dry pumping due to insufficient water intake, making the overall operation smooth and fluid

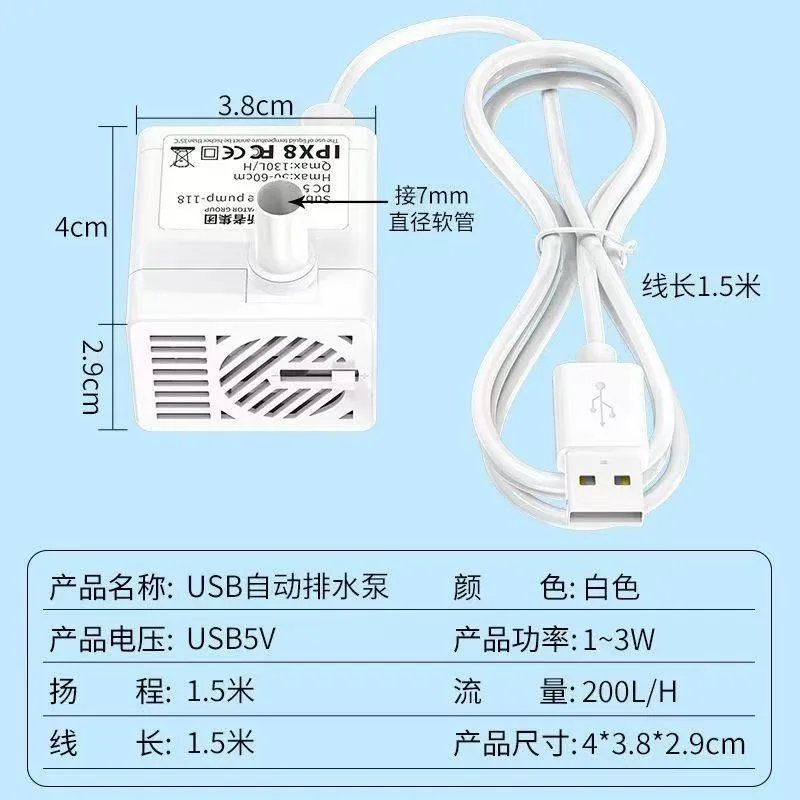

You can also choose any other water pump within 40x40x30mm dimensions, but the hole positions might vary

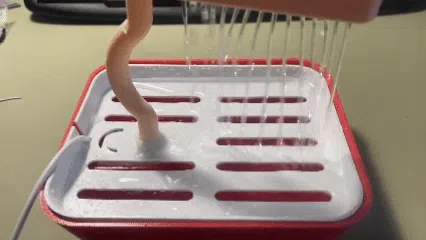

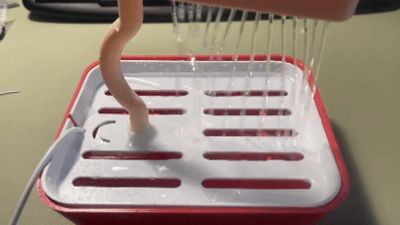

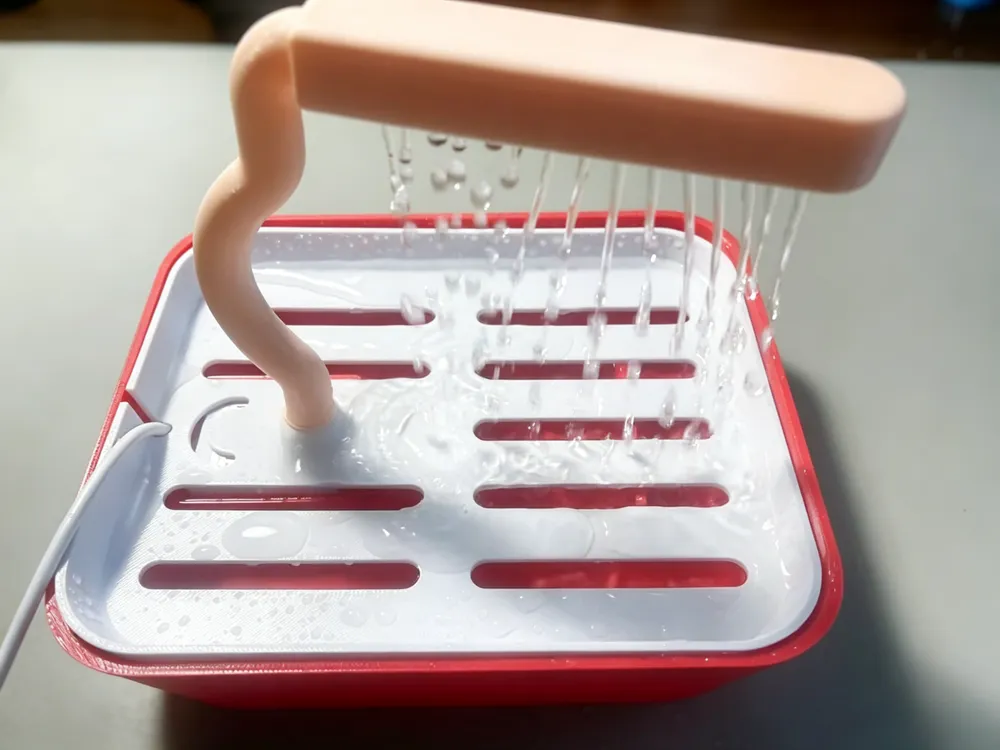

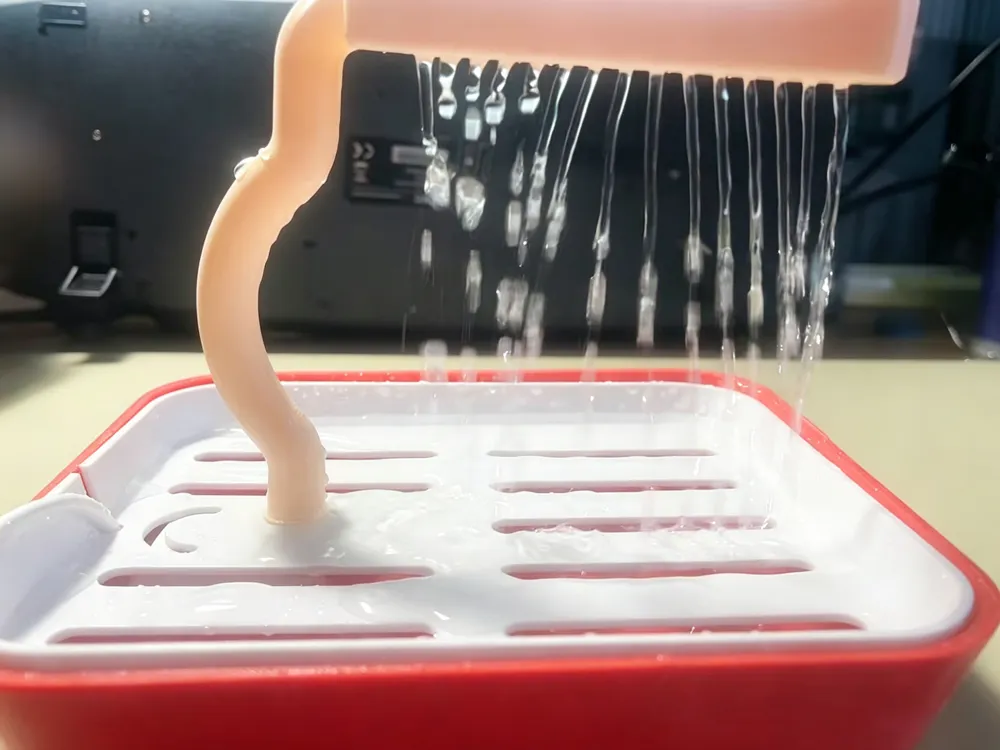

Under the sun, birds can enjoy an immersive water play shower, cooling off and having plenty of fun
