Film Spool Core 1520 Core JOBO15XX Analog Universal
Print Profile(1)
Description
Boost Me (for free)
Your support is my motivation for continuous development!
- Achieve complete processing freedom! 1520 core available for download

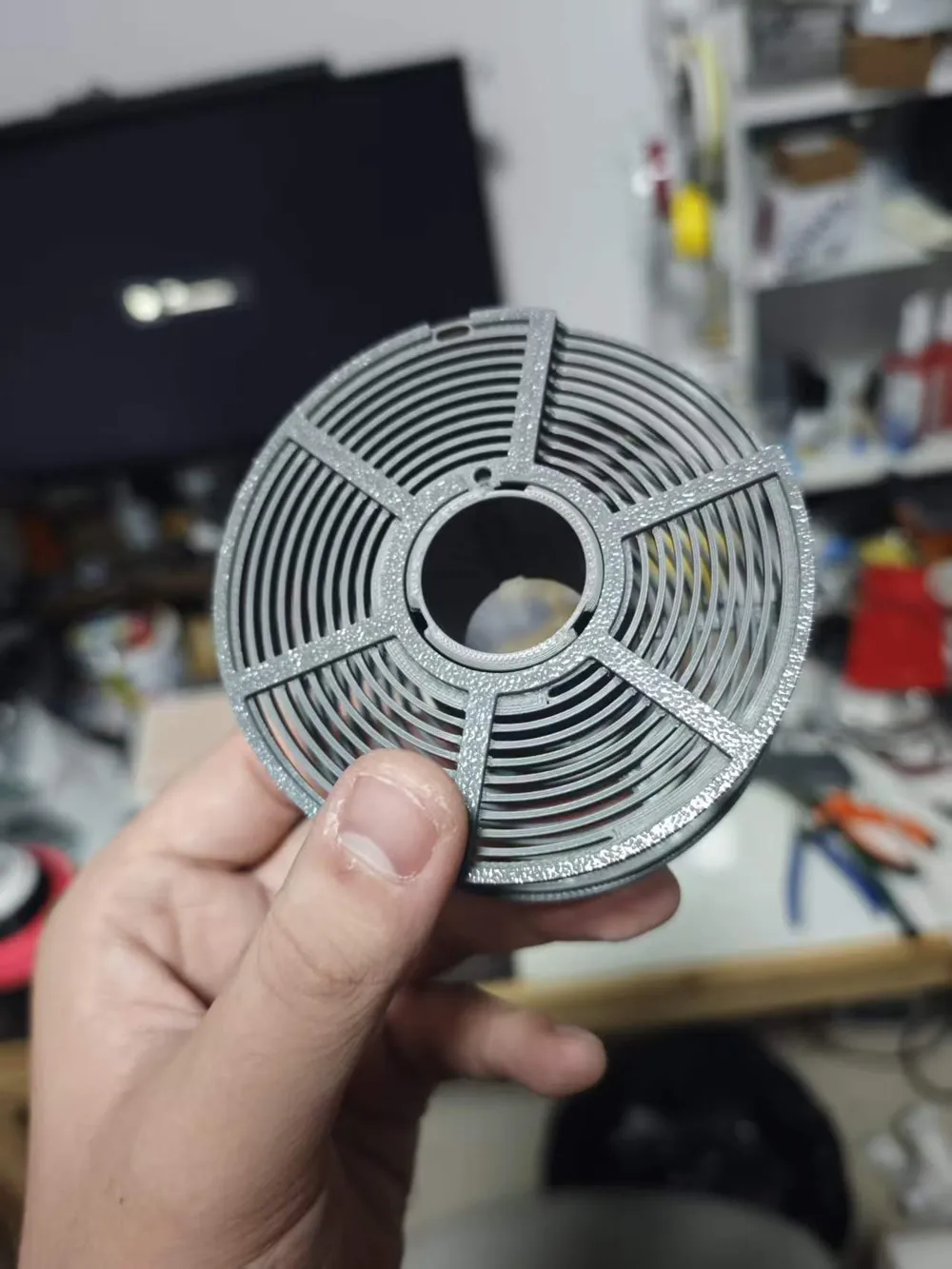

- No steel ball, allows rotational film loading, with finger grooves. One of the best film cores for loading available for download.

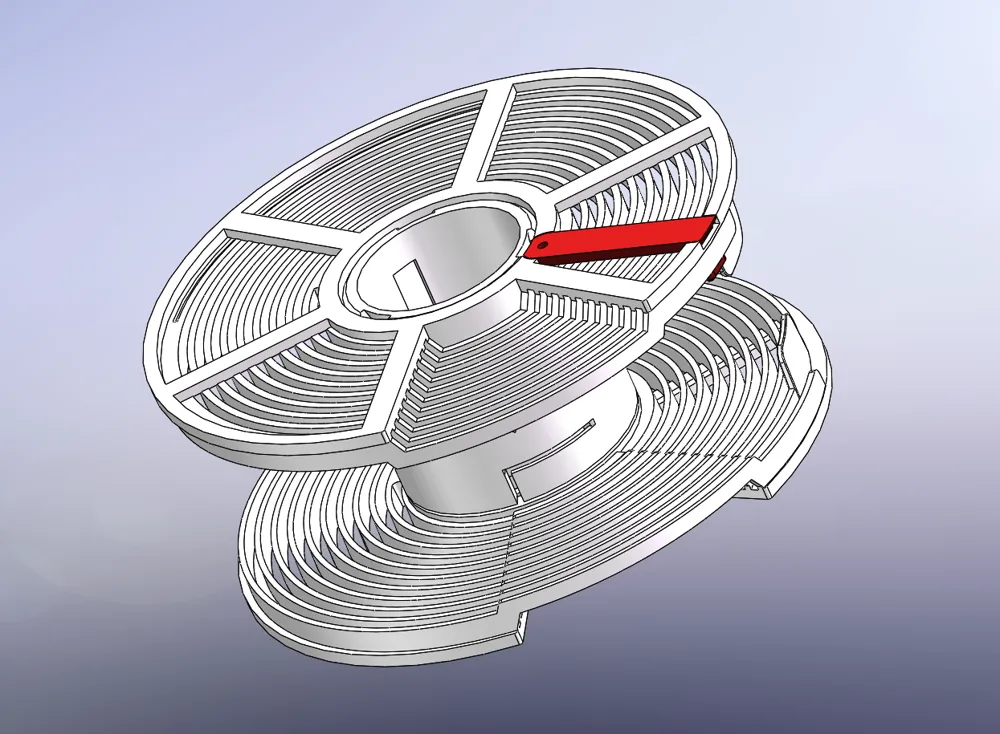

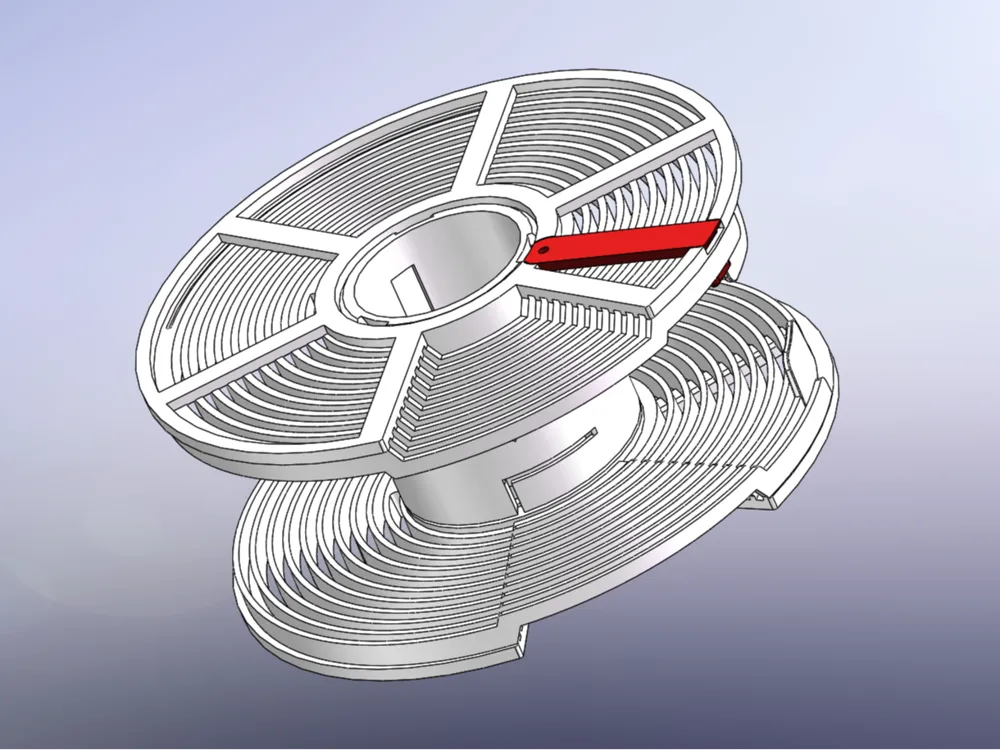

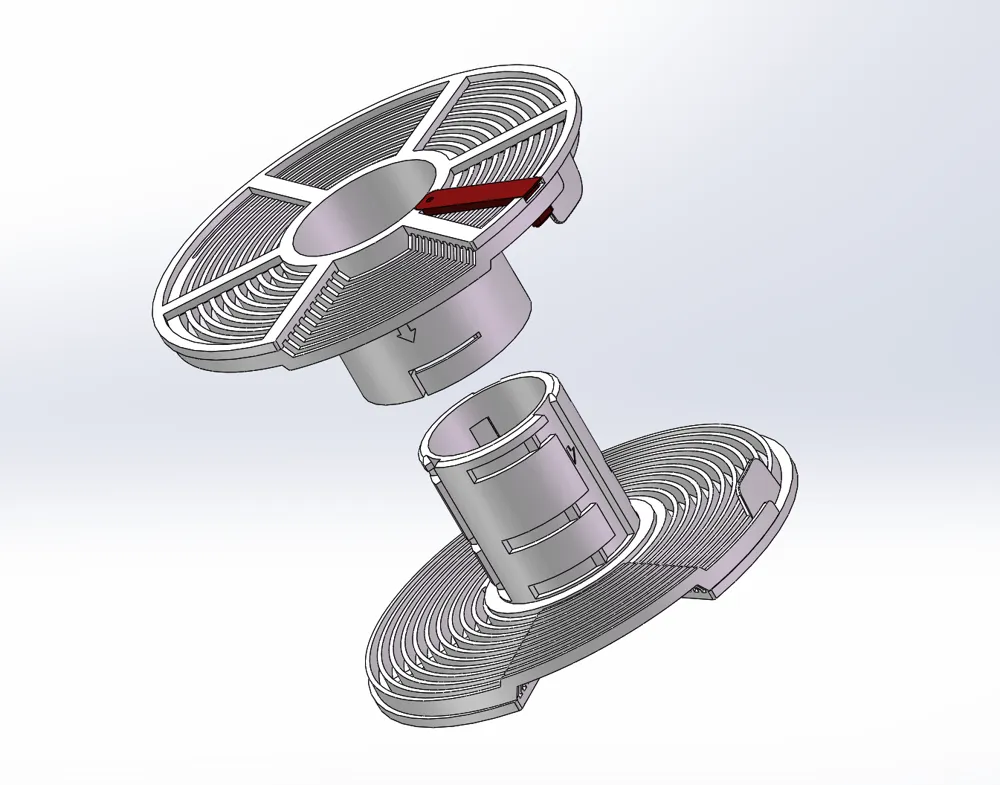

The 1520 developing film core uses three clips fixed with glue in the inner groove. The glue only secures the two ends, and 415 glue is recommended.
The clips are recommended to be printed with TPU. If printing with rigid materials, please adjust the XY offset or sand appropriately.
The track length is approximately 185cm; please be aware when developing non-standard film.
Divider clips for two rolls of 120 film have not yet been added. If you need to develop two rolls of 120 at once, please use the tape connection method.
