Universal Filament Guide Connector
Have you ever encountered problems when using external filament with your printer where the PTFE connector for the filament is fixed and cannot be rotated, and filament dryer boxes can only be placed next to it, causing the filament to bend when entering the tube, severely affecting the smooth feeding of the filament, which in turn leads to a decrease in print quality.
Based on this issue, I designed a connector that can rotate in any direction, thus solving all these problems.

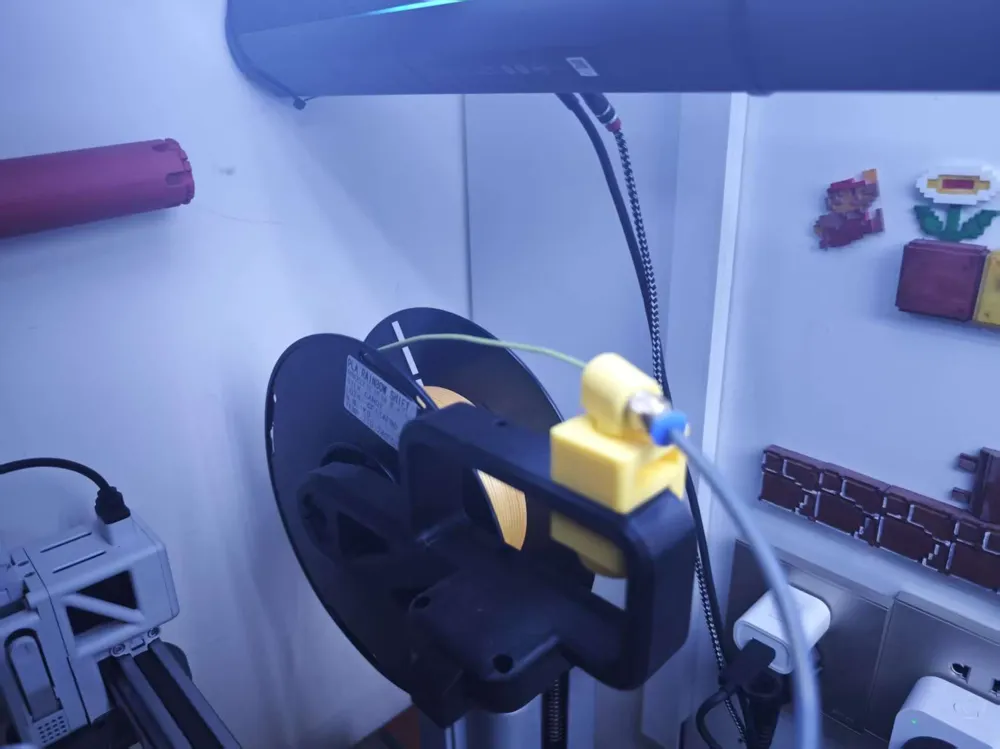

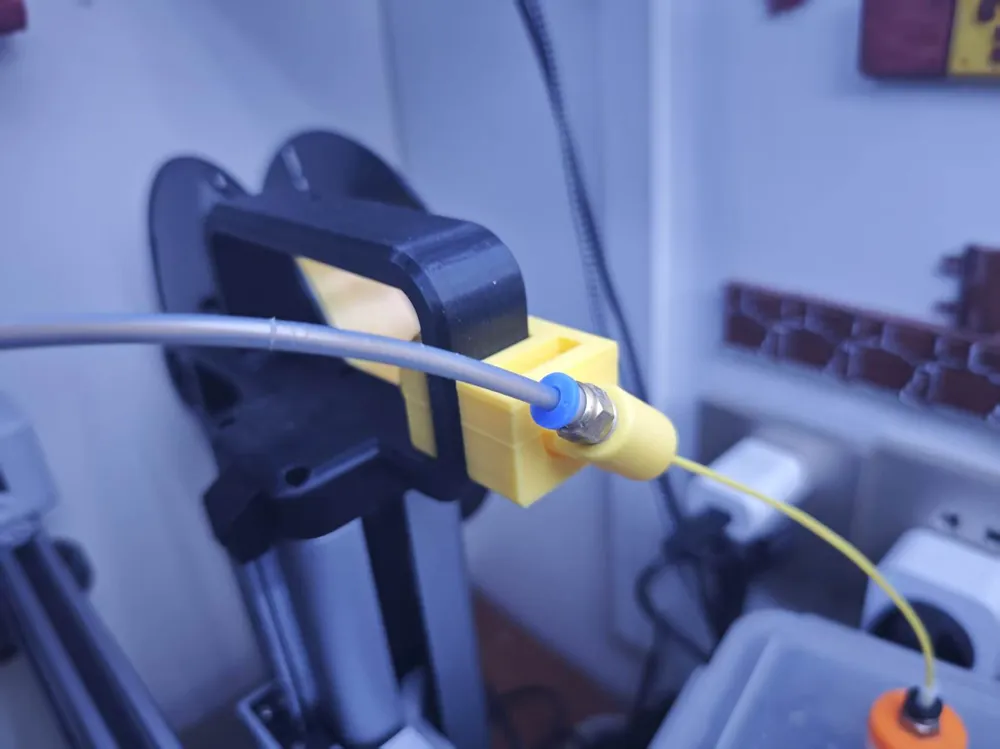

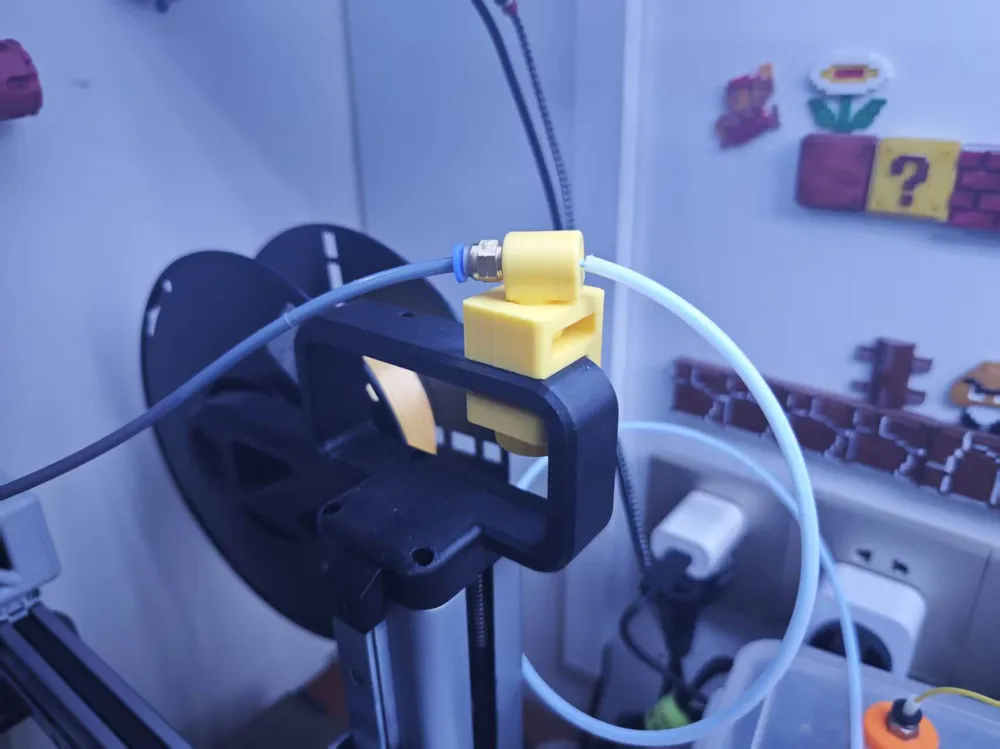

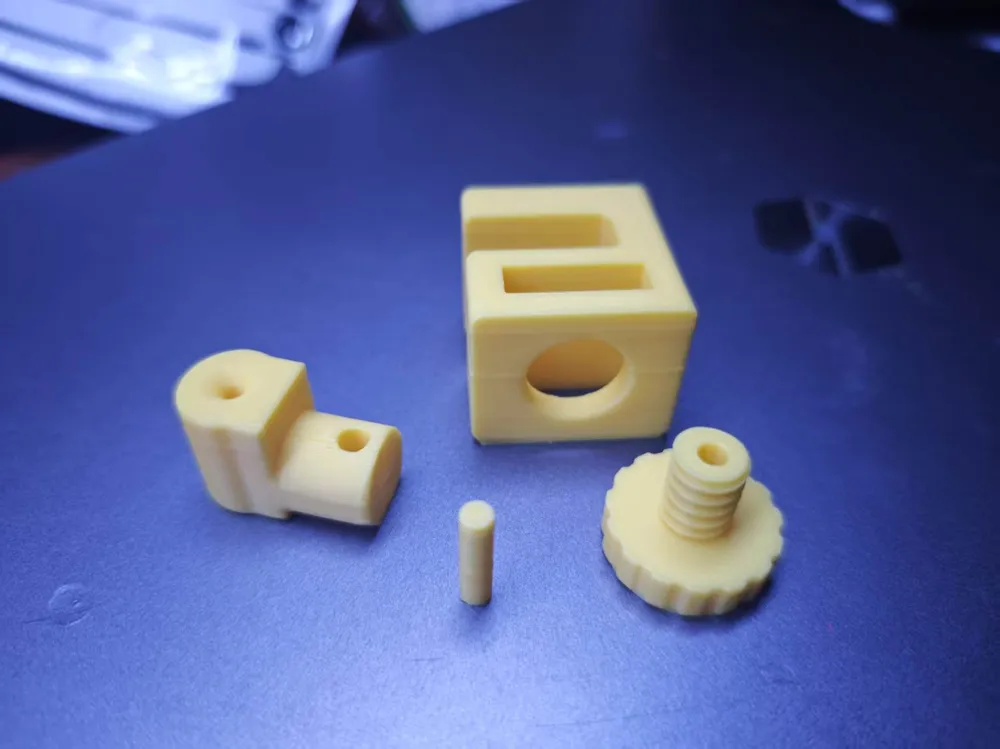

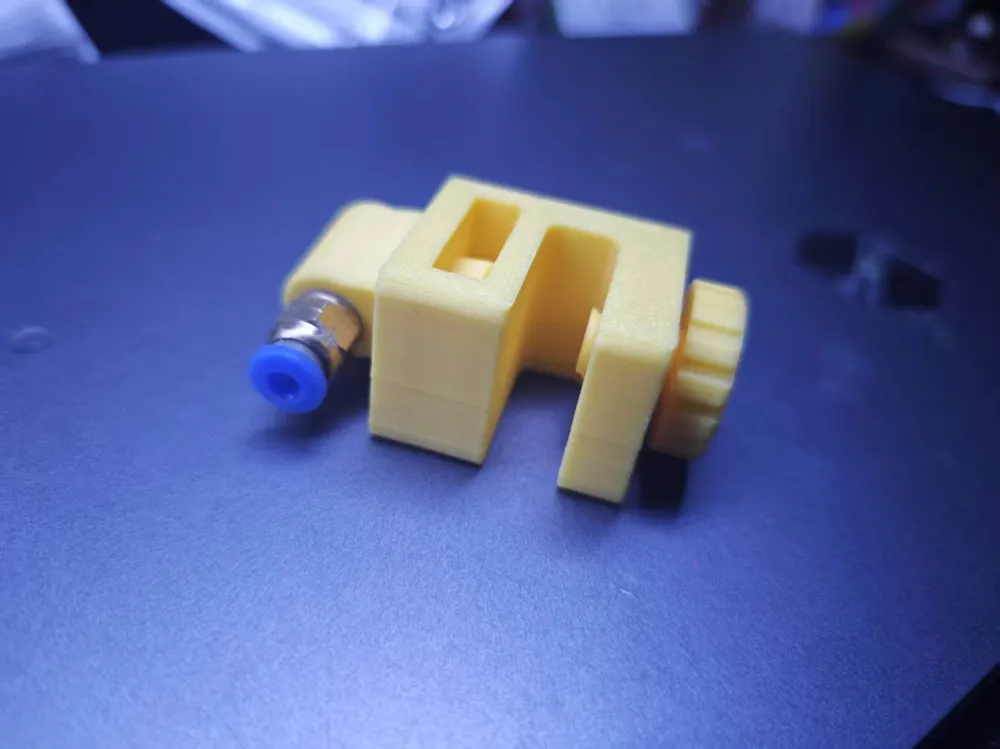

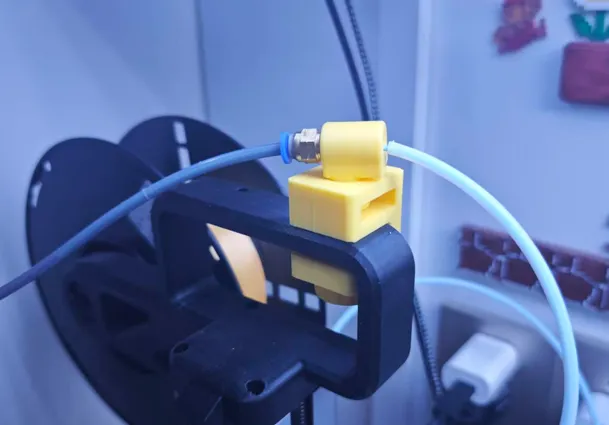

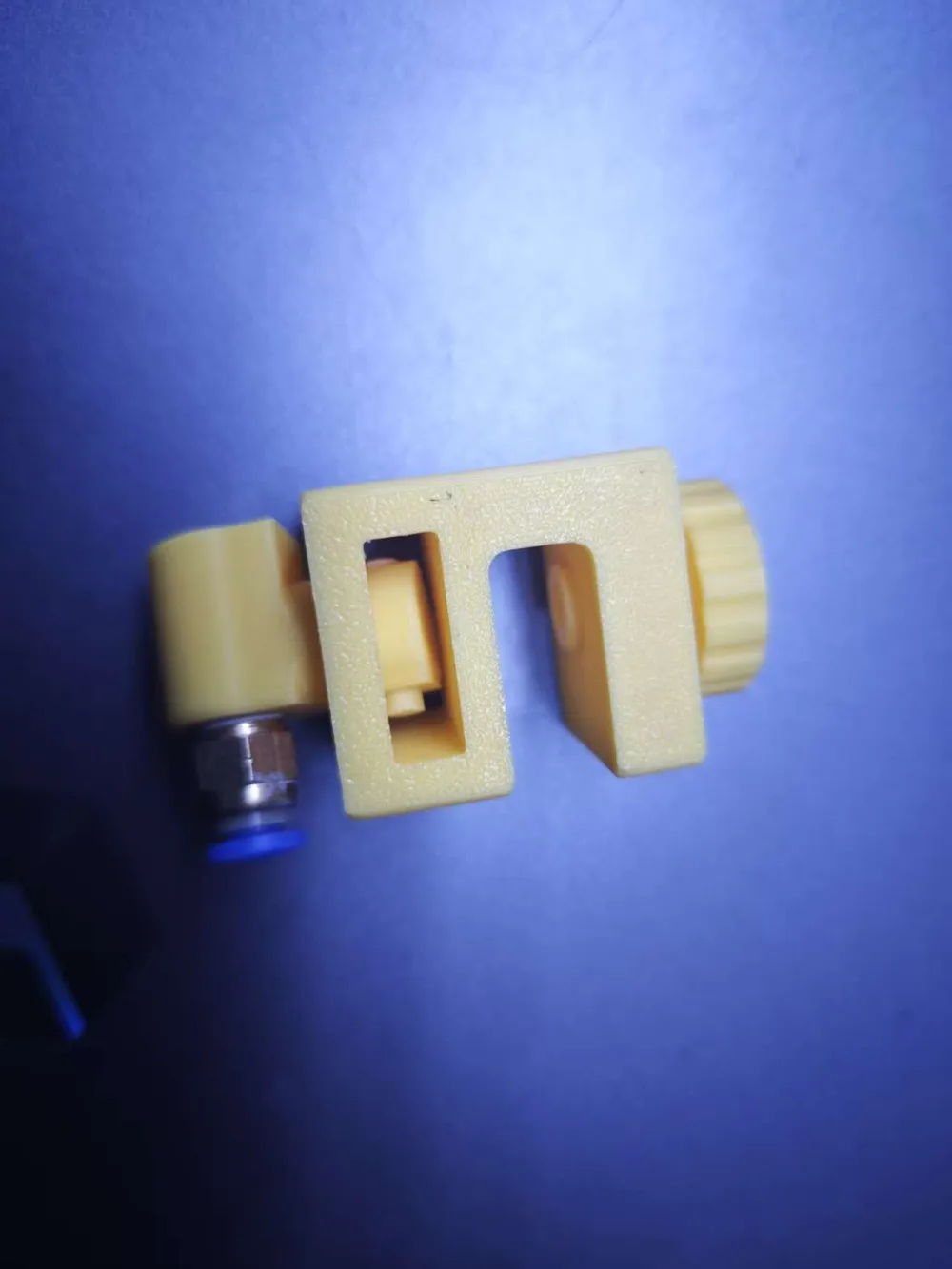

This swivel connector can be installed in any location with a thickness not exceeding 10mm and is secured with a thumbscrew.

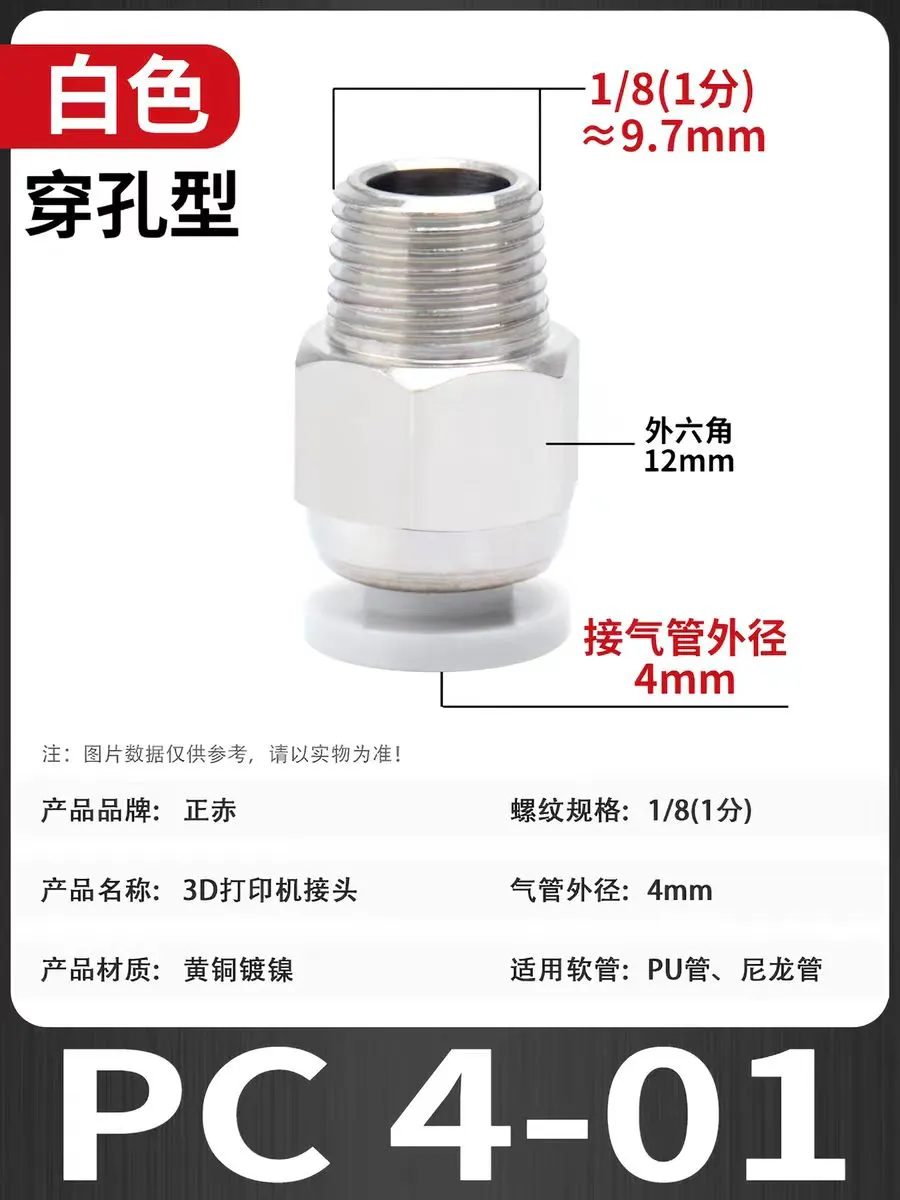

The pneumatic connector used is the type found in filament dryer boxes, costing one yuan each. I did not damage the original connector.
