Scuba Regulator Faceplate Removal Tool
Print Profile(1)
Description
Boost Me (for free)
Please send a Boost if you find this model useful! You support provides encouragement for creators to share their designs completely for free on MakerWorld. Thank you!

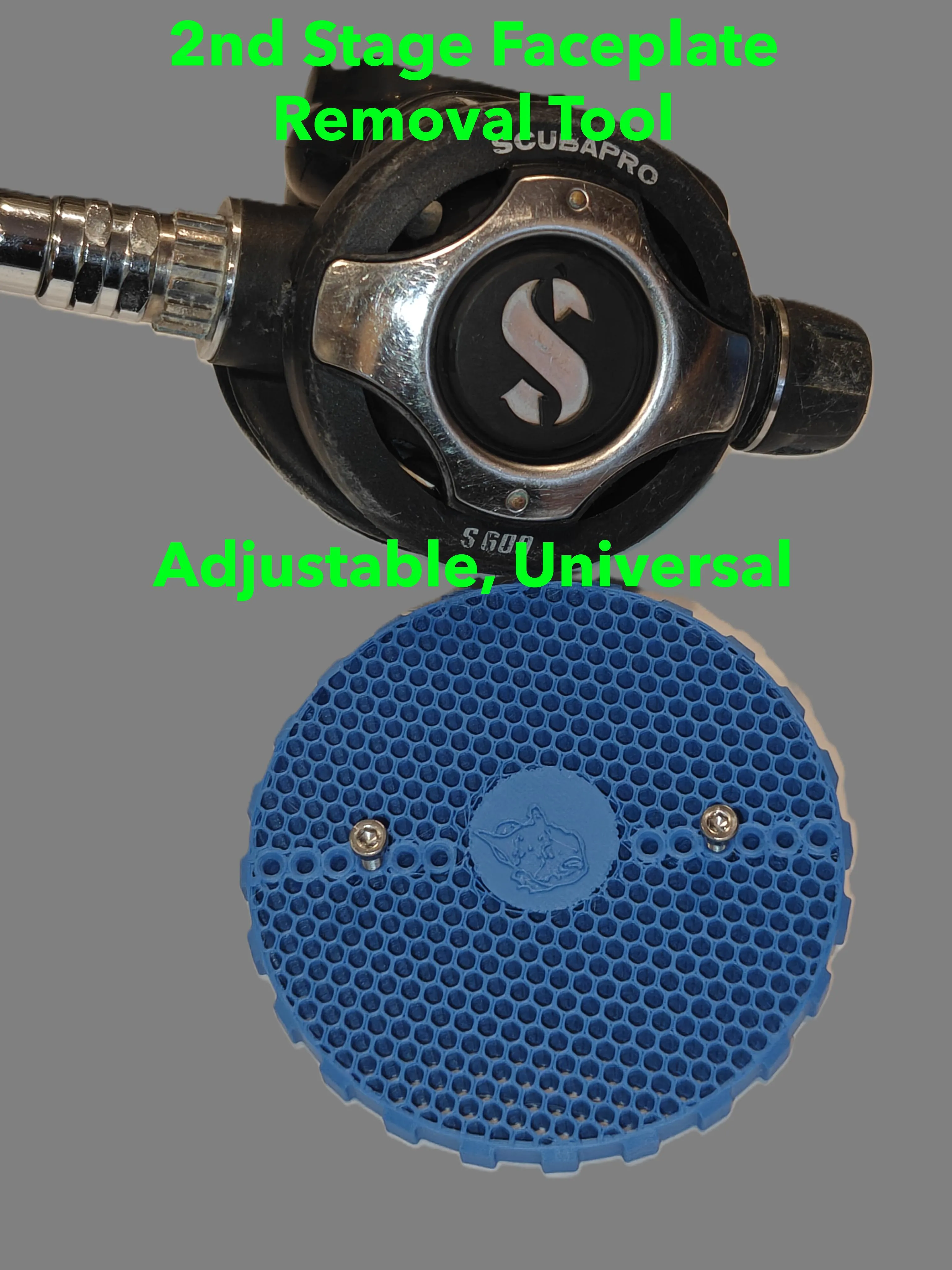

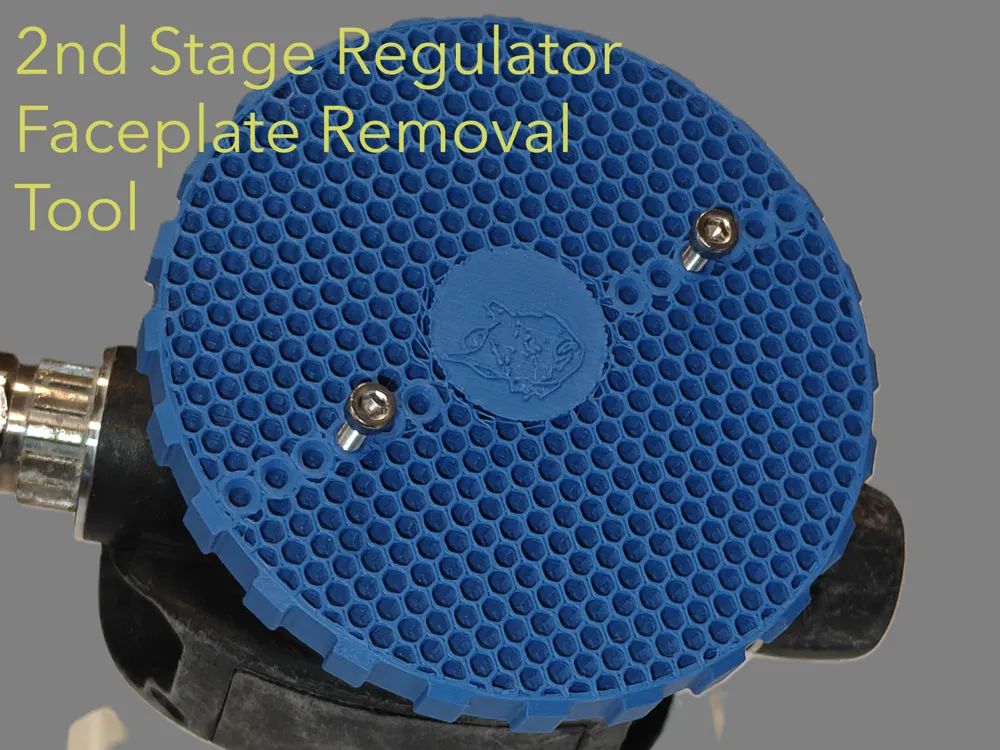

Scuba Regulator 2nd Stage Faceplate Removal Tool
Adjustable, universal to support many models.

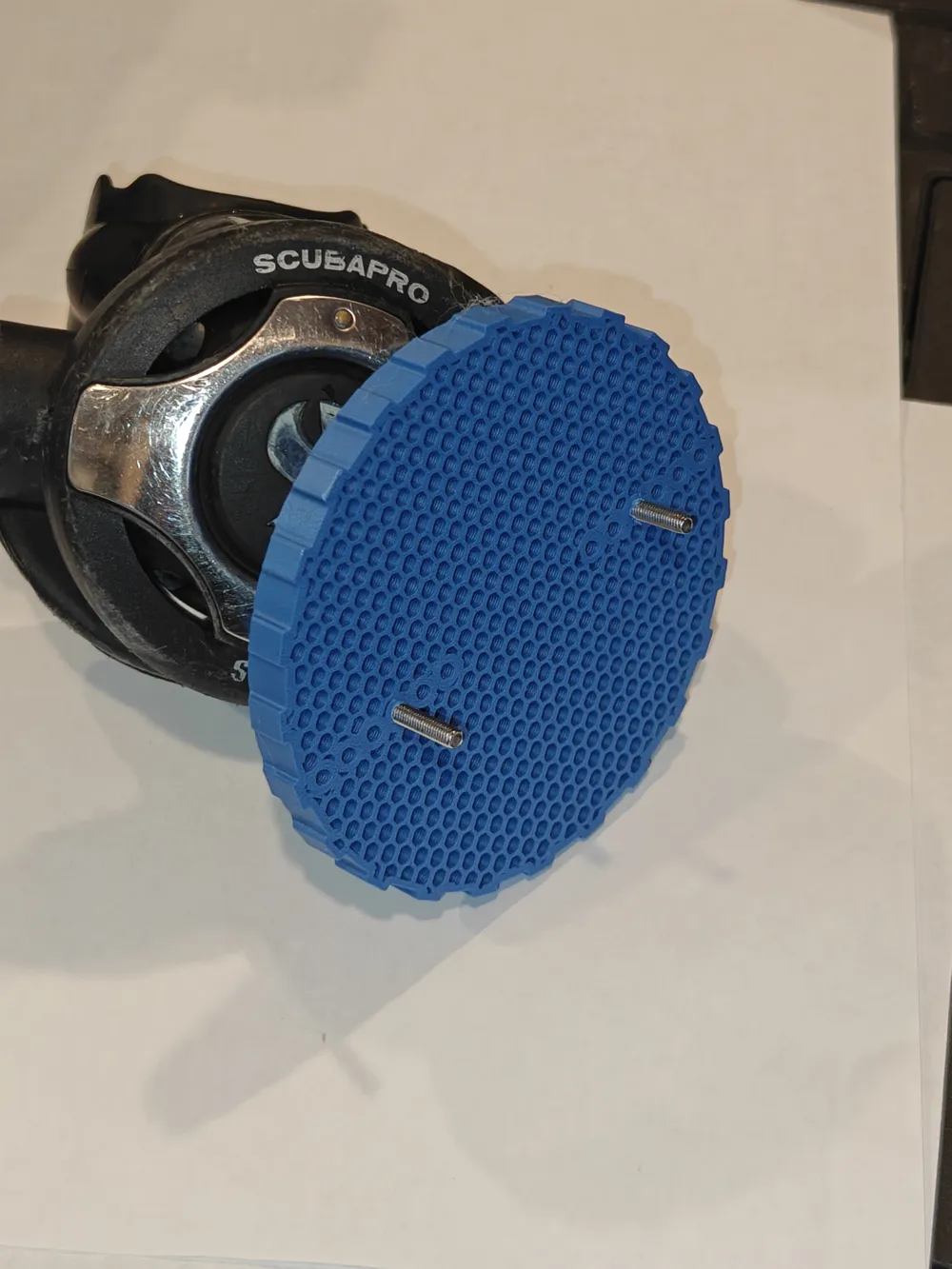

This simple tool can aid in the clean removal of the face plate covers of many 2nd stage regulator models. With multiple M3 screw holes along the diameter, you can adjust the position of a 20mm M3 screw to align with any available slots in the cover. While this tool will not work with every model on the market, it will work with many.
This is a nice-to-have tool and not strictly required. I good grip or a rubber glove will also suit in many cases. However, I find that this tool makes it far easy to remove the faceplates without damage.
Print with PLA
35% Honeycomb infill
Top and Bottom layers set to zero
3 walls
0.16mm layer height to get clean threads
0.4mm nozzle
