Universal Garmin 4-Pin Charging Stand Garmin

🇨🇭/🇩🇪 Description (German)

Universal Garmin 4-Pin Charging Stand – for Garmin vívoactive® 5 & Compatible Devices

Bring order and operational excellence to your nightstand or desk with this minimalist charging stand. The design is specifically optimized for the standardized Garmin 4-Pin connector.

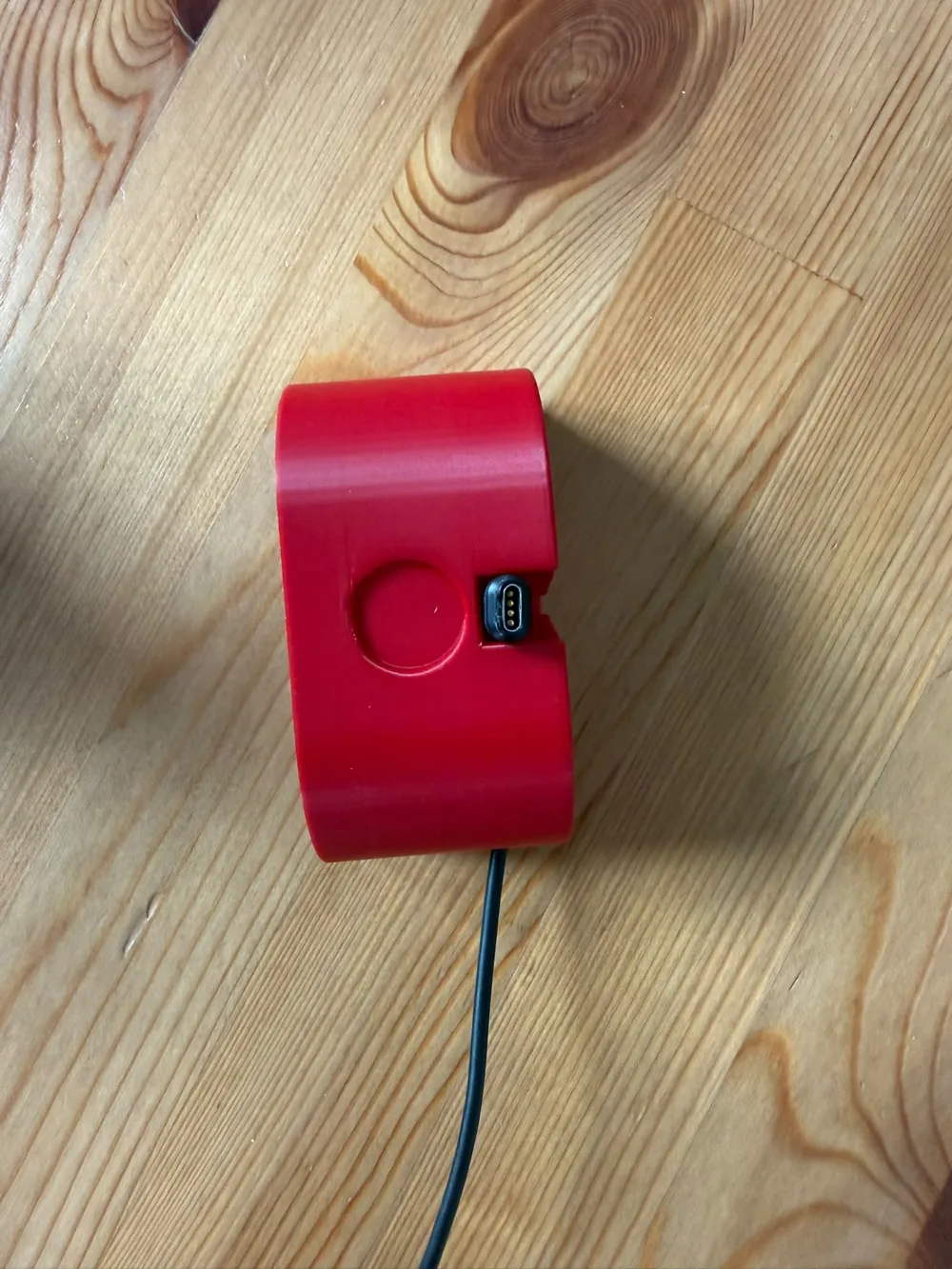

The stand combines a clean look with extremely clever mechanical cable management. The plug clicks securely into place, while the watch case rests perfectly centered in the round recess and the strap neatly runs downwards.

✨ Features & Design Details:

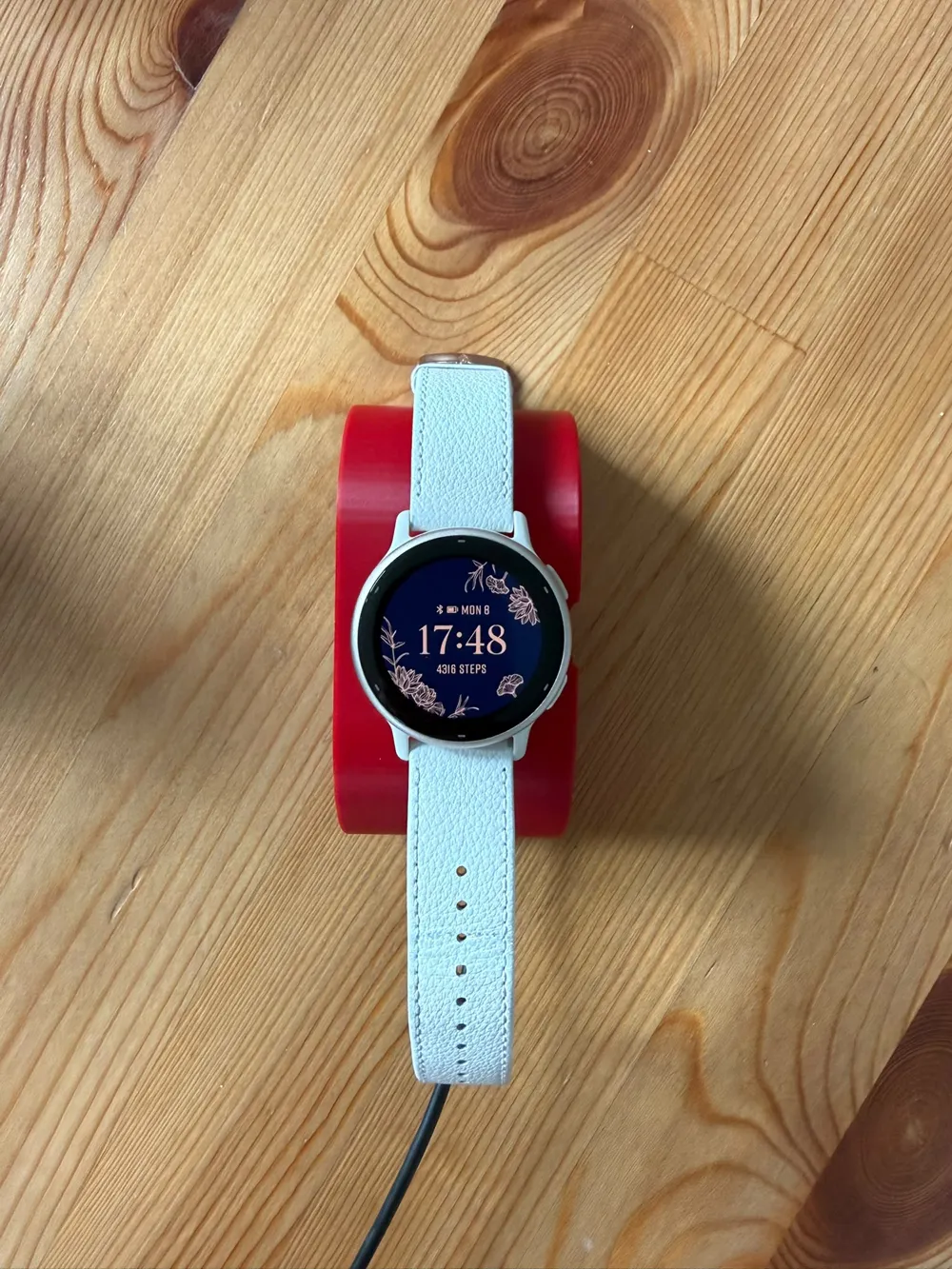

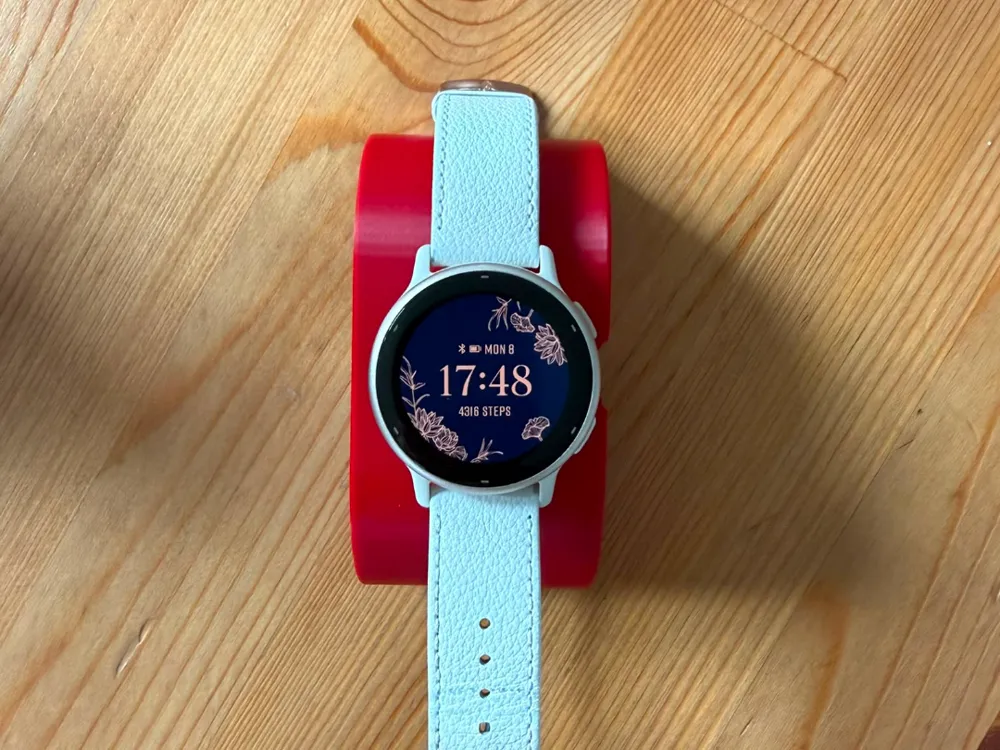

• Universal Garmin Compatibility: Perfect fit for the Garmin vívoactive 5 (see Oben mit Uhr.jpg) as well as almost all Garmin models with the classic 4-pin charging connector (incl. Venu 3/SQ2, Fēnix 7/6/5, Forerunner 265/965/55, Instinct 2, Epix).

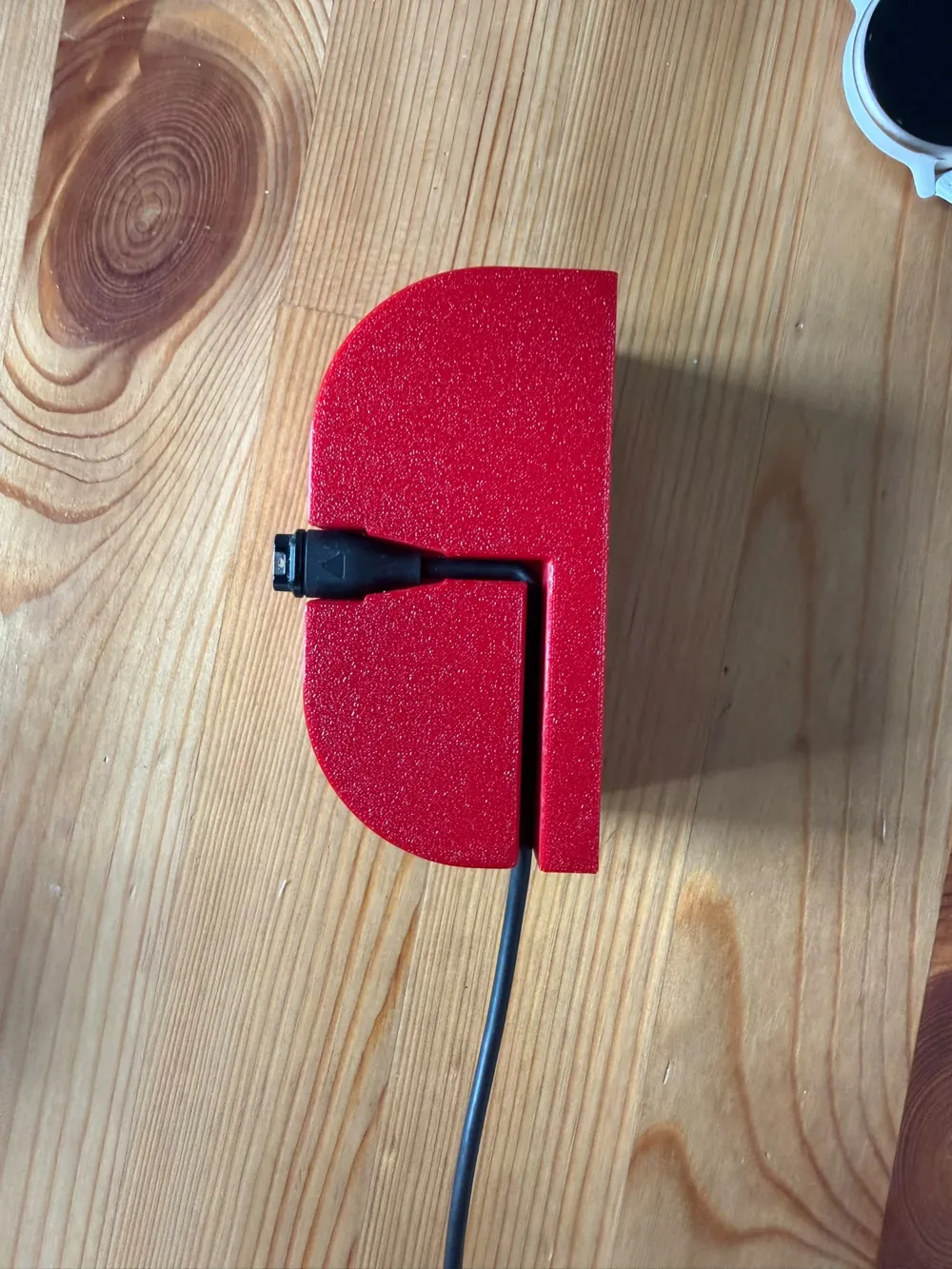

• Sophisticated Cable Routing (90° Bend): The cable is perfectly strain-relieved and held by a precise L-shaped groove inside (see Seite 2.jpg) and routed flush downwards/backwards (see Seite 1.jpg). No wobbling, no slipping out of the connector.

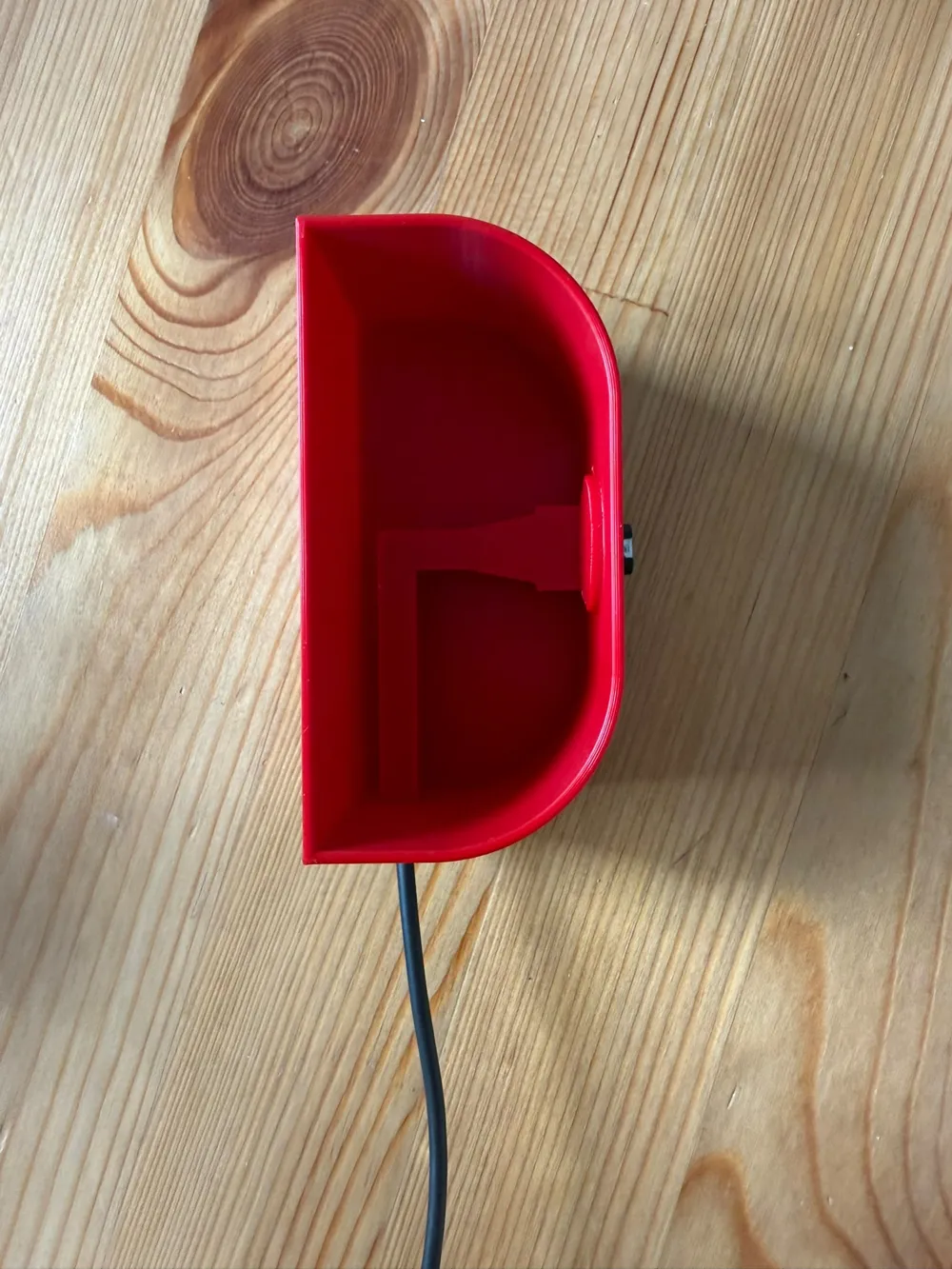

• Compact & Stable: Thanks to the D-profile, the station stands absolutely tilt-proof on the table (see Oben.jpg).

🖨️ Print Recommendations (Print Settings):

• Filament: PLA, PETG or ABS/ASA (Printed in the amazing fiery Bambu PLA Basic Red in the photos).

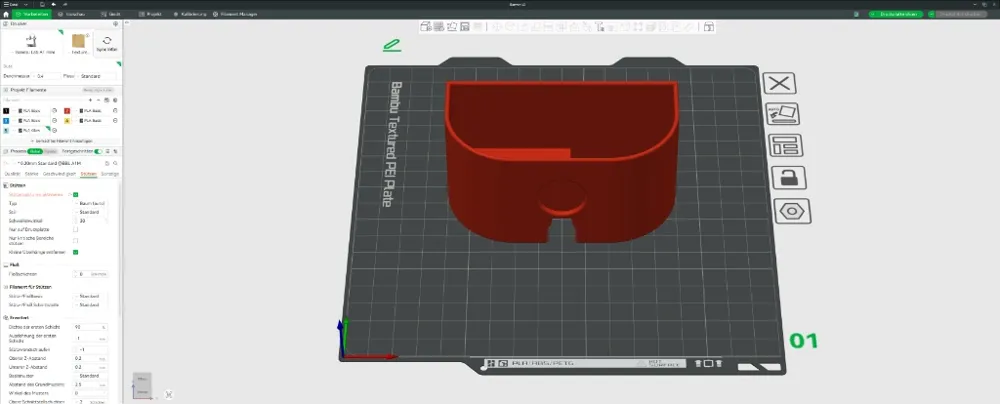

• Printer & Orientation: The model is perfectly optimized for smaller print beds like the Bambu Lab A1 mini. It is printed standing on its flat back side (see Slicer screenshots image_a54783.jpg and image_a54745.jpg).
• Infill: 15–20% (Gyroid or Grid).

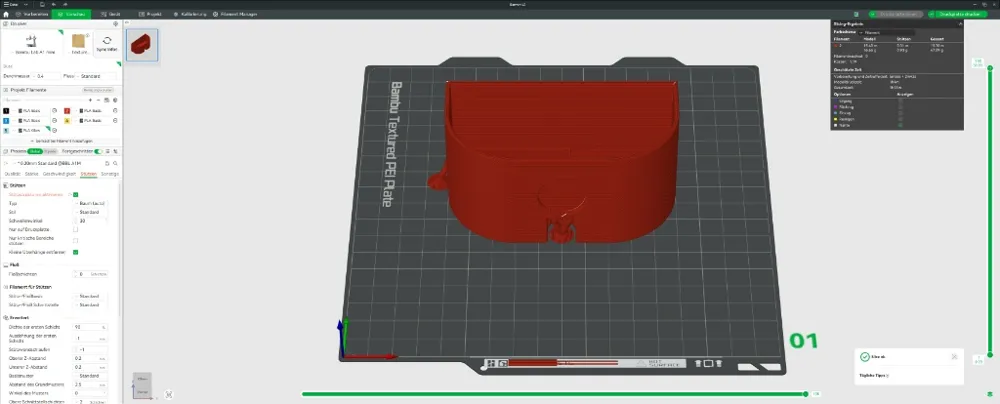

• Support: A minimal Tree Supports (Tree Structures) is automatically recommended by the slicer for the round recess of the watch case and the cable outlet to guarantee clean overhangs (see preview in image_a54745.jpg). Easily removable!

🇬🇧/🇺🇸 Description (English)

Universal Garmin 4-Pin Charging Stand – for Garmin vívoactive® 5 & More

Keep your desk or nightstand organized with this sleek, geometric charging dock for Garmin smartwatches. Specifically engineered for the ubiquitous Garmin 4-Pin charging connector, this stand offers high functionality and a clean aesthetic.

The connector snaps securely into place, while the watch body rests perfectly centered in the recessed circular cutout, allowing the straps to drop naturally.

✨ Features & Design Highlights:

• Universal Garmin Compatibility: Tailored for the Garmin vívoactive 5 (see Oben mit Uhr.jpg) and fully backward compatible with almost all Garmin watches using the standard 4-pin port (e.g., Venu 3/SQ2, Fēnix 7/6/5, Forerunner 265/965/55, Instinct 2, Epix).
• Smart L-Shape Cable Routing: The cable locks into a precise 90-degree internal channel providing clean strain relief (see Seite 2.jpg) and exits flush through the bottom/back (see Seite 1.jpg).
• Rock-Solid Stability: The D-shaped flat-back profile keeps the stand incredibly stable during docking (see Oben.jpg).

🖨️ Print Settings:

• Filament: PLA, PETG, or ABS/ASA (Bambu PLA Basic Red looks amazing, as seen in the photos).
• Printer & Orientation: Perfectly optimized for small build plates like the Bambu Lab A1 mini. Print it upright on its flat back surface (see Slicer screenshots image_a54783.jpg and image_a54745.jpg).
• Infill: 15–20% (Gyroid or Grid).
• Supports: A small amount of Tree Supports is recommended for the circular watch recess and the small cable slot on the front to ensure crisp overhangs (see sliced preview in image_a54745.jpg). They break away effortlessly.
