Concealable Ground Sleeve with Interchangeable Camouflage Lids
This small conical ground sleeve (80 × 50 mm) features an external thread and can be easily screwed into the ground. Inside, it offers space for small items such as keys or other small parts to be stored in a weather-protected manner.

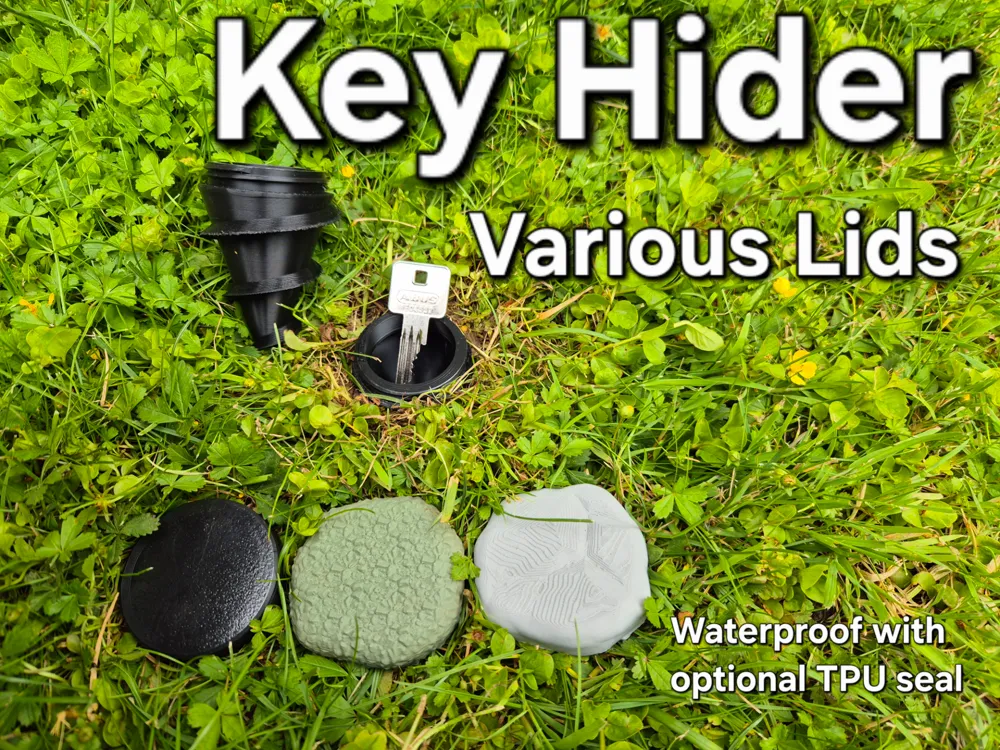

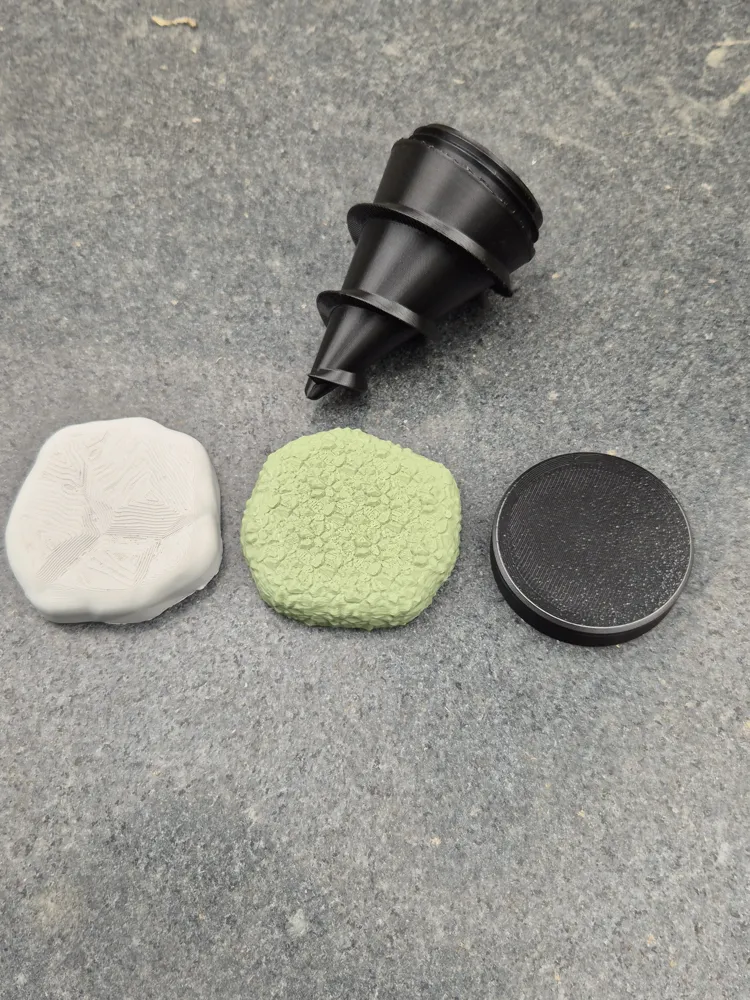

The special feature is the interchangeable lids, with which the hideaway can be adapted to different environments:

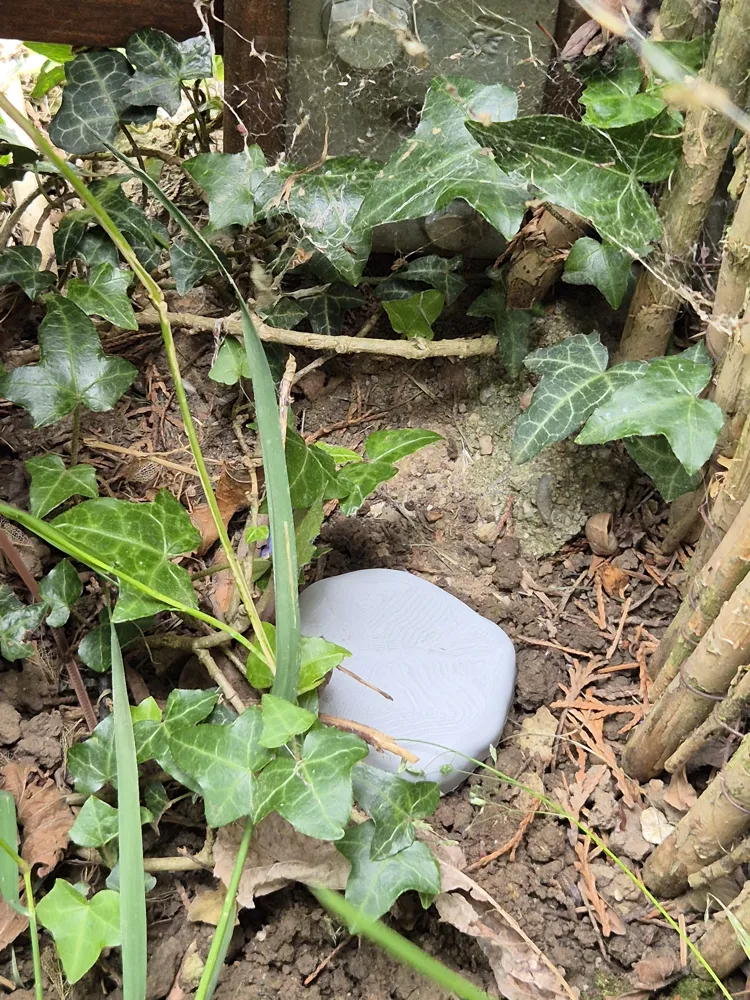

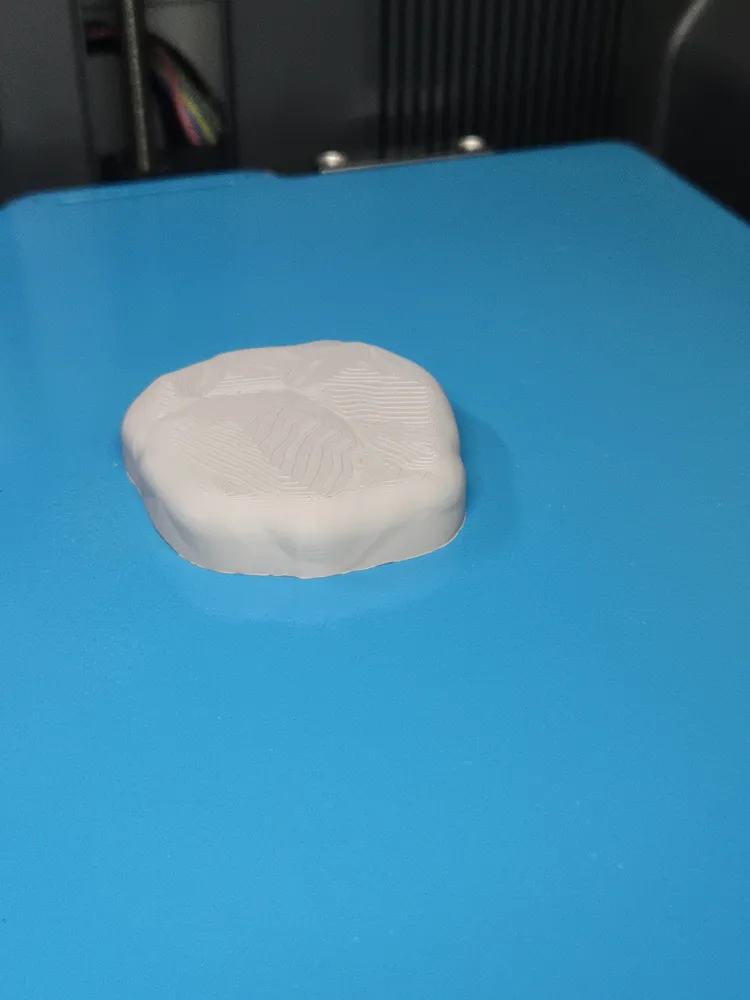

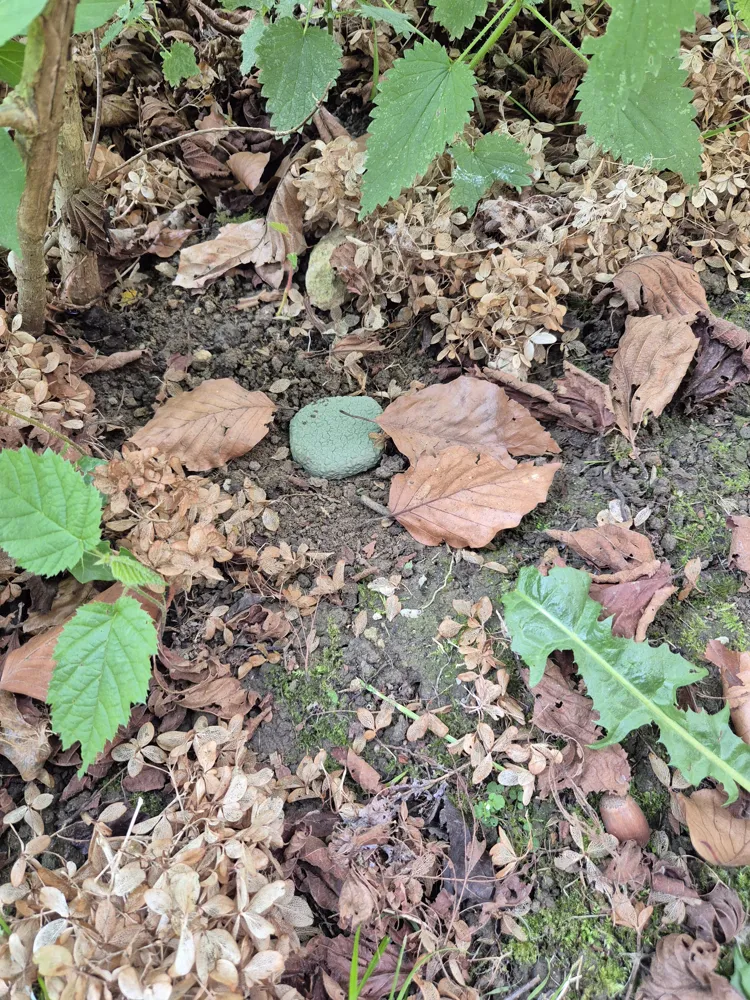

Organic Lid
The irregular, natural shape blends well into grass, weeds, ground cover, or bushes and looks like a random piece of nature.

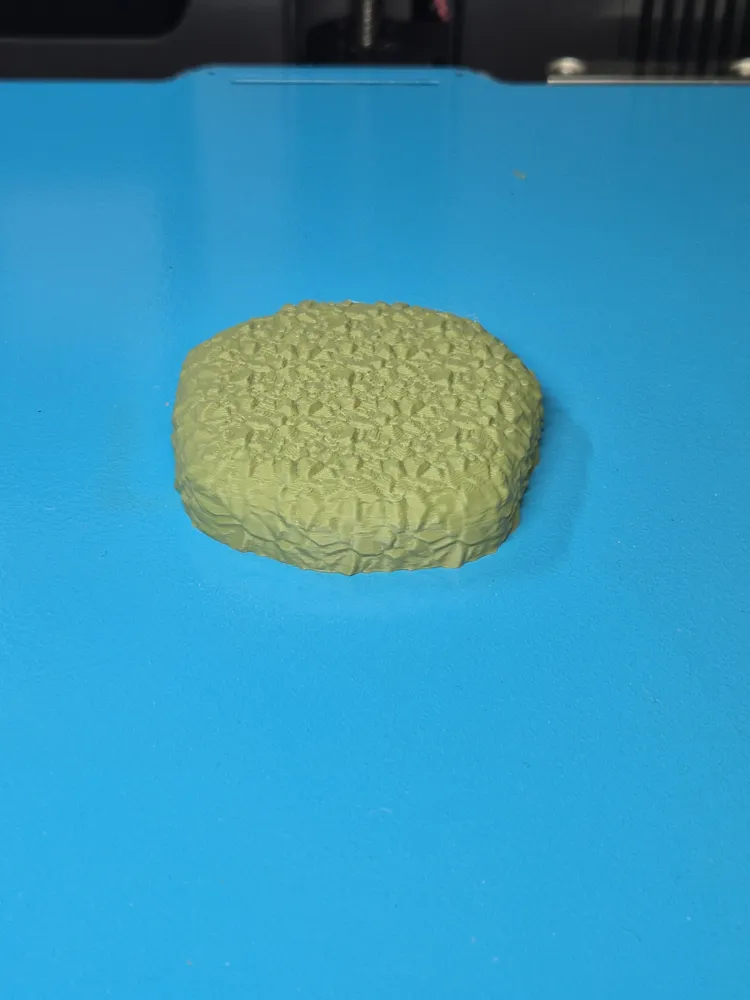

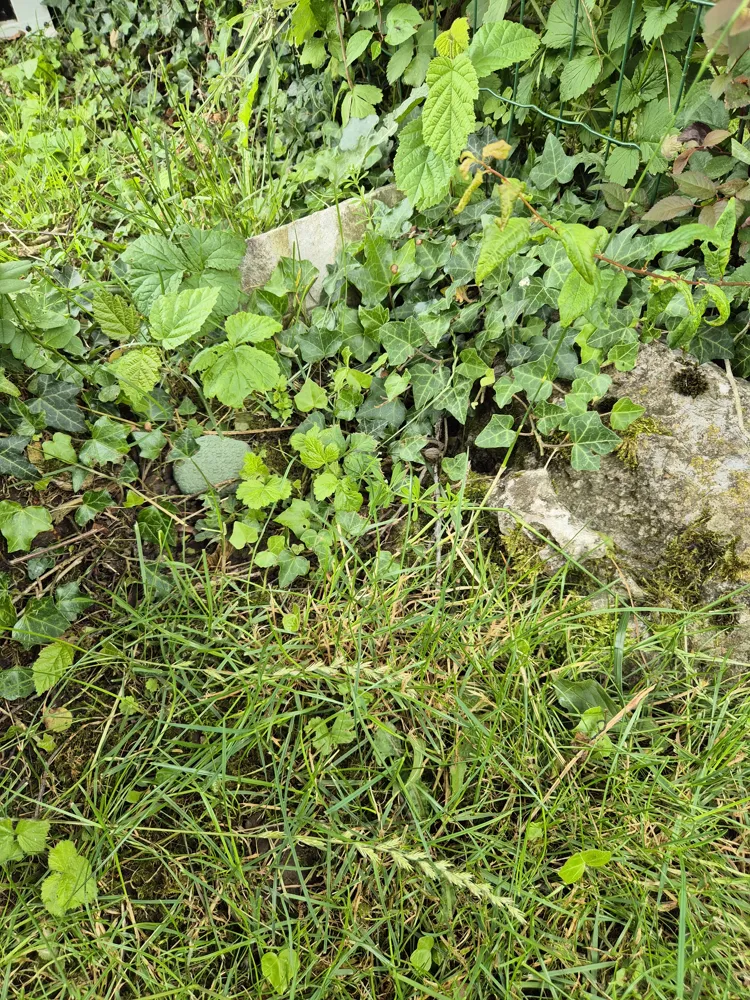

Stone Lid
This lid is modeled after a small stone surface and is particularly suitable for gravel areas, flower beds, or areas with natural stones.

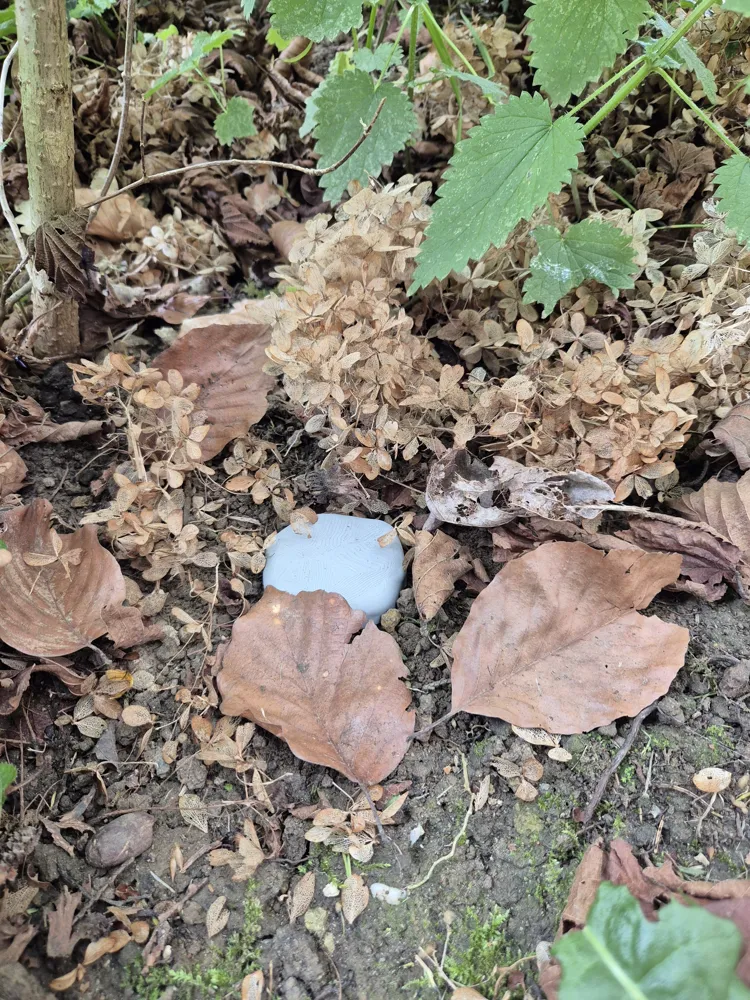

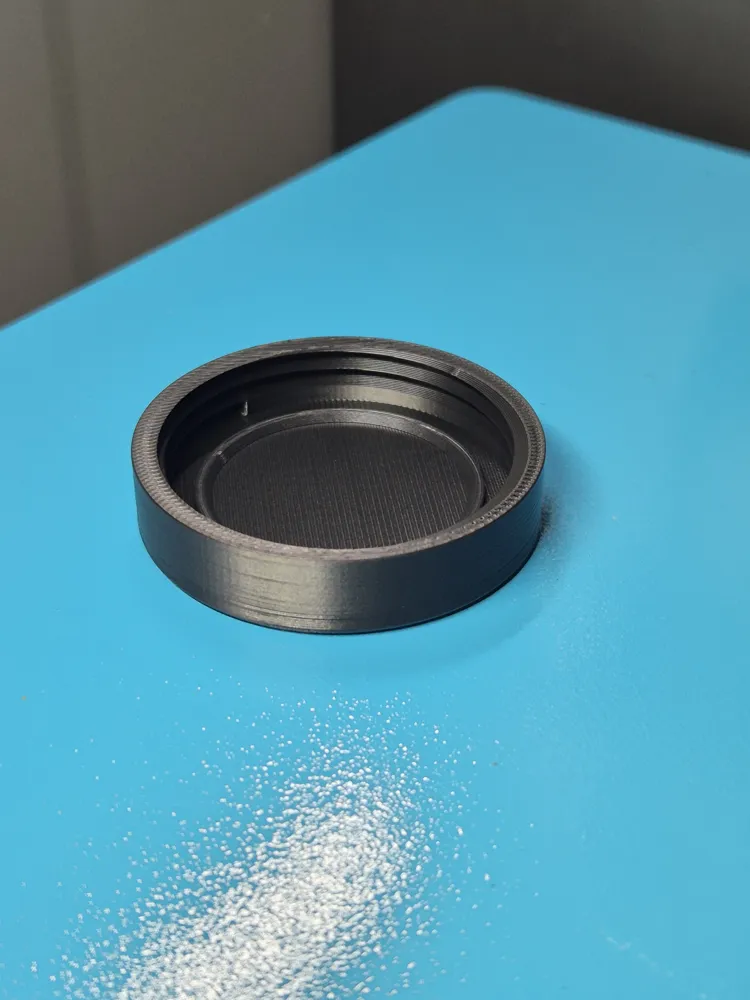

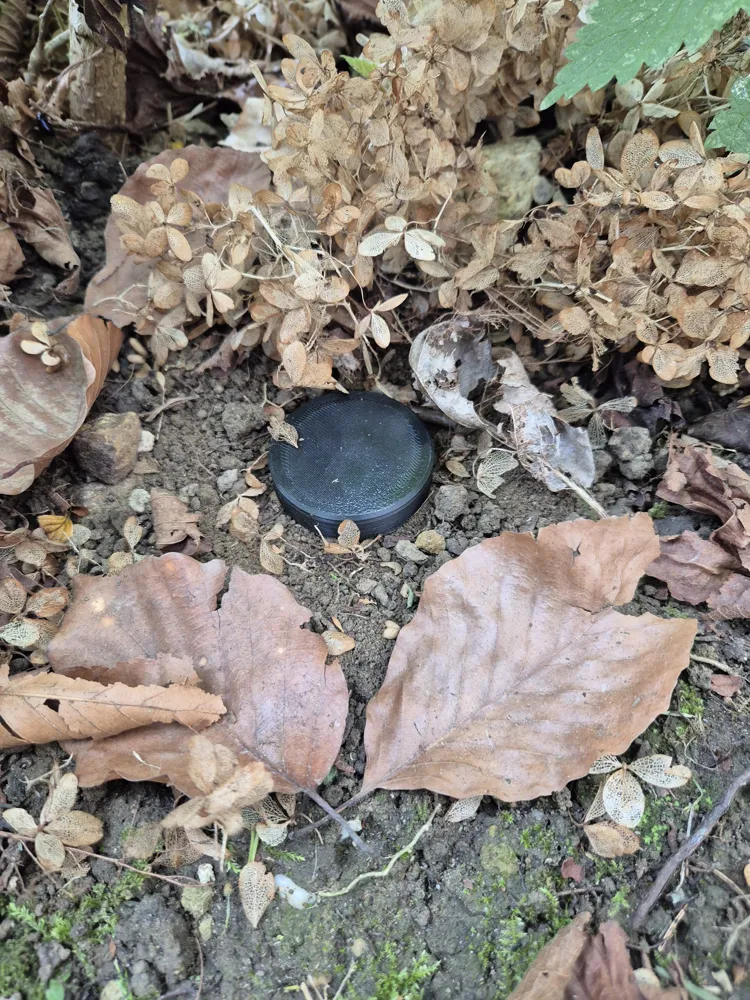

Round Universal Lid
A simple lid with 50 mm diameter
Water Protection
When printed in PETG, the ground sleeve itself is waterproof. The only potential entry point for water is the lid thread.

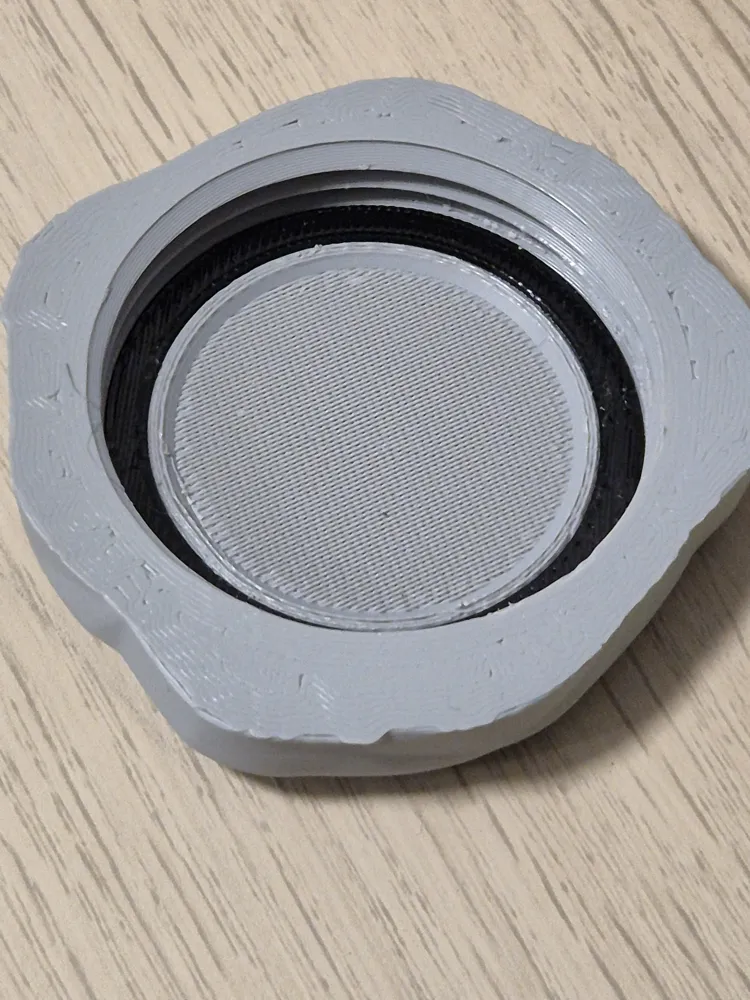

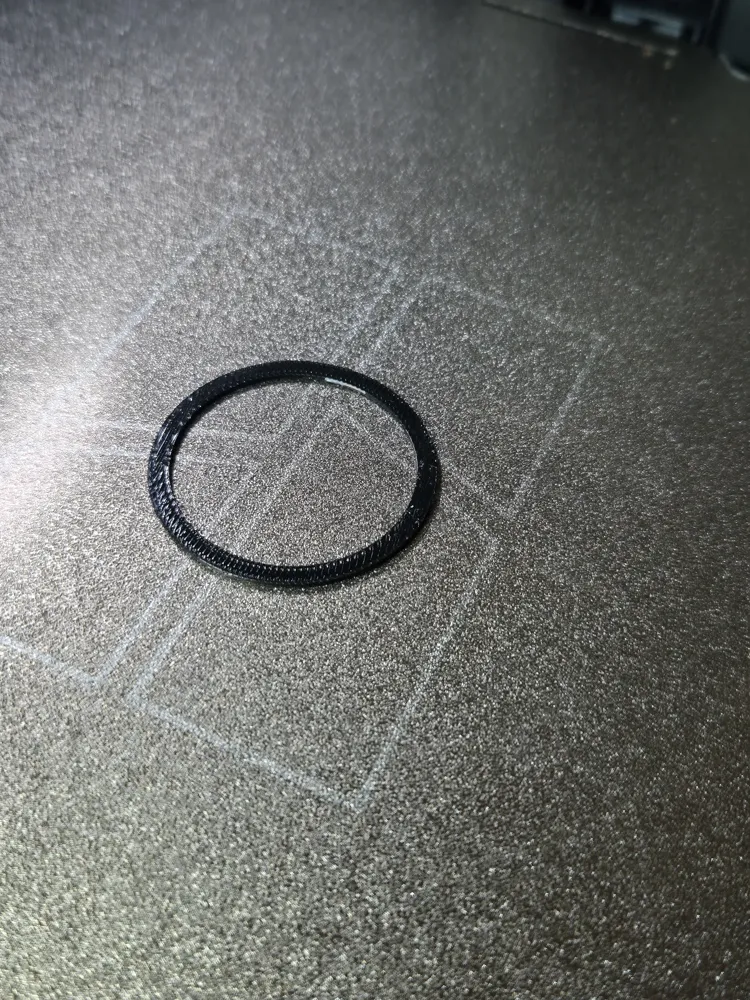

For additional protection, an optional TPU seal is therefore included. This is inserted into the lid and reliably seals the screw connection
Features
- Ground sleeve: 80 mm height × 50 mm diameter
- Screw-in external thread for secure hold in the ground
- Interchangeable lids
- Tool-free assembly
- Optional printable TPU seal
Applications
- Hiding a spare key (front door, garage, garden shed,...)
- Geocaching
- Storage of small items in the garden
Installation

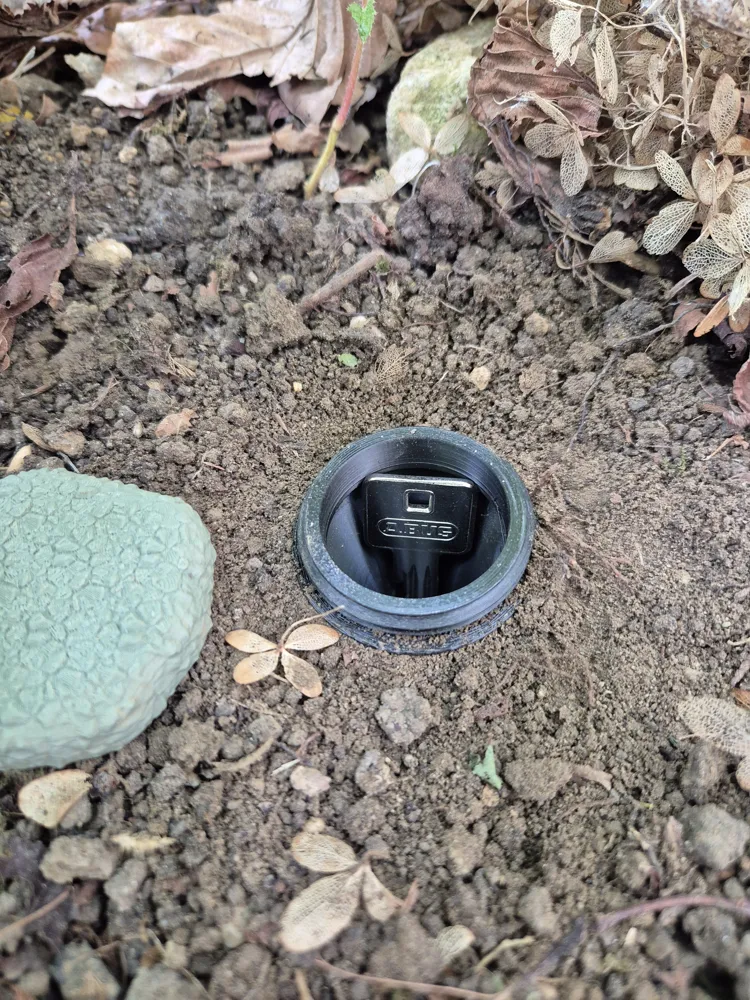

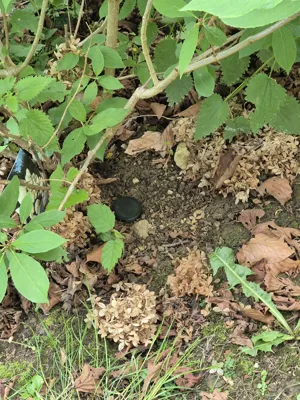

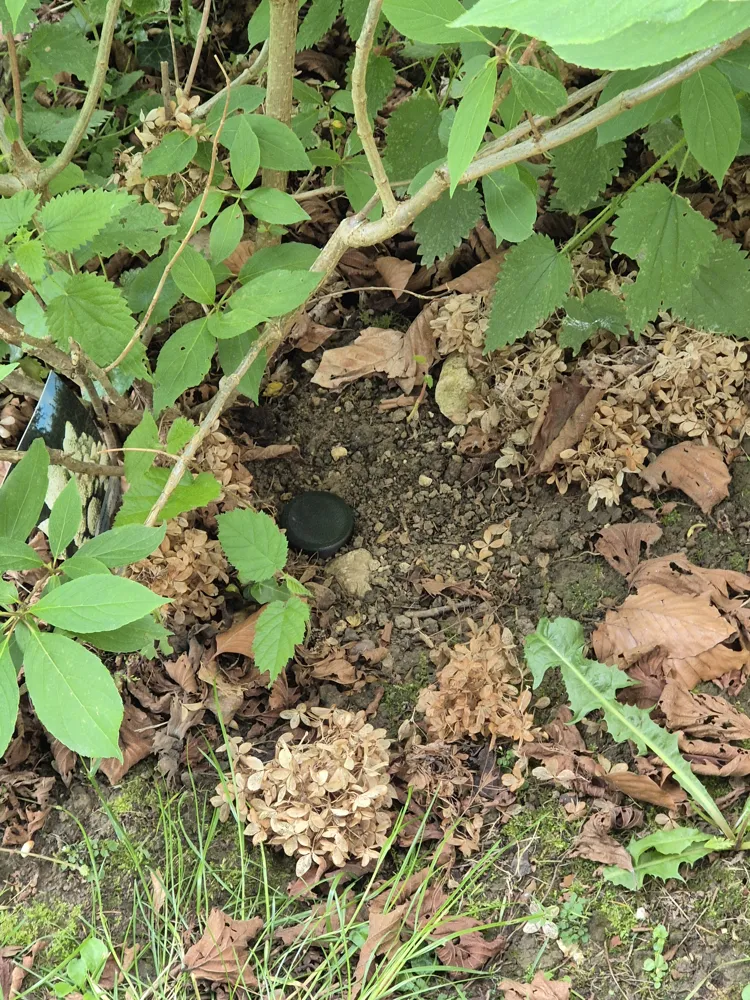

Screw the ground sleeve into the ground and screw on a lid suitable for the environment.
The optional TPU seal is inserted into the lid!
Printing Recommendations
Material: PETG or ASA
Layer height:
- Lid: 0.12mm
- Ground sleeve: Variable layer height - 0.12mm for the lid thread and 0.2mm for the rest of the sleeve
6 Perimeters
50% Infill
Top shell thickness 1.5mm
Bottom shell thickness 1.5mm
Speed: Outer wall 60mm/s, Inner wall 60mm/s
Supports: Tree Slim
With these settings, the PETG print becomes waterproof! With the optional TPU seal, no water will enter the interior through the lid thread.
My print profile includes all necessary settings!
If you like the model, I would appreciate a like, a download, a boost, and of course, photos of your prints!
Happy printing!
