Fixation Skadis rail

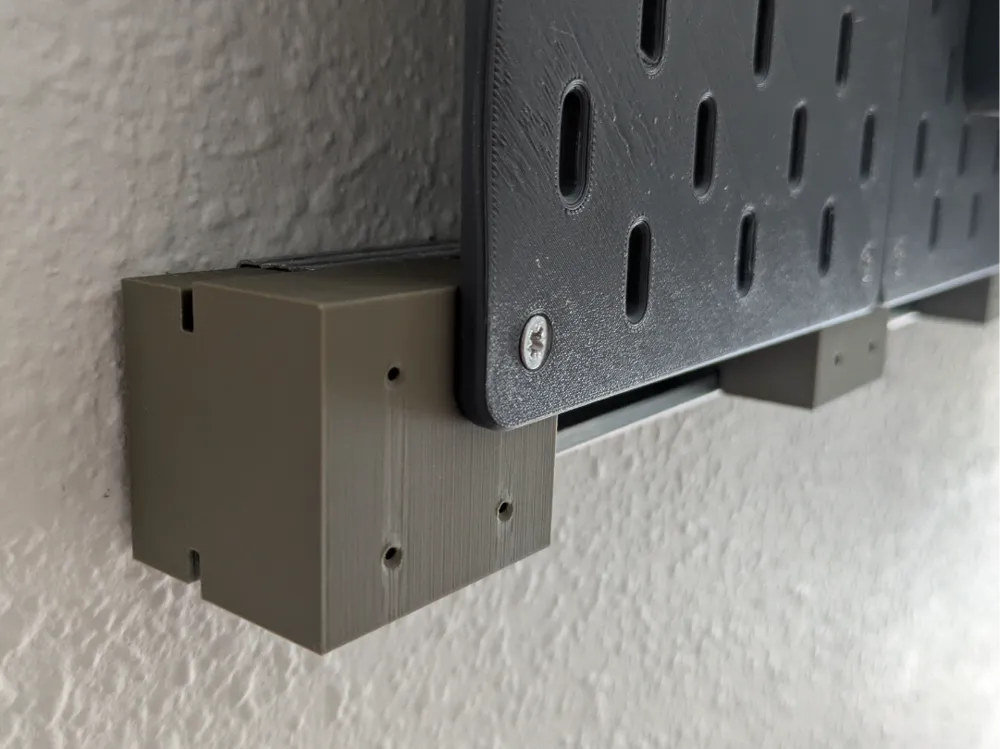

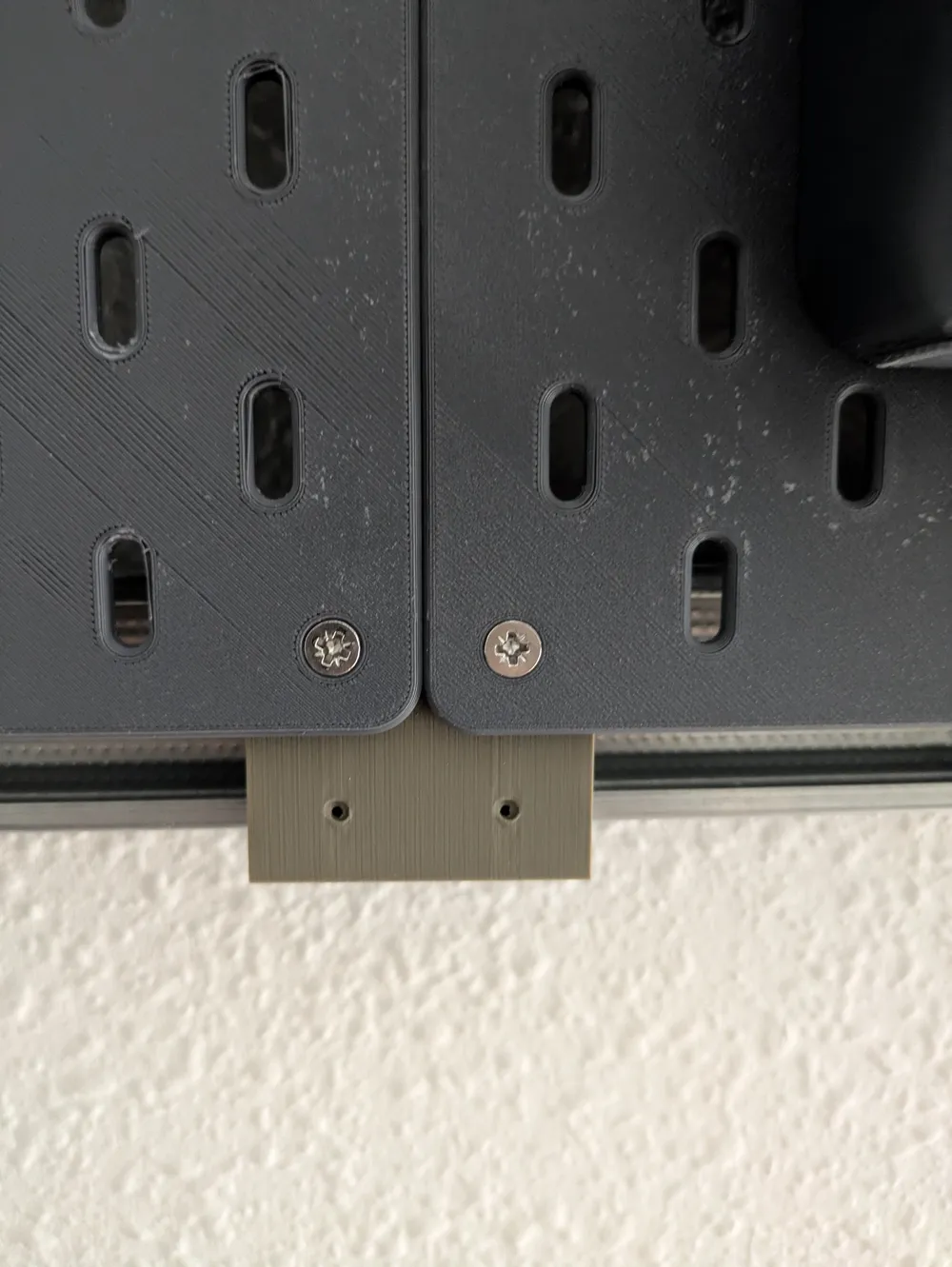

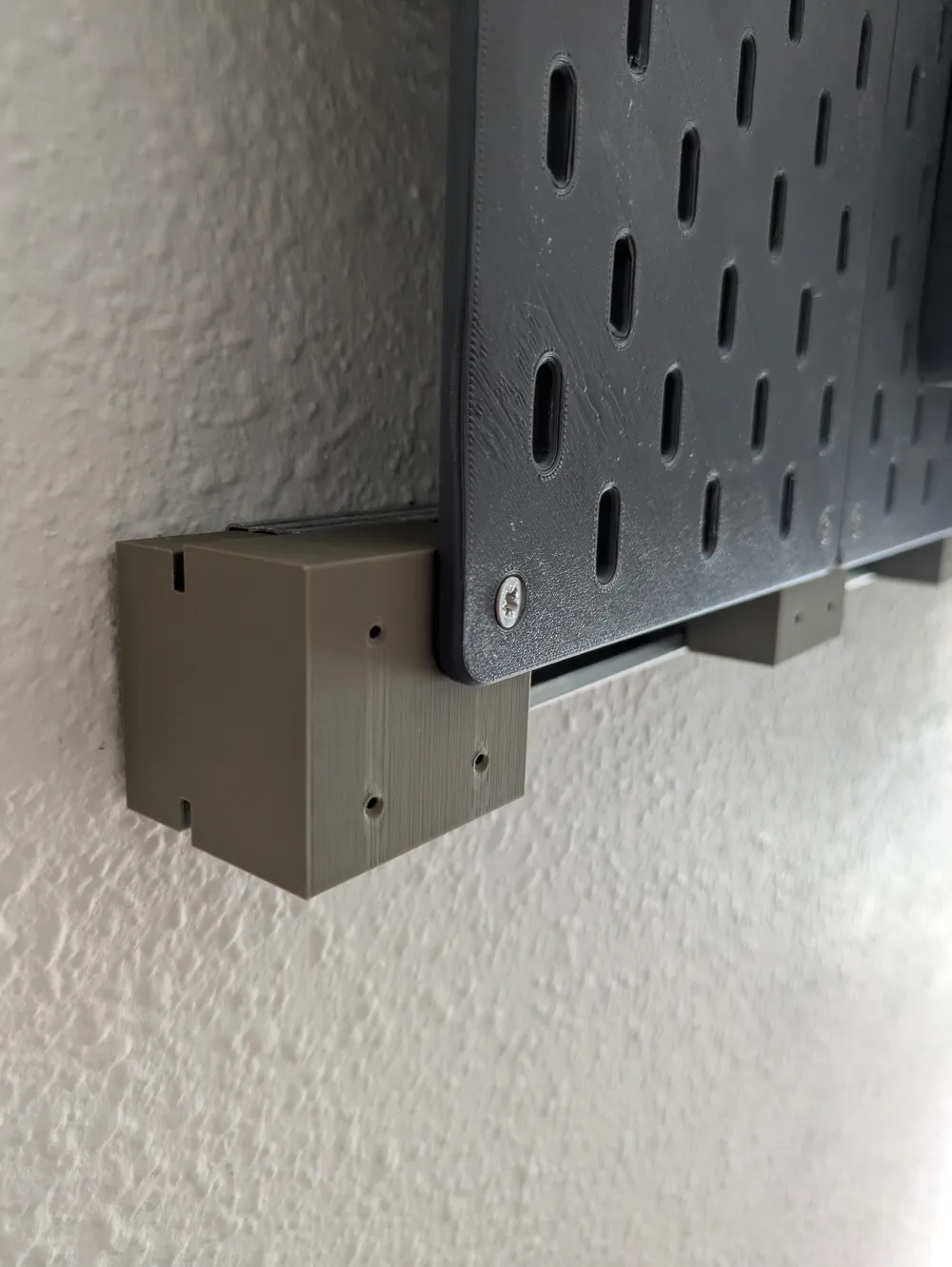

Skadis Panel Mounting on Rail

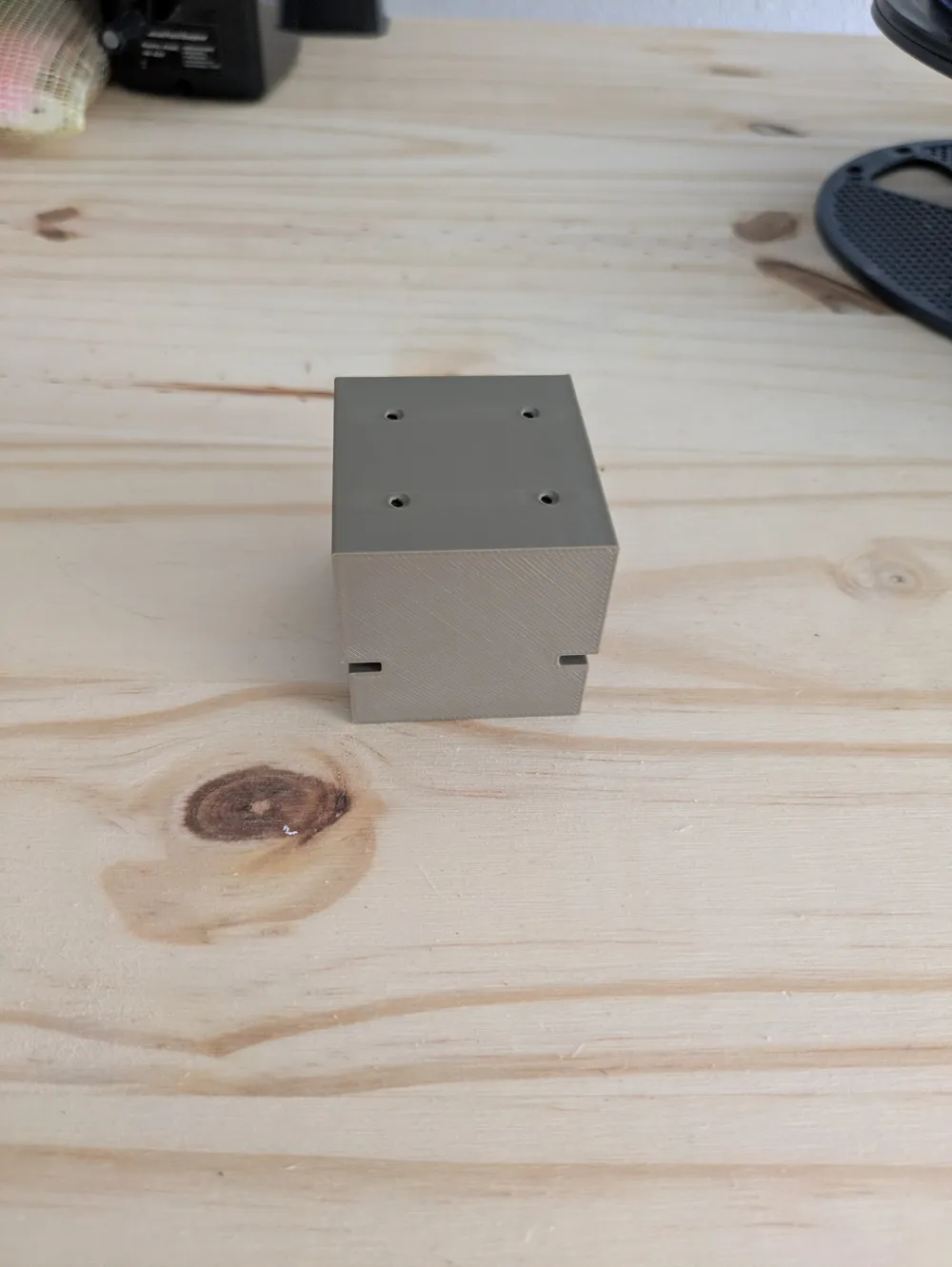

Here is my first creation, I was never able to find the part corresponding to my needs.

For this to fit perfectly, you will need a rail Mafer 45 mm L.3 m galvanized steel furring strip from Castorama. The rail is curved inwards, unlike plasterboard rails.

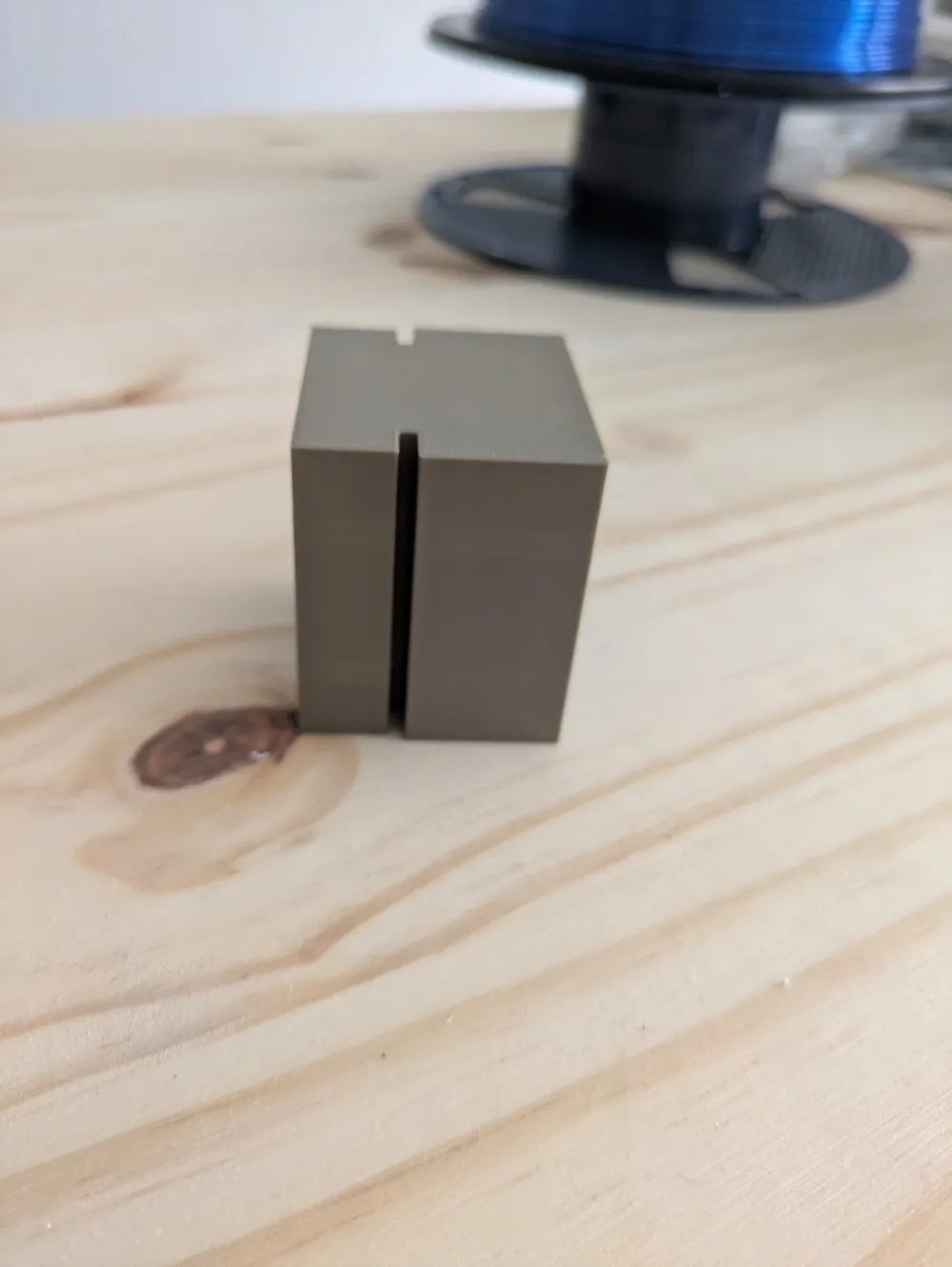

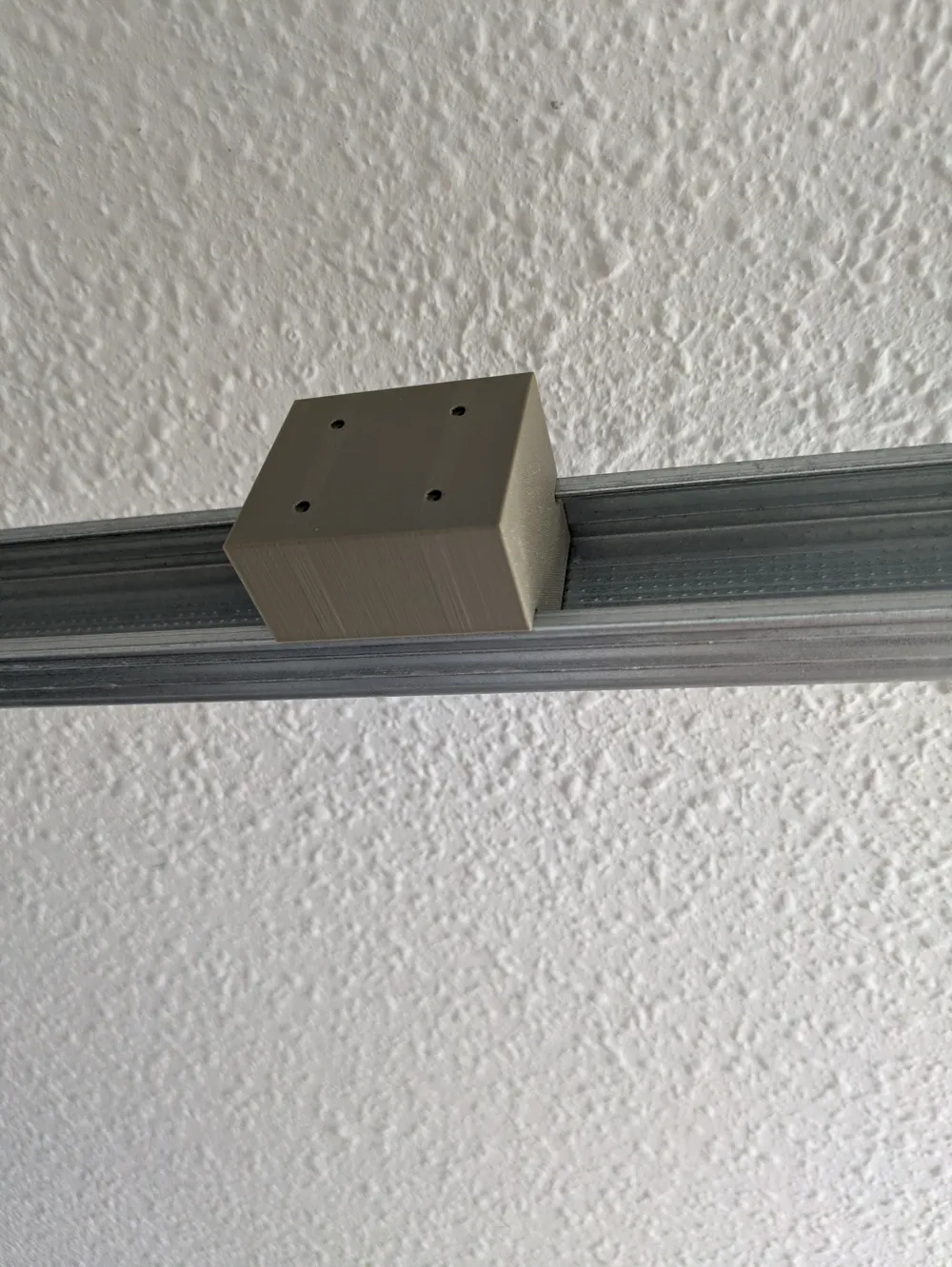

The part slides perfectly into the rail.

You will need to insert the required number of connectors before fixing the rail to the wall, as the screw will block the passage otherwise. (if you feel it's necessary, write to me so I can test adding the part with a screw passage on the rail)

The rail will need to be cut to the desired dimensions for your project and according to the number of panels you have.

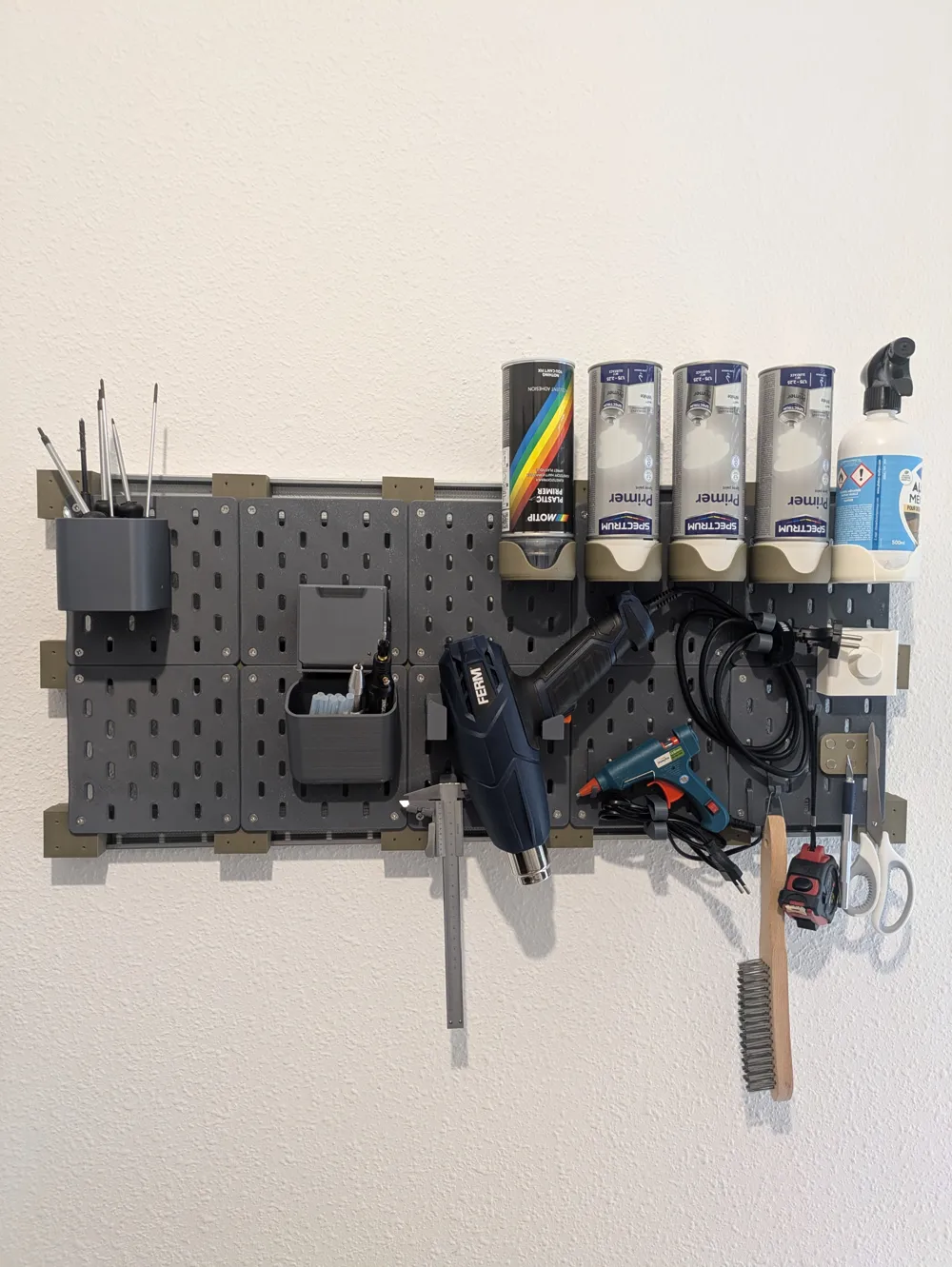

The panels used in my project are 160x160mm.

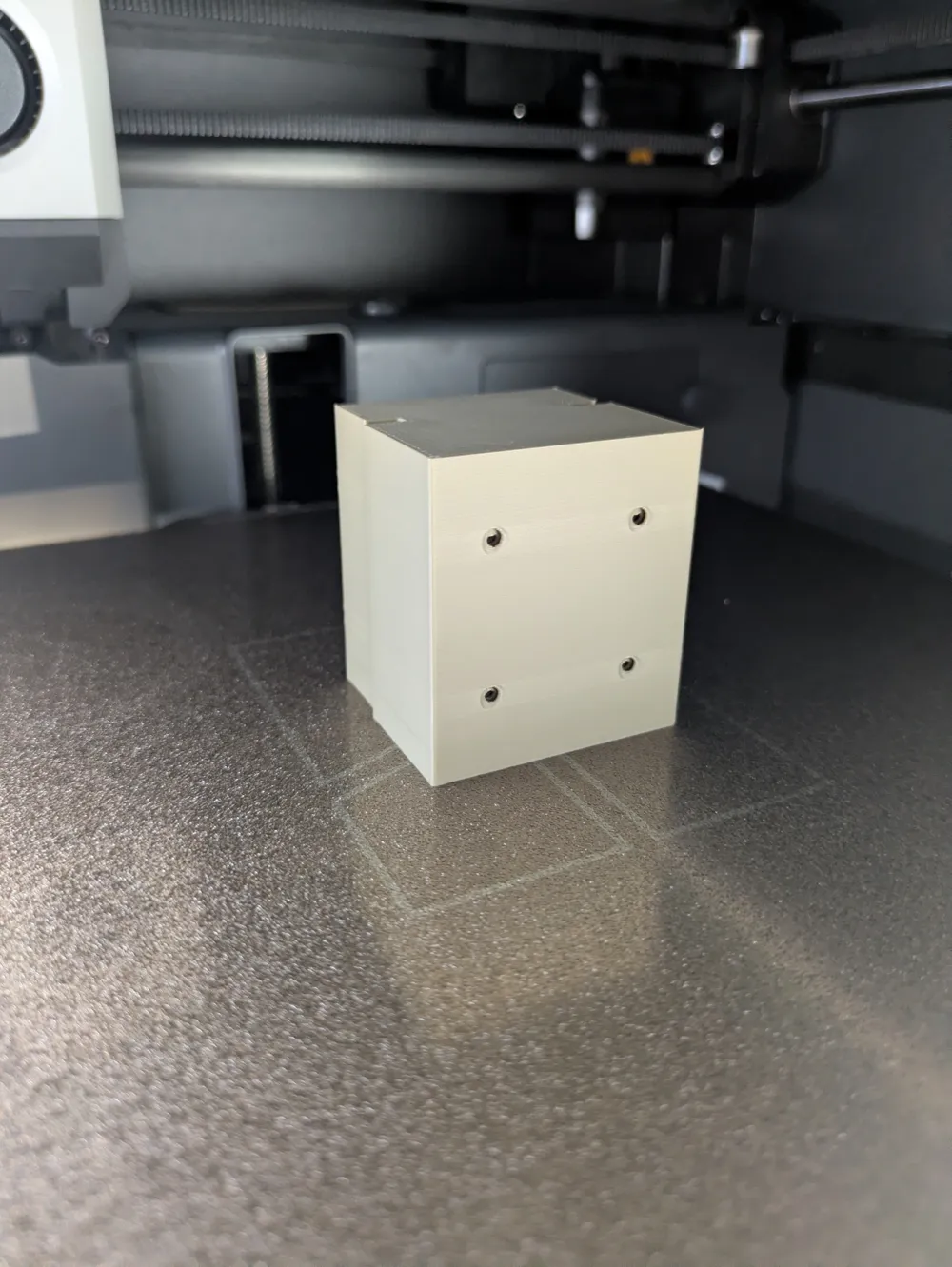

Made on P1S with basic settings: 0.20mm Standard @BBL X1C
