Longyu 2814 2820 Replacement Prop Adapter (CNC)

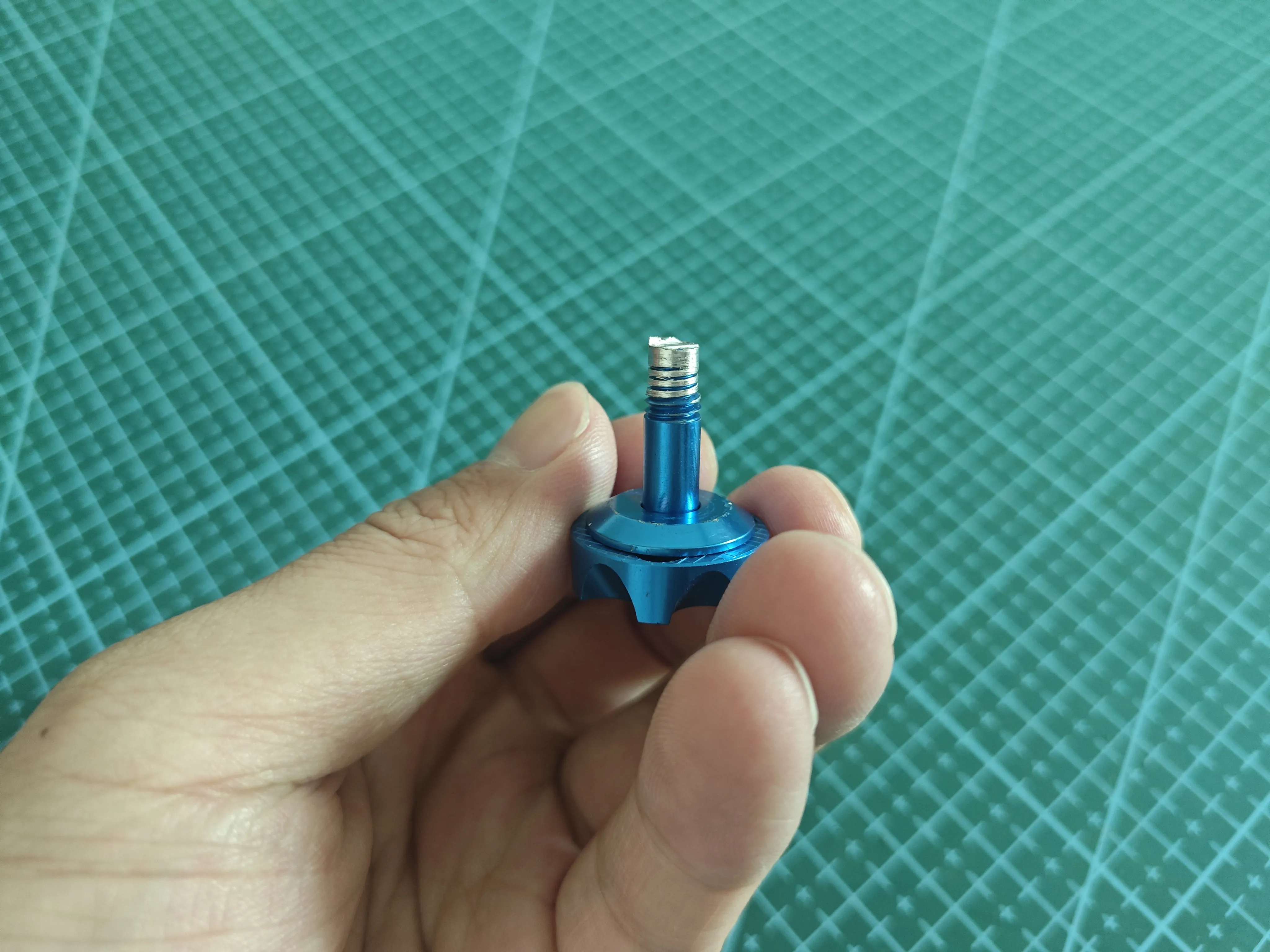

Had enough of LanYu's crappy propeller clamps, they're too soft! The threads are bound to be stripped after changing propellers a few times

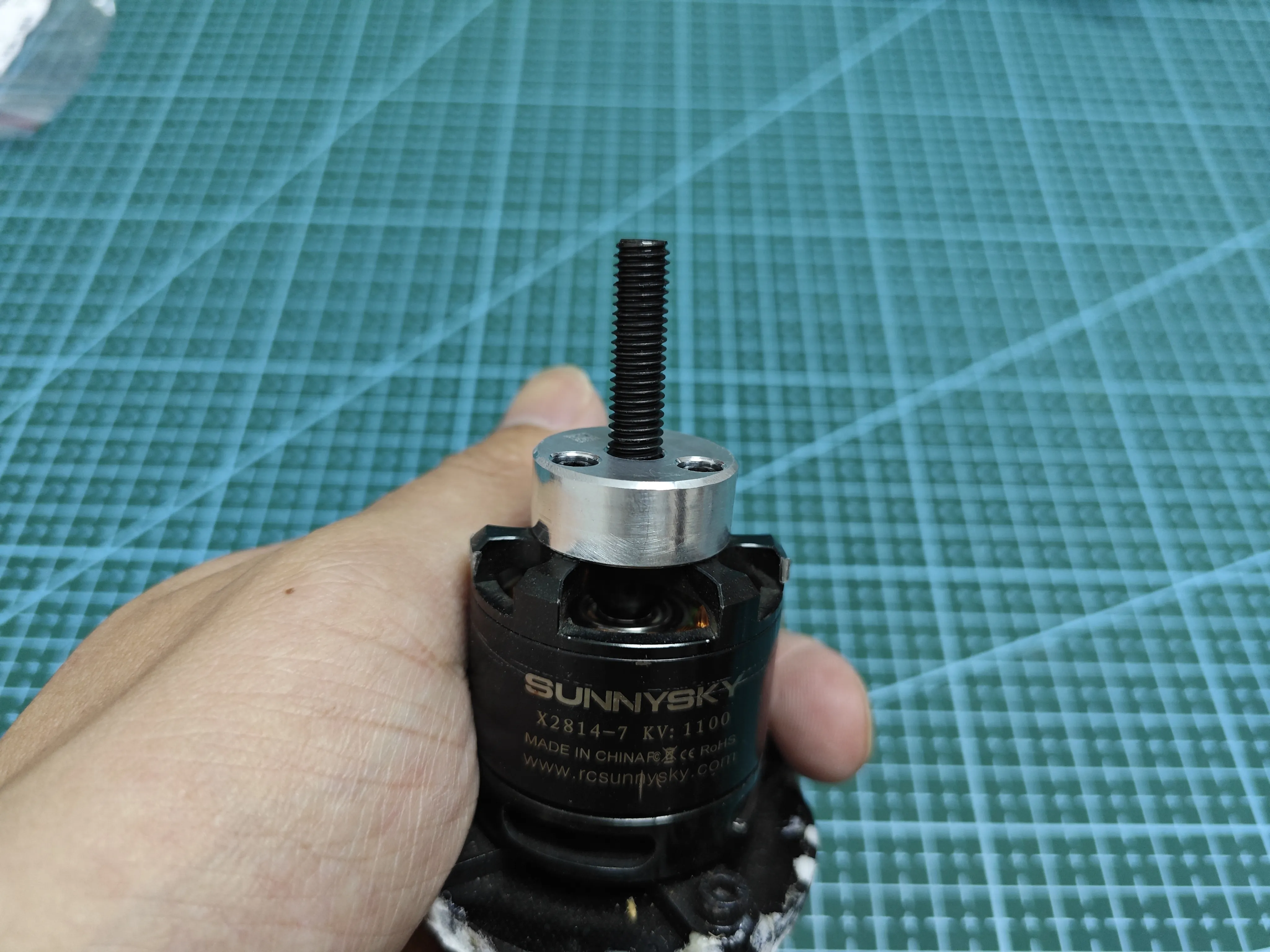

This propeller clamp is designed for LanYu 2820, 2814, and similar motors, and is universally compatible with both second and third generations. It uses a 12.9 grade M6 screw to replace the original screw shaft, greatly minimizing the risk of stripped threads. Because it needs to accommodate this M6 screw, the body is slightly thicker than the original propeller clamp, but this does not affect use. When first installed, the main shaft will have some play, which disappears after the propeller is installed and tightened

        For prototyping, you can go to QuanZhou or JiaLiChuang, just download the step file from the project files

        Due to the different design, the required materials are as follows

       12.9 grade M6x25mm hex head screw X1 (main shaft screw)

       12.9 grade M2.5x10mm hex socket screw X3 (fixing screws)

       M6 self-locking nut X1 (as needed)

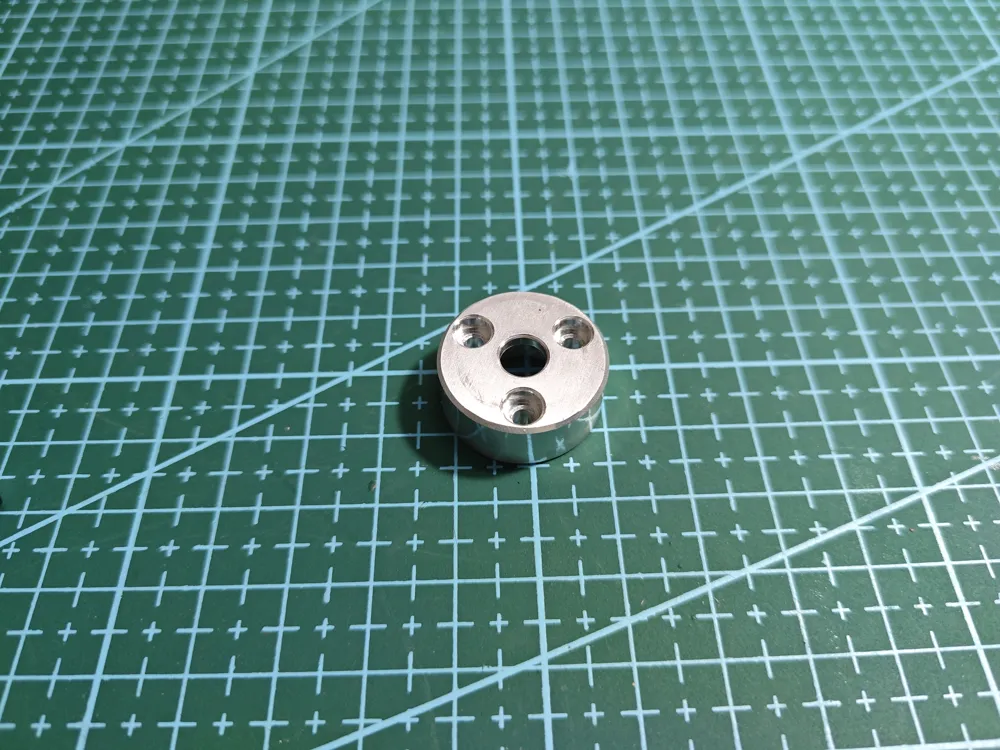

       Replacement propeller clamp body X1 (must be CNC machined)

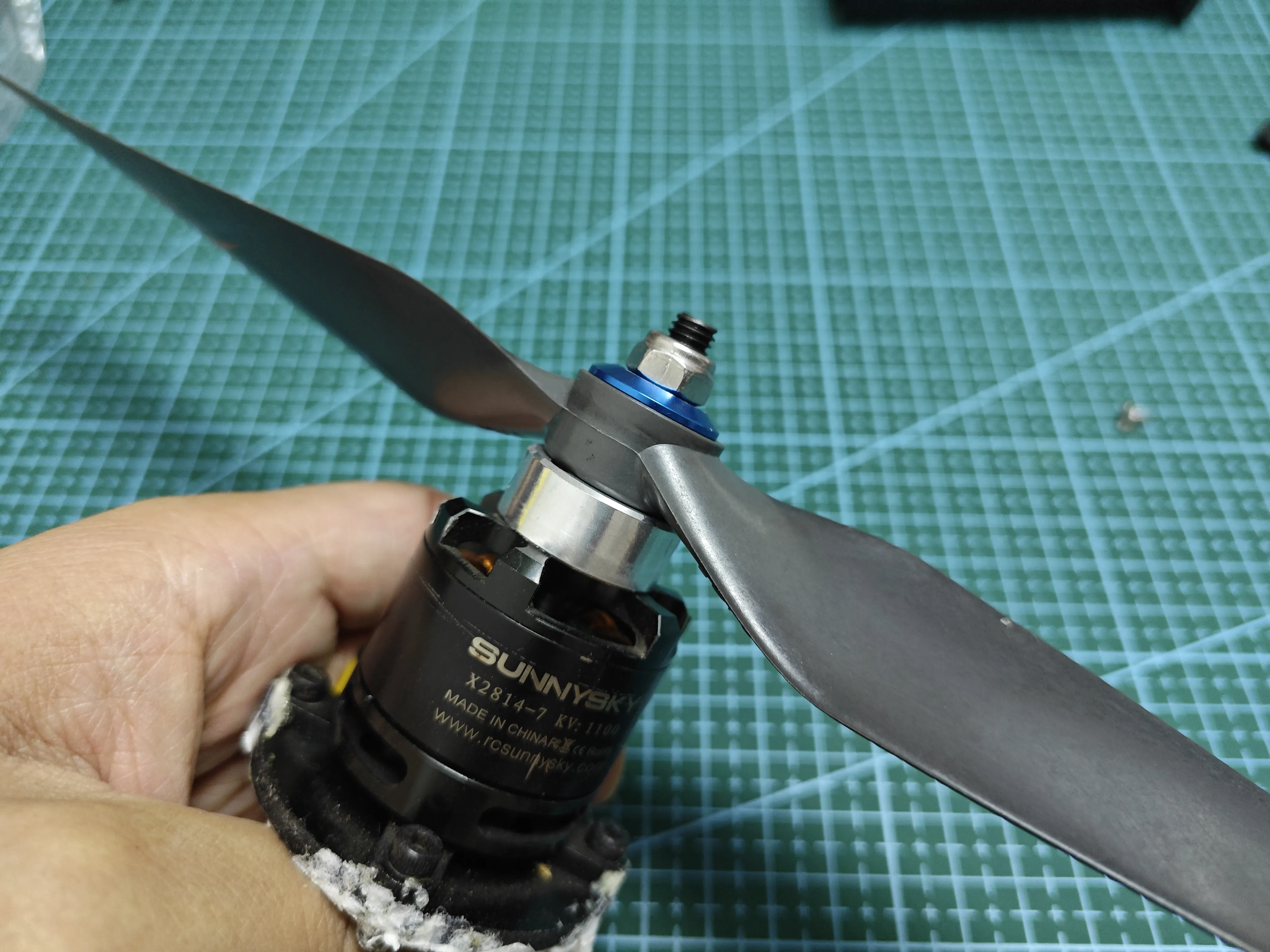

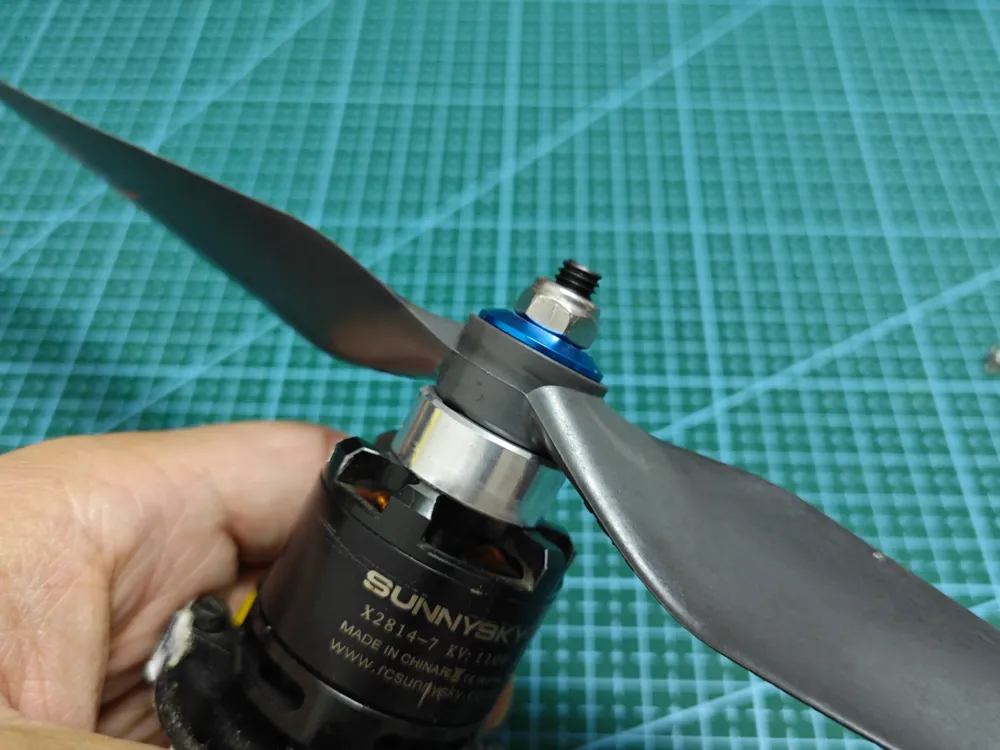

      Installation effect
