I built this to solve a problem on my own H2 setup and decided to share not only the print files, but also the editable CAD files so others can customize and improve it for their own needs. If you find it useful, I'd really appreciate a Boost. It helps support future designs, tutorials, and projects that I can continue sharing with the community. Thanks for the support!

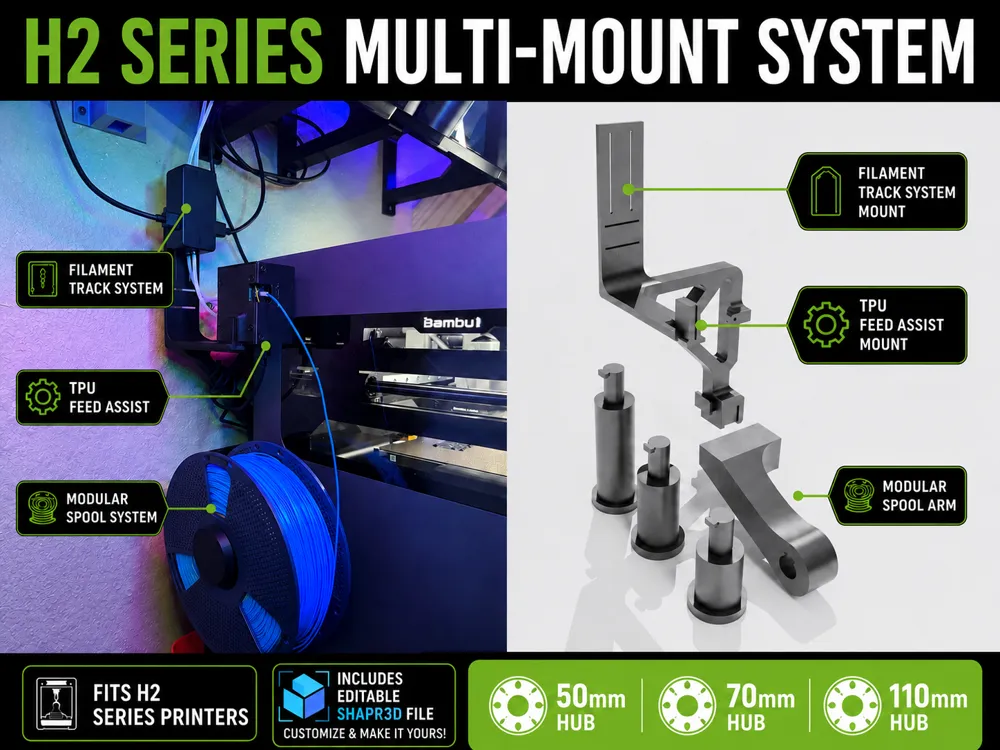

H2 Series Multi-Mount System | FTS, TPU Feed Assist & Modular Spool System

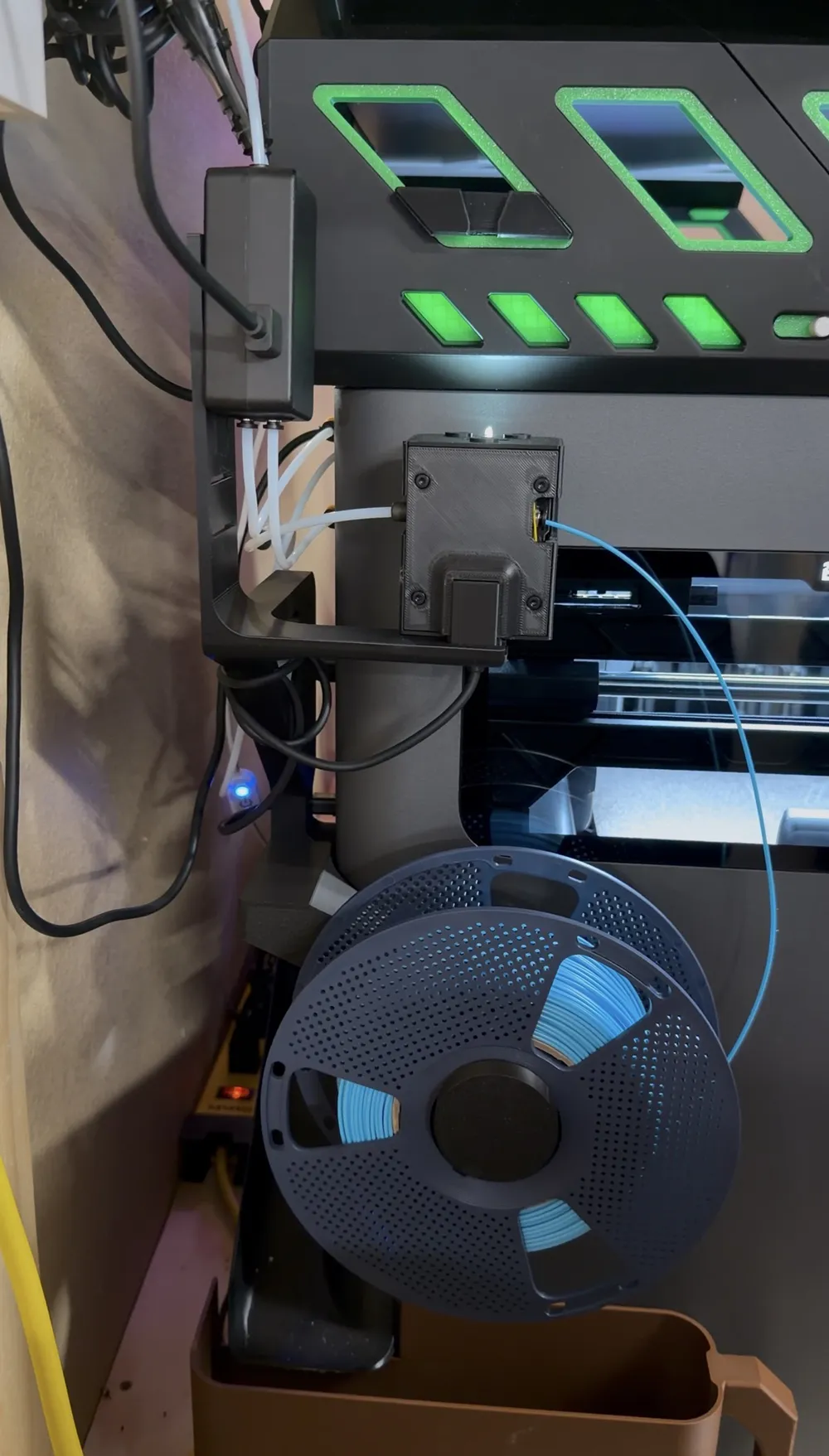

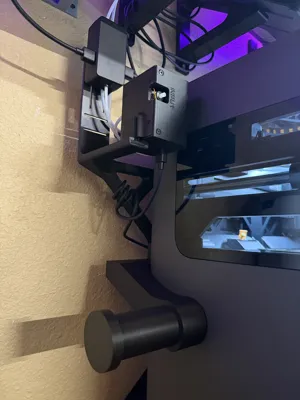

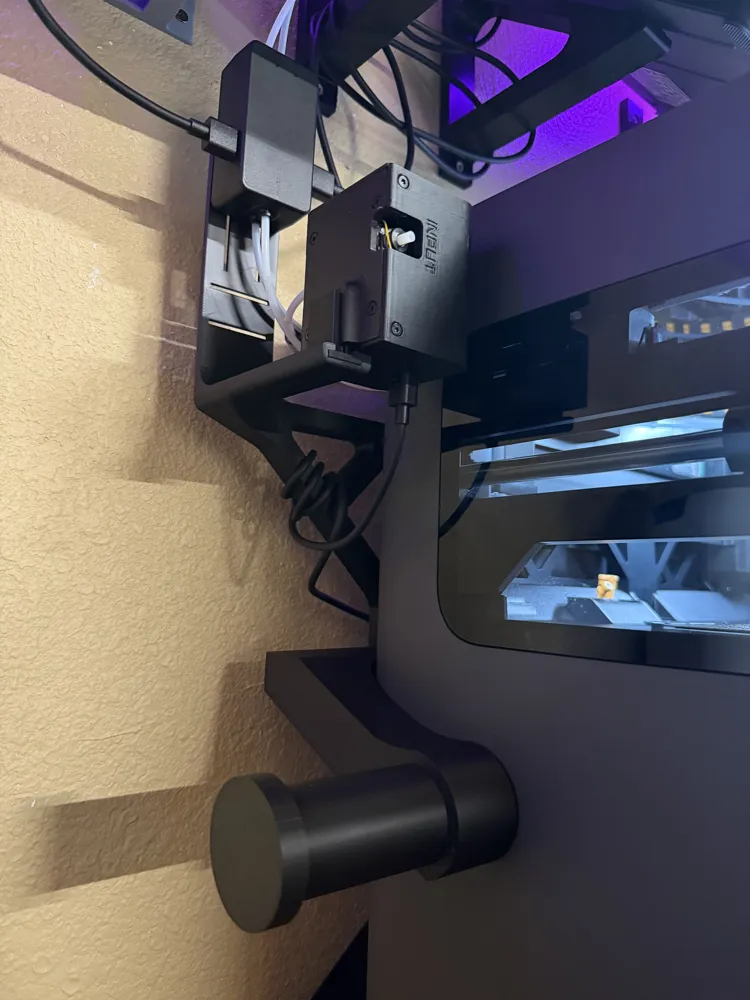

A modular mounting system for H2 Series printers that combines the Filament Track Switch, TPU Feed Assist, and interchangeable spool system into a single mounting platform.
Includes an editable Shapr3D source file and multiple spool hub sizes.
Designed to minimize supports, reduce print time, and adapt to different printer layouts.
Why I Made This
As more accessories become available for the H2 Series printers, users are often forced to choose between mounting a Filament Track Switch, TPU Feed Assist, external spool holder, or other accessories because they all compete for the same mounting location. I wanted a cleaner solution that would allow multiple accessories to share a single mounting point while remaining completely modular and adaptable to different setups.
The result is the H2 Series Multi-Mount System.
Compatible With
- H2C
- H2D
- H2S
Features:
- Supports Filament Track Switch mounting
- Supports TPU Feed Assist mounting
- Modular spool system
- Multiple Filament Track Switch mounting orientations
- Vertical, horizontal, and angled FTS mounting options

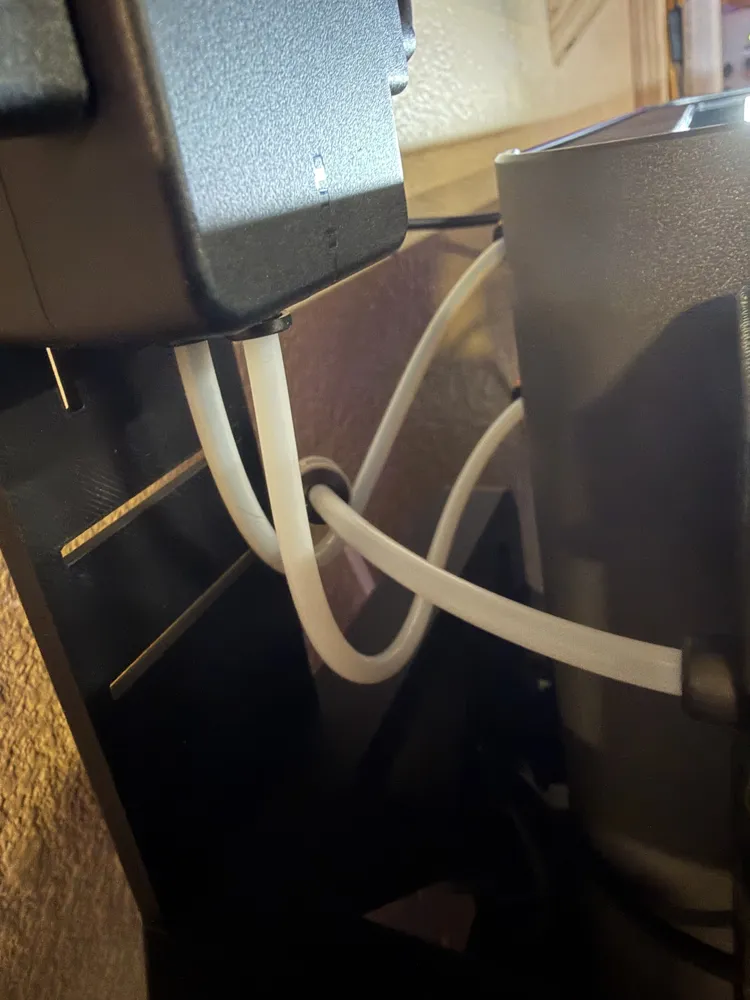

- Adjustable mounting positions for improved PTFE routing
- Interchangeable spool hubs
- Optimized for minimal supports
- Includes editable Shapr3D source file
- Designed for future expansion and customization
What's Included
- STL files
- 3MF print profile
- STEP file
- Editable Shapr3D source file
Modular Design
This system was designed so you only print the components you need.

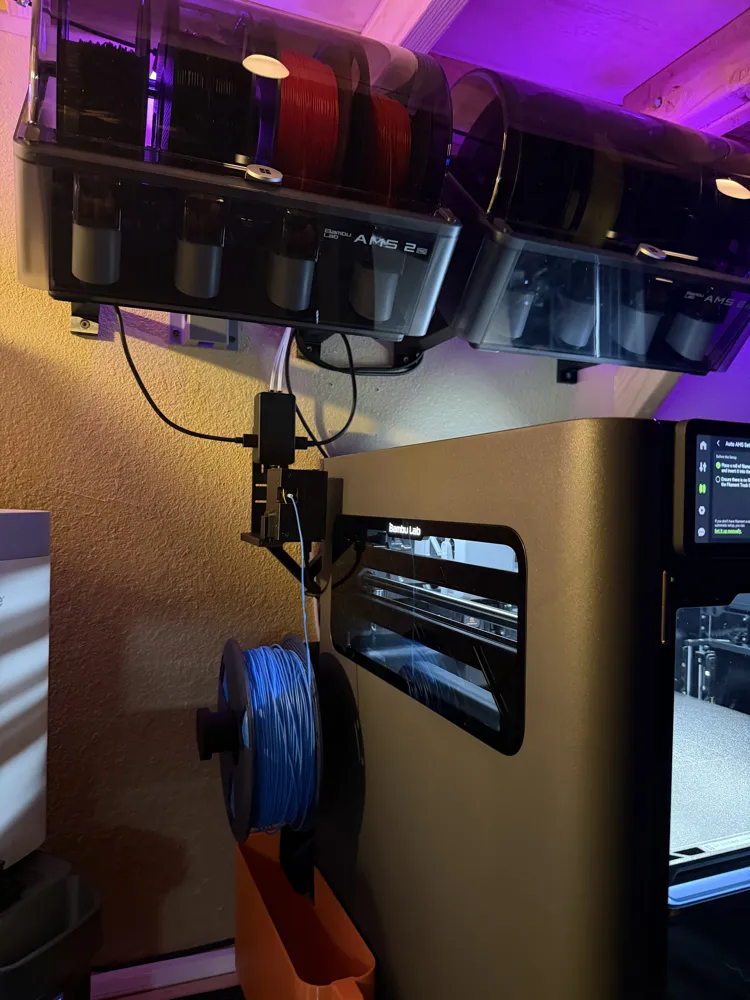

The Filament Track Switch can be mounted vertically, horizontally, or at an angle depending on your AMS placement and filament routing requirements.
The spool system uses a locking hub design that allows spool hubs to be quickly installed, removed, or exchanged.
Included spool hub sizes:
- 50 mm
- 70 mm
- 110 mm
The modular architecture also allows future accessories and custom modifications to be added without redesigning the entire system.
Editable Shapr3D File Included
This project includes the original editable Shapr3D source file.
Modify mounting locations, create custom accessories, adjust spool sizes, or expand the system to fit your own workflow.
New to CAD? Try Shapr3D here:
https://link.shapr3d.com/make
A free version is available, making it easy to learn, customize, and create your own modifications.
Recommended Print Settings
Material:
- PETG Recommended
Support Material:
- PLA Support Interfaces Recommended
This design was intentionally broken into separate modular components and optimized to be printed with minimal supports. Only a few small interface areas require support material, making cleanup quick and easy while significantly reducing print time.
PETG is recommended due to its increased heat resistance and durability around the printer environment.
Installation Notes
The Filament Track Switch uses the hardware included in the printer accessory bag labeled “For Extruder.” A complete assembly and installation video is included and demonstrates:
- TPU Feed Assist installation
- Modular spool holder assembly
- Filament Track Switch mounting options
- Installation onto the printer
If you build one, I'd love to see how you've customized it for your setup. Be sure to post your makes and modifications.
