Sprinkler Key Hide – Secret Garden Key Stash

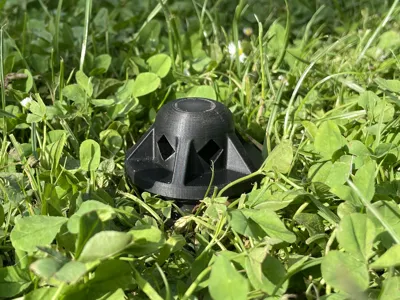

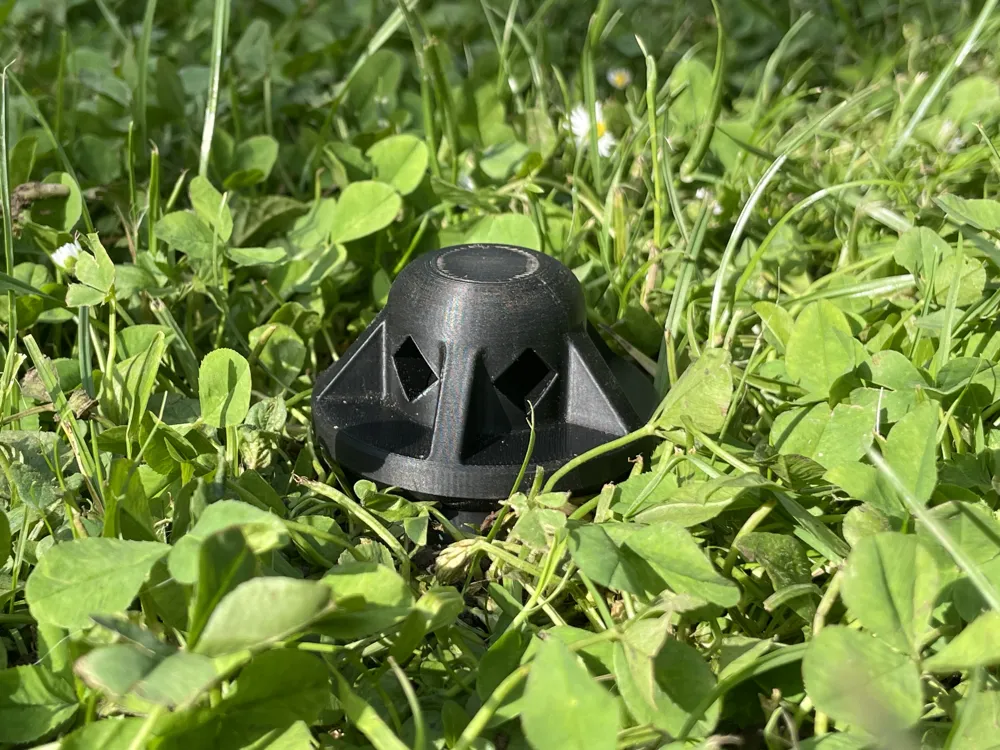

This model is designed to look like a common lawn sprinkler head while concealing a hidden storage compartment underneath.

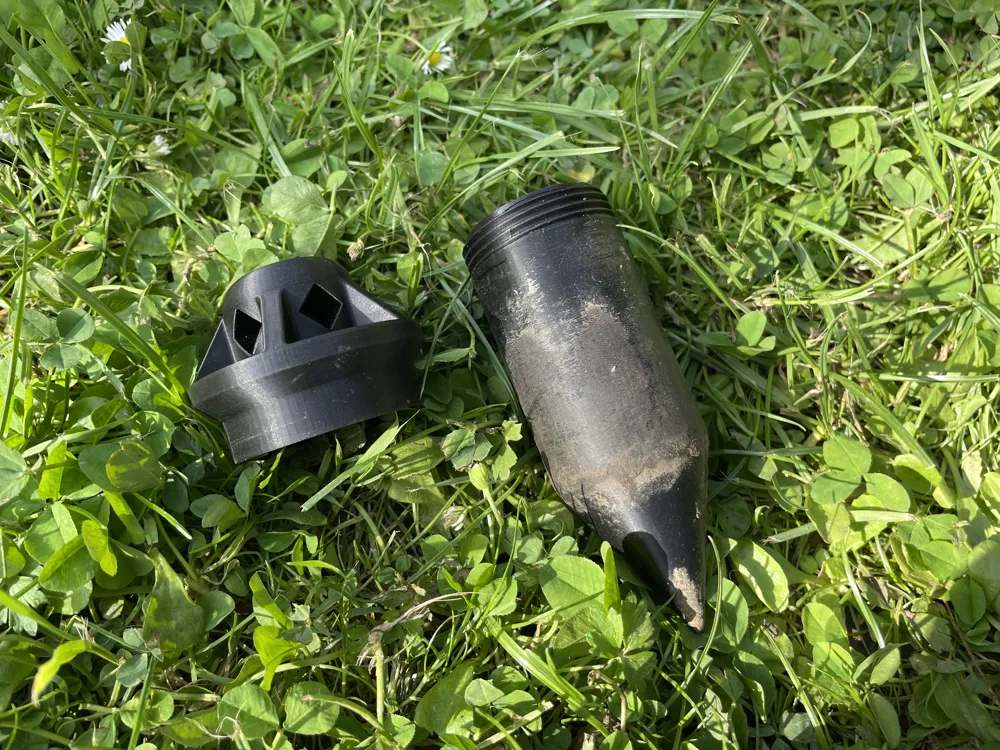

The design consists of two parts:

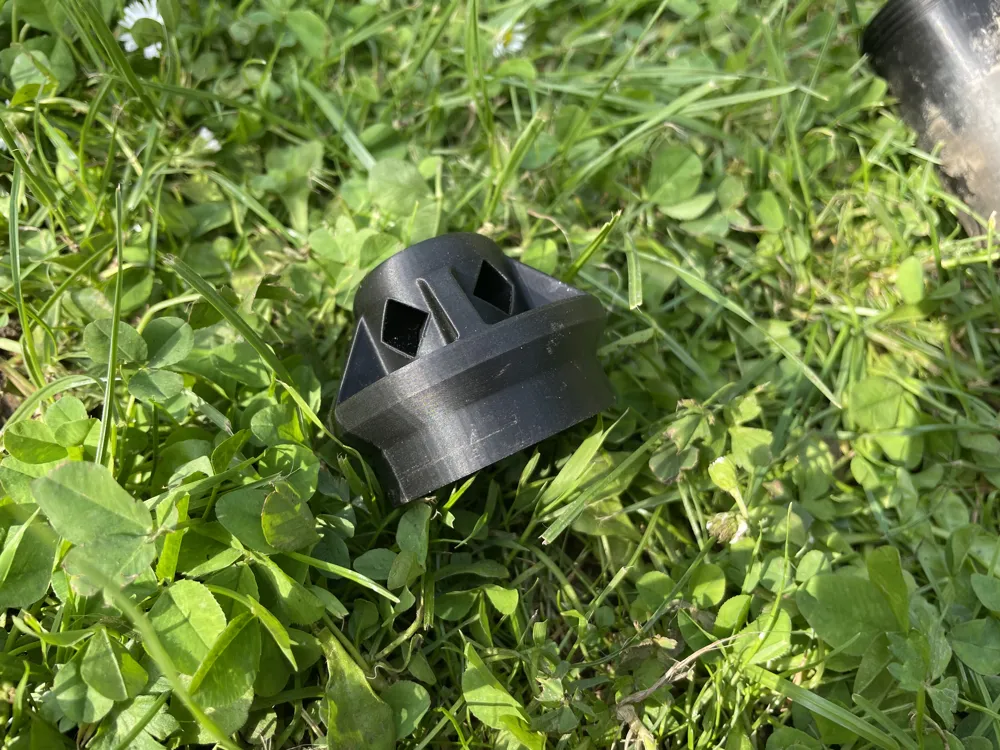

• Sprinkler-style cap

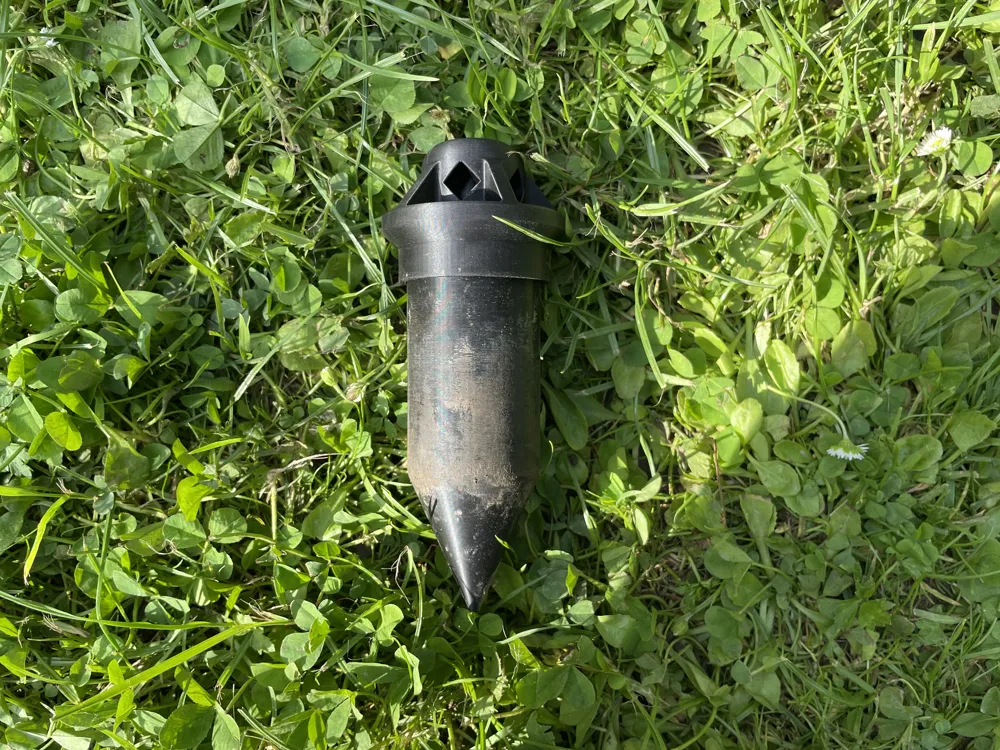

• Ground spike with internal storage cavity

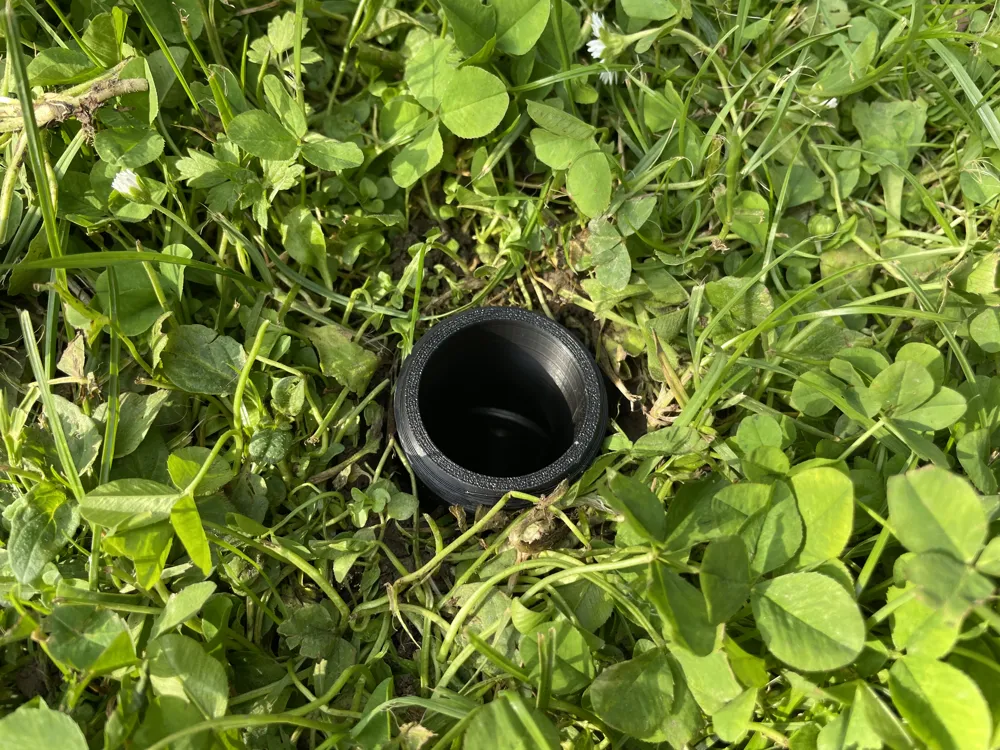

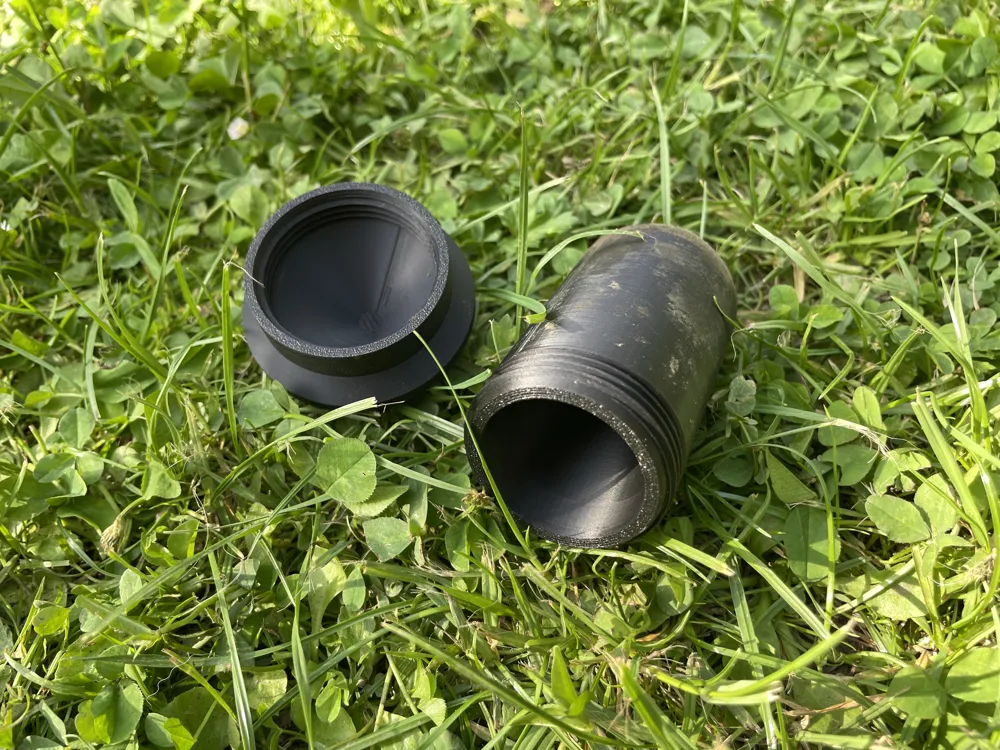

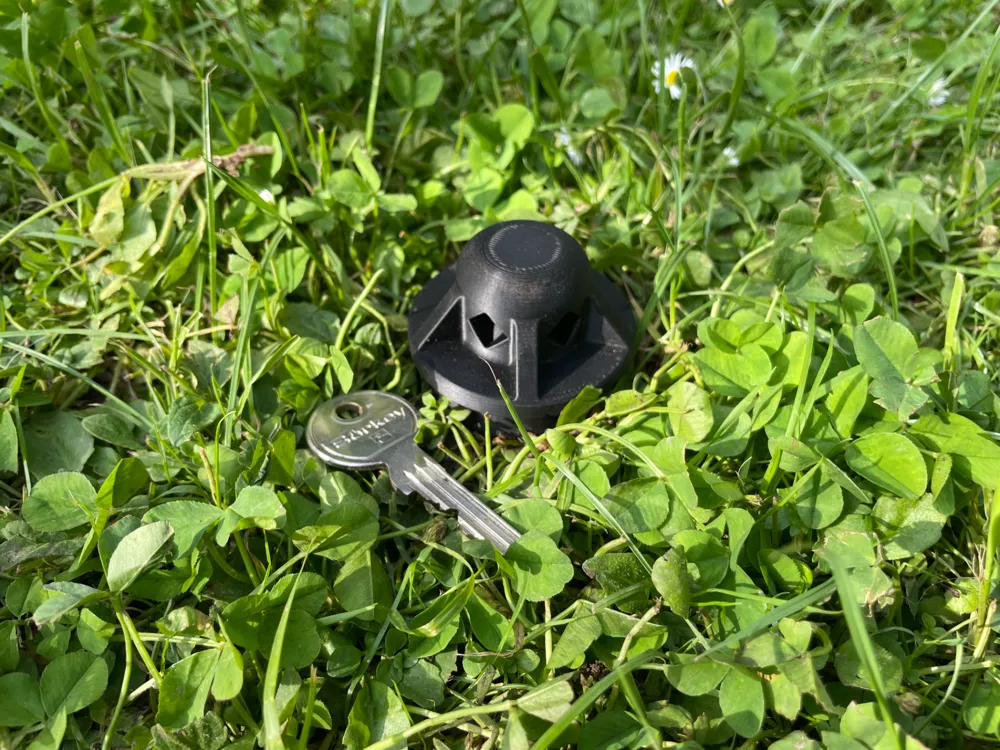

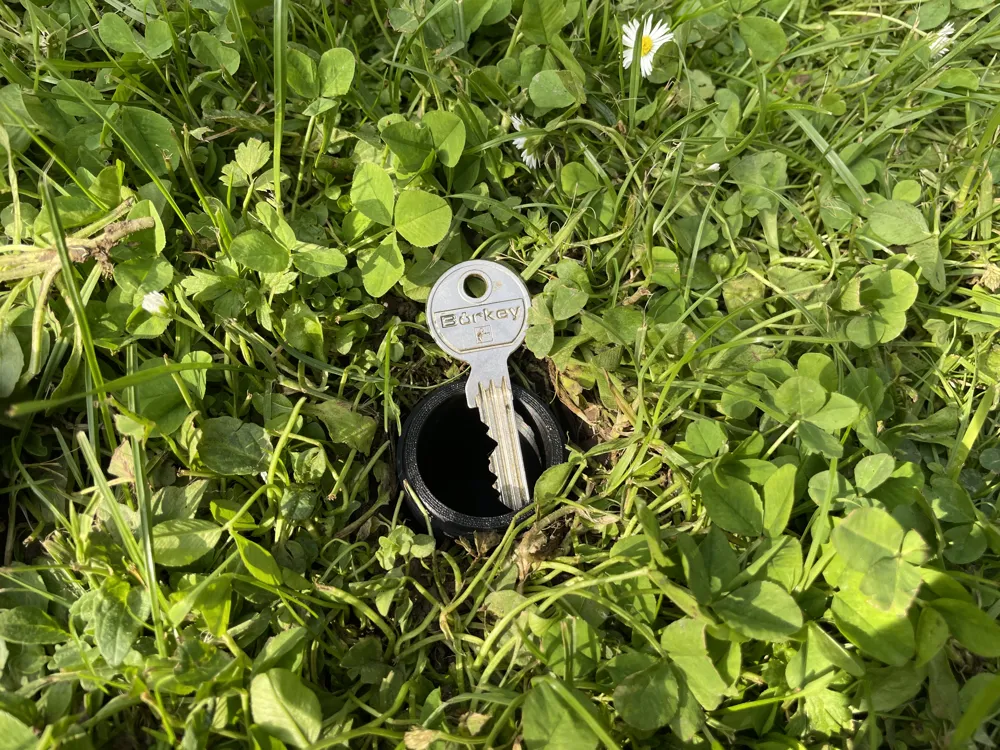

The cap screws onto the body using a G1 1/4 threaded connection and can be removed without tools. Inside is a spacious compartment suitable for many standard house, shed, and garden keys.

The pointed ground spike allows easy installation into soil. For best results, create a pilot hole first using a weed puller, screwdriver, or similar garden tool before inserting the spike.

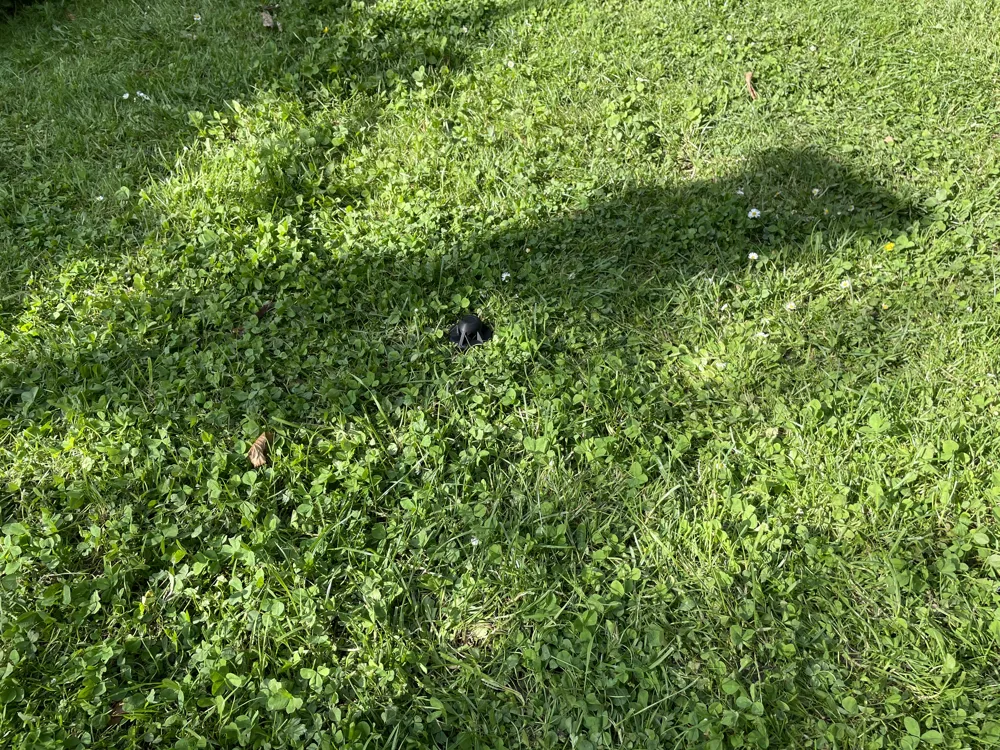

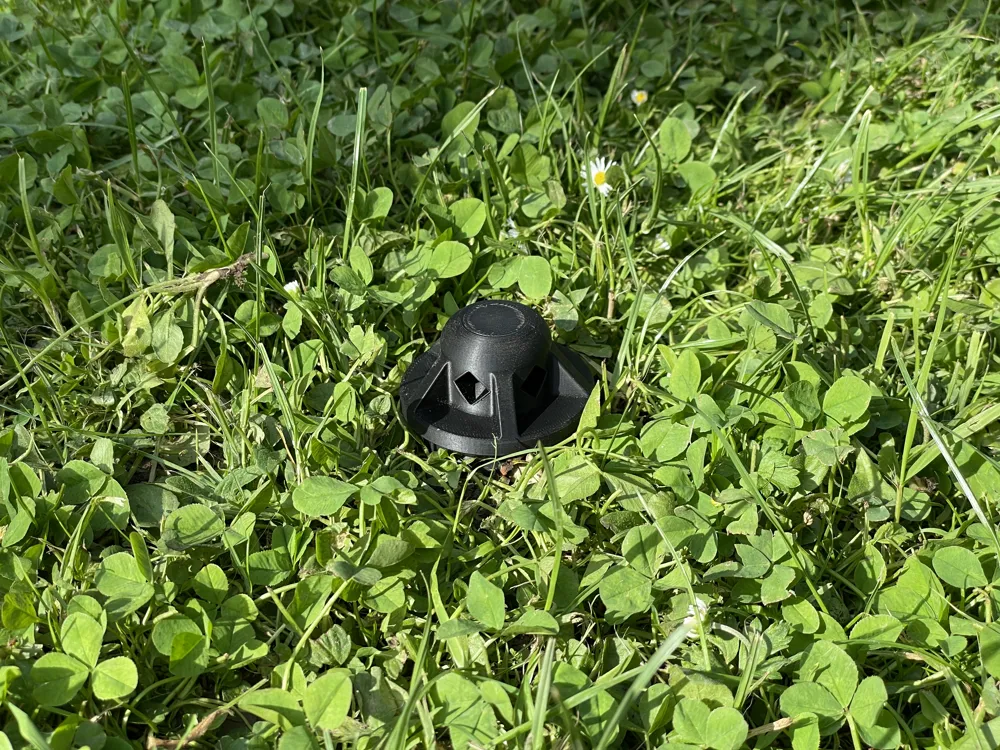

The sprinkler appearance helps the container blend naturally into lawns, gardens, flower beds, and landscaped areas.

Features

• Realistic sprinkler appearance
• Hidden key compartment
• Large internal storage cavity
• Screw-top access
• G1 1/4 threaded connection
• Easy installation in soil
• No supports required
• No brim required
• FDM optimized
• Two-part design

Dimensions

Cap

• Height: 42 mm
• Maximum diameter: 57 mm

Ground Spike

• Length: 115 mm
• Maximum diameter: 41.7 mm

Internal Storage Compartment

• Diameter: 32 mm
• Straight depth: 69 mm
• Additional tapered section: approx. 44 mm

Please verify your key dimensions before printing to ensure compatibility.

Printing

Recommended materials:

• PETG (minimum recommendation)
• ASA
• ABS

For long-term outdoor use, ASA or ABS is recommended due to improved UV and weather resistance.

Print Orientation

Ground Spike:

• Print vertically with the pointed end facing upward.

Cap:

• Print in its normal upright orientation.

Supports

• No supports required
• No brim required
• No raft required

Assembly

Simply screw the cap onto the ground spike after printing.

The design includes lead-in chamfers before the threads and clearance adjustments optimized for FDM printing to allow smooth assembly on properly calibrated printers.

Notes

While the design has shown good resistance to moisture during testing, waterproof performance has not been formally tested. For maximum protection, sensitive items can be placed in a small sealed bag before storage.
