Spice Rack "Spices & Baking"
Print Profile(1)
Description
Spice Rack with Wall Mount
This is a small spice rack or also for baked goods, which can be attached either with double-sided adhesive tape to the inside of doors, or with screws to the door.
The dimensions of the spice rack: 232mm x 170 mm x 35 mm
For screwing, two elongated holes with a diameter of 4 mm are provided on the back panel. The drilling distance is 160mm.
The model requires no support structures !
There are two versions of the model:
A model with the inscription "Spices & Baking"
A model without inscription, to be able to customize the model individually in the slicer !

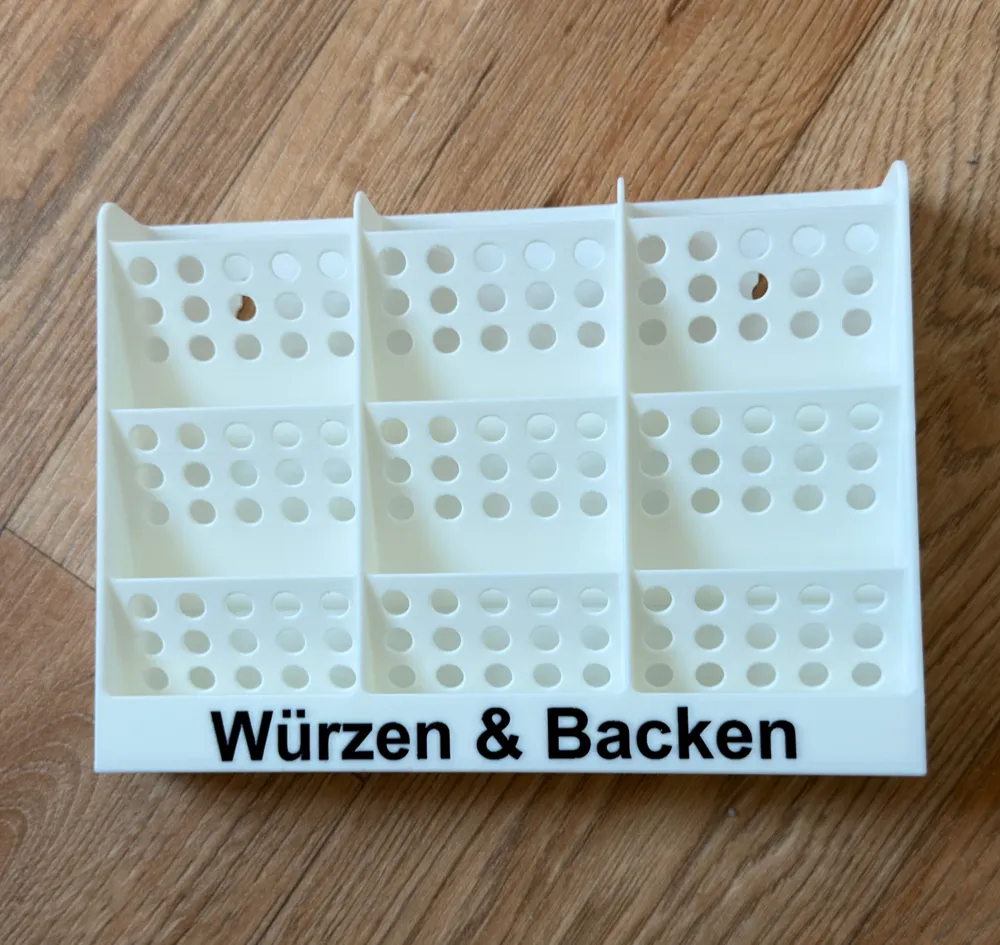

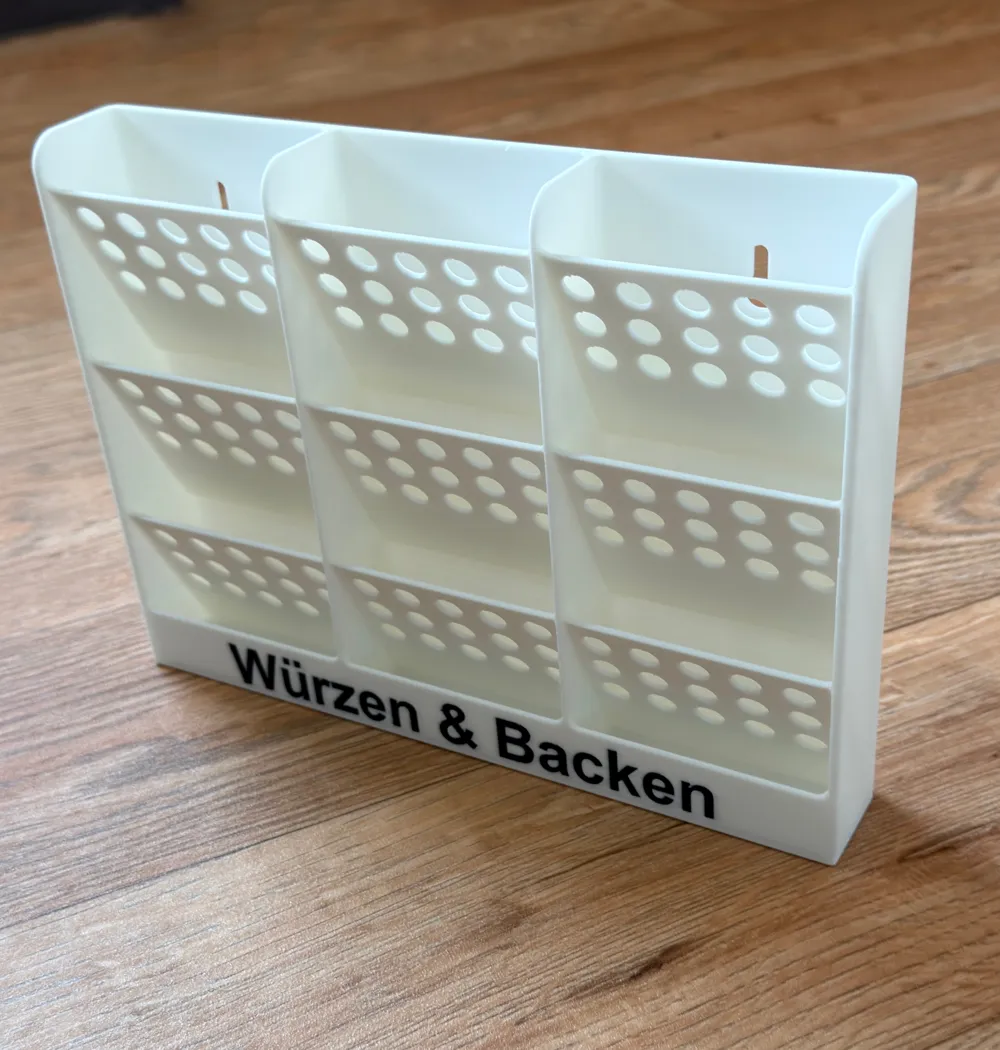

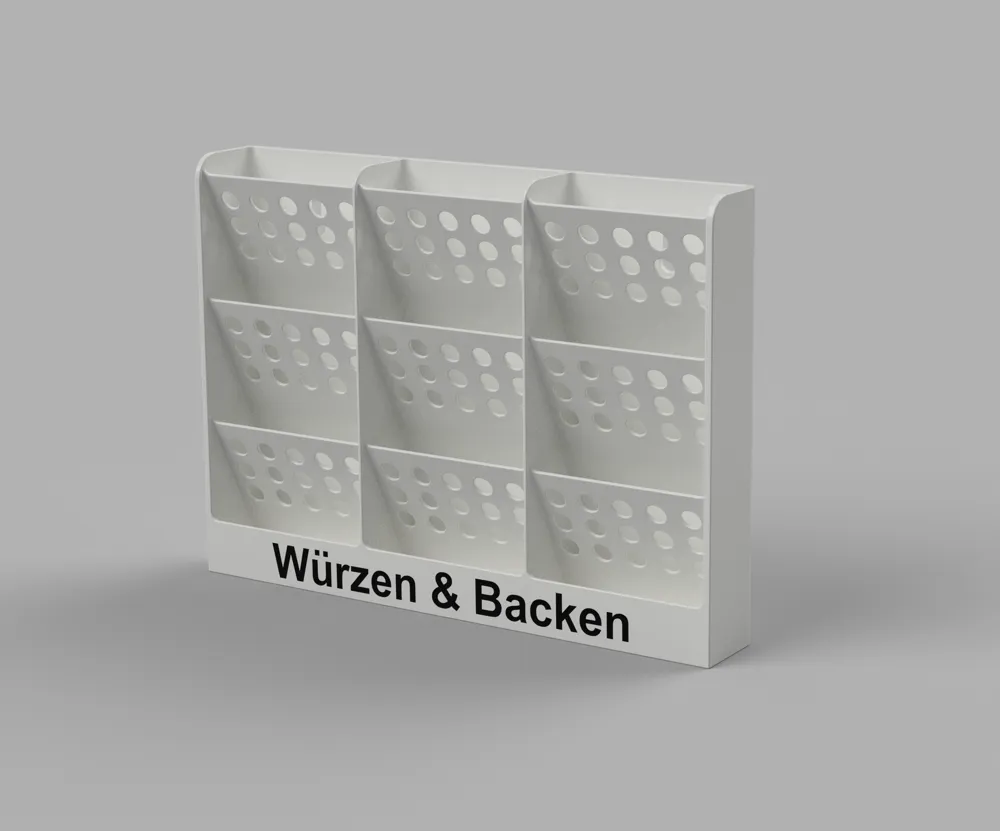

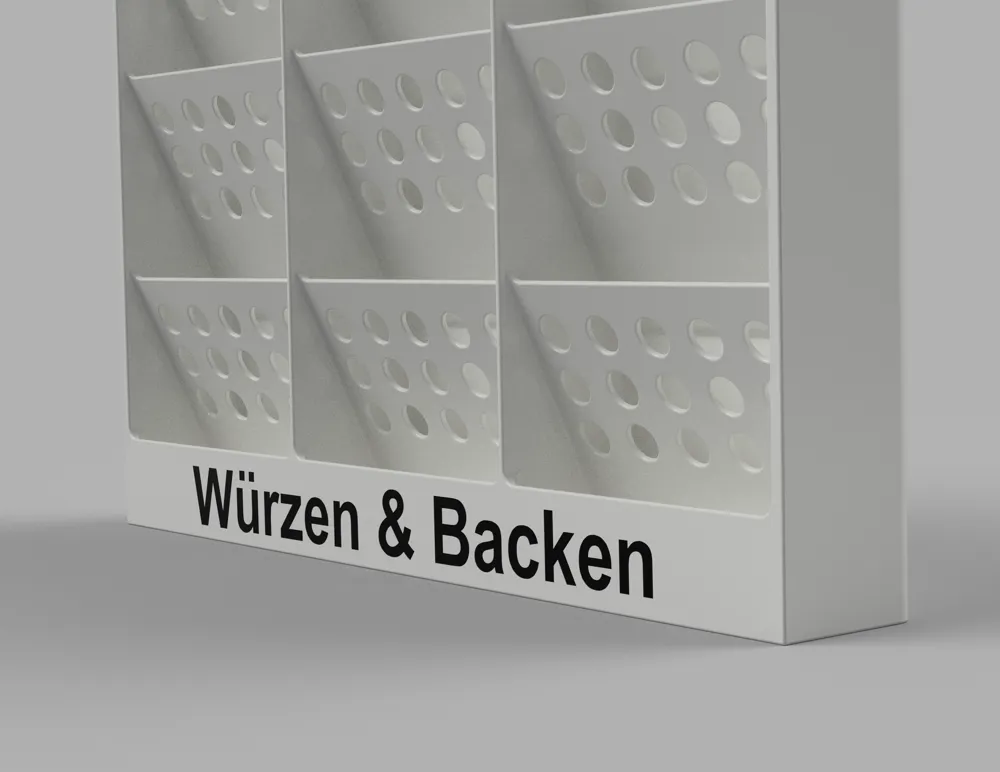

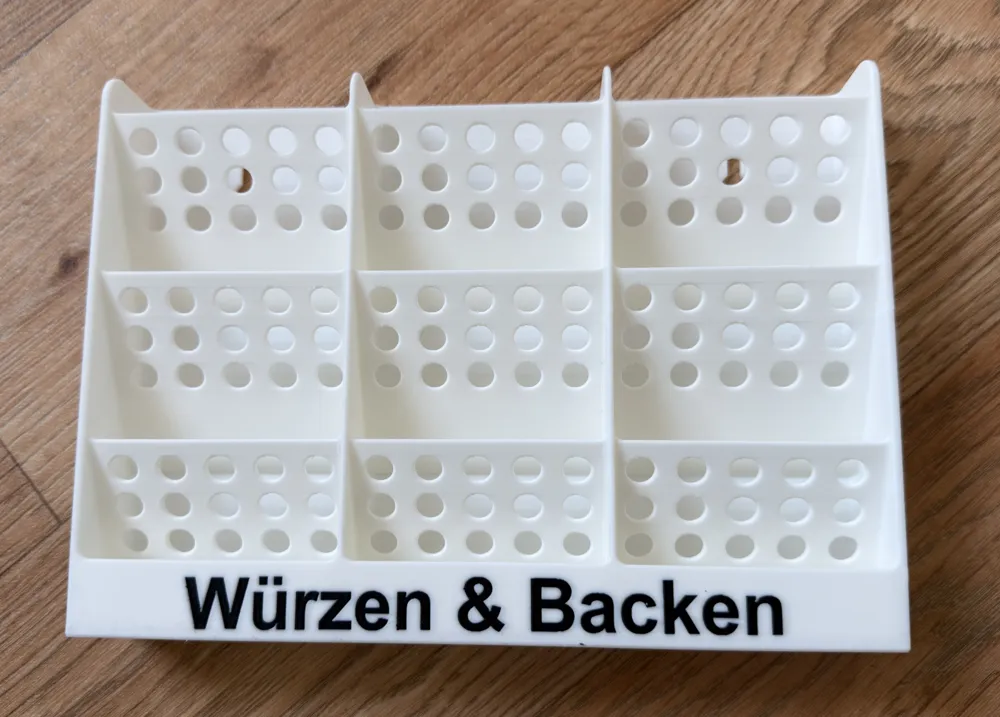

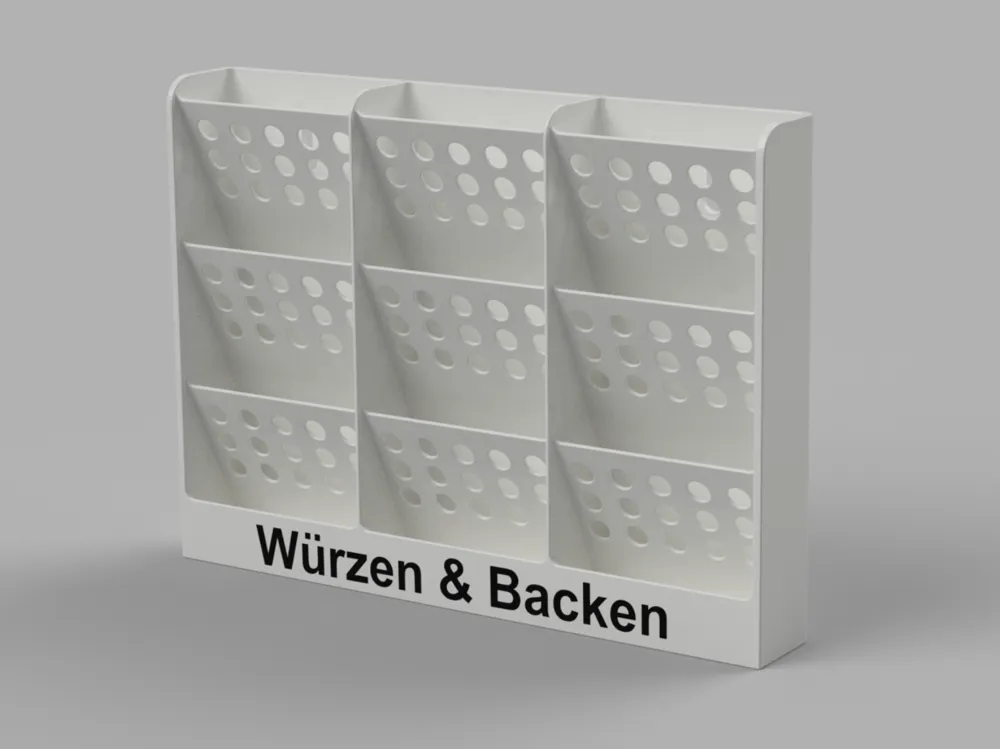

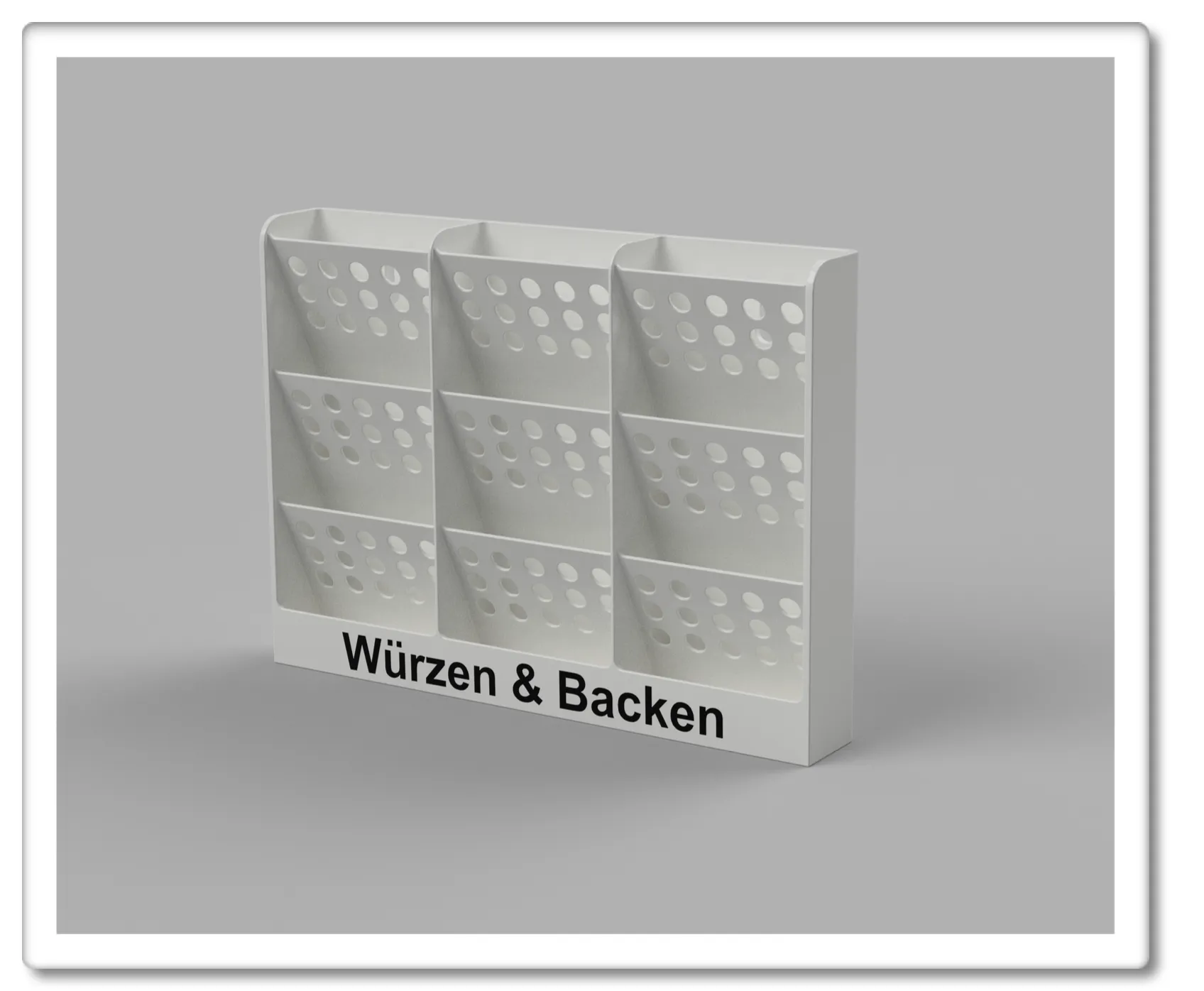

Spice Rack with Inscription

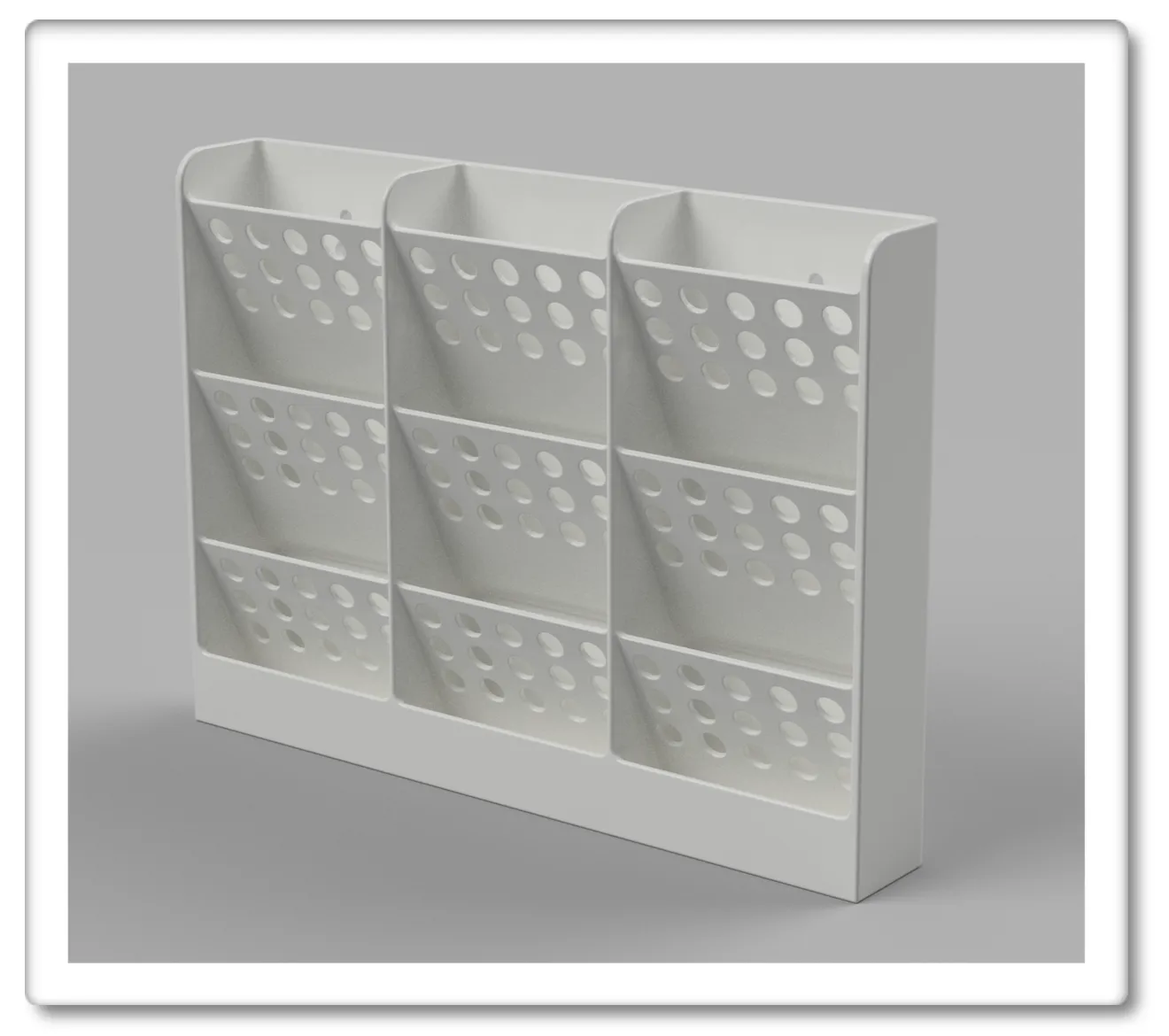

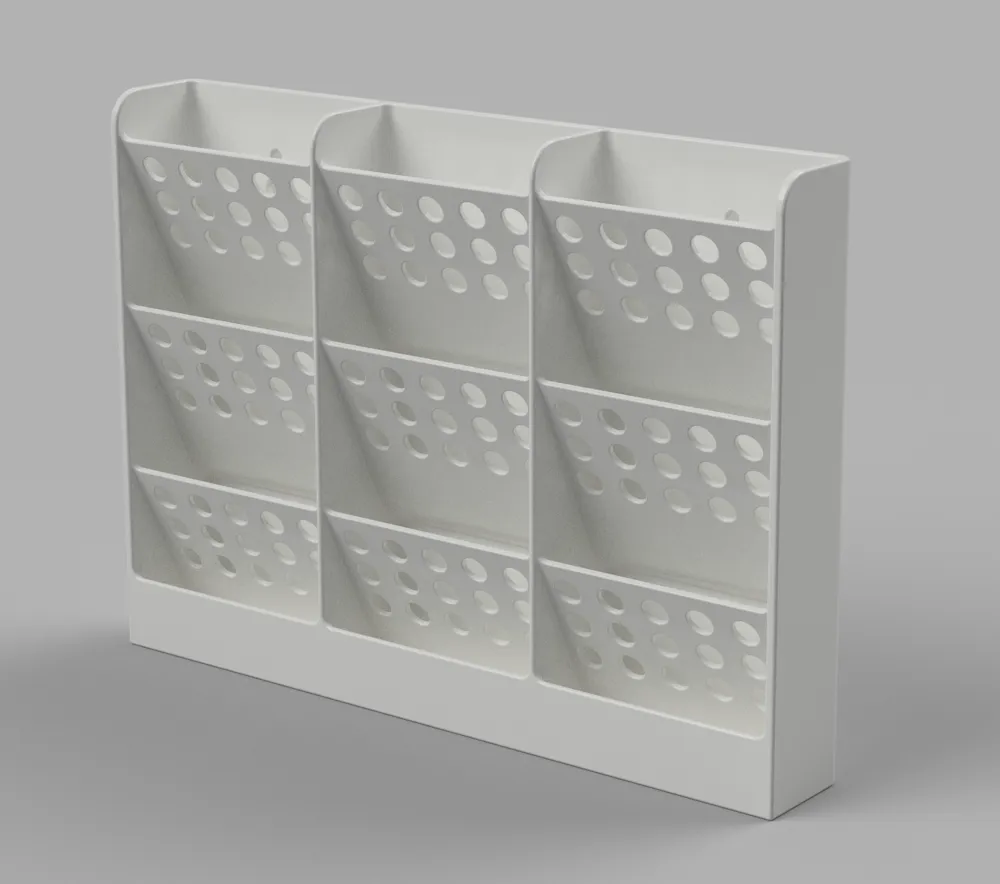

Spice Rack without Inscription

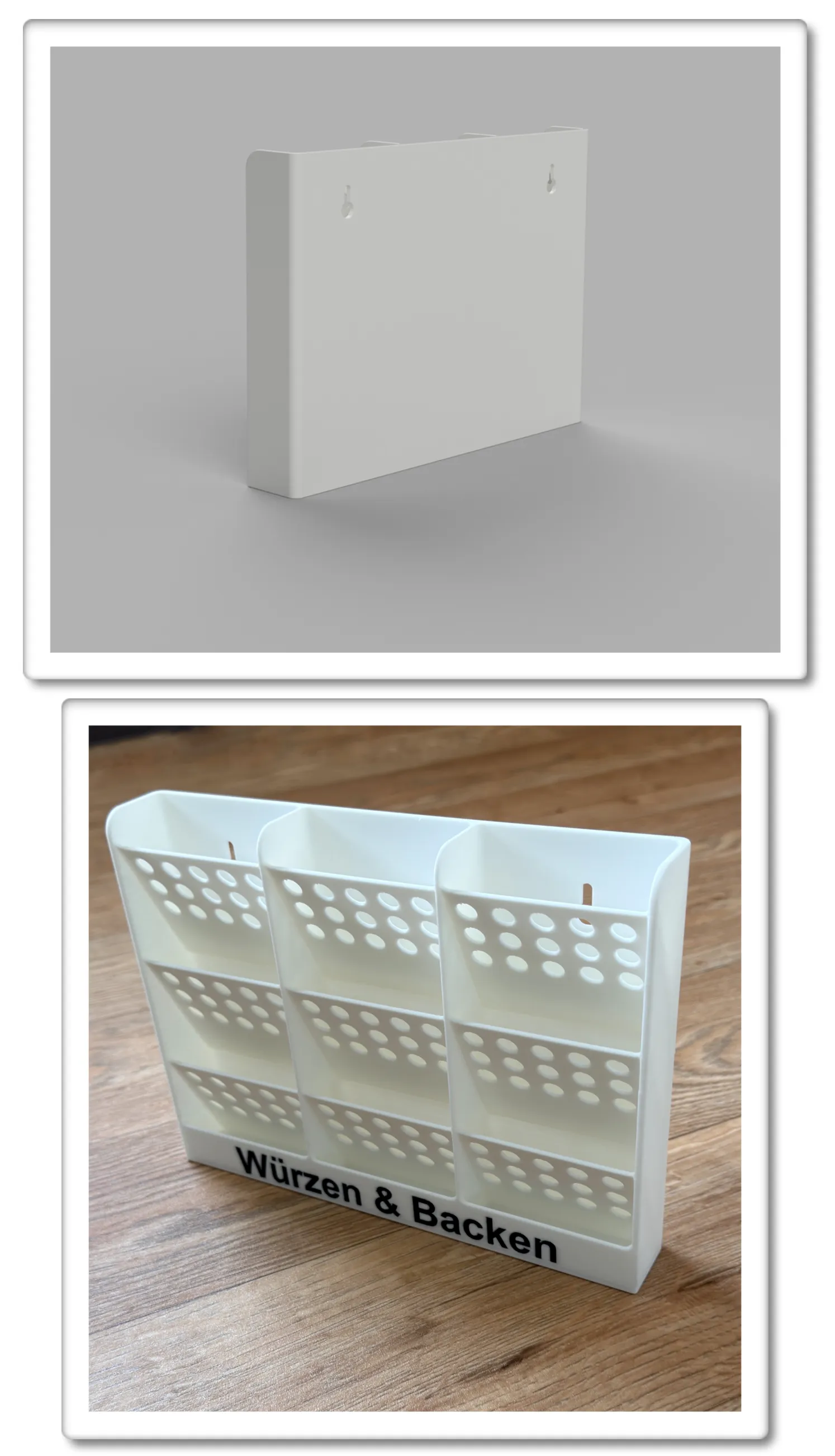

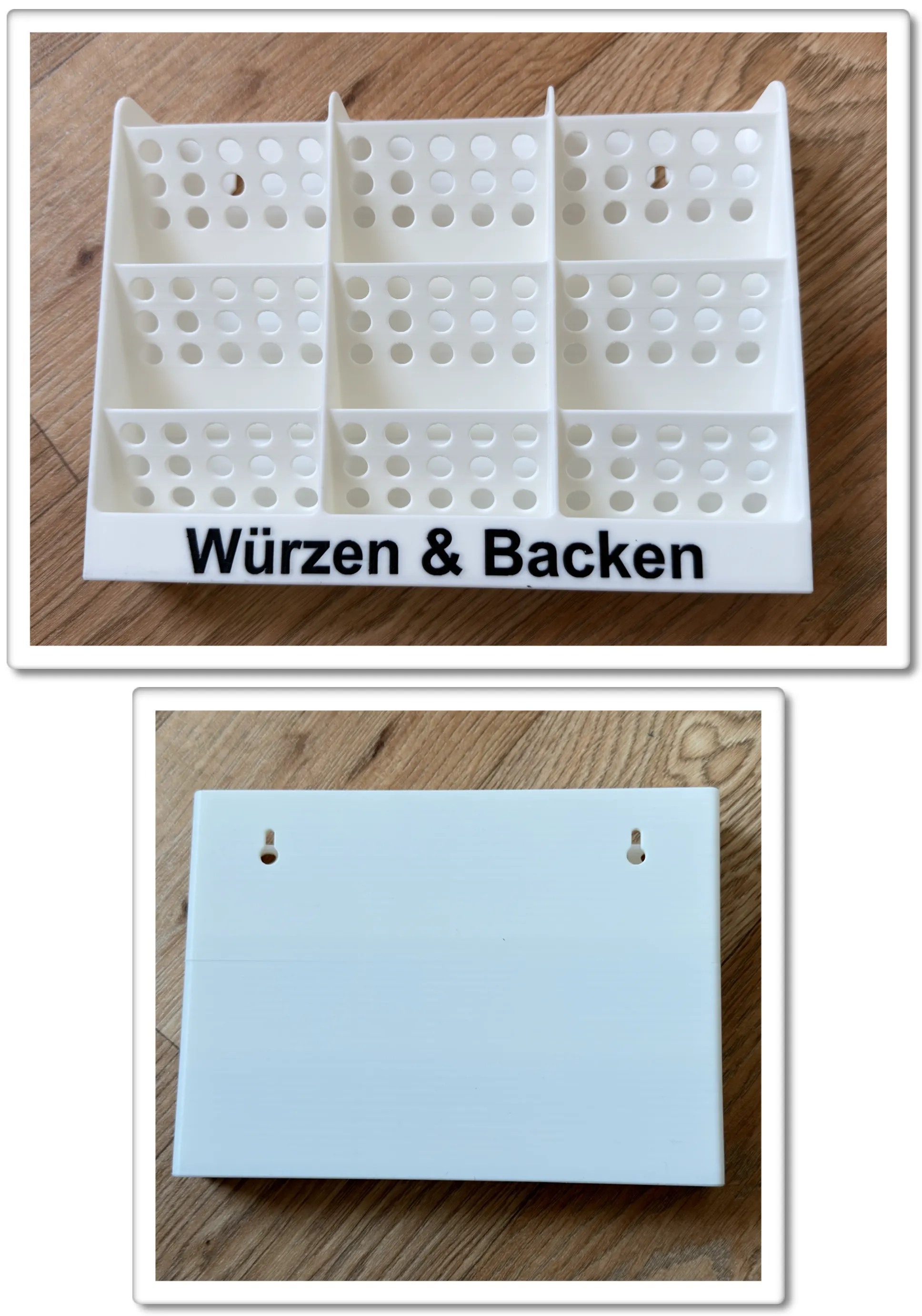

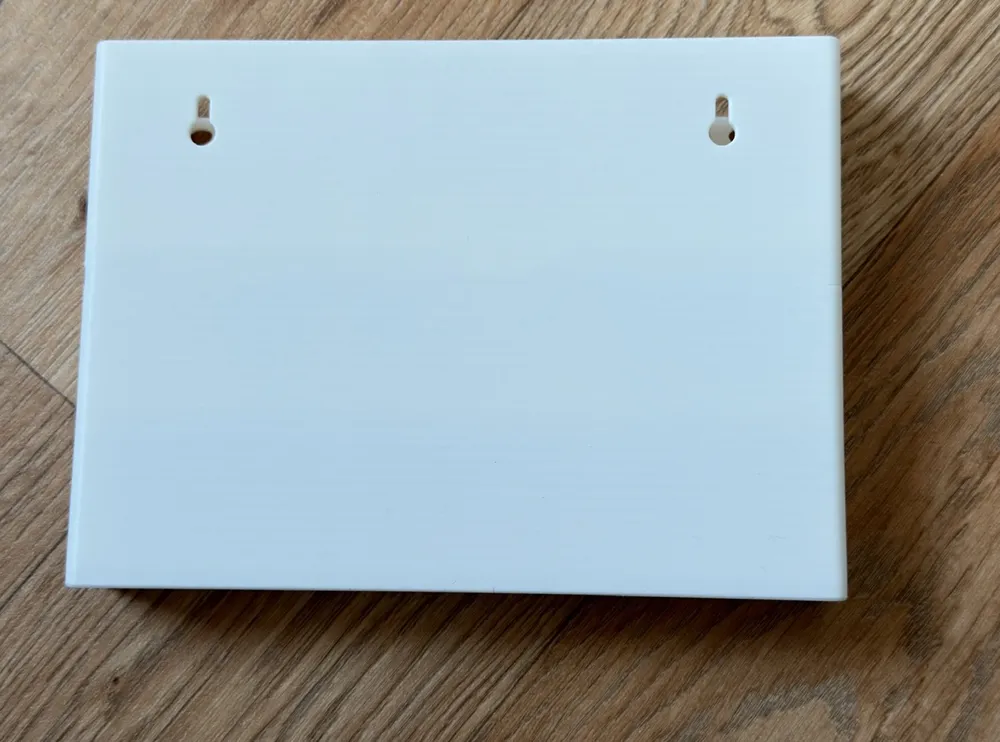

Backside of the Spice Rack

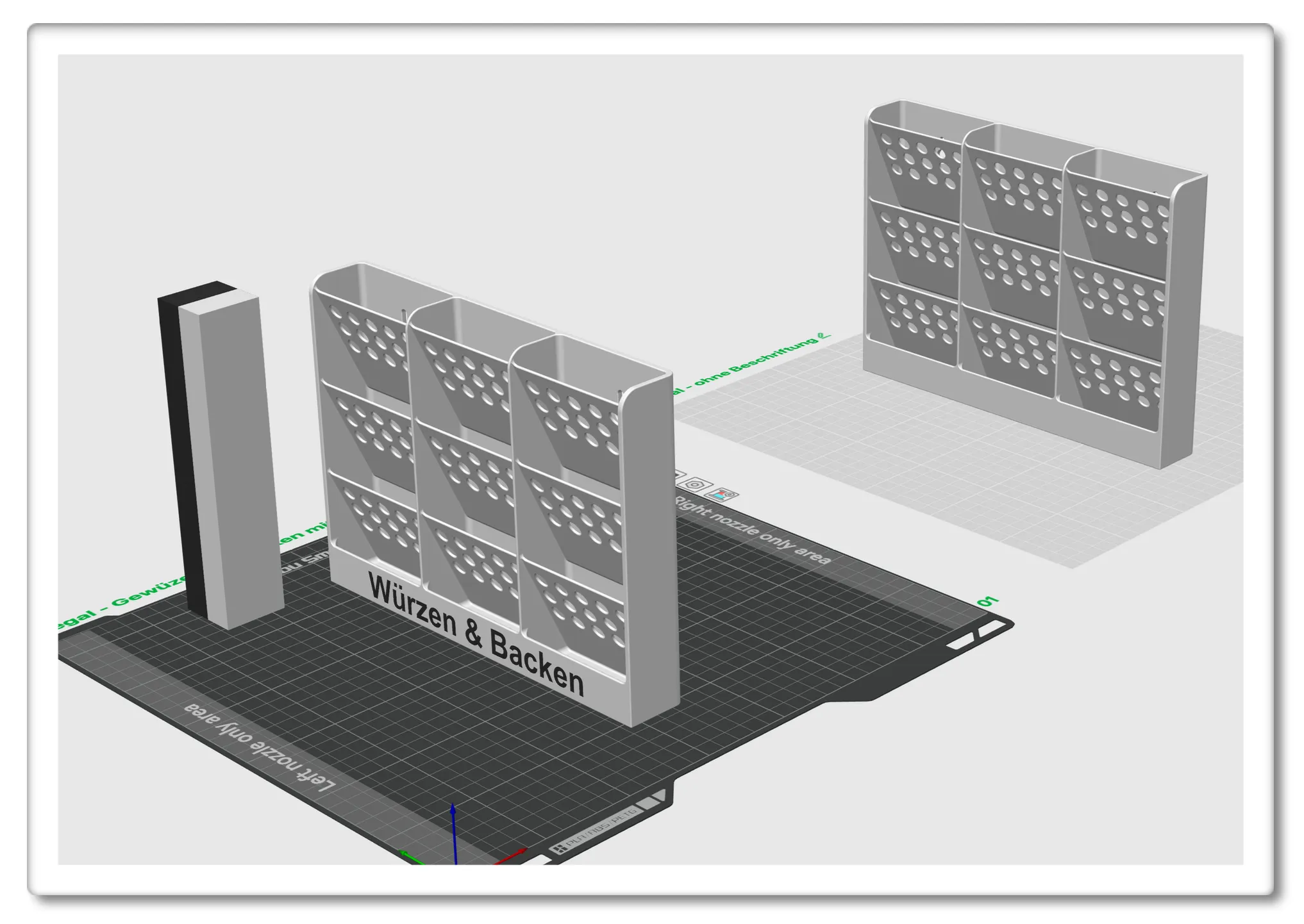

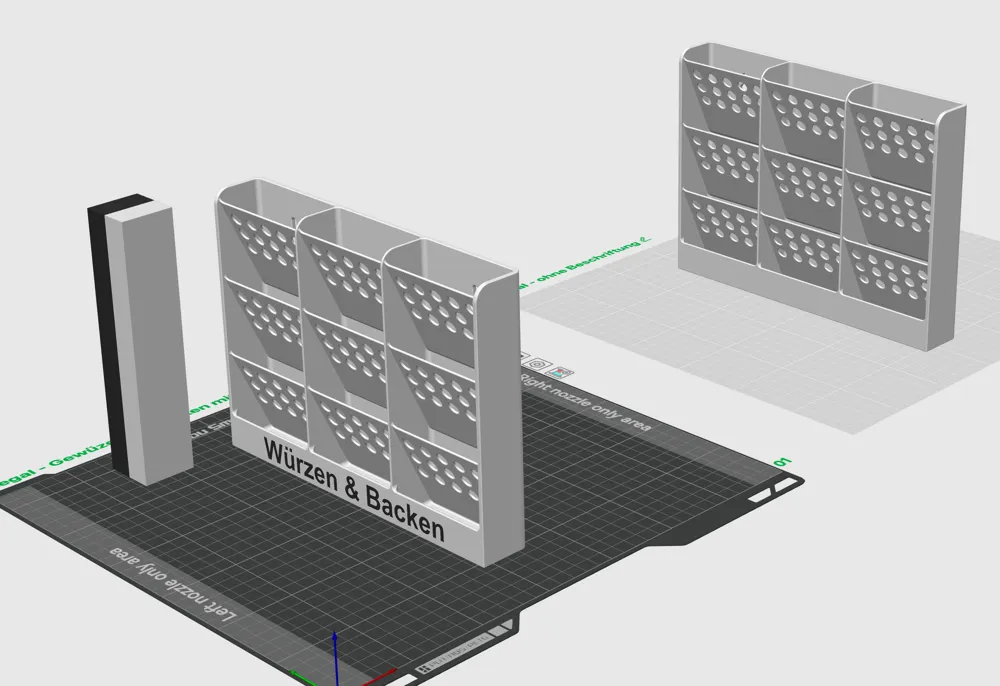

Print Information - Print Settings with PLA - Basic:
- The filament I used is PLA Basic from Bambu Lab.
- For the build plates, I used the Smooth - PEI Plate / High Temp Plate, without adhesive.
Spice Rack without Text
Layer Height
Layer Height: 0.16 mm
First layer height: 0.2 mm
Walls
Wall lines: 2
Detect thin walls: Yes
Wall Generator
Wall Generator: Arachne
Threshold angle for wall transition: 10°
Filter for wall transition size: 25%
Wall transition length: 100%
Number of wall distributions: 1
Minimum wall width: 85%
Minimum feature size: 25%
Infill
Infill: 15%
Multi-line infill: 1
Infill pattern: GYROID
Infill anchor length: 400%
Maximum infill anchor length: 20
Filter out small gaps: 0 mm
Spice Rack with Text
Layer Height
Layer Height: 0.16 mm
First layer height: 0.2 mm
Walls
Wall lines: 2
Detect thin walls: Yes
Wall Generator
Wall Generator: Arachne
Threshold angle for wall transition: 10°
Filter for wall transition size: 25%
Wall transition length: 100%
Number of wall distributions: 1
Minimum wall width: 85%
Minimum feature size: 25%
Infill
Infill: 15%
Multi-line infill: 1
Infill pattern: GYROID
Infill anchor length: 400%
Maximum infill anchor length: 20
Filter out small gaps: 0 mm
These parameters have been adjusted for this part(s) in the print profile. All other
values remain Standard !
Have fun printing !
