x-axis linear rail spray oil lubricator BL-H2
Print Profile(1)
Description

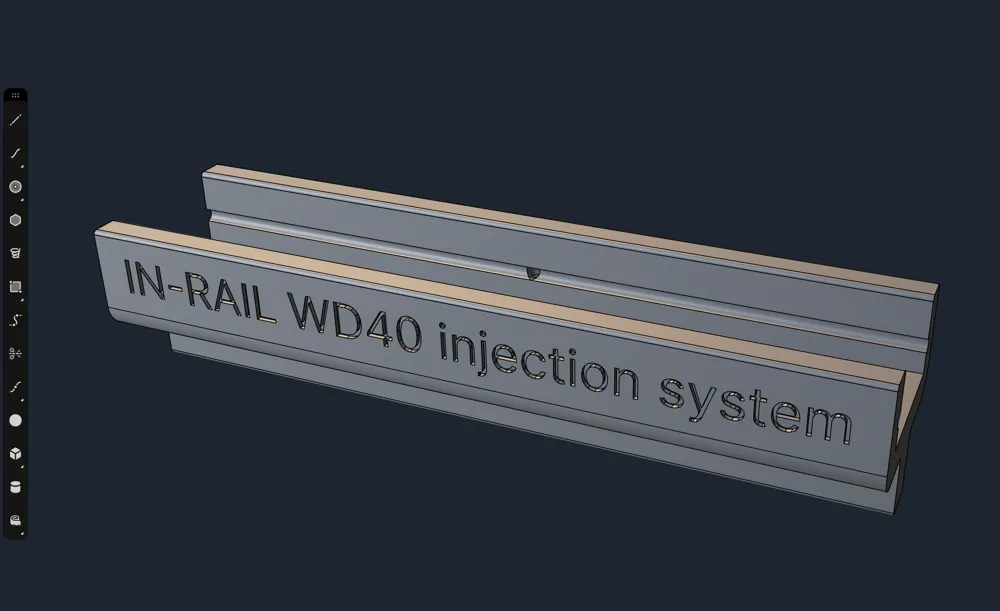

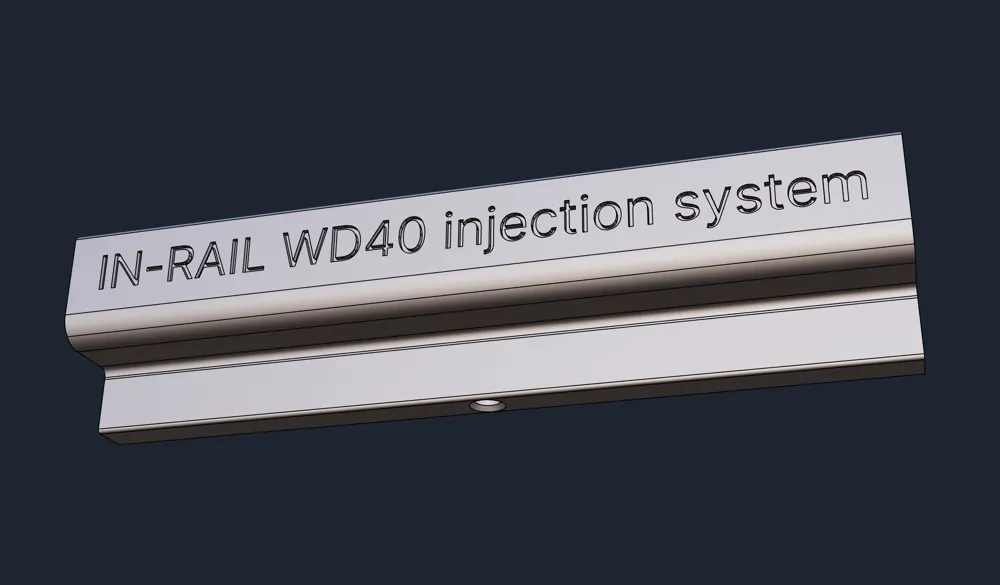

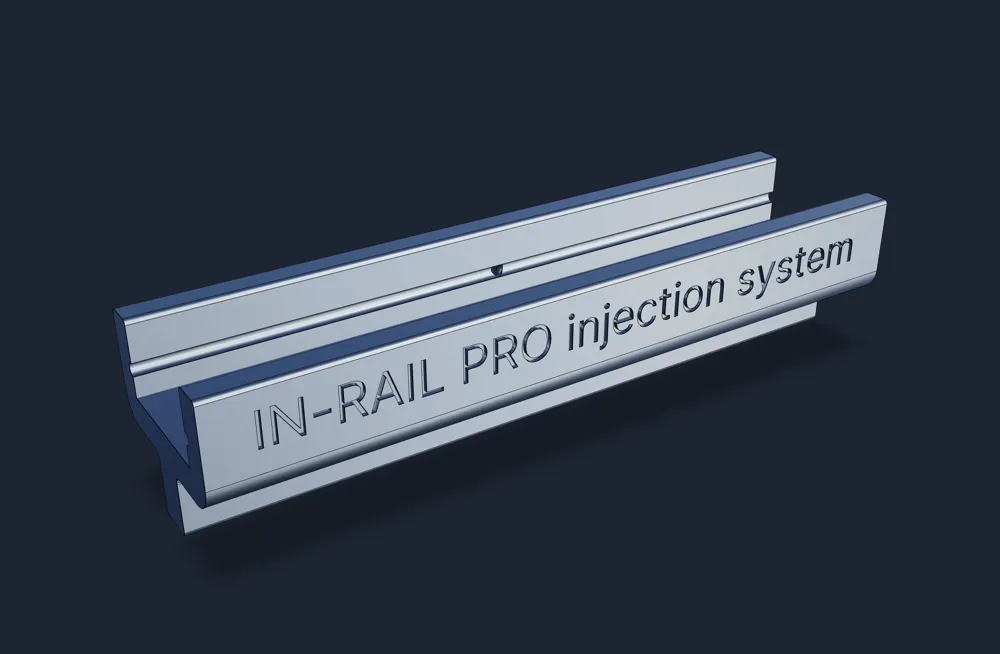

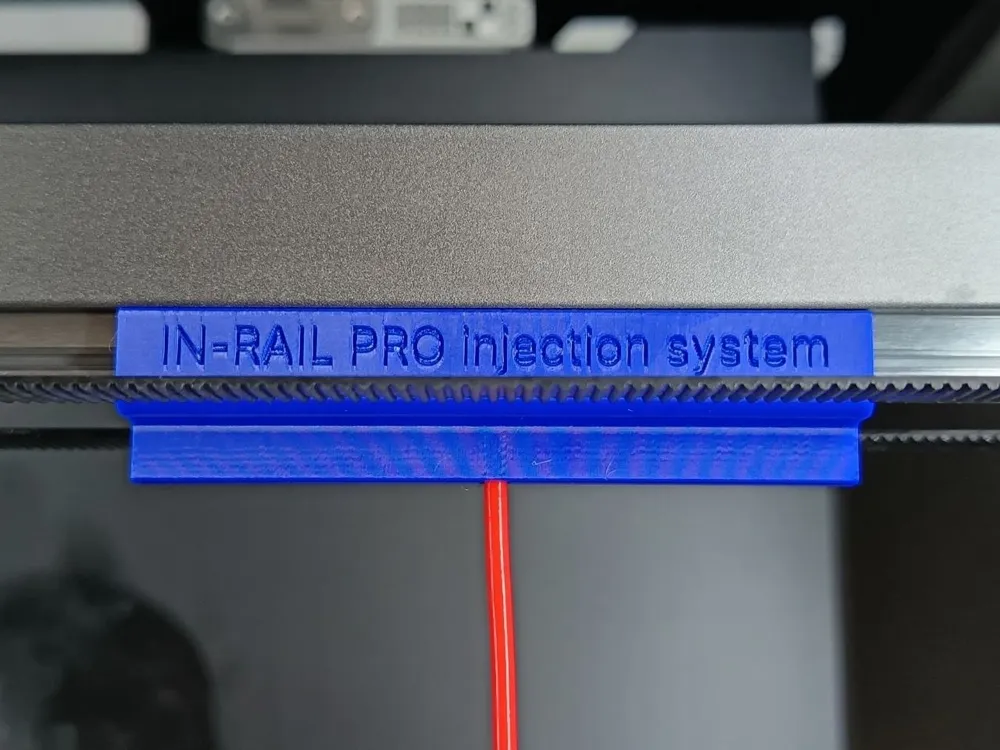

IN-RAIL PRO lubrication system
X-axis in-rail spray oil injector — Bambu Lab H2
The fluid movement starts here.
✨ What You Find

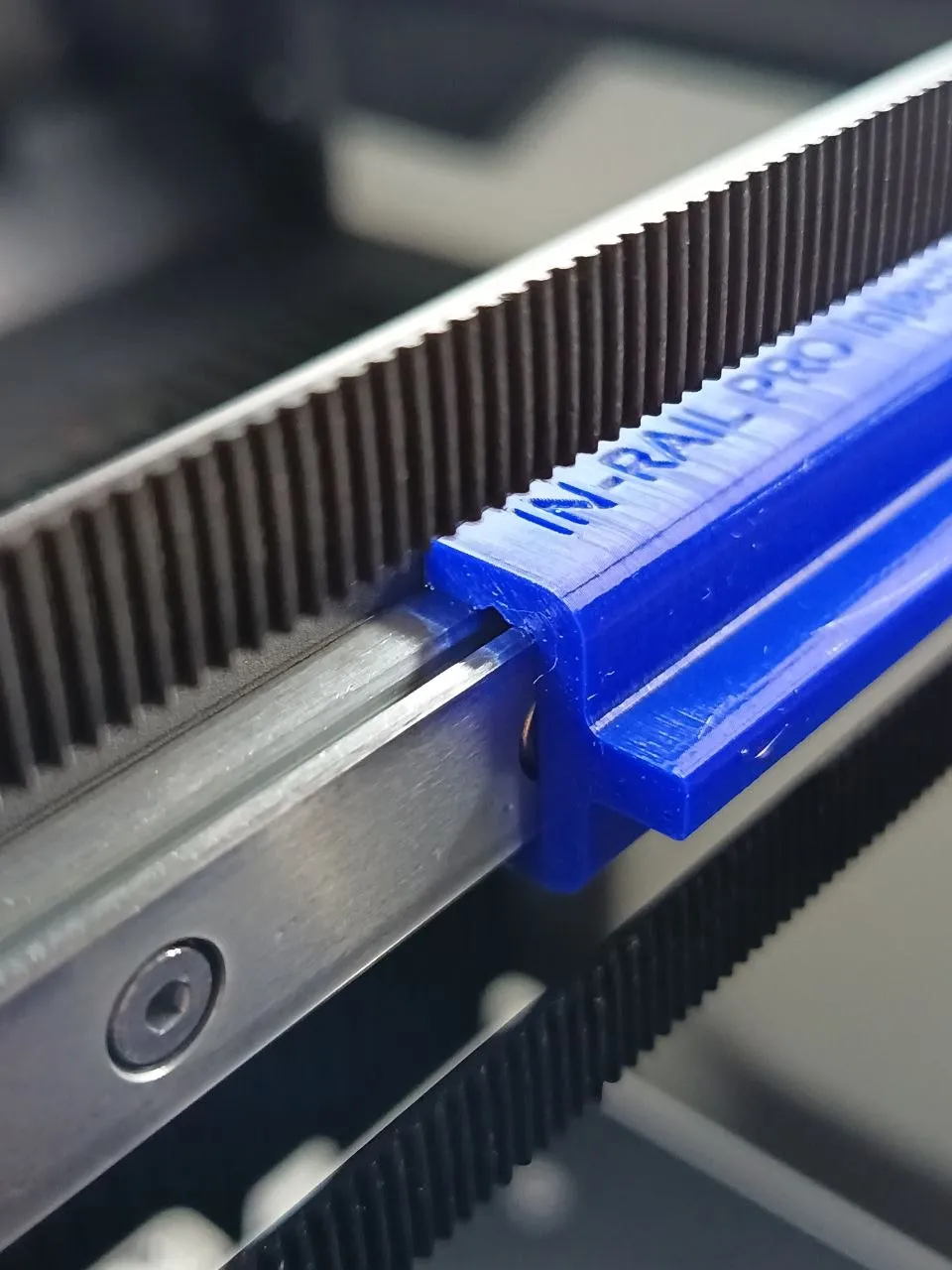

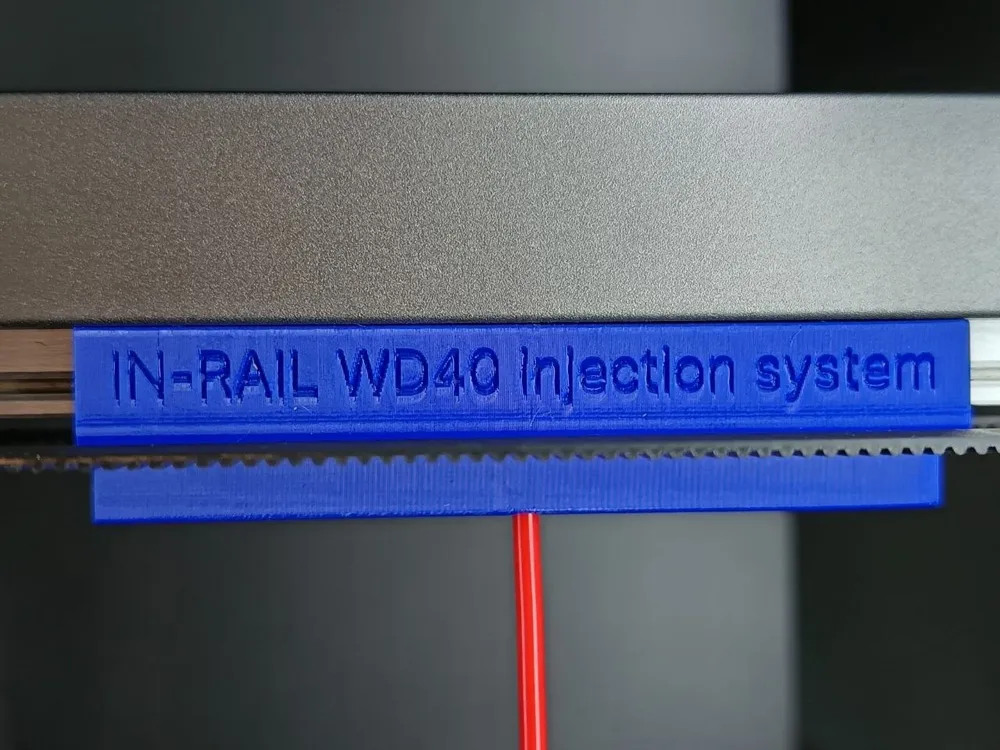

A simple tool that makes X-axis maintenance easy. Fits perfectly onto your linear rail. Print in place. No disassembly required — just attach, spray, and move. The design clips on in seconds and distributes the product evenly with every pass.
| Feature | Value |
|---|---|
| Material | PETG (resistant to solvents and oils) |
| Compatibility | Bambu Lab compatible printers |
| Recommended Layer Height | 0.1 mm |
| Suggested Infill | 20% |
| Compatible with | Standard spray tubes (2.2 mm diameter) |
🔧 How It Works
The system follows a streamlined maintenance cycle for the rail, in two simple steps:
⚠️ Important Safety Notice: Always turn off your printer before using this tool to ensure safety and prevent any damage.
Step 1 — Cleaning
Clean the surface before applying lubricant to ensure the best performance. Use a soft cloth and isopropyl alcohol to wipe away dust, debris, and old residues. Ensure the area is clean and dry before moving to the next step.
Step 2 — Lubrication

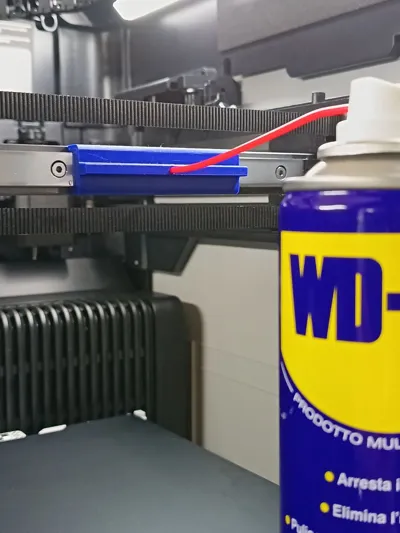

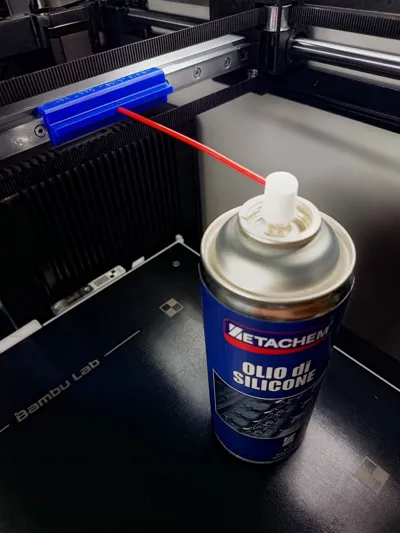

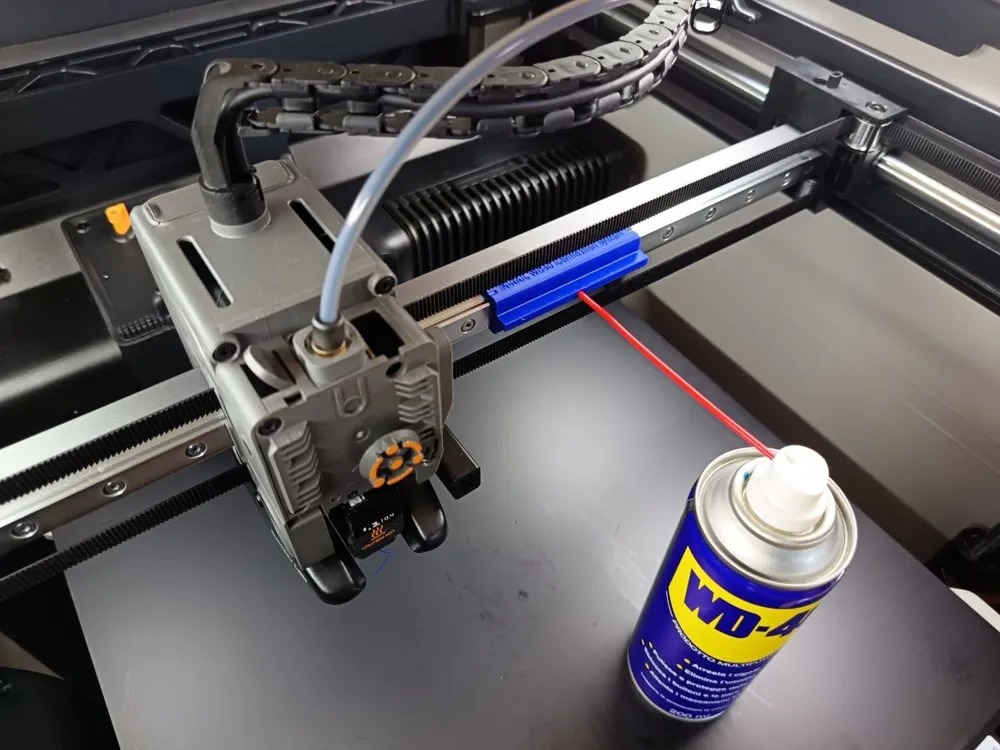

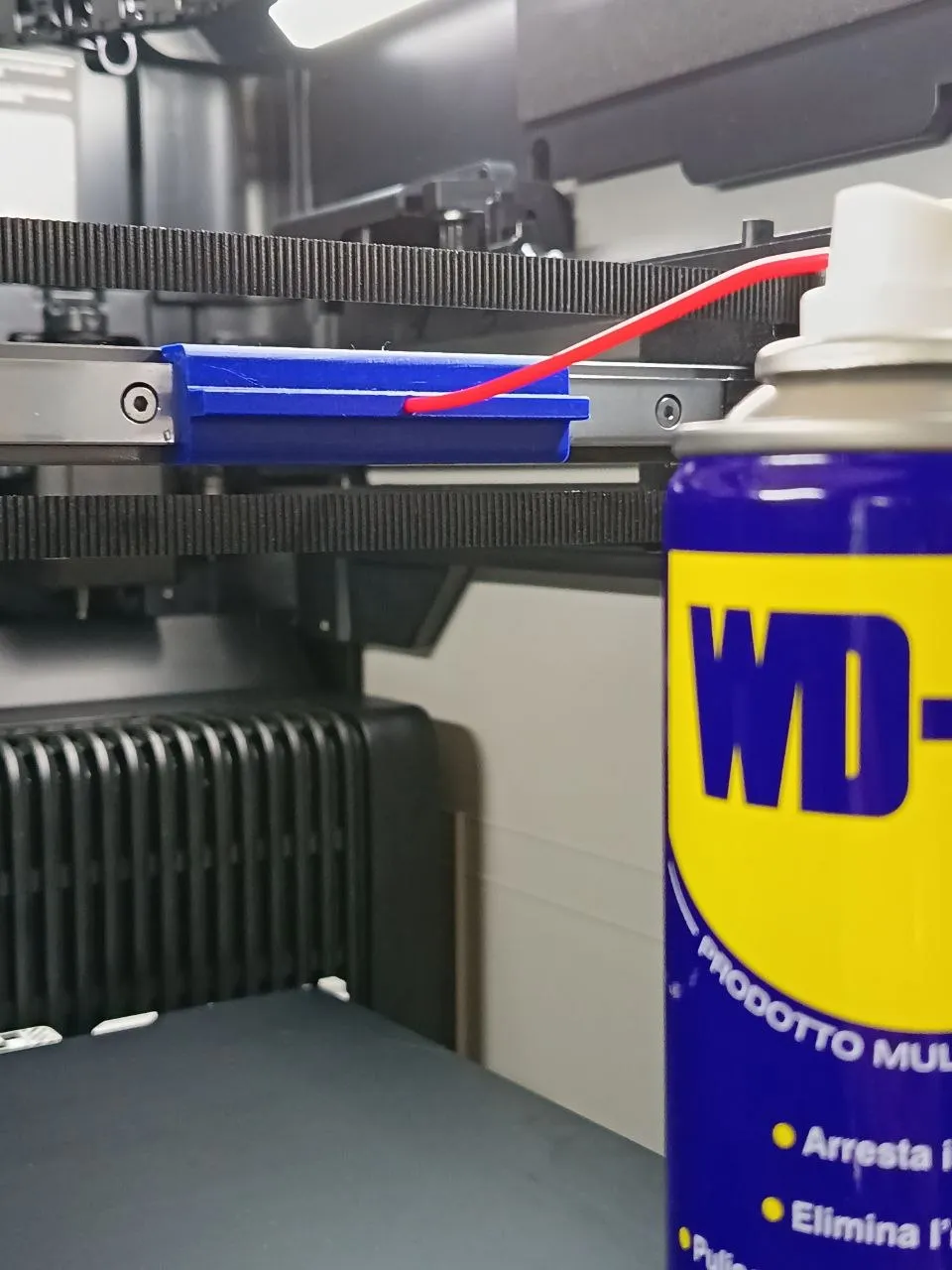

Now that the rail is clean, it is ready for your chosen lubricant. Insert the spray tube into the upper port (2.2 mm). Give one light spray. Move the carriage left and right several times: the motion distributes the lubricant evenly across the entire track.

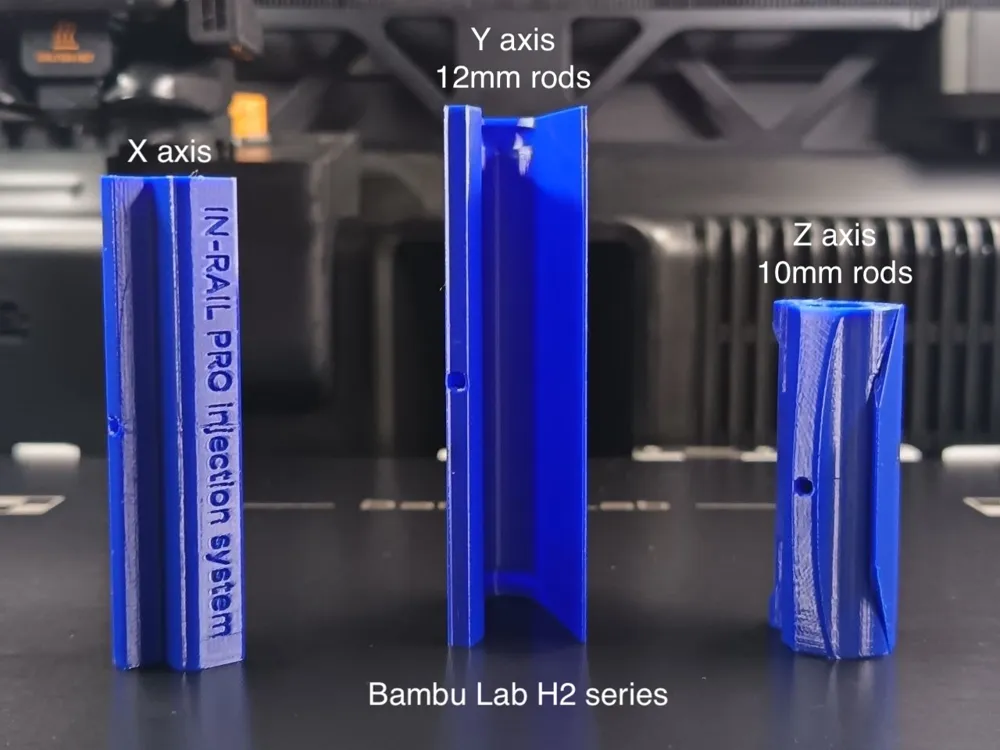

🎁 Complete Your Setup
- Z-Axis Injector — enclosed design, different orientation.
- Y-Axis Injector — Completes the trio of maintenance tools.
⚠️ Some Notes
Why printing IN-RAIL in PETG? PETG is more durable than PLA because it resists chemicals (solvents and oils) without deforming.
Follow the order: Clean, then lubricate. Skipping a step or reversing them compromises the longevity of the lubrication.
Universal Compatibility: Since almost all spray cans share the same standard diameter, this tool is compatible with most lubricants on the market. Tested on H2S.
