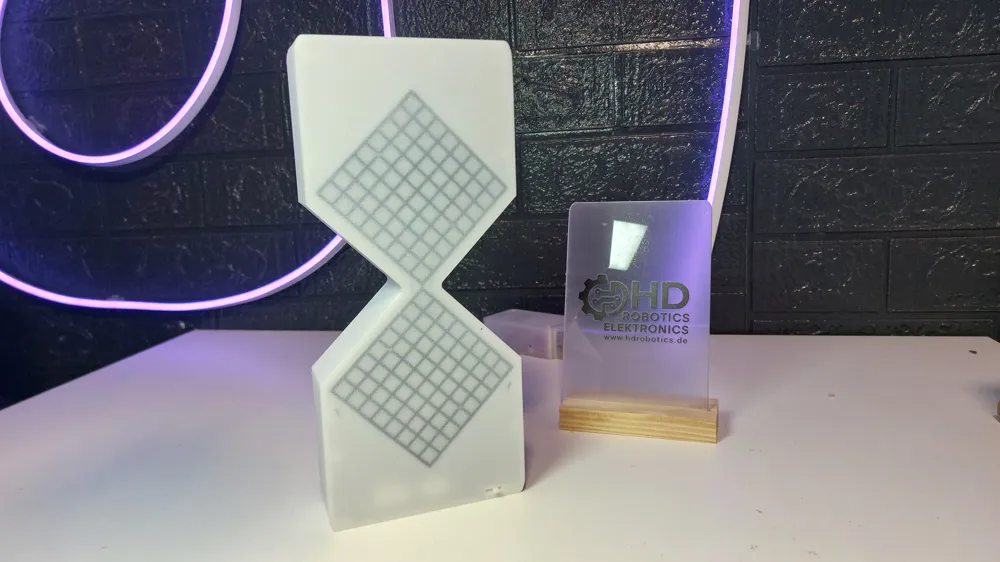

<p>This print profile is optimized for a clean and precise fit of the digital gravity hourglass enclosure. The model has been tested and tuned on a Bambu Lab A1 and provides reliable results when printed with the recommended settings below.</p><h3>🧵 Recommended Material</h3><p>PETG is strongly recommended for durability, heat resistance, and long-term stability of the enclosure. PLA can also be used if PETG is not available, but may be less resistant over time, especially near electronic components.</p><h3>⚙️ Print Settings</h3><ul><li>Layer height: 0.12 mm (for best detail and smooth surface finish)</li><li>Supports: Not required</li><li>Infill: Standard 15–25% is sufficient</li><li>Wall loops: 2–3 recommended for strength</li><li>Print orientation: As provided in the model files</li></ul><p>These settings were tested and optimized for the Bambu Lab A1. Results may vary depending on your printer, so minor adjustments might be necessary.</p><h3>🎨 Dual Color Design</h3><p>The LED matrix area is intentionally designed in black to improve LED visibility and contrast. This ensures that the light output from the WS2812B matrices appears sharp and well-defined without unwanted light bleeding.</p><p>The front housing is designed in white, creating a strong visual contrast. This is a <strong>two-color design</strong>, and it is important for the final look of the project. The LED light blends with the geometry, enhancing the “digital sand / gravity” effect.</p><h3>⚠️ Important Notes</h3><ul><li>Make sure your printer is properly calibrated before printing</li><li>Tolerances are designed for standard FDM printers</li><li>Adjust settings if needed for your specific machine</li><li>Cable routing and electronic fit have been considered in the design</li></ul><h3>🧪 Testing</h3><p>This model has been successfully tested on a Bambu Lab A1 and shown in the project video. However, every printer behaves differently, so slight tuning may be required for perfect results.</p><p>No support is needed for this model.</p>

0.12mm layer, 2 walls, 15% infill

You may create derivative works based on this object, provided that all such derivative works are published exclusively on the MakerWorld platform and include proper attribution to the original creator. You may not share, upload, host, distribute, or publish this object—or any derivative work of this object—on any other digital platform, marketplace, or distribution channel. Commercial use of this object and any derivative works is strictly prohibited. This includes, but is not limited to, selling, renting, sublicensing, or using the object in any context in which you receive monetary compensation or other financial benefits.

This user content is licensed under the MakerWorld Exclusive License.

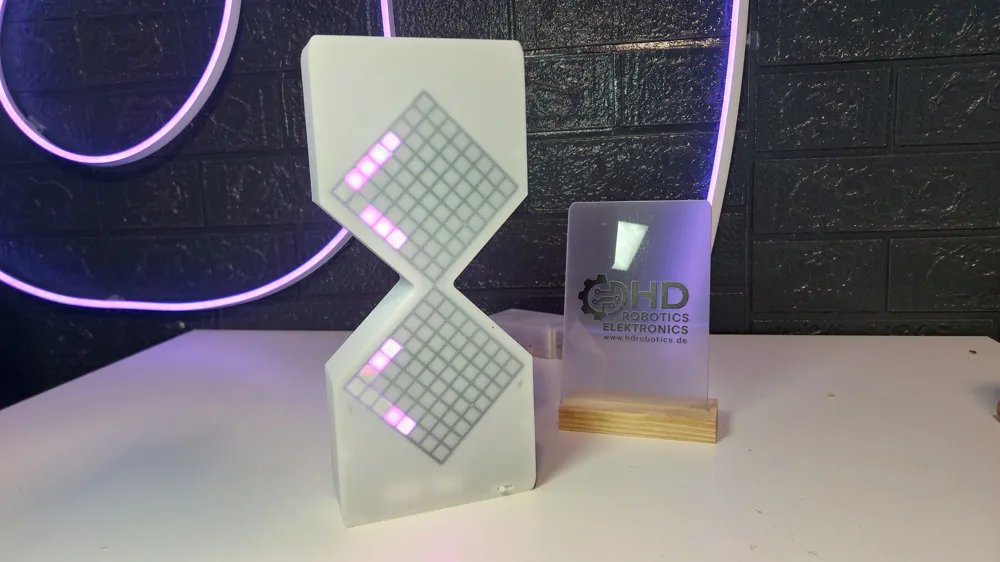

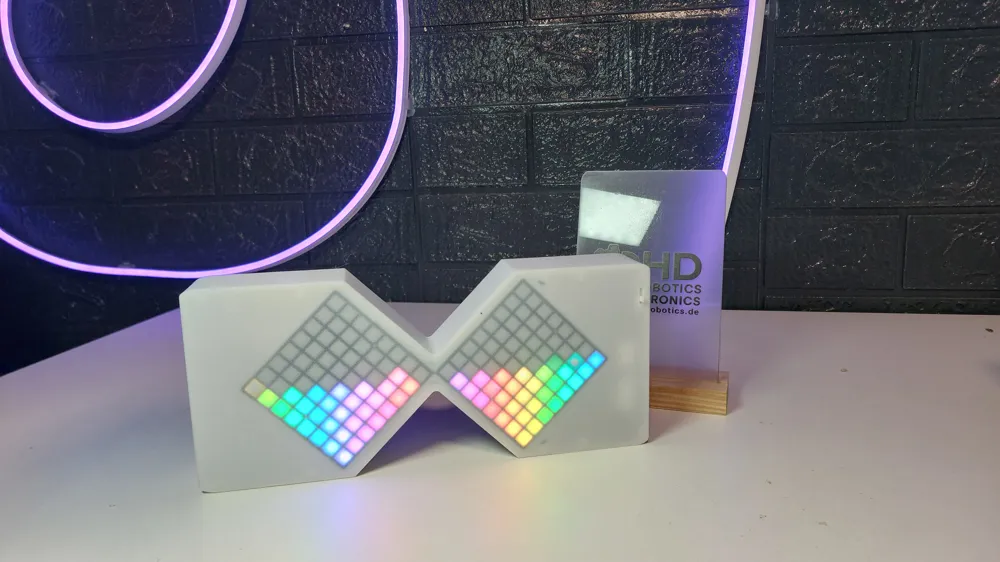

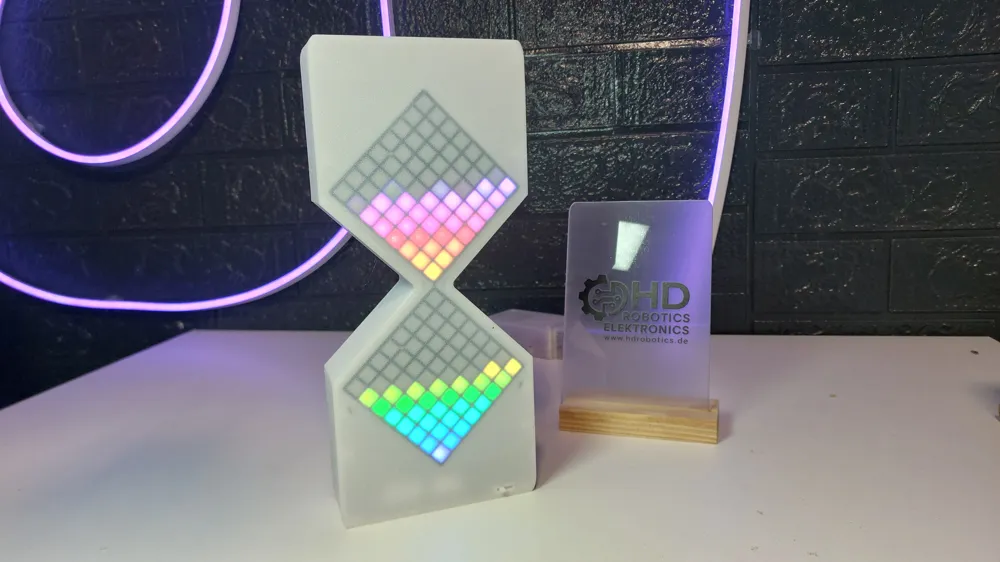

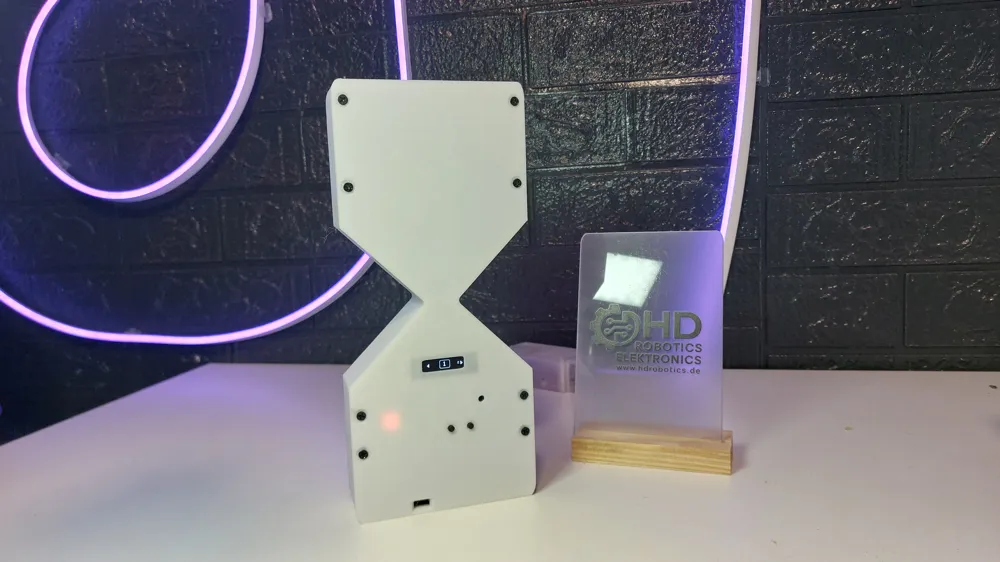

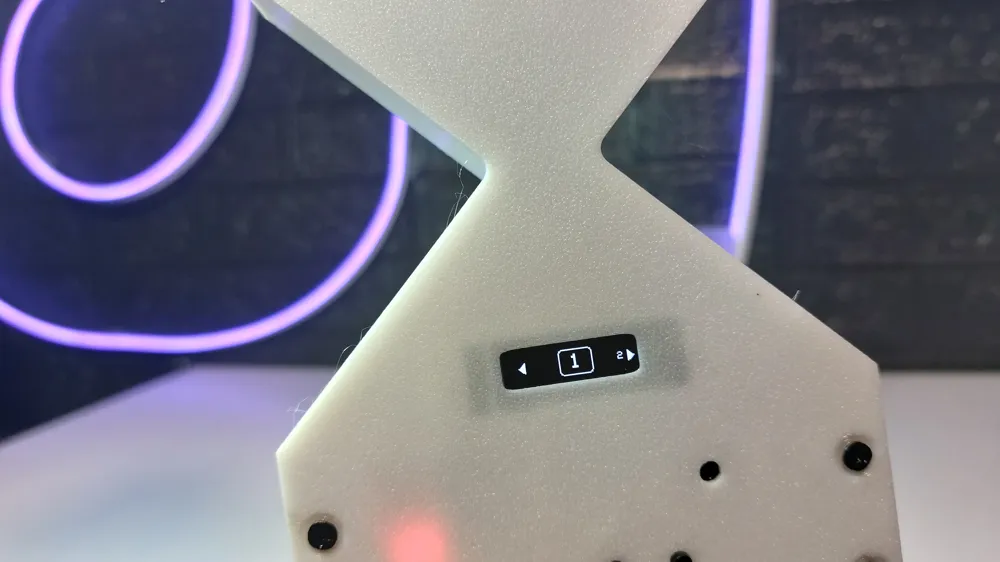

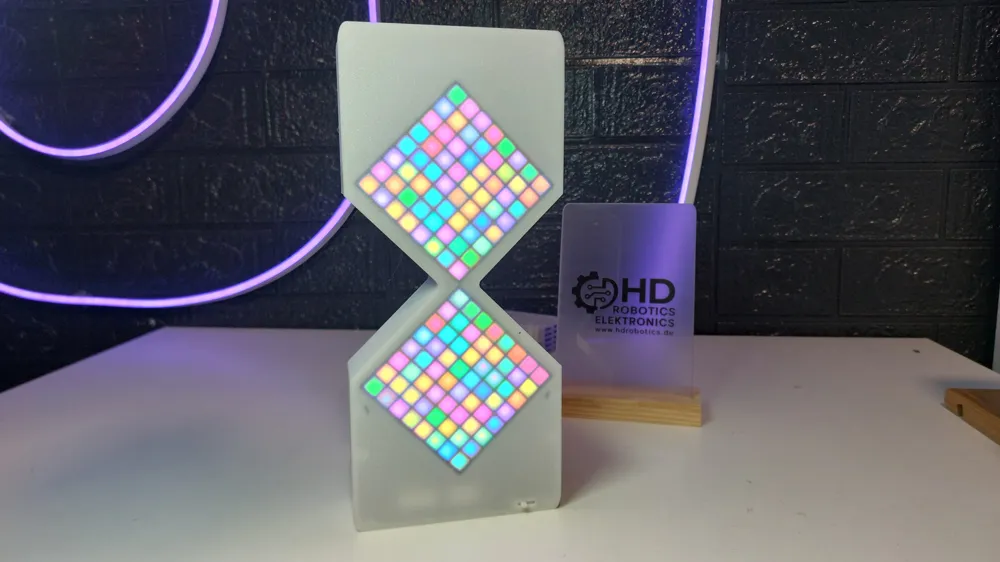

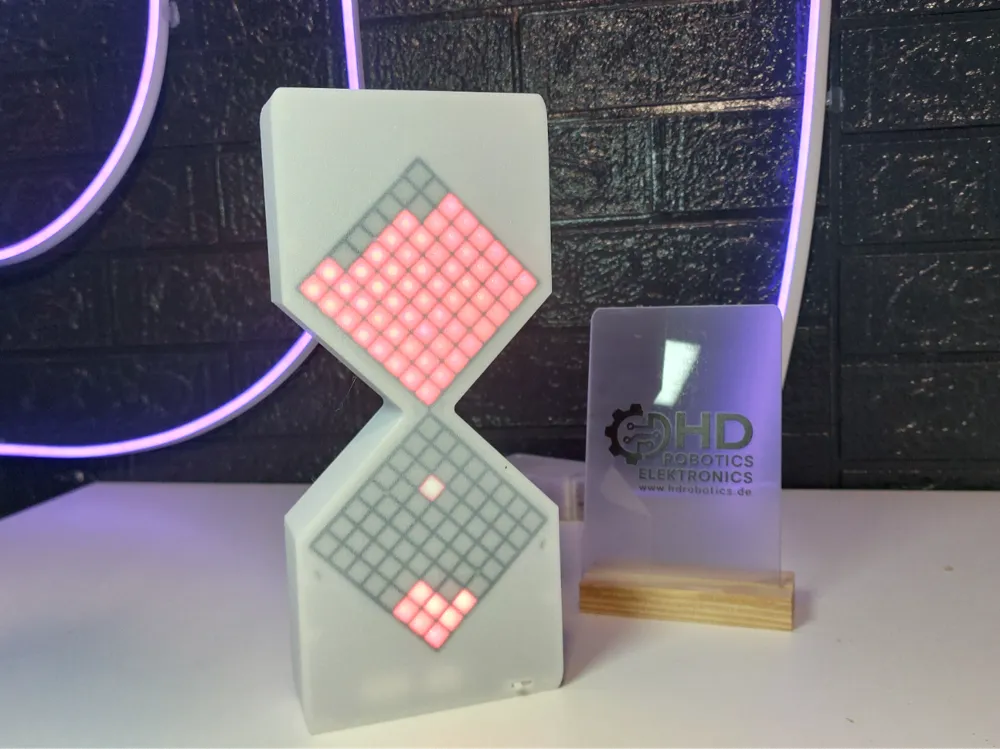

<p>This is a custom 3D-printed enclosure for a digital gravity hourglass project based on the ESP8266 (NodeMCU) and MPU6050 sensor with 2x WS2812B 8x8 LED matrices.</p><p>The enclosure is designed to fit all components precisely, including the OLED display, push buttons, buzzer, PCB, and 18650 battery. All parts snap or screw into place for a stable and clean assembly.</p><h3>⚙️ How it works</h3><p>The system uses the MPU6050 gyroscope and accelerometer to detect orientation and movement. The LED matrices simulate a digital sand/gravity effect based on sensor data, creating an interactive “falling particles” display.</p><h3>🛠️ Assembly Instructions</h3><ol><li>Install all electronic components into the designed slots</li><li>Connect the LED matrices (OUT → IN)</li><li>Connect all GND pins together</li><li>Insert OLED, buttons, buzzer, and battery</li><li>Ensure correct orientation of MPU6050 and OLED</li><li>Close the enclosure using M3 screws</li><li>Upload the firmware and test the system</li></ol><p>⚠️ Make sure cable lengths are sufficient before final assembly.</p><h3>📦 Recommended Electronics</h3><ul><li>ESP8266 NodeMCU (with 18650 battery support)</li><li>MPU6050 sensor</li><li>2x WS2812B 8x8 LED matrix</li><li>0.91&#34; OLED display</li><li>18650 battery</li><li>2x push buttons</li><li>buzzer</li><li>JST-XH connectors &amp; jumper wires</li></ul><h3>🔗 Links</h3><p>👉 Full project guide, code &amp; instructions: <a target="_blank" rel="noopener noreferrer ugc" href="https://hdrobotics.de/portfolio/5964/">HD Robotics Elektronics</a><br>👉 Build video tutorial:</p><figure class="media"><oembed url="https://youtu.be/Iuvt9v2UAYI"></oembed></figure><p><br>👉 Hardware shop: <a target="_blank" rel="noopener noreferrer ugc" href="https://hdrobotics.de/">HD Robotics Shop </a><br><br> </p><boostme><boosttitle>Boost Me</boosttitle><boostcontent>Supprt the Creator!</boostcontent></boostme>
