Magnifying Glass with Light
Print Profile(1)
Description

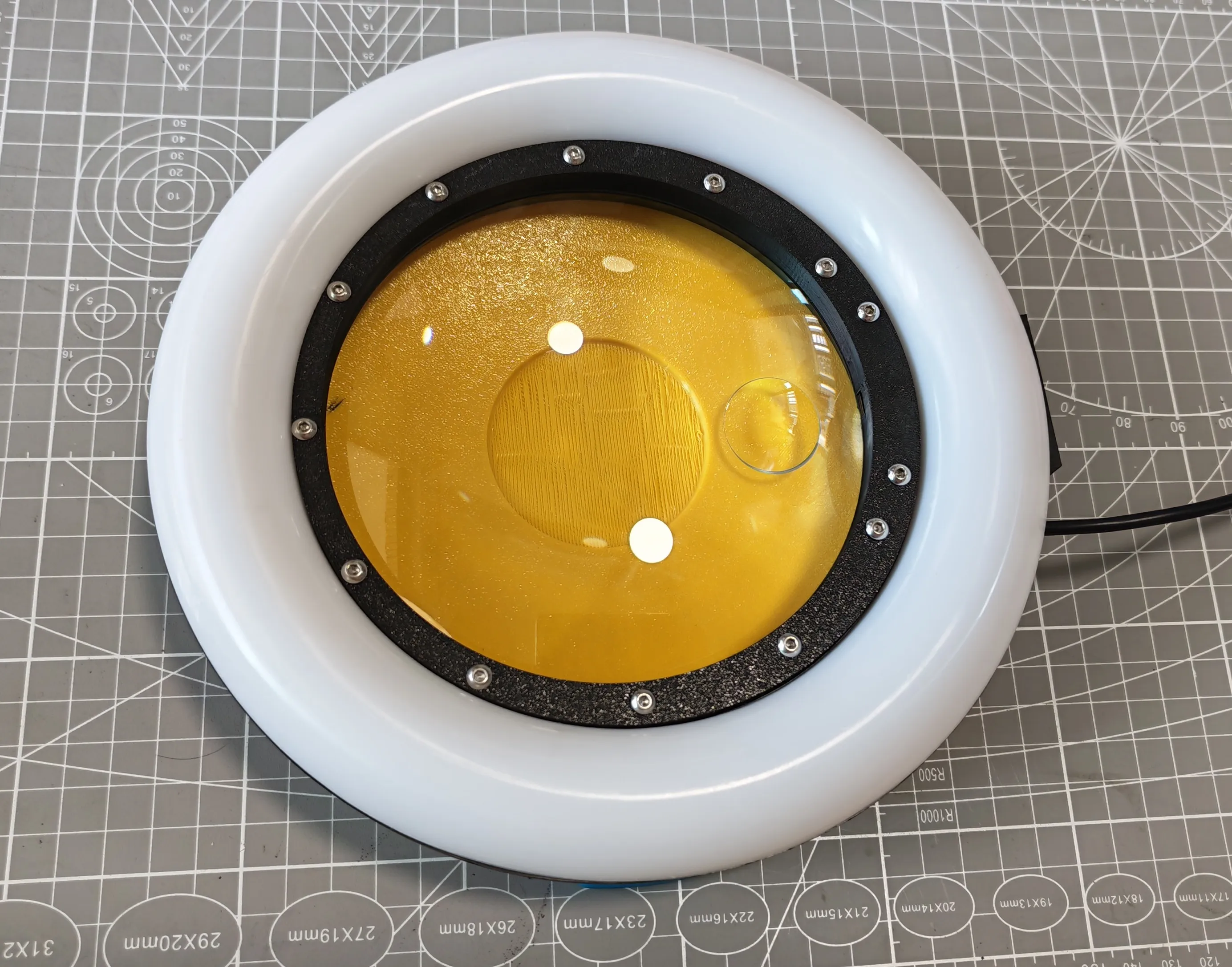

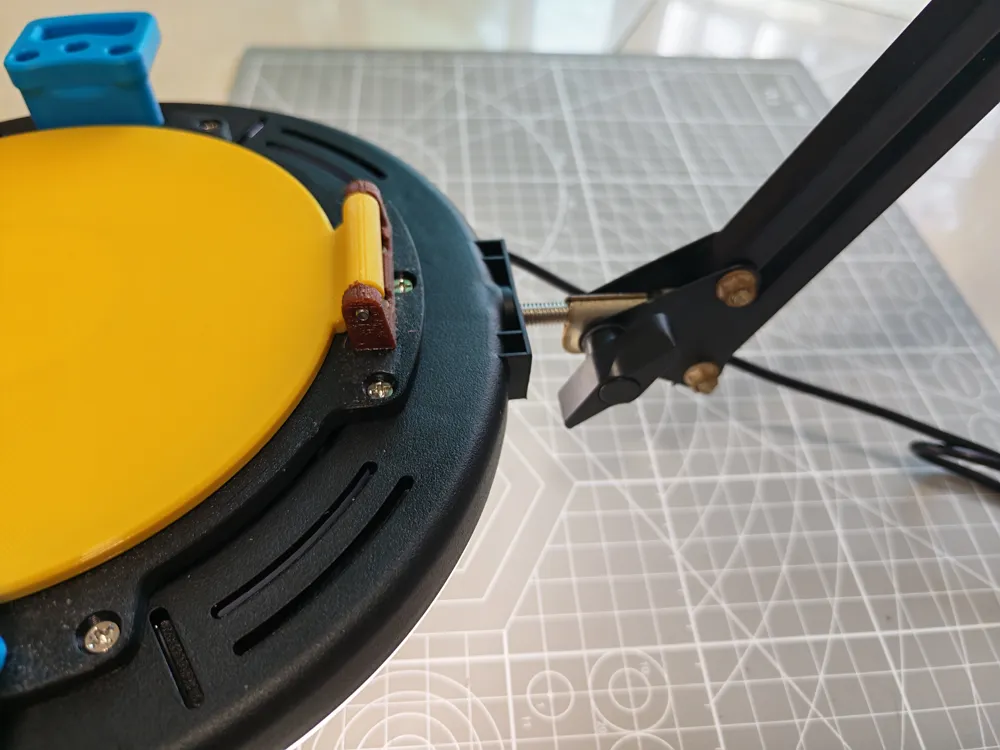

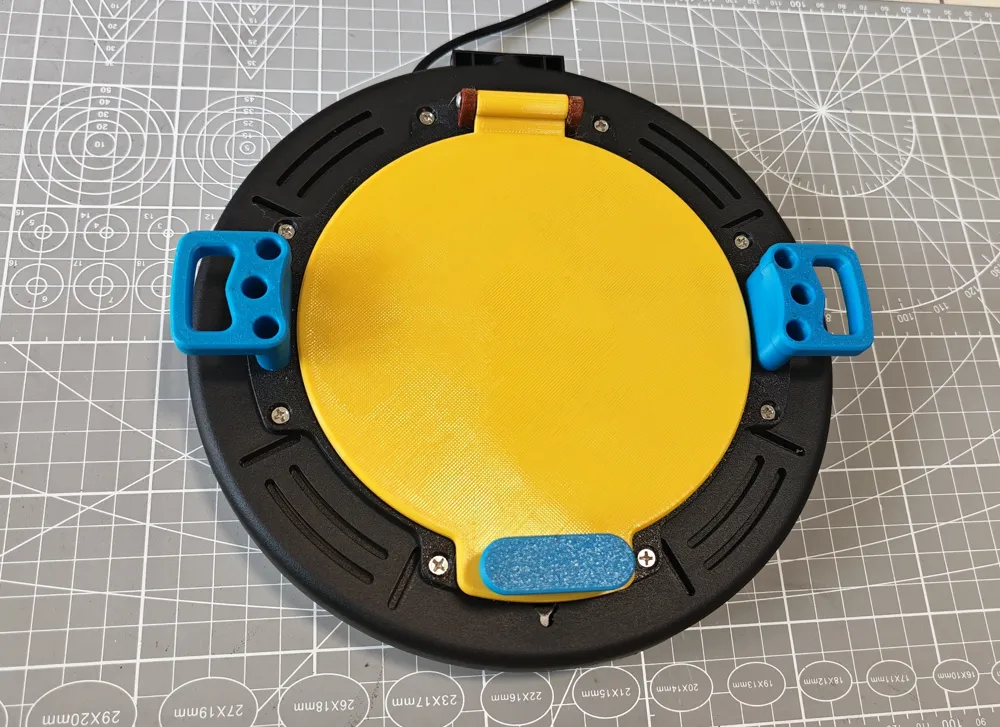

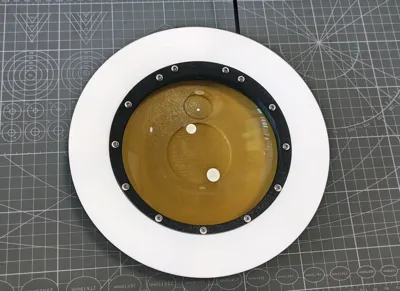

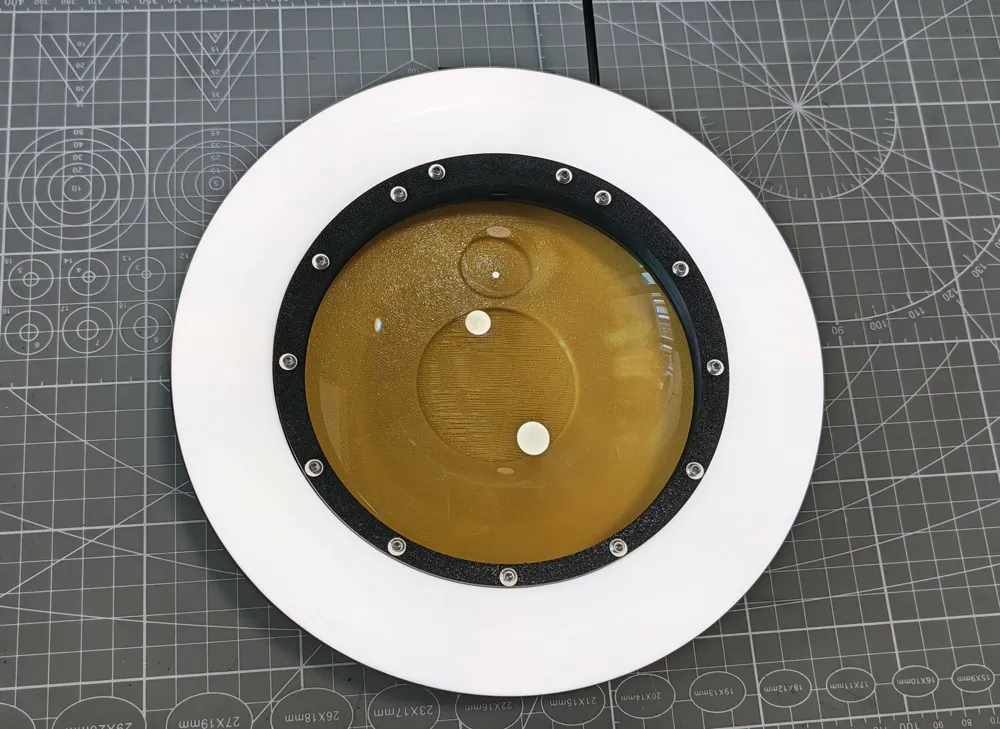

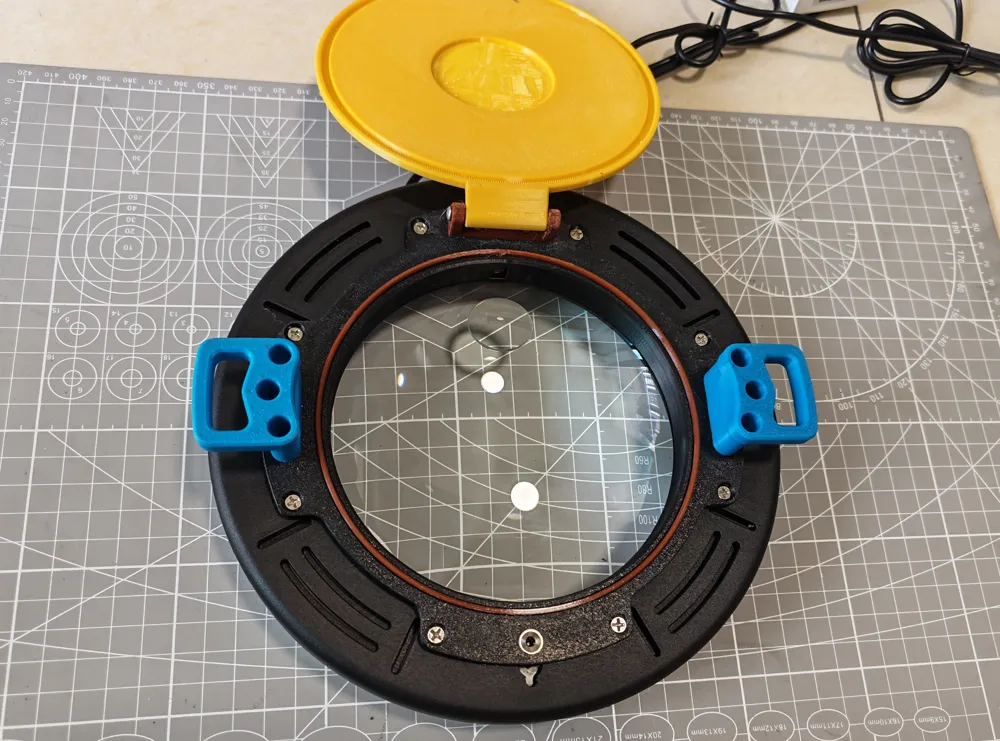

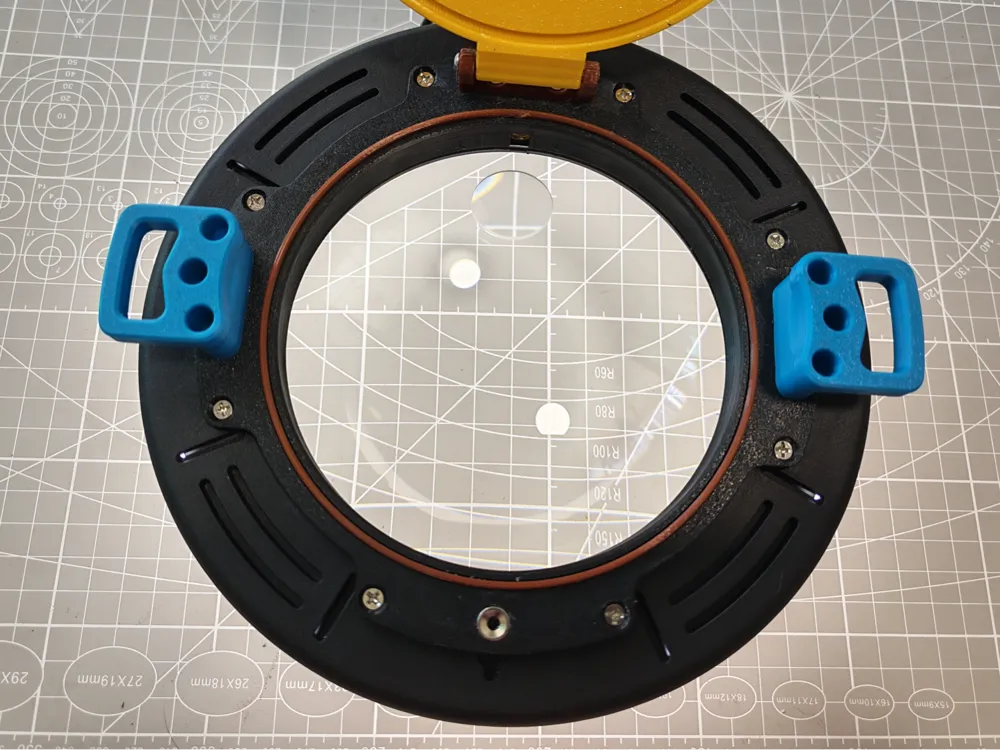

Magnifying glass with light, for repair and welding, with lens dust cover and two handles

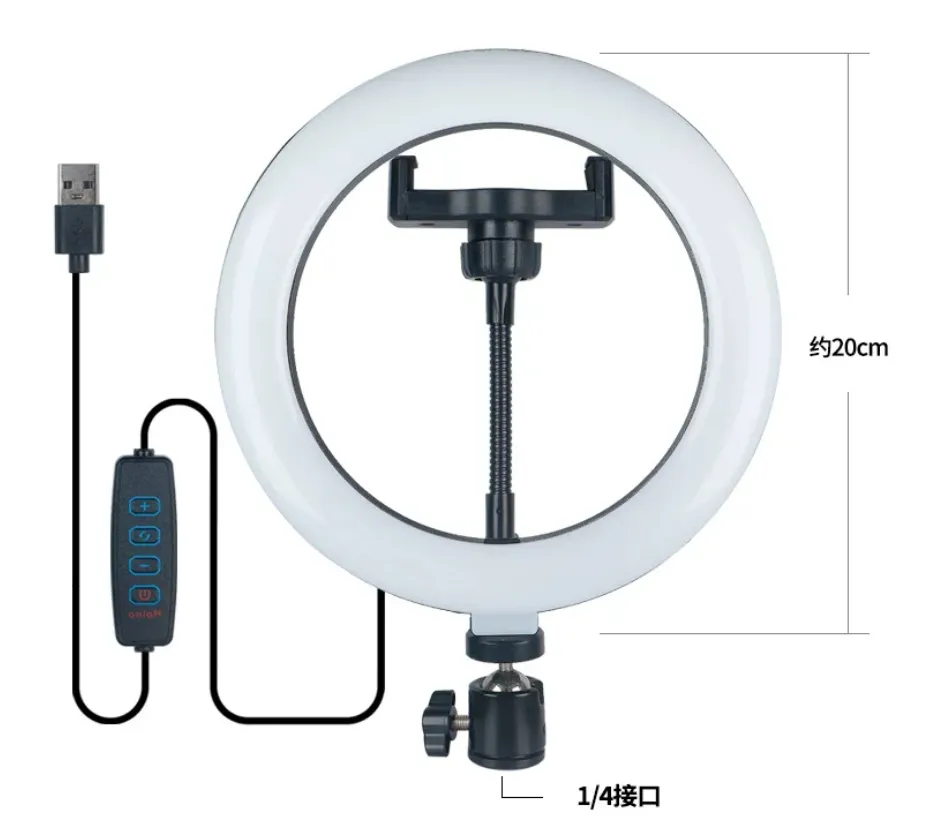

- The light uses an 8-inch fill light, which comes with a connecting bracket interface
- The lens uses a 127mm magnifying lens
Other accessories:
- m3x6 countersunk self-tapping screws, 9 pieces
- m3x12 self-tapping screws, 19 pieces
- m3x40 screw, 1 piece
- magnets with 8mm diameter x 2.5mm, 2 pieces
- glue (optional)
Assembly process:

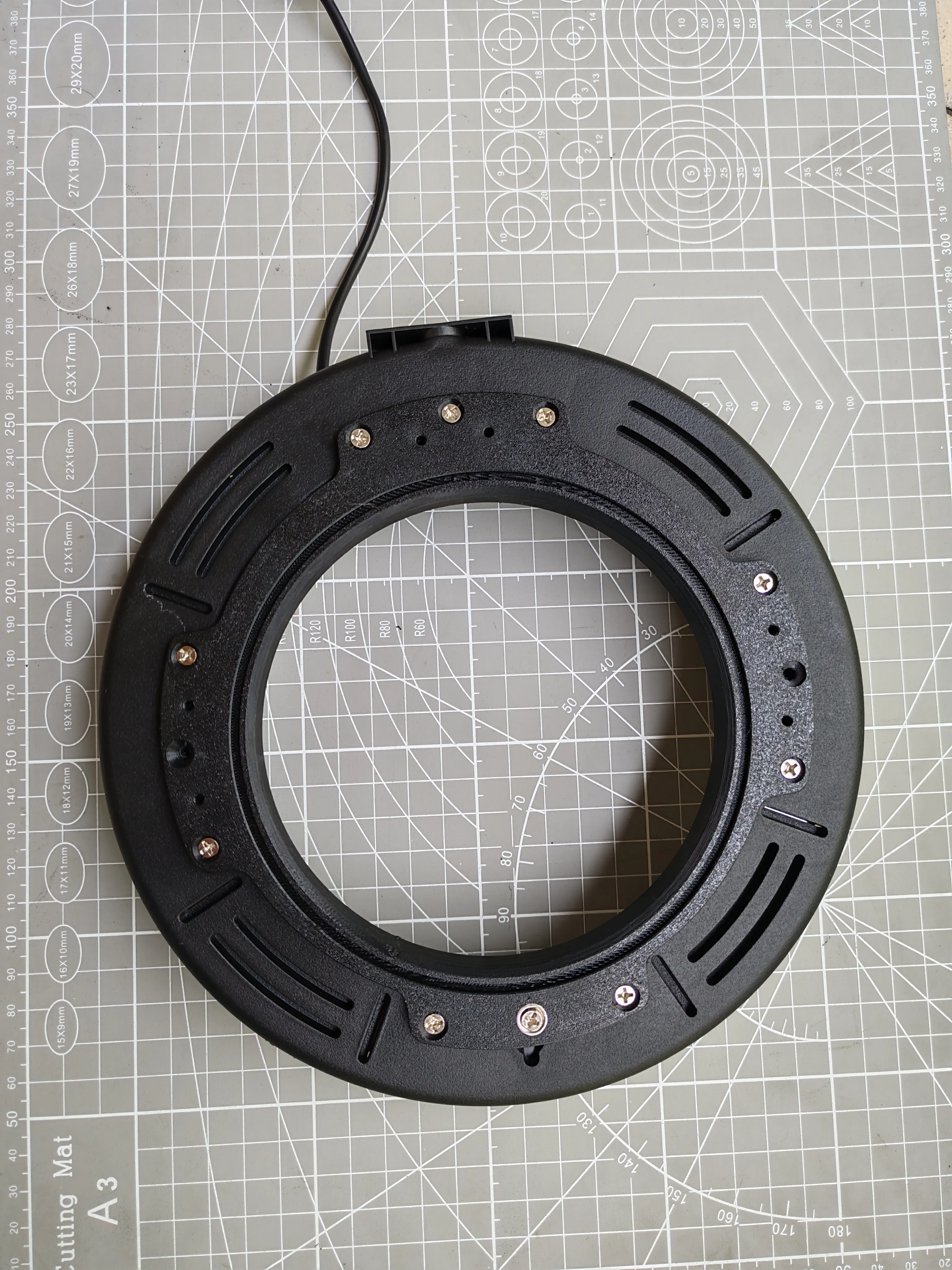

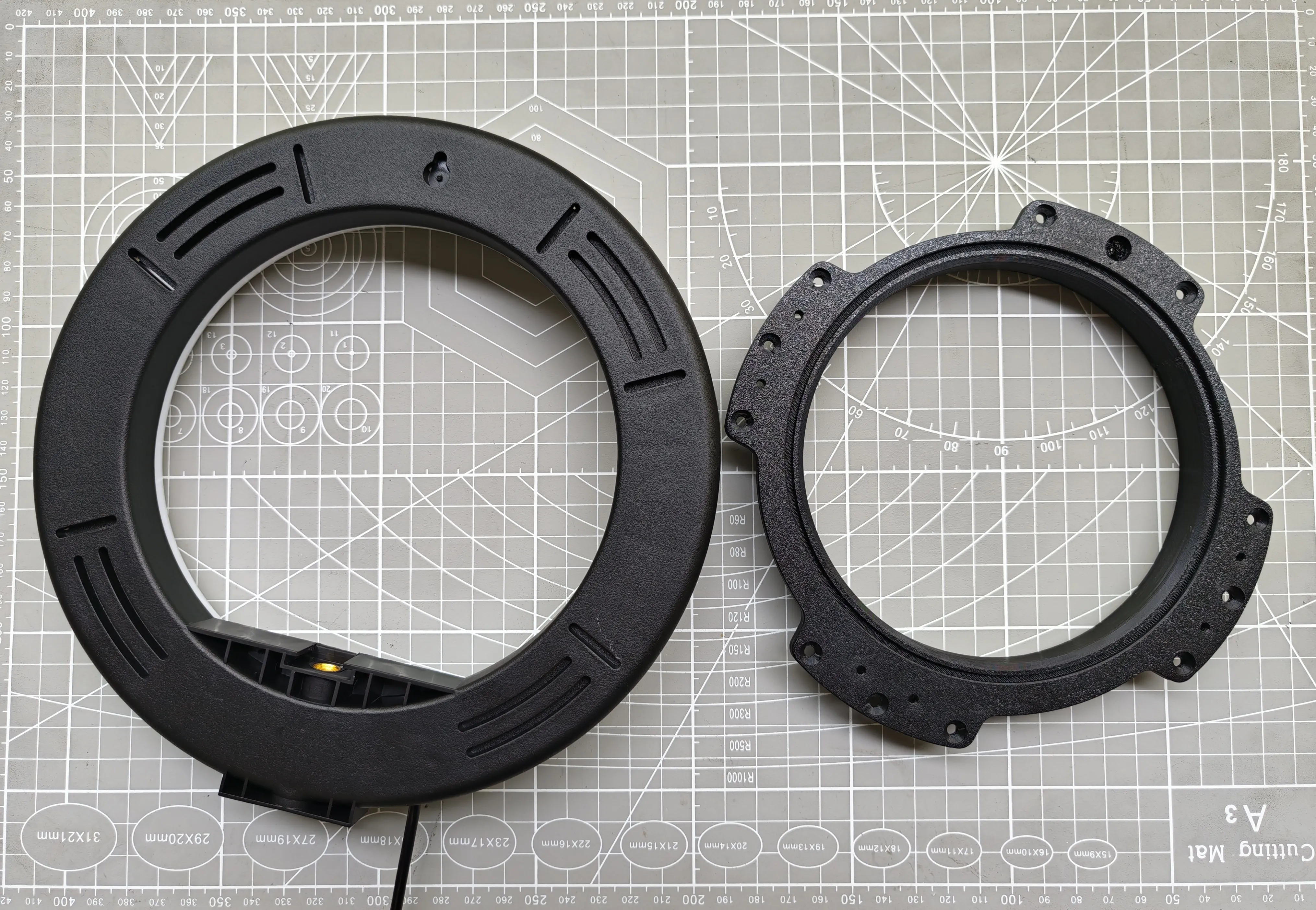

Assemble the main frame and the light A 2.5mm hole needs to be drilled on the light Be careful not to drill into the PCB
Other steps are relatively simple, omitted
