M10 Knobs 17mm Hex – 4 Styles, 3 Sizes

M10 Knob Collection (17mm Hex Nut) – 4 Styles, 3 Sizes

A comprehensive collection of M10 knobs designed for mechanical applications, workshop equipment, 3D Printers, jigs, clamps, and DIY projects

🔗 Other versions available:

• M4 (7mm hex) https://makerworld.com/it/models/2920542-m4-knobs-7mm-hex-4-styles-3-sizes#profileId-3267855

• M6 (10mm hex) https://makerworld.com/it/models/2924456-m6-knobs-10mm-hex-4-styles-3-sizes#profileId-3272962

• M8 (13mm hex) https://makerworld.com/it/models/2868831-m8-13mm-hex-knobs-4-styles-3-sizes#profileId-3202541

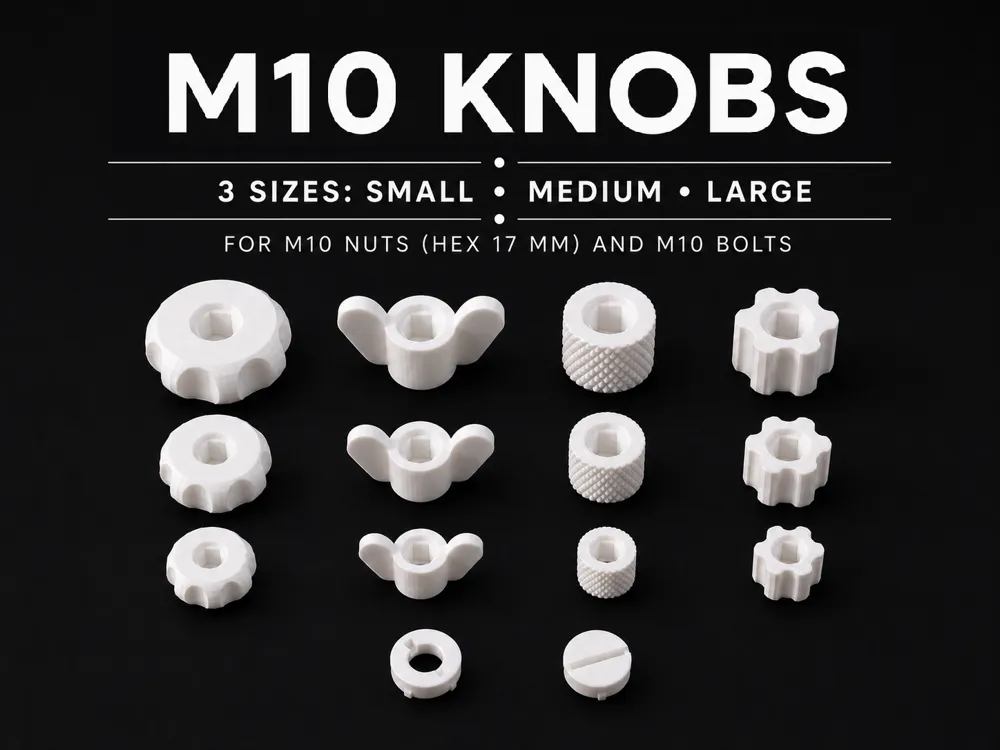

The collection includes

• Lobed Knobs

• Wing Knobs

• Diamond Knurled Knobs

• Star Knobs

Each model is available in three sizes:

• Small
• Medium
• Large

for a total of 12 different variants

Compatible with both nuts and bolts

All knobs have been designed for use in two configurations

Female Version

By inserting an M10 nut into the internal hex socket

Ideal for:

• threaded rods
• screws
• tie rods
• adjustable systems

Male Version

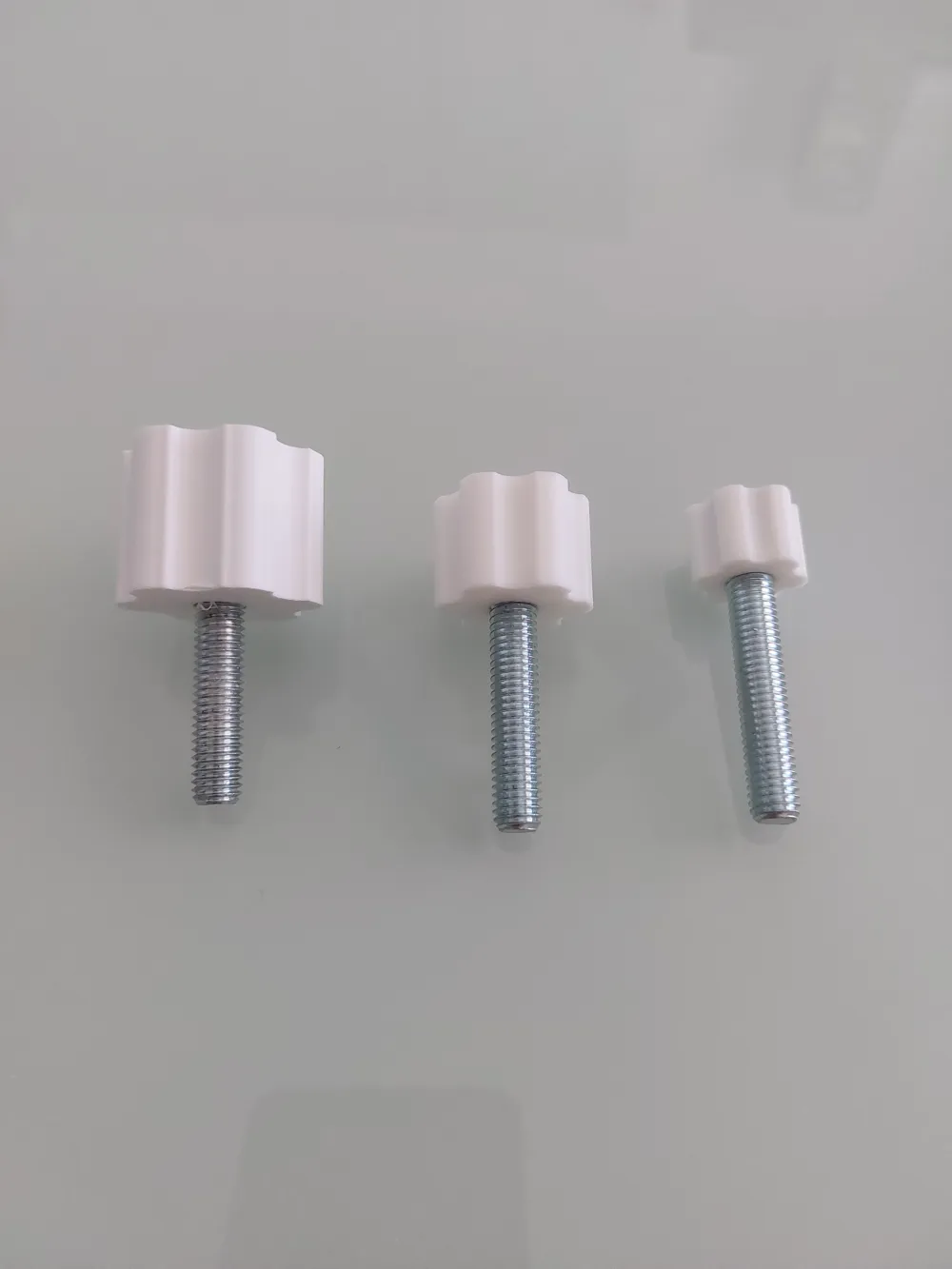

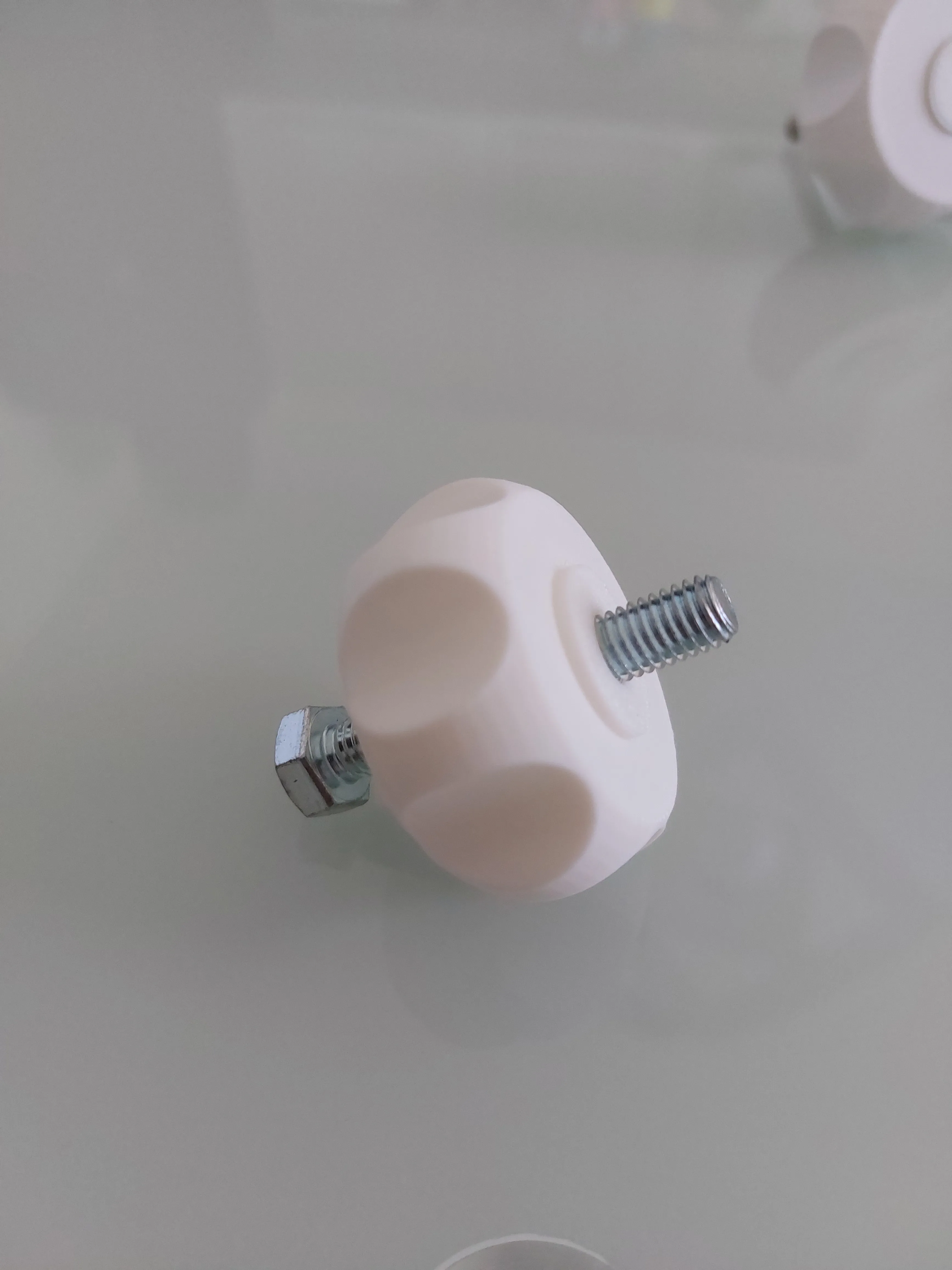

By directly inserting an M10 bolt into the knob

Ideal for creating:

• clamping screws
• adjustment knobs
• custom locking systems

Double cap included

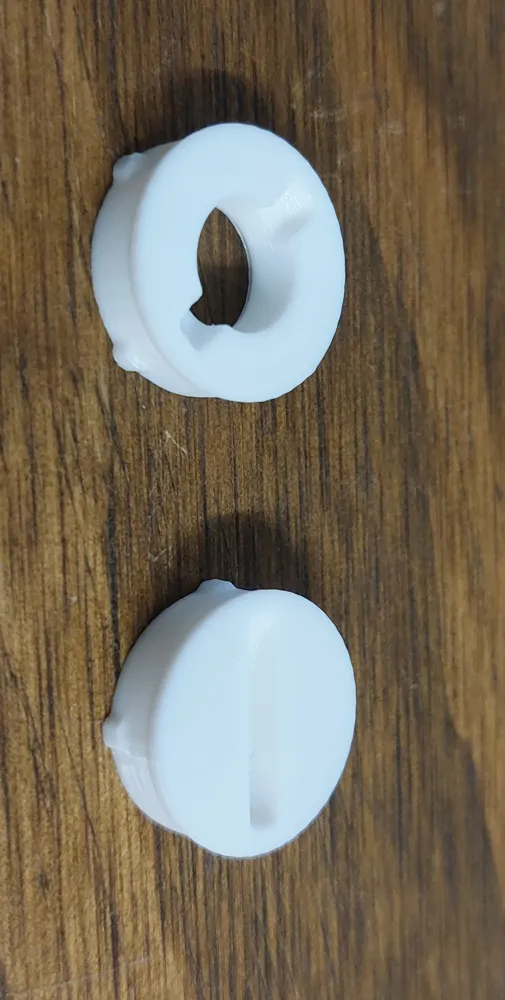

Each model includes two end caps:

Through-hole cap

For use as a female through-knob

Closed cap

For use as a male knob with an integrated bolt

The caps are designed with a screw-on fastening, to:

• prevent tooth breakage during assembly and disassembly
• allow repeated opening and closing
• ensure a more stable and effective closure
• achieve a clean and professional finish

If you only plan to use one of the two configurations, you can simply avoid printing the unnecessary cap

Optimized nut seat

The internal seat is designed to accommodate M10 nuts with a 17mm hex

Features

• Hex seat depth: 12 mm
• Bottom through-hole: Ø10.25 mm

The 12mm depth allows for the use of not only standard nuts but also:

• self-locking nuts with nylon insert (Nyloc)
• prevailing torque self-locking nuts
• other equivalent locking systems

Recommended Assembly

The hex seat has been deliberately designed with a tight tolerance to prevent the nut from rotating or slipping out during use

Female Configuration

Insert the nut into the seat and use a screw from the opposite side to pull it completely to the bottom of the seat

To facilitate the operation, it may be useful to tighten the screw with a wrench

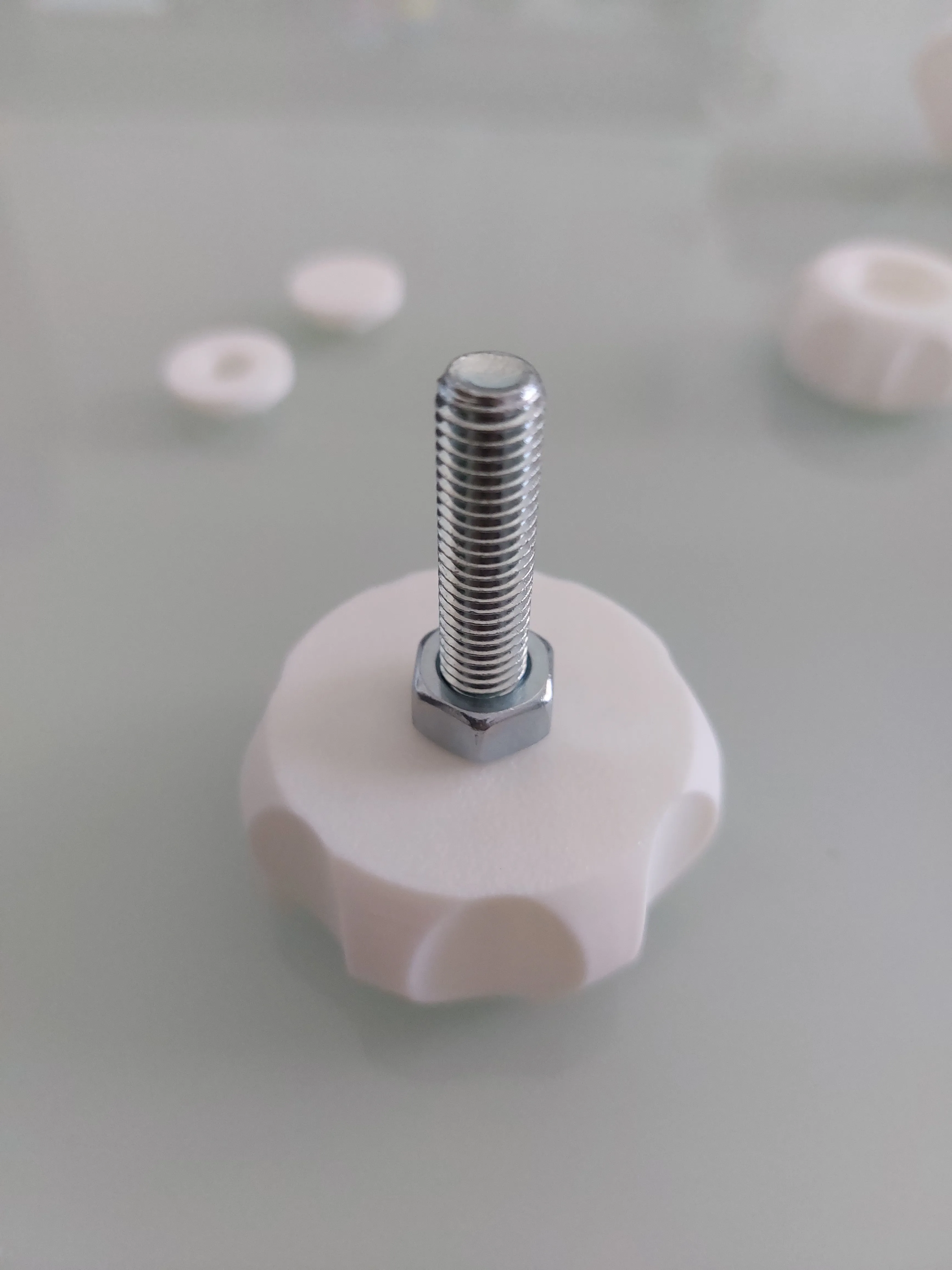

Male Configuration

Insert the bolt into the knob and screw an external nut onto the threaded part to pull the bolt completely into the seat until it stops

Continue tightening until the bolt is perfectly secured

This procedure ensures correct hardware positioning and maximum mechanical strength

Ideal for

• Workshop
• DIY
• CNC
• 3D Printers
• Jigs and fixtures
• Clamps
• Machine tools
• Adjustable equipment
• Technical furniture
• Custom mechanical projects

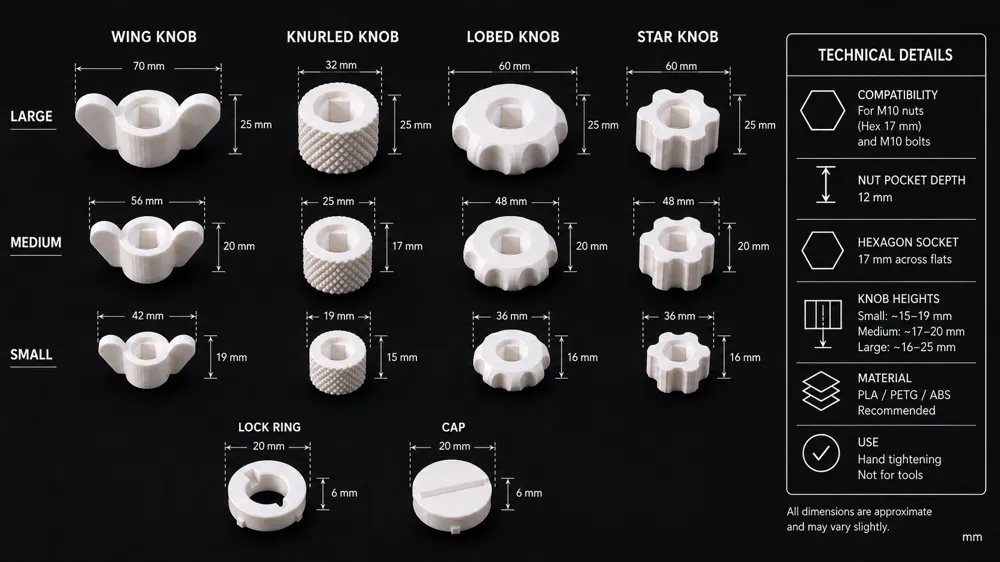

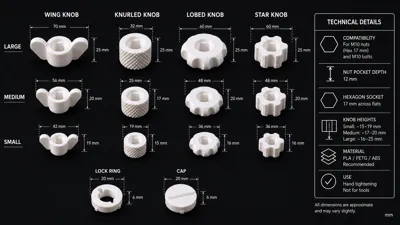

Technical Specifications

Common Features

• Thread: M10
• Nut hex: 17 mm
• Nut seat depth: 12 mm
• Bottom through-hole: Ø10.25 mm
• Compatible with M10 nuts and bolts
• 4 different styles
• 3 sizes for each style
• 12 models included
• Compatible with standard nuts and self-locking nuts (Nyloc)

Lobed Knob

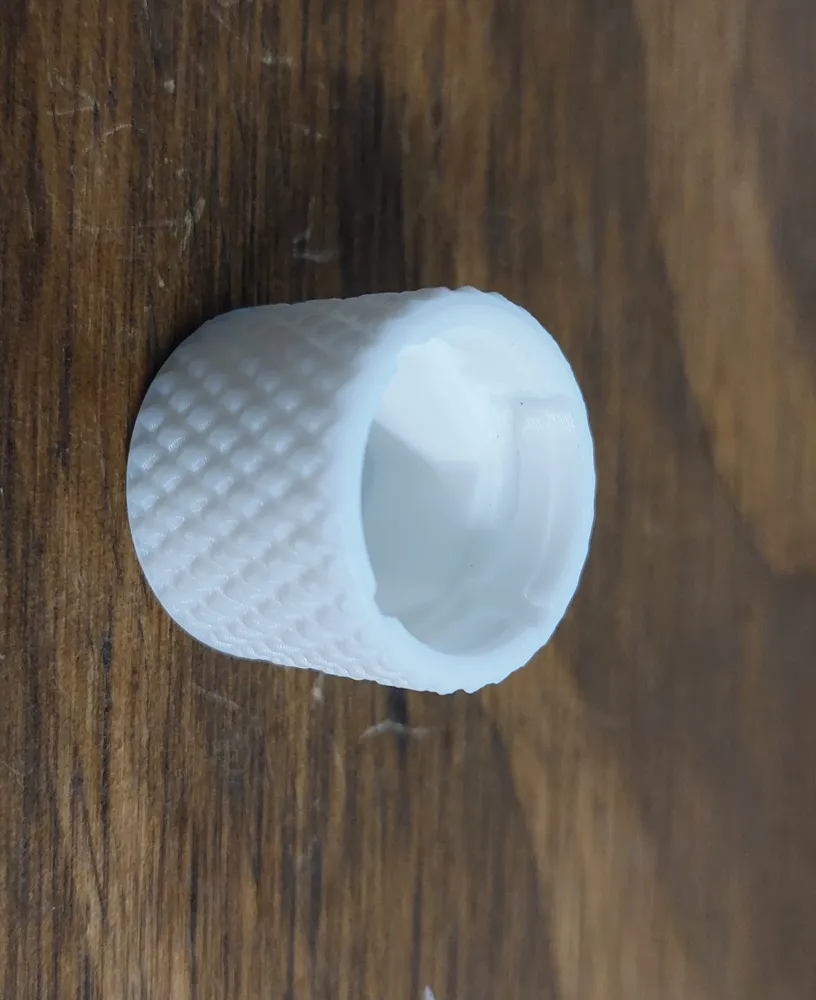

Diamond Knurled Knob

Star Knob

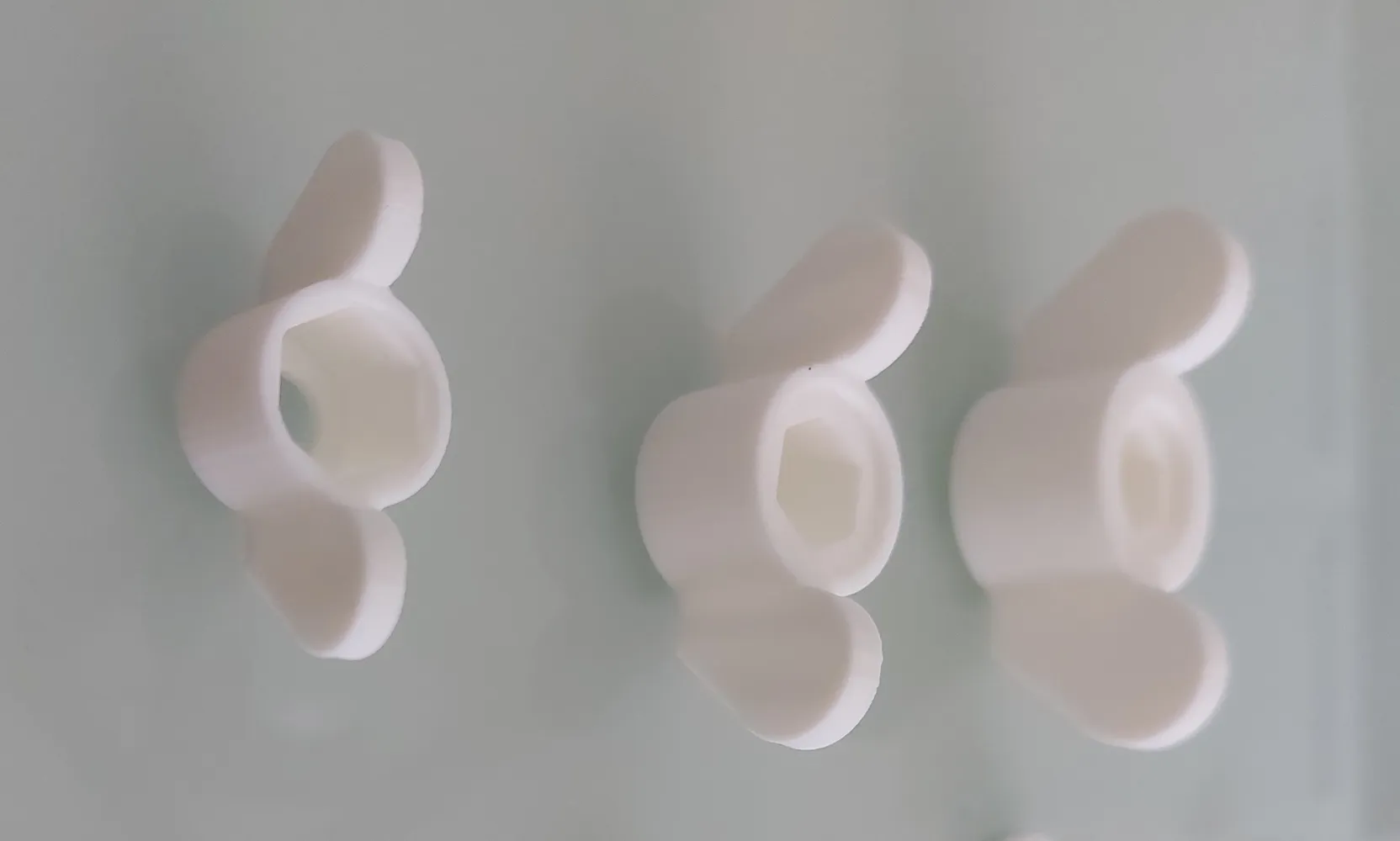

Wing Knob

Recommended Print Settings

• Layer height: 0.16 mm - 0.20 mm
• Infill: 20–40%
• Walls: 2–5
• Material: PLA, PETG, ABS, ASA
• Supports: not needed

Designed to offer high mechanical strength, simple printing, and a comfortable grip in everyday applications
