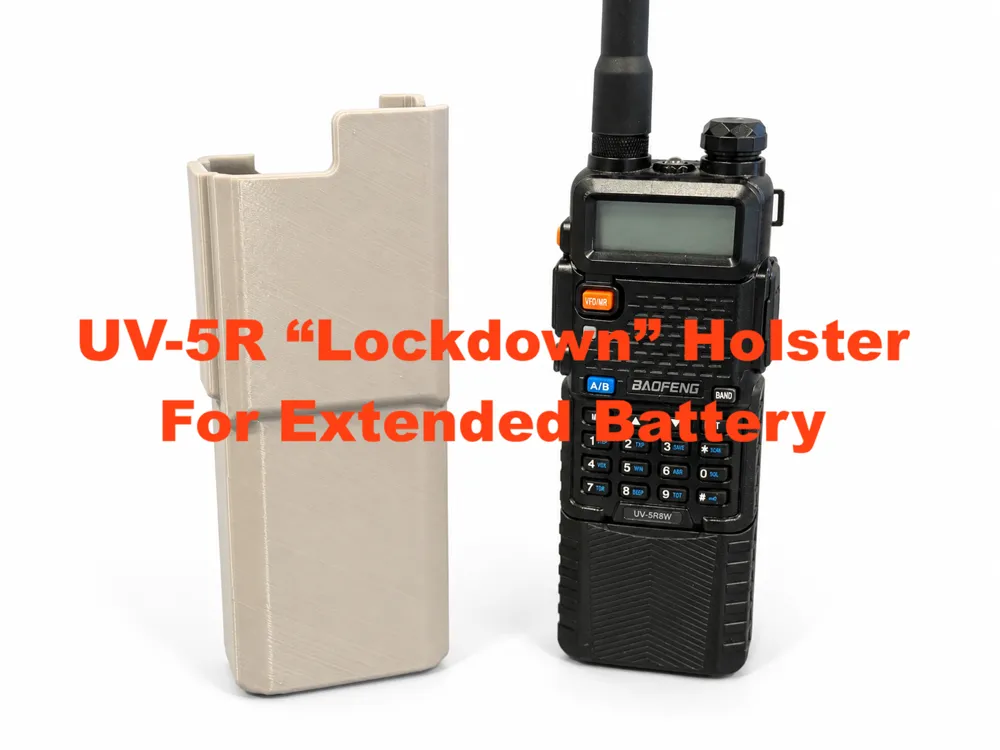

"Lockdown" Holster for UV-5R with Extended Battery
Print Profile(3)
Bill of Materials
Description
Follow Tiny Hatchet Builder so you never miss a preparedness model!

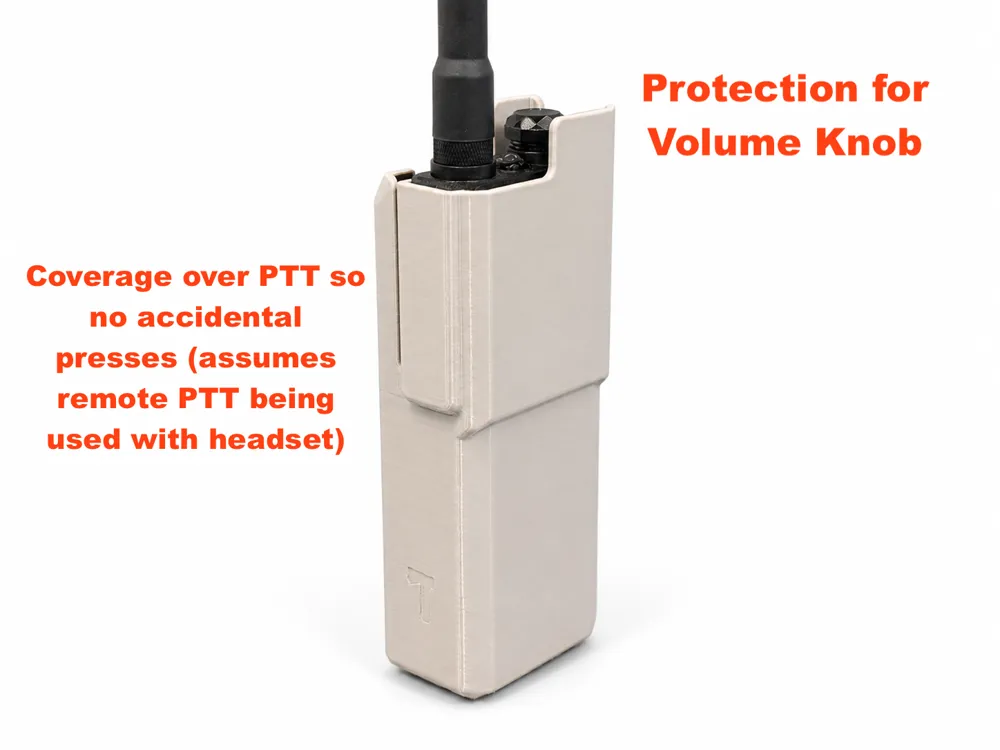

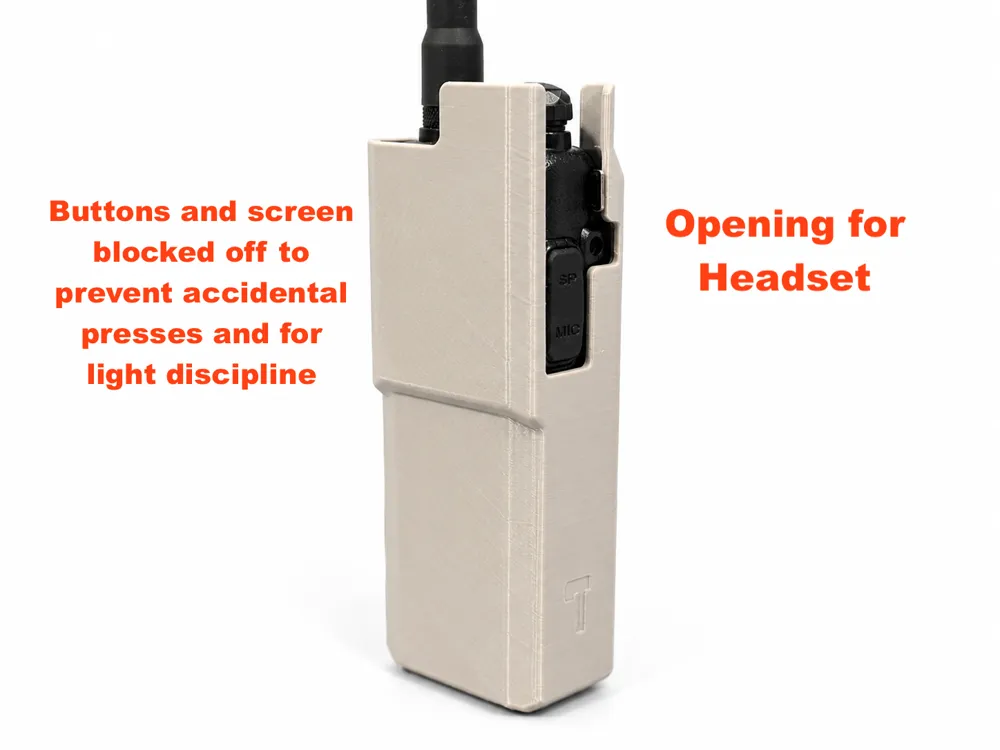

Tired of accidentally pressing buttons when your UV-5R is in a mag pouch and you are using a remote PTT?
Your problem has been solved.

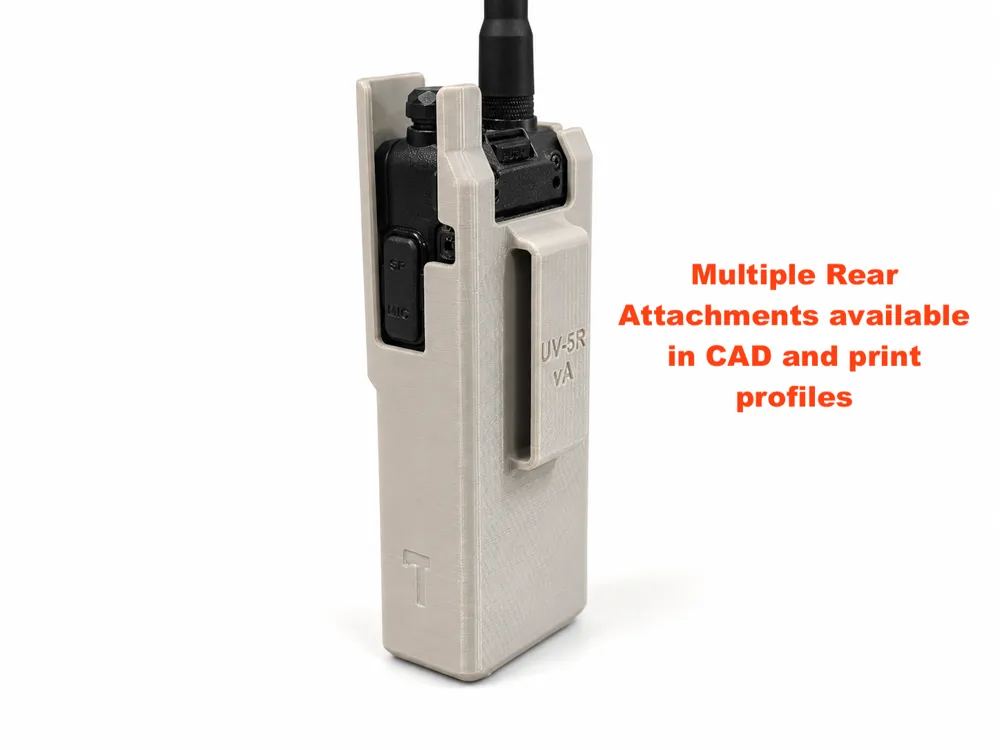

Current Configurations:

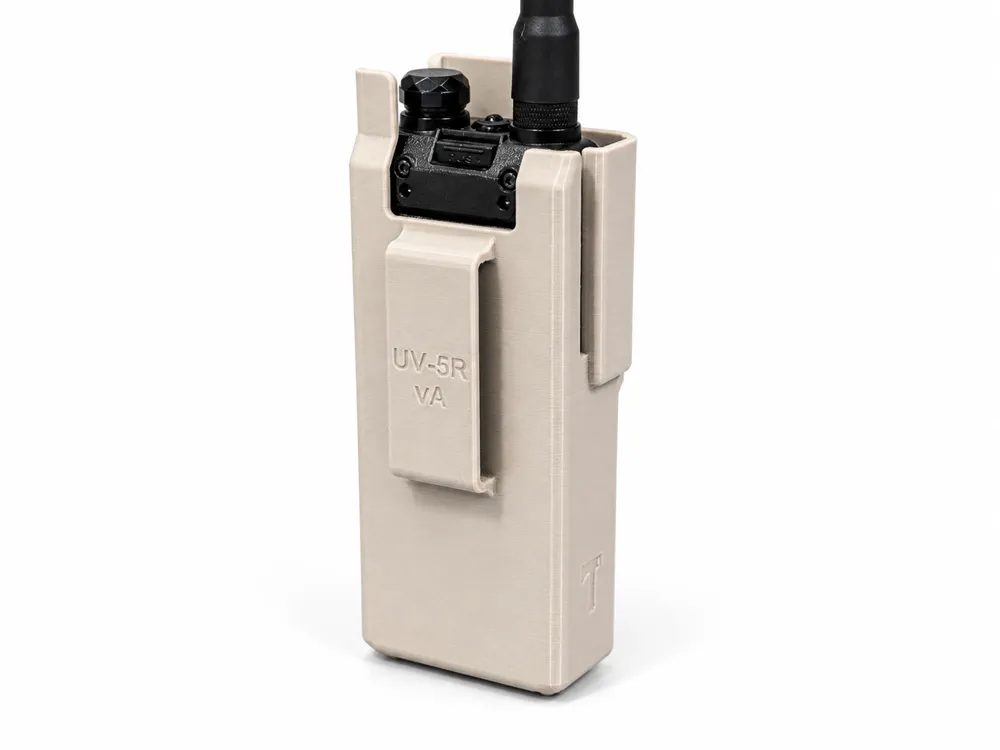

A slot for the factory clip on the back of the UV-5R or when no-clip is installed/needed.
1" Clip for attaching to MOLLE.
2.25” Loop with 1/4” inner clearance for attaching to belts.

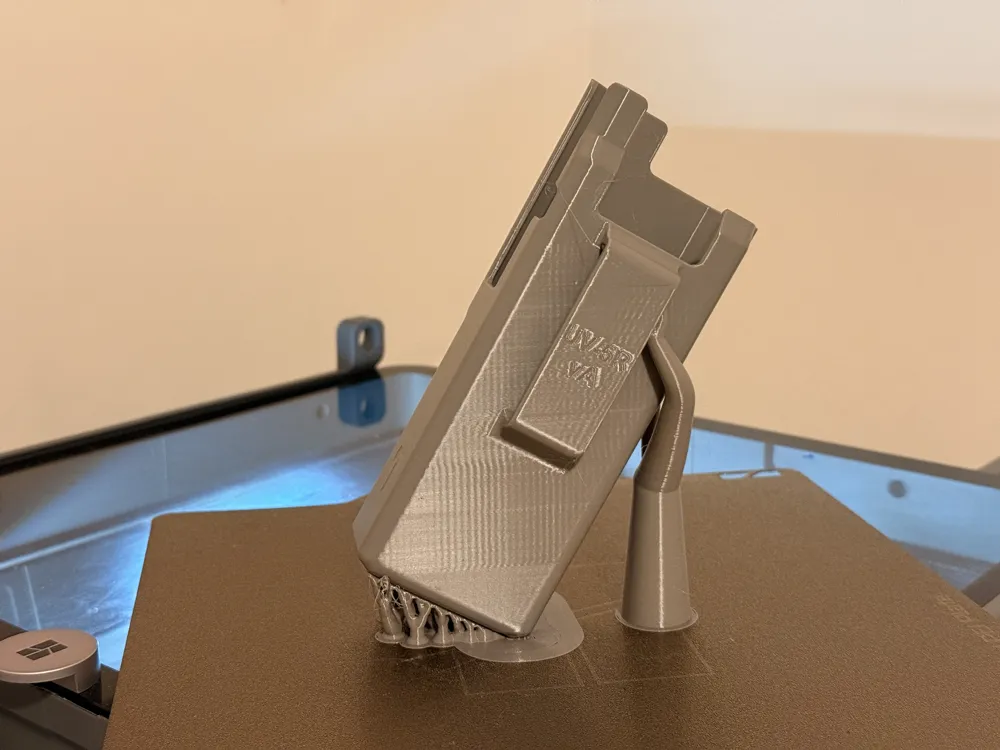

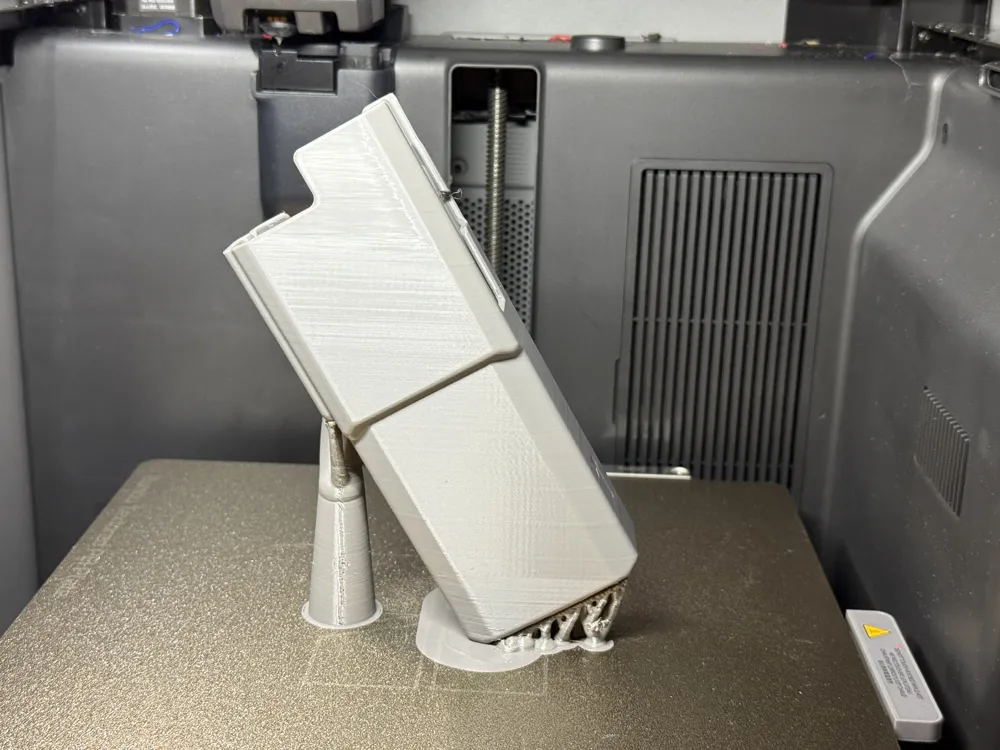

The bottom of the holster was designed to provide a secure building platform and position the holster at a 30 degree angle to increase strength.
Design has been tested in PETG Basic and I recommend using PETG for the durability of the multiple flexing components.
Boost Me (for free)
Thanks for the support and don't forget to follow!
Change Log:
6/6/26: Initial release of 1" clip, 2.25in loop, and factory clip slot at RevA to CAD and print profiles.
