Pool Pole to Push Broom Adapter

Turn a standard telescoping pool pole into a long-reach handle for a push broom or construction-style broom.

This is a functional adapter that lets you attach a construction-style push broom to a standard telescoping pool pole using a butterfly clip / spring button connection.

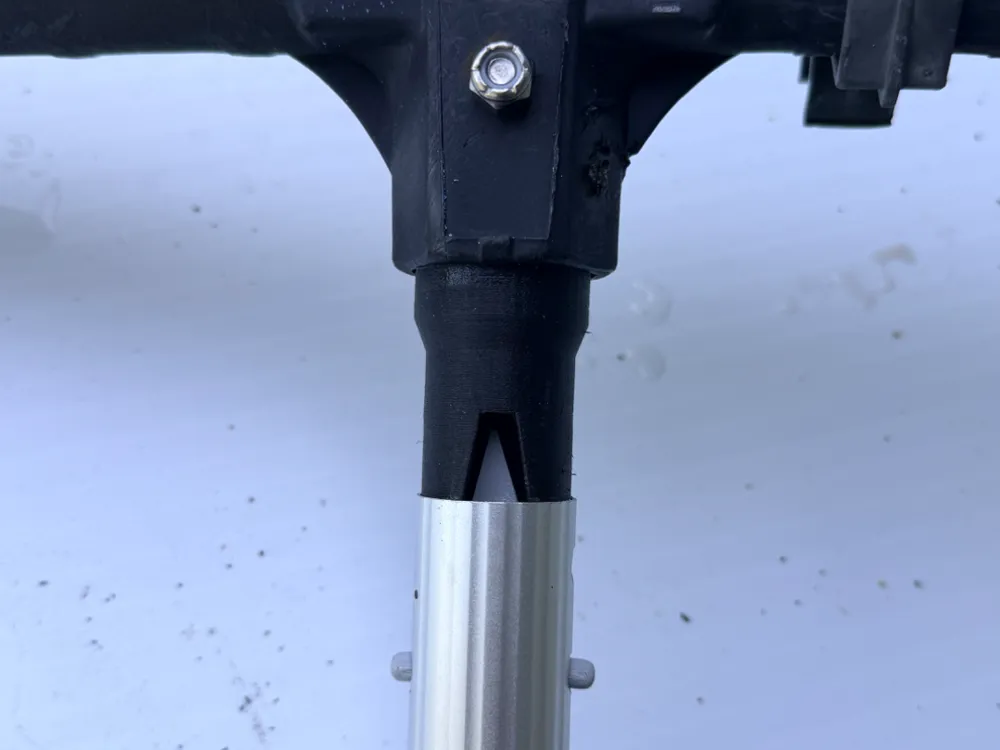

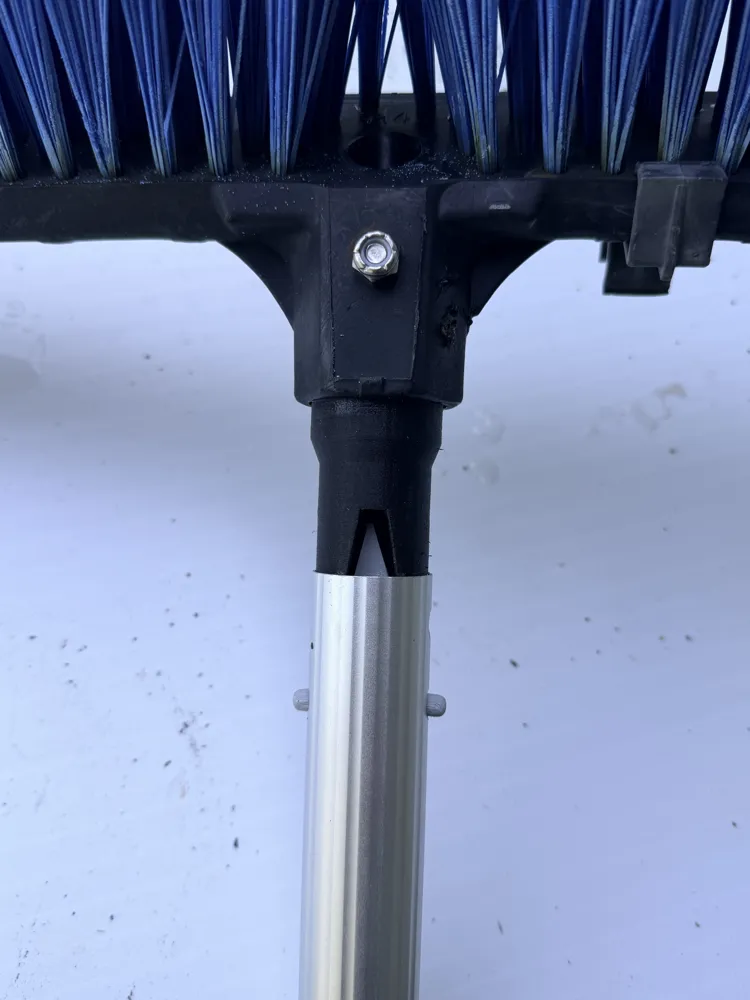

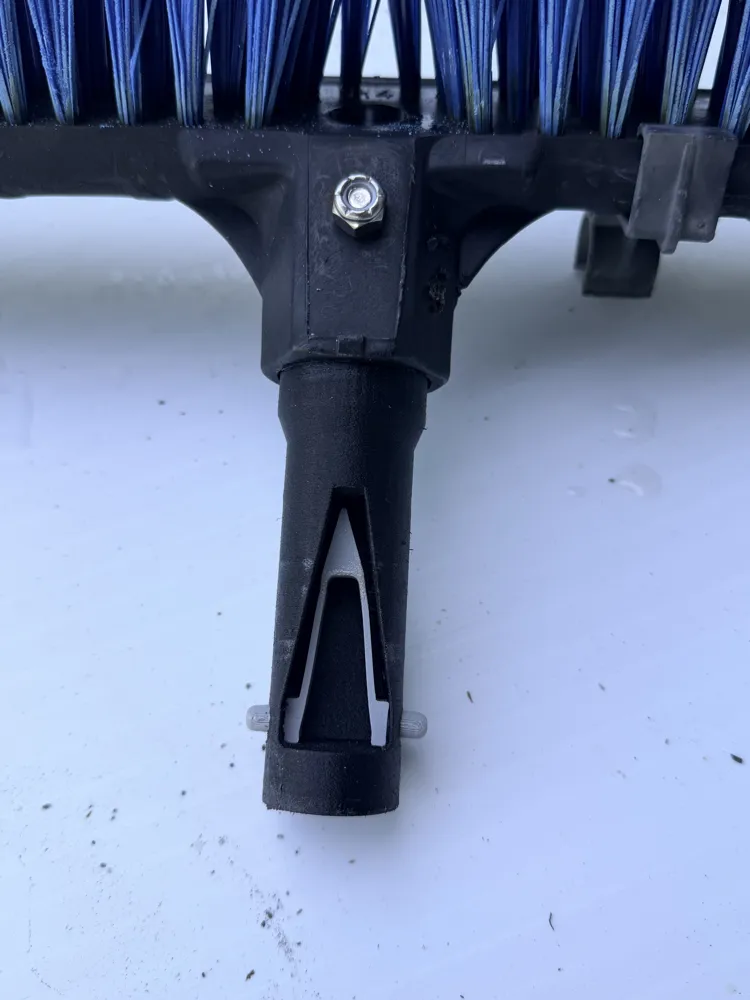

I made this because I needed more reach than a normal broom handle gives. Instead of buying a specialty long-handle broom, this adapter lets you use the pool pole you probably already have. It slides into the end of the pool pole, locks in place with the butterfly clip, and connects to the broom head at the top.

It is great for sweeping pool decks, patios, driveways, garages, shops, porches, and other areas where a longer handle makes the job easier.

I had some Bambu PA6-GF and printed the one in the photos out of that. But that is only because anything 3d printed my wife tries to destroy. I can add the PA6 profile if anyone wants it.

The included 3MF profile is set up for a strong PETG print and includes the adapter plus the V-style butterfly clip piece.

• Connects a push broom / construction broom to a standard pool pole
• Uses the common butterfly clip / spring button locking style
• Gives your broom extra reach for decks, patios, garages, and driveways
• Handy for pool owners, maintenance work, shops, and outdoor cleanup
• Simple functional print with real-world utility
• Designed to be printed strong in PETG
• Includes a print profile for Bambu Lab A1 / 0.4 nozzle
• Good alternative to buying a specialty extra-long broom handle

Printer profile: Bambu Lab A1
Nozzle: 0.4mm
Layer height: 0.2mm
Material: PETG
Infill: 40% gyroid
Walls: 2 walls in the current profile, but I recommend 3–4 walls for harder use
Supports: Tree supports enabled
Brim: Auto brim enabled
Build plate: Supertack plate profile
Parts included: Main adapter and V-style butterfly clip piece
