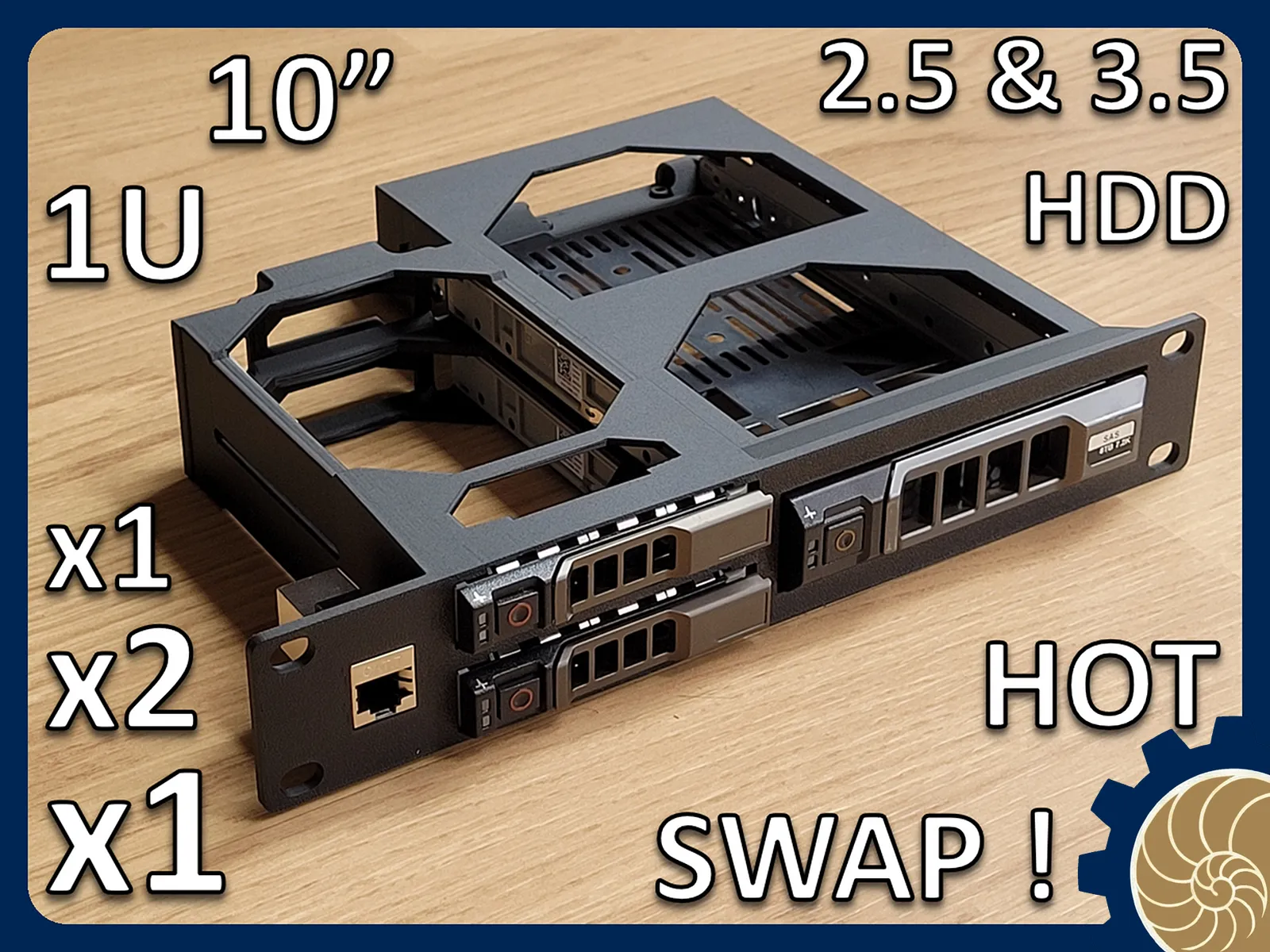

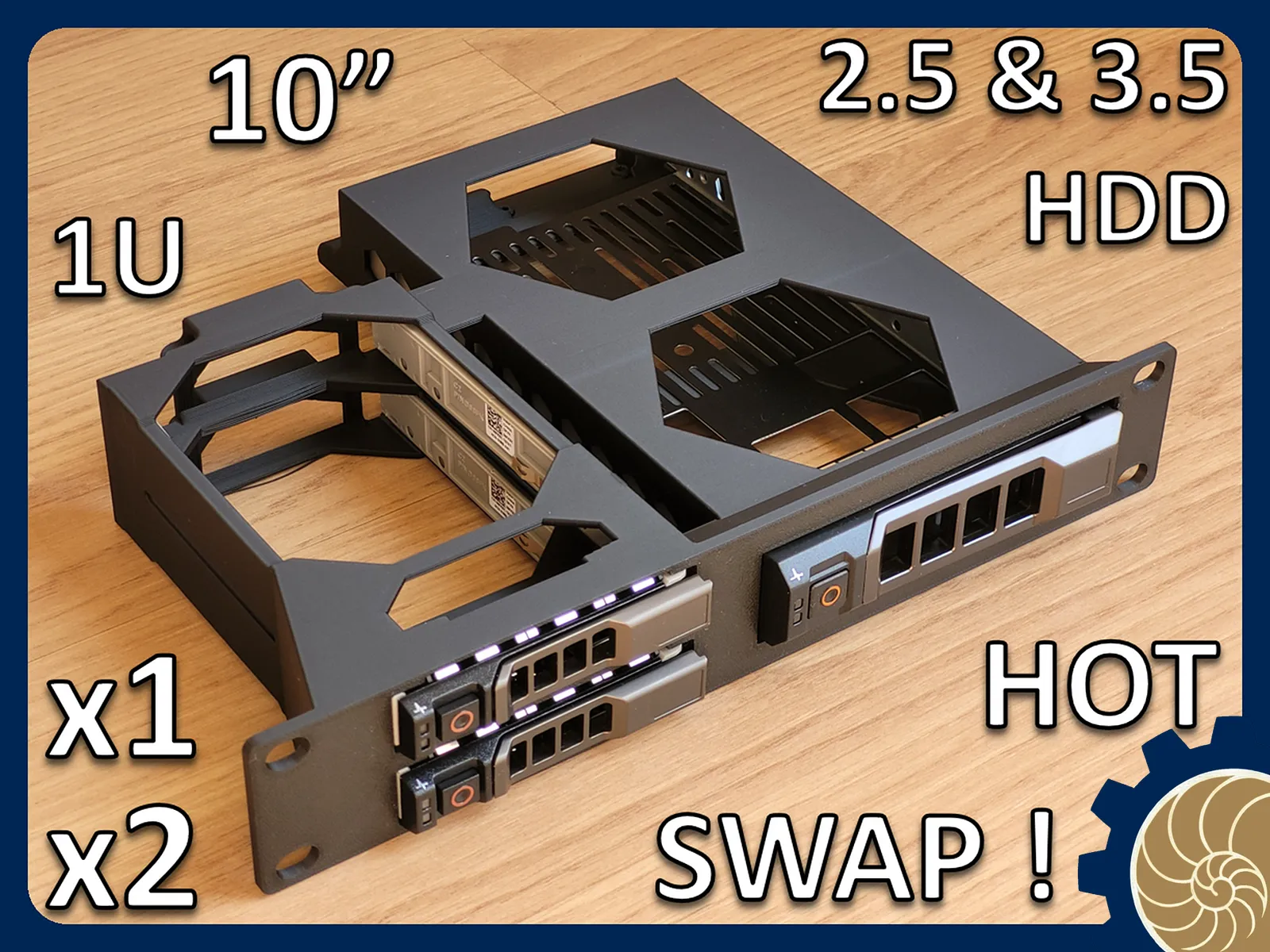

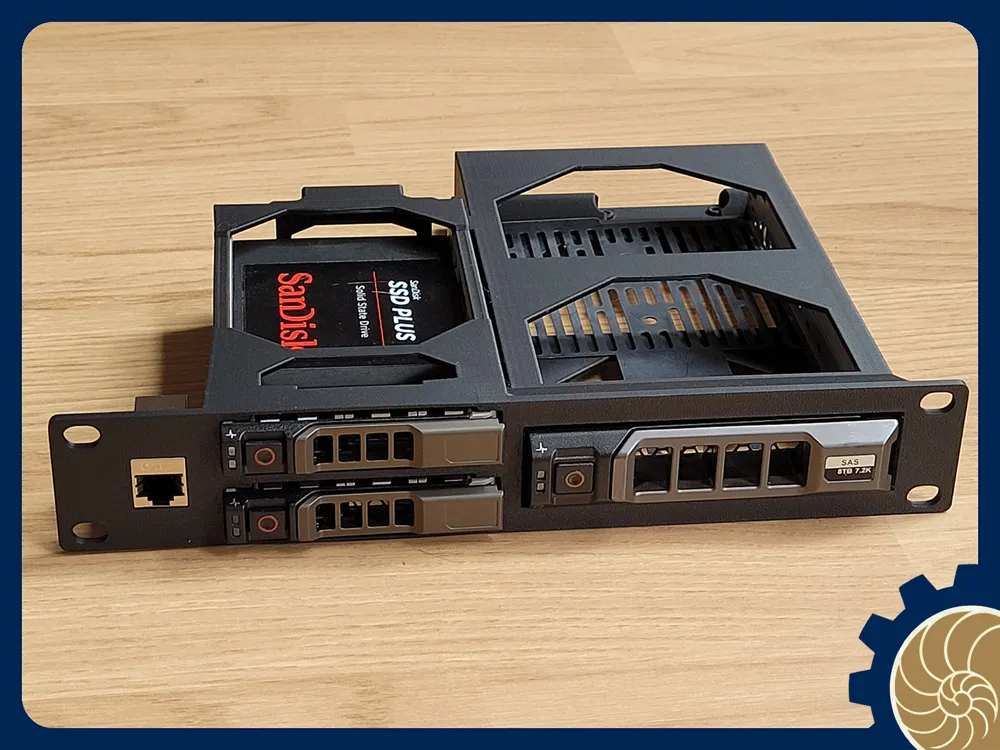

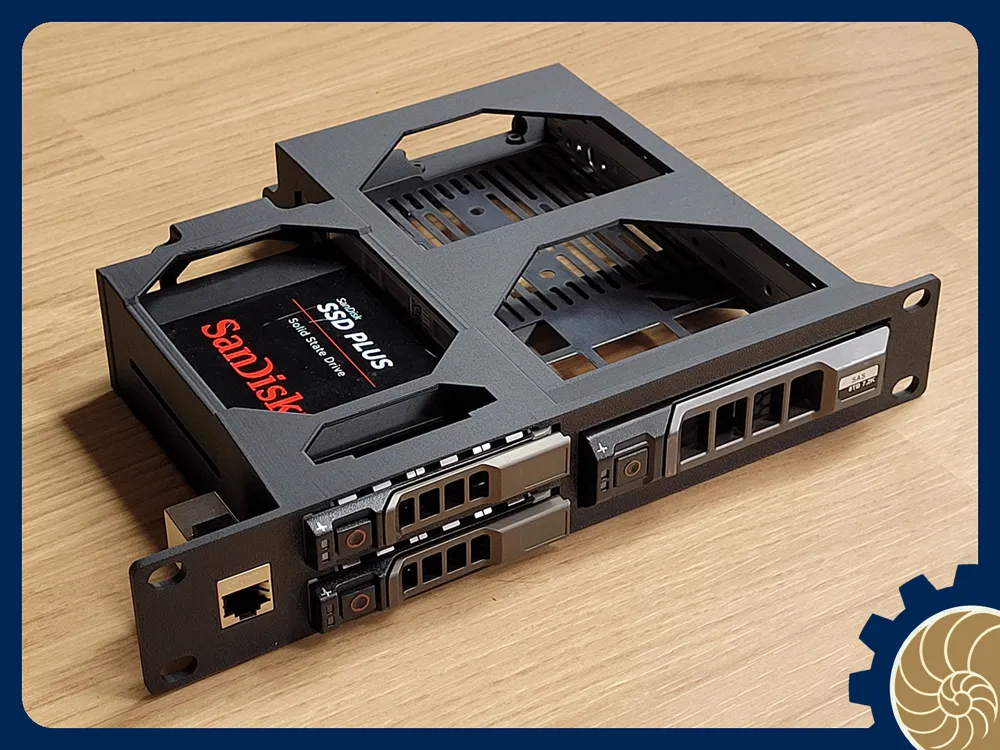

10 inch Rack 1U: 2x 2.5" + 1x 3.5" + 1 keystone
Print Profile(1)
Bill of Materials
Description
⚒️ No 3D printer? No time to source components?
I just opened my own e-shop where you can buy physical, ready-to-use versions of my models! Designed with passion, printed and assembled with care ⚙️.
📦 Shipping across the EU: 👉 Get it at NautilusForge.shop
Boost Me (for free)
Like this model? A free Boost is always appreciated! It supports the time that goes into designing and testing. Thank you so much! 😊🙌

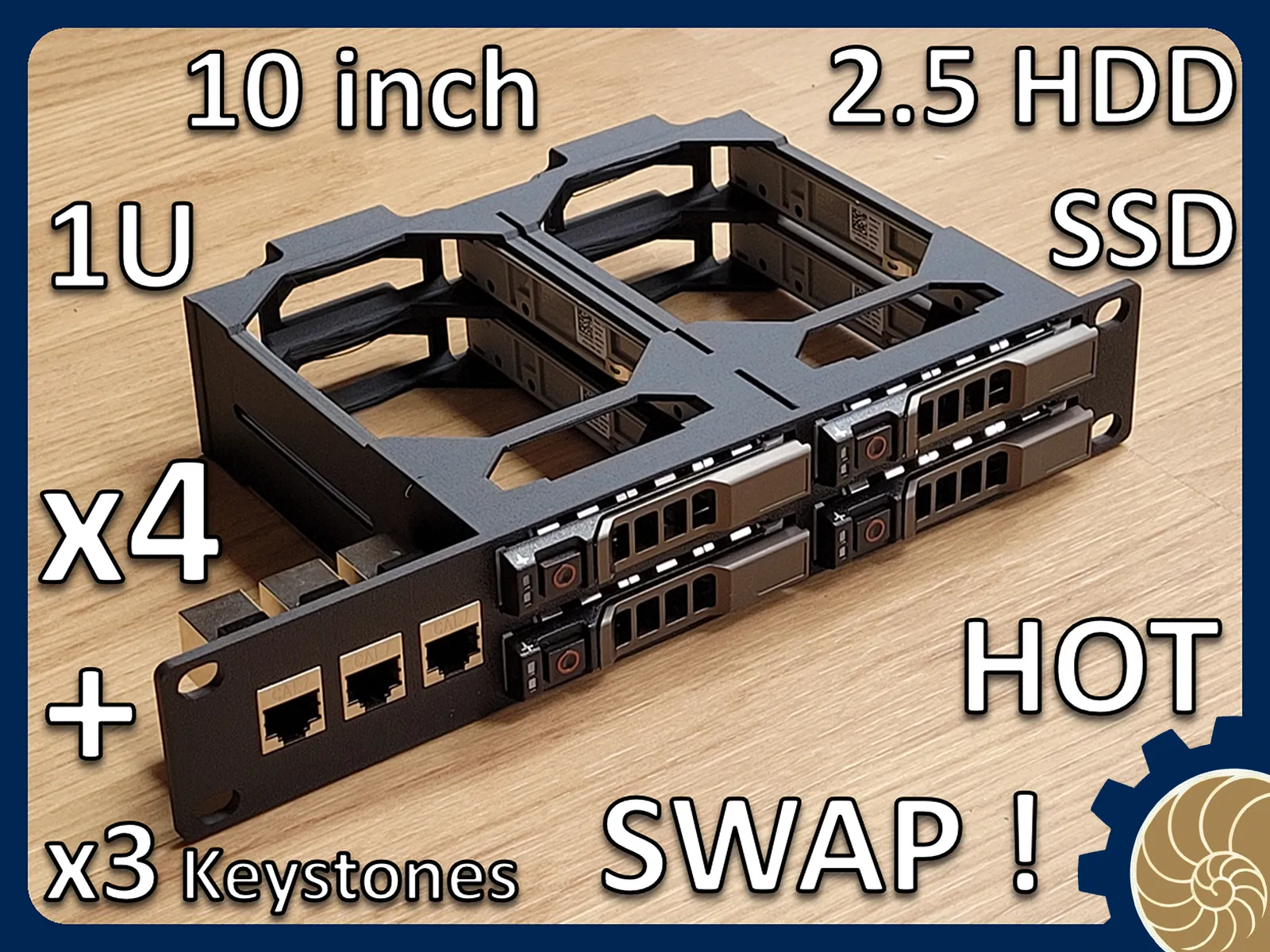

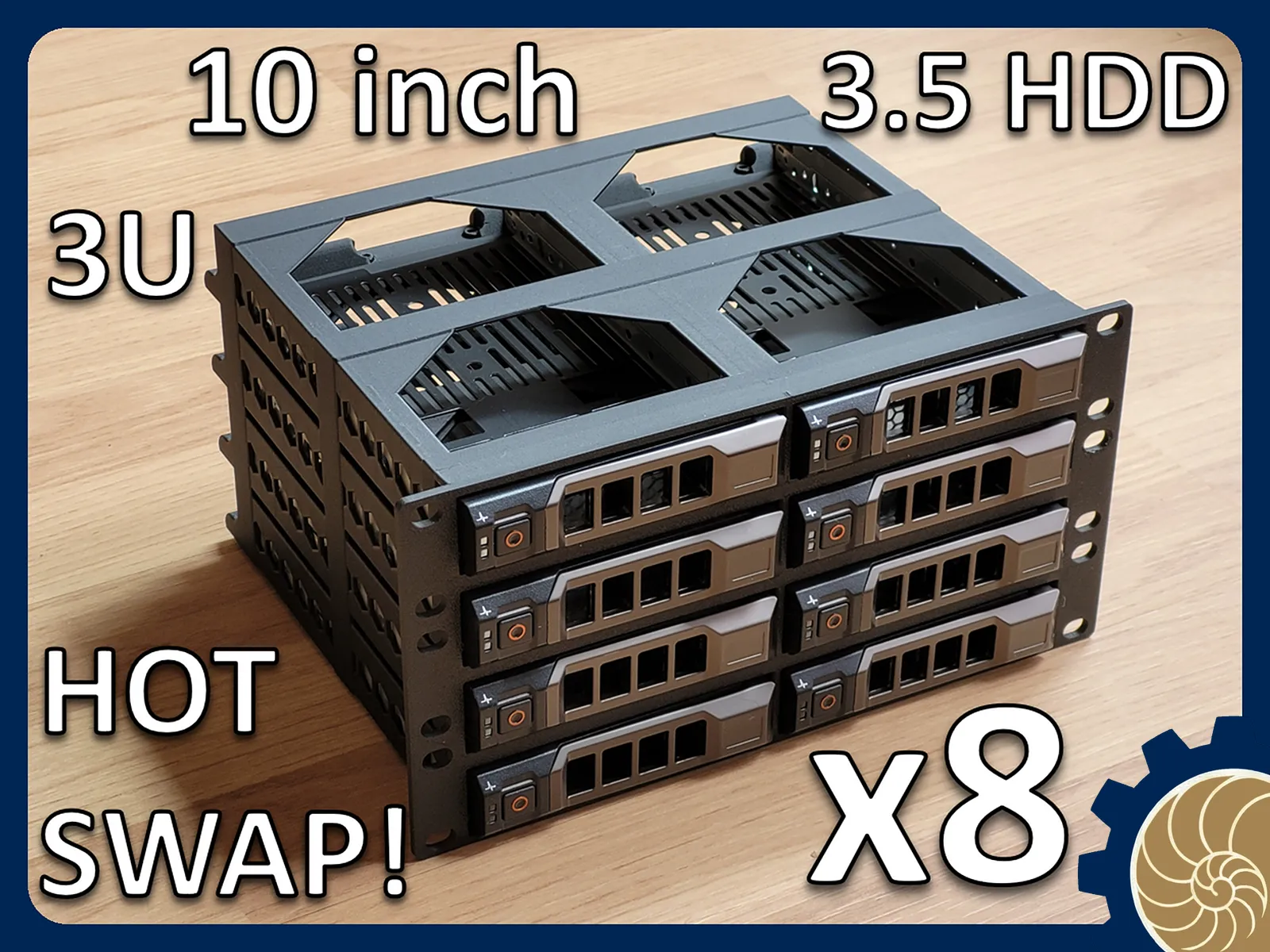

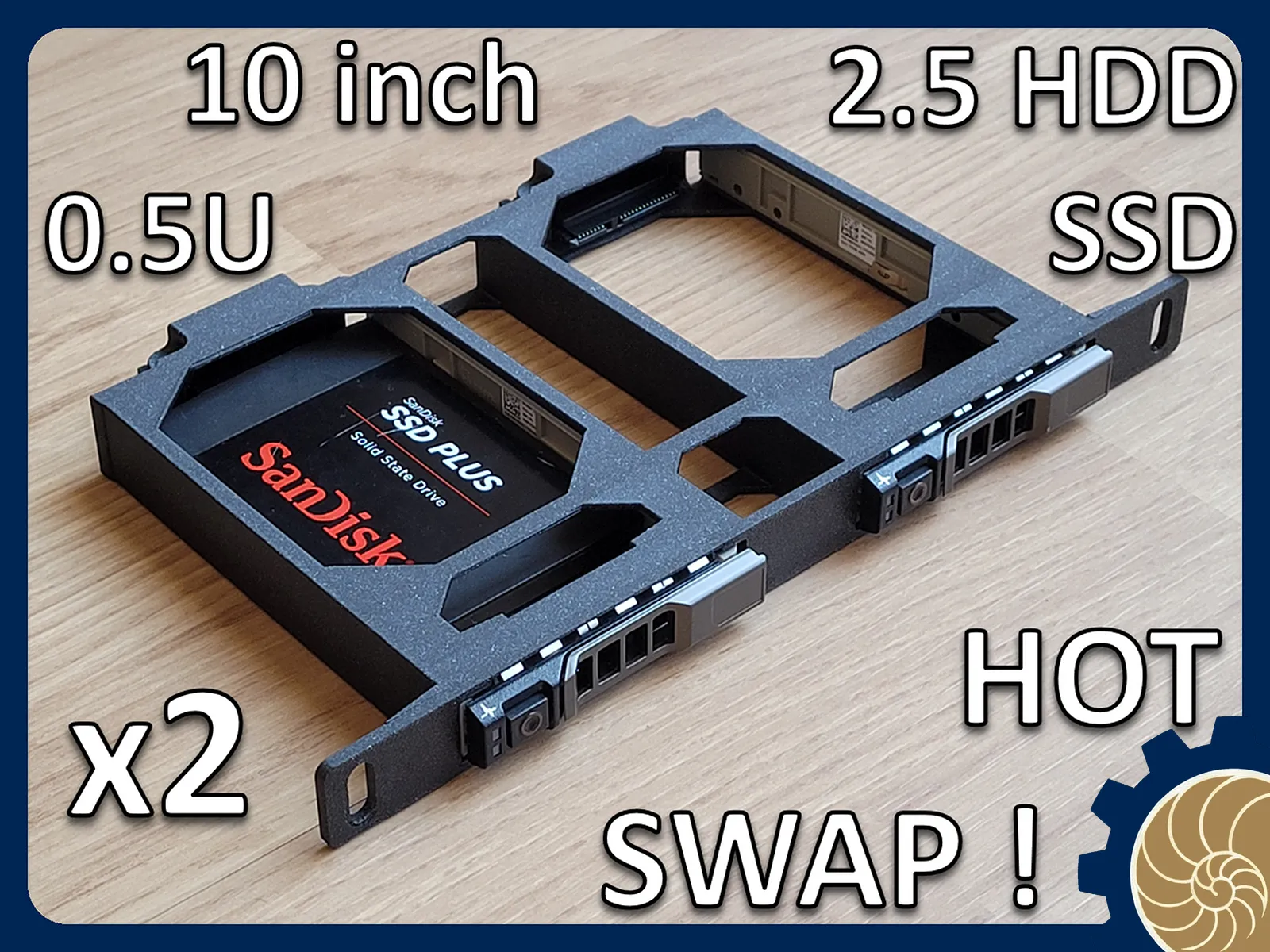

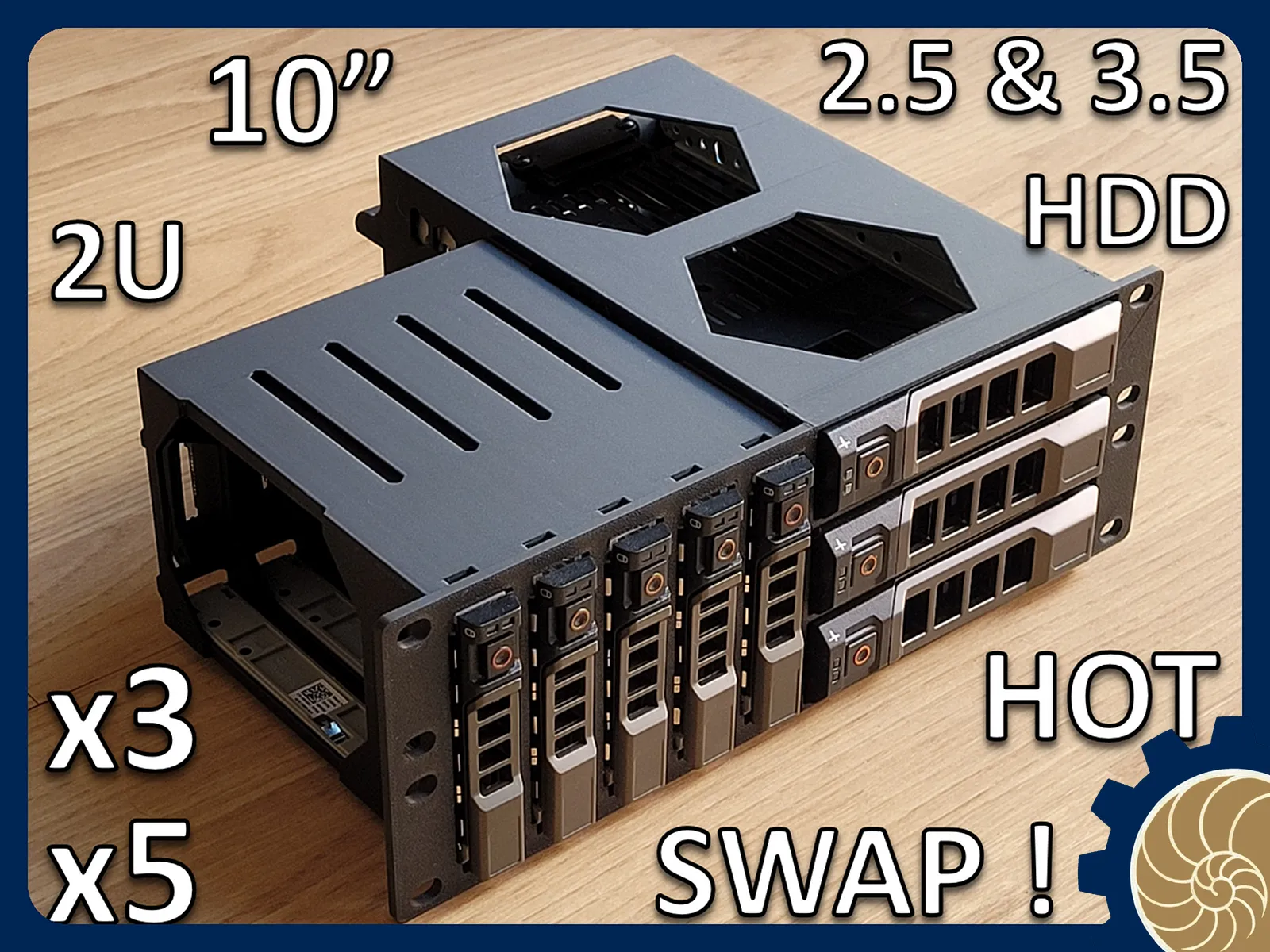

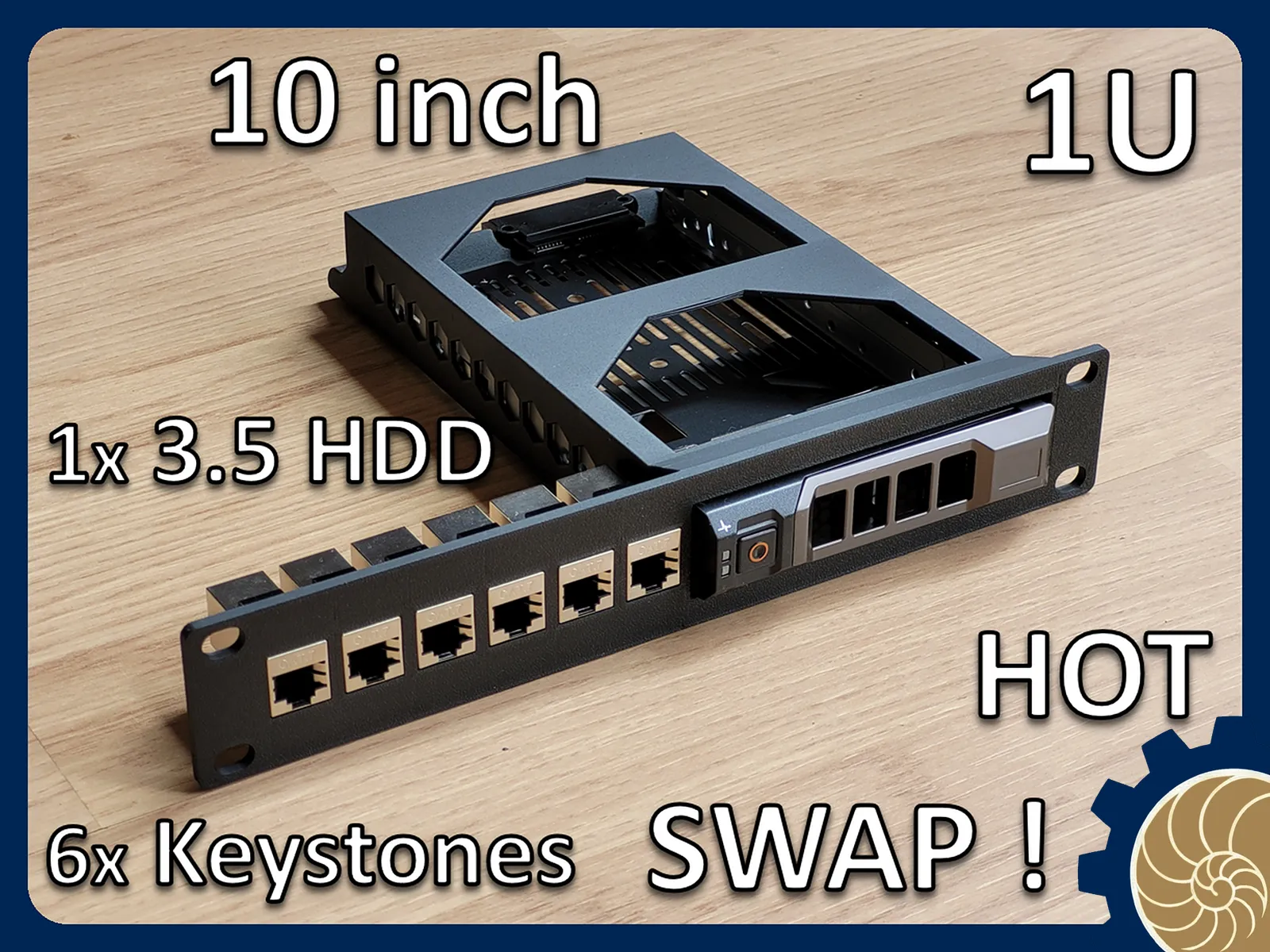

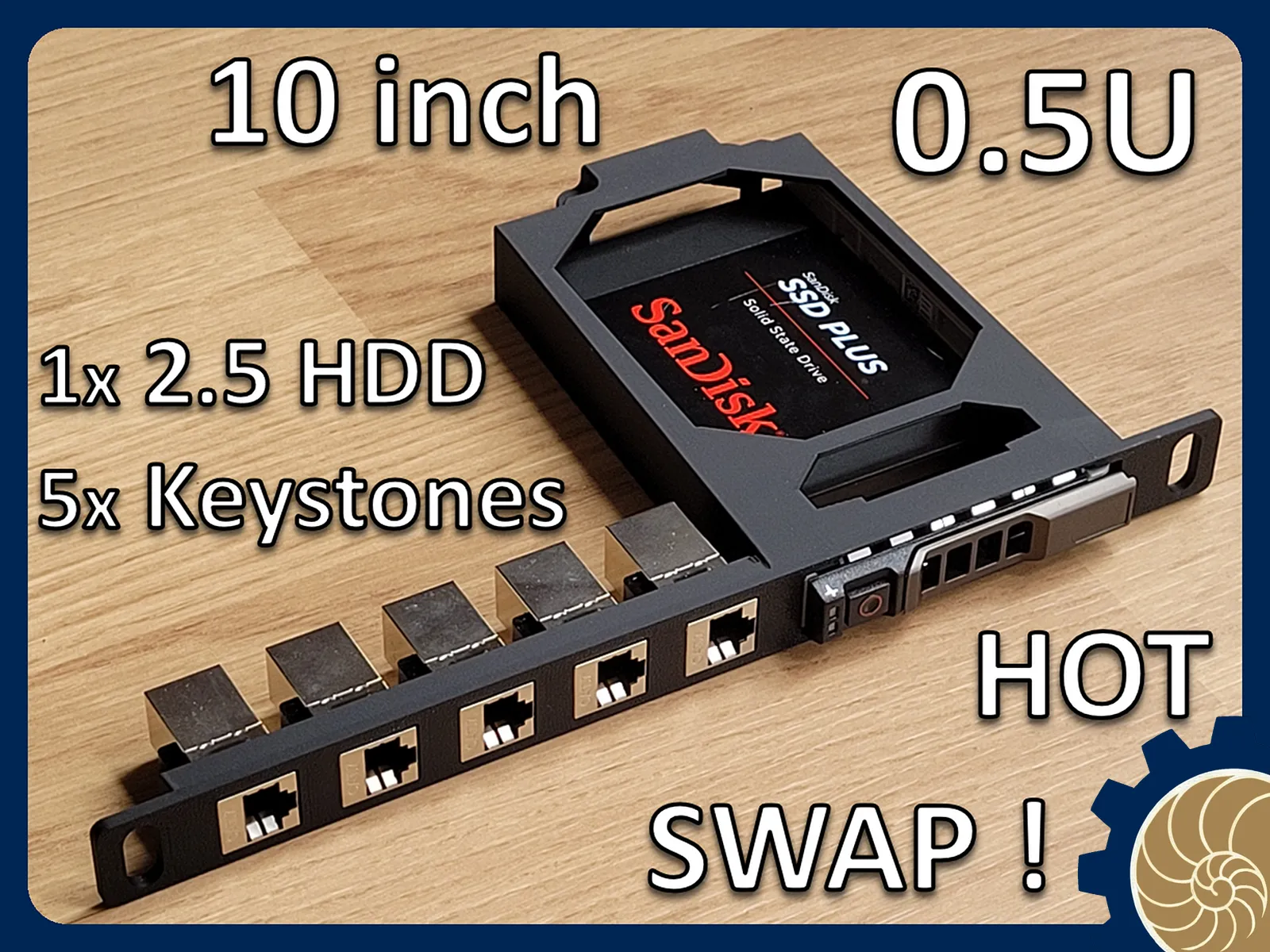

Discover all my other hot‑swap storage projects!
2.5" HDD/SDD | ←←← COMBO! →→→ | 3.5" HDD/SDD | |
|---|---|---|---|

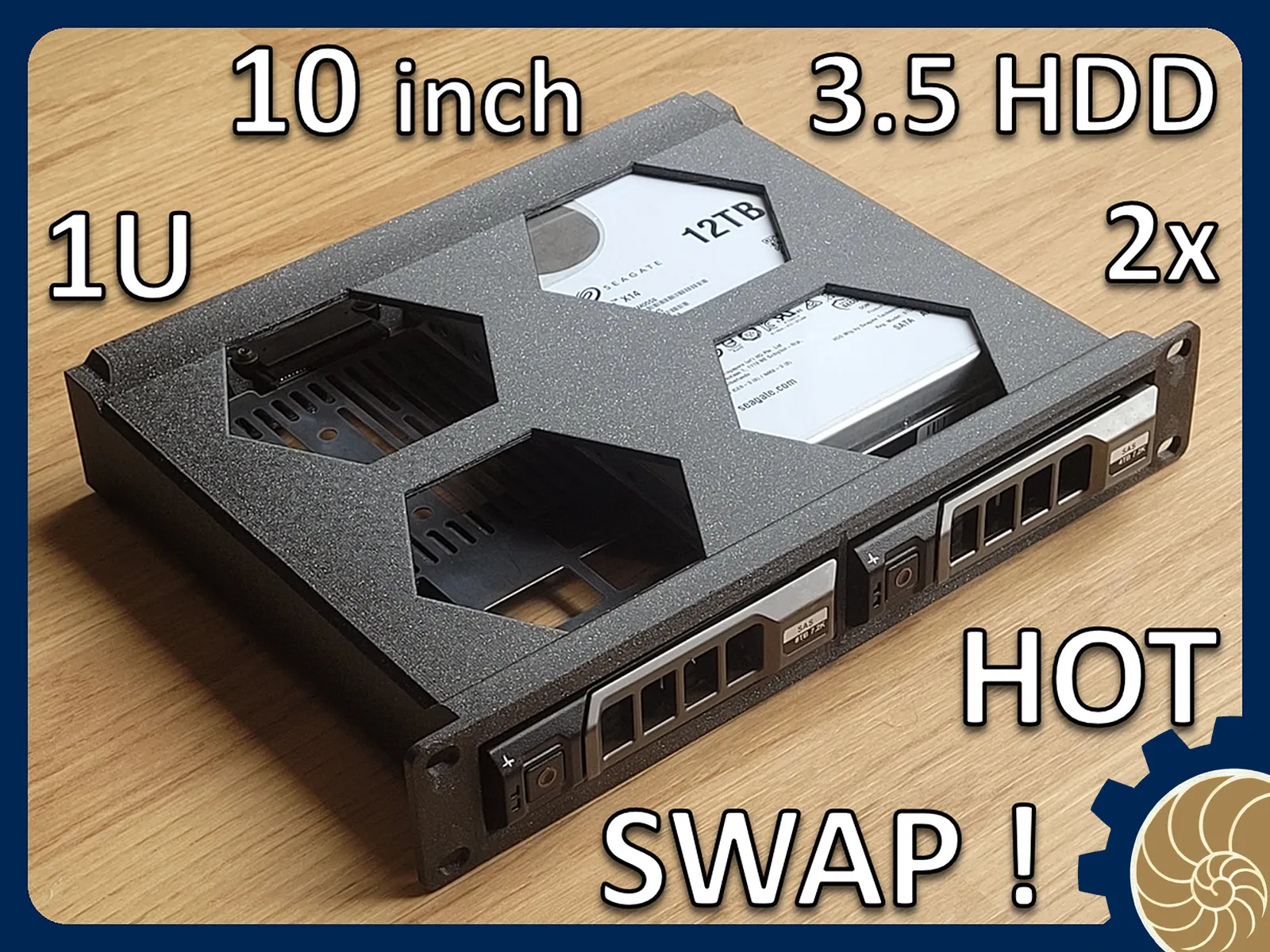

| 1U |  |  |  |
 |  |  | |

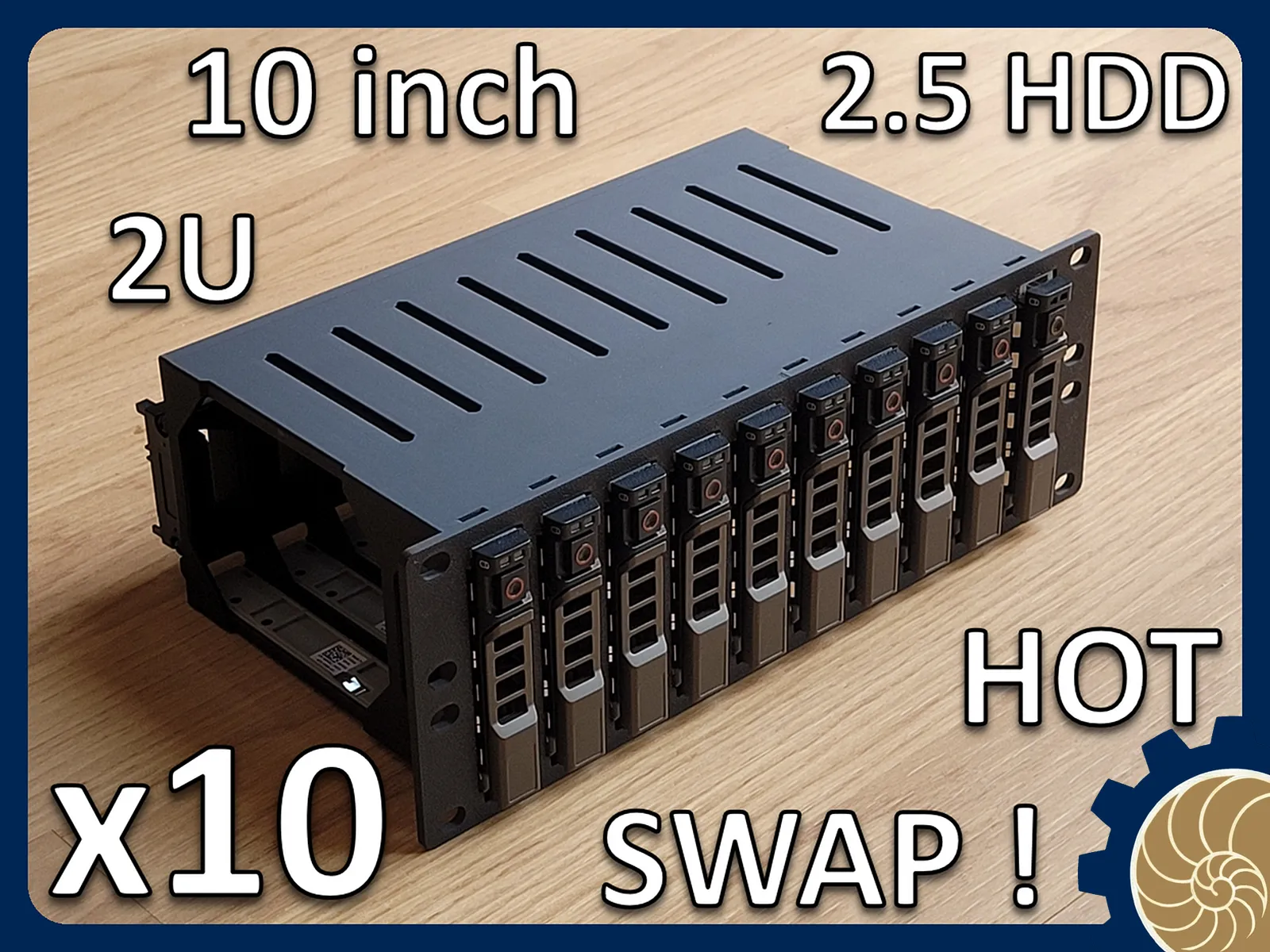

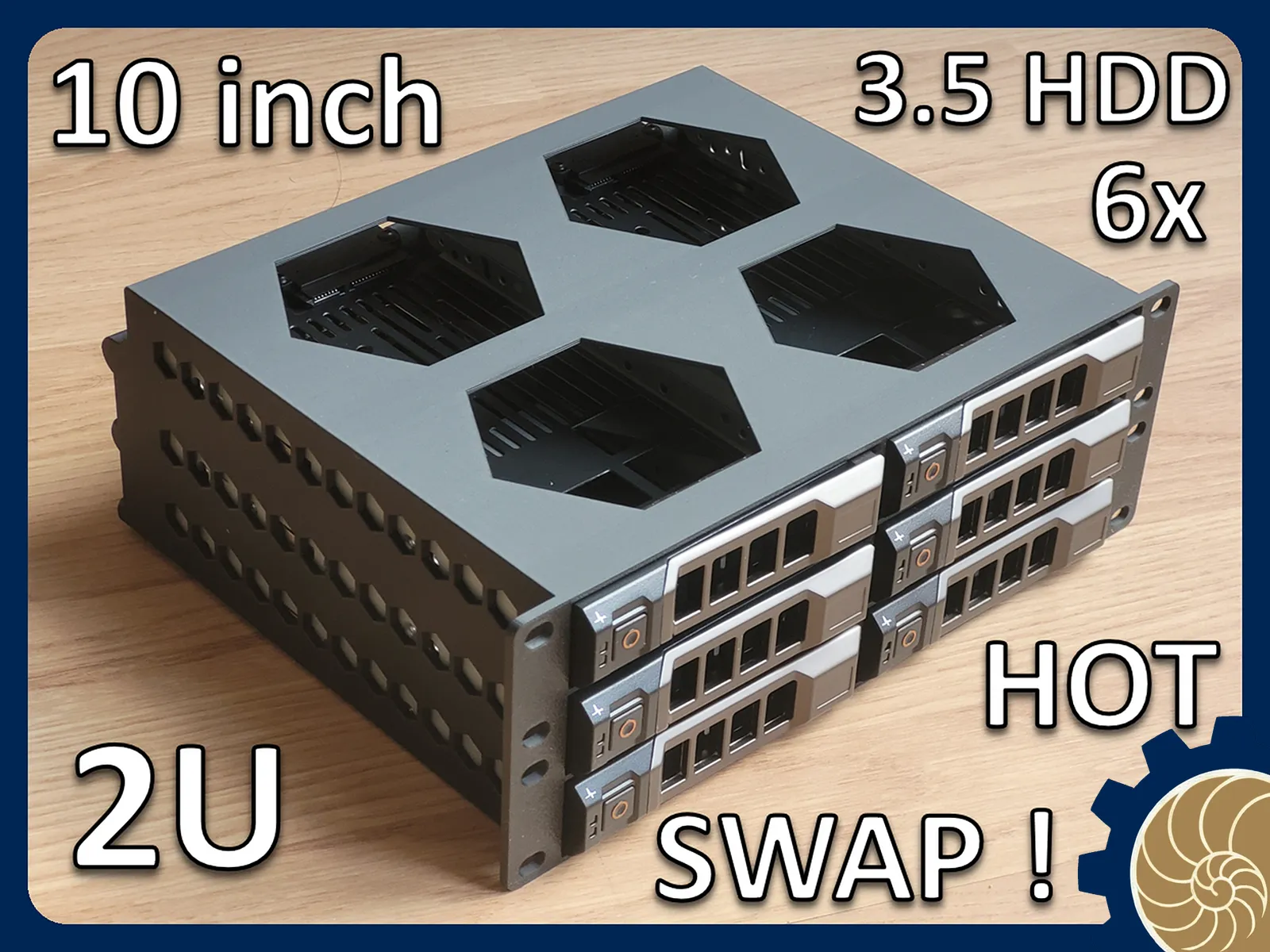

| 2U |  |  |  |
Others | |||

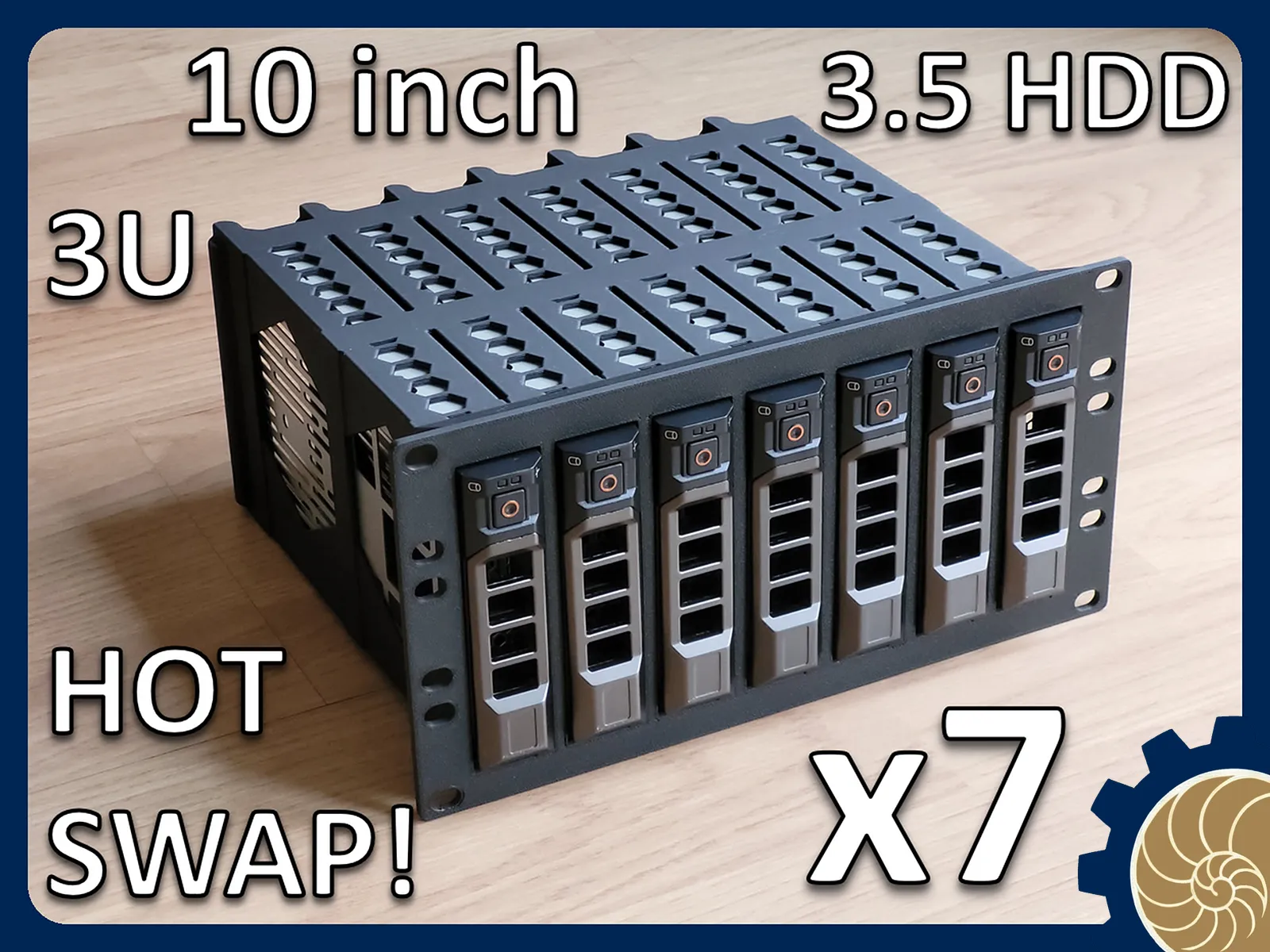

| 3U |  |  | |

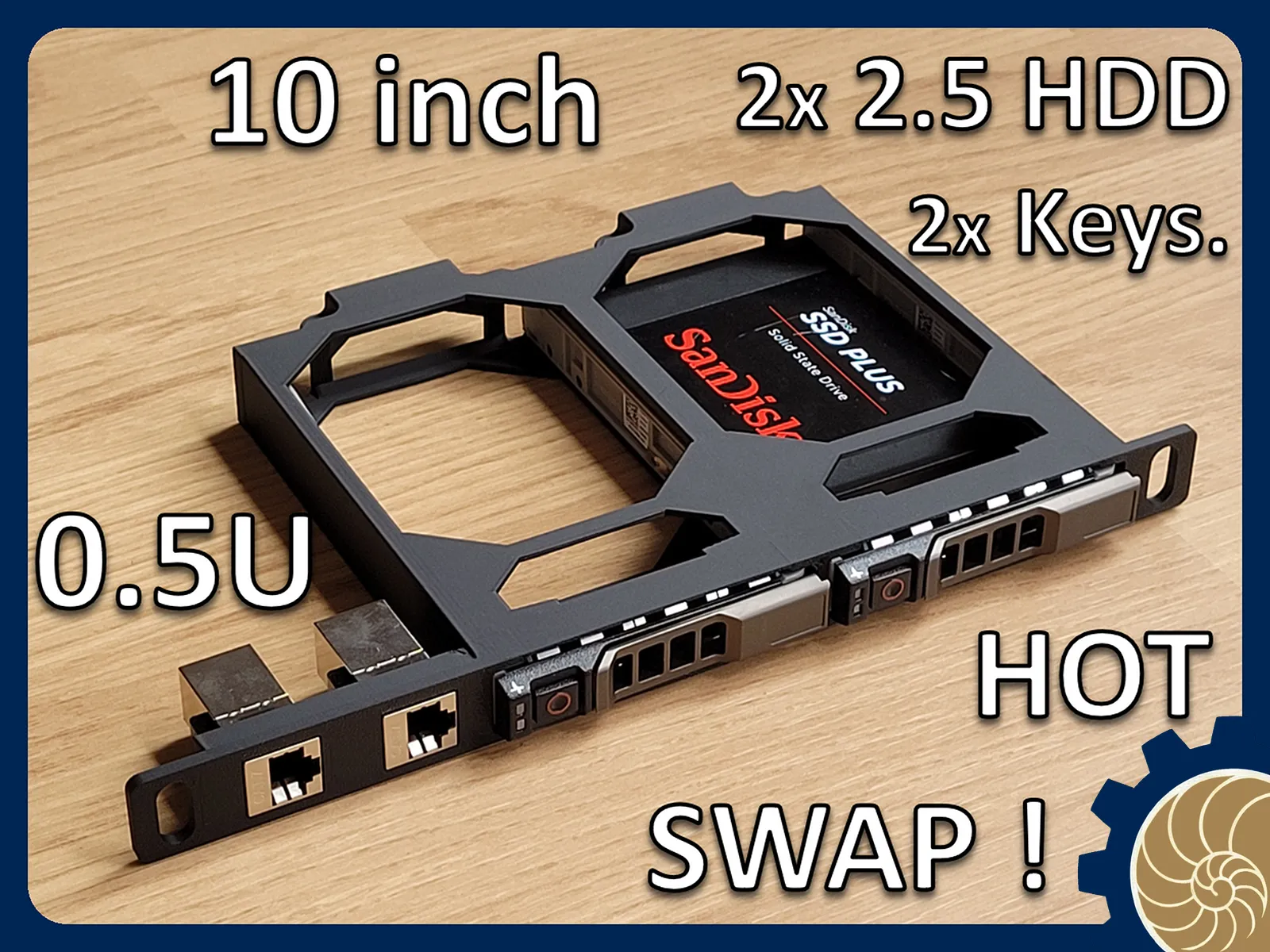

| 0.5U |  |  |  |

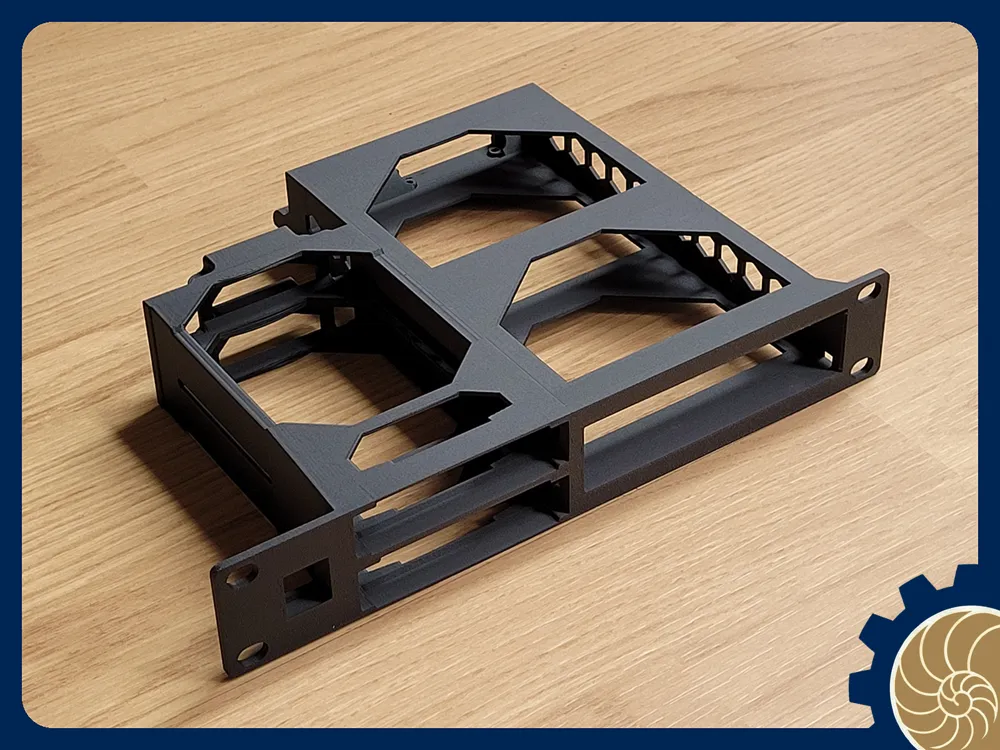

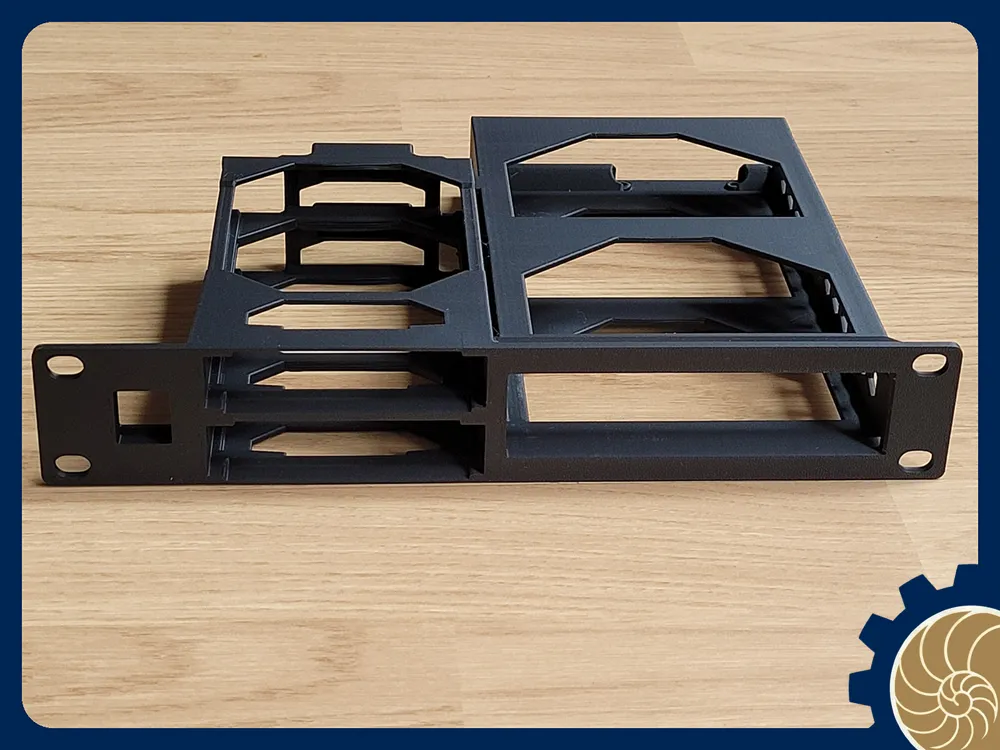

Design:

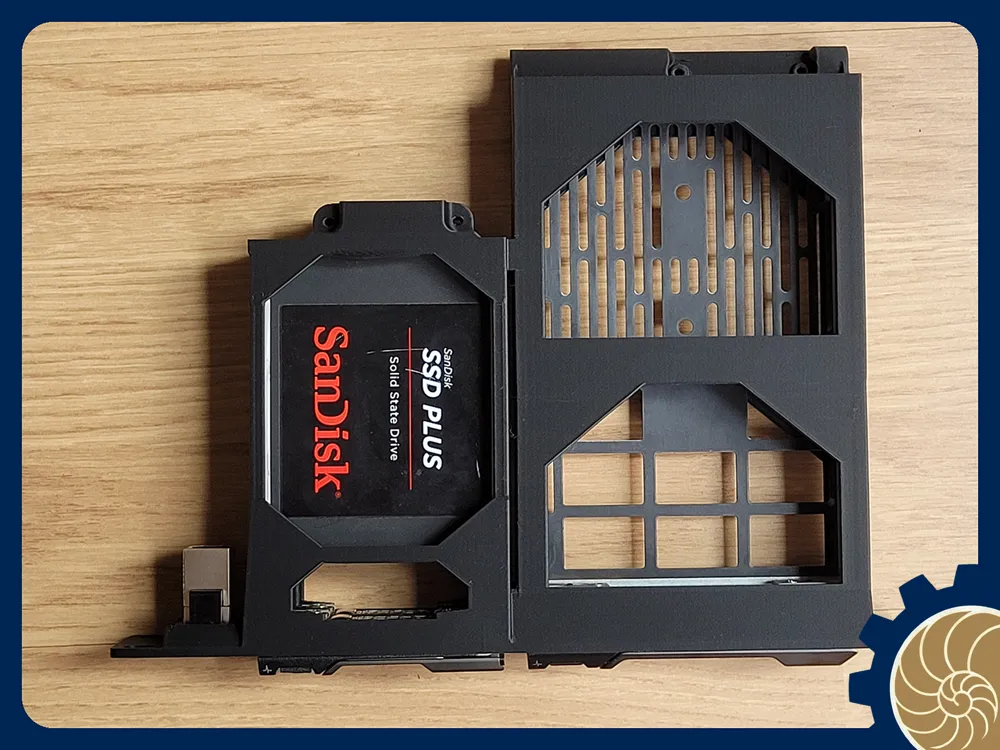

- for 2 x 2.5 HDD/SSD + 1 x 3.5 HDD. mini COMBooO !
- Maximal Density in 1U !
- HOT SWAP is possible. I really wanted that feature and couldn't find it anywhere on printable/makerworld
- Maximum airflow
- Following feedbacks, the mounting of the SATA connector as been redesigned for the 2.5" disks and the 3.5" tray has now greater tolerances.
Print:

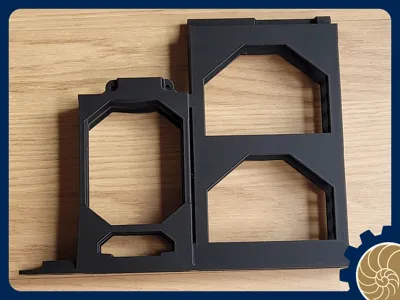

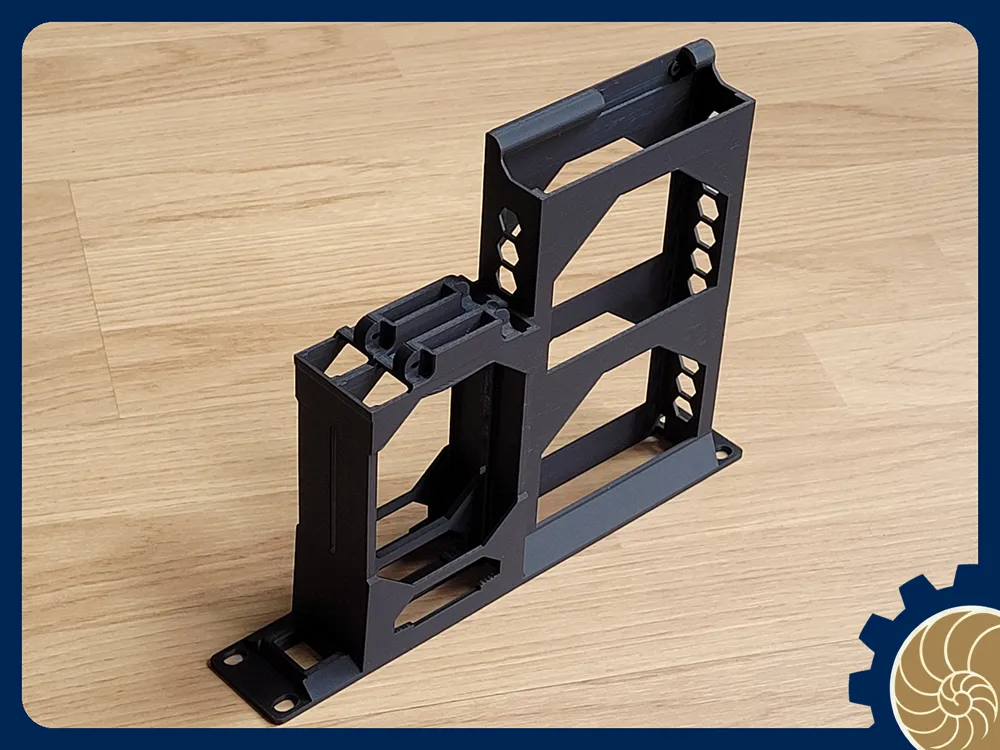

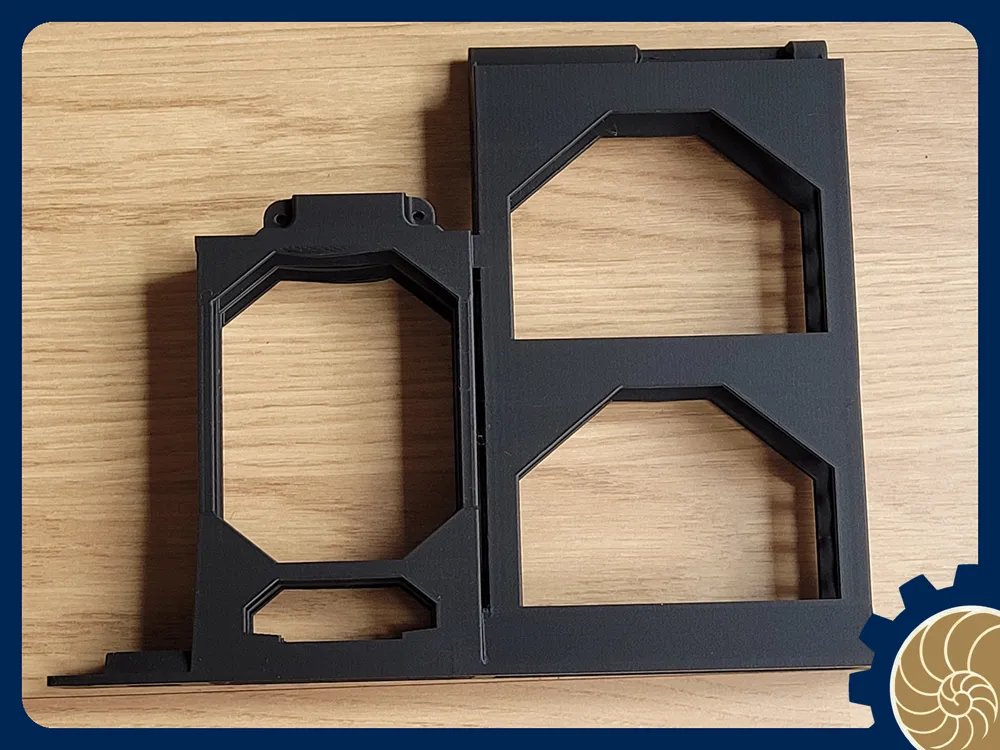

- No support ! Print face down see picture.
Assembly:

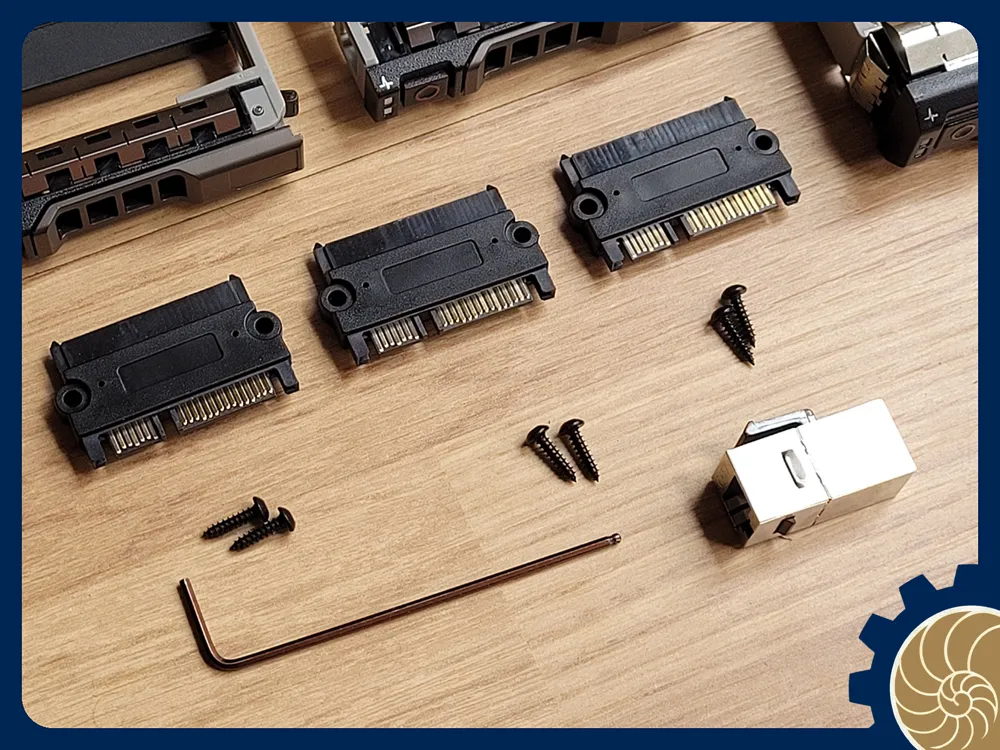

- For the 2.5", assemble the SATA connectors as per pictures starting from the least accessible using an HEX/ALLEN key 2MM and passing the key by the hole of the next one.

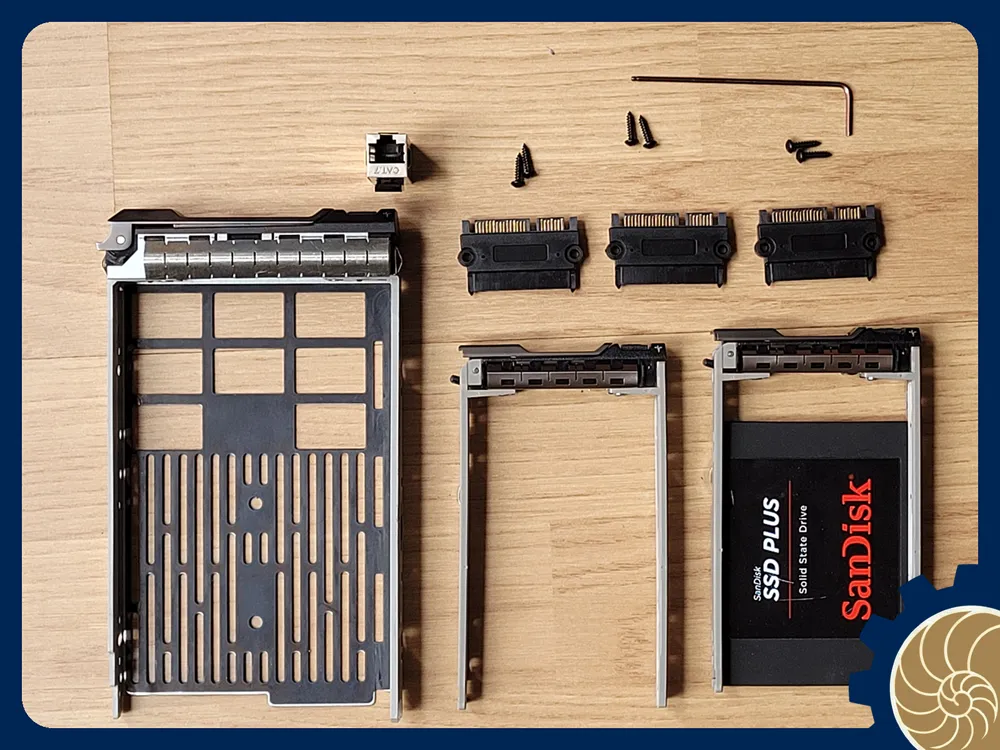

Other Material:
I use those dell-copy caddies from Aliexpress:

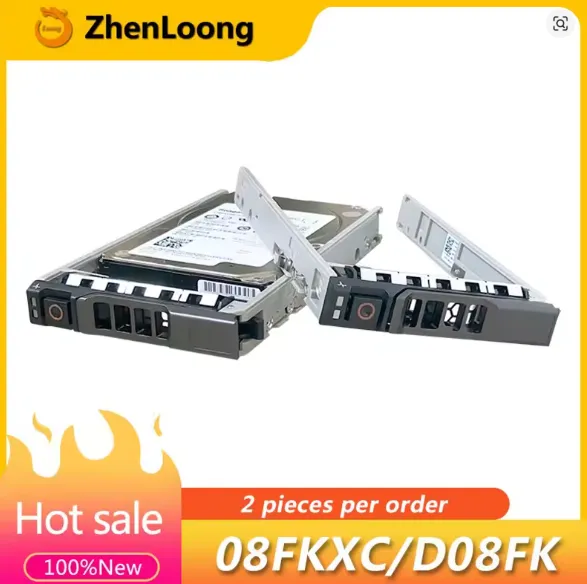

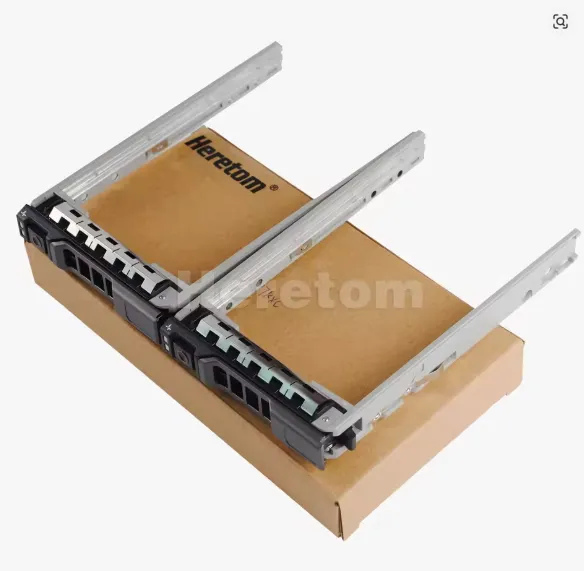

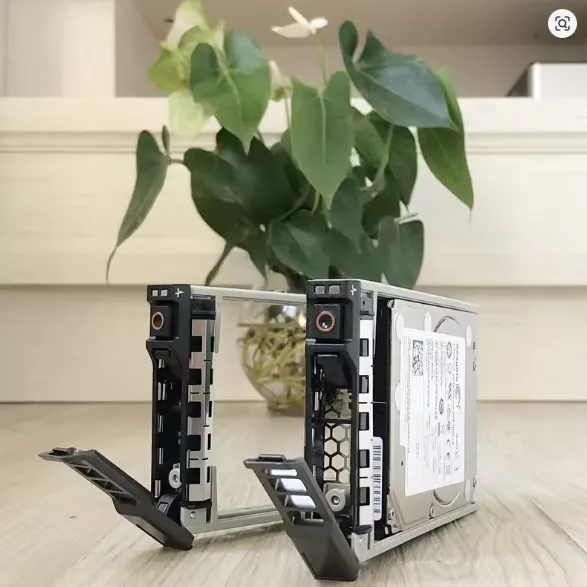

2x 2.5" trays:
keywords:

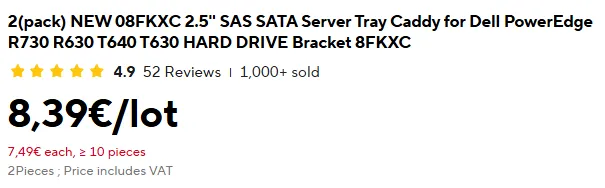

- “NEW 08FKXC 2.5'' SAS SATA Server Tray Caddy for Dell PowerEdge R730 R630 T640 T630 HARD DRIVE Bracket 8FKXC”
- "2 PCS NEW 2Pcs/Lot 08FKXC 2.5'' SAS SATA Server Tray Caddy for Dell PowerEdge R730 R630 T640 T630 HDD Bracket Drawer 8FKXC G176J"
 |  |
 |  |
2pack tray sells for about 9eur:

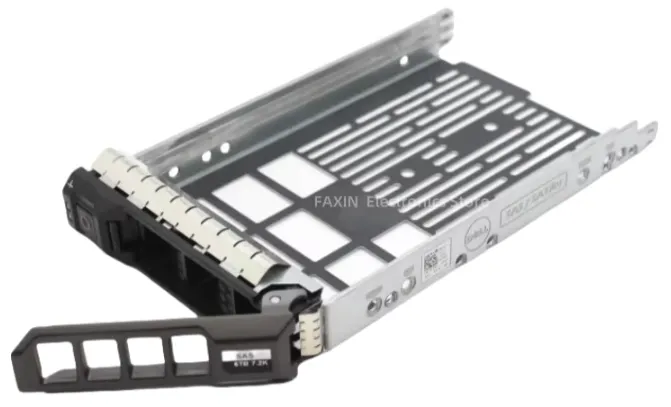

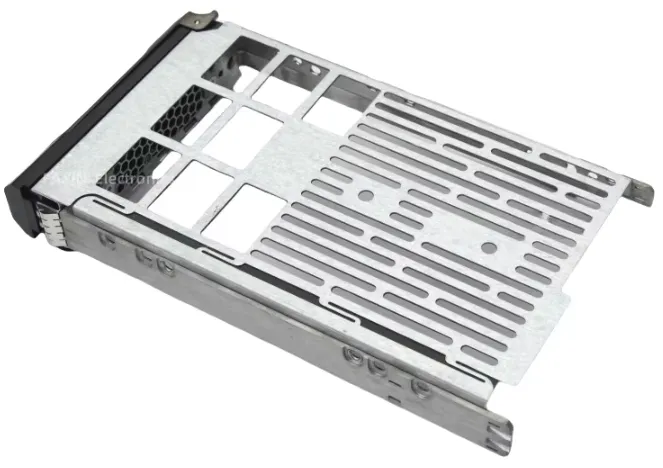

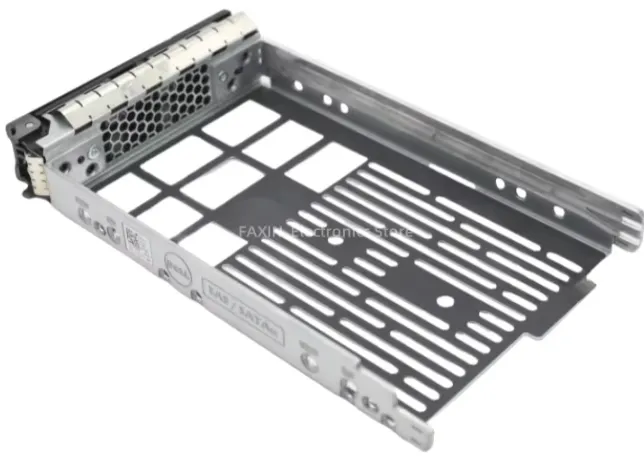

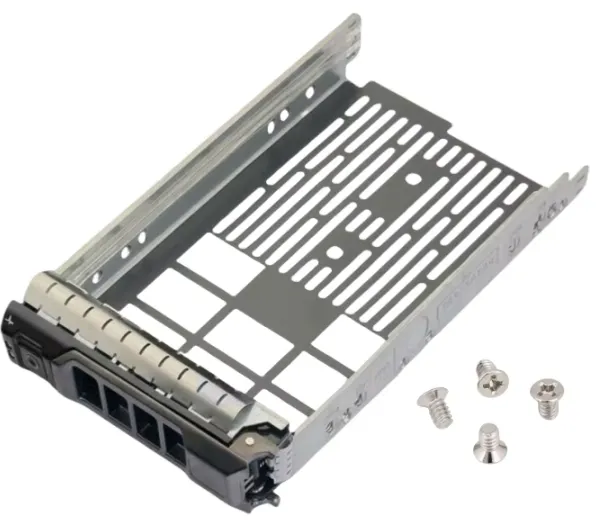

1x 3.5" trays:

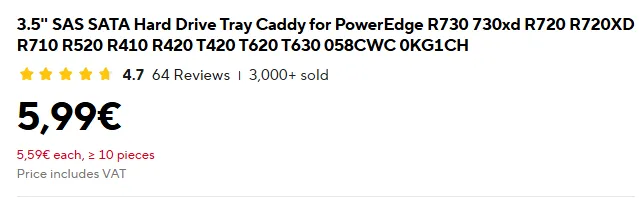

keywords: " 3.5'' SAS SATA Hard Drive Tray Caddy for Dell PowerEdge R730 730xd R720 R720XD R710 R520 R410 R420 T420 T620 T630 058CWC 0KG1CH "
" For Dell PowerEdge T330 T430 T630 R230 R330 R430 R530 R630 R730 R730XD 0KG1CH 3.5" SAS SATA Hard Disk Caddy Tray KG1CH "
 |  |
 |  |
Each tray is about 6eur:
- HERE in Aliexpress
- or HERE in Aliexpress too

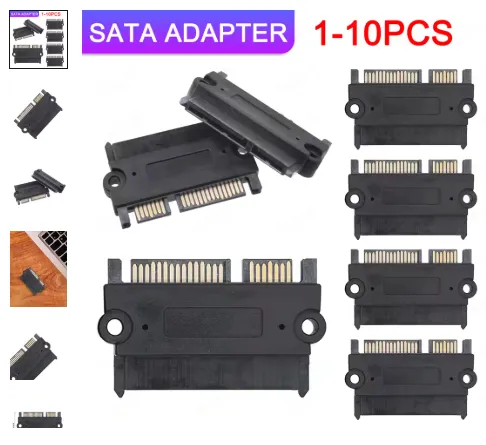

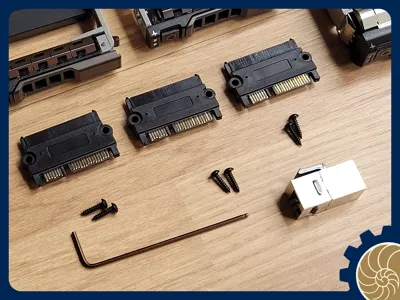

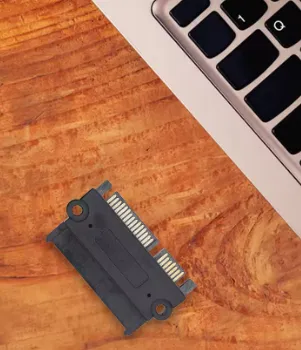

For the Hot swappable connection:
I used those:

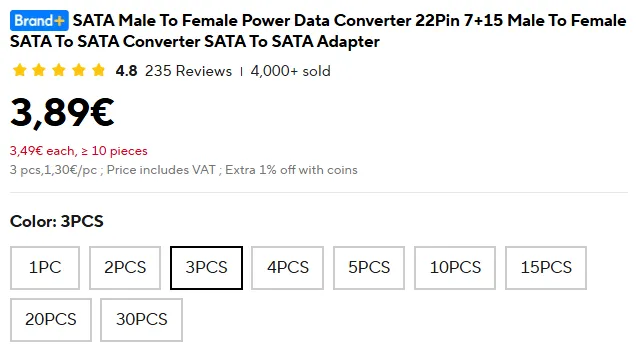

keywords: SATA Male To Female Power Data Converter 22Pin 7+15 Male To Female SATA To SATA Converter SATA To SATA Adapter
 |  |
 |  |
Currently about 4eur for 3:
- Here on aliexpress
Screws are listed in the BOM:
- Self tapping HEX M3x12m button head, also easily available on aliexpress and bambu's maker supply

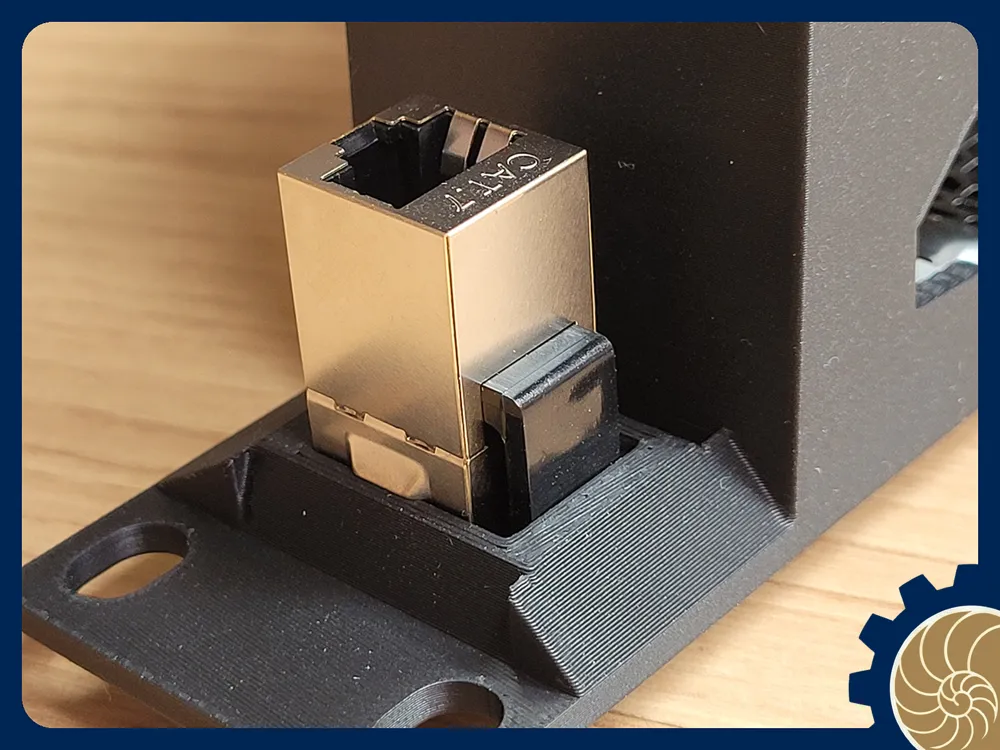

For the keystone, it is standard keystone size, choose the one you need.
Hope it helps !
