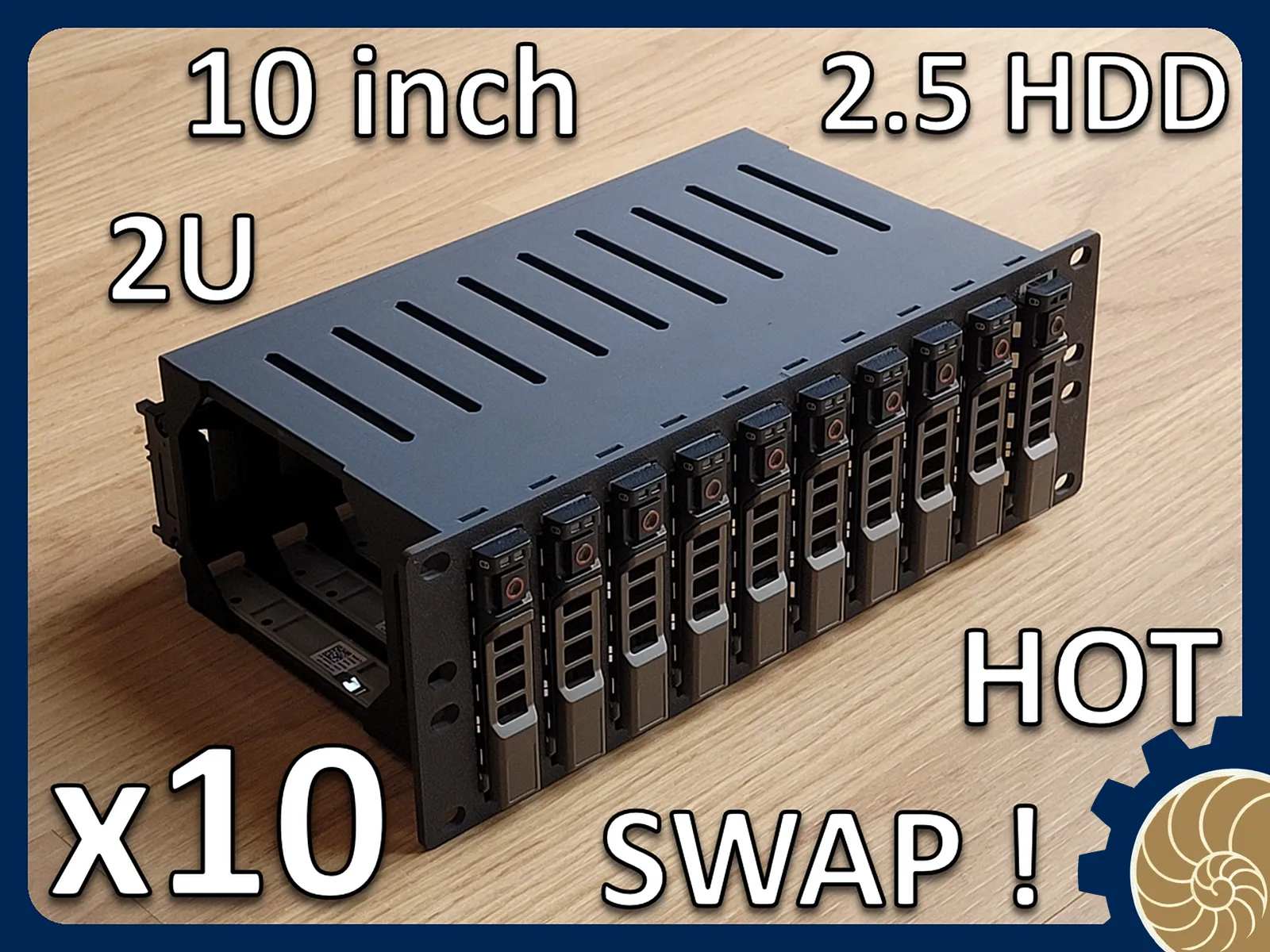

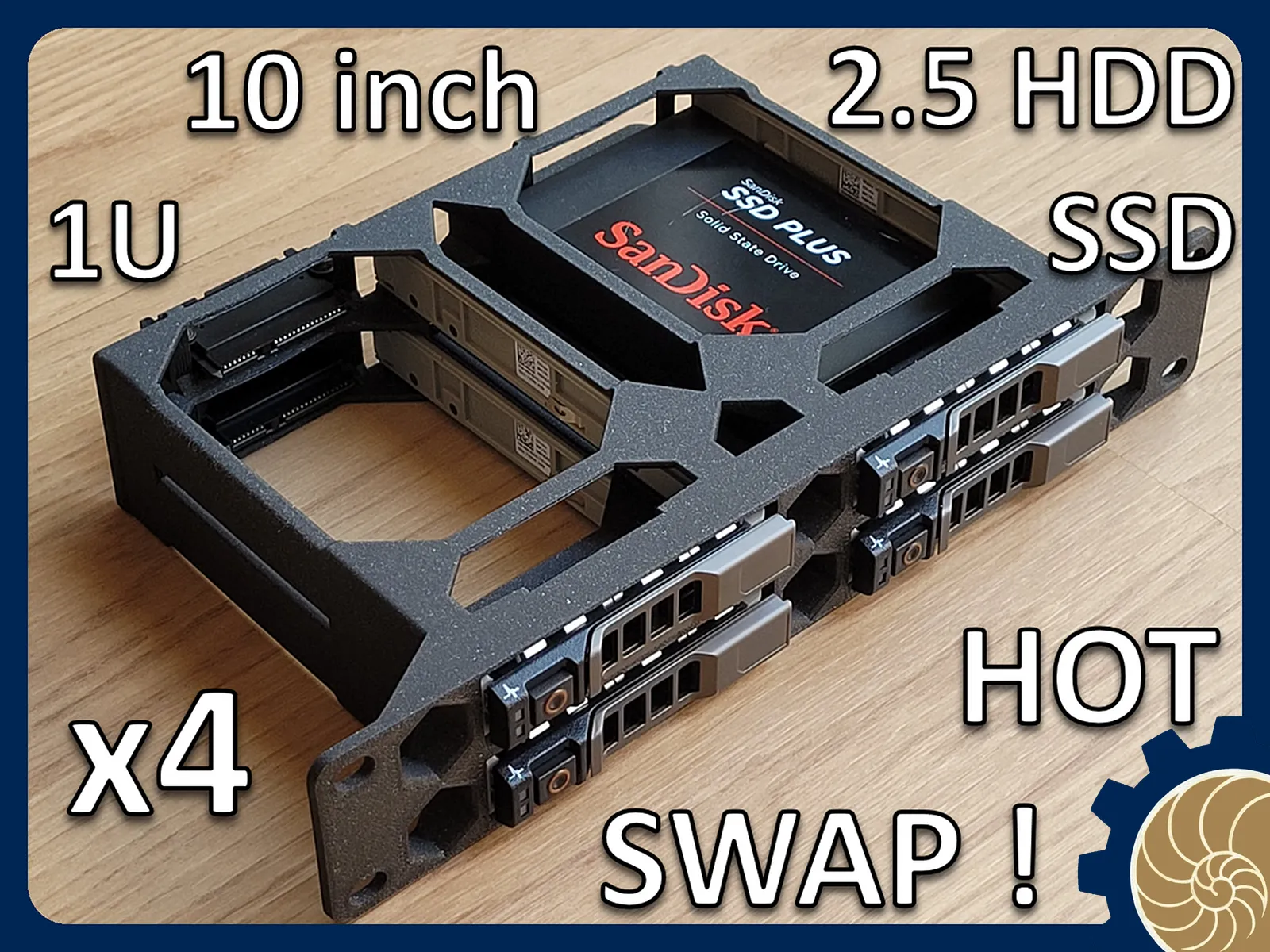

Discover all my other hot‑swap storage projects!
2.5" HDD/SDD | ←←← COMBO! →→→ | 3.5" HDD/SDD | |
|---|---|---|---|

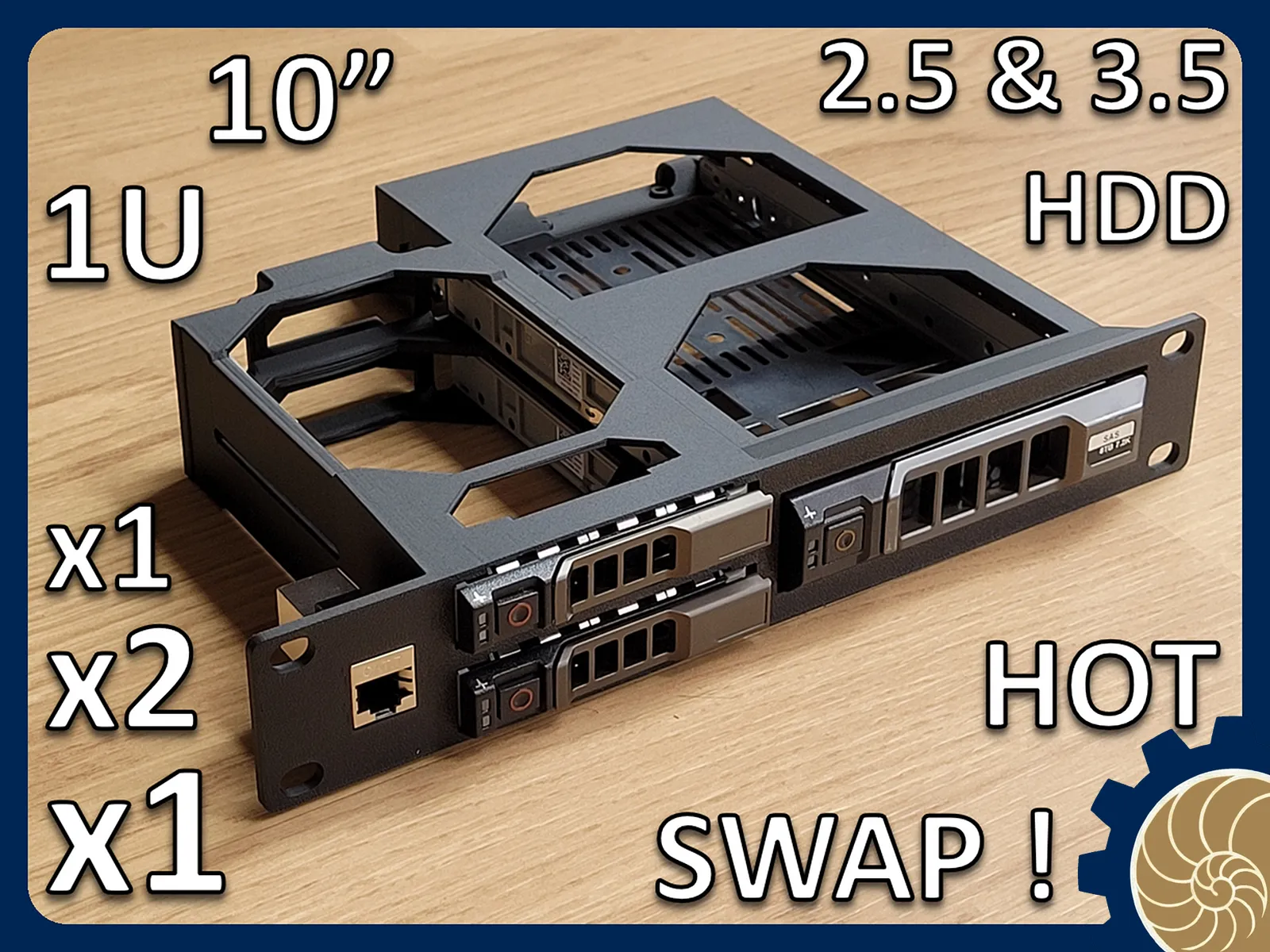

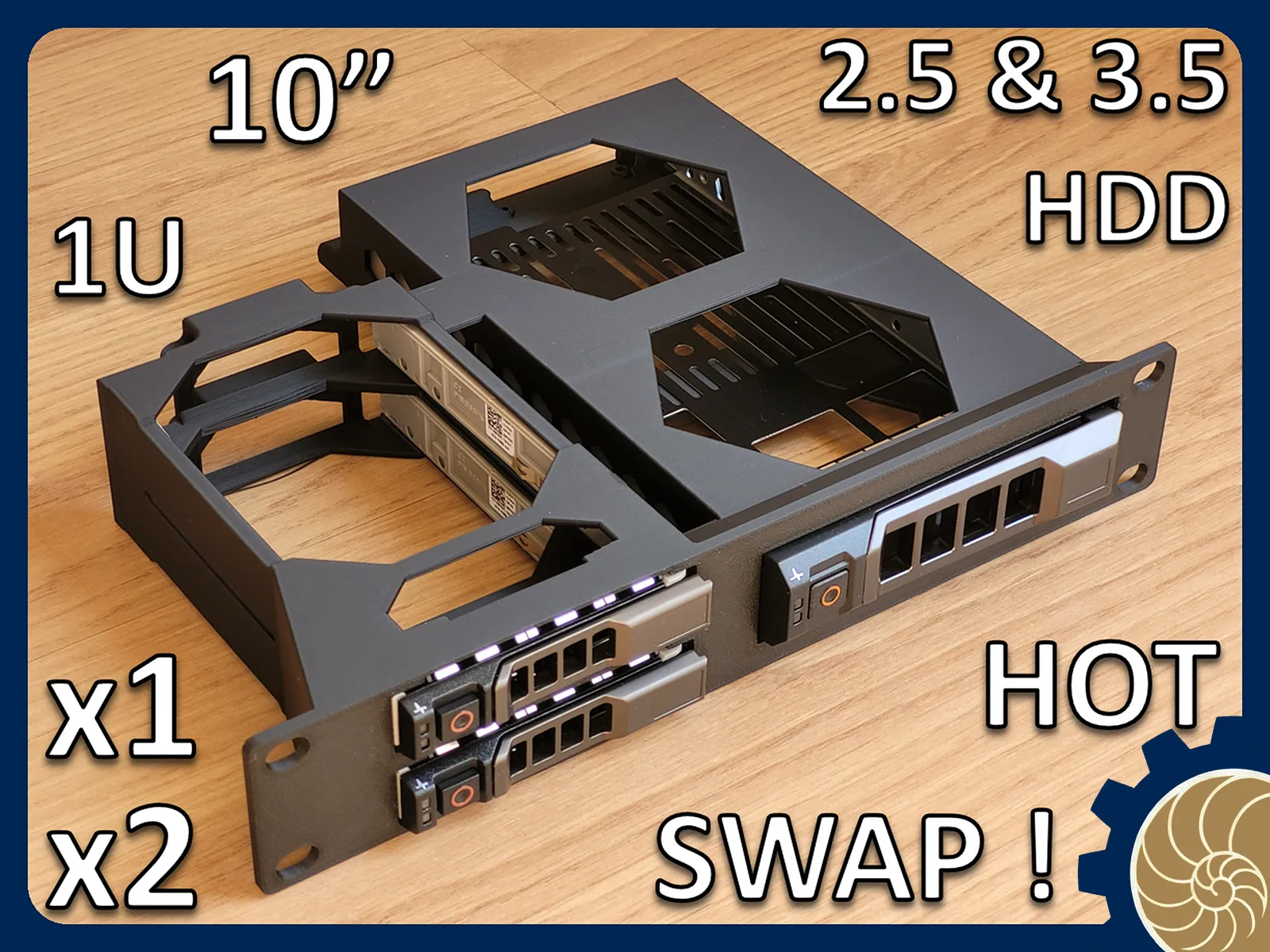

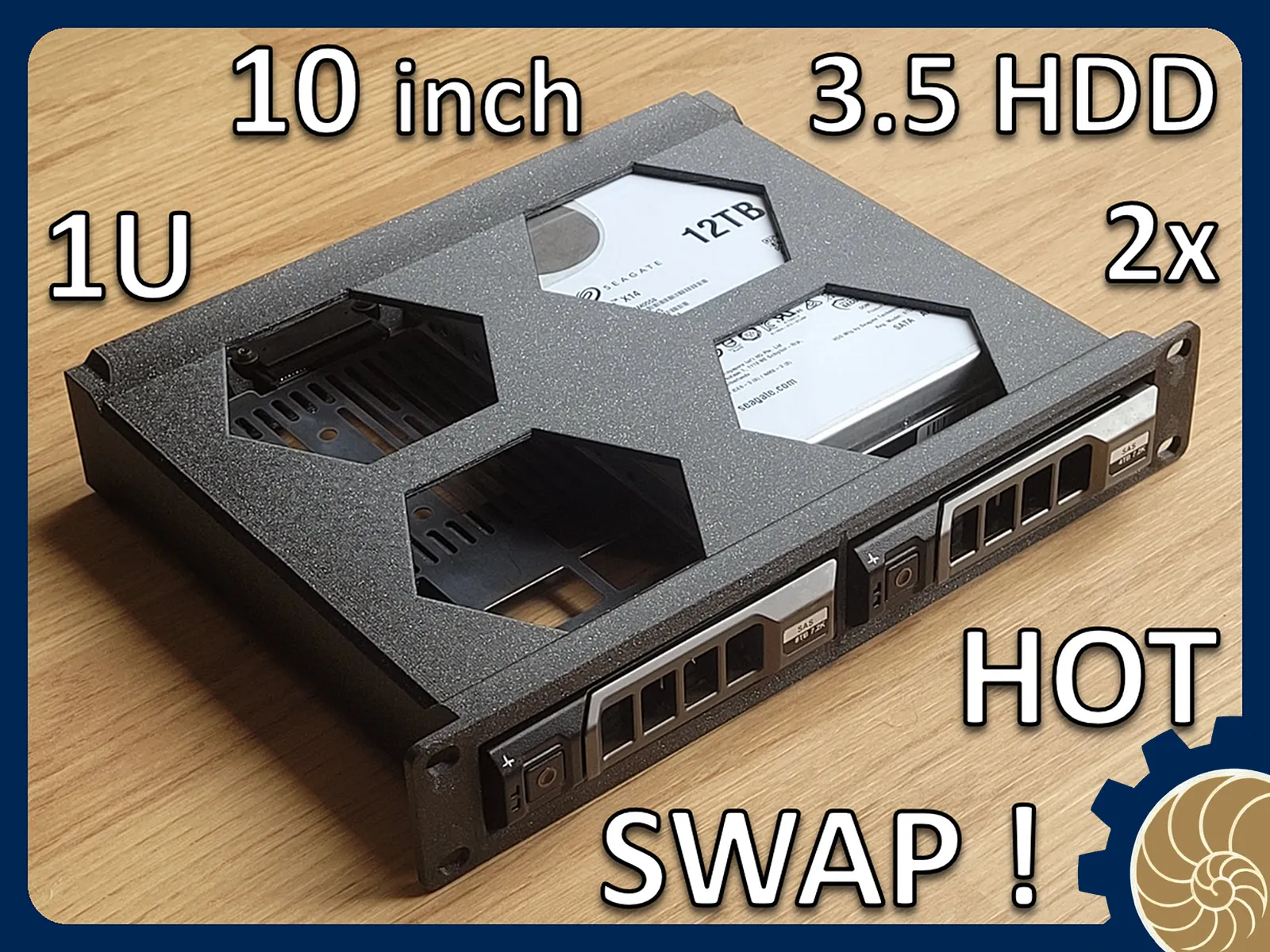

| 1U |  |  |  |
 |  |  | |

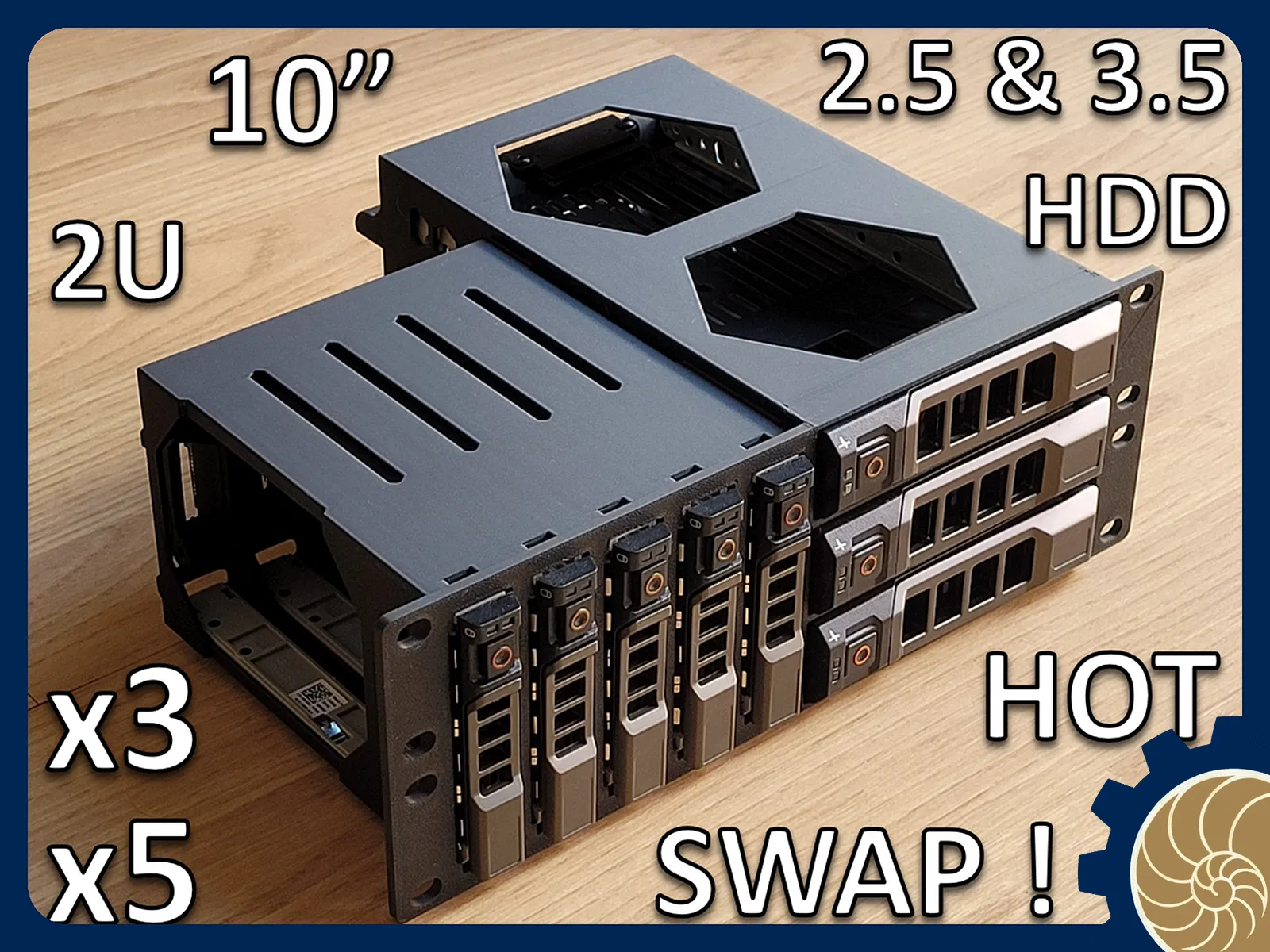

| 2U |  |  |  |
Others | |||
| 3U |  |  | |

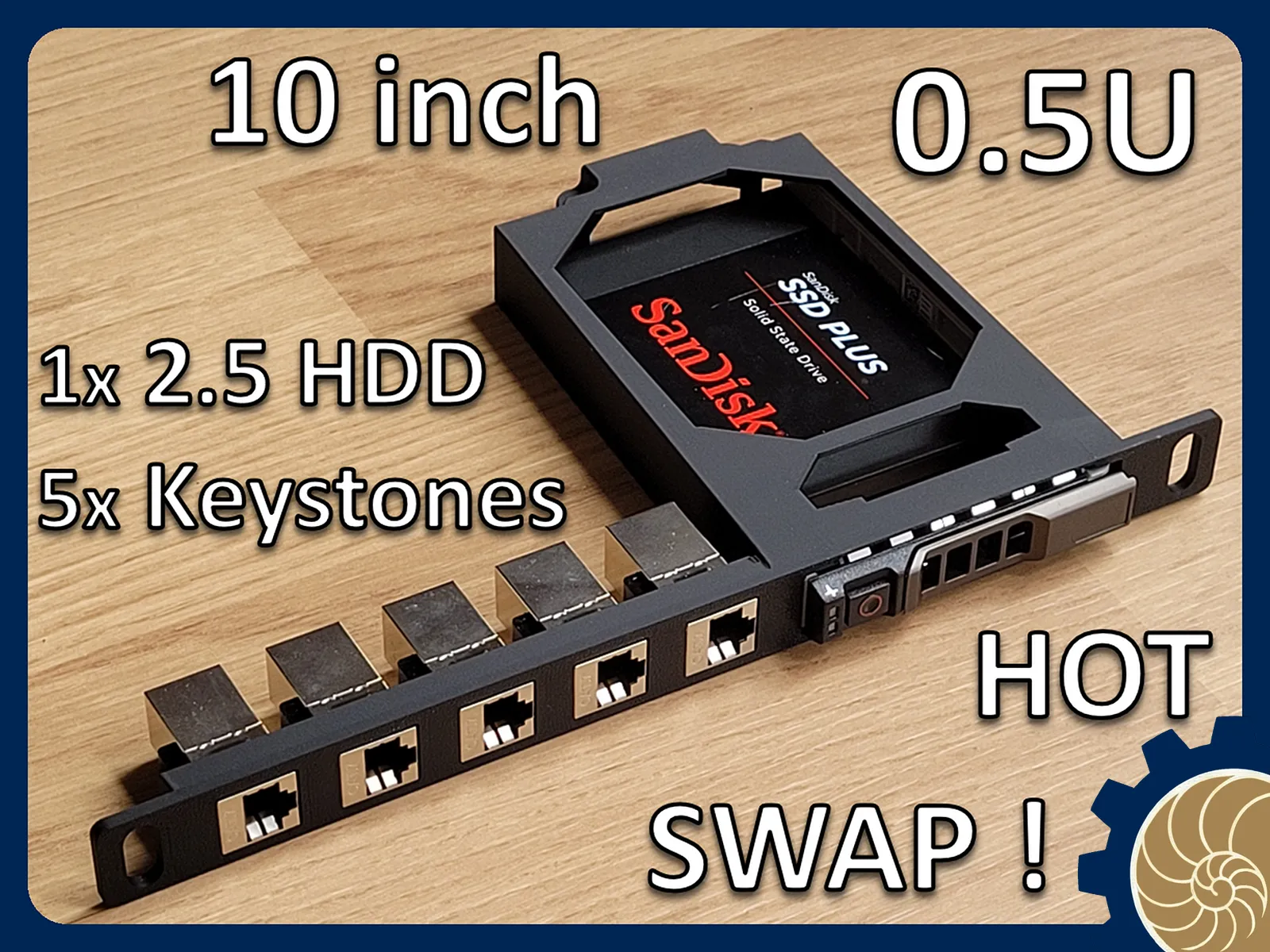

| 0.5U |  |  |  |

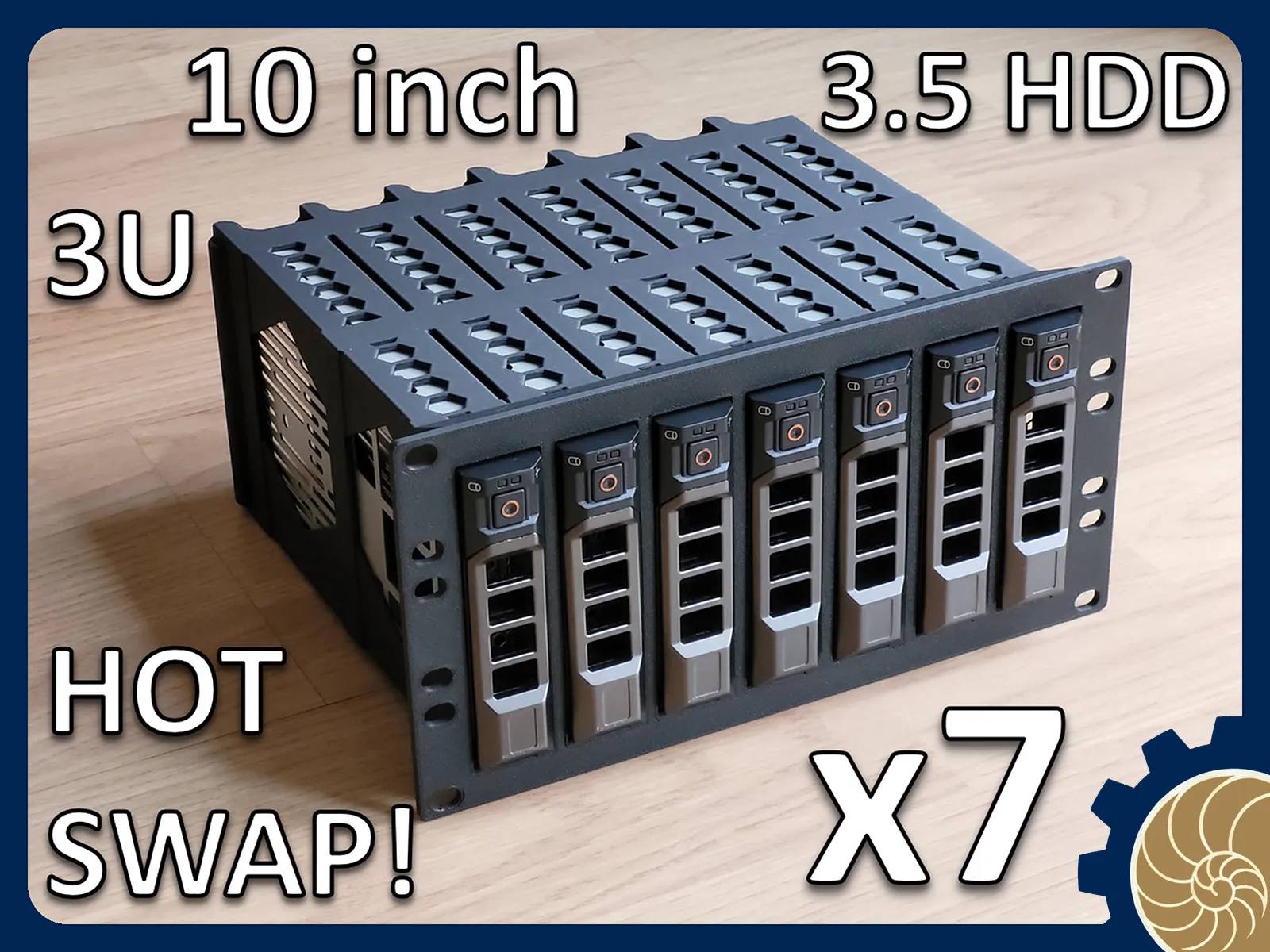

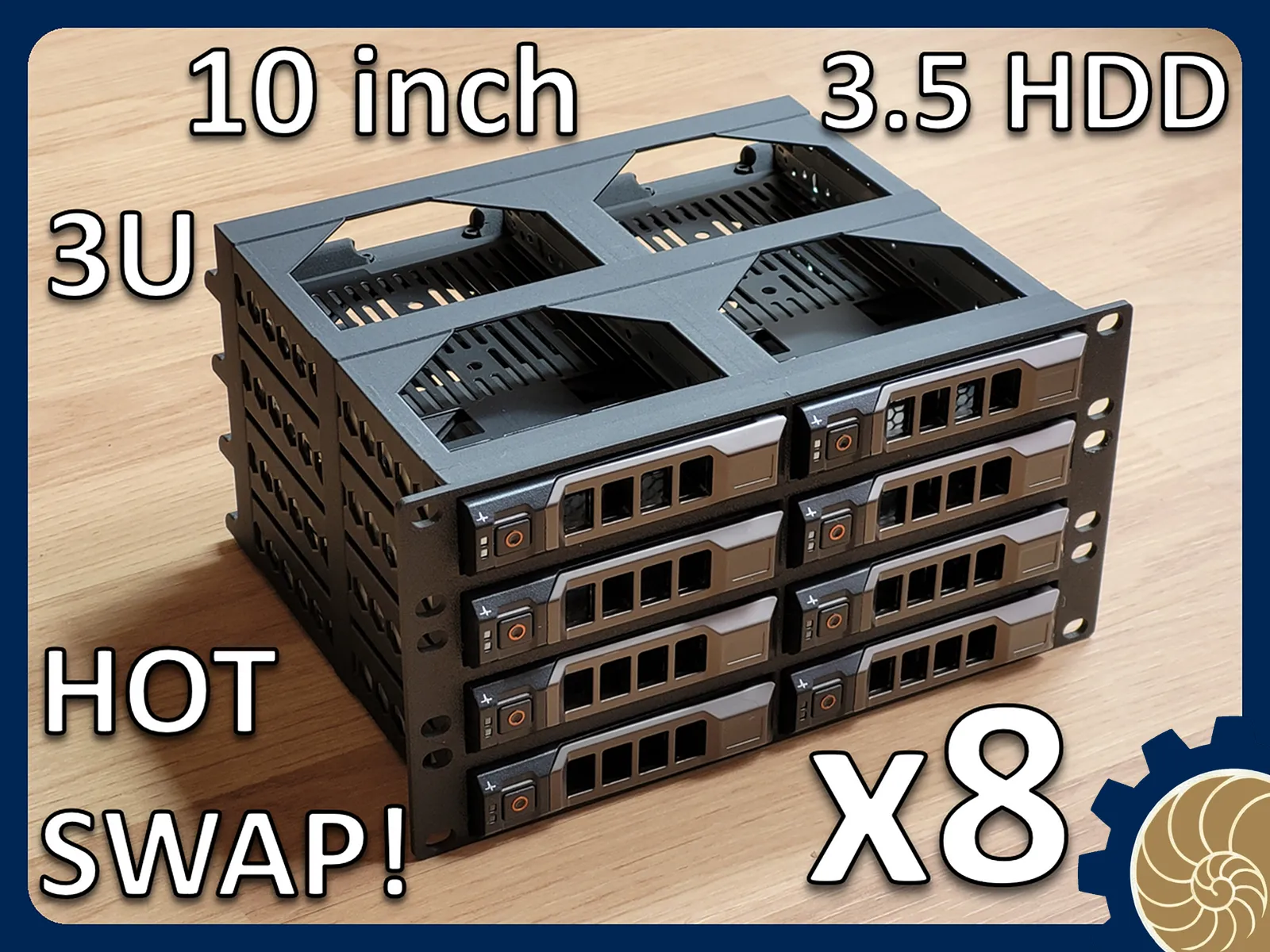

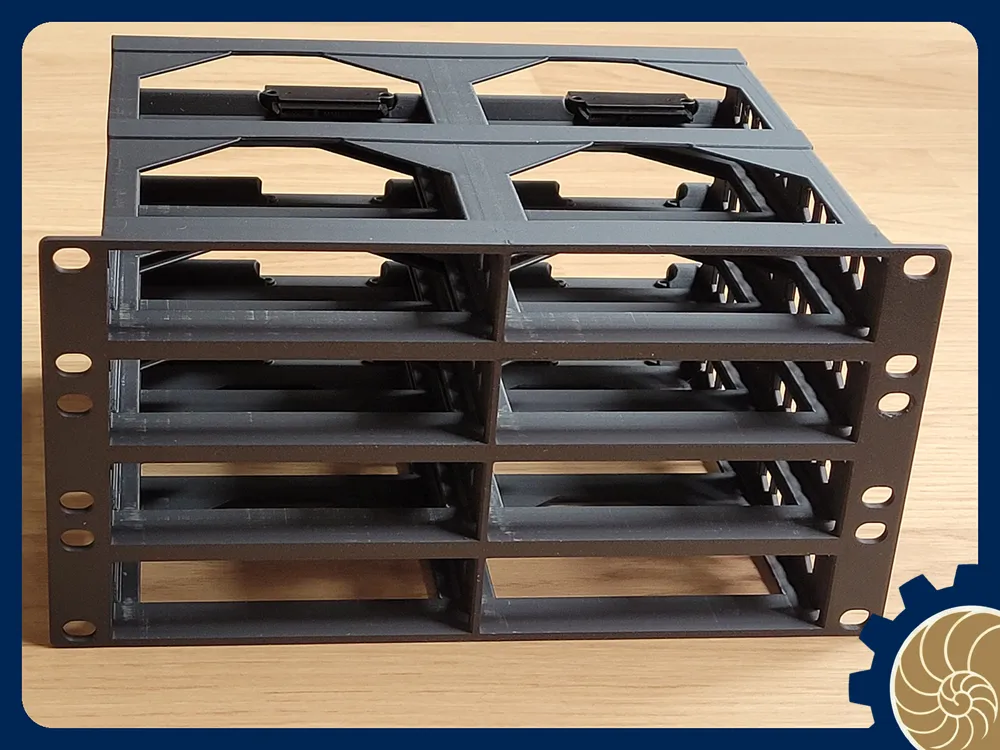

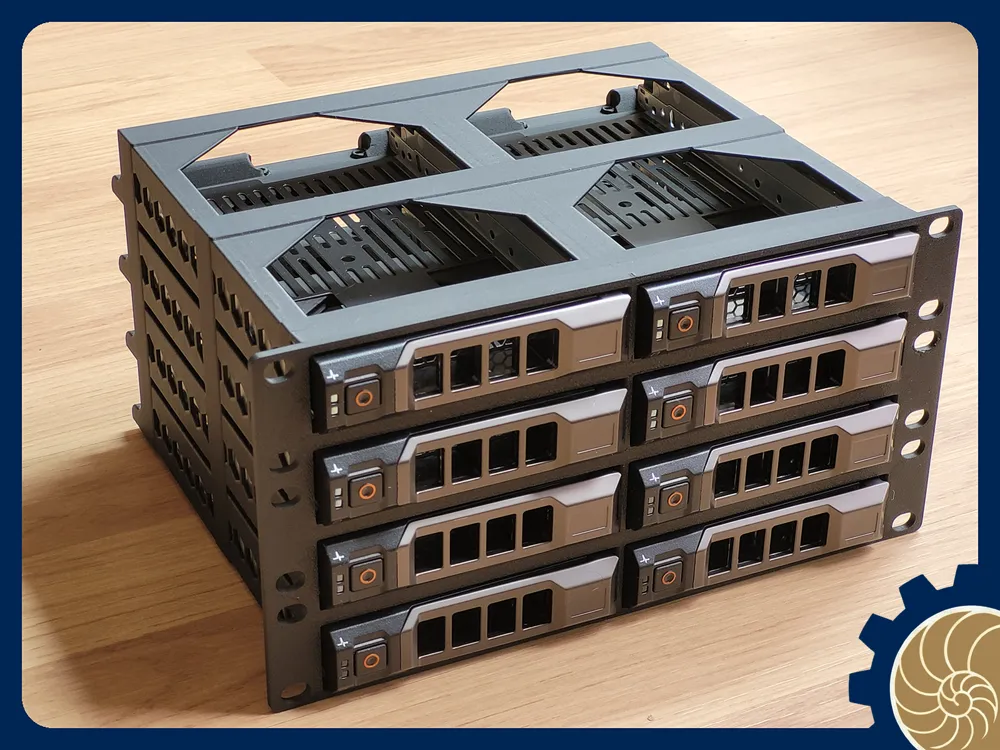

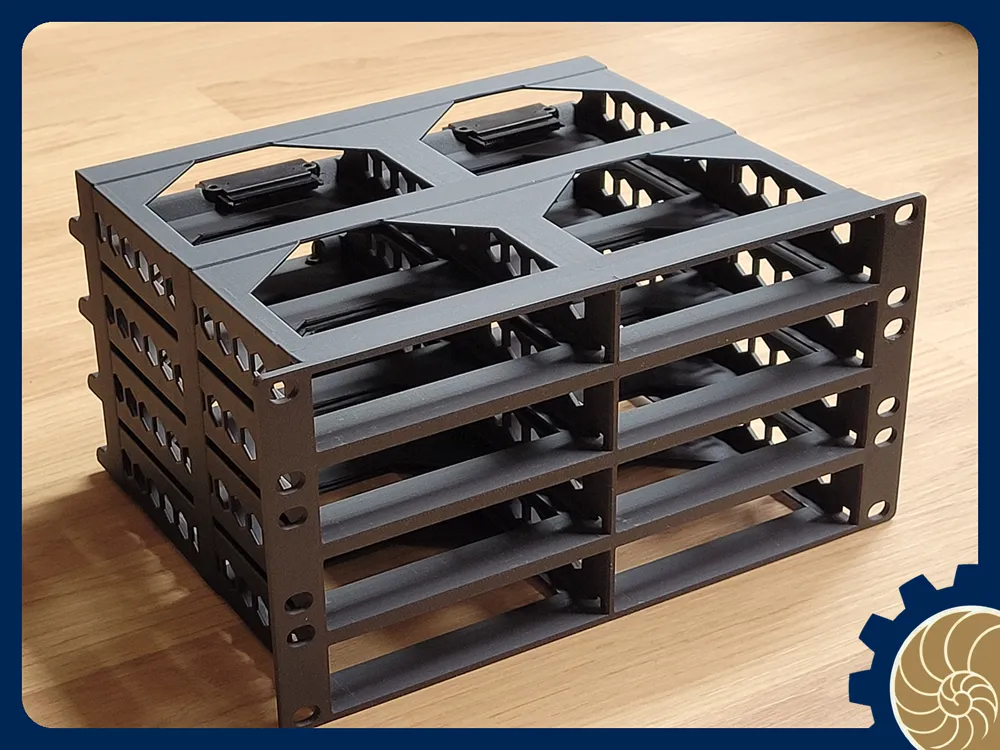

10 inch Rack 3U : 8 x 3.5 inch HDD - Hot Swap ! Dense Better ventilation
Design:
- HOT SWAP is possible. I really wanted that feature and couldn't find it anywhere on printable/makerworld
- Following feedbacks, the 3.5" tray has now greater tolerances and passive ventilation has been enhanced

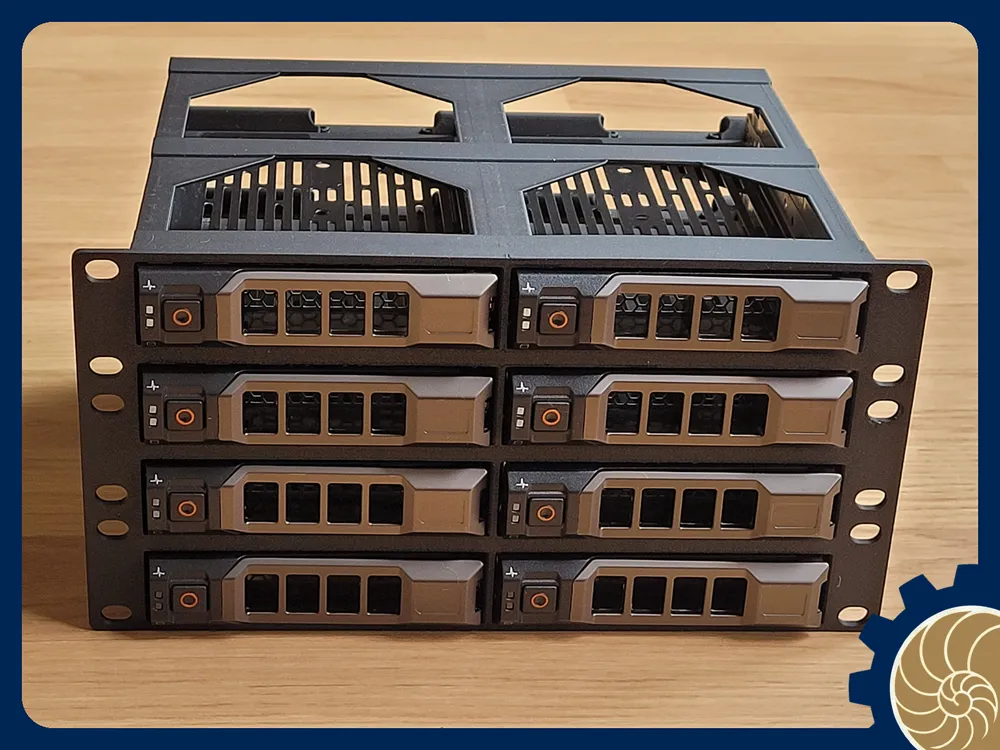

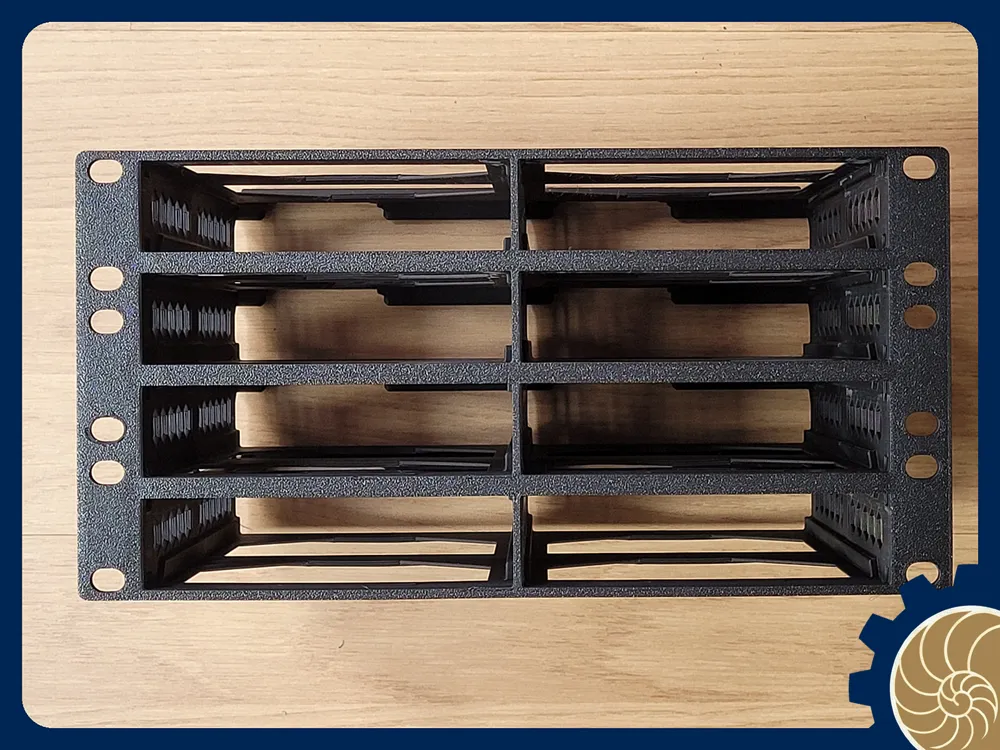

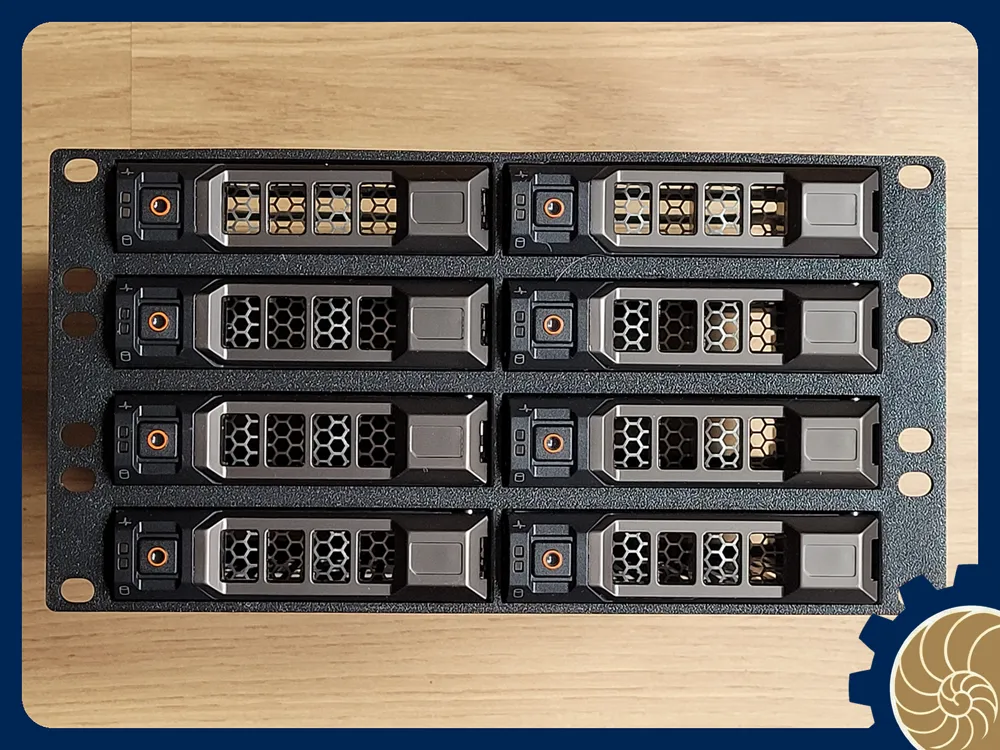

- 3U x8 HDD allow for a better gap between each disks (see pictures)

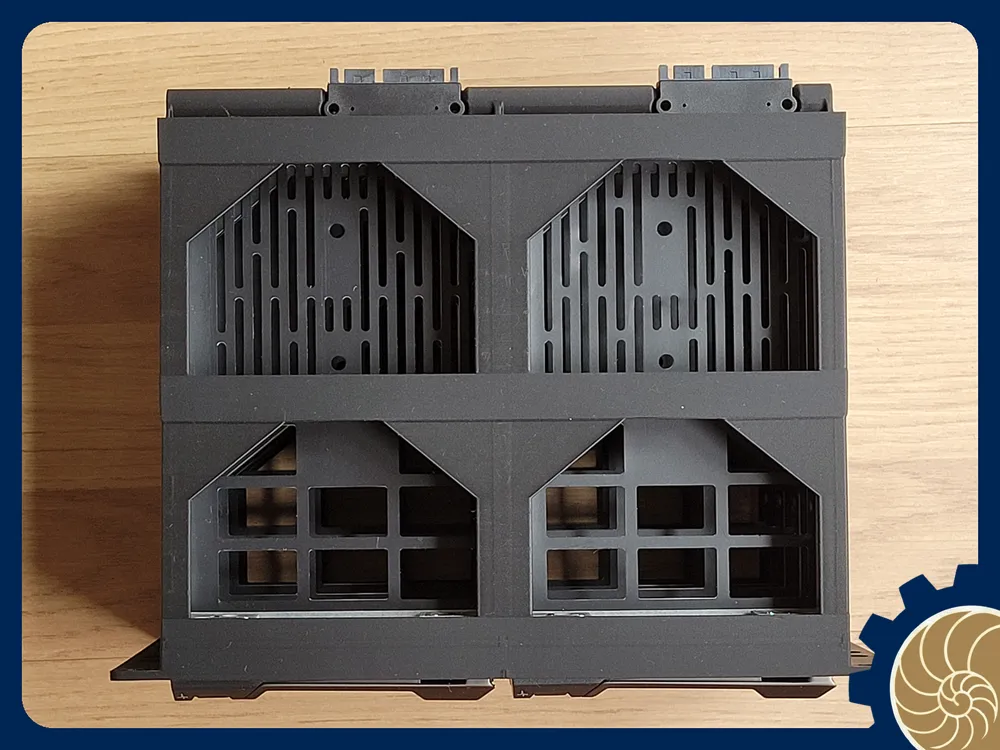

- !!! this is still a very compact design please plan for active heat dissipation !!! USE AT YOUR OWN RISK…
- Following feedbacks, the 3.5" tray has now greater tolerances and passive ventilation has been enhanced
Print:

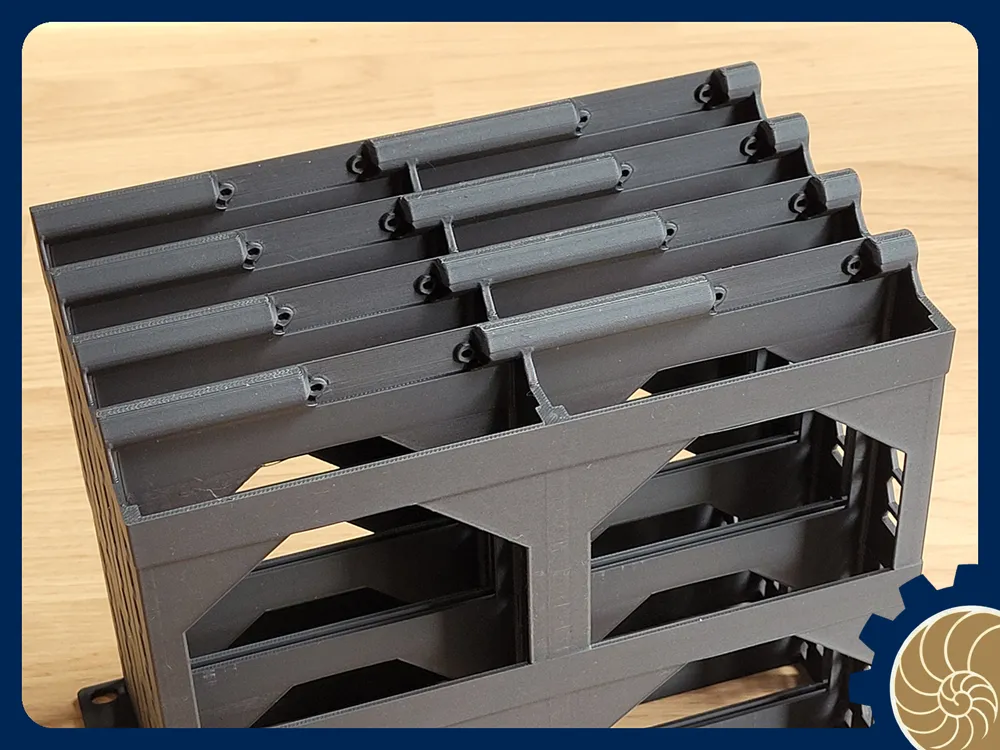

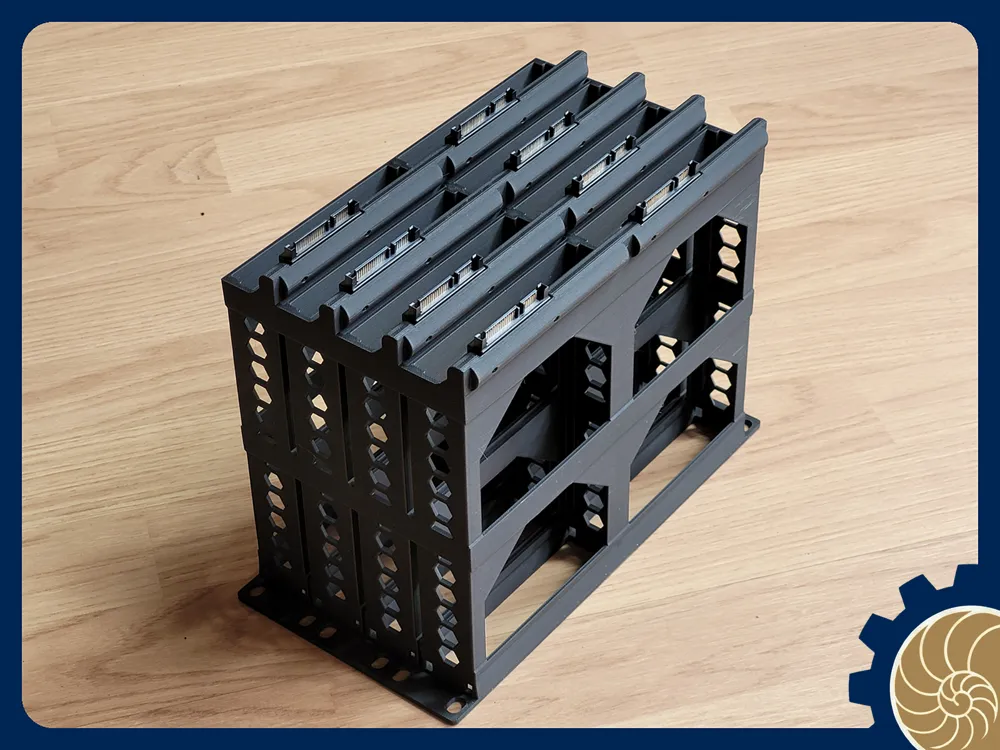

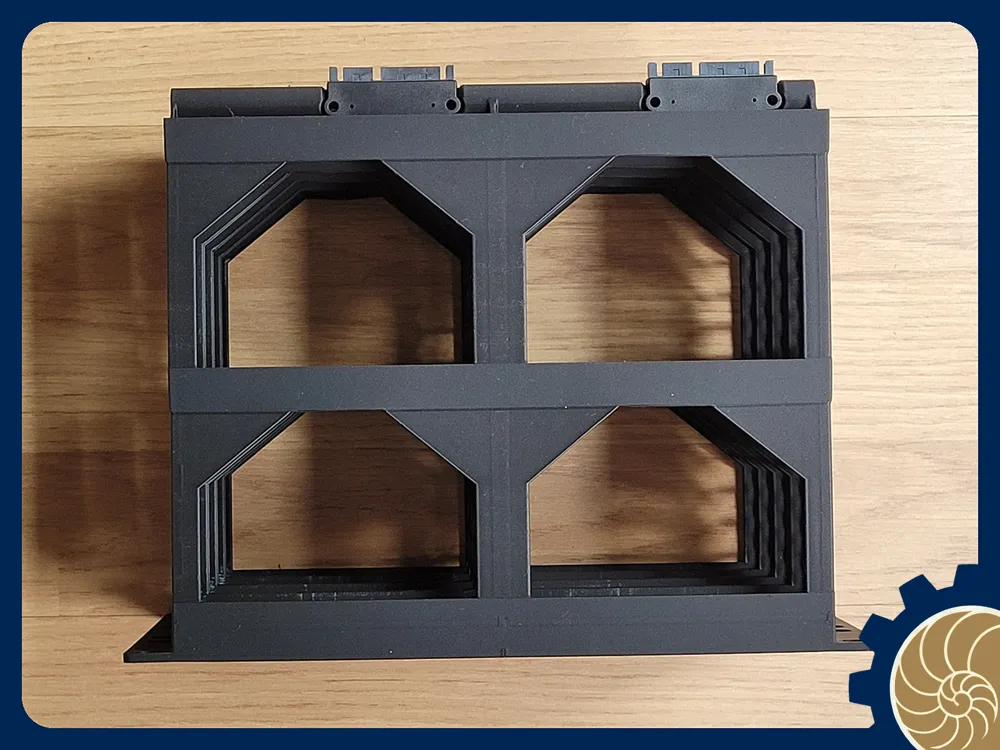

- No support ! Print face down see picture. Trust the bridging capabilities of your printer. v2 has only 30mm bridges
Assembly:

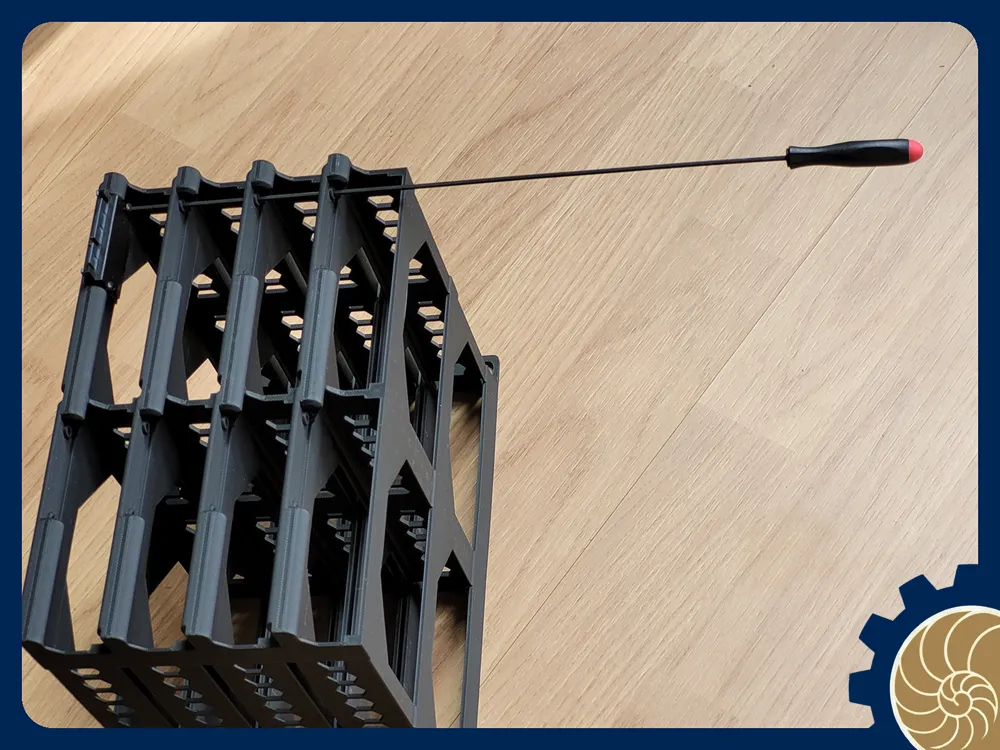

- It's probably going to be “new tool day” if you want to print that… You will need a HEX/ALLEN key 2MM with a very long blade (at least 3U) such as:
- Bondhus 3752 Extra Long 2mm Ball End Screwdriver
- Stanley Extra Long Allen Key 2mm

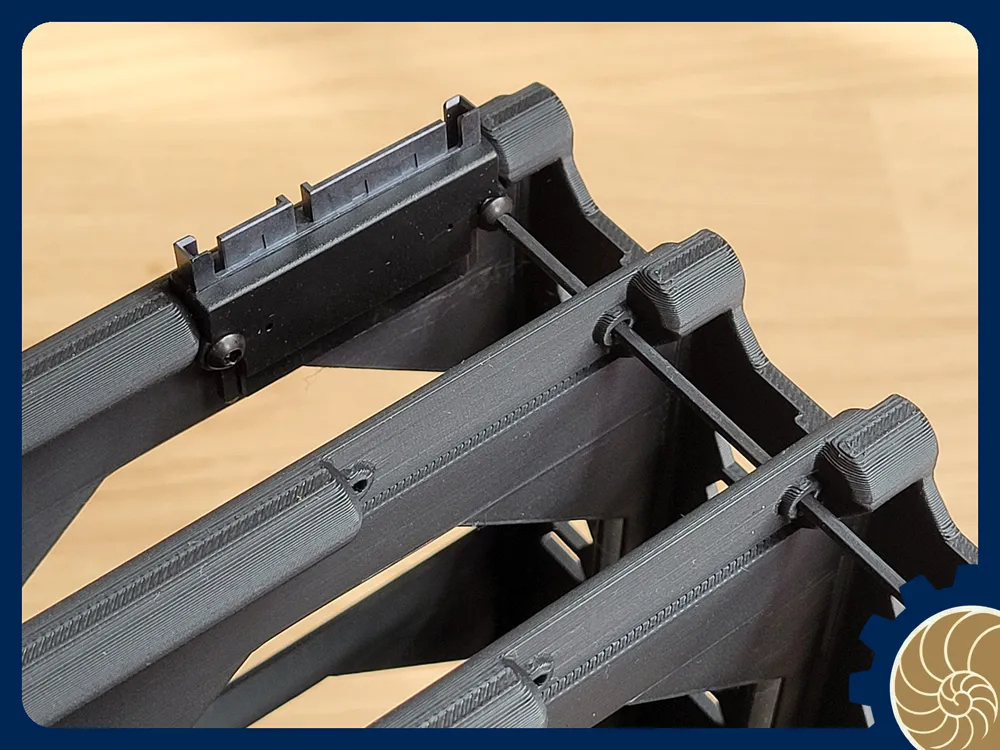

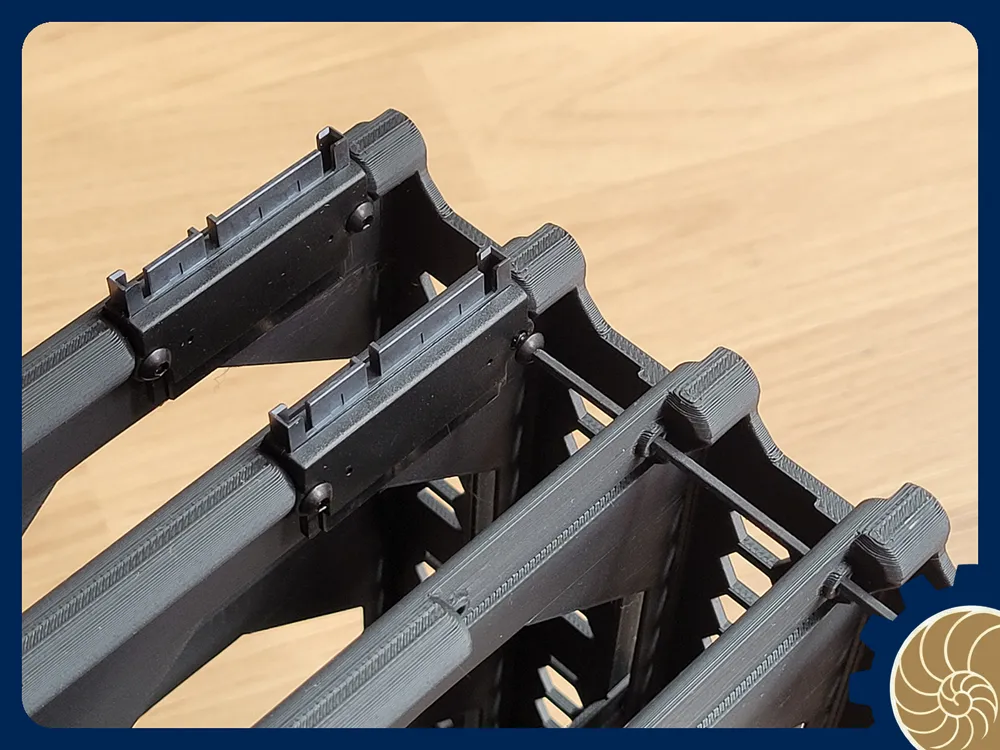

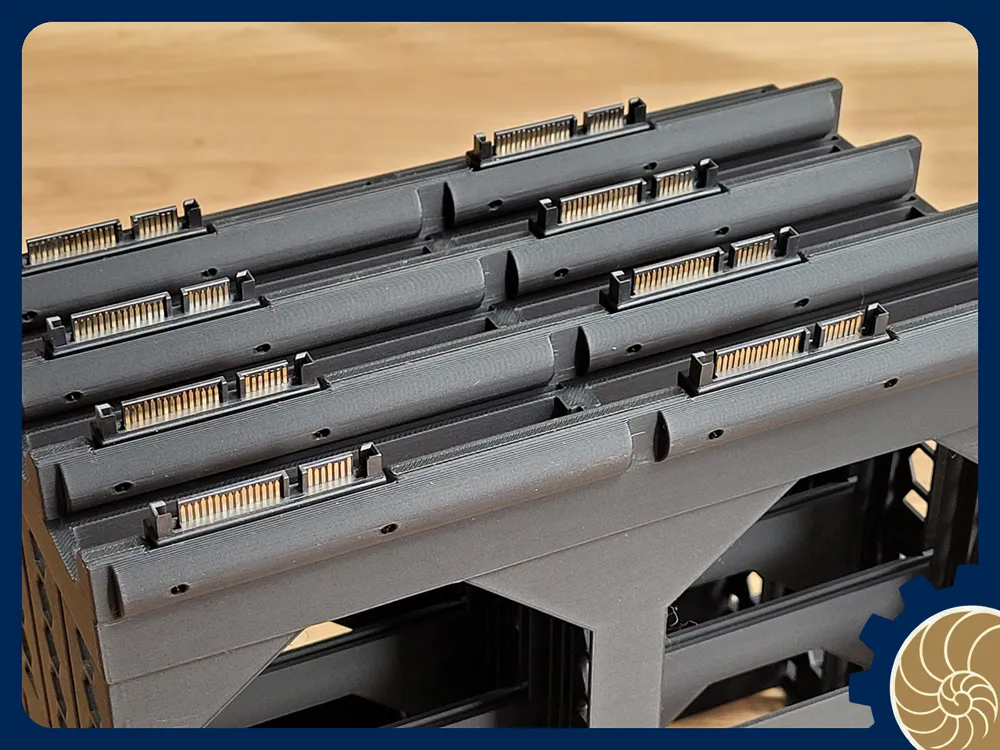

- Then assemble the 7x SATA connectors as per pictures starting from the least accessible.
Other Material:

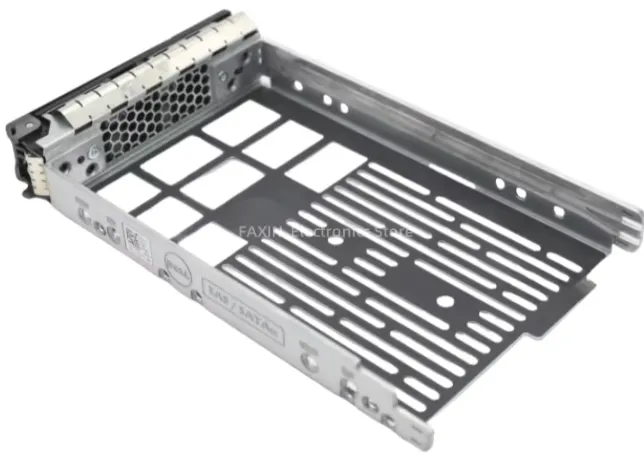

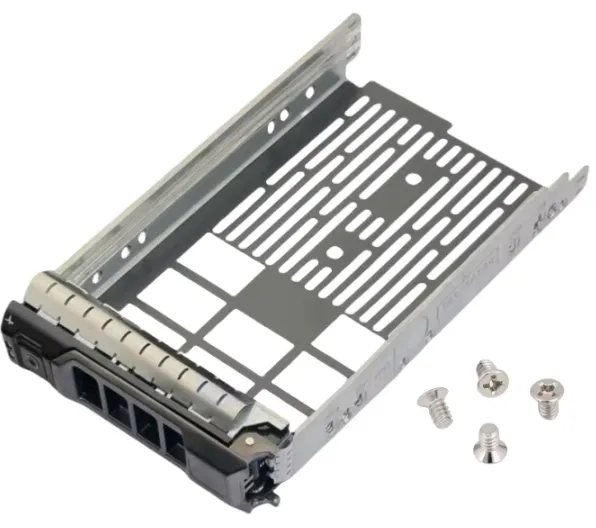

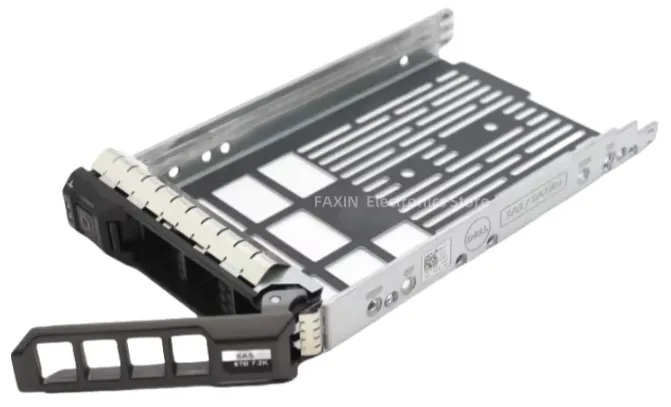

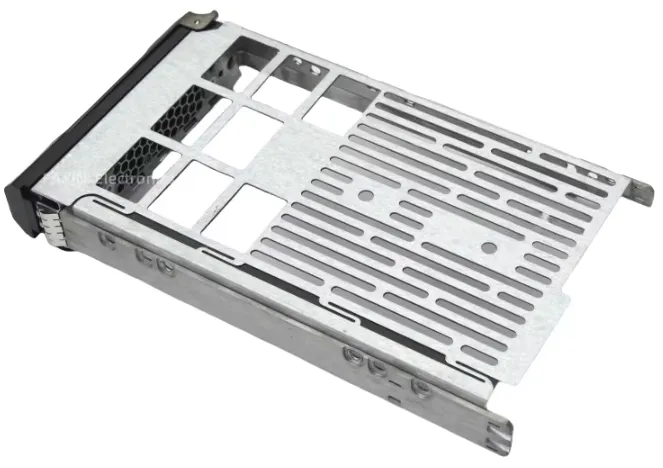

I use those refurbished caddy from Aliexpress:

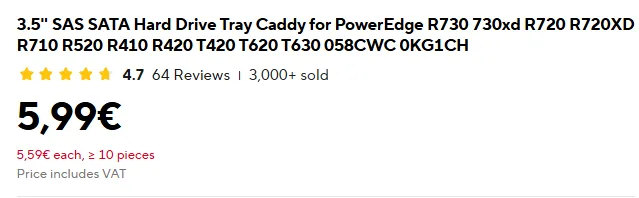

keywords: " 3.5'' SAS SATA Hard Drive Tray Caddy for Dell PowerEdge R730 730xd R720 R720XD R710 R520 R410 R420 T420 T620 T630 058CWC 0KG1CH "
" For Dell PowerEdge T330 T430 T630 R230 R330 R430 R530 R630 R730 R730XD 0KG1CH 3.5" SAS SATA Hard Disk Caddy Tray KG1CH "
 |  |
 |  |
Each tray is about 6eur:

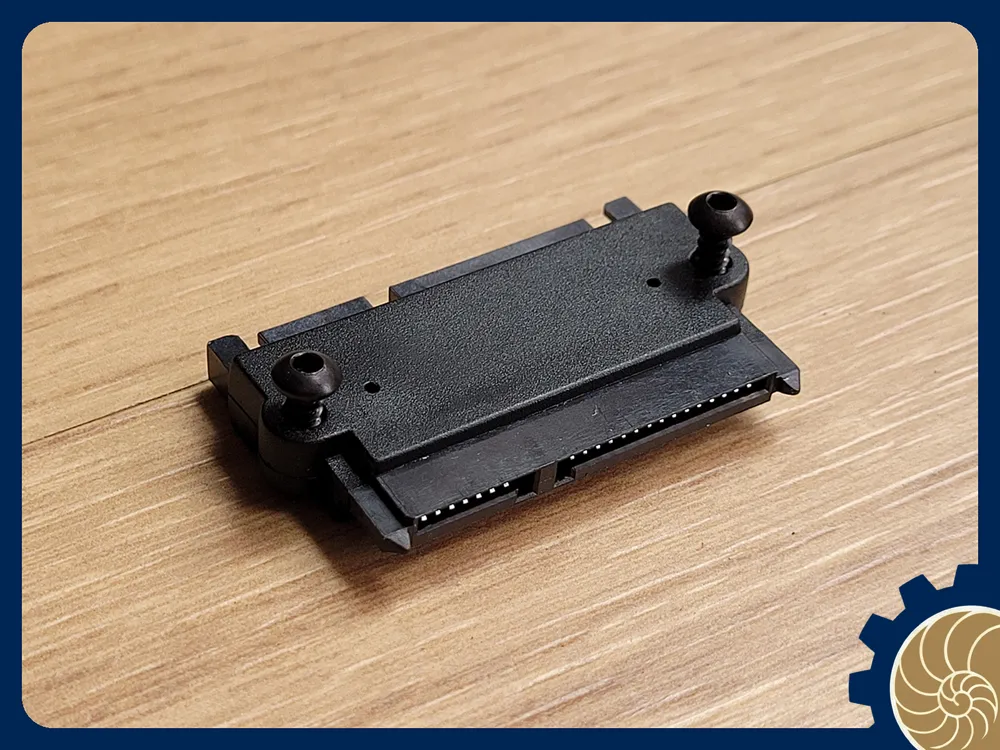

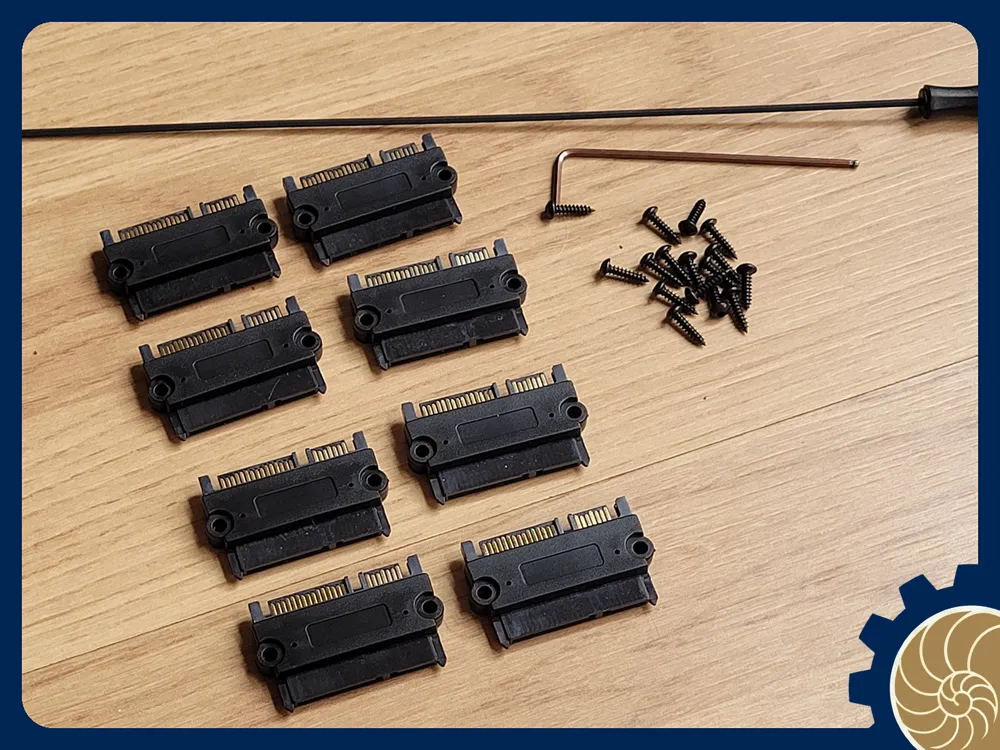

For the Hot swappable connection:
I used those:

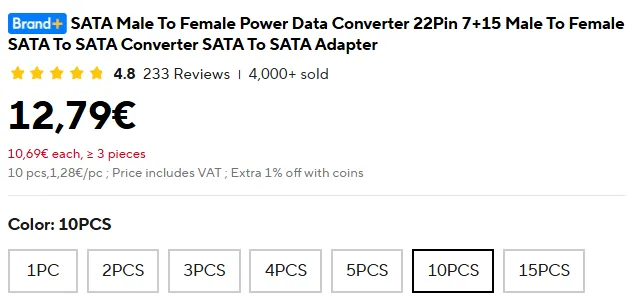

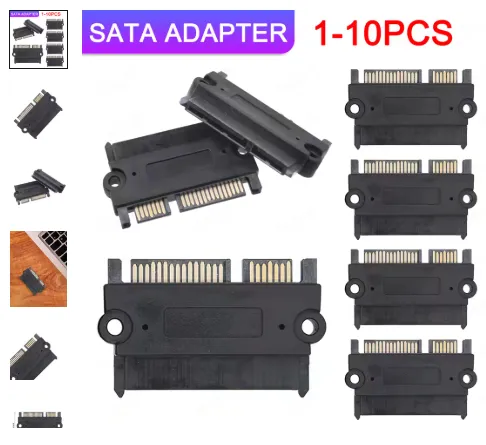

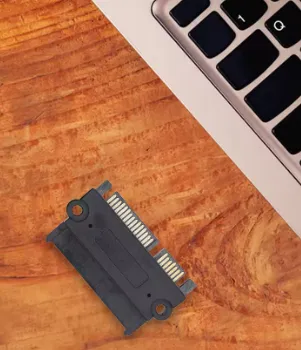

keywords: SATA Male To Female Power Data Converter 22Pin 7+15 Male To Female SATA To SATA Converter SATA To SATA Adapter
 |  |
 |  |
Currently 13eur for 10:
- Here on aliexpress
