Spirit Level for Pipes and Tubes
Print Profile(1)
Description
Boost Me (for free)
Enjoying this model? A boost would mean a lot and supports me in creating more useful designs. Thank you!

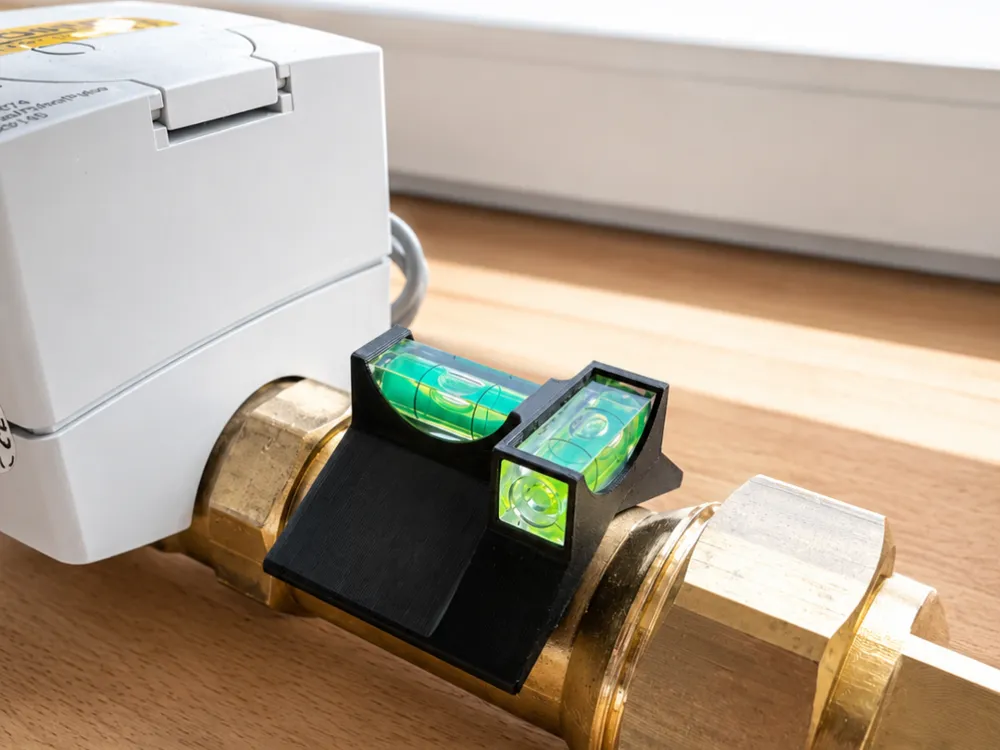

Quickly Level Pipes, Valves and Round Surfaces
This compact pipe spirit level was designed to simplify the alignment of pipes, valves, fittings and other cylindrical components.
The tool features a 130° V-groove on the back, allowing it to sit securely on round surfaces of various diameters. This makes it ideal for plumbing installations, pump assemblies, irrigation systems and general workshop use.
The integrated horizontal and vertical bubble vials allow quick alignment in multiple directions without the need to balance a conventional spirit level on a curved surface.
Features
✔ V-groove design for round pipes and cylindrical parts
✔ No clamps or fasteners required
✔ Works with different pipe diameters
✔ Compact and lightweight
✔ Fast and easy to print
✔ Perfect for plumbing, heating and DIY projects
Designed for standard mini bubble vials 10 × 10 × 29 mm (Amazon)
The vials can be press-fitted or secured with a small amount of adhesive.
Printing
- Material: PLA, PETG or ABS
- Layer Height: 0.2 mm
- Infill: 15–20 %
- Supports required for the horizontal vial
