Description
The Sony ICD-PX470 voice recorder does not have a 1/4 tripod screw hole
To use a tripod to support it and fix the recording position

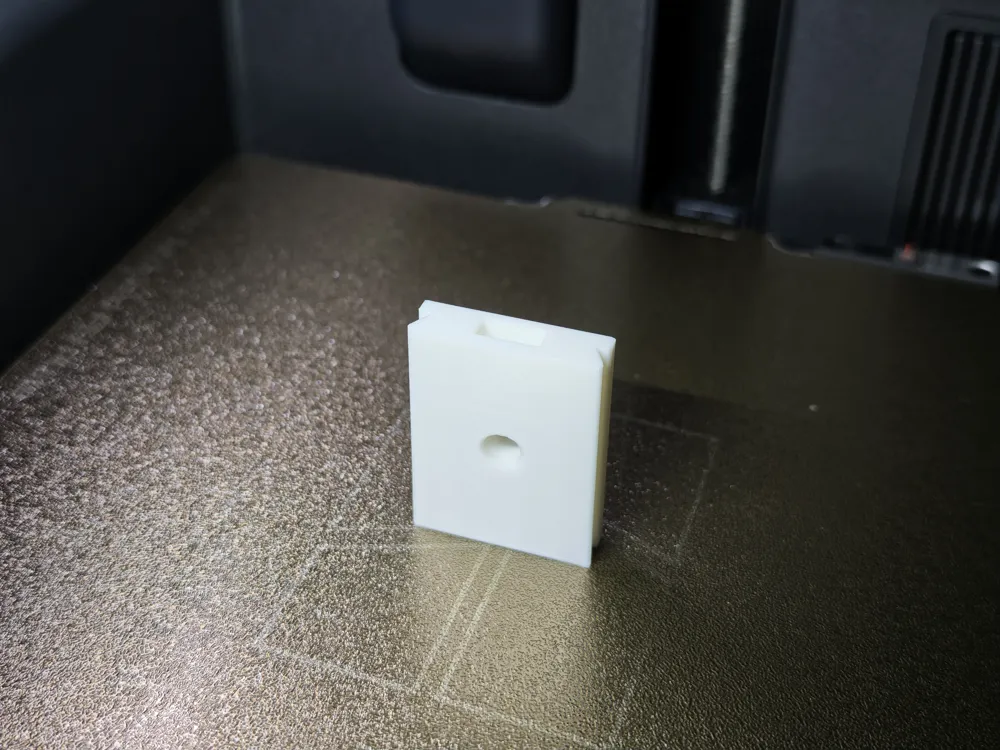

So I modeled this quick release plate
It has two mounting methods
1. It has a standard ARCA dovetail slot, which can be directly clamped onto a standard ARCA tripod head

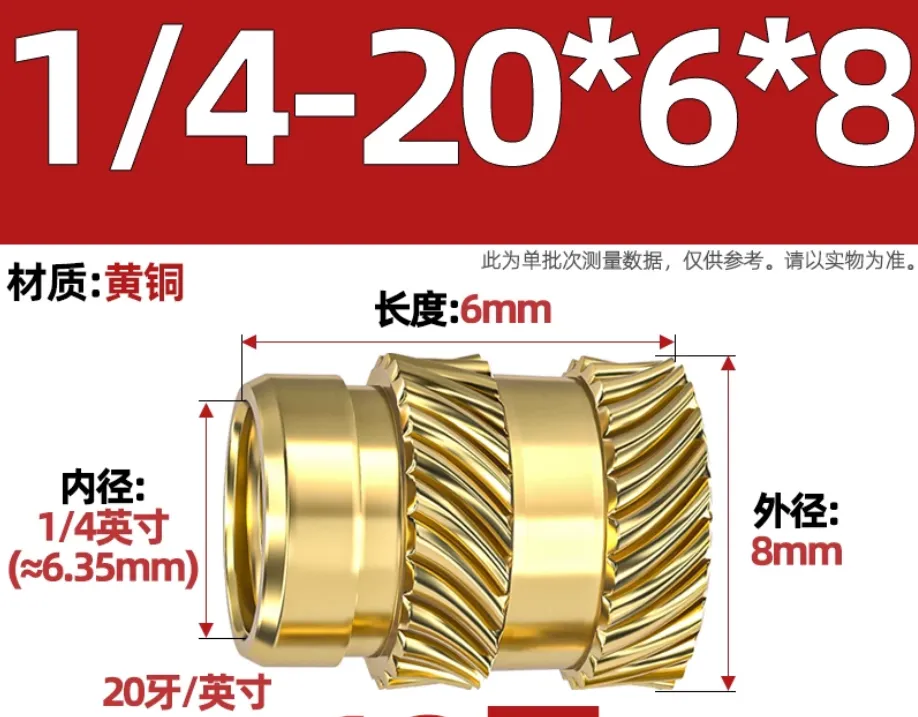

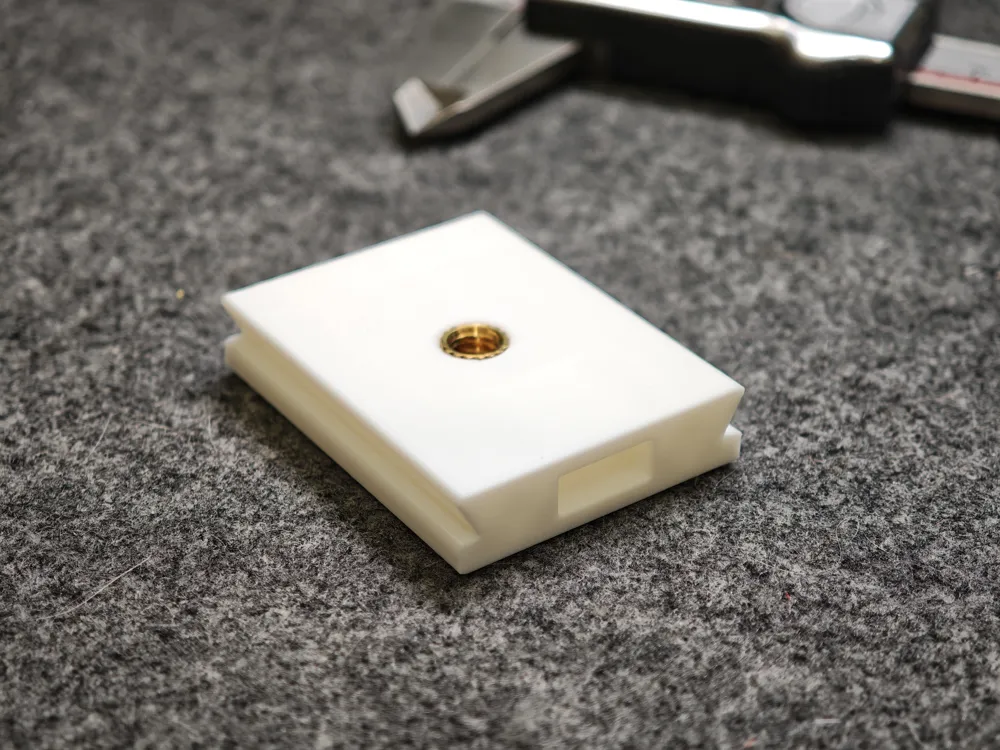

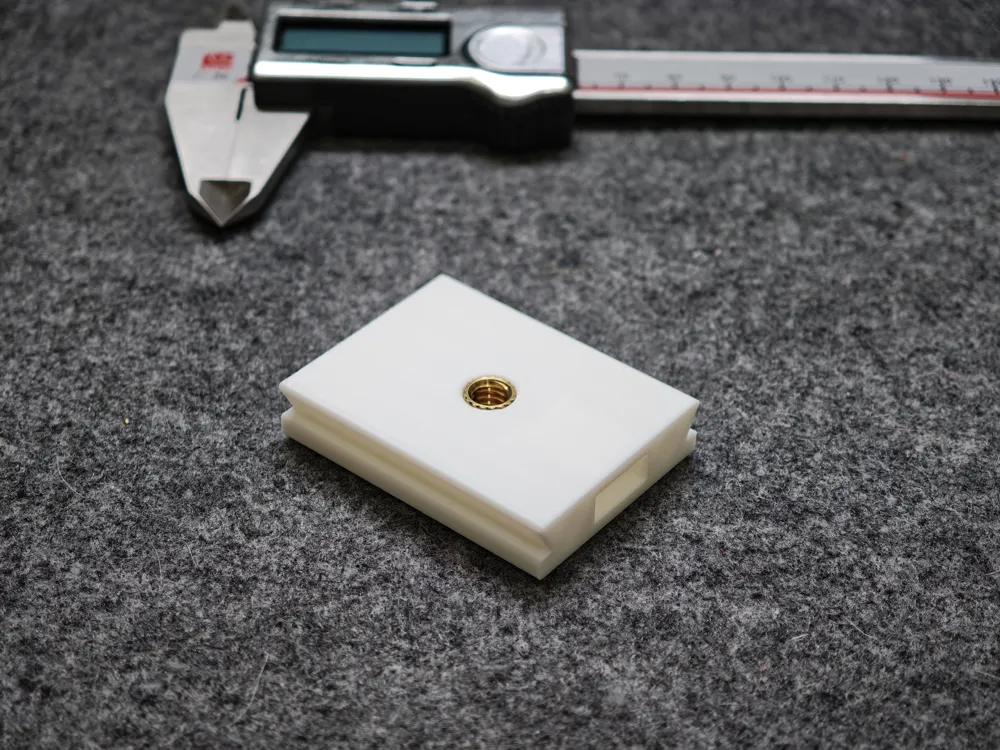

2. It has a 1/4 heat-set nut mounting hole, into which an 8mm outer diameter heat-set nut can be pressed

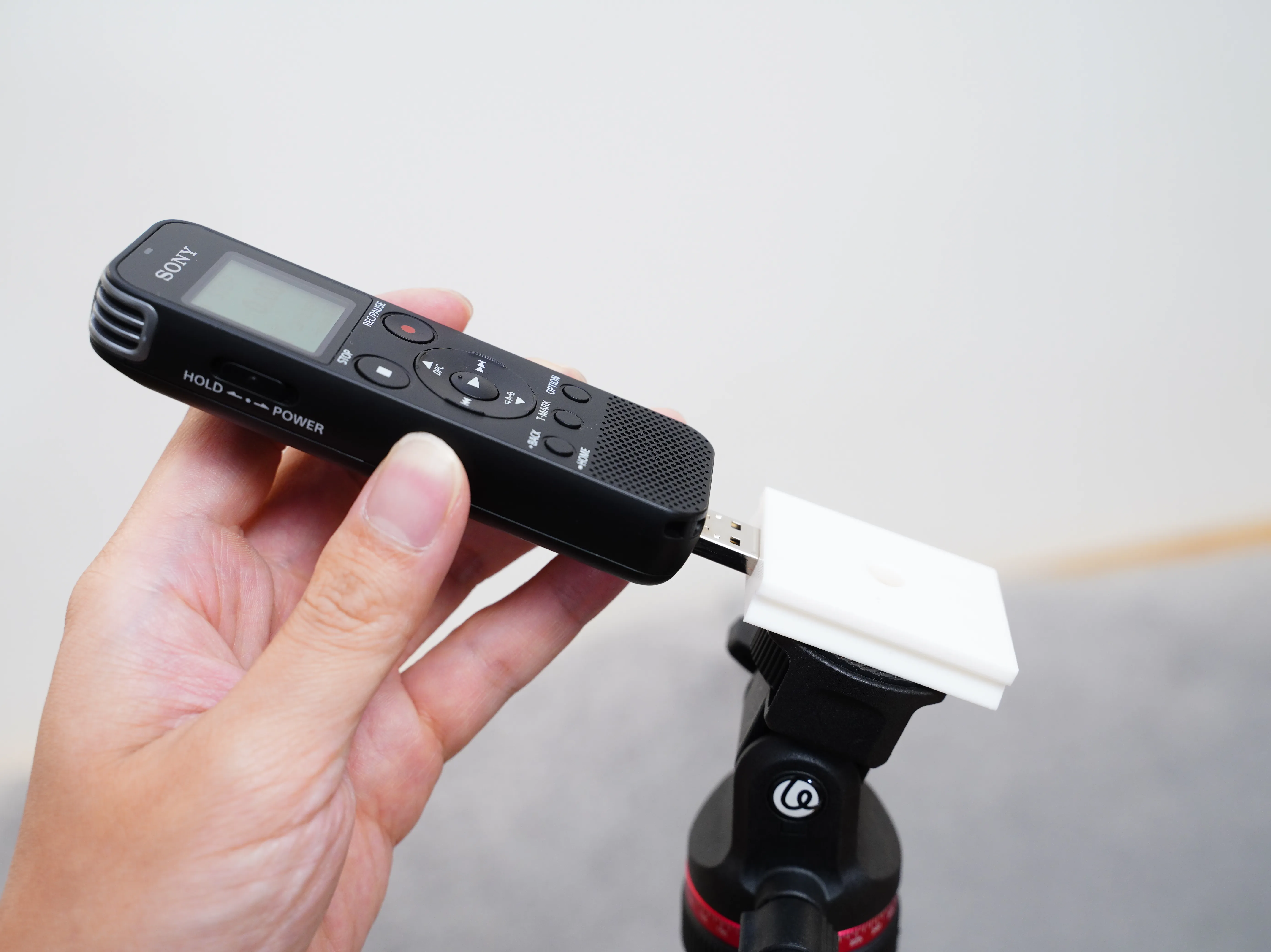

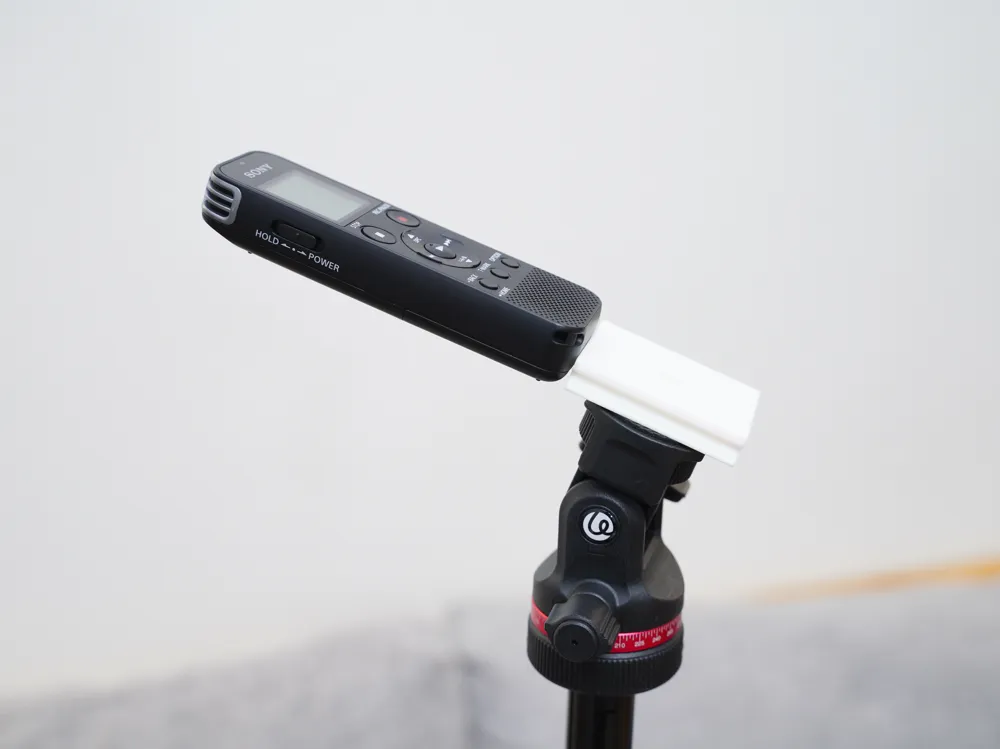

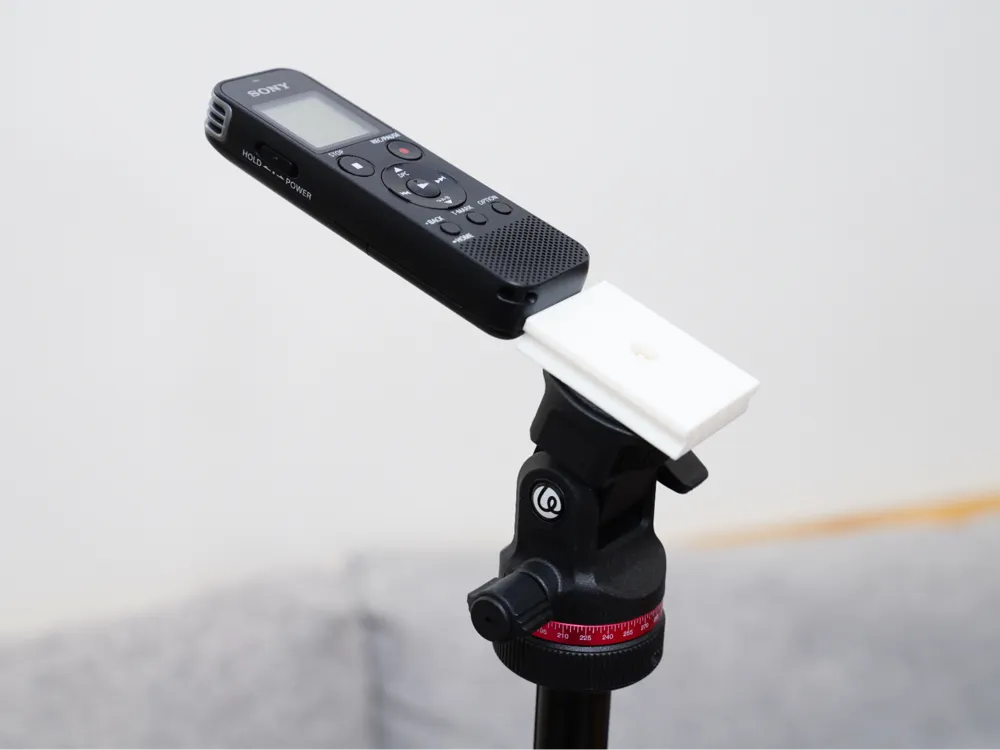

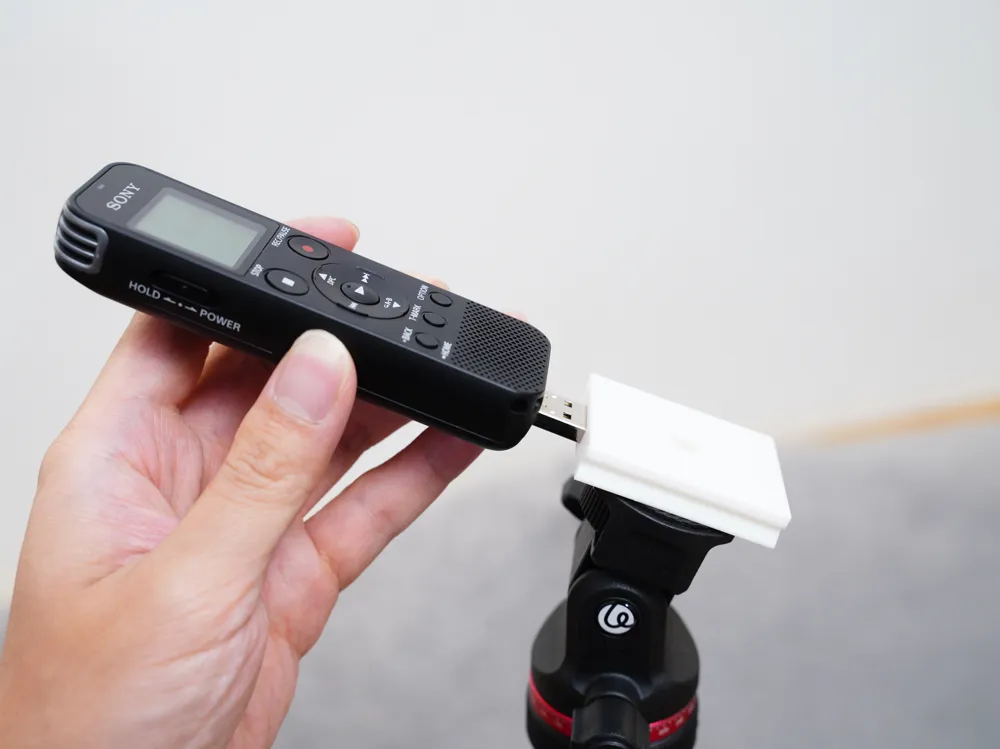

Please note: Since it is only friction-fixed by the USB slot, the voice recorder can only be used horizontally or tilted upwards. If the voice recorder is facing downwards, it may fall.
If you do need to use it facing downwards, please attach a lanyard through the voice recorder's lanyard hole and wrap it around the tripod to prevent the device from falling
