1:1 84mm Rocket Round
Print Profile(1)
Description
DISCLAIMER : This model is only for display and educational purposes. It does not contain any explosives and can not be modified into doing so. This a display model and can not be modified to be used as a real projectile!!
Description :
This is a replica of the Swedish 84mm FFV-441, a High-Explosive-Fragmentation , recoilless, spin-stabilised, projectile fired from the Carl-Gustaf recoilless-rifle. The rounded nose is a Mechanical-Time-Fuze (MTF) with IMP ( impact ) ( information from https://cat-uxo.com/explosive-hazards/projectiles/84mm-ffv-441-projectile ).

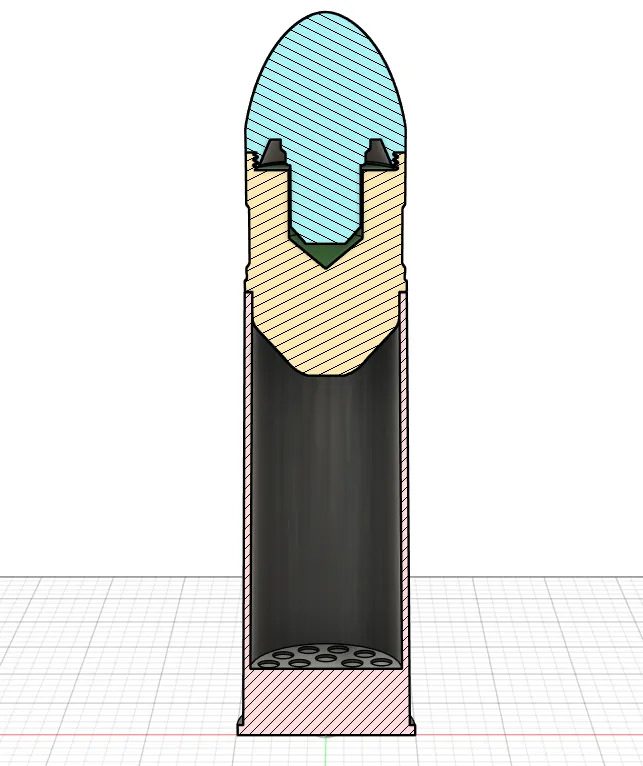

The model has closely recreated dimensions and has incorporated all the main design elements. It has a hollow interior ( as the real projectile ), which can be used as a secret storage compartment as it is quite spacious. To keep the model together I added a thread ( as the real fuze ) and a twist lock mechanism.
Notes :
- The print profile uses as little filament as possible so be careful when handling the model and screwing in the parts.
- Not compatible with the A1 Mini as the casing is larger than the prints size.
