ElectroCookie Mini PCB Enclosure
Print Profile(1)
Bill of Materials
Description

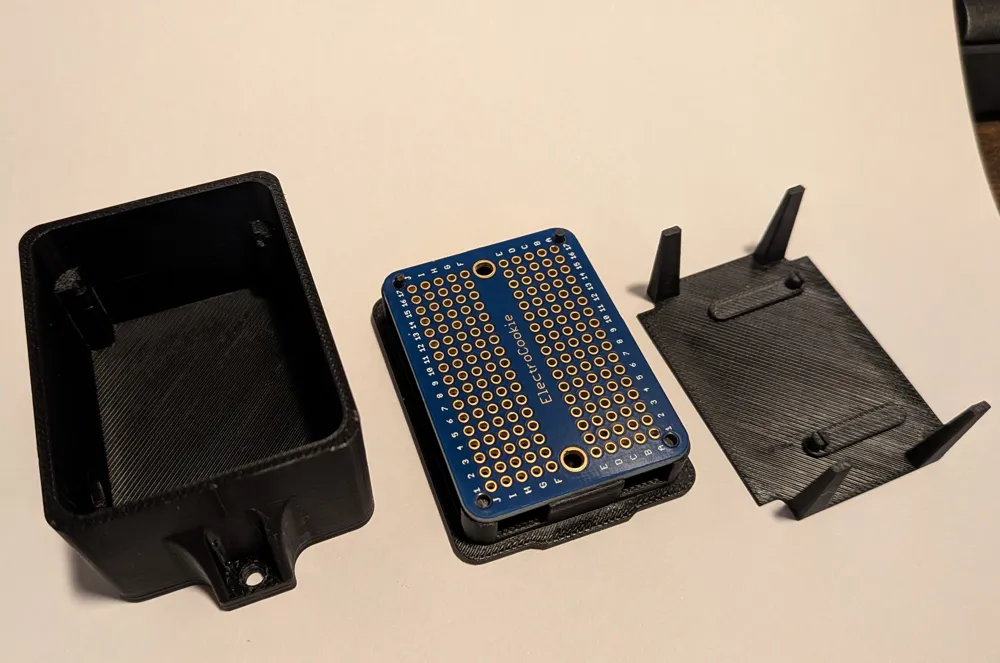

56 x 43mm enclosure for ElectroCookie mini PCB. Height is 32mm including the lid.
Mounting holes are 3.5mm for M3 bolts. Total width including mounting lugs is 68mm.
8mm hole for DC input jack.

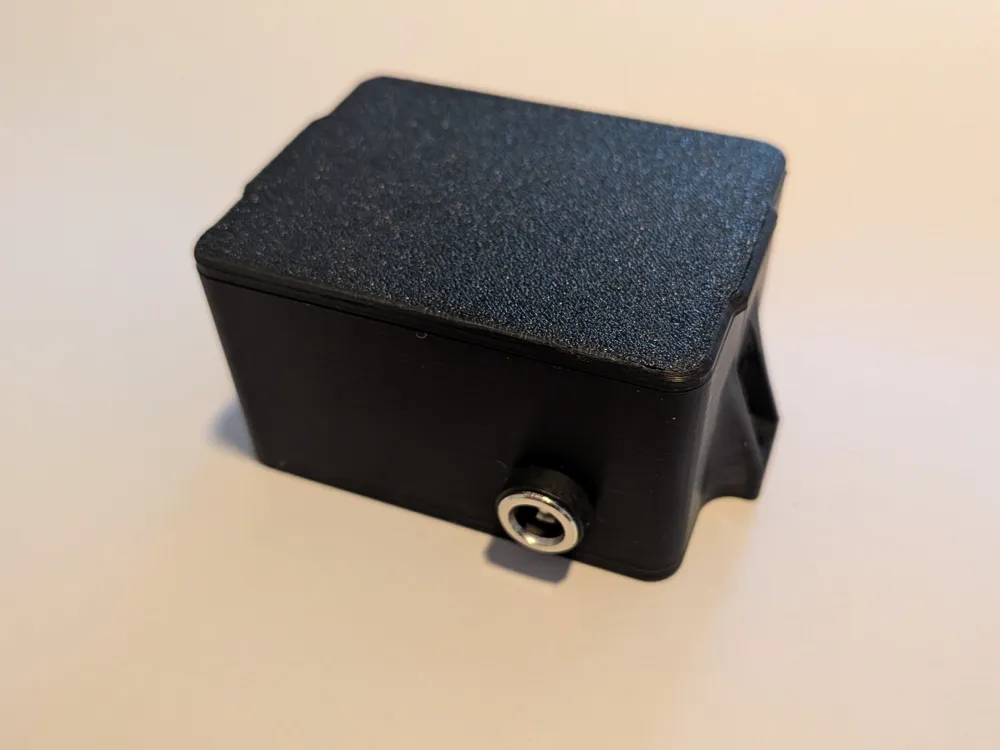

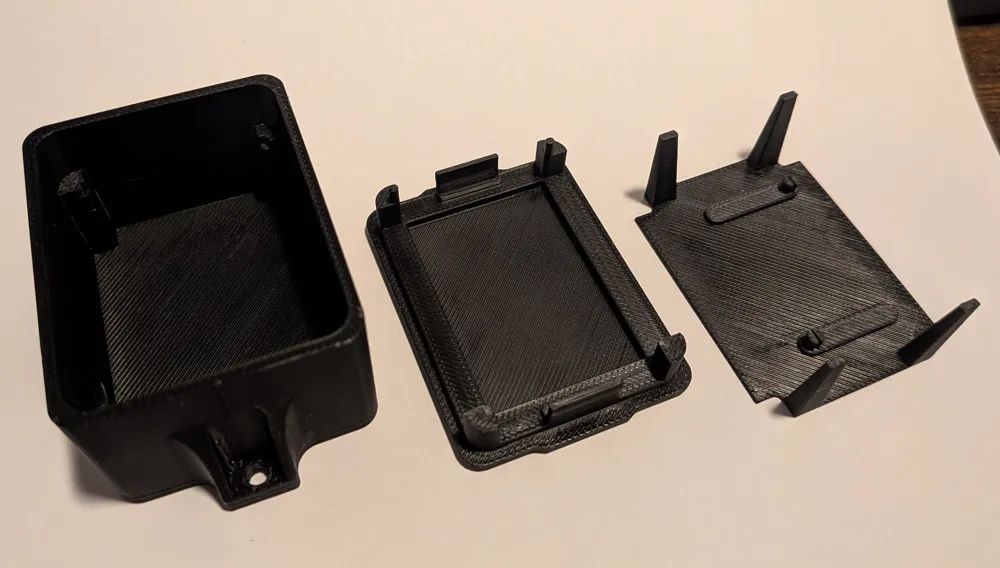

Lid is friction fit and includes small tabs for easy removal.

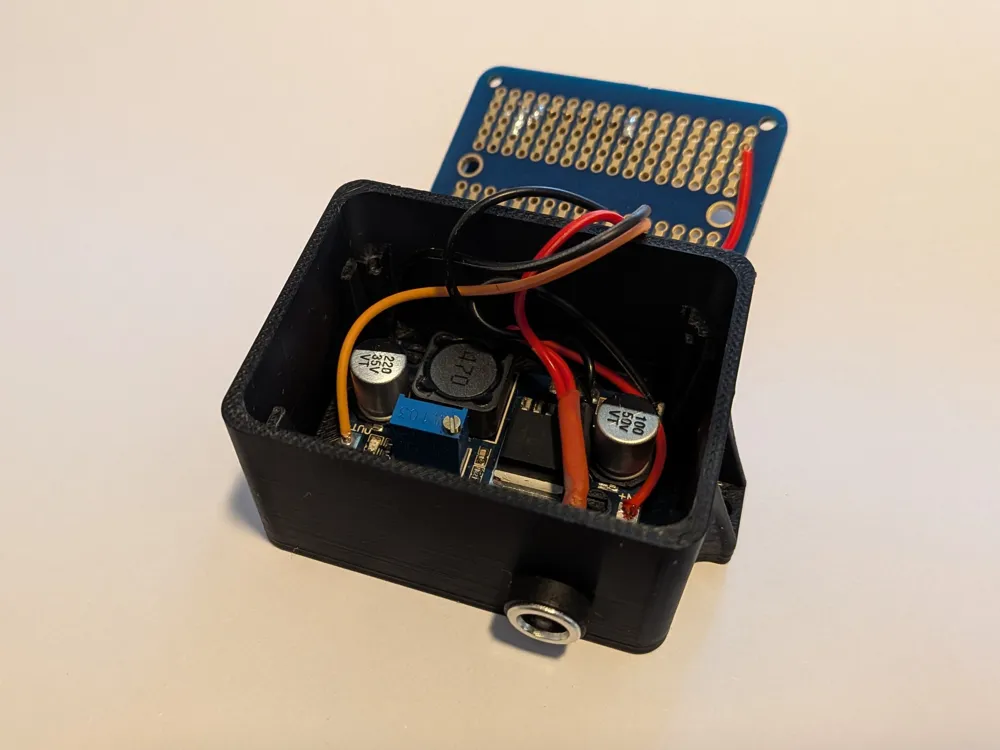

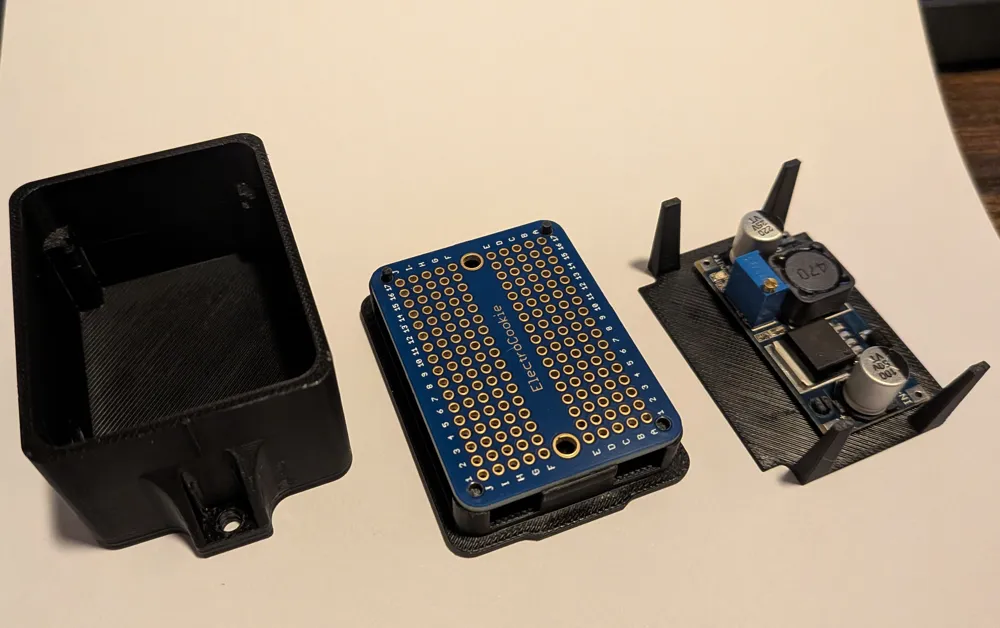

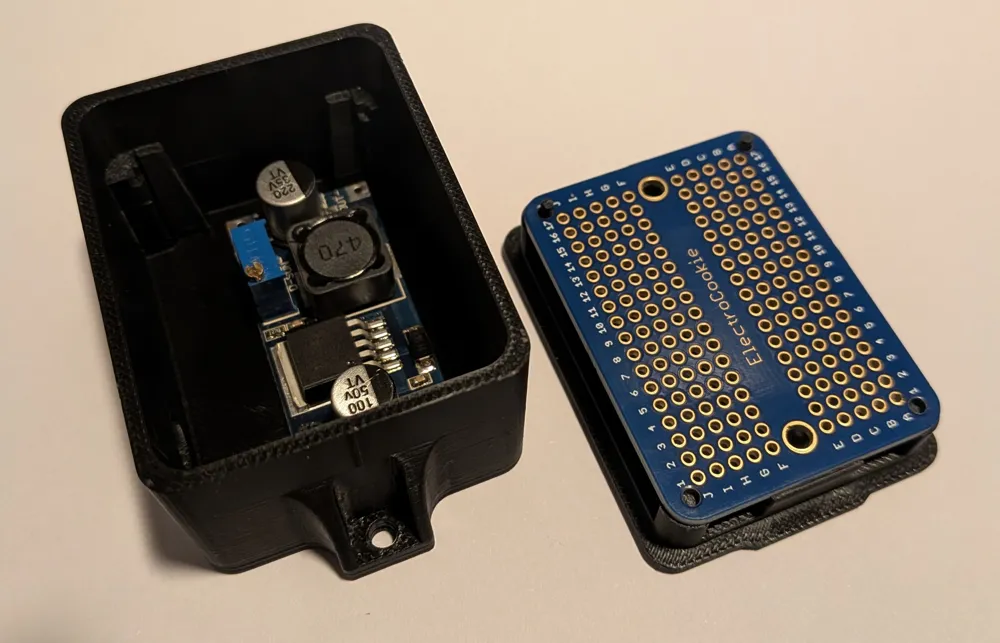

Sufficient space in the lower zone to include DC-DC converter for power. Includes an insert for mounting.

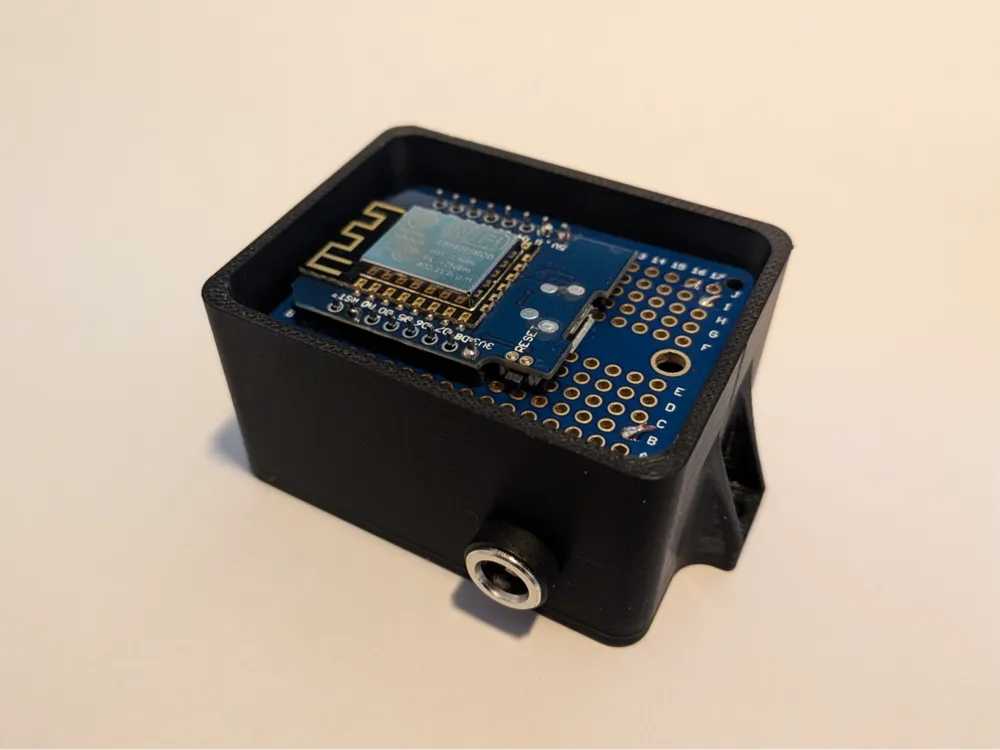

Sufficient space above the PCB for a ESP8266 D1 Mini.
Compatible parts are:
ElectroCookie Mini PCB: https://amzn.asia/d/0hVm8f8T
Power Jack: https://amzn.asia/d/0fP9IH9f
DC-DC Converter: https://amzn.asia/d/0cZ5zVOS
ESP8266 D1 Mini Clone: https://amzn.asia/d/0fbGOUWe
