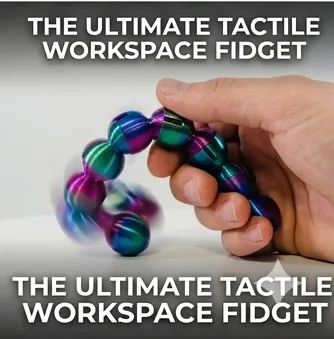

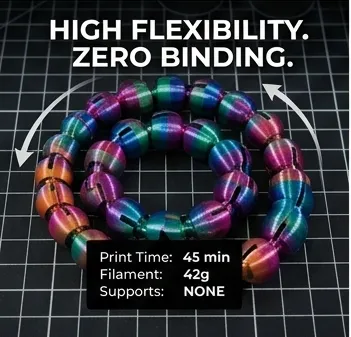

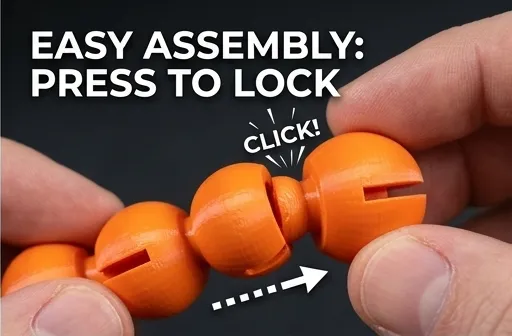

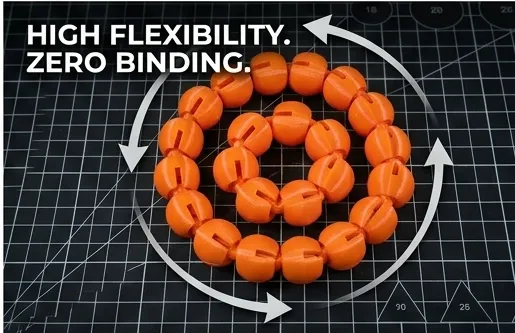

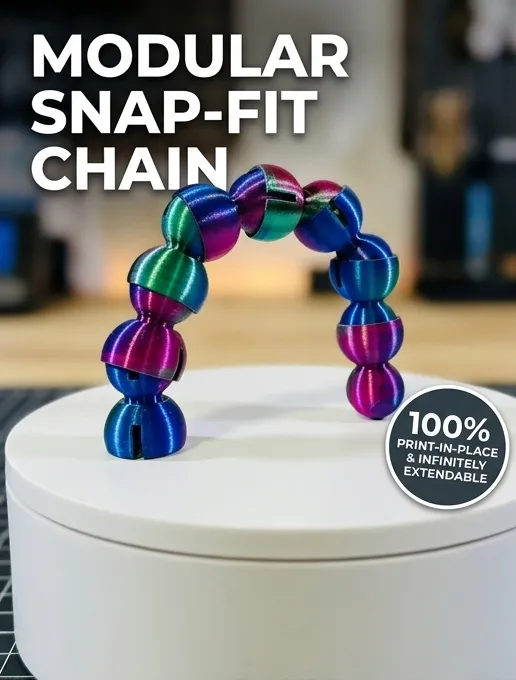

<p>This <strong>Modular Snap-Fit Ball Joint Chain</strong> is a high-performance mechanical system engineered to print completely support-free and work immediately after printing. Featuring an optimized ball-and-socket design inspired by the geometry , each individual link snaps together with a highly satisfying, crisp tactile click. The integrated vertical flex-slots allow the socket walls to temporarily expand and safely capture the next link, resulting in a fluid, multi-axis range of motion capable of twisting into striking multi-color arches.</p><h4>🚀 Key Features</h4><h4>🚀 Key Features</h4><ul><li><strong>Infinite Linkage System:</strong> Print as many links as your build plate can hold and snap them together to create endlessly customizable configurations.</li><li><strong>100% Support-Free:</strong> The organic curved geometry self-supports perfectly during printing, saving you post-processing hassle and material waste.</li><li><strong>High-Flex Articulation:</strong> Engineered with built-in wall cutouts that allow maximum angular bending without popping the chain apart.</li><li><strong>AMS &amp; Silk Filament Optimized:</strong> Designed to look stunning using dual-tone, tri-color silk, or standard matte filaments.</li></ul><h4>🖨️ Recommended Print Settings</h4><ul><li><strong>Layer Height:</strong> 0.20mm Standard (or 0.16mm for maximum joint smoothness)</li><li><strong>Wall Loops:</strong> <strong>4 Perimeters Minimum</strong> <i>(Crucial to give the expanding socket walls the elastic strength they need to prevent snapping during assembly)</i></li><li><strong>Infill Density:</strong> 20% to 25% (Gyroid or Grid)</li><li><strong>Supports:</strong> None / Disabled</li></ul>

0.2mm layer, 2 walls, 15% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

<boostme><boosttitle>Boost Me</boosttitle></boostme><h4>This <strong>Modular Snap-Fit Ball Joint Chain</strong> is a high-performance mechanical system engineered to print completely support-free and work immediately after printing. Featuring an optimized ball-and-socket design inspired by the geometry  each individual link snaps together with a highly satisfying, crisp tactile click. The integrated vertical flex-slots allow the socket walls to temporarily expand and safely capture the next link, resulting in a fluid, multi-axis range of motion capable of twisting into striking multi-color arches.</h4><h4>🚀 Key Features</h4><ul><li><strong>Infinite Linkage System:</strong> Print as many links as your build plate can hold and snap them together to create endlessly customizable configurations.</li><li><strong>100% Support-Free:</strong> The organic curved geometry self-supports perfectly during printing, saving you post-processing hassle and material waste.</li><li><strong>High-Flex Articulation:</strong> Engineered with built-in wall cutouts that allow maximum angular bending without popping the chain apart.</li><li><strong>AMS &amp; Silk Filament Optimized:</strong> Designed to look stunning using dual-tone, tri-color silk, or standard matte filaments.</li></ul><h4>🖨️ Recommended Print Settings</h4><ul><li><strong>Layer Height:</strong> 0.20mm Standard (or 0.16mm for maximum joint smoothness)</li><li><strong>Wall Loops:</strong> <strong>4 Perimeters Minimum</strong> <i>(Crucial to give the expanding socket walls the elastic strength they need to prevent snapping during assembly)</i></li><li><strong>Infill Density:</strong> 20% to 25% (Gyroid or Grid)</li><li><strong>supports:</strong> None / Disabled</li></ul><boostme><boosttitle>Boost Me</boosttitle></boostme>

Modular Snap-Fit Ball Joint Fidget Chain
