Description
With this holder, the Samsung HW-B750D Soundbar can be directly attached to the Samsung OLED QE65S85DAEXXN. Installation is done on the TV's original stand mounts, so no additional drilling or modifications to the TV are required.

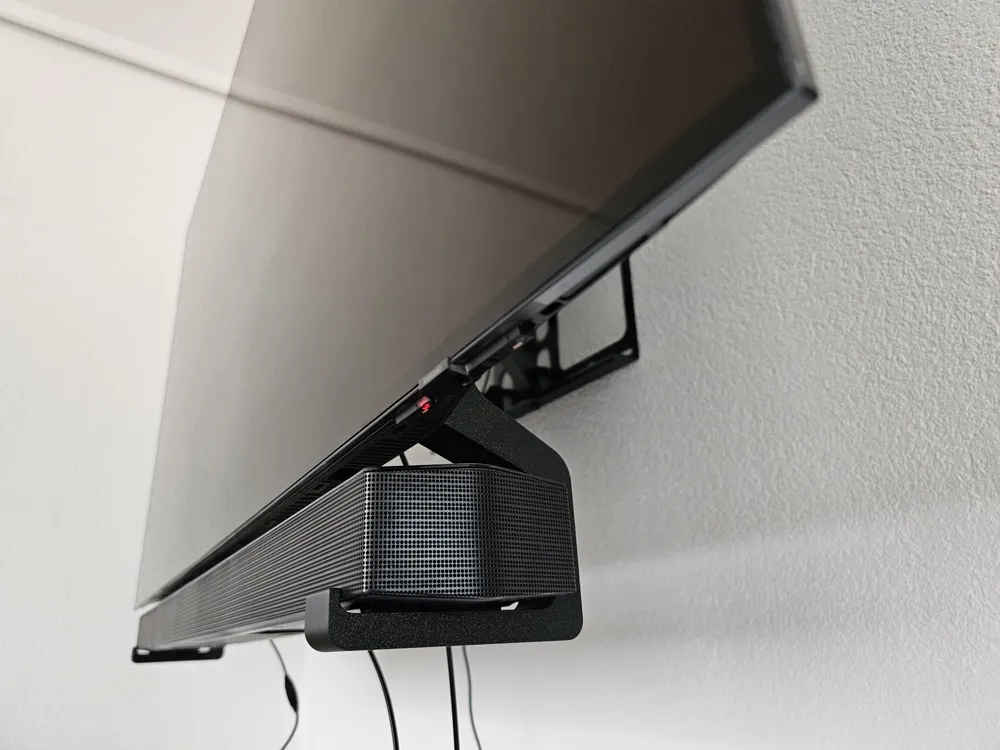

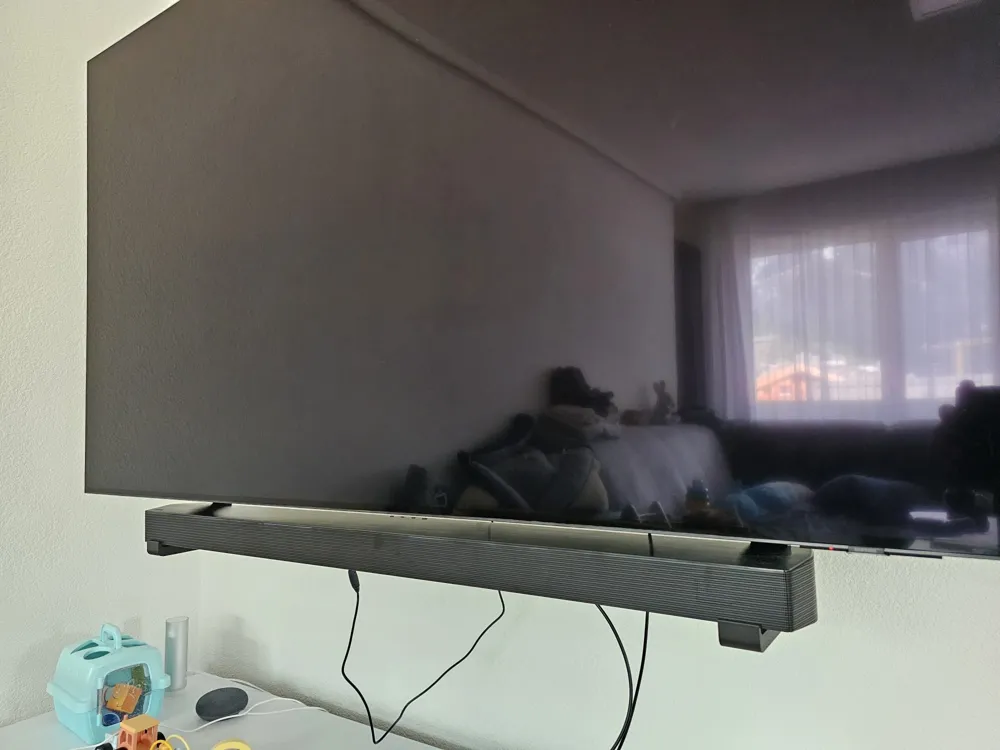

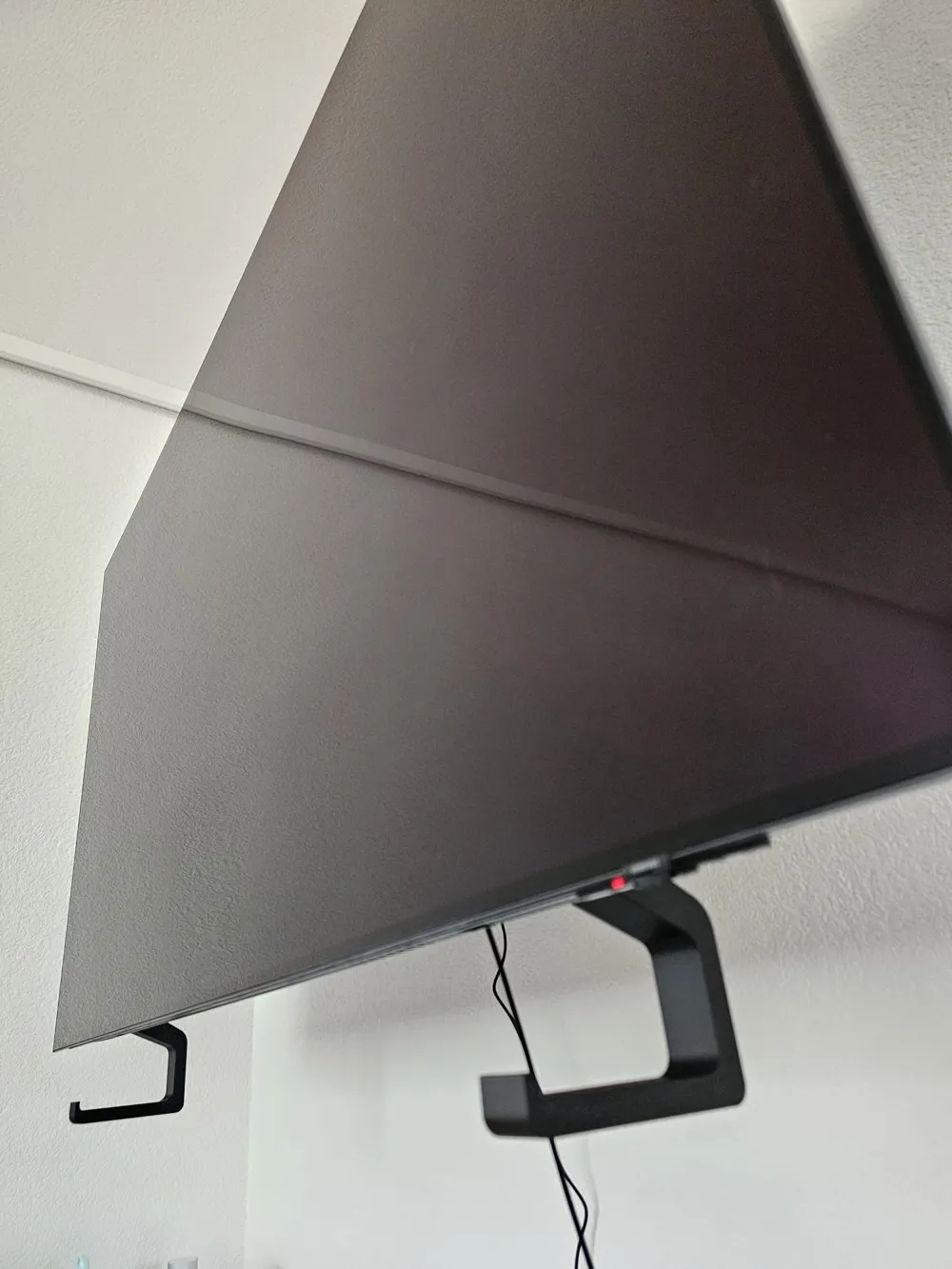

The result is a clean and elegant solution, where the soundbar is positioned directly under the TV and can be moved together with the device if needed.
Boost Me (for free)
❤️ Support
If you like this model or it helped you elegantly mount your soundbar, I would appreciate a boost 🚀. This supports the development of further practical holders and 3D printing projects.
Please make sure before printing which stand mount is present on your TV!!!
Features
- Developed for the Samsung OLED QE65S85DAEXXN
- Suitable for the Samsung HW-B750D Soundbar
- Attaches to the TV's original stand mounts
- No modifications or drilling required on the TV
- Stable and inconspicuous construction
- Optimized for 3D printing

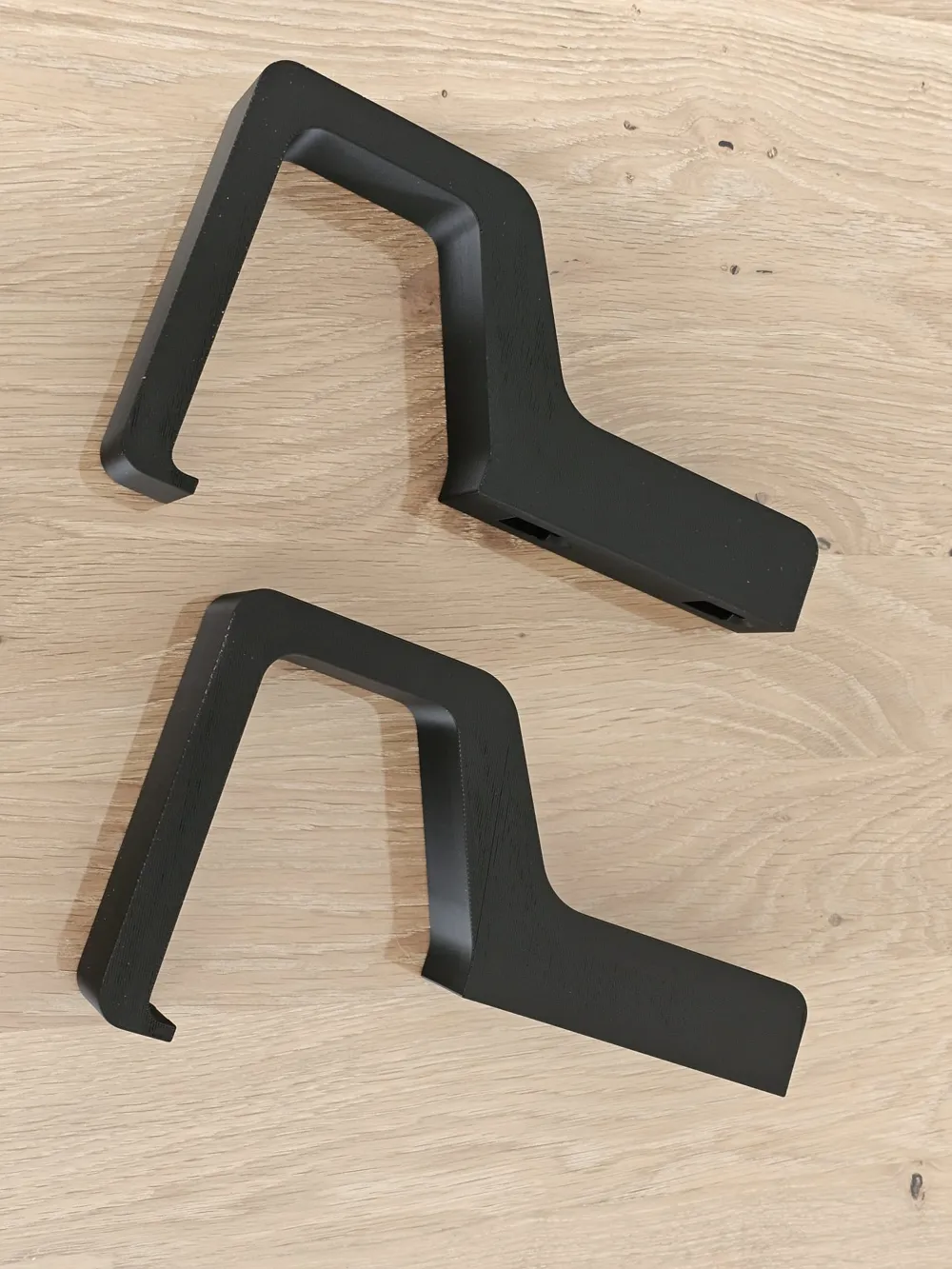

- Left and right holders included in the set
Print Recommendations
- Material: PLA, PETG, ASA or ABS recommended
- Layer height: 0.2 mm
- Infill: 40–50%
- At least 4 perimeter/walls

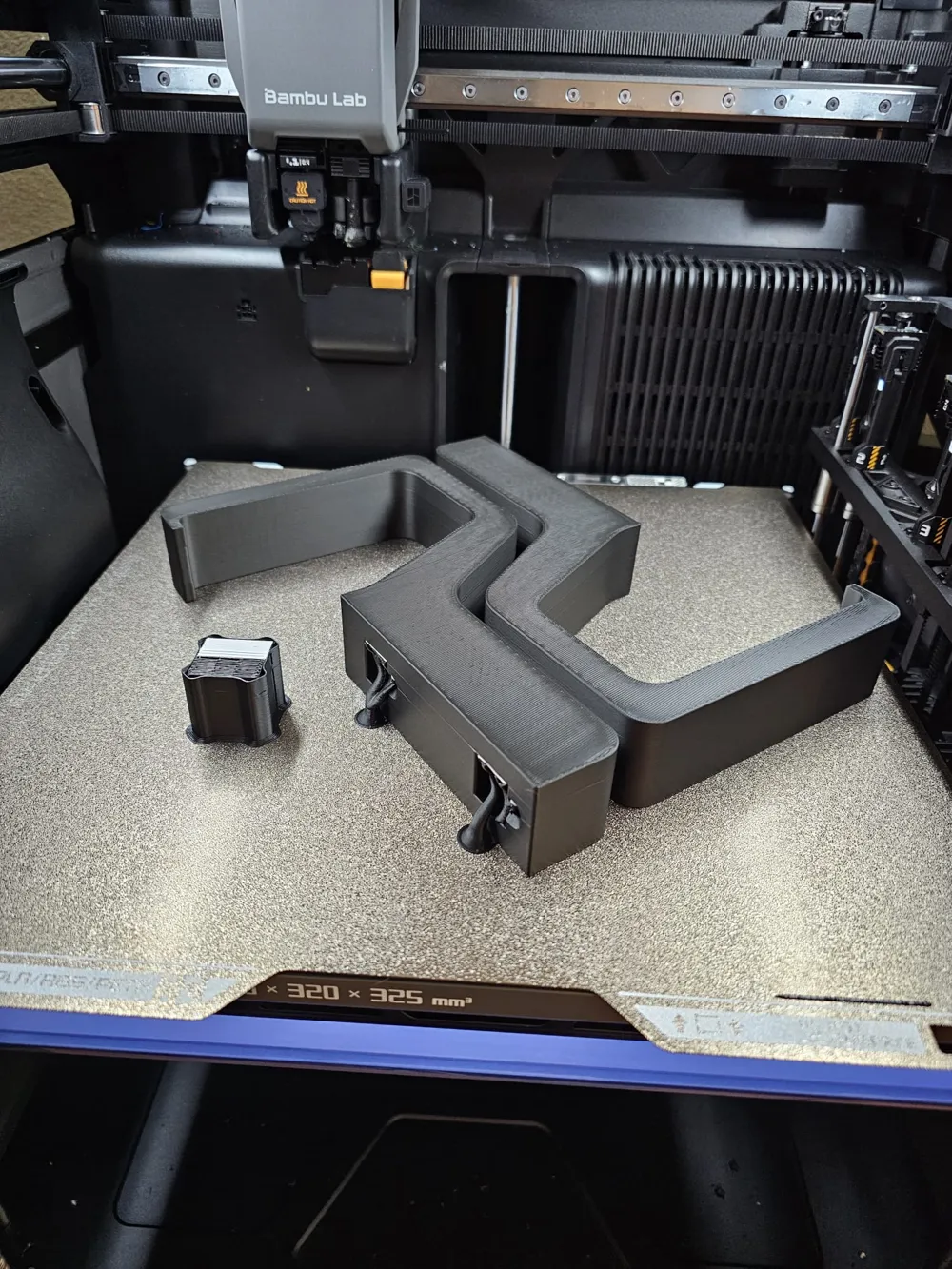

- Print orientation as intended in the STL files

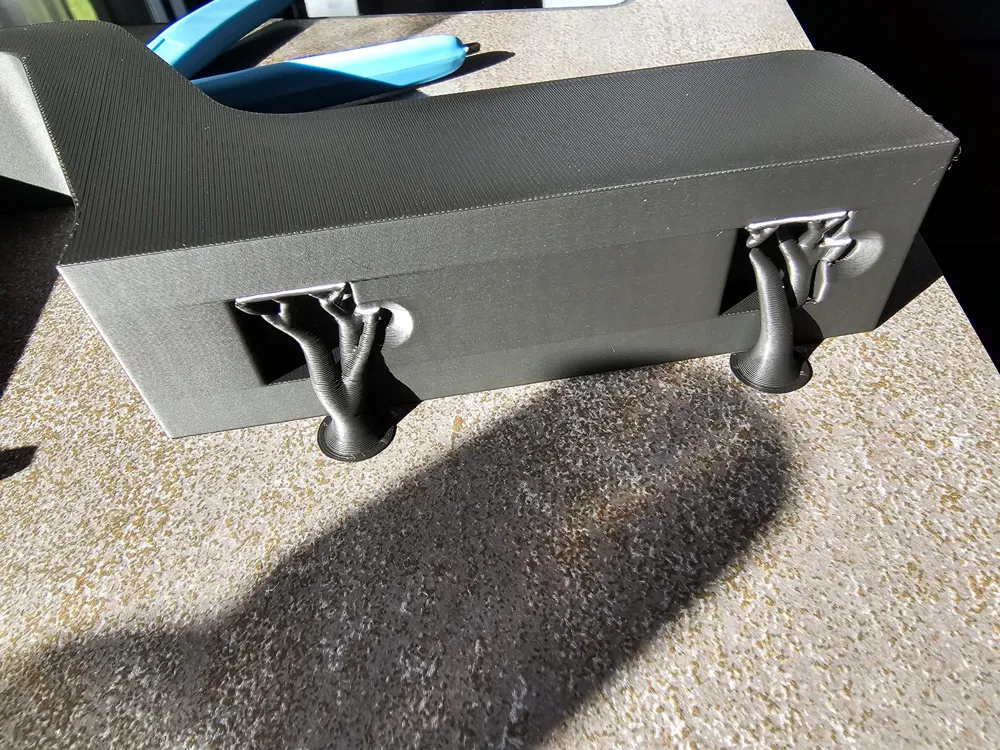

- Support required - in the 3mf file PLA / PETG as a separation layer to allow easy removal inside.
Assembly

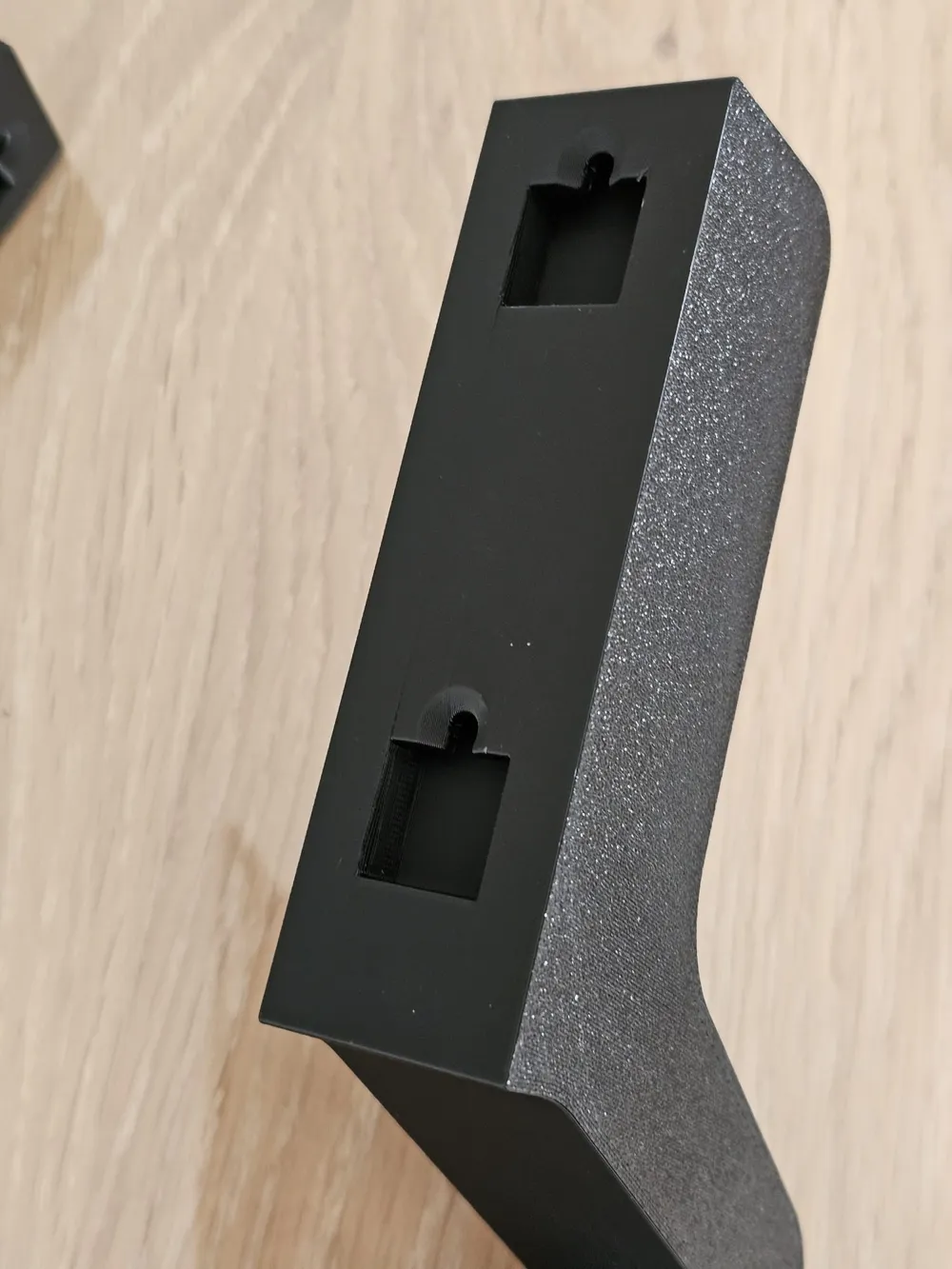

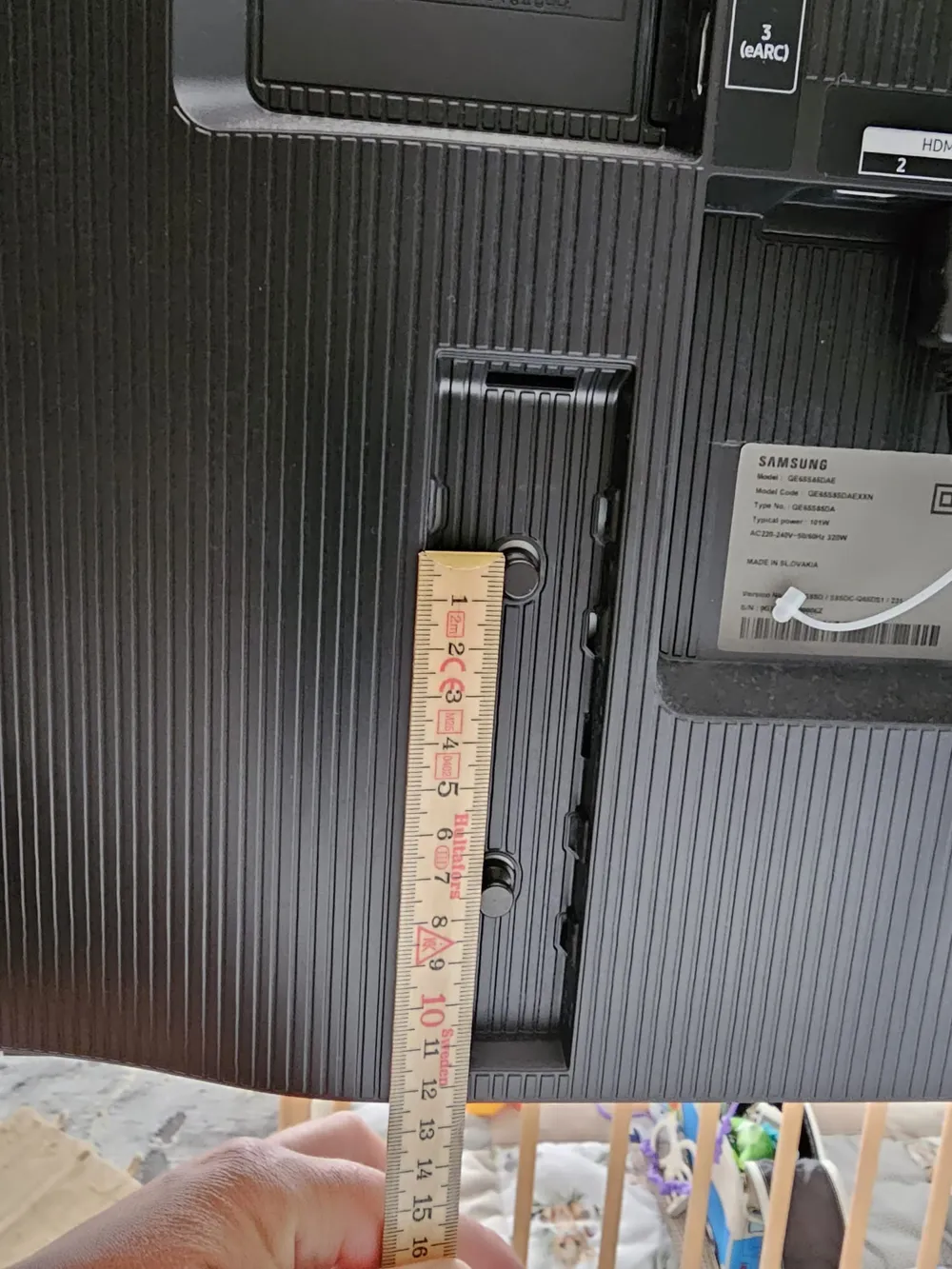

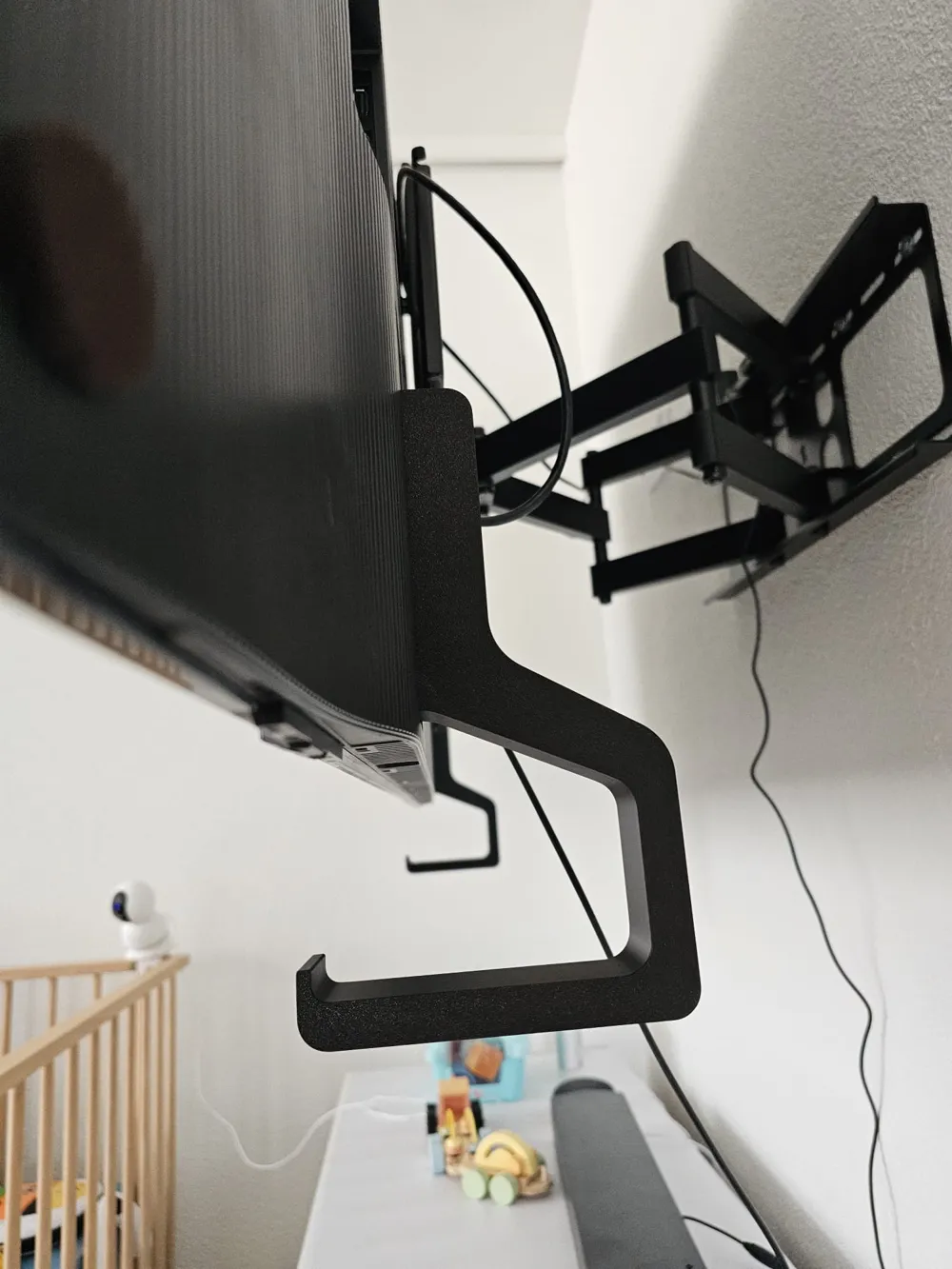

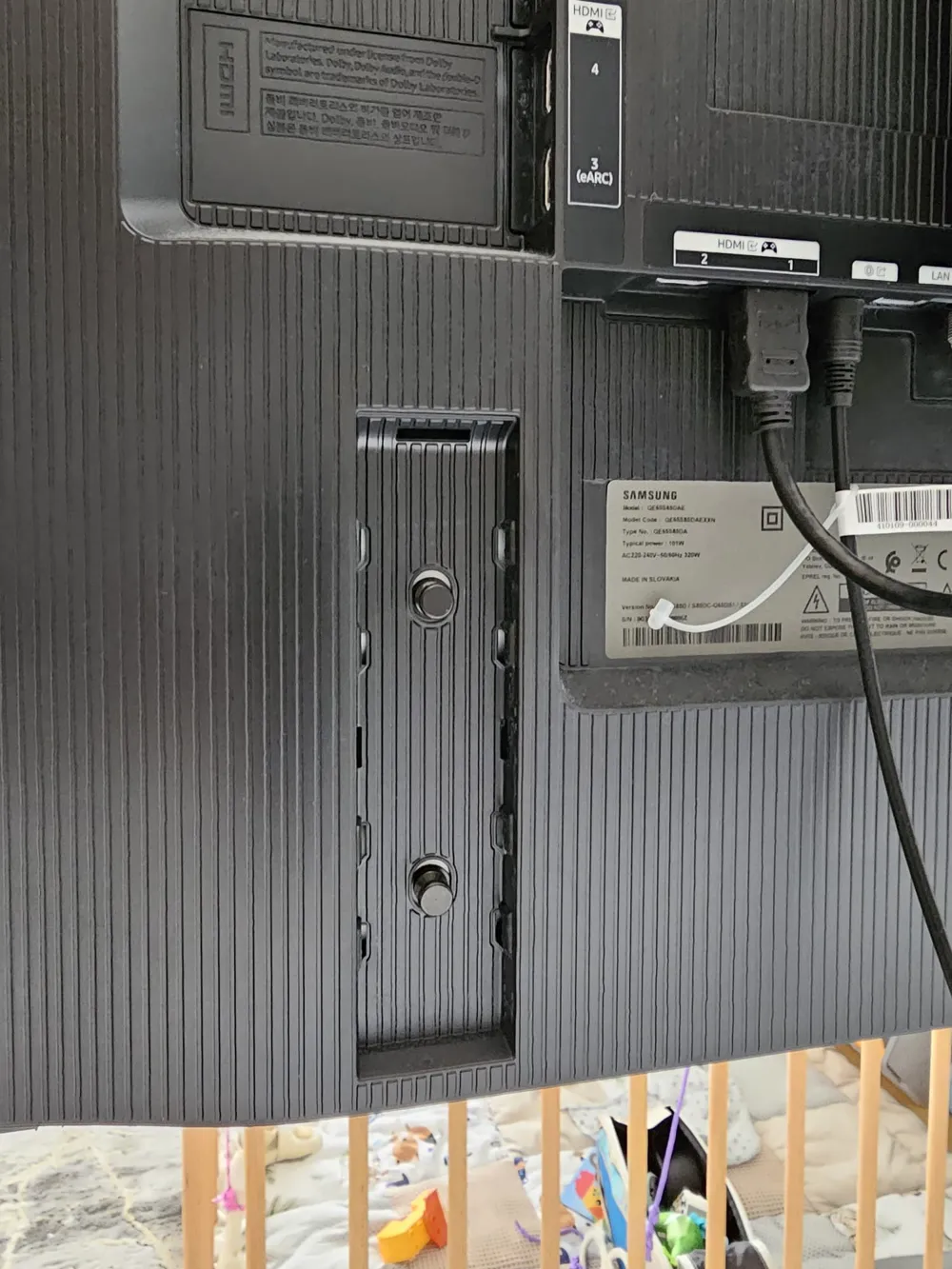

The holders are mounted at the original attachment points of the TV stand. The center distance of the original bracket is 72mm! Afterwards, the soundbar can be securely positioned below the TV. This keeps the aesthetic clean and the soundbar is always in the optimal position relative to the screen.
⚠️ Note
This model was developed for the combination of Samsung OLED QE65S85DAEXXN and Samsung HW-B750D. Compatibility with other TV or soundbar models has not been tested.
Have fun printing and assembling! 🔊📺
