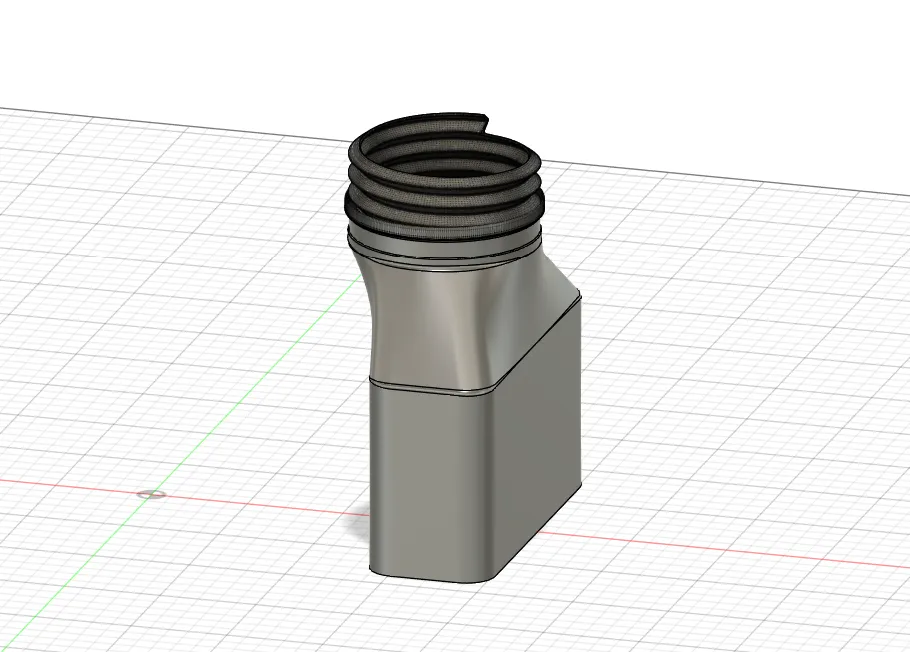

I searched MakerWorld for a while but couldn't find an exhaust vent suitable for my needs, so I decided to design my own.

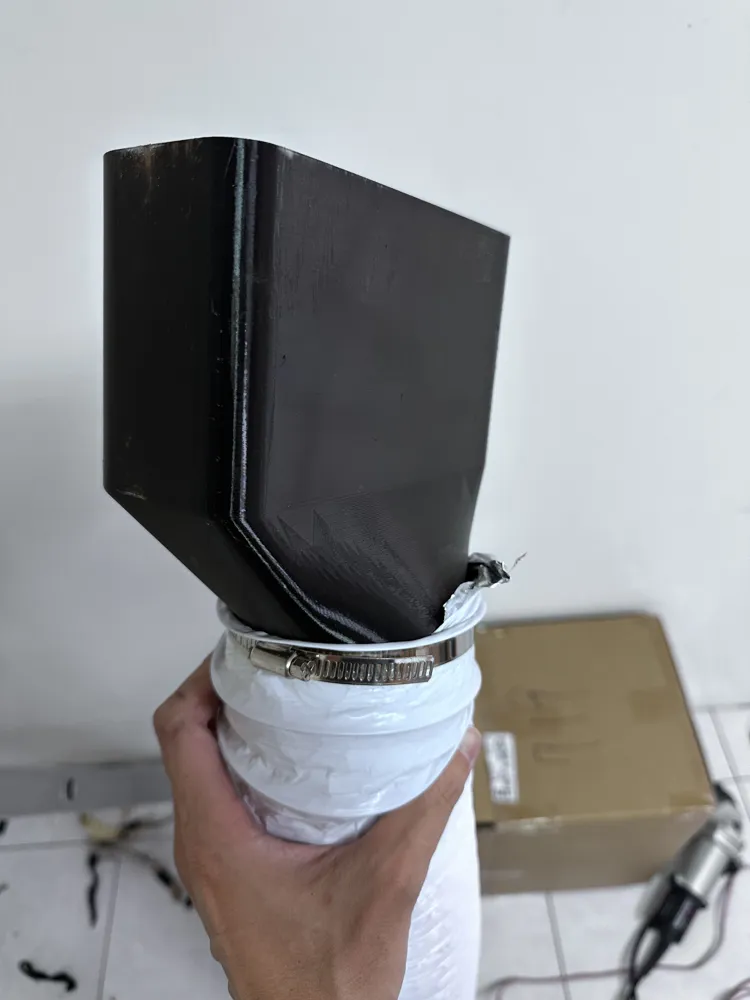

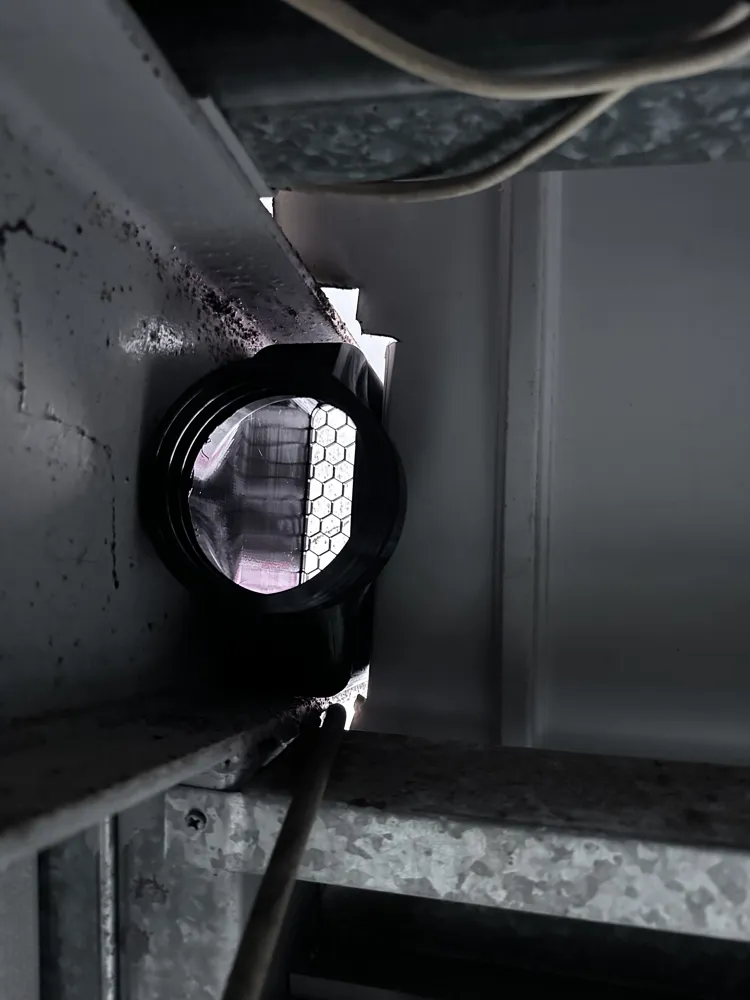

The H-beam on my roof is 198 x 99 (H*B)mm. I designed this exhaust duct to extend out from the gap, and the exhaust opening is larger than the duct's cross-sectional area.

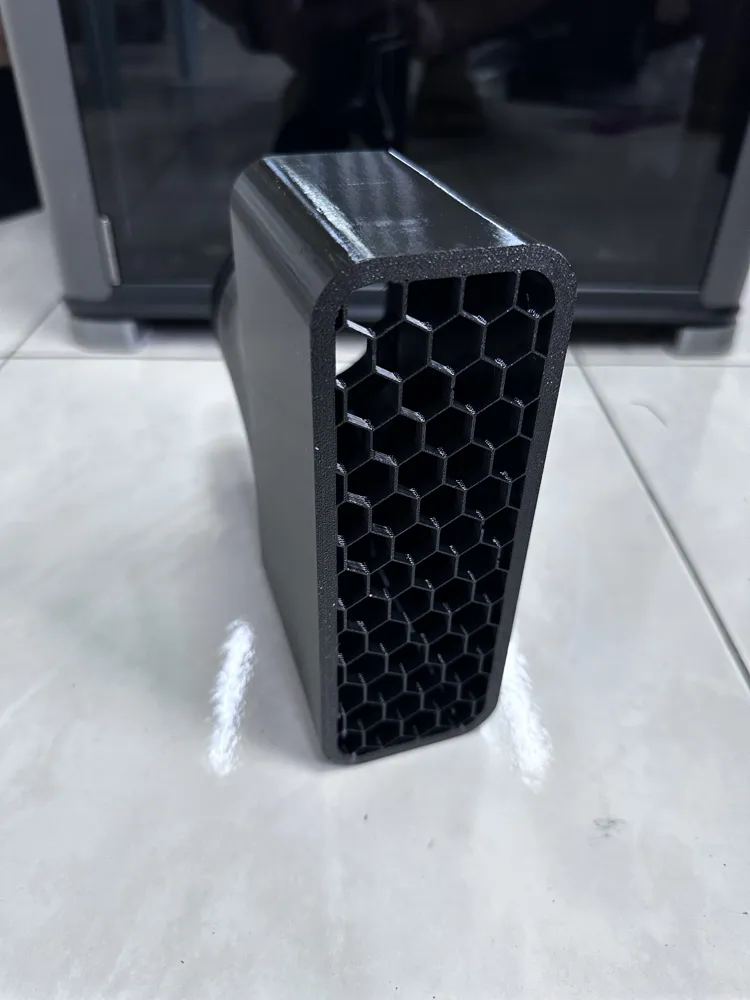

The exhaust opening measures 176mm x 65mm, with a 15mm chamfer. Perhaps someone else might find it useful.

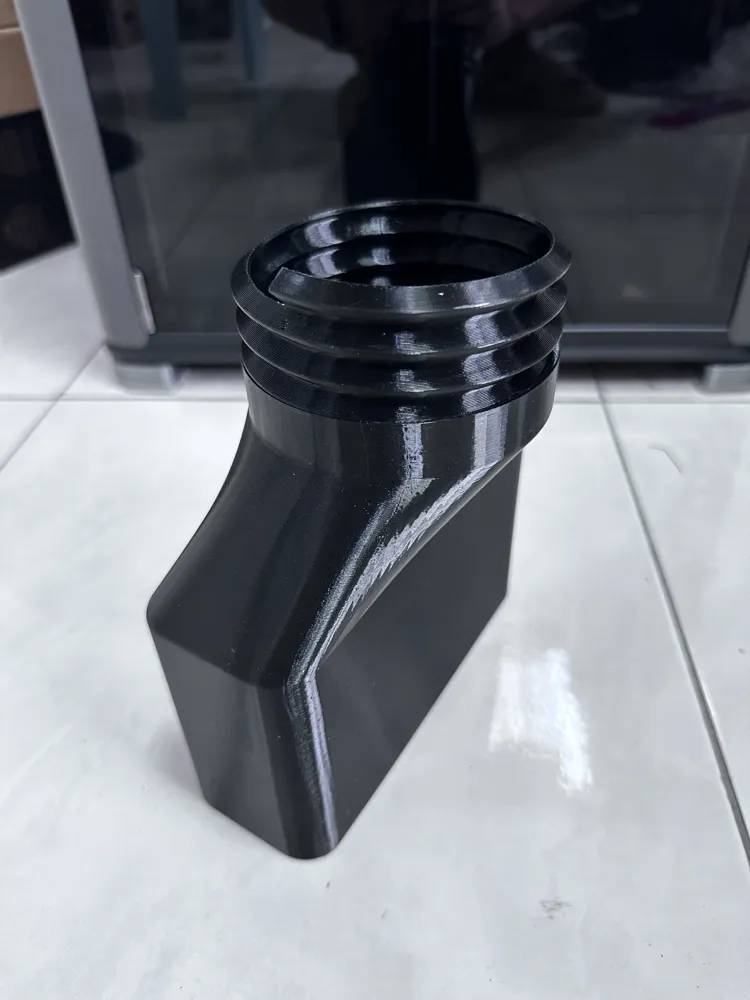

Later, I saw that Clough42's exhaust hood has a threaded version, which I found very good, so I modified it for my use. I have also included my original version, allowing you to choose between them.
