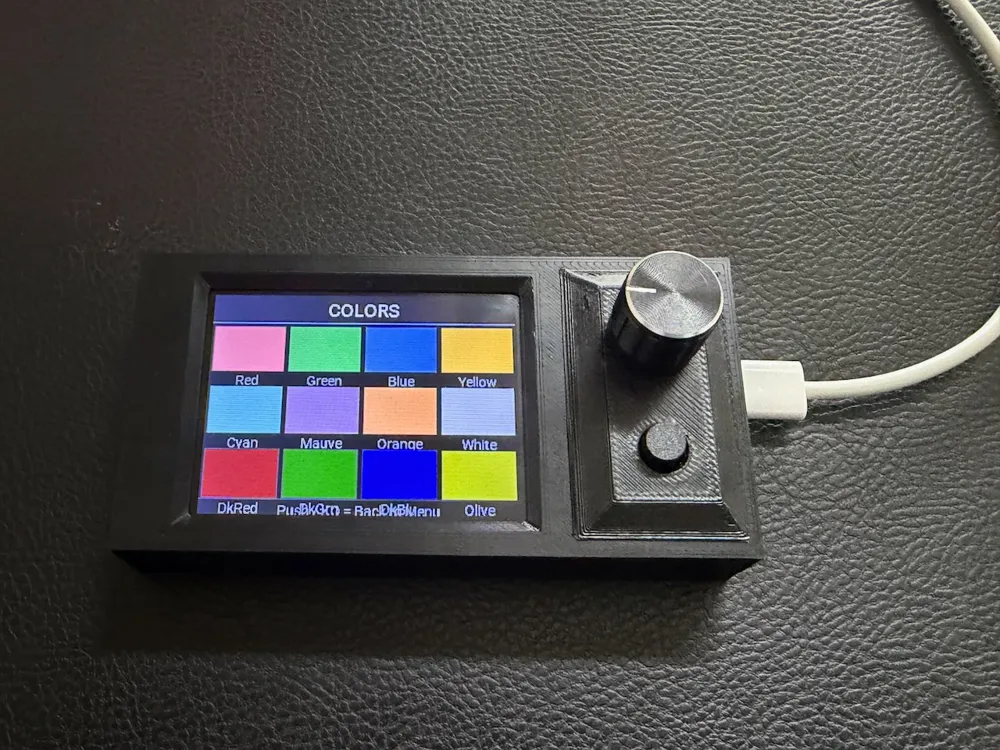

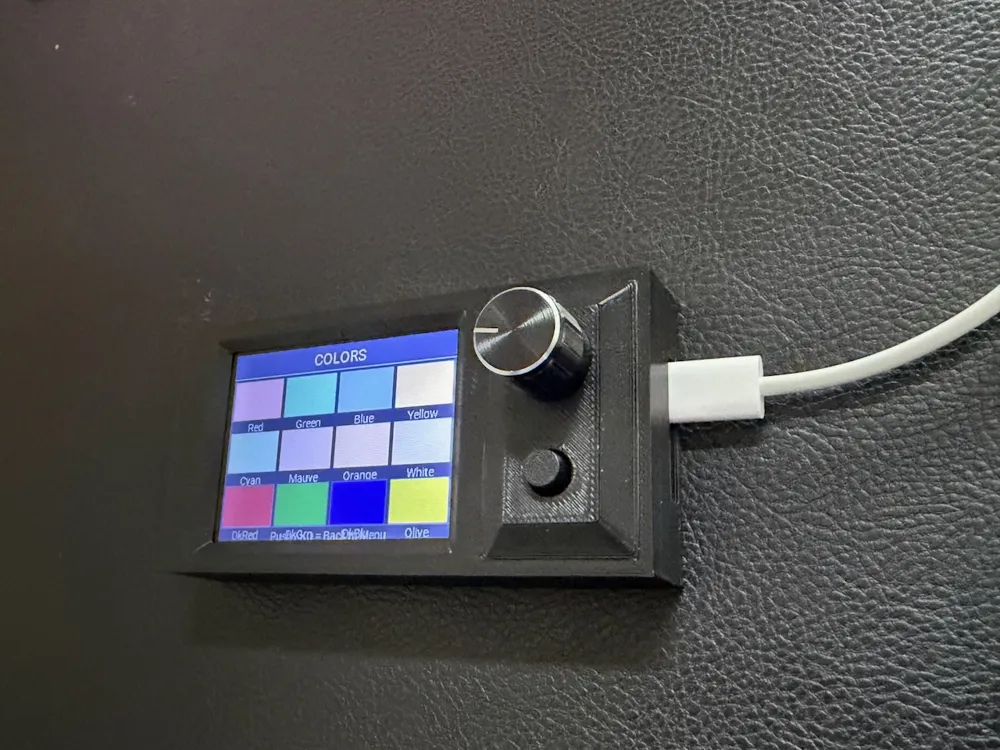

2.4 inch TFT display screen with EC11 encoder case
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
1.1 h
1 plate
Open in Bambu Studio
Boost
2
4
0
0
9
2
Released
Description
The ESP32-S3 is just hot glued to the tft for now.
Printed in ABS. but can be printed in whatever you want.
You can crazyglue the top button trim but I found that just the bolt from the encoder is enough to hold everything in place.

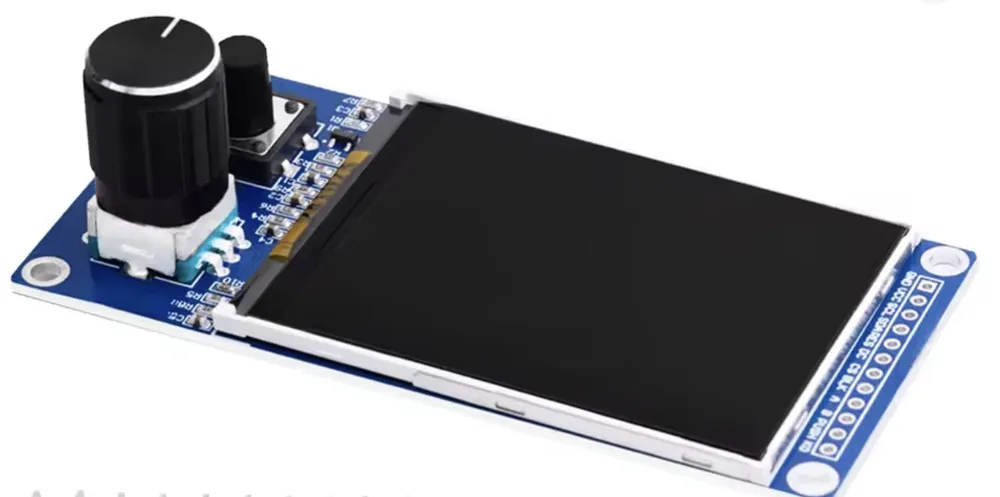

For this module from AliExpress:
https://www.aliexpress.com/item/1005009260256313.html?spm=a2g0o.order_list.order_list_main.10.ccb21802RWm2zd
