Antic Ebike Fenders

Print Profile(1)

All
A1
H2D Pro
P2S
A2L
H2C
H2S
H2D
X2D

0.2mm layer, 6 walls, 25% infill
0.2mm layer, 6 walls, 25% infill
Designer
37 h
2 plates

Open in Bambu Studio
Boost
6
18
1
0
6
5
Released

Description

This is some fenders i made for my FM Antic Ebike.
-I recommend petg as the material, Bambu or Generic are both fine.

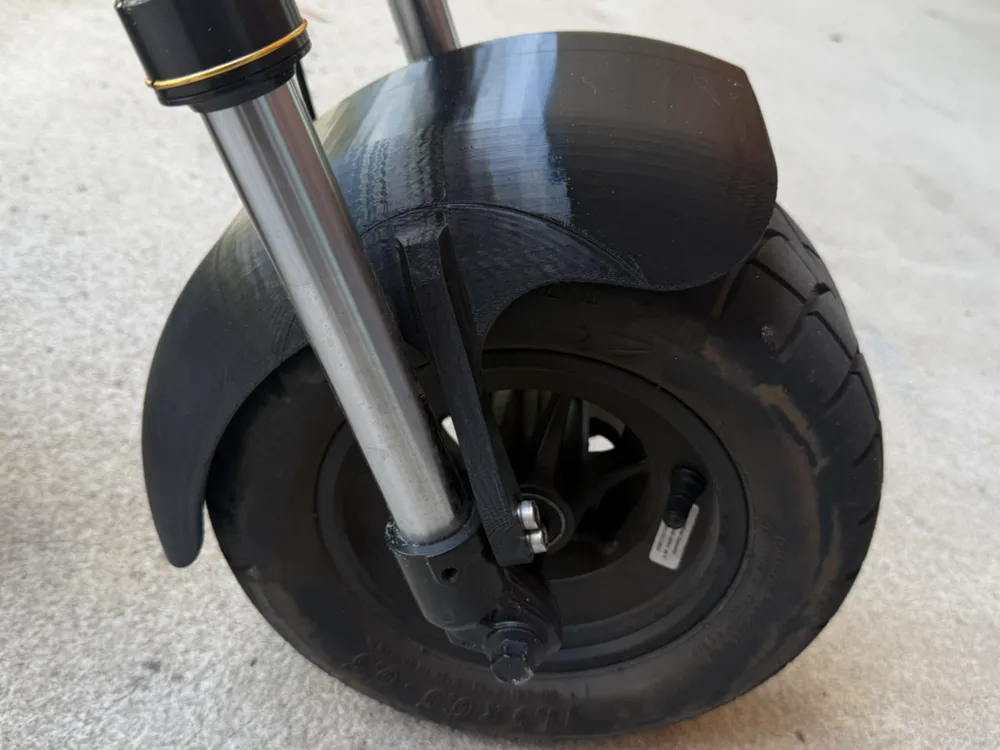

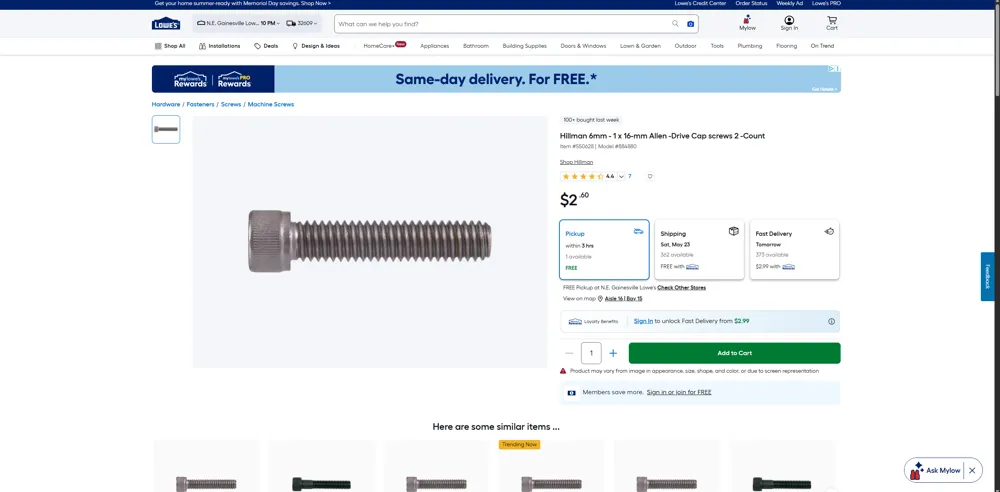

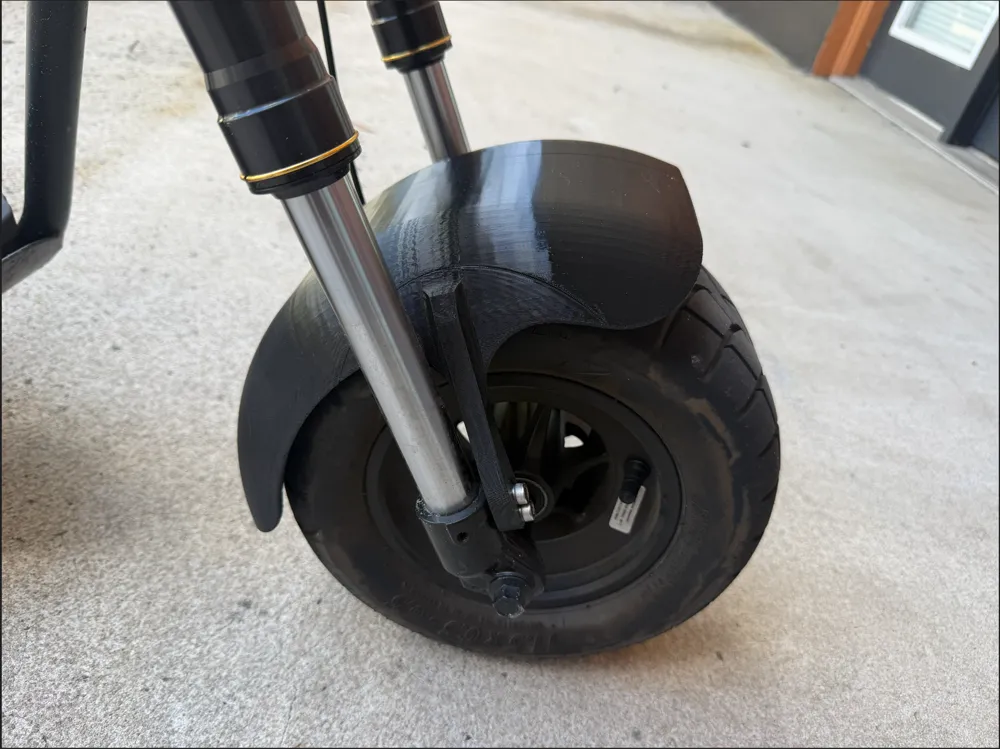

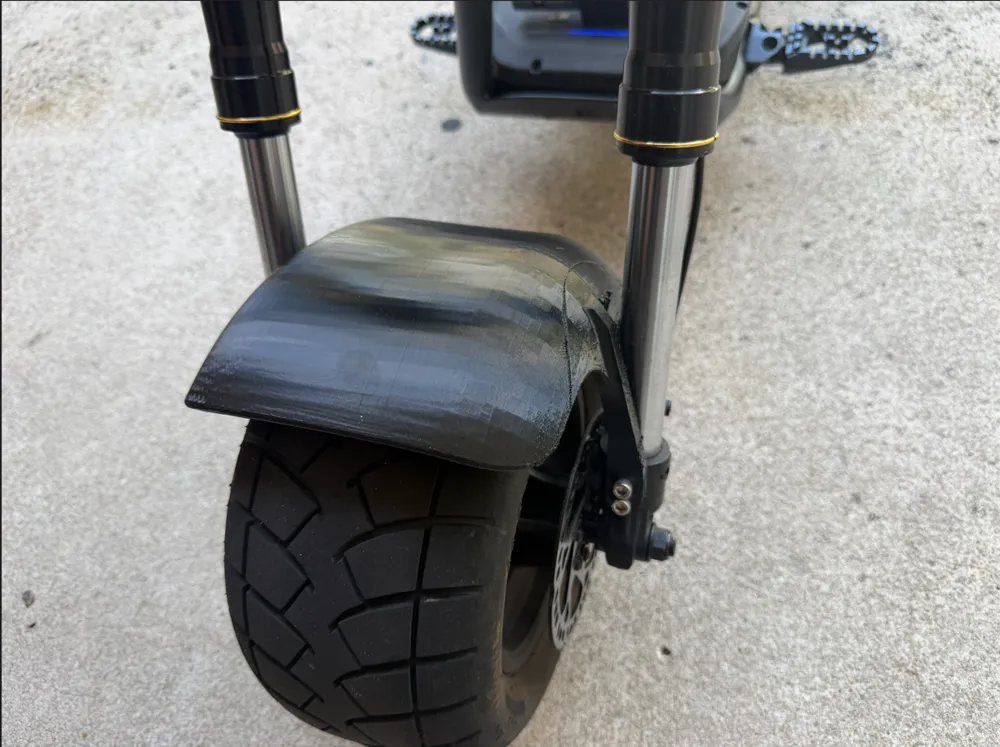

-For the front fender you will require some screws - 4 screws - 6mm 1x16 allen bolts. You can find them easily at lowes, maybe home depo, maybe amazon.

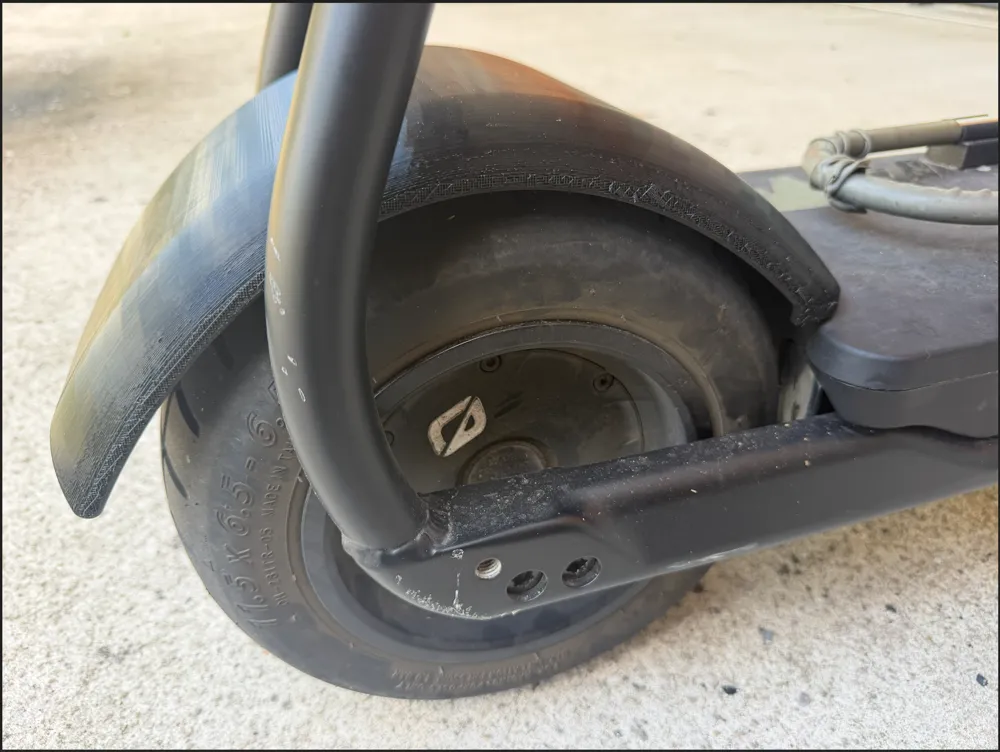

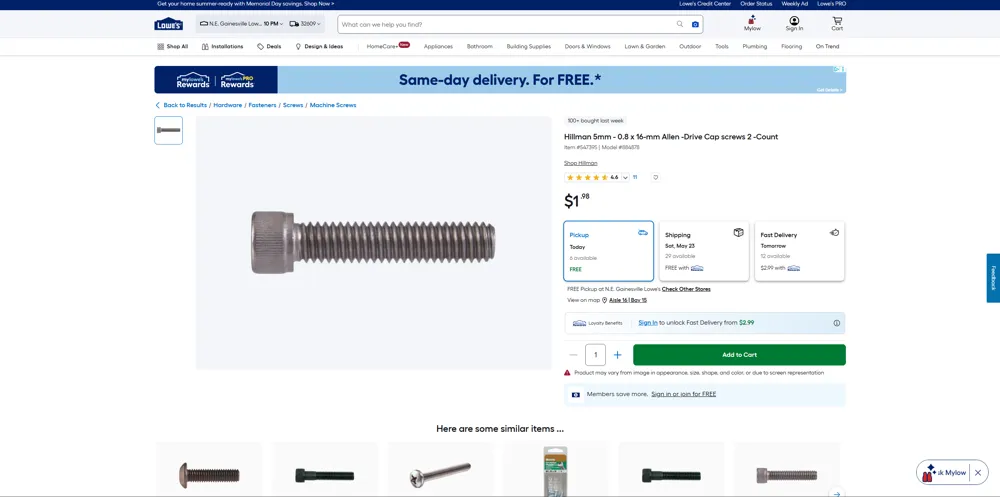

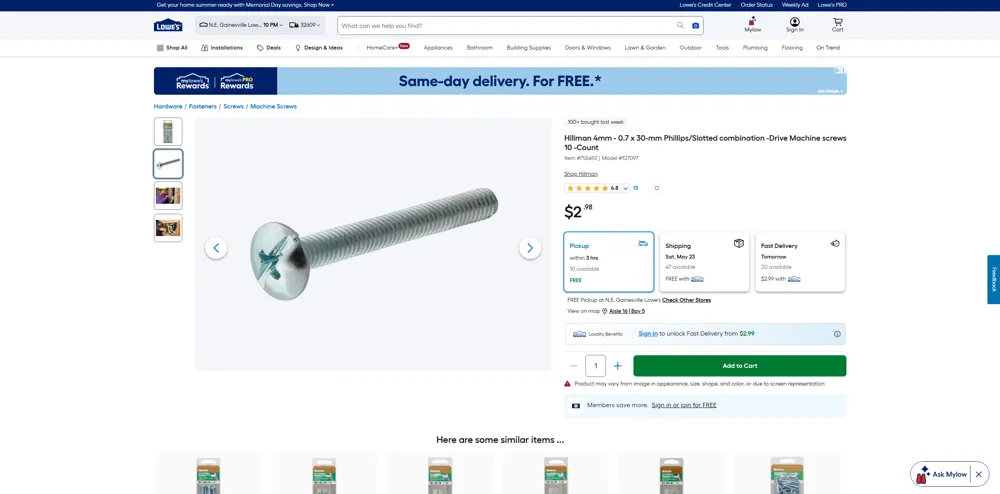

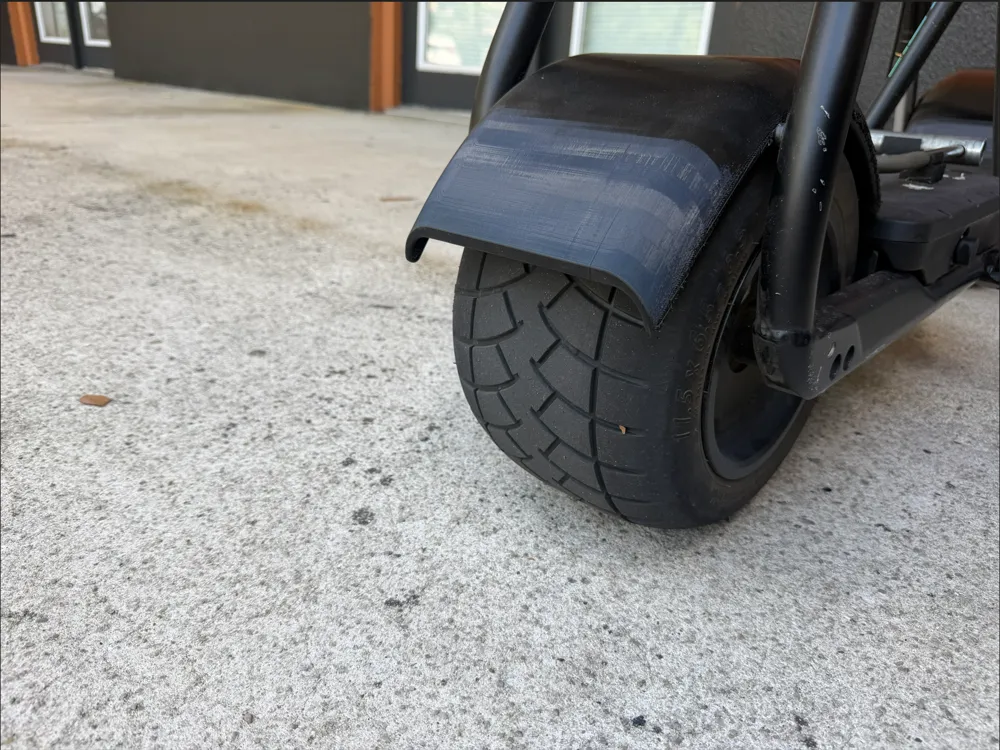

-For the rear fender you will require some more screws - 2 screws- 4mm 0.7x30 and 2 screws - 5mm 0.8x16 make sure to print the clip cylinder for the 2 rear screws, this cylinder is basically a cover that goes around the rear screws that allow the fenders to clip onto them

-Huge Extra step! Use loctite on the screws otherwise the vibrations will cause them to come loose!

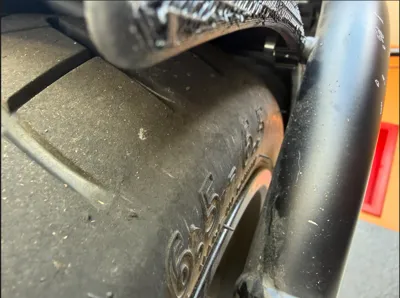

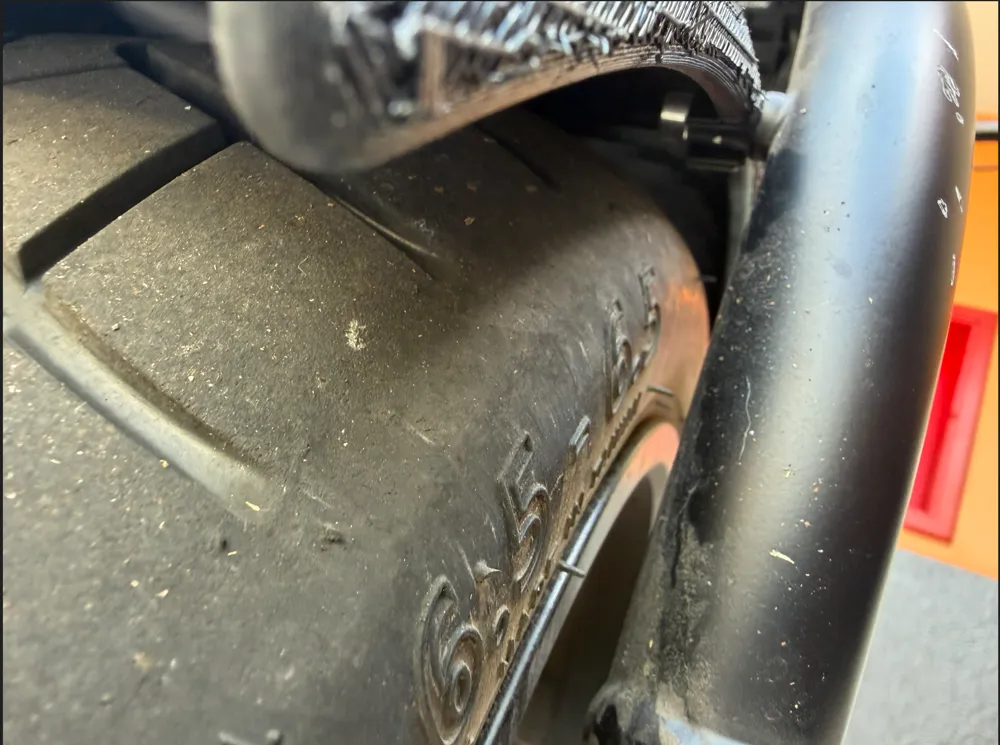

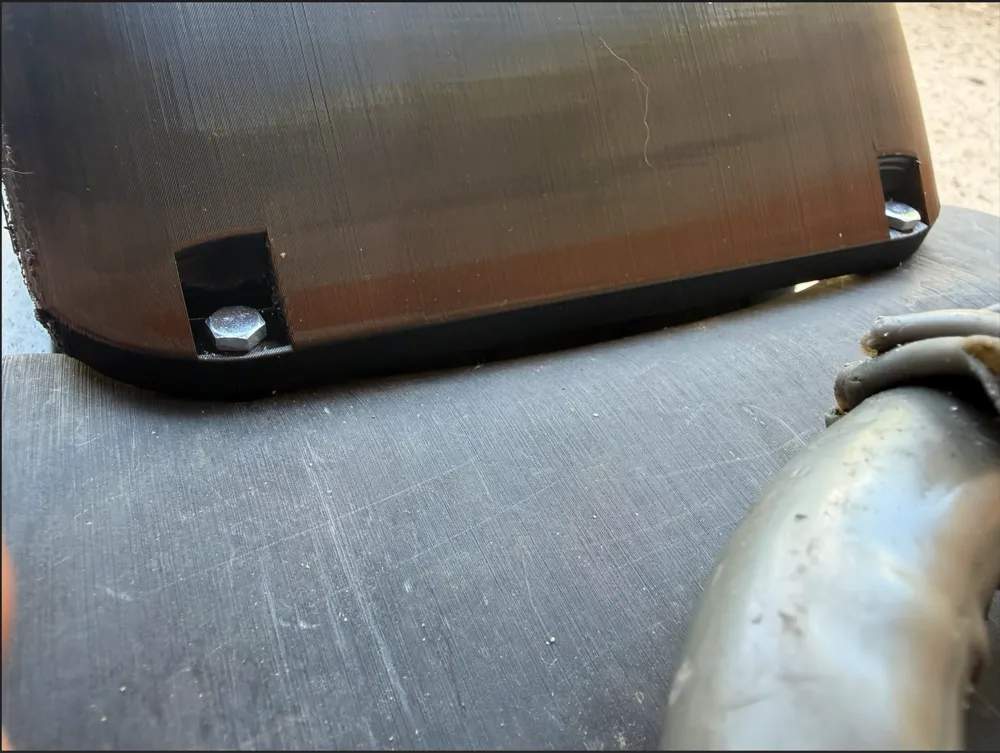

I've been using these fenders for a while now, now issues so far, it takes a long time to print them but compared to the $85 dollar original ones, it's worth the wait. Also the rear fender screws into the battery compartment and while it's not a perfect fit because that weird shape was hard for me to do, it's a decent fit.

P.S. I'm new to 3d modeling and this was hard v.v
