应该不会紧，我调了流量的，但是每个耗材不一定一样。

It should not be tight, I've adjusted the flow rate, but each filament might vary

Quiet sound, not disruptive

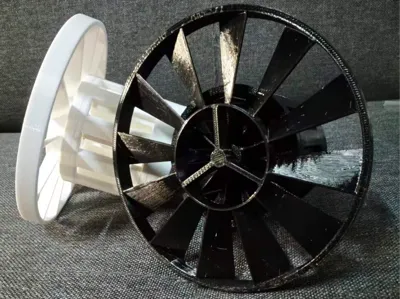

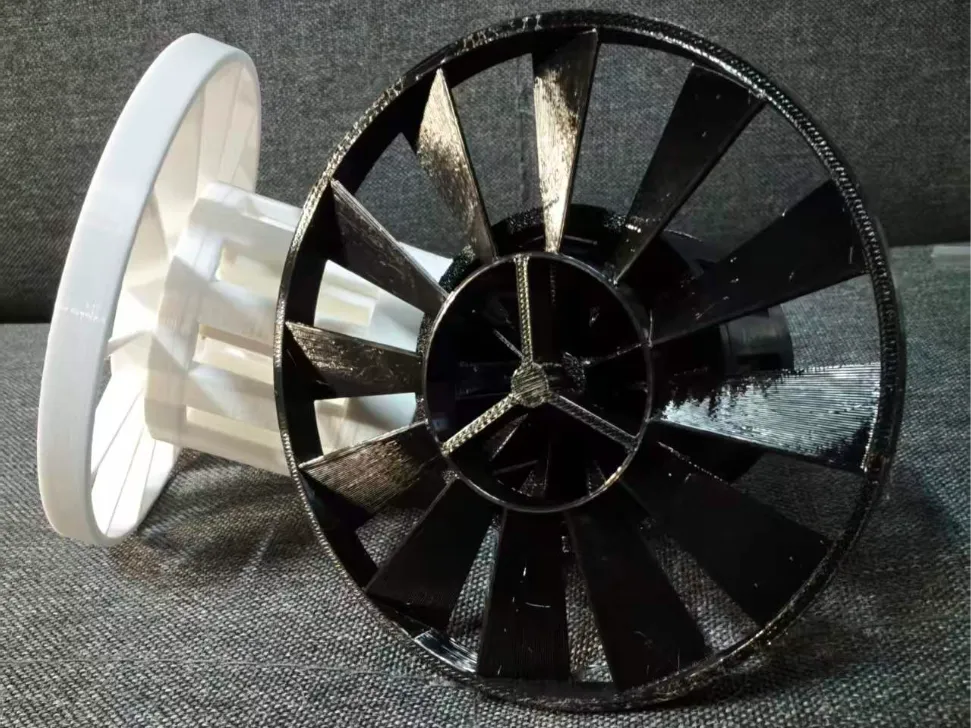

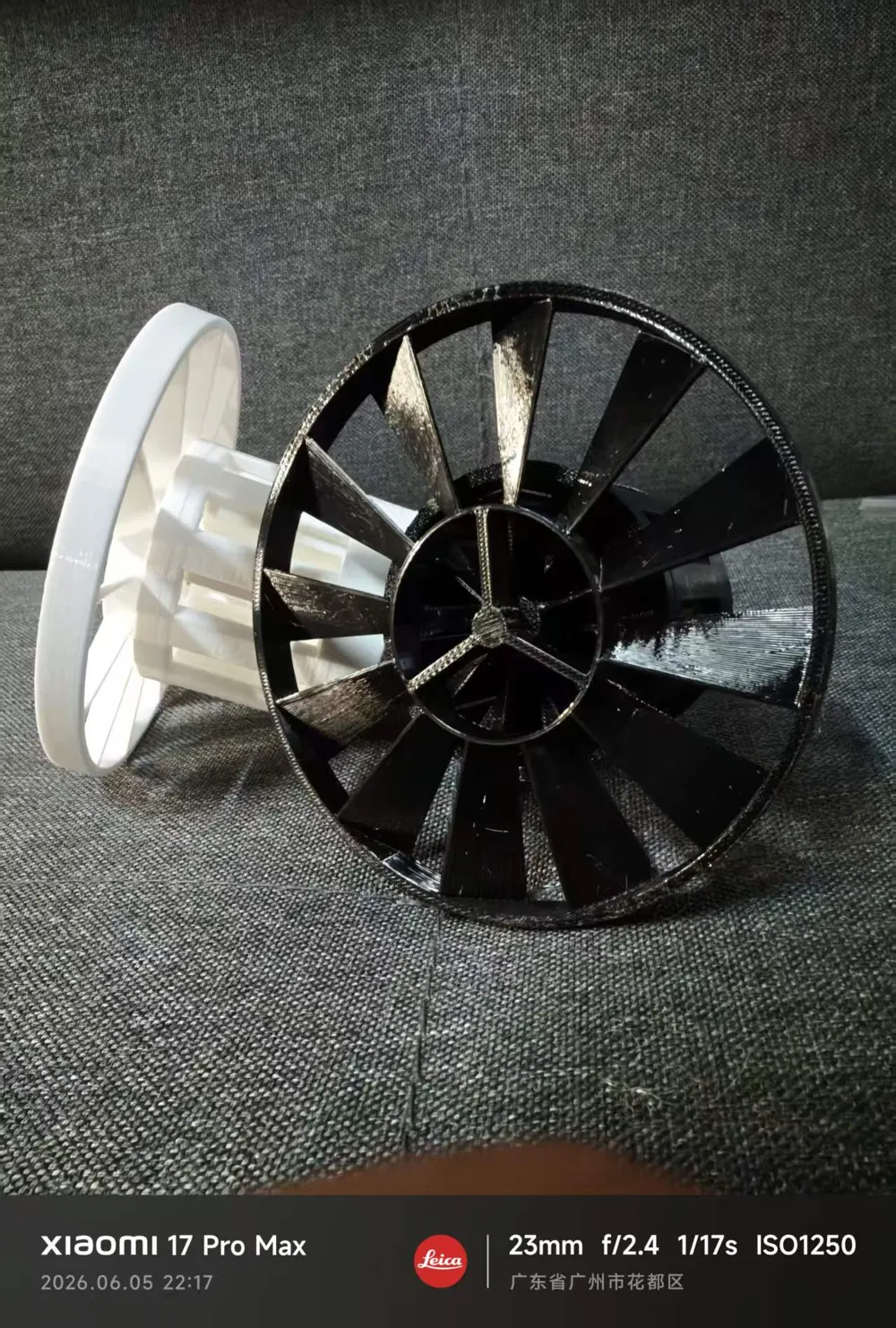

更新了大嗓门版，优化了上盖的安装方式，优化了中轴长度，优化了螺旋桨大小增加中心进风量

Updated the Loudmouth version, optimized the top cover installation method, optimized the center shaft length, and optimized the propeller size for increased central air intake

Updated the Loudmouth version, with optimizations made to the top cover installation, central shaft length, and propeller size to increase central air intake


最新优化1.转子中心添加一根M5*30MM的螺杆2.优化了内部结构的稳定性3.螺旋桨安装孔加长2MM

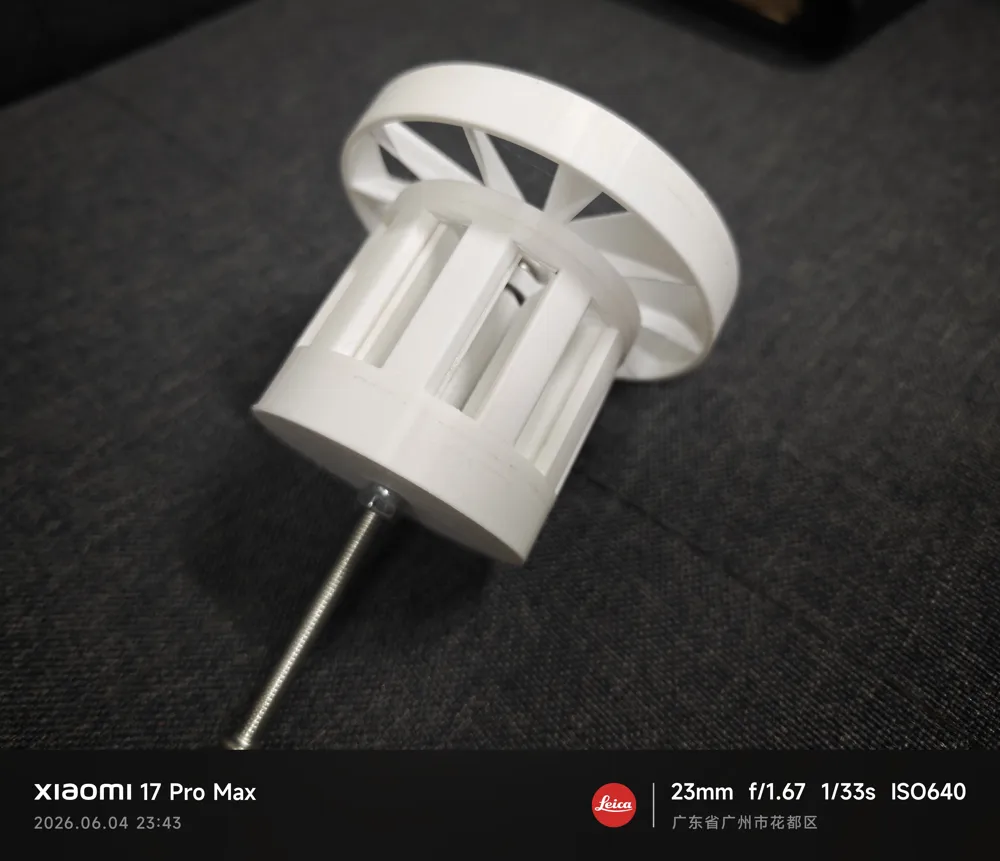

Latest optimizations1. An M5*30MM screw added to the rotor center2. Optimized internal structure stability3. Propeller mounting hole extended by 2MM

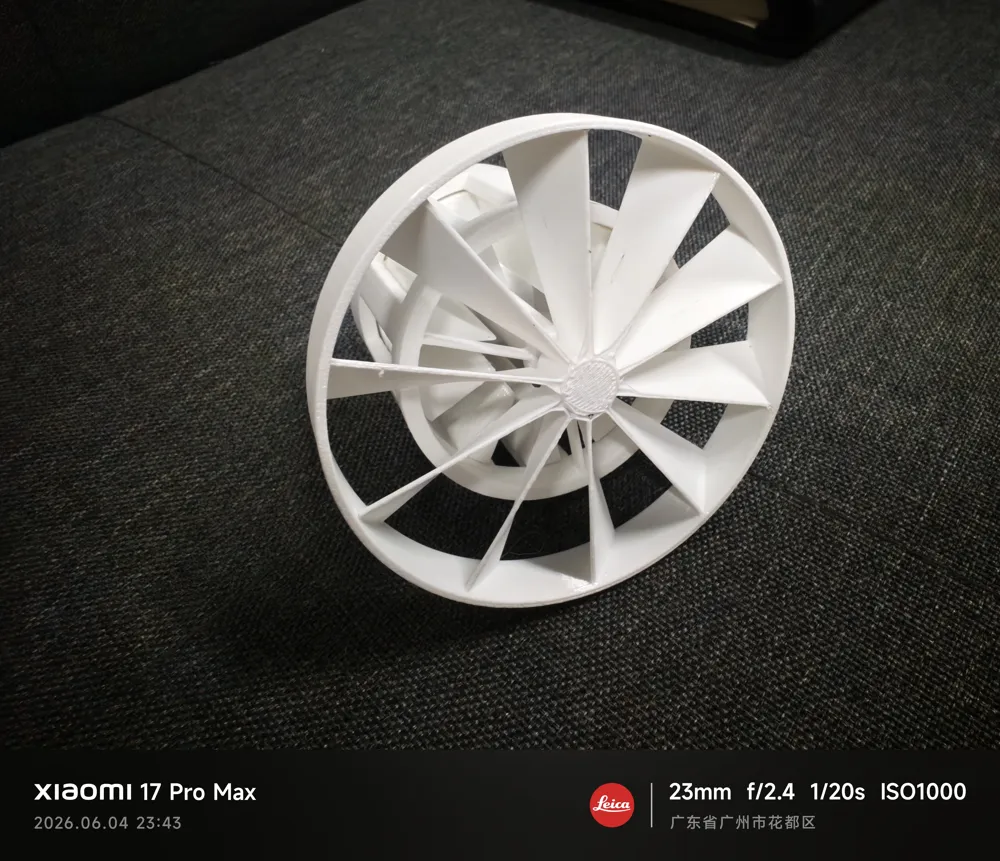

Latest version, optimized fan blades, central shaft, and rotor strength

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

&nbsp;喜欢的话，麻烦给一下助力<boostme><boosttitle>为我助力</boosttitle><boostcontent>继续开发更多隐秘的建模</boostcontent></boostme>声音试听<figure class="media"><oembed url="https://www.bilibili.com/video/BV1C4ET6kEeu/?spm_id_from=333.337.search-card.all.click"></oembed></figure>安装教程<figure class="media"><oembed url="https://www.bilibili.com/video/BV1H4Ej6eE9z/?spm_id_from=333.1387.upload.video_card.click"></oembed></figure><h2>更新了大嗓门版，优化了上盖的安装方式，优化了中轴长度，优化了螺旋桨大小增加中心进风量优化了内转子的轴承安装方式；</h2>大概25公里左右能发声；但是！但是！但是！！目前这个版本属于电动车专用，声音不会太大，能起到提醒作用，无法炸街；需要材料：M5螺杆一枚（长度3CM以上）                   SMR95轴承两枚（SMR95-ZZ）                   M5螺母一枚                   M5防松螺母一枚                   M5*8*1垫片两个（可以不用）

&nbsp;If you like it, please give it a boost<boostme><boosttitle>Boost Me</boosttitle><boostcontent>To continue developing more discreet models</boostcontent></boostme>Sound Demo<figure class="media"><oembed url="https://www.bilibili.com/video/BV1C4ET6kEeu/?spm_id_from=333.337.search-card.all.click"></oembed></figure>Installation Tutorial<figure class="media"><oembed url="https://www.bilibili.com/video/BV1H4Ej6eE9z/?spm_id_from=333.1387.upload.video_card.click"></oembed></figure><h2>Updated with a louder version, optimized the installation method for the top cover, optimized the central shaft length, optimized the propeller size to increase central airflow, and optimized the bearing installation method for the inner rotor</h2>It can generate sound at about 25 km/hHowever! However! However!!Currently, this version is specifically for electric bicycles; the sound will not be too loud, it serves as a reminder but cannot be used to make excessive noiseMaterials required: One M5 threaded rod (length 3cm or more)Two SMR95 bearings (SMR95-ZZ)One M5 nutOne M5 self-locking nutTwo M5*8*1 washers (optional)

Print Profile(3)

Description

Updated with a louder version, optimized the installation method for the top cover, optimized the central shaft length, optimized the propeller size to increase central airflow, and optimized the bearing installation method for the inner rotor
