Drain Claw – Hair & Debris Remover
This drain cleaning tool was designed primarily for removing hair from household drains, but it is also effective for extracting soap residue, food particles, threads, and other debris that can accumulate in pipes and drain openings.

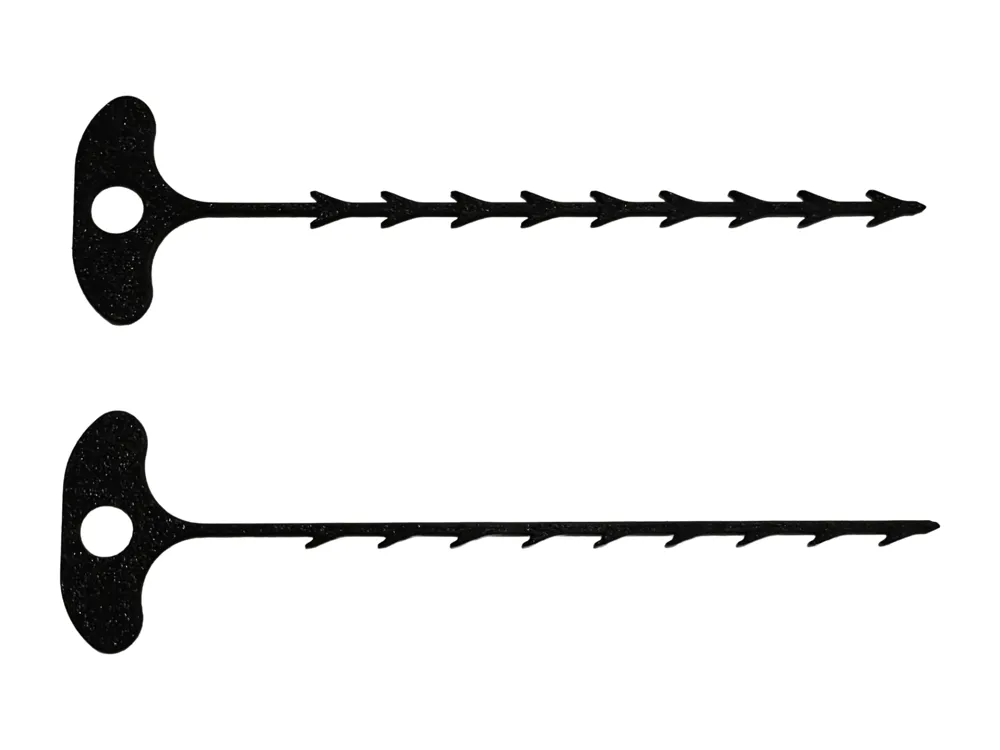

The model includes two versions:

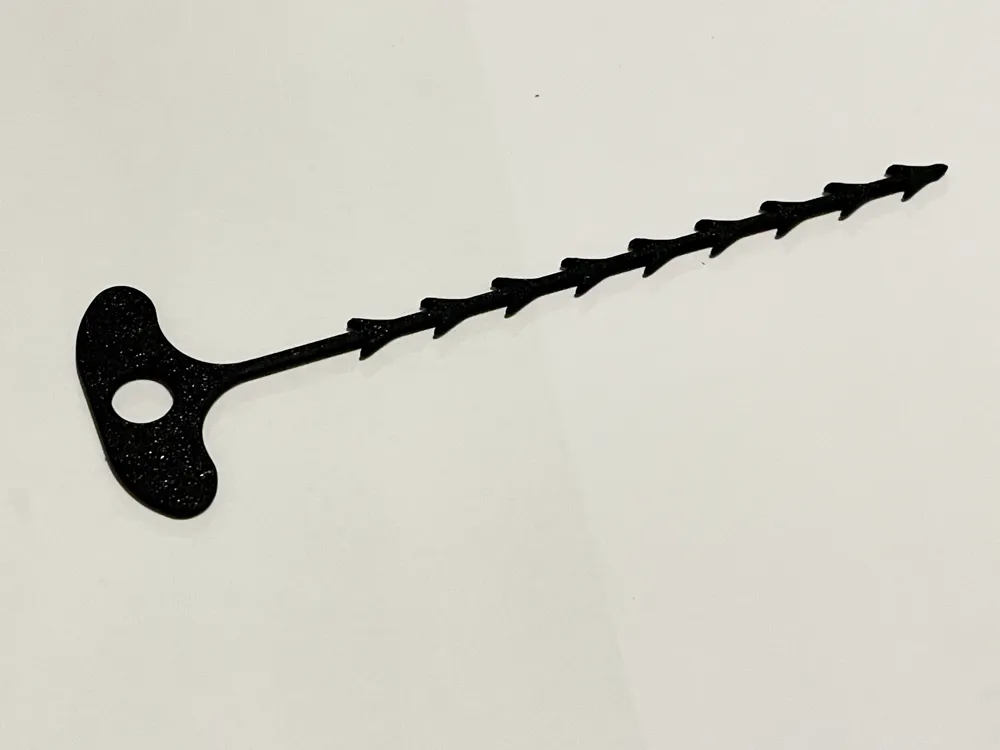

Dual-Hook Version
- Hooks on both sides for maximum grip
- Ideal for pulling out larger amounts of debris
- Works especially well for hair clogs

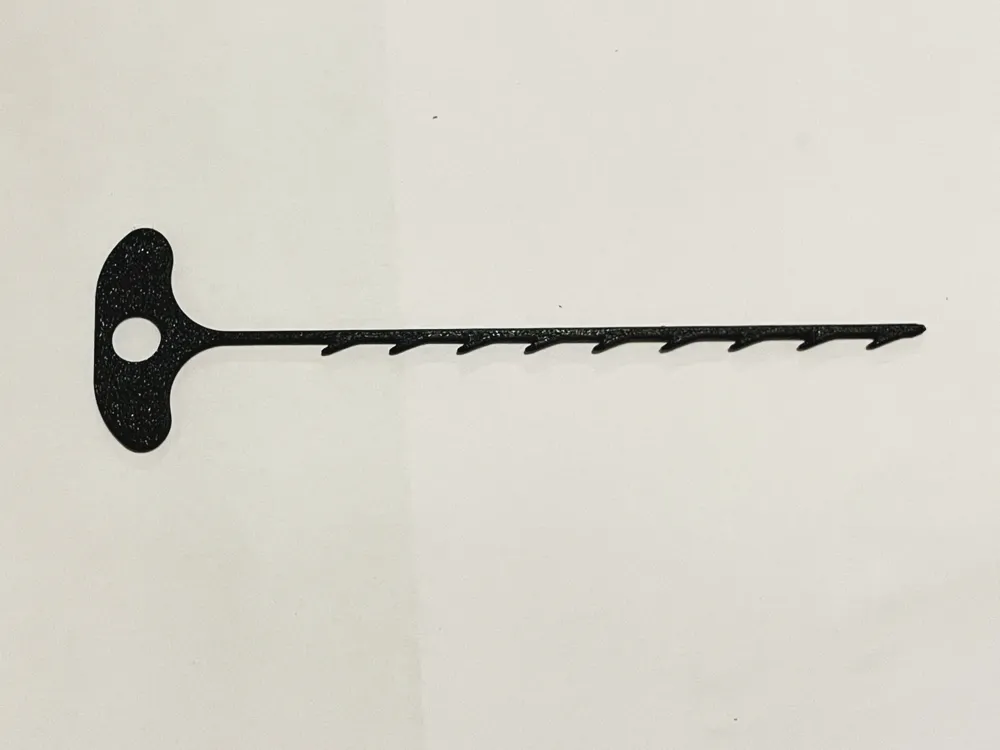

Single-Hook Version
- Hooks on one side only
- Slimmer profile for narrow openings
- Easier insertion in situations where extra clearance is needed
Features
- Reusable and easy to clean
- No assembly required
- Prints without supports
- No brim or raft needed
- Ready to use directly after printing
- Suitable for most household drains
- Lightweight and durable design
Dimensions
- Overall hook section length: 147.5 mm
- Handle width: 45 mm
- Handle height: 15 mm
- Hanging hole diameter: 10 mm
- Maximum hook-to-hook width: 6.6 mm
- Thickness: 2.5 mm
Recommended Print Settings
- Material: PETG (recommended)
- Also tested successfully with PLA
- Nozzle: 0.4 mm
- Layer height: 0.16 mm recommended
- 0.20 mm layer height should also works well
- Supports: Not required
- Brim: Not required
- Raft: Not required
Usage
Insert the tool into the drain, rotate slightly if needed, and slowly pull it back out. The hooks are designed to catch and extract hair and other debris from areas that are difficult to reach.
If one version does not fit a particular drain opening, try the alternative version for improved access.
