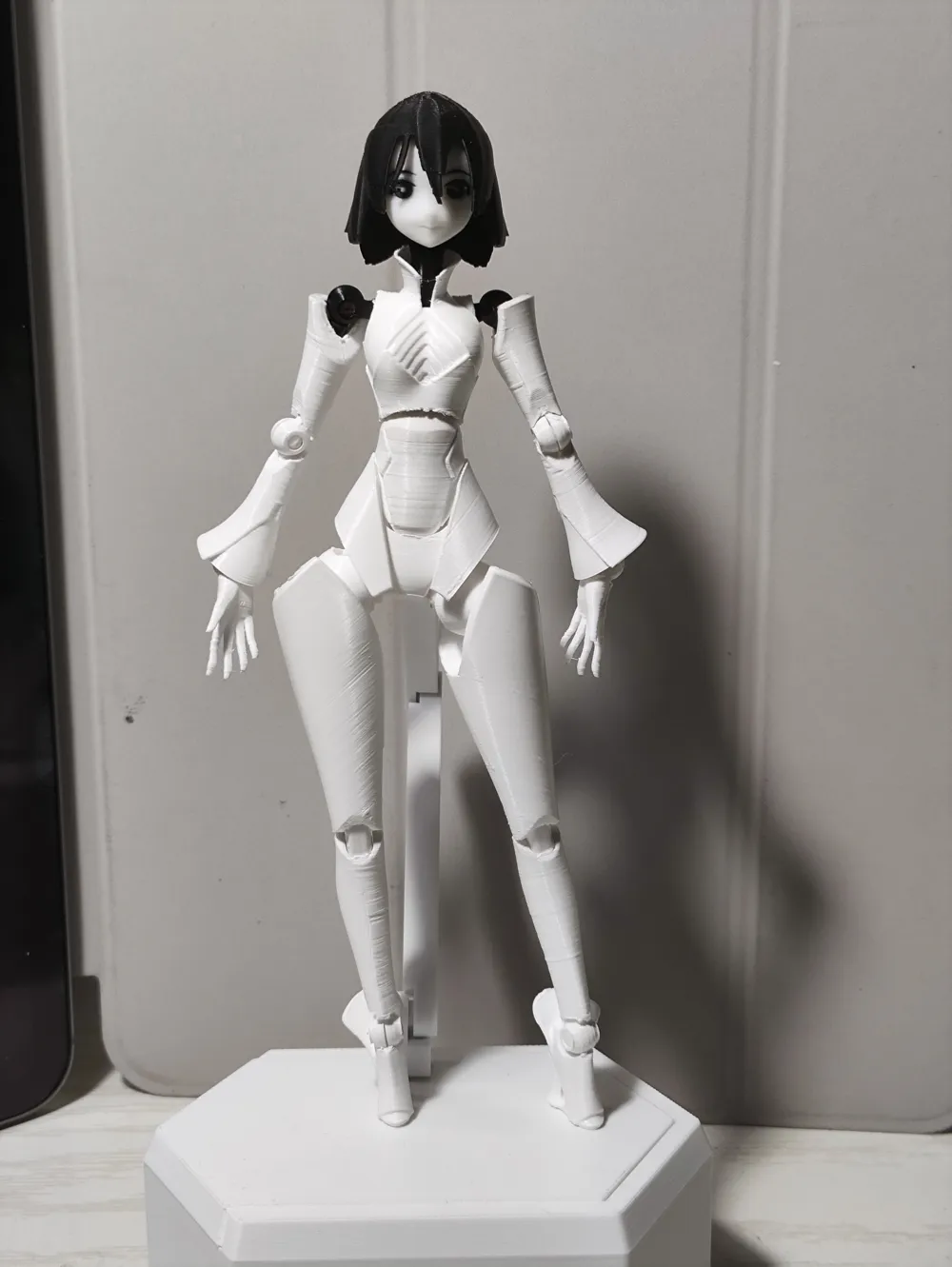

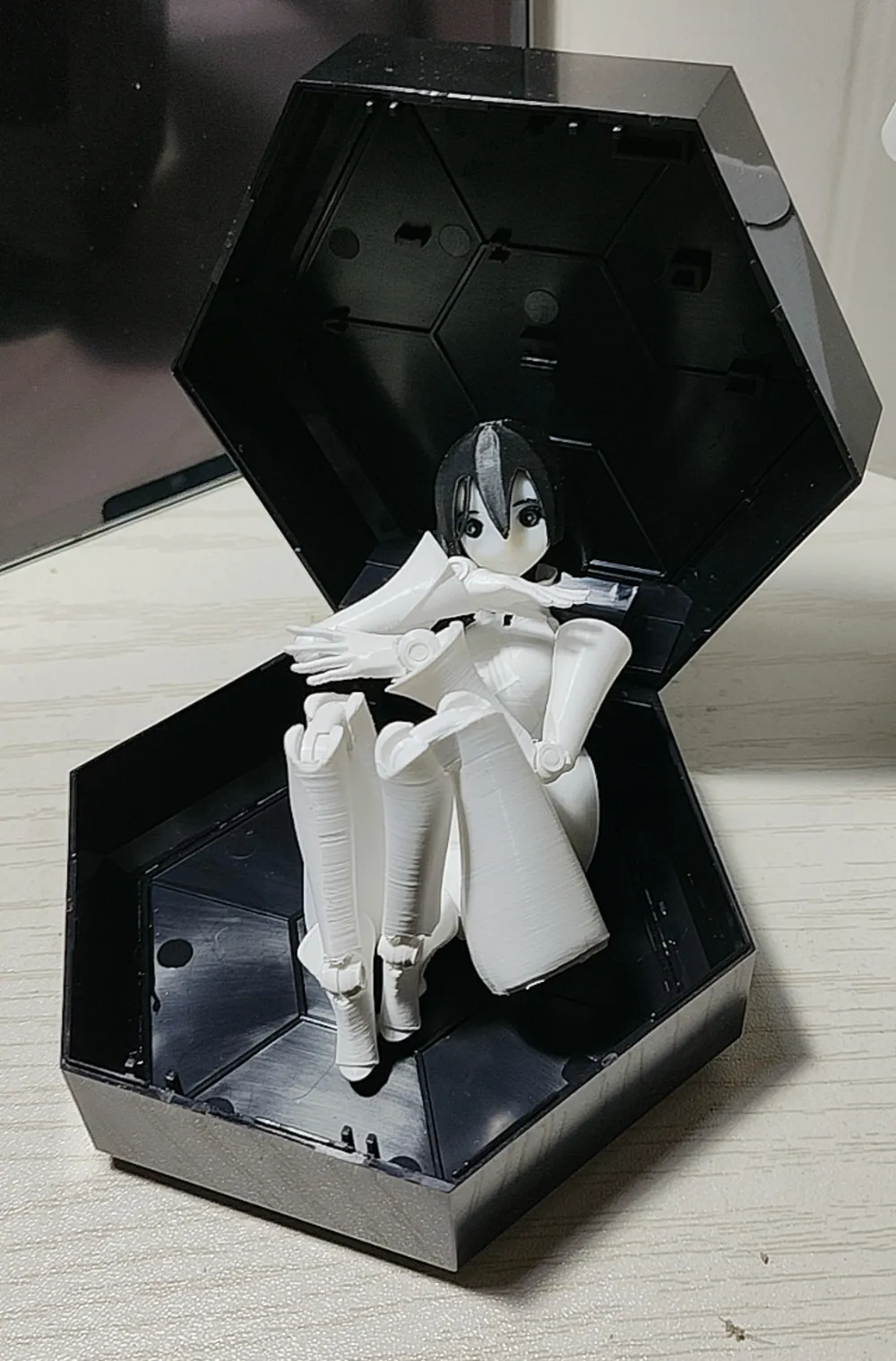

MONO_V2_Articulated 1/12 Figure

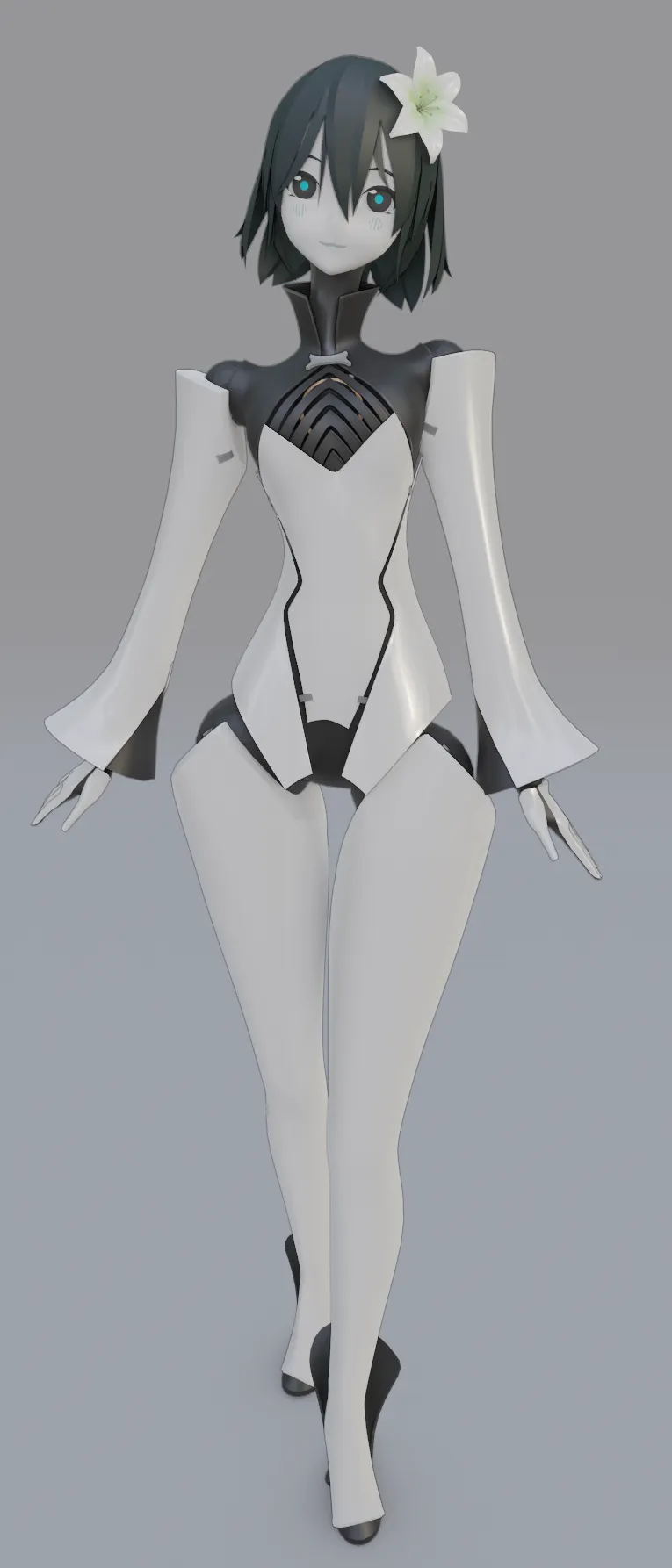

Following the previous version, please see the original OC design~

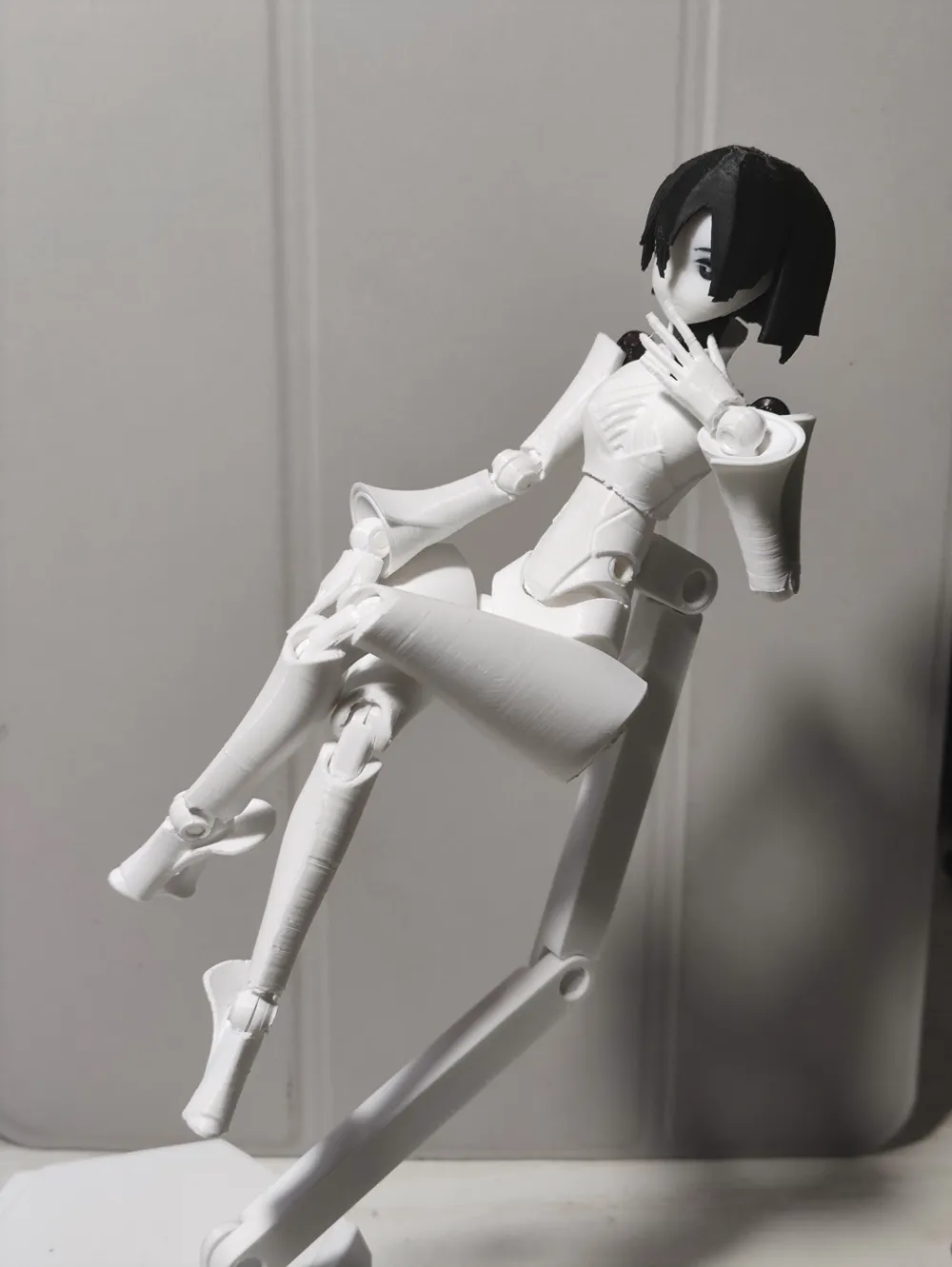

Version Introduction

• This V2 version addresses the issues of print shafts being prone to breaking and difficulty precisely adjusting damping by using TPU for AMS to print joint shafts, optimizing the play experience
• A snap-fit design was added for the rotation shafts and pins, eliminating the need for tight joint assembly
• Optimized and simplified the neck joint design, changing it to a ball-and-socket joint
• Optimized the chest and waist joint design, increasing the range of motion
• Completed the waist shape that was missing and not reproduced in the initial version
• Replaced the originally fragile 5mm joints with 6mm joints

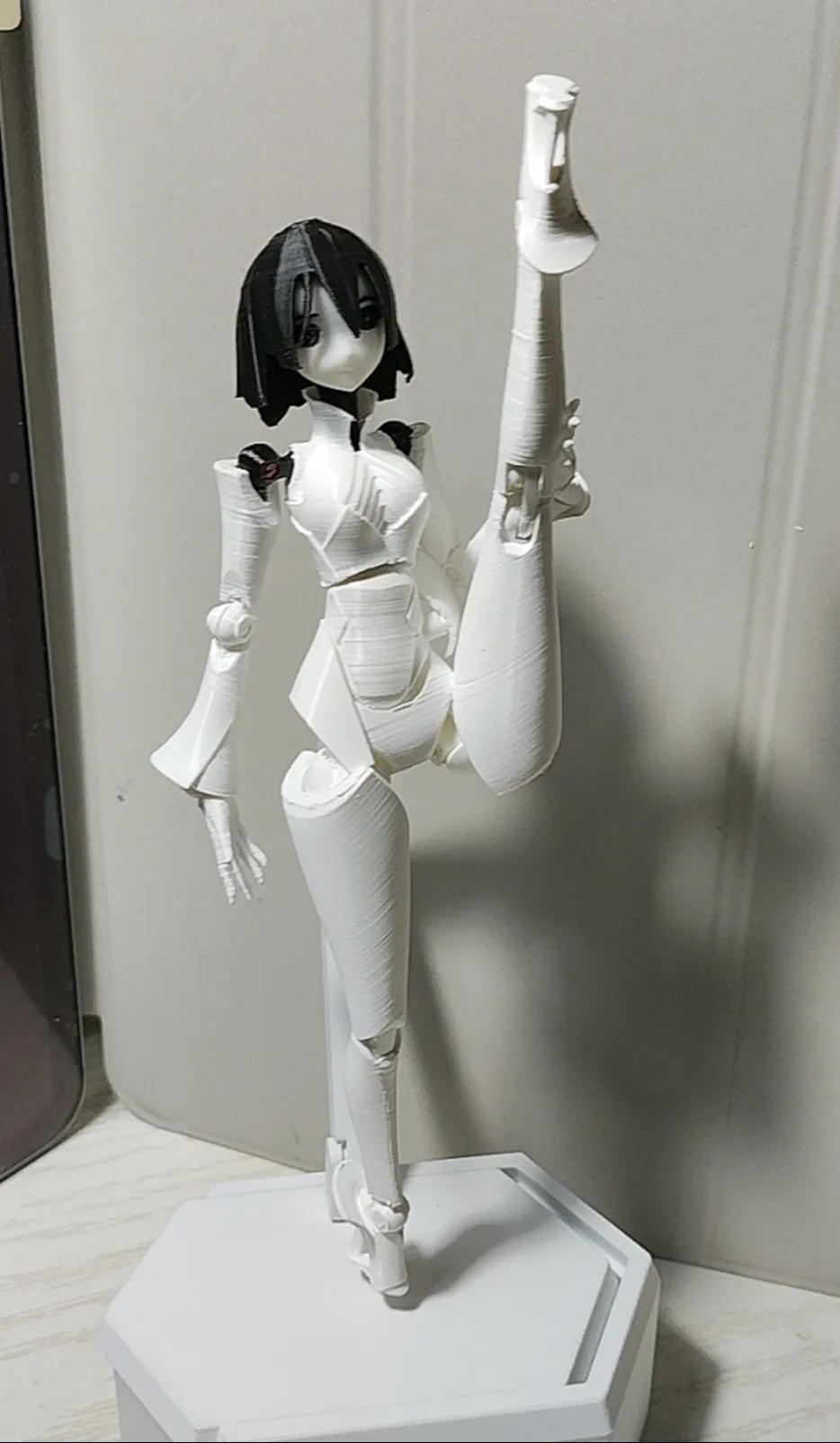

• Changed the hip joint to a double-axis joint, greatly increasing leg articulation
• Optimized facial features and changed to magnetic replacement for face and hair
• Adjusted color separation to be closer to the original design

Recommended Tools

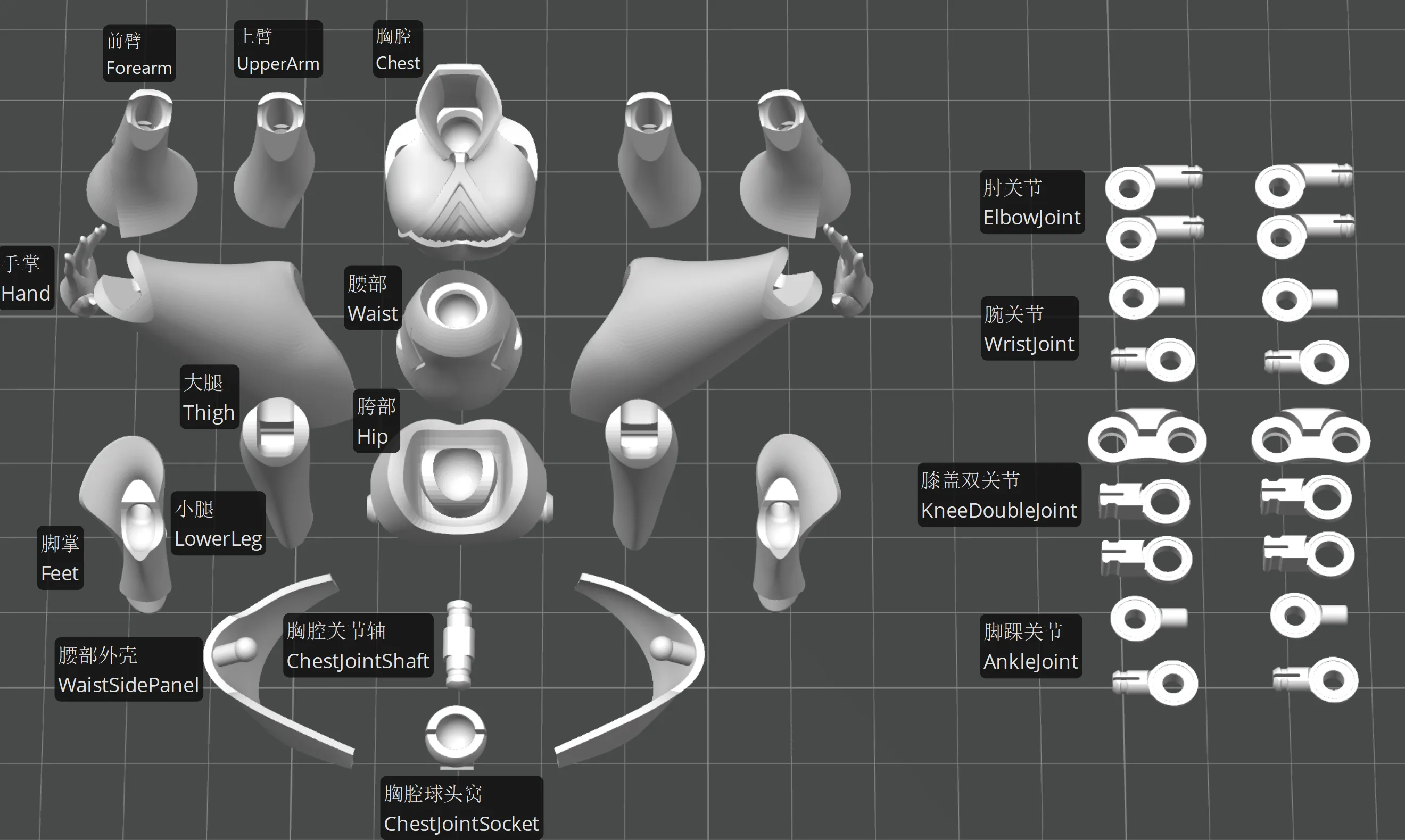

Model pliers - for cleaning supports on pins and possible TPU stringing

Sandpaper - for cleaning the support surfaces of pins and hair

3mm*1.5mm magnets *4 for head magnetic assembly (can be replaced by printed TPU pegs)

Filament Usage

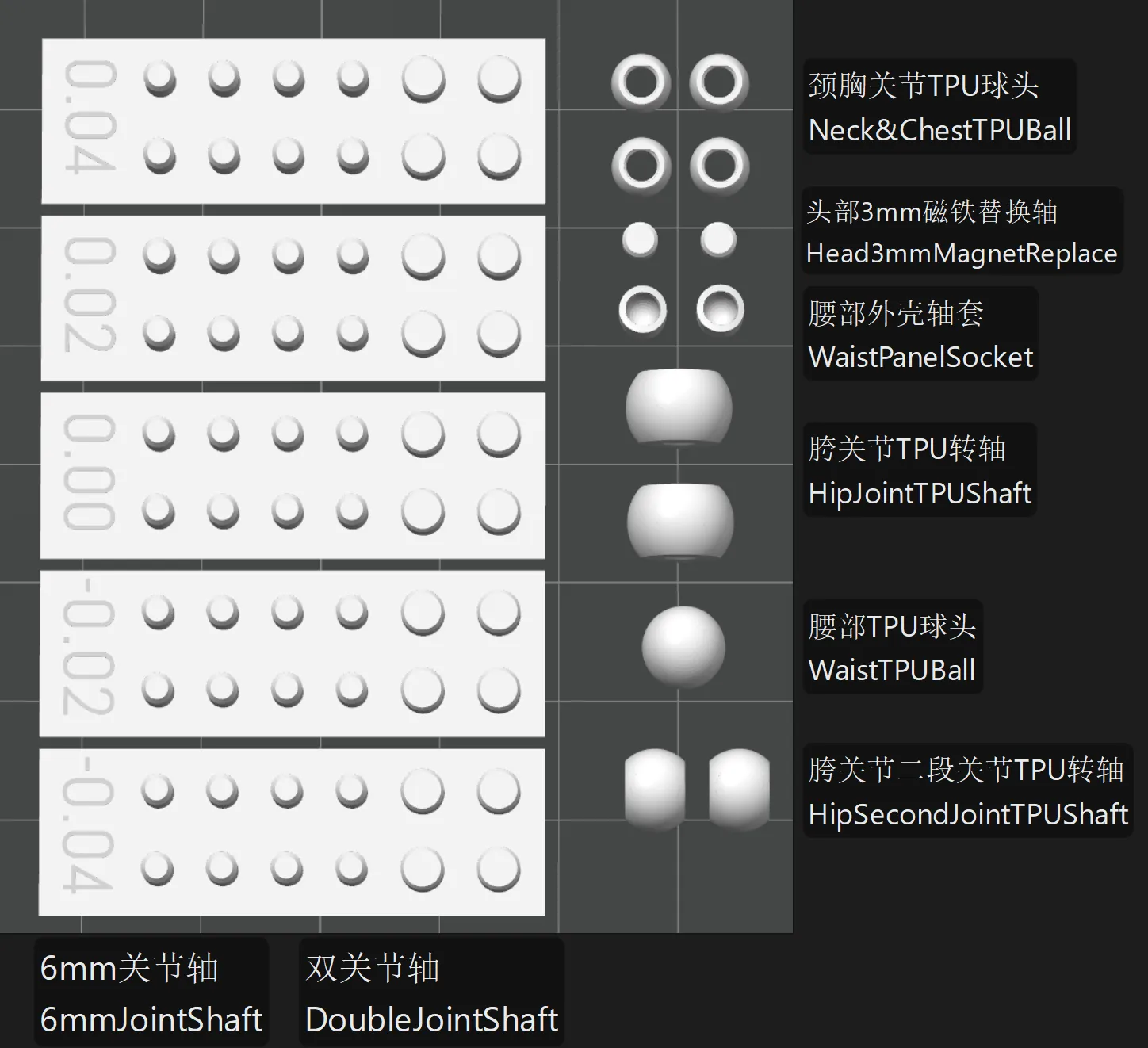

Joint rotation shafts use TPU for AMS, which as a flexible material has sufficient hardness to act as a shaft

For the face, PLA is strongly recommended; PETG printing accuracy is poor

For joints, PETG is recommended

Plate Layout Introduction

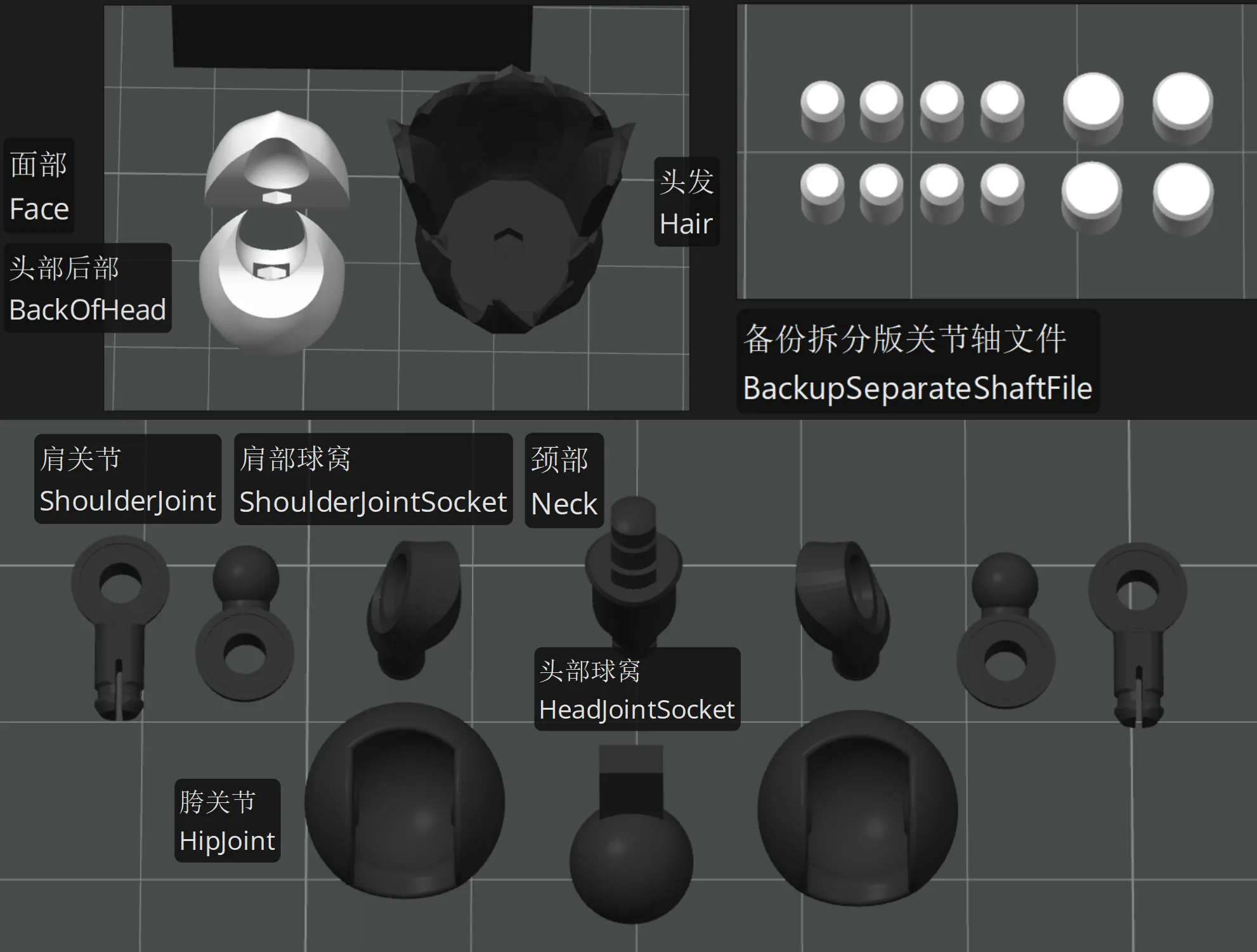

The provided STL files include Cutter files, which you can use to create your own articulated figures with this joint set!

Happy printing~
