SimHub Belt Tensioner Case

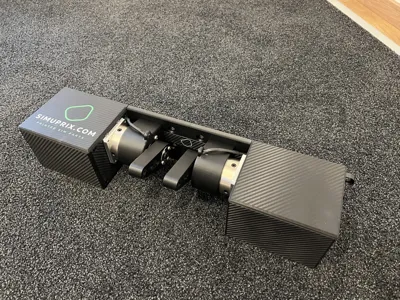

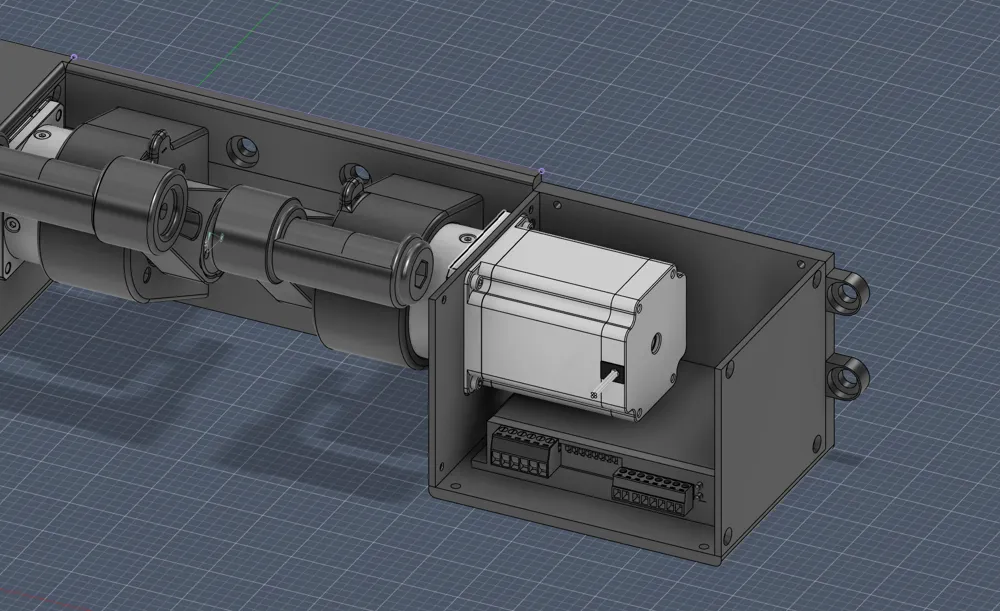

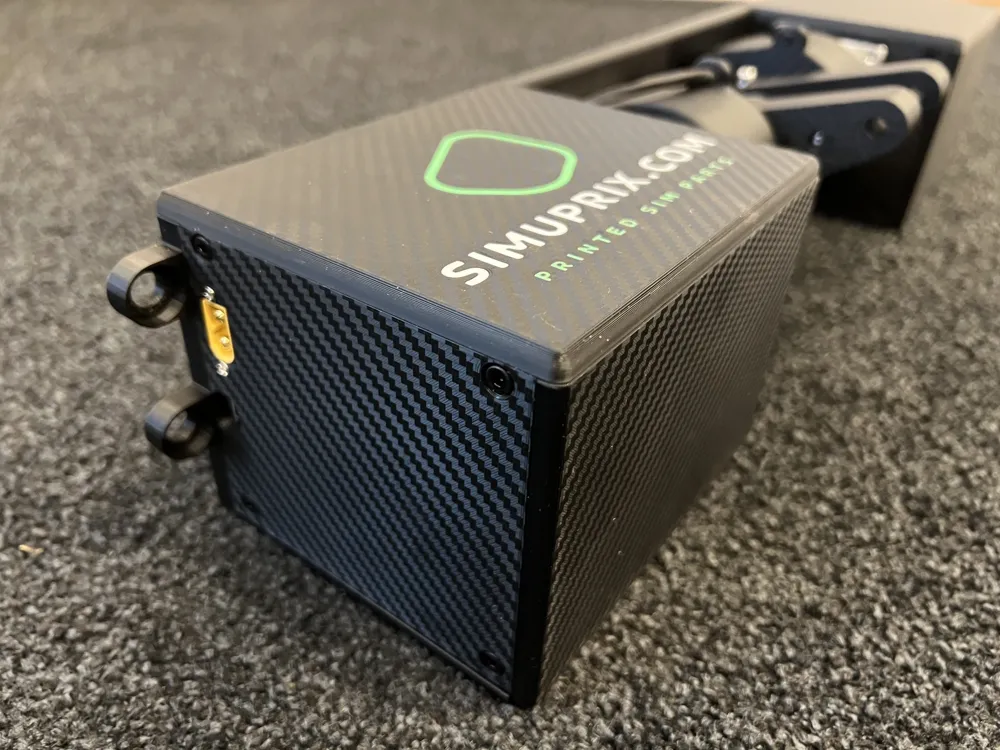

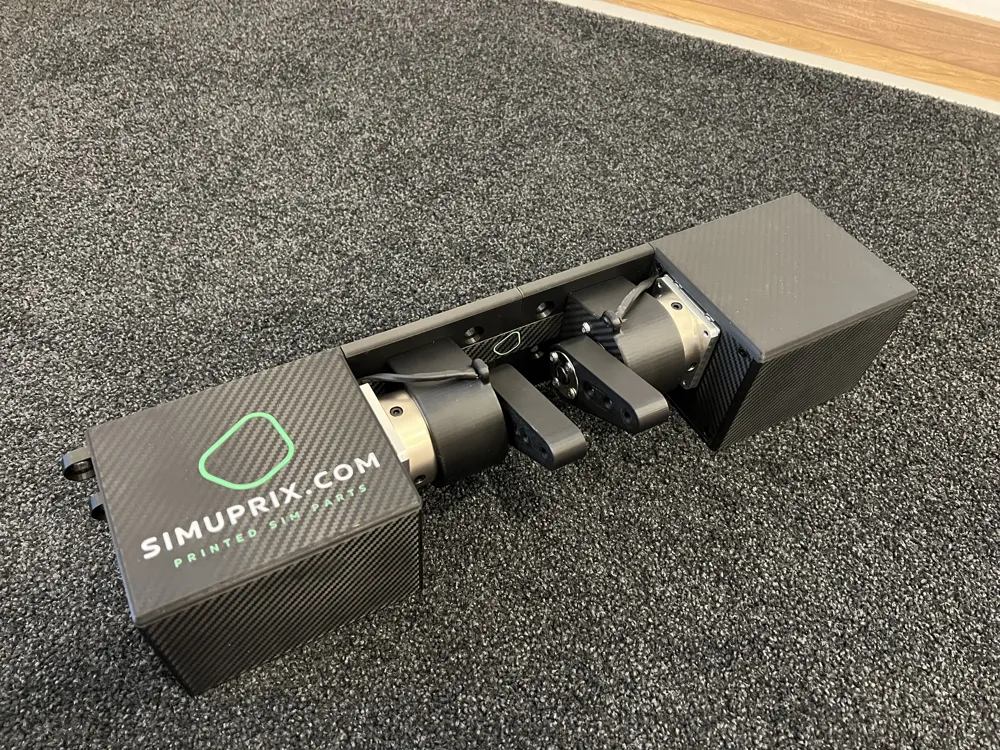

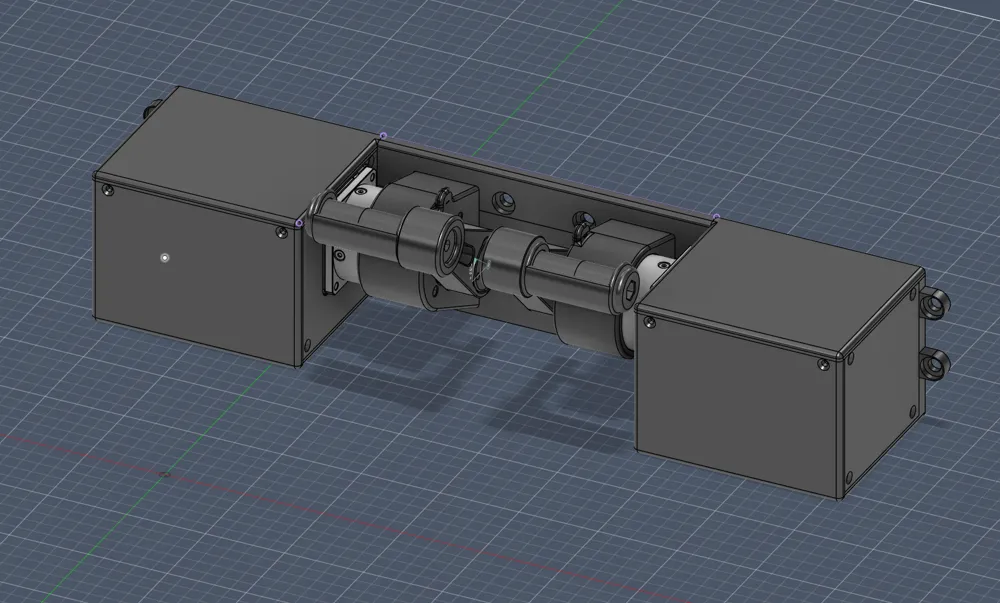

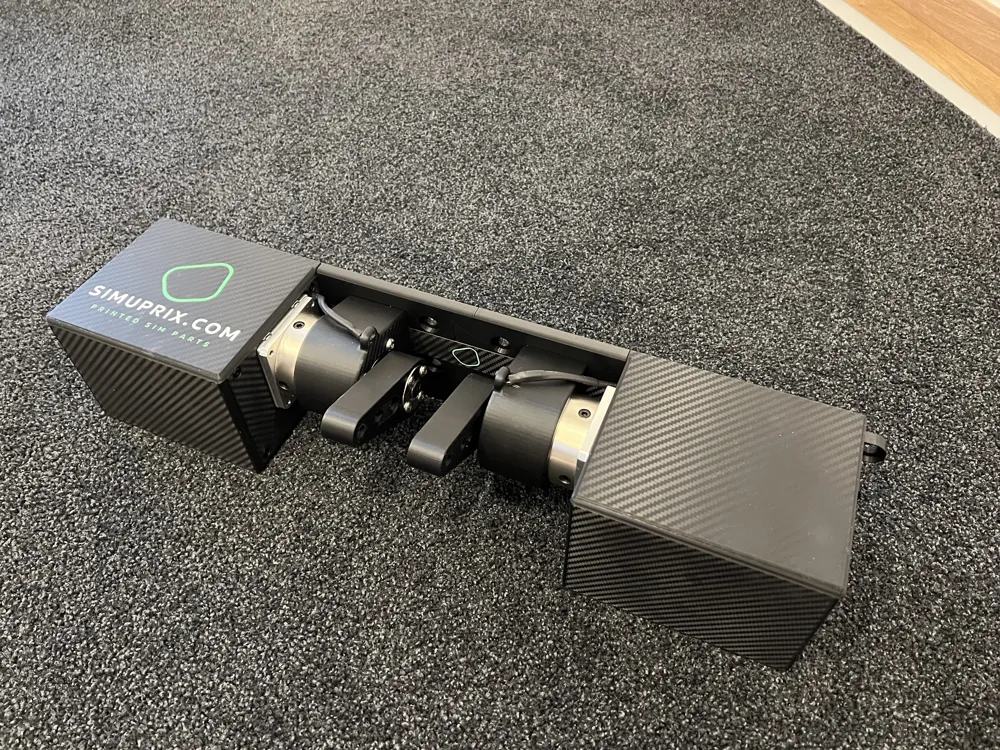

This case was developed for DIY SimHub belt tensioner systems and offers a compact solution for housing the necessary components. The design ensures a clean look and easy integration into sim racing rigs.

Features

✅ Easy to print
✅ Clean cable management
✅ Easy assembly and maintenance
✅ Ideal for SimHub Belt Tensioner projects

Please note: No step-by-step assembly instructions are included. Anyone undertaking such a project is expected to have sufficient technical knowledge and experience with electronics, mechanics, and 3D printing to figure out the assembly and setup themselves. Users are also expected to do their own research on GitHub regarding the software, firmware, and configuration of the project.

All parts were printed in PLA and after more than 100 hours of driving time, everything still holds up without problems.

Support

If you like the model, I'd appreciate a like, a follow, or a boost. This helps me publish more sim racing projects and models. 🏁🚗

Simhub Project: https://www.simhubdash.com/diy-belt-tensionner/
