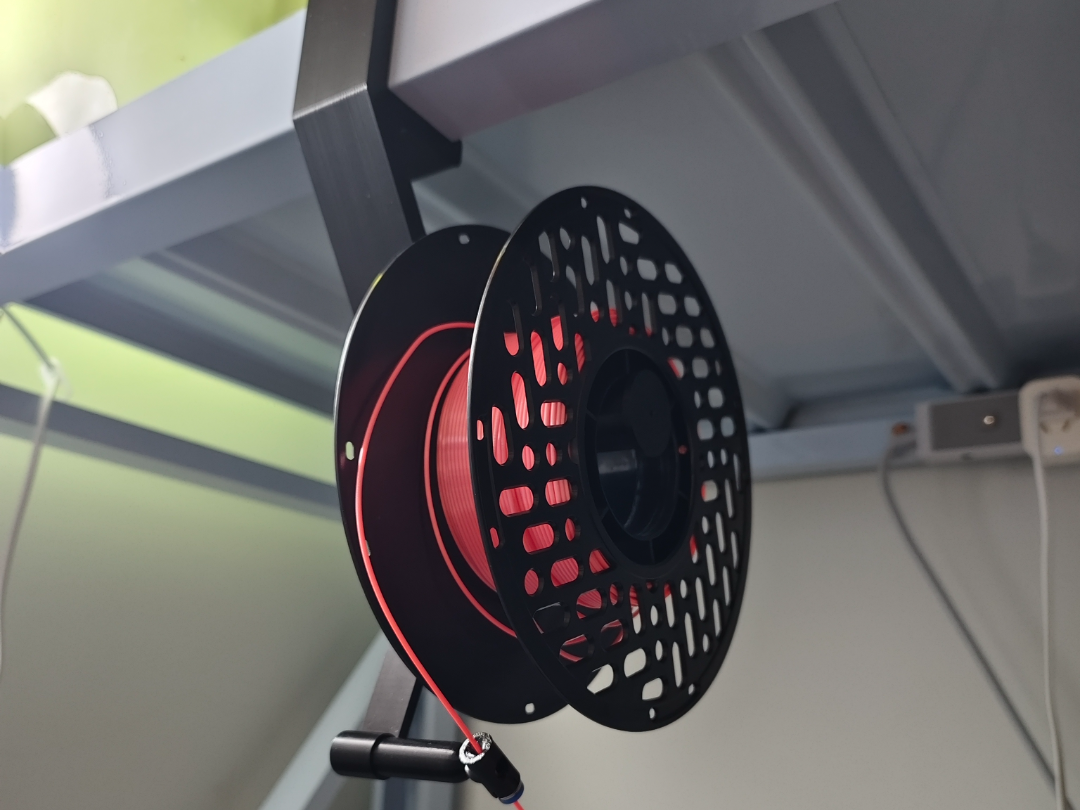

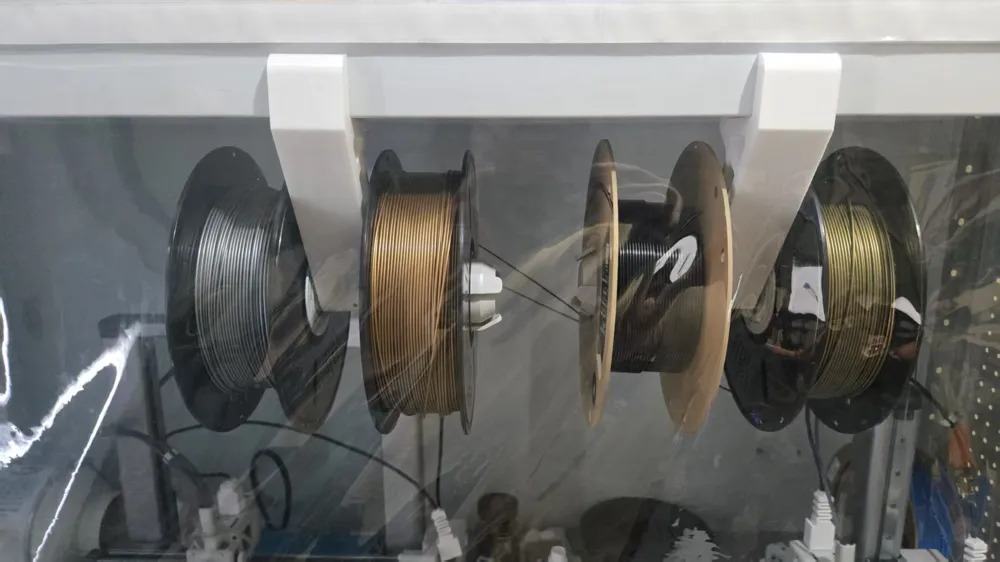

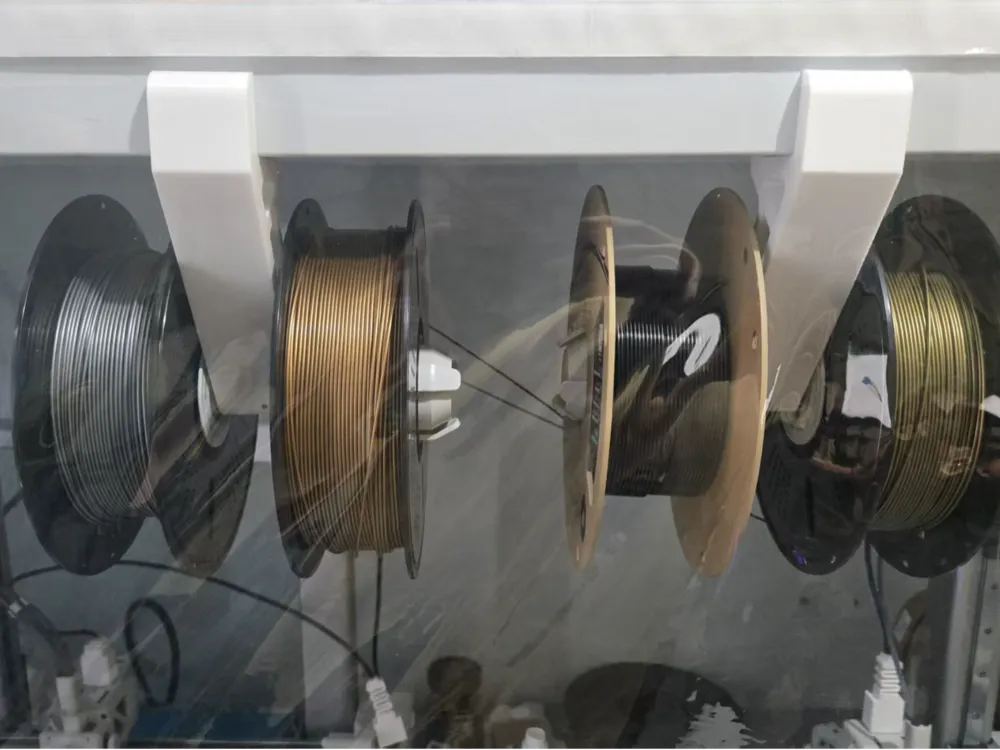

40mm Beam Spool Rack (AMS compatible)

This spool holder only supports 40mm wide shelf beams, please measure before use

Printed in PETG

I have used this model for two months without any issues (I was too busy to upload the file until now)

Each spool holder only requires two M5*20 screws

Since my usage environment does not require a guide rail, I did not design one (actually, I designed one once, but it wasn't very good, so I discarded it)

For AMS users, there are two options

The first option is to directly insert the disassembled AMS spool shaft onto the AMS spool holder and then secure it with the screws that come with the AMS you only need to print the "AMS shaft dedicated spool holder" from the second plate

The second option is to print the threaded spool holder and the threaded AMS spool shafts for both sides the two side shafts can be screwed directly into place you only need to print the first and third plates

Non-AMS users only need to print the first and fourth plates
(I have uploaded the original model file those who need it can modify the model themselves)
