UV-32 / DM-32 BNC Adapter Support Collar

Baofeng UV-32 / DM-32 BNC Adapter Support Collar

A small support collar/washer for the Baofeng UV-32 and DM-32 when using a common SMA to BNC adapter.

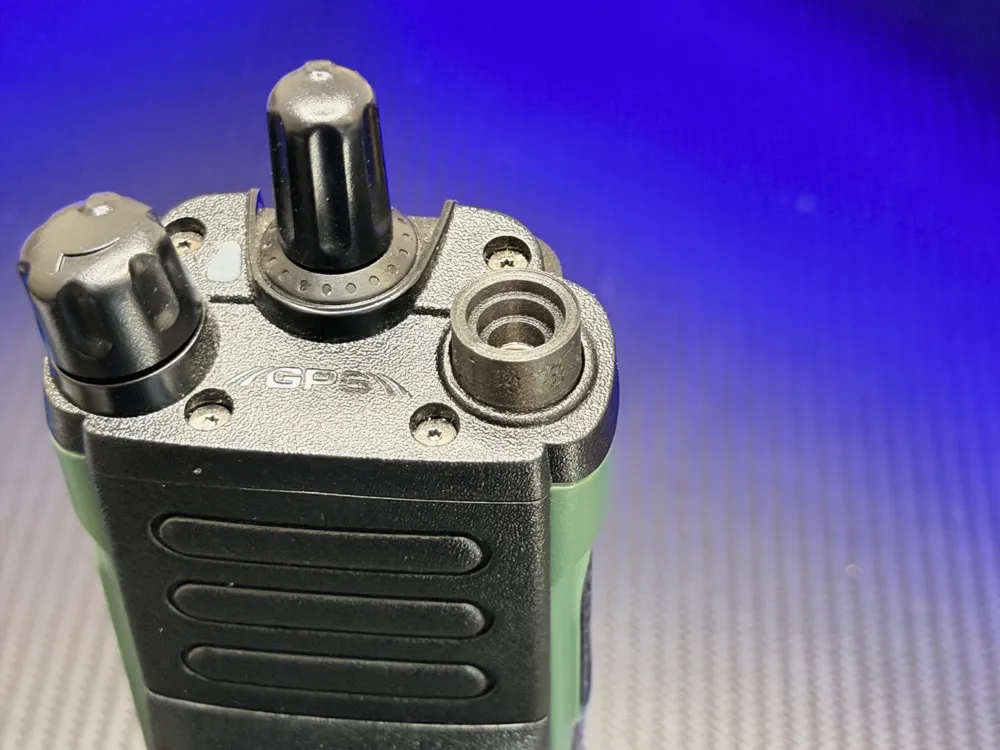

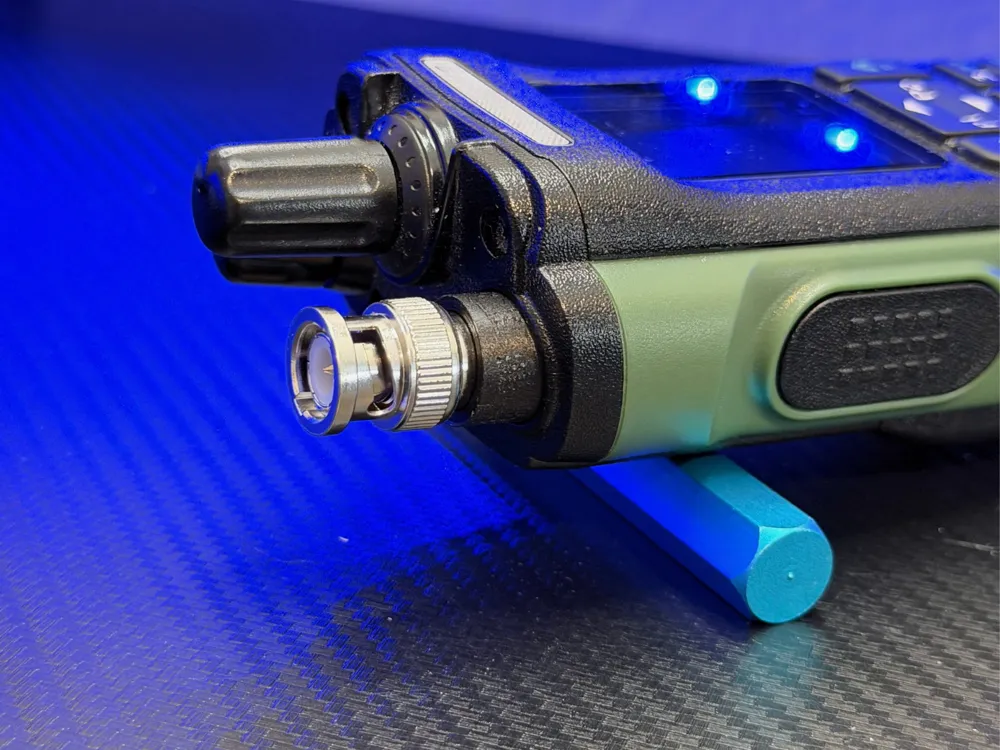

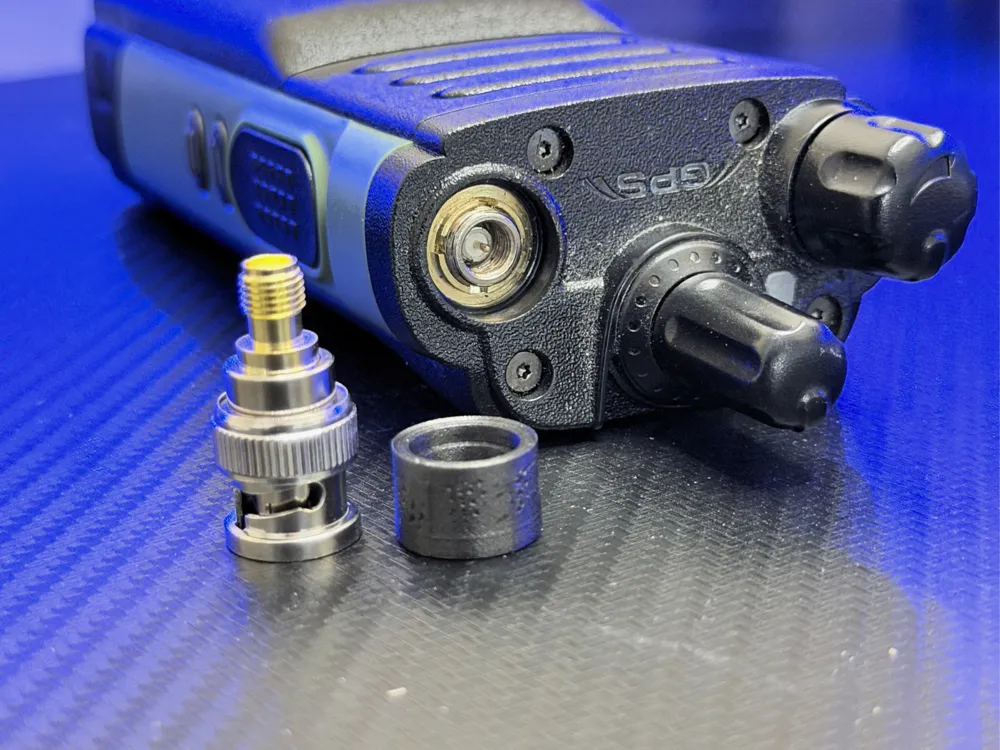

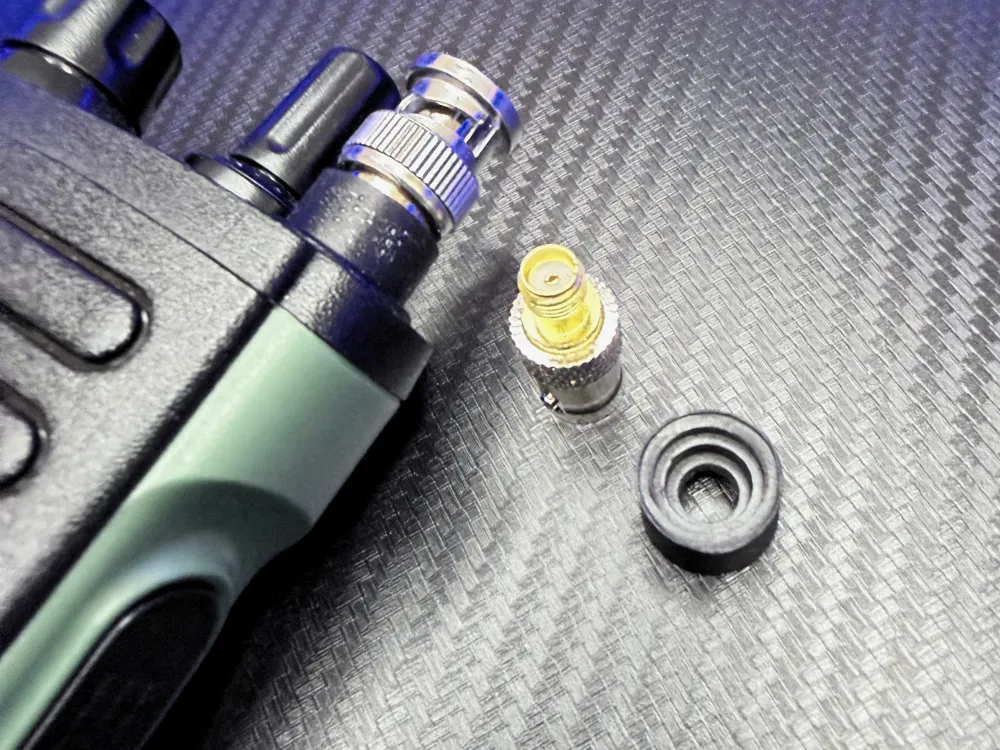

This part sits around the SMA to BNC adapter and helps cover/support the exposed stem area above the radio body. It makes the adapter feel more solid and gives the connector area a cleaner, more durable setup.

Fitment

Tested on a Baofeng UV-32 / DM-32 using a common SMA to BNC adapter like the onelinkmore SMA to BNC adapter kit.

This fit worked well on my radio and adapter, but please double check your own fit before relying on it. Small differences between adapters, filaments, and printers can change the final fit.

Material

Printed in PETG-CF using the included MakerWorld print profile with shrinkage compensation.

Because this is used around an antenna connector, I highly recommend doing your own conductivity test on the finished print before installing it. I tested mine, but carbon-filled filaments can vary, so do not assume your material is non-conductive.

Notes

• Fits Baofeng UV-32 and DM-32
• Designed for SMA to BNC adapter support
• Helps cover/support the weak exposed adapter stem
• Adapter, antenna, and radio are not included
• Snug fit by design
• Use the included print profile
• Double check fitment on your own radio and adapter

License / Use

Personal use is allowed.

Remixes are allowed so people can adjust the fit for their own adapter, printer, or radio setup.

Commercial sales of the file or printed parts are not allowed without my permission.
