Mechanical Keyboard Clicker Ball – Gateron Edition

Updates

6/10/2026 - Updated Shell to Switch engagement geometry for better fit. Original geometry could be overly tight where it could cause the switch to stick.

6/10/2026 - Added a Print-By-Object profile to the list. Since it is ideal to print the Core in black. With the use of an AMS, this profile will efficiently allow you to print the Core in black and the Shells in another color all in one print.

Related Switch Variants

This is the Gateron KS-33 Low Profile edition of the Mechanical Keyboard Clicker Ball.

Looking for the Kailh Low Profile V1 version? Check out the original model here:

🔗 Mechanical Keyboard Clicker Ball - Free 3D Print Model - MakerWorld

The overall design, size, and assembly process are the same. The primary difference is compatibility with Gateron KS-33 Low Profile switches, allowing users to choose the switch ecosystem that best matches their preferences.

Mechanical Keyboard Clicker Ball

A compact, satisfying fidget toy built around 12 Gateron KS-33 Low Profile mechanical keyboard switches.

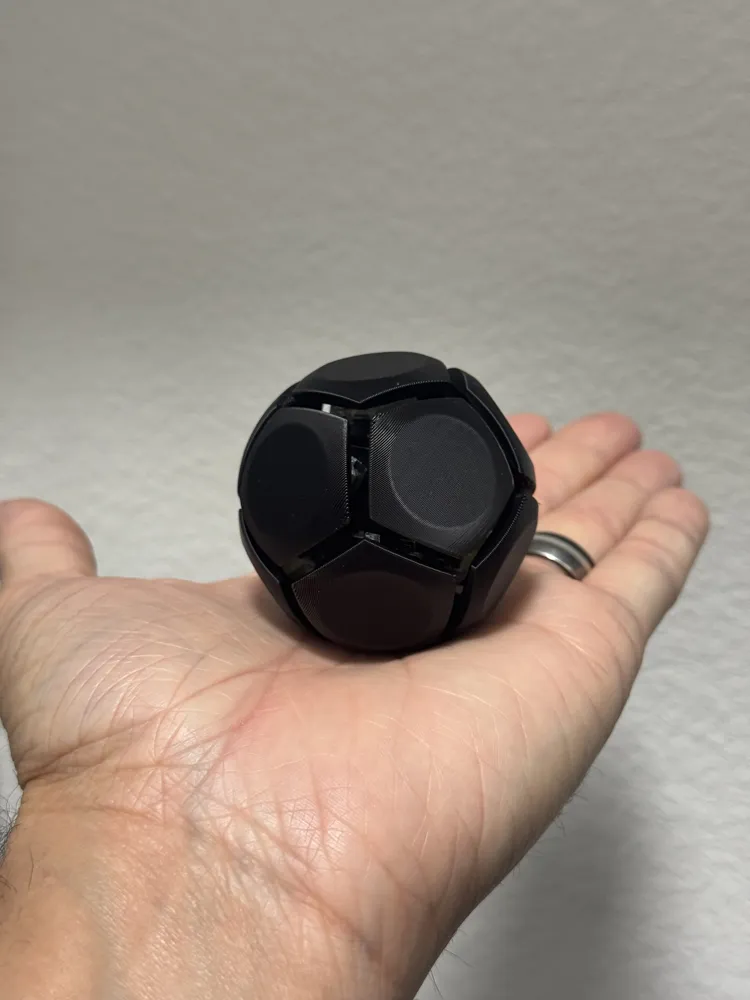

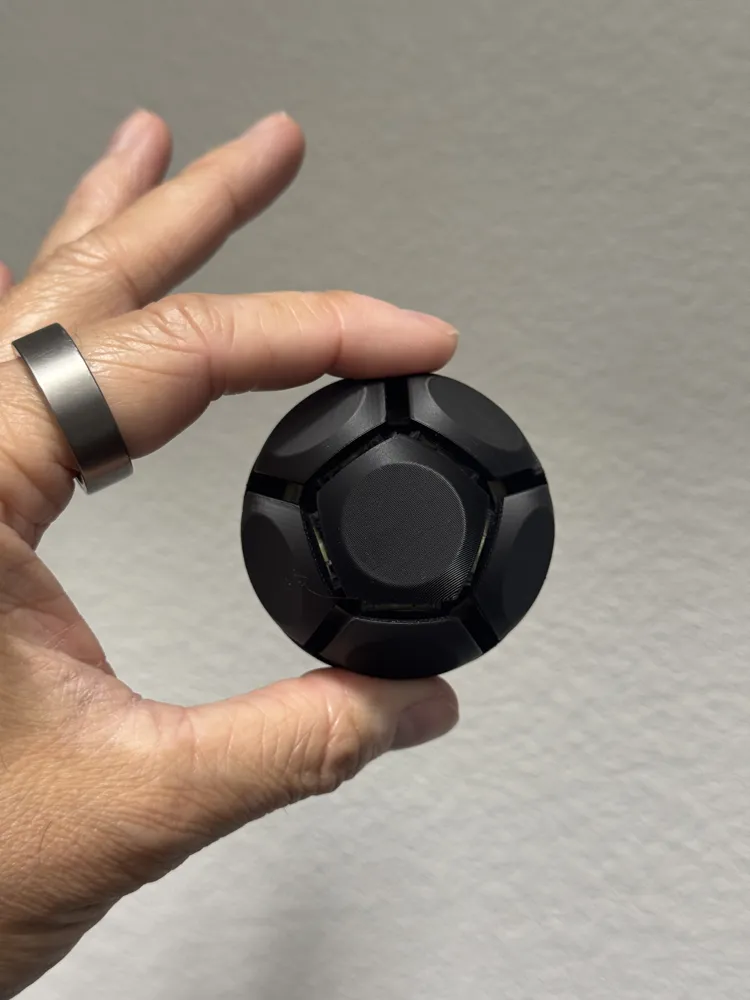

The goal of this design was simple: create the most compact clicker ball possible while keeping the tactile feel of real keyboard switches. The result is a fully mechanical clicker ball measuring only 50mm (2") in diameter and using approximately 30g of filament.

Every face of the ball provides a satisfying mechanical click, making it perfect for desks, meetings, gaming setups, or anyone who appreciates the feel of mechanical keyboard switches.

Features

✅ Uses 12 Gateron KS-33 Low Profile switches

✅ Compact 50mm (2") diameter

✅ Only ~30g of filament

✅ No glue required

✅ Fully mechanical tactile feedback

✅ Snap-fit assembly

✅ Lightweight and pocket-friendly

✅ Optimized for fast printing

Custom Designed Supports

The shell pieces include custom-designed integrated supports that are printed as part of the model.

Unlike traditional slicer-generated supports, these supports were specifically engineered for the geometry of each shell segment, providing:

• Clean support interfaces
• Excellent surface finish
• Easy removal
• Consistent print results

Simply print the included files and remove the supports after printing.

Assembly

Assembly is straightforward:

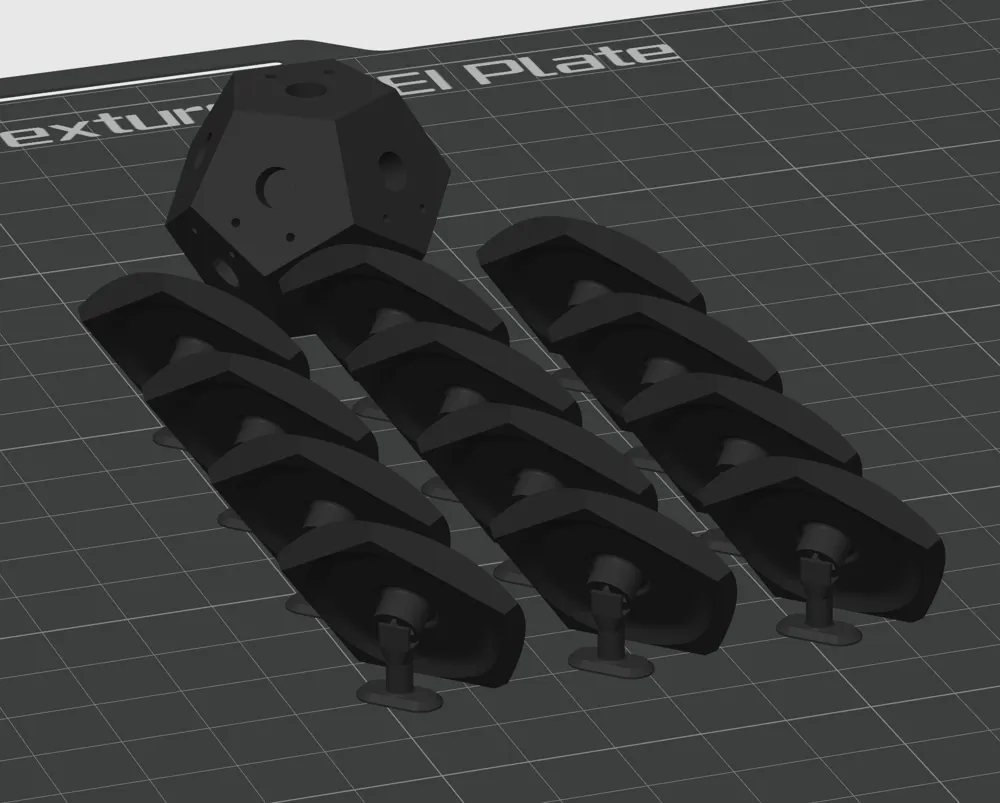

1. Print the center core and 12 shell segments.

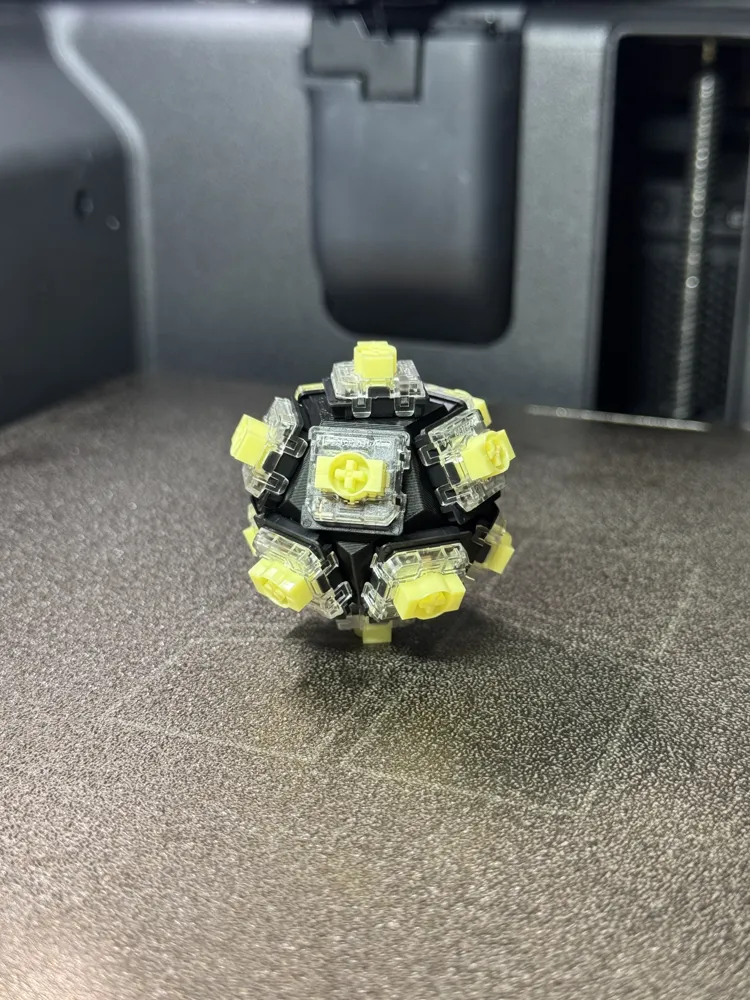

2. Install the 12 Gateron KS-33 Low Profile switches into the core.
3. Snap the shell segments into place.
4. Start clicking.

No glue, magnets, screws, or additional hardware required beyond the switches.

Switch Compatibility

This model was specifically designed around Gateron KS-33 Low Profile mechanical keyboard switches.

Link: GATERON KS-33 Low Profile 2.0 Keyboard Switches, 3 Pin Black Bottom Factory Pre-lubed for Low Profile MX Mechanical Keyboard (Blue, 110PCS): Amazon.com: Industrial & Scientific

Other switch styles have not been tested and may not fit correctly.

Print Settings

Recommended:

• 0.20mm layer height
• PLA recommended
• Supports disabled (custom supports are already included in the shell files)

Colors

Only recommendation on color is a black core will help hide the switches but is not required. I'm uploading a two-plate version so the core can be printed in a different color than the shells!

If You Print One...

I'd love to see your build!

Please consider:
⭐ Rating the model
📷 Posting photos
🚀 Boosting if you enjoy it

Seeing everyone's color combinations and switch choices is one of the best parts of sharing designs with the community.

More Clicker Ball Variants

This model is part of the Mechanical Keyboard Clicker Ball series.

Available versions:

• Kailh Low Profile V1 Edition (link at the top)
• Gateron KS-33 Low Profile Edition (this model)

Additional switch-compatible versions may be released in the future.
