Knife Ejection Button Perfekt EM 100 Electric Knife
IP Report
Print Profile(1)
0.2mm nozzle, 0.1mm layer, 4 walls, 15% infill
Designer
1.3 h
1 plate
Open in Bambu Studio
Boost
0
0
0
0
0
0
Released
Description
Content has been automatically translated.

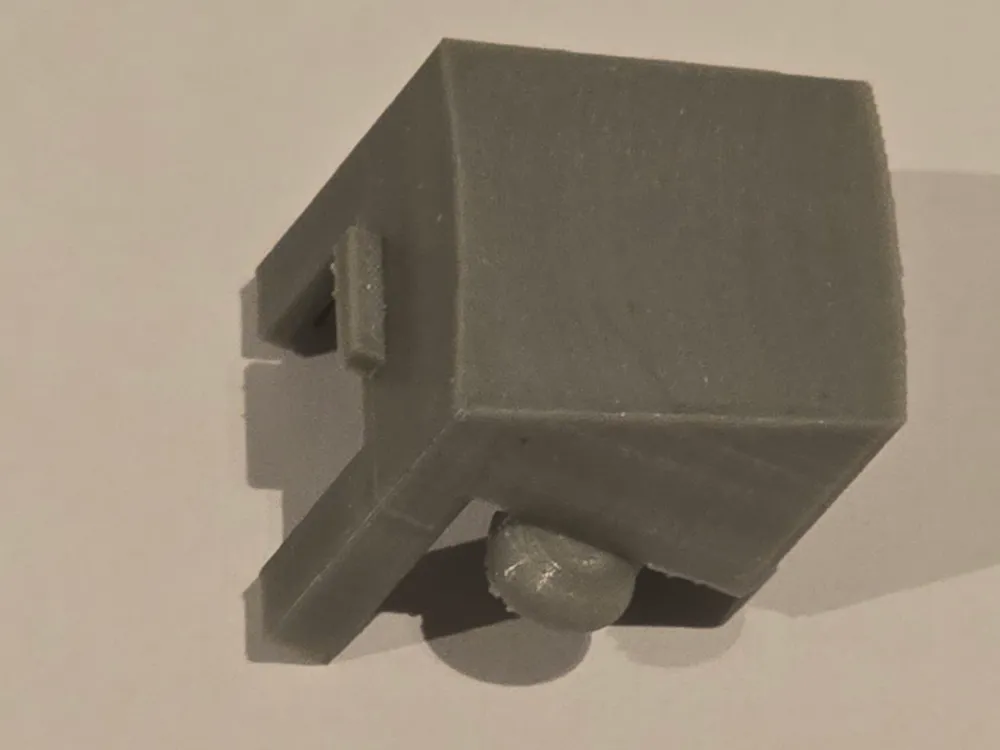

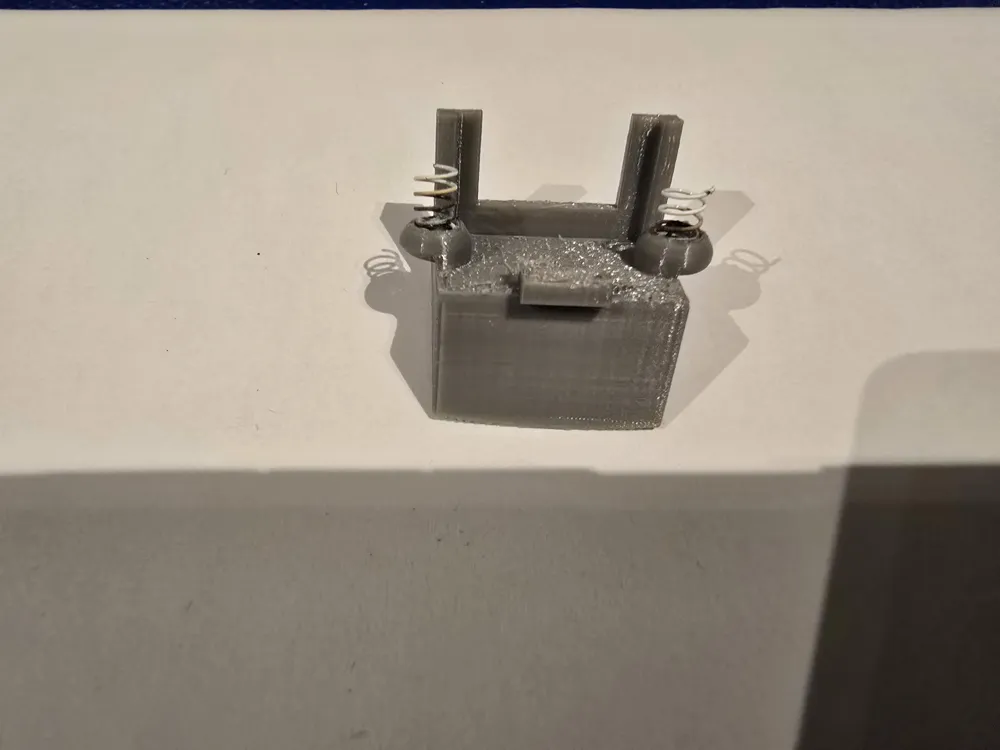

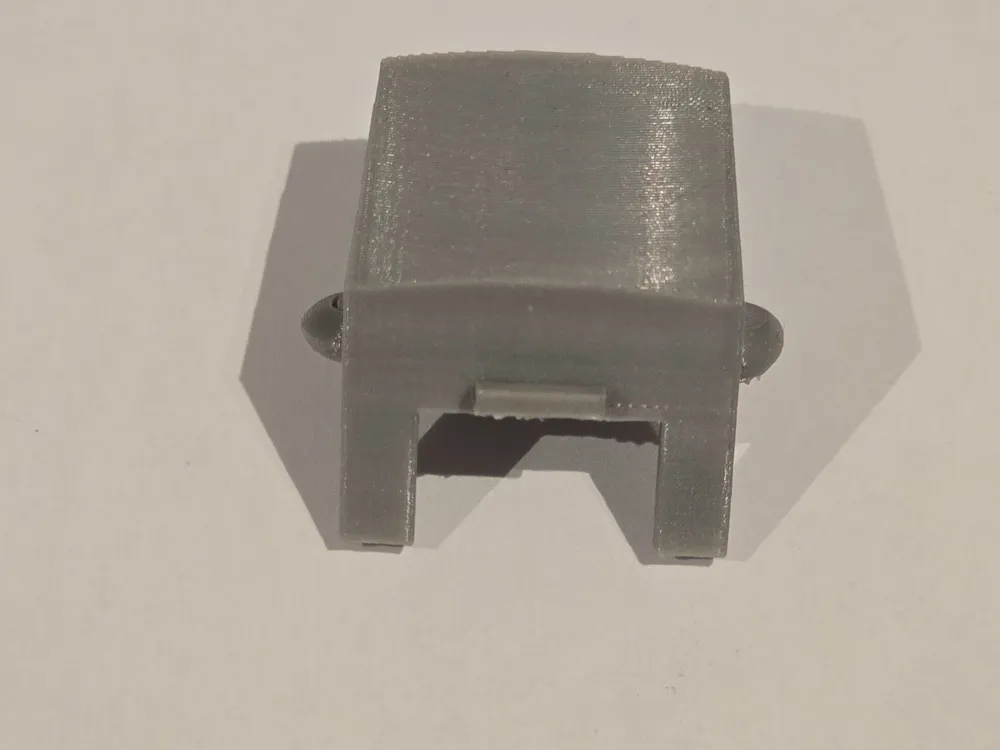

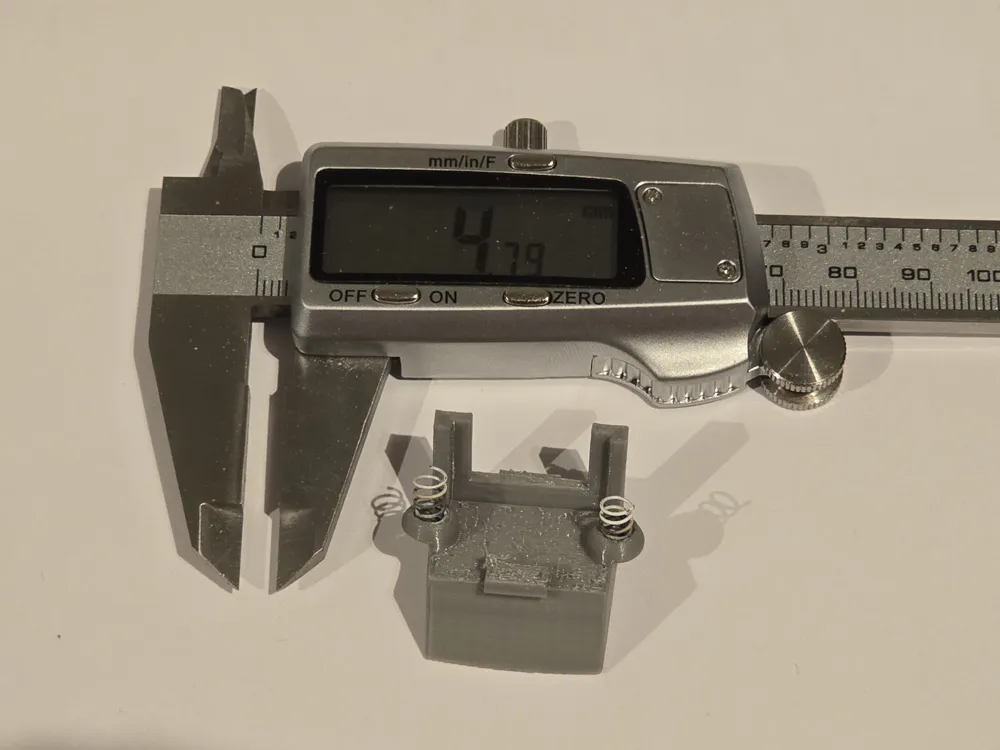

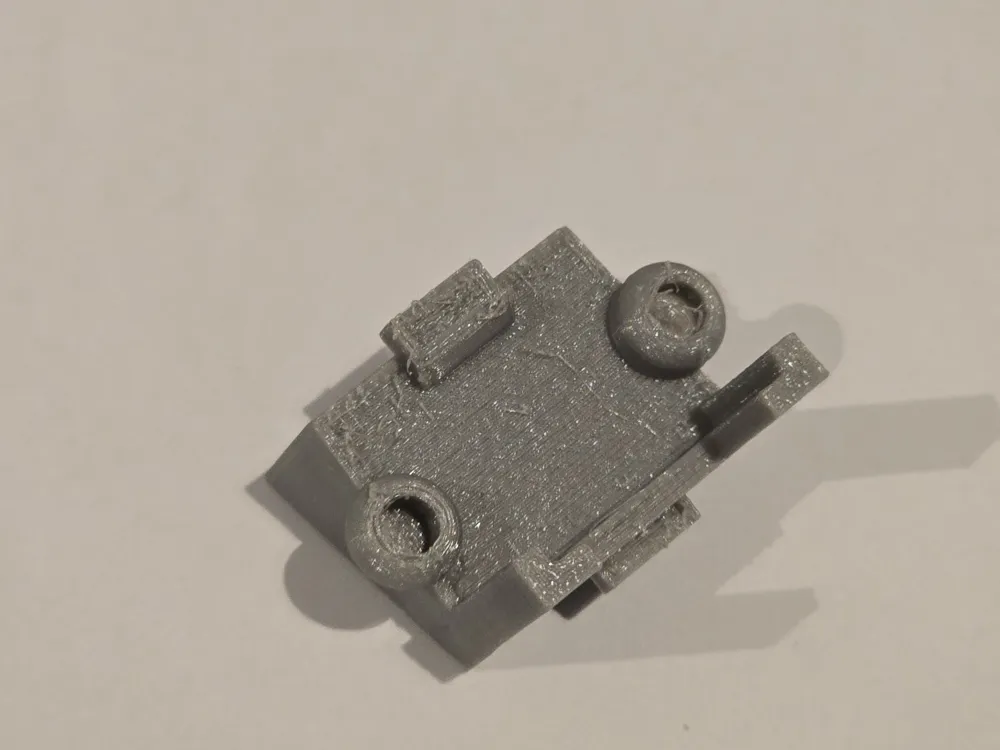

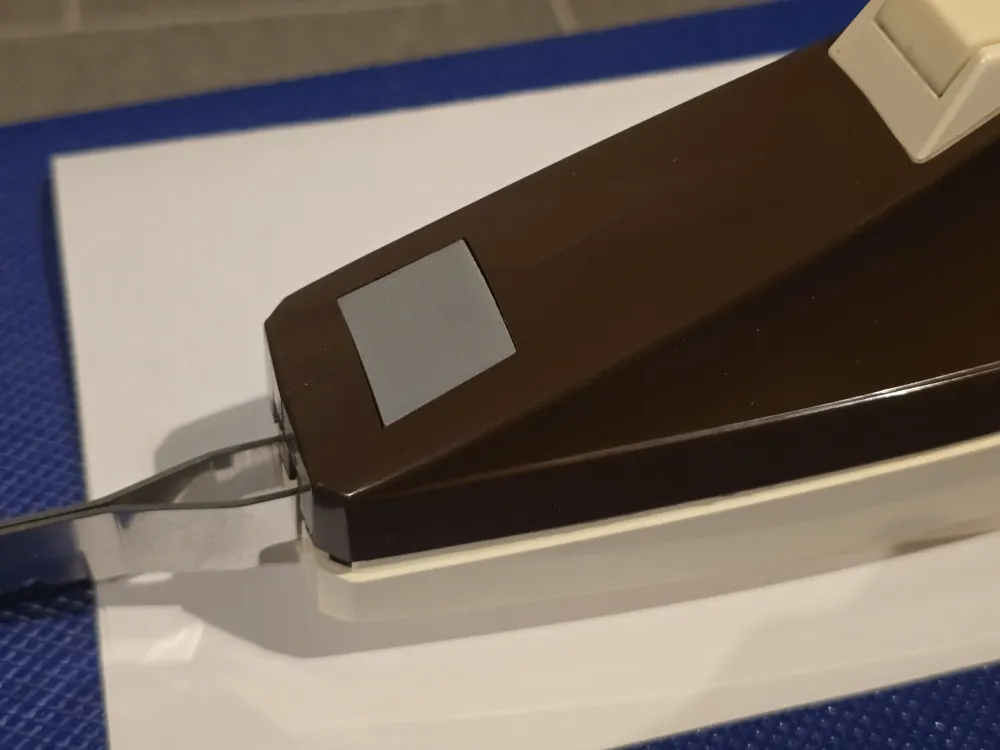

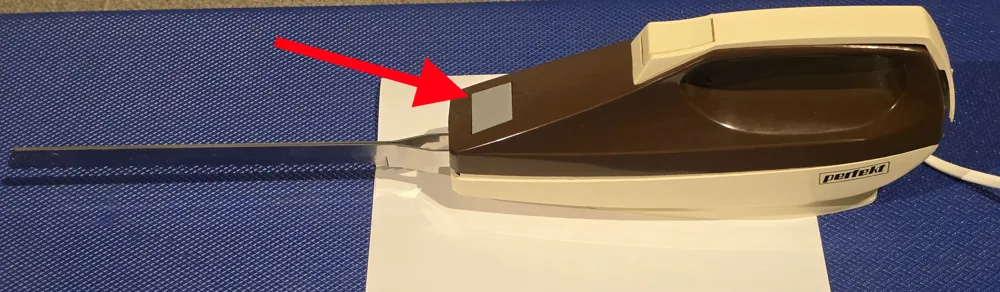

A replacement button for the knife ejector of a Perfekt EM 100 electric knife (vintage). The button's spring mechanism is provided by a spring removed from a ballpoint pen, which is divided into two halves in the middle. These two springs are then heated with a lighter and fused with the PETG. When installed, the springs should protrude approximately 4.8 mm from the hole and have a loose compression, meaning they can be very easily and completely compressed to almost zero. If the springs are even minimally longer, it may not be possible to press the button down at all; in this case, shorten the springs again.
Printed with PETG, 0.2mm nozzle and “Support enabled”.
License
This user content is licensed under a
Creative Commons Public Domain
