Midea PortaSplit Hose Window Pass-Through System
Print Profile(1)
Description

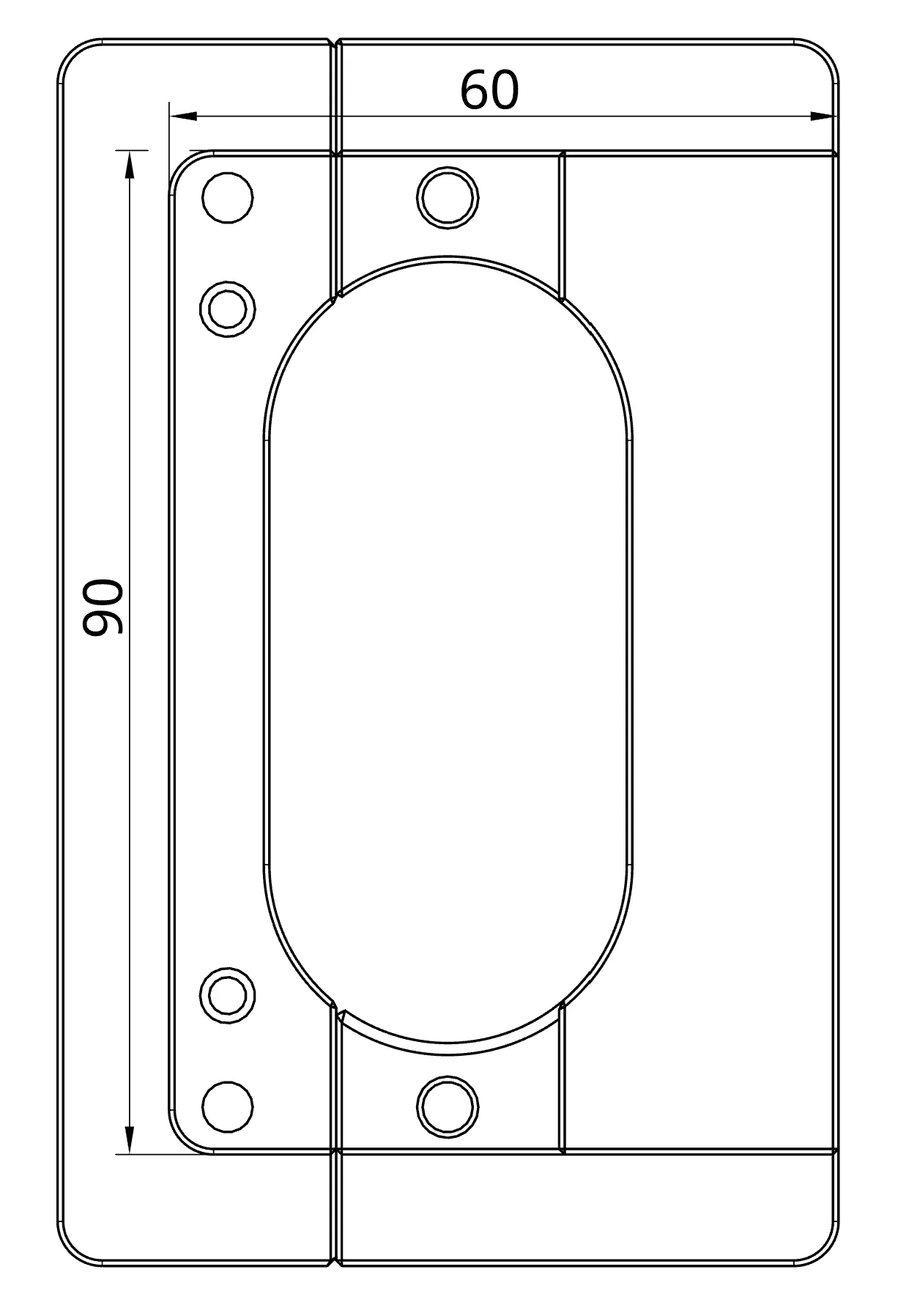

This collection of 3D-printable models is designed to securely mount a 4 mm acrylic panel in a window opening and provide a sealed pass-through for the hose of a Midea PortaSplit air conditioner.
The system consists of modular components that hold the acrylic sheet in place while creating a tight connection around the hose opening. The design focuses on improving the overall sealing of the installation compared to common temporary window solutions.
A well-sealed installation helps reduce the exchange of indoor and outdoor air, which can improve cooling efficiency during hot summer days. The acrylic panel and sealing system can also help reduce the transmission of outside noise through the window opening.
Key features:
- Designed for use with a 4 mm acrylic sheet
- Compatible with the hose of the Midea PortaSplit air conditioner
- Modular 3D-printable components
- Airtight sealing concept to minimize unwanted airflow
- Improved thermal separation compared to an open or partially sealed window installation
- Reduced transmission of outdoor noise
- Reusable and easy to remove when no longer needed
The models are intended for users who want a more permanent and better-sealed window installation while maintaining the flexibility of a removable air conditioner setup.
For easier installation a handle that can be mounted to the acrylic sheet is also included. I'm using only one handle, but you can also print two. The distance between the holes for the handle is 110mm.
Hardware needed:
- M4 nuts for the passthrough parts and the thumb screws
- 2xM4 bolts ~8mm with countersunk heads for the passthrough parts
- 2xM4 bolts ~10mm with thumbscrew heads for fixing the last part
- 2xM4 bolts ~10mm with countersunk heads for each handle
- More M4 bolts for the window fasteners
Please verify all dimensions before printing. Let me know and leave a comment if you need other sizes!
